This Kubota Operator's Manual covers the T2090BR-AU, T2290KW-AU, and T2290KWT-AU lawn tractors, powered by the GH660V and GH739V-3 engines. It is the factory operator's manual, publication K1029-7121-4, running 78 pages for owners who operate and maintain these machines.Inside you get safe operating procedures, the full specification table, the instrument panel and control layout, engine and machine operation, mower mounting, and cutting-height adjustment. A complete maintenance schedule lays out service intervals for each of the three models.The manual also walks through periodic service, mower deck leveling, tightening torque values, seasonal storage, and a troubleshooting chart for the engine, battery, machine, and mower. Whether you are checking oil capacities, setting tire pressures, or chasing a no-start, this PDF gives you the numbers and steps Kubota built for these tractors.
What's Inside This Kubota T2090BR-AU, T2290KW-AU, T2290KWT-AU Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 8-17 | General, BEFORE OPERATING THE MACHINE, OPERATING THE MACHINE, Working the Machine, Pulling Loads, Operating on Slopes, Safety for Children, Operators, Age 60 Years and Older, Stopping the Machine, TRA |
| Servicing of Machine | 18-19 | Product Identification Numbers, Warranty, Scrapping the Machine and Its Procedure |

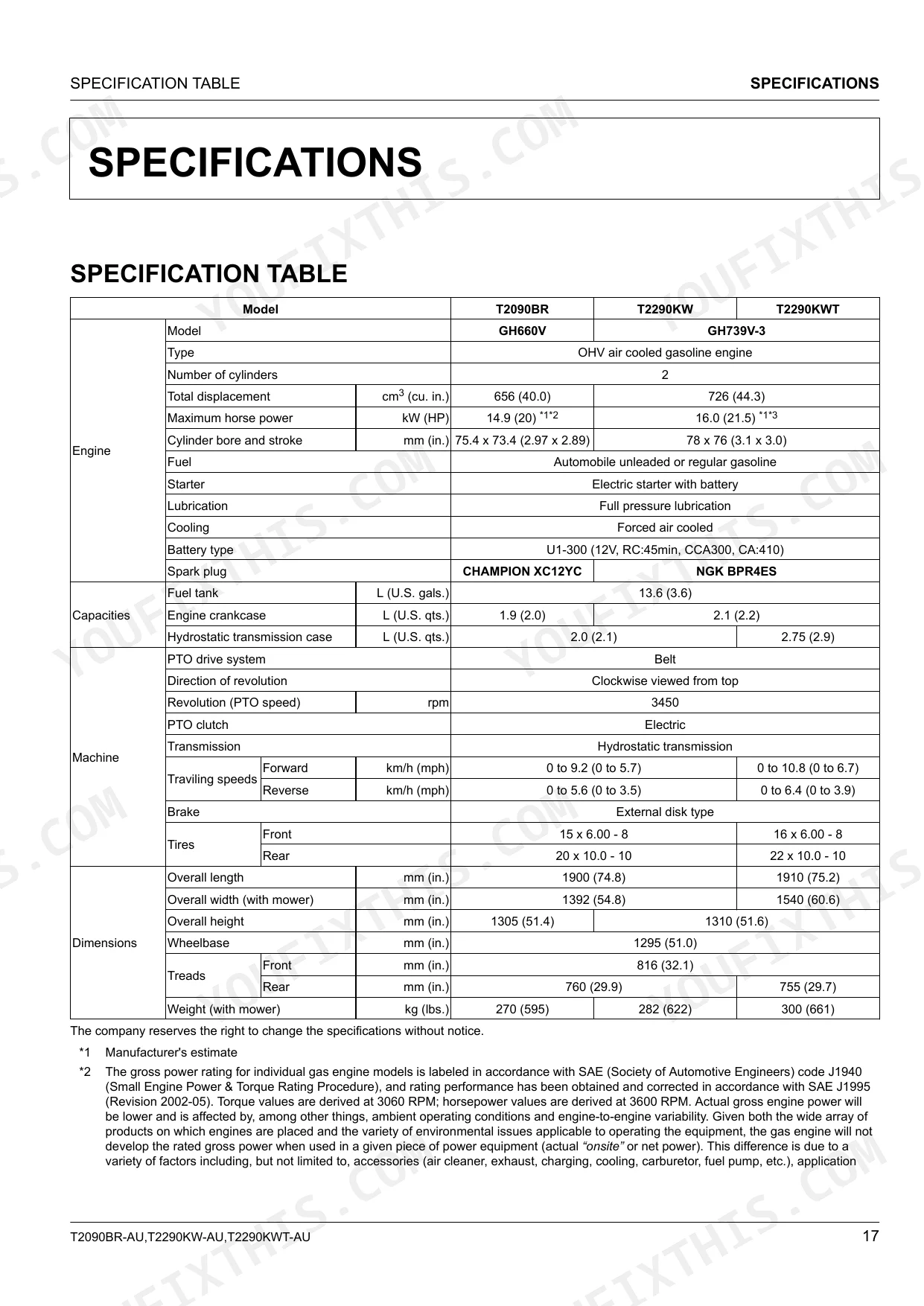

| Specifications | 20-21 | Specification Table (Engine, Capacities, Machine, Brake, Tires, Dimensions, Weight) |

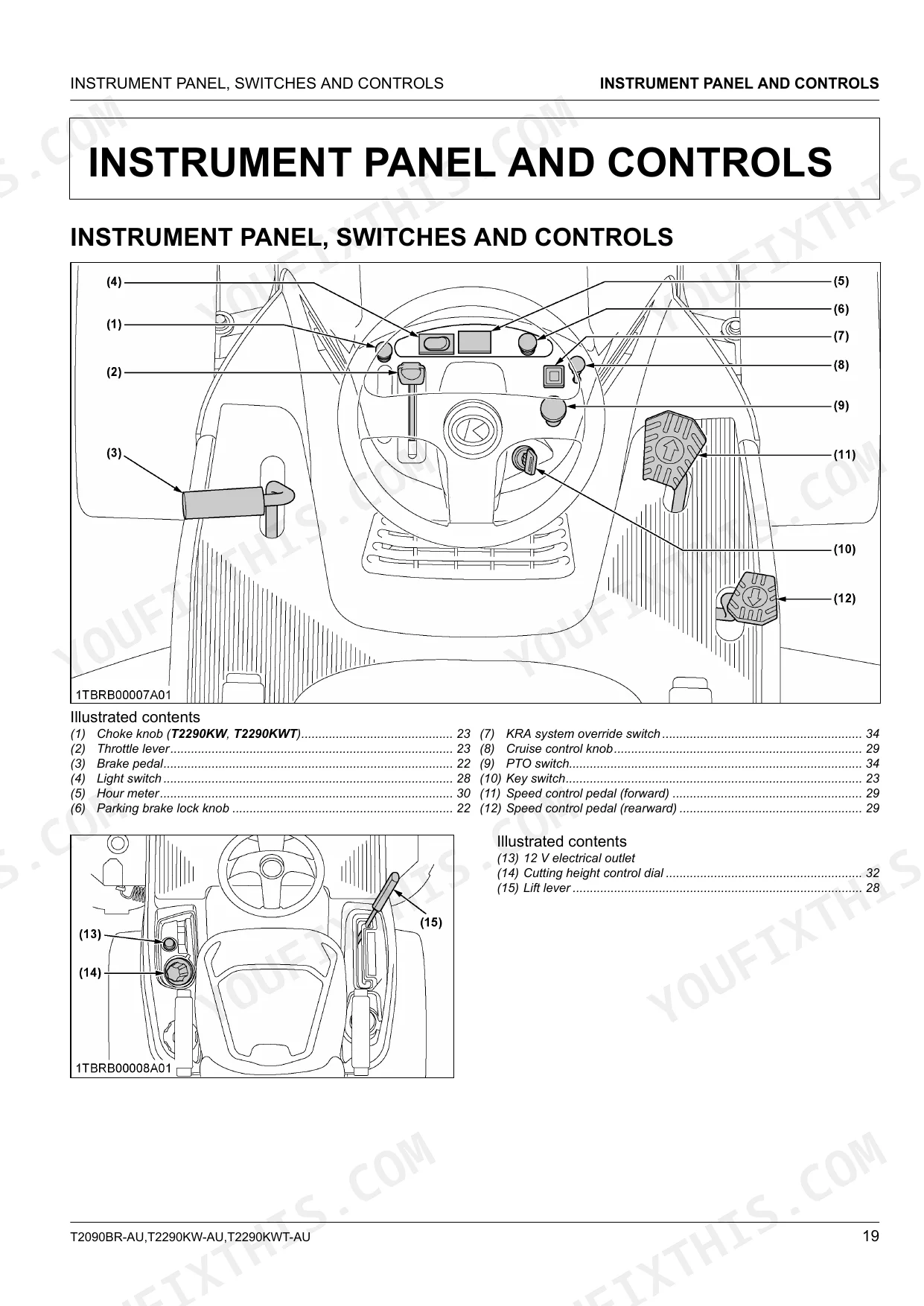

| Instrument Panel and Controls | 22-23 | Instrument Panel, Switches and Controls, Mower (Throttle Lever and Choke Knob, Key Switch), RCK42P Mower Diagram, RCK48P Mower Diagram (Cold Weather Starting), Stopping the Engine |
| Mower Mounting | 24 | Attaching the Mower (Mounting the Mower Deck), Mower Deck, Dismounting the Mower Deck (Pro Commercial Deck) |
| Operating the Engine | 25-29 | Starting the Engine, Stopping the Engine, Checking Safety Systems, Check While Operating the Engine, Warming Up the Engine, Jump Starting |

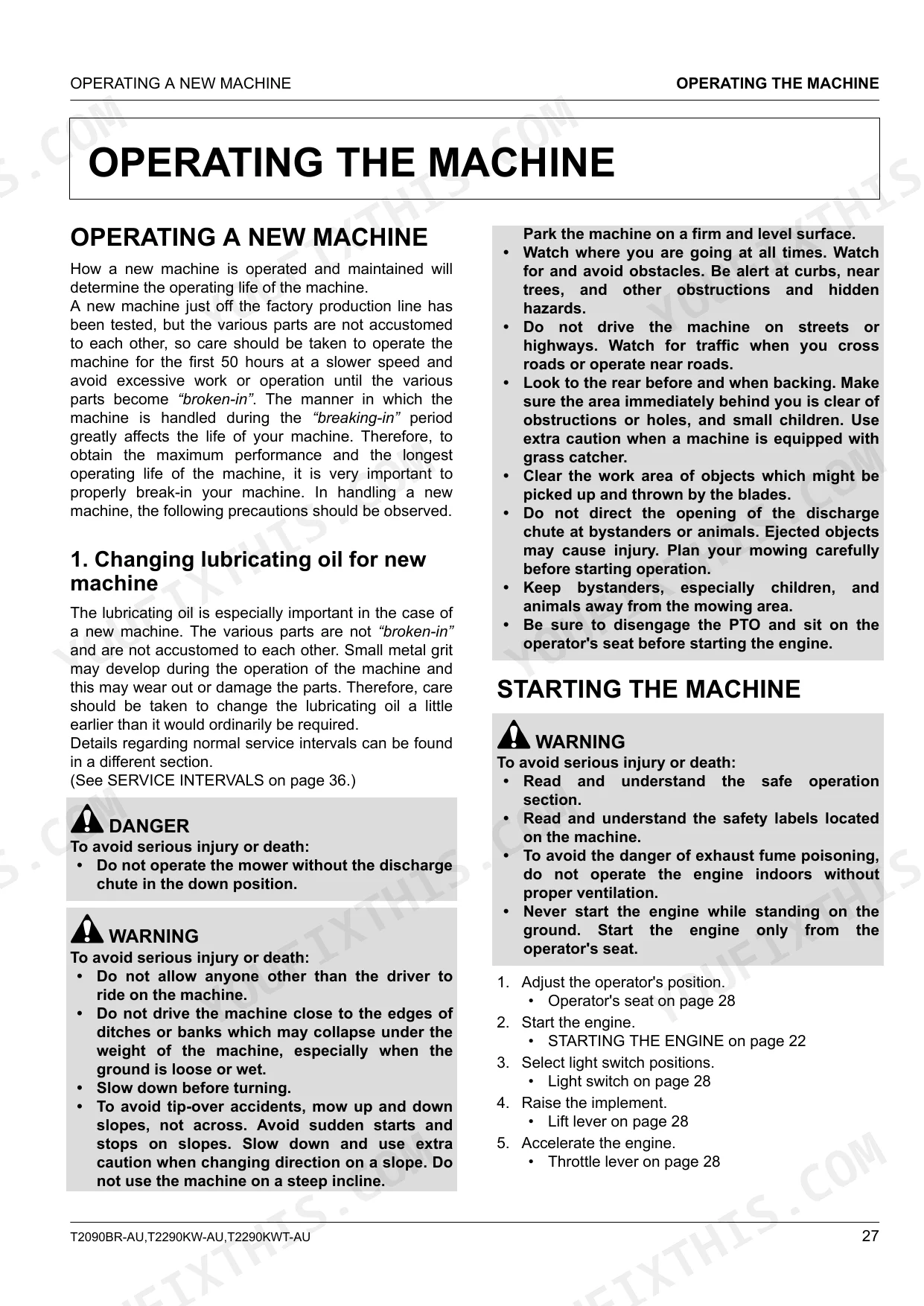

| Operating the Machine | 30-34 | Stopping The Machine, Check During Driving, Hour Meter, Parking The Machine, Transporting The Machine, Hydrostatic Transaxle Bypass Rod, Mowing Tips, Adjusting The Cutting Height |
| Operating the Mower | 35-38 | Mowing Tips, Adjusting the Cutting Height |

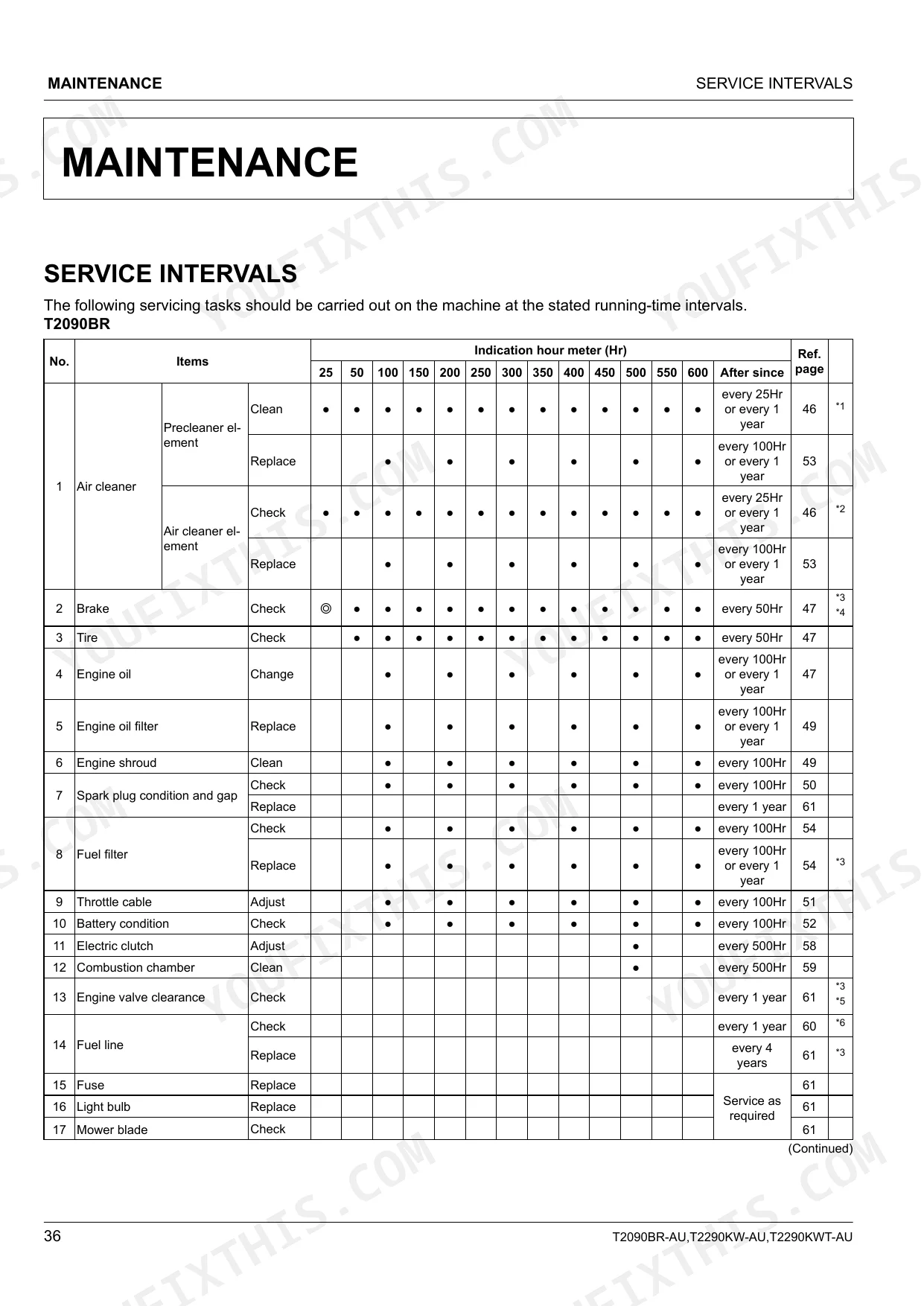

| Maintenance | 39-44 | Service Intervals (T2090BR Service Interval Table, T2290KW, T2290KWT Service Interval Table) |
| Periodic Service | 45-66 | Open the Hood (Engine Cover), Daily Check (Checking: Engine Oil Level, Amount of Fuel and Refueling), Lubricants and Fuel (Checking Cooling Air Intake Screen) |
| Adjustment | 67-71 | Mower Deck Level (Anti-Scalp Rollers, Leveling the Mower Deck), Tightening Torque Chart |
| Storage | 72 | Storing the Machine, Removing the Mower From Storage |

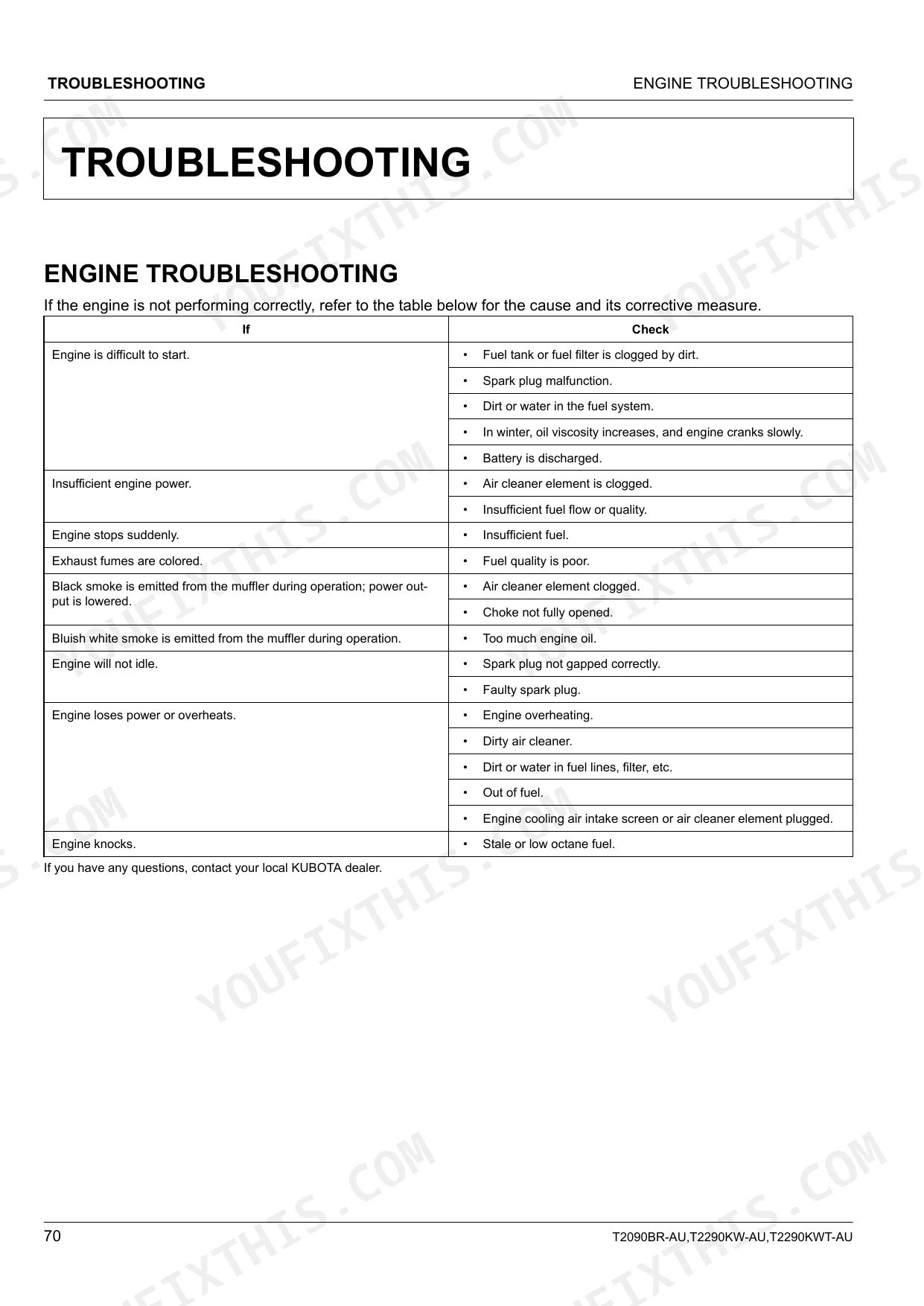

| Troubleshooting | 73-76 | Engine Troubleshooting, Battery Troubleshooting, Machine Troubleshooting, Mower Troubleshooting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| General bolt tightening torque (M8, No mark) | 19.2 ± 1.4 N·m | p. 71 |
| Mower blade bolt tightening torque | 103 to 118 N·m (76 to 87 lbf·ft) | p. 65 |
| Fuel Tank Capacity | 13.6 L (3.6 U.S.gals.) | p. 20 |
| PTO Revolution Speed | 3450 rpm | p. 20 |
| Mower Blade Mounting Bolt Torque | 103 to 118 N·m (76 to 87 lbf·ft) | p. 65 |
| Spark Plug Gap | 0.76 mm (0.03 in.) | p. 54 |
| Electric Clutch Air Gap | 0.4 mm (0.015 in.) | p. 58 |
| Front Tire Pressure (cold) | 100 kPa (14 psi, 1.0 kgf/cm²) | p. 50 |
| T2090BR-AU | ||
| Engine Oil Capacity | 1.9 L (2.0 U.S.qts.) | p. 43 |
| Hydrostatic Transmission Case Capacity | 2.0 L (2.1 U.S.qts.) | p. 20 |
| T2290KW-AU, T2290KWT-AU | ||
| Engine Oil Capacity | 2.1 L (2.2 U.S.qts.) | p. 43 |
| Hydrostatic Transmission Case Capacity | 2.75 L (2.9 U.S.qts.) | p. 20 |
Kubota T2090BR-AU, T2290KW-AU, T2290KWT-AU Common Problems This Manual Covers
No-start or safety interlock trips
The engine cranks but will not fire, or the seat, brake, and PTO safety switches cut the starter circuit. The starting and safety-system checks walk through each interlock so you can find the one holding it back.
Manual Section: Operating the Engine p. 25Uneven or scalped cut
A deck that is out of level leaves a stepped or scalped finish across the lawn. The deck-leveling and anti-scalp roller procedure sets the deck square to the ground.
Manual Section: Adjustment p. 67Tractor will not move
The machine has no drive even with the engine running, often because the hydrostatic transaxle bypass rod was left open for towing. The machine-operation section covers the bypass rod and correct drive setup.
Manual Section: Operating the Machine p. 30Blades will not engage
The mower fails to spin up when the PTO is switched on, commonly from a worn electric clutch air gap. Periodic service covers checking and setting the clutch air gap.
Manual Section: Periodic Service p. 45Battery goes flat
Slow cranking or a dead battery leaves the tractor unable to start. The battery troubleshooting chart helps trace charging faults and connection problems.
Manual Section: Troubleshooting p. 73Hard starting in cold weather
The engine is reluctant to catch on cold mornings and needs the choke set correctly. The engine section describes cold-weather starting and warm-up for the GH660V and GH739V-3 engines.
Manual Section: Operating the Engine p. 25Frequently Asked Questions
Which machines does this manual cover?
It covers the Kubota T2090BR-AU, T2290KW-AU, and T2290KWT-AU lawn tractors, fitted with the GH660V and GH739V-3 engines.
Where do I find fluid capacities and tire pressures?
The Specifications section lists engine oil, hydrostatic transmission, and fuel tank capacities for each model, and periodic service covers the front and rear tire pressures. p. 20
What is the mower blade bolt torque?
The mower blade mounting bolt torque is 103 to 118 N·m (76 to 87 lbf·ft), given in the periodic service section along with the other fastener values. p. 45
How do I get the file after buying?
You receive an instant download link at checkout, so you can save the manual and start using it right away.
How is this Kubota T2090BR-AU Operator Manual delivered?
Instant PDF download. You get the full 78-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this Kubota T2090BR-AU Operator Manual?
Yes. The PDF has no DRM restrictions, print any page or section you need for your shop. Works with any standard printer.
