Kubota's factory operator guidance for the RC40-G, RC44-G, and RC48-G rotary mowers fits into nine pages, with nothing padded. Two of those pages cover safety precautions and where each mower safety label sits on the machine. From there the manual walks through anti-scalp roller and parallel linkage adjustment step by step, then the full cutting height procedure. The maintenance schedule is laid out plainly: grease the universal joint, gauge wheel, three spindle cases, and belt tension lever fulcrum every 25 hours, swap belts and blades at their intervals, and read the tightening torque chart before a wrench touches any blade bolt. Those torque figures change by model. RC40-G and RC48-G blade bolts pull to 72-87 ft. lbs., while the RC44-G wants 91-109 ft. lbs. Bookmarks let you jump straight to Safety, Maintenance, or Specs on any device.
What's Inside This Kubota RC40-G, RC44-G, RC48-G Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Operator's Manual | 1 | Kubota Rotary Mower, Model Rc40-G, Rc44-G, Rc48-G, Read and Save This Book |
| Safety Alert Symbol | 2 | Abbreviations List |

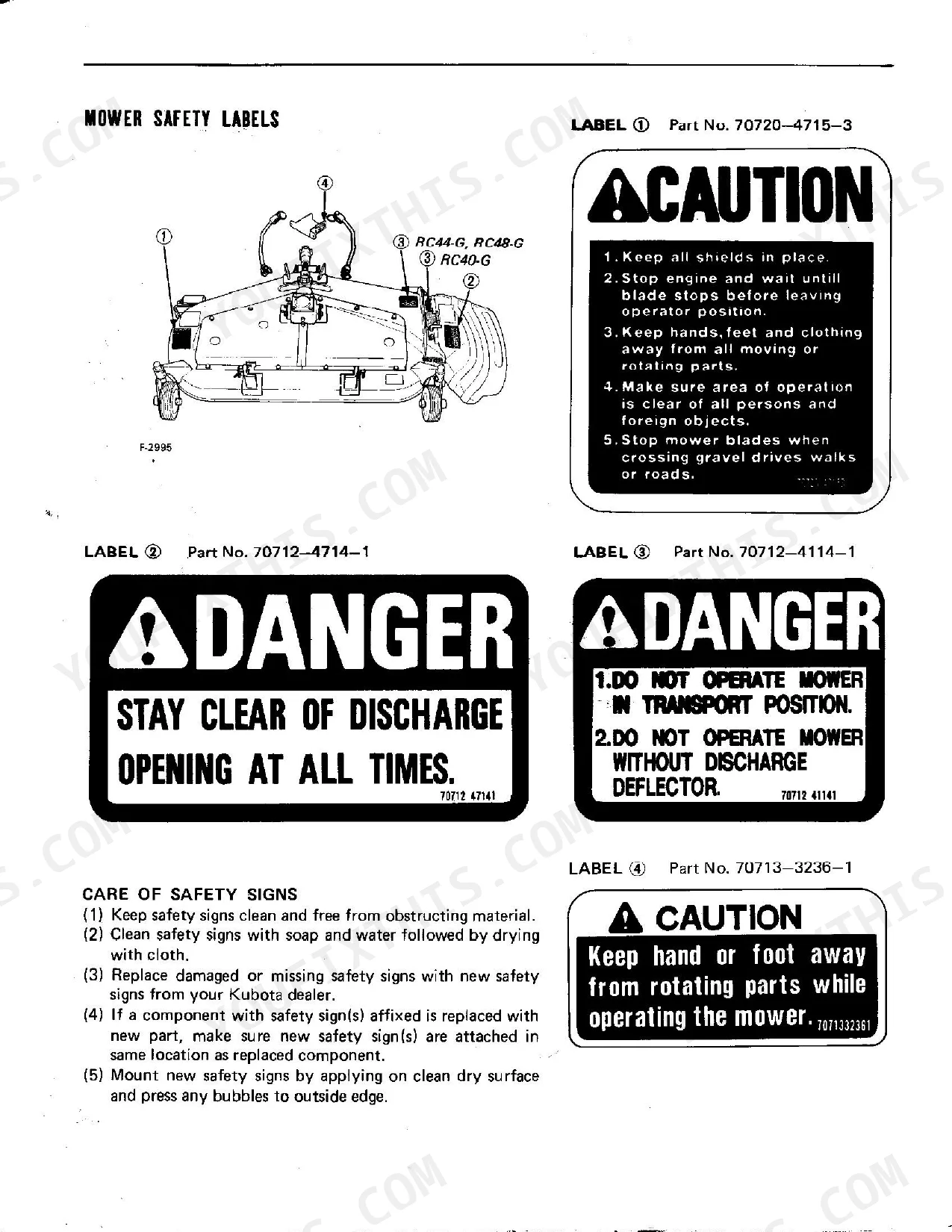

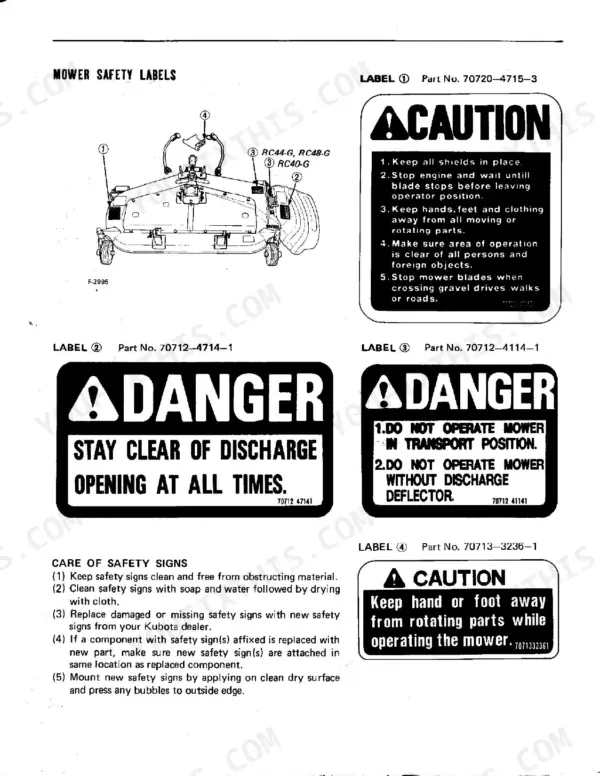

| Safety Precautions | 3-4 | Mower Safety Labels, Care of Safety Signs |

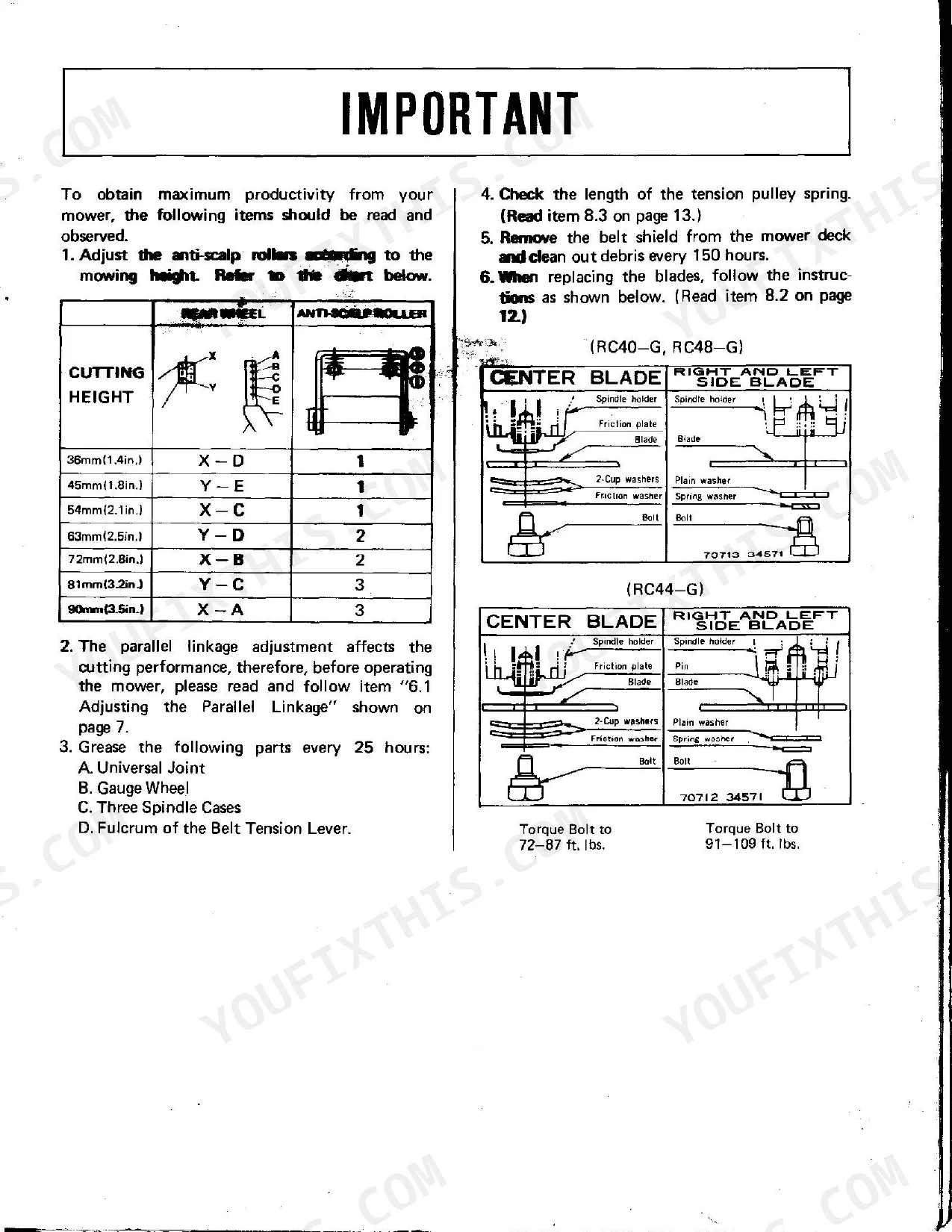

| Important | 5-7 | Adjust the Anti-Scalp Rollers, Parallel Linkage Adjustment |

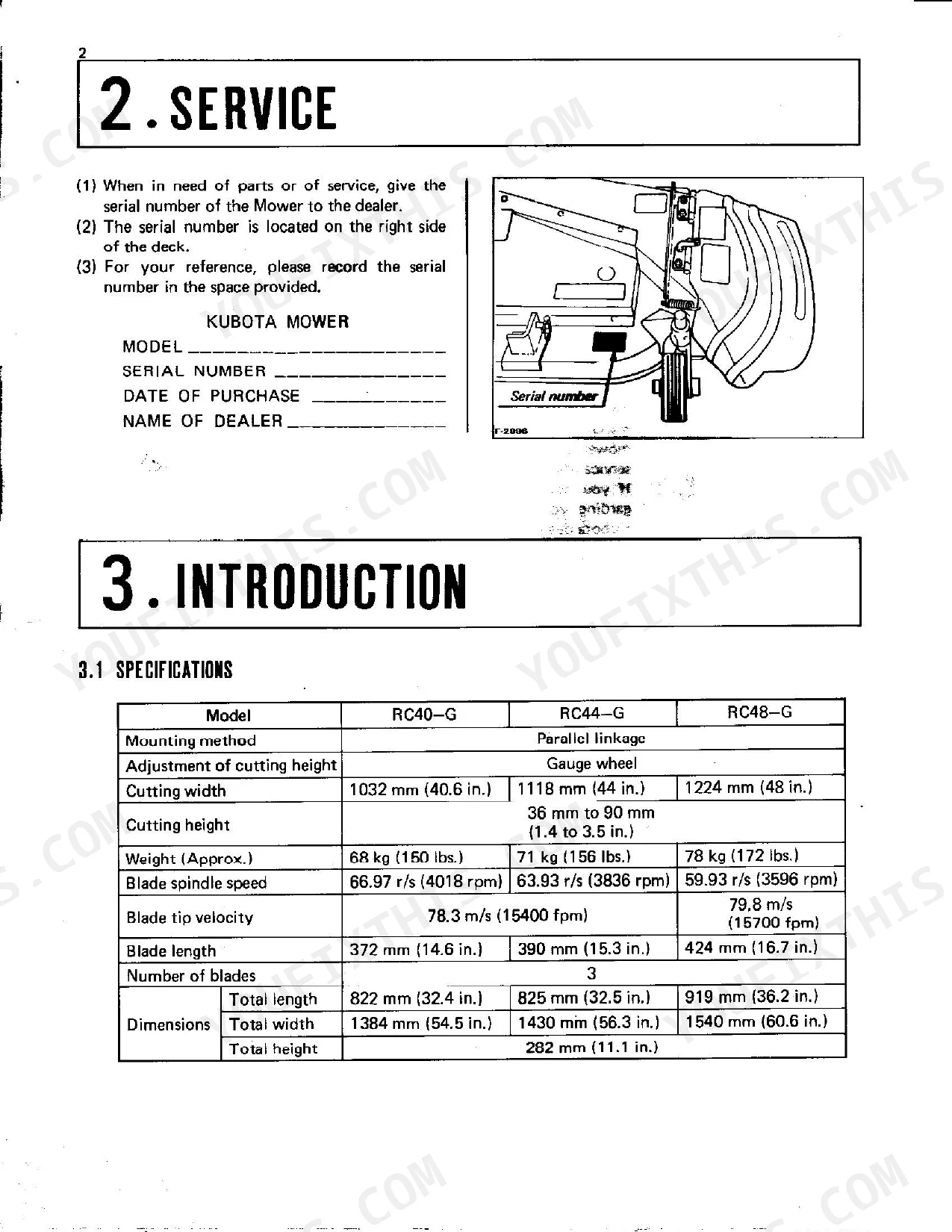

| Service | 8-9 | Kubota Mower Serial Number Information, Introduction, Specifications |
| Operation | - | Making The Most Of Your Mower, Cutting Height, Operating Mower, Periodic Lubrication And Maintenance Check |
| Maintenance | - | Periodic lubrication and maintenance check, Blade replacement, Belt replacement, Tightening torque chart |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| RC40-G, RC48-G | ||
| Blade bolt torque | 72-87 ft. lbs. | p. 5 |
| RC44-G | ||
| Blade bolt torque | 91-109 ft. lbs. | p. 5 |
| Cutting Width | 1118 mm (44 in.) | p. 8 |
| Weight (Approx.) | 71 kg (156 lbs.) | p. 8 |
| RC40-G | ||
| Cutting Width | 1032 mm (40.6 in.) | p. 8 |
| Weight (Approx.) | 68 kg (150 lbs.) | p. 8 |
| RC48-G | ||
| Cutting Width | 1224 mm (48 in.) | p. 8 |
| Weight (Approx.) | 78 kg (172 lbs.) | p. 8 |
| All Models | ||
| Number of Blades | 3 | p. 8 |
| Total Height | 282 mm (11.1 in.) | p. 8 |
| Center Blade Torque Bolt | 72-87 ft. lbs. | p. 5 |
| Side Blade Torque Bolt | 91-109 ft. lbs. | p. 5 |
Kubota RC40-G, RC44-G, RC48-G Common Problems This Manual Covers
Kubota RC40-G mower deck vibrating excessively after installing new cutting blades or hitting an obstacle p. 5
Inspect the 3 blades for damage. Verify the center blade torque bolt is tightened to 72-87 ft. lbs. as listed on page 5. Check the side blade torque bolts and tighten them to 91-109 ft. lbs. Replace any bent blades immediately.
Manual Section: MaintenanceUneven cut quality or scalping the grass on uneven terrain during normal daily operation p. 8
Adjust the anti-scalp rollers based on your desired cutting height as described on page 5. Check the parallel linkage adjustment on page 7 to ensure the deck sits level across the mowing path.
Manual Section: ImportantLoud squeaking noise from the mower deck spindles or universal joint when PTO is engaged
Lubricate the universal joint, gauge wheel, three spindle cases, and the belt tension lever fulcrum. Follow the maintenance schedule and grease these components every 25 hours. Clean the mower deck and remove debris from the belt shield every 150 hours.
Manual Section: MaintenanceDrive belt slipping under heavy load or burning rubber smell coming from the deck area
Examine the mower belt for excessive wear or glazing. Check the tension pulley spring length for proper tension. Clean the mower deck and belt shield every 150 hours to keep debris from building up. Replace a worn belt and route it correctly around the 3 blades.
Manual Section: MaintenanceFrequently Asked Questions
What are the recommended service intervals?
Two intervals matter here. Grease the Universal Joint, Gauge Wheel, Spindle Cases, and Fulcrum of the Belt Tension Lever every 25 hours, then clean debris out of the mower deck every 150 hours. The full periodic lubrication and maintenance check sits on page 10.
What torque specifications are listed?
The manual provides specific torque specifications for blade mounting bolts. For models RC40-G and RC48-G, the blade mounting bolt should be torqued to 72-87 ft. lbs. For model RC44-G, the blade mounting bolt requires a torque of 91-109 ft. lbs. A detailed tightening torque chart is available on page 14.
How quickly can I access this Kubota RC40-G, RC44-G, RC48-G manual after buying?
The 9-page searchable PDF downloads the moment checkout clears. Open it on a laptop, tablet, or phone and take it right out to the shop floor.
Can I print this Kubota RC40-G, RC44-G, RC48-G manual?
Yes. Print as many copies as you want, with no restrictions. Plenty of mechanics run off just the section they need and keep it by the machine.
Document Quality
This document is a scanned copy of a physical operator's manual. An OCR layer has been applied, allowing you to search and copy the full text content. The text quality is generally crisp and readable, though some pages show slight fading or background discoloration typical of scanned materials. Diagrams and illustrations are raster images, clear enough for labels and understanding, but they will pixelate if zoomed in closely. Pages exhibit minor scan artifacts and occasional handwritten notes, such as on the cover.
