This operator manual covers four Kubota tractors, the L2900, L3300, L3600 and L4200, powered by the D1503-L-A, D1703-A, V1903-A and V2203-A diesel engines. Its 79 pages explain how to run and maintain the machine correctly and safely.Inside you will find the instrument panel and controls, engine starting including cold-weather and jump starting, tractor operation, PTO use, the three-point hitch and drawbar, the hydraulic unit, tires, wheels and ballast, and a full periodic-service schedule. Specification tables, service intervals and a troubleshooting chart round it out.This is an operating and maintenance reference rather than a full engine teardown, so it is ideal for daily checks, correct hitch and hydraulic setup, wheel and ballast adjustment, and staying on top of service hours. It downloads as a searchable, printable PDF you can keep in the cab or on the shop bench.
What's Inside This Kubota L2900–L4200 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Universal Symbols | 3 | Safety Alert Symbol, Diesel Fuel, Fuel-Level, Engine-Rotational Speed, Hourmeter/Elapsed Operating Hours, Engine Coolant-Temperature, Diesel Preheat/Glow Plugs, Parking Brake |
| Safe Operation | 6-11 | Before Operating the Tractor, Driving the Tractor on the Road, Parking the Tractor, Operating the PTO, Using 3-Point Hitch, Servicing the Tractor, Danger |
| Servicing of Tractor | 12 | Tractor Identification Plate, Tractor Serial Number, Engine Serial Number, Type, Serial No, Date of Purchase, Name of Dealer |

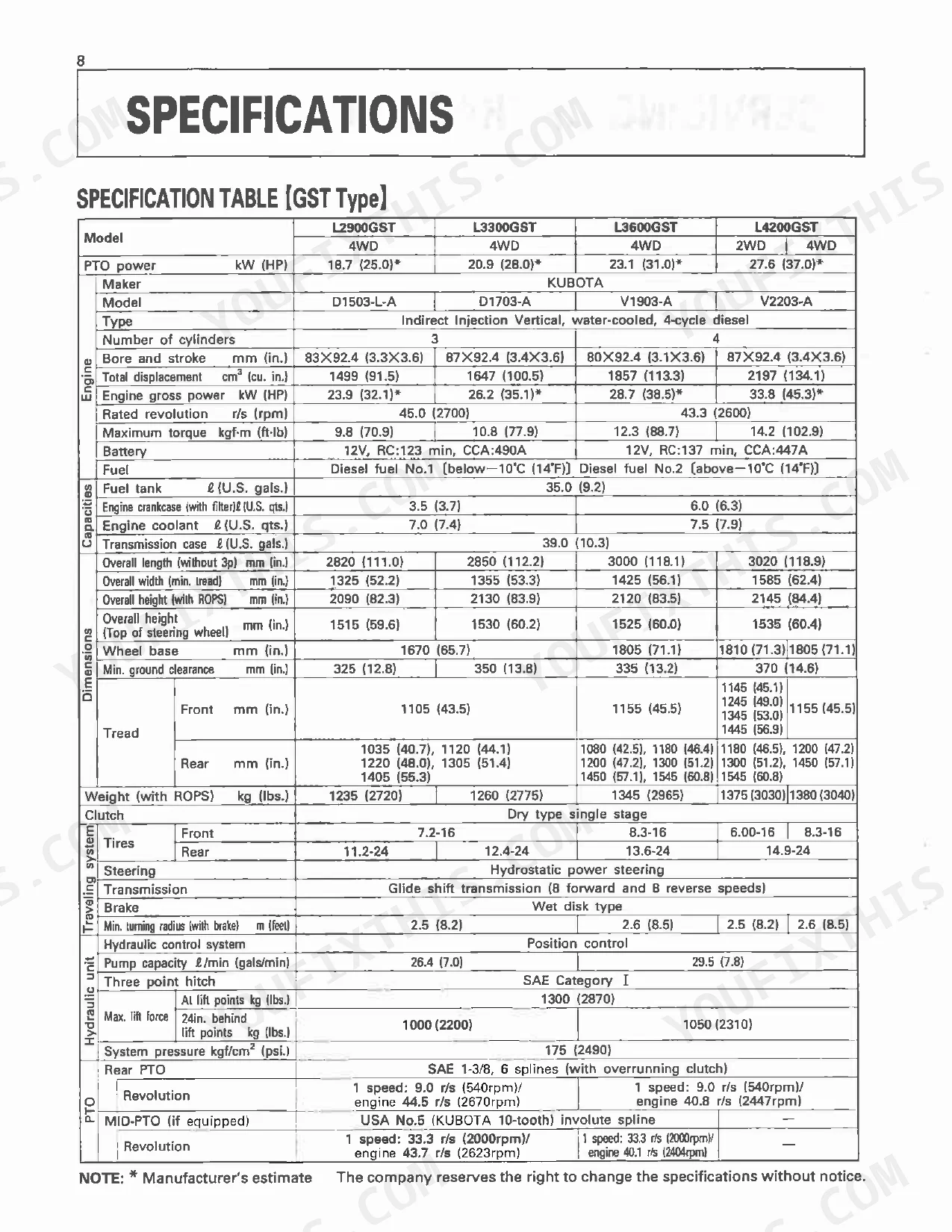

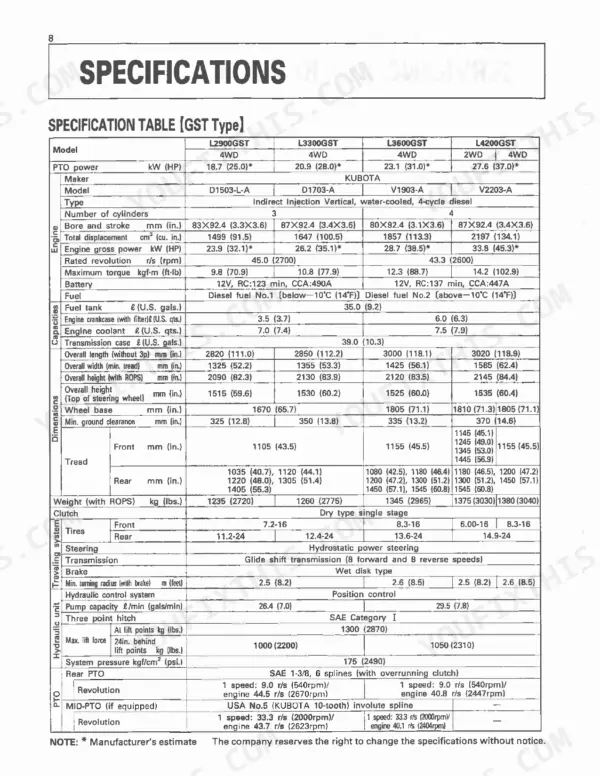

| Specifications | 13-15 | Specification Table Gst Type, Specification Table Manual Transmission Type, Traveling Speeds |
| Implement Limitations | 16-17 | Tread with Farm Tires (Front, Rear, Lower Link End Max Lifting Capacity Wo) |

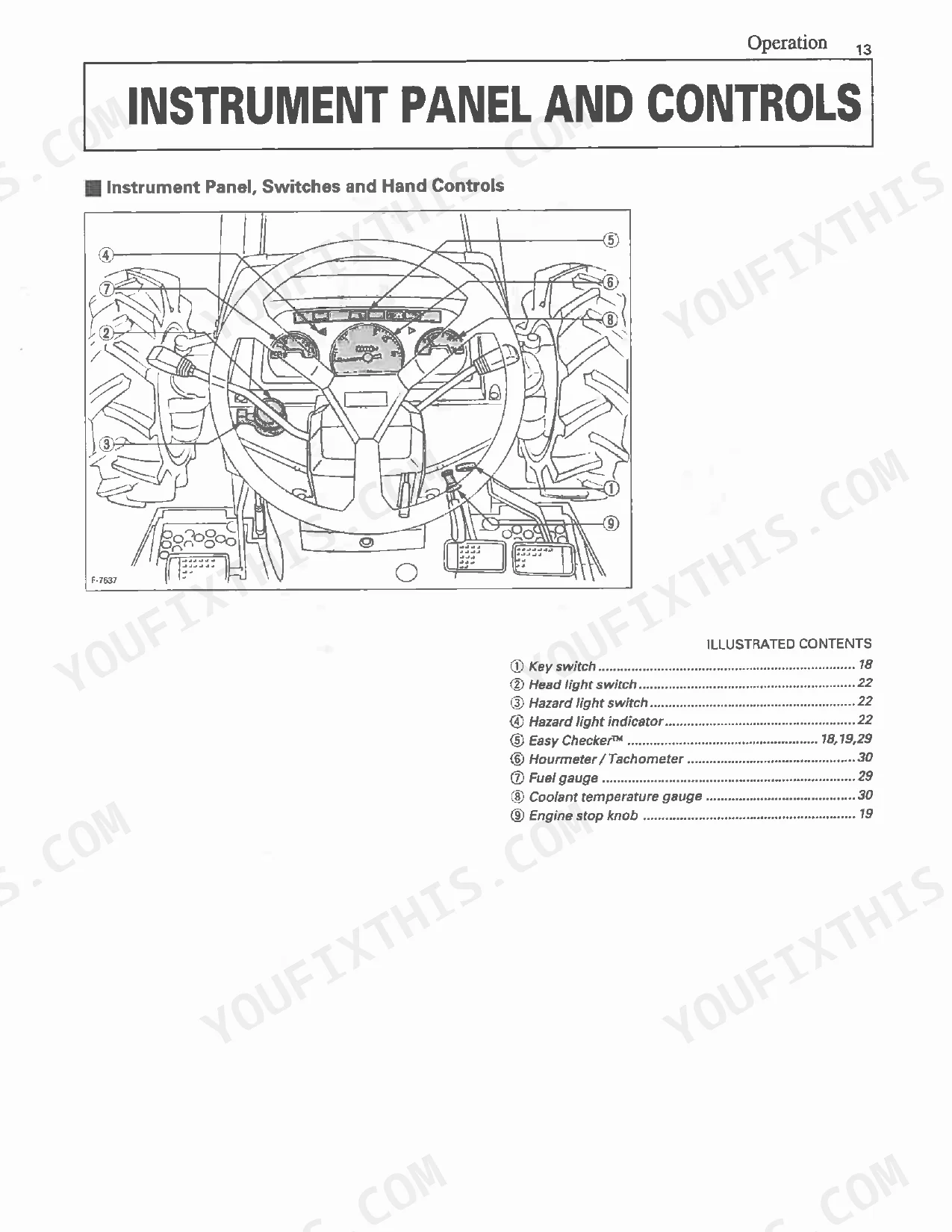

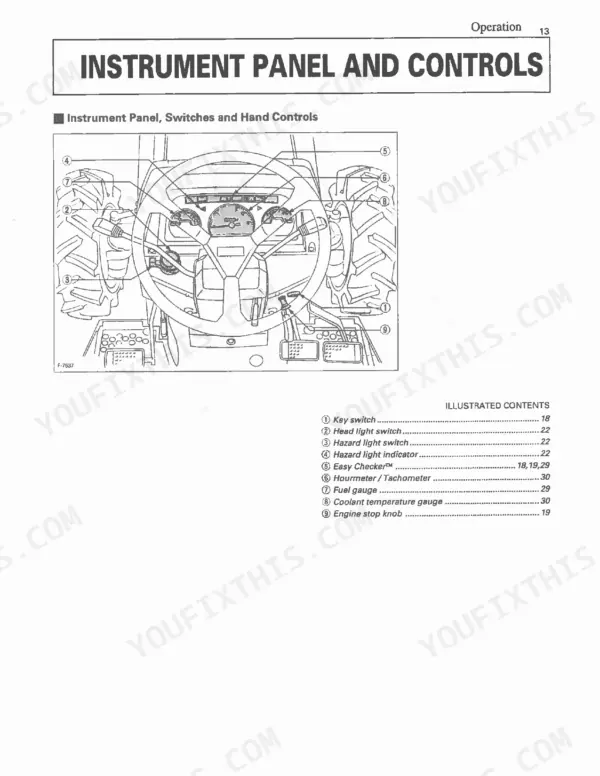

| Instrument Panel and Controls | 18-19 | Instrument Panel, Switches and Hand Controls, Key Switch, Head Light Switch, Hazard Light Switch, Hazard Light Indicator, Easy Checker™, Hourmeter / Tachometer |
| Pre-Operation Check | 20 | Daily Check (Check Item, Walk Around Inspection, Check Engine Oil Level, Check Transmission Oil Level, Check Coolant Level, Clean Grill and Radiator Screen, Check Air Cleaner Evacuator Valve, Check Brake and Clutch Pedal, Check Indicators, Gauges and Meter, Check Lights, Check Seat Belt and ROPS, Refuel, Care of Danger, Warning and Caution Labels) |

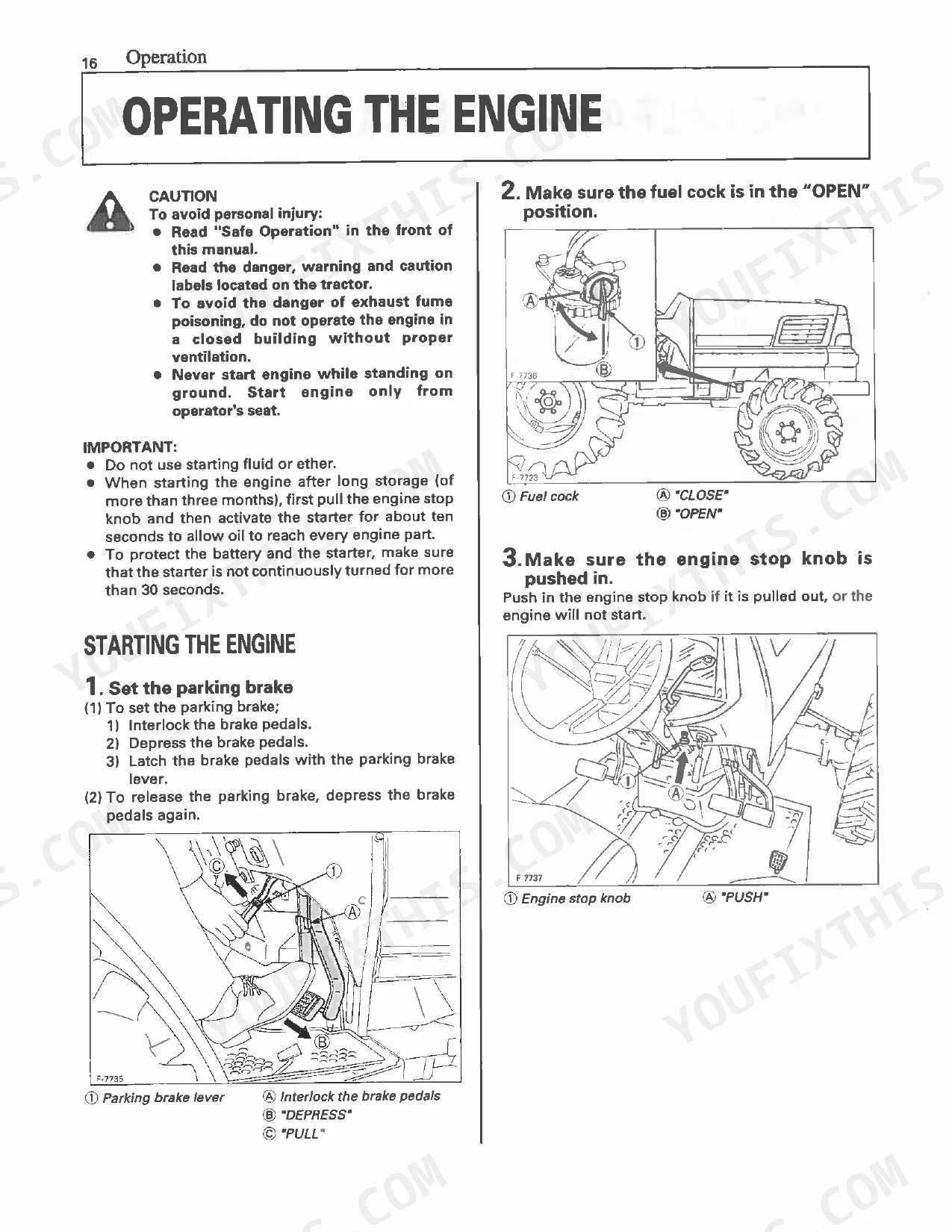

| Operating the Engine | 21-26 | Starting the Engine, Cold Weather Starting, Stopping the Engine, Warming Up, Jump Starting |
| Operating the Tractor | 27-37 | Operating New Tractor, Starting, Stopping, Check During Driving, Parking, Operating Techniques |
| PTO | 38-39 | PTO Operation |
| Three-Point Hitch & Drawbar | 40-42 | Top Link, Lifting Rod, Check Chains, Turnbuckle, Lower Link, Lower Link Holder, Drawbar, Fixed Drawbar Frame |
| Hydraulic Unit | 43-47 | 3-Point Hitch Control System (Position Control, Draft Control, Mixed Control, Float Control), Remote Hydraulic Control System (Combined Flow Control) |
| Tires, Wheels and Ballast | 48-54 | Tires, Wheel Adjustment, Ballast |

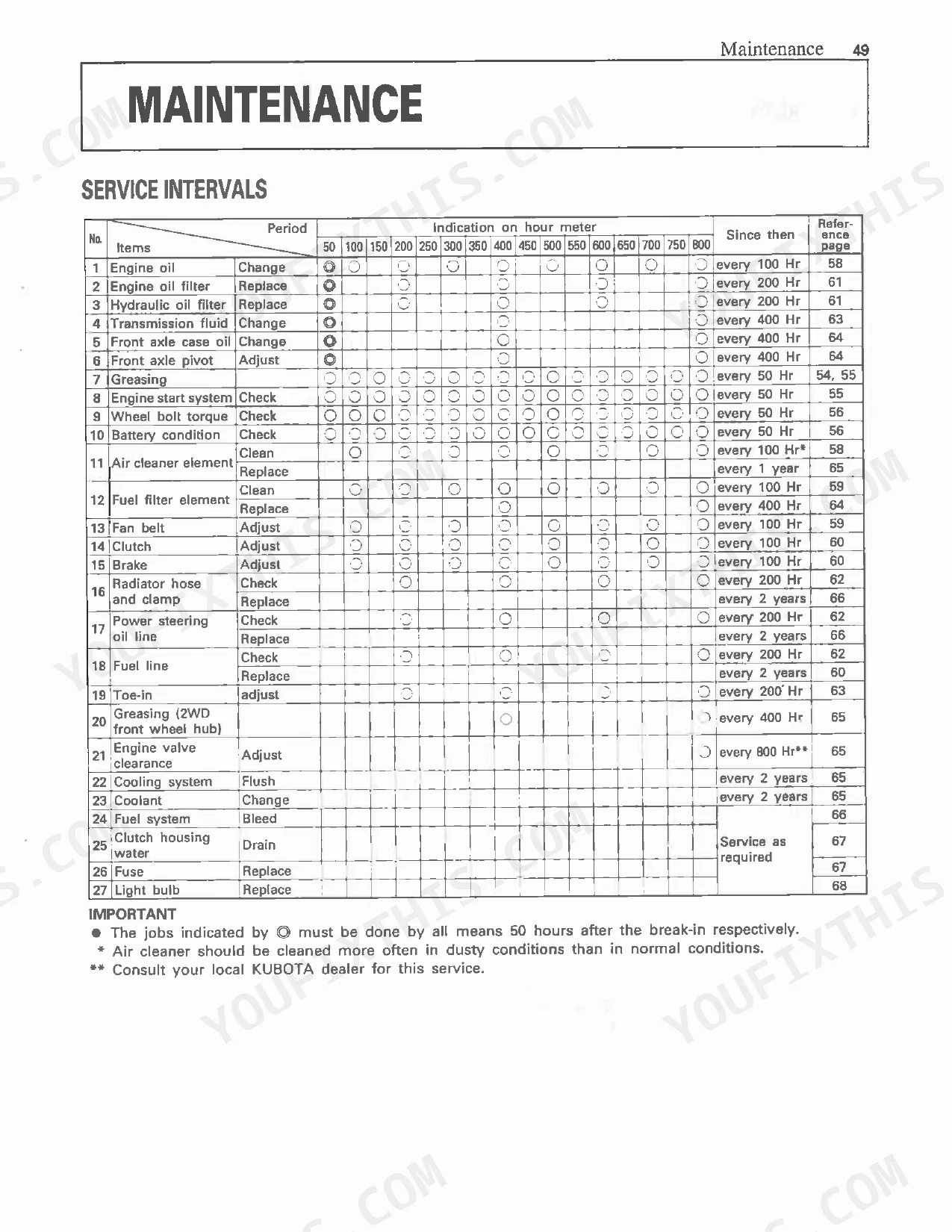

| Maintenance | 55-56 | Service Intervals (Items, Period, Indication on Hour Meter, Since Then, Reference Page) |

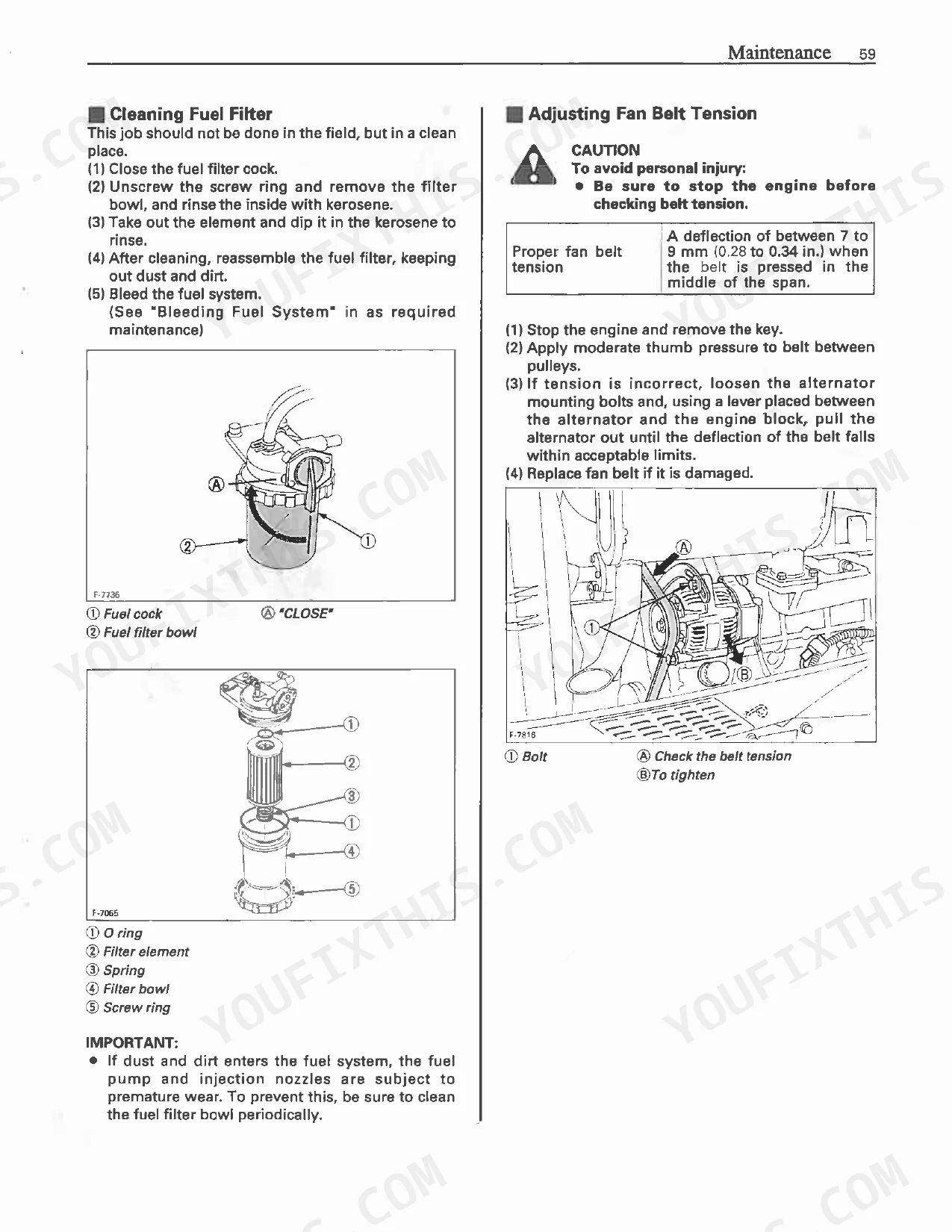

| Periodic Service | 57-74 | How to Open the Hood, Daily Check, Every 50 Hours, Every 100 Hours, Every 200 Hours, Every 400 Hours, Every 800 Hours, Every 1 Year |
| Storage | 75 | Tractor Storage, Removing the Tractor From Storage |
| Troubleshooting | 76 | Engine Troubleshooting (Trouble, Cause, Countermeasure) |
| Options | 77-79 | Engine Block Heater, Under Muffler, Double Element Air Cleaner, Smv Emblem, Work Light, Creep Gear, Double Acting Remote Hydraulic Control Valve, Draft Control |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Rear wheel bolt torque | 215 N-m (22kgf·m, 160ft-lbs) | p. 56 |
| Power steering line replacement interval | Replace if worn or damaged | p. 68 |
| Battery voltage | 12V | p. 13 |
| Radiator hose and clamp replacement interval | Every 2 years or earlier | p. 68 |
| Transmission case capacity | 39.0 l (10.3 U.S.gals.) | p. 13 |
| Overheating indicator | H setting (red zone) on coolant temperature gauge | p. 36 |
| L2900-L3300 | ||
| Hydraulic pump capacity | 26.4 l/min (7.0 U.S.gals/min) | p. 13 |
| Battery reserve capacity | 123 min | p. 13 |
| Coolant capacity | 7.0 l (7.4 U.S.qts.) | p. 71 |
| Engine Oil Capacity (with filter) | 3.5 L (3.7 U.S.qts.) | p. 58 |
| L3600-L4200 | ||
| Hydraulic pump capacity | 29.5 l/min (7.8 U.S.gals/min) | p. 13 |
| Engine Oil Capacity (with filter) | 6.0 L (6.3 U.S.qts.) | p. 58 |
Kubota L2900–L4200 Series Common Problems This Manual Covers
Hard or one-sided power steering
Heavy steering, or steering that only assists in one direction, is a common complaint on this L-series and often comes with a hydraulic leak near the steering area. The troubleshooting chart helps you narrow the cause before deeper repair.
Manual Section: Troubleshooting p. 76No-start or intermittent starting
A tractor that will not start or fires intermittently usually needs the starting procedure and safety-switch checks reviewed first. This section covers normal, cold-weather and jump starting.
Manual Section: Operating The Engine p. 21Difficult GST or gear shifting
Balky shifting is frequently reported on these tractors. The operating section explains correct shifting technique and clutch use, which rules out operator-side causes before transmission work.
Manual Section: Operating The Tractor p. 27Overheating from a dirty radiator screen
Rising coolant temperature often traces to a clogged radiator screen or grill. The daily pre-operation check lists cleaning the grill and radiator screen and verifying coolant level.
Manual Section: Pre-Operation Check p. 20Neglected fluid and leak checks
Low oil pressure, leaks and gradual fluid loss usually come from skipped service. The periodic-service section sets the intervals for engine oil, transmission fluid, coolant and leak inspection.
Manual Section: Periodic Service p. 57Weak or drifting 3-point hydraulics
A slow or drifting three-point hitch can stem from incorrect control setup rather than a failed pump. The hydraulic unit section explains position, draft, mixed and float control so the lift works as intended.
Manual Section: Hydraulic Unit p. 43Frequently Asked Questions
Which tractors does this manual cover?
It covers four Kubota models, the L2900, L3300, L3600 and L4200, with their D1503-L-A, D1703-A, V1903-A and V2203-A diesel engines. Coverage and specs are shared across the four in one book.
Is this an operator manual or a workshop manual?
It is an operator manual. It focuses on operation, controls, safety and periodic maintenance with a troubleshooting chart, rather than full engine or transmission teardown procedures.
What is the rear wheel bolt torque?
The specifications give the wheel bolt torque as 215 N-m (22 kgf-m, 160 ft-lbs), listed with the periodic-service maintenance data. p. 62
How much engine oil does it take?
Engine oil capacity with filter is 3.5 L on the L2900 and L3300 and 6.0 L on the L3600 and L4200, as given in the service specifications. p. 58
Is this Kubota L2900–L4200 Series Operator Manual a digital download?
Immediate download of the full 79-page searchable Operator Manual. Open it on any device, whether that's a laptop at your desk or a phone out in the field.
Are there any print restrictions on this manual?
Print as many copies as you want; there are no restrictions. Plenty of mechanics run off just the section they need and carry it onto the shop floor.
