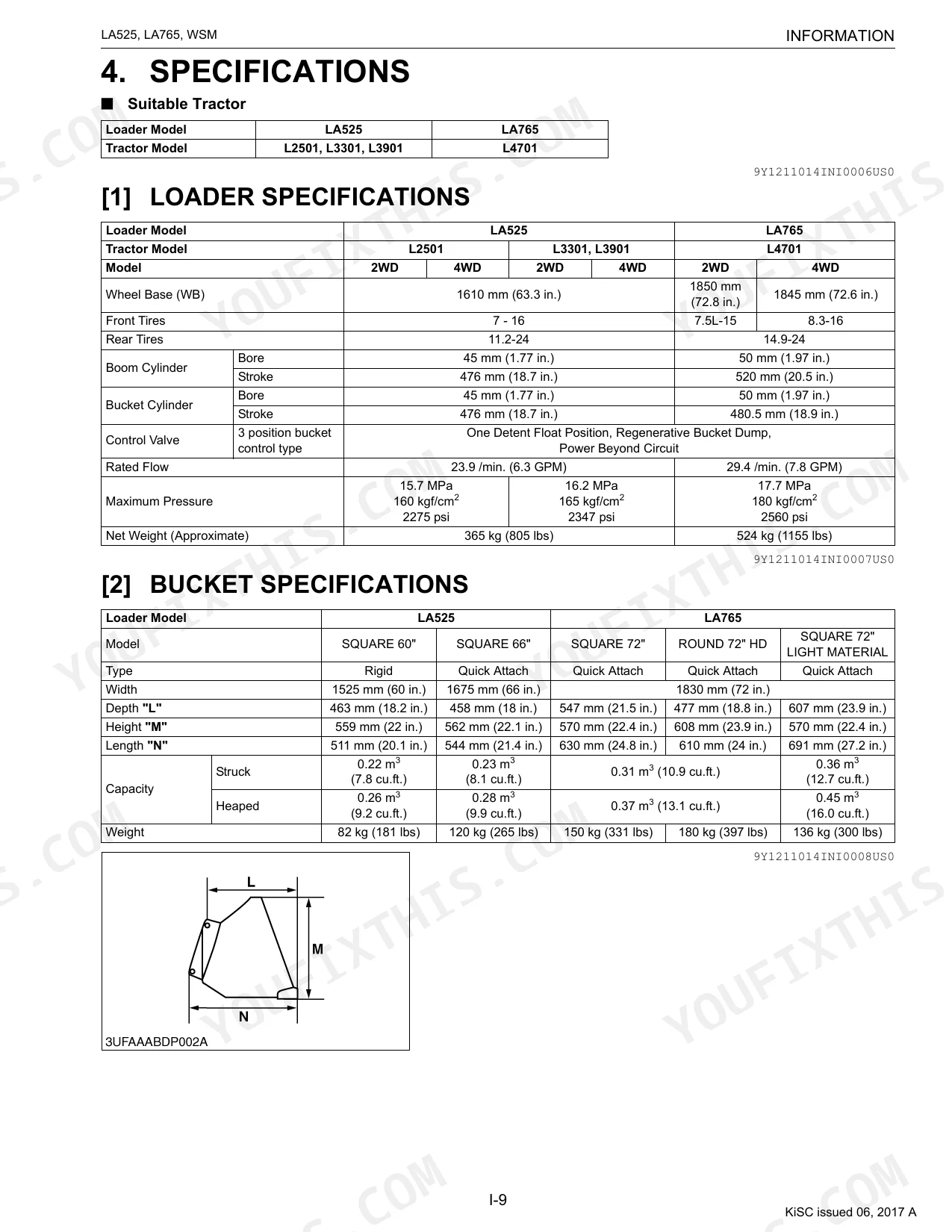

This workshop manual covers the Kubota LA525 and LA765 front loaders, the factory service book (publication 9Y111-10142) for owners and mechanics servicing these attachments. Its 80 pages walk through how the loaders work and how to repair them, not just how to run them.Content is organized into Information, General and Front Loader sections. You get loader and bucket specifications, loader identification, lubricant and tightening-torque tables, the hydraulic circuit, hydraulic block and control valve assembly with structure and operation, plus troubleshooting and servicing specifications. Torque figures, relief-valve pressures and wear limits are called out throughout.These loaders mount to Kubota L2501, L3301, L3901 and L4701 tractors, and the manual reflects that range. Delivered as a searchable, printable PDF, it is the reference for setting mounting bolts correctly, chasing a hydraulic fault, or rebuilding a cylinder to spec.
What's Inside This Kubota LA525, LA765 Manual
| System | Pages | Key Topics |
|---|---|---|
| I Information | 4-19 | - |

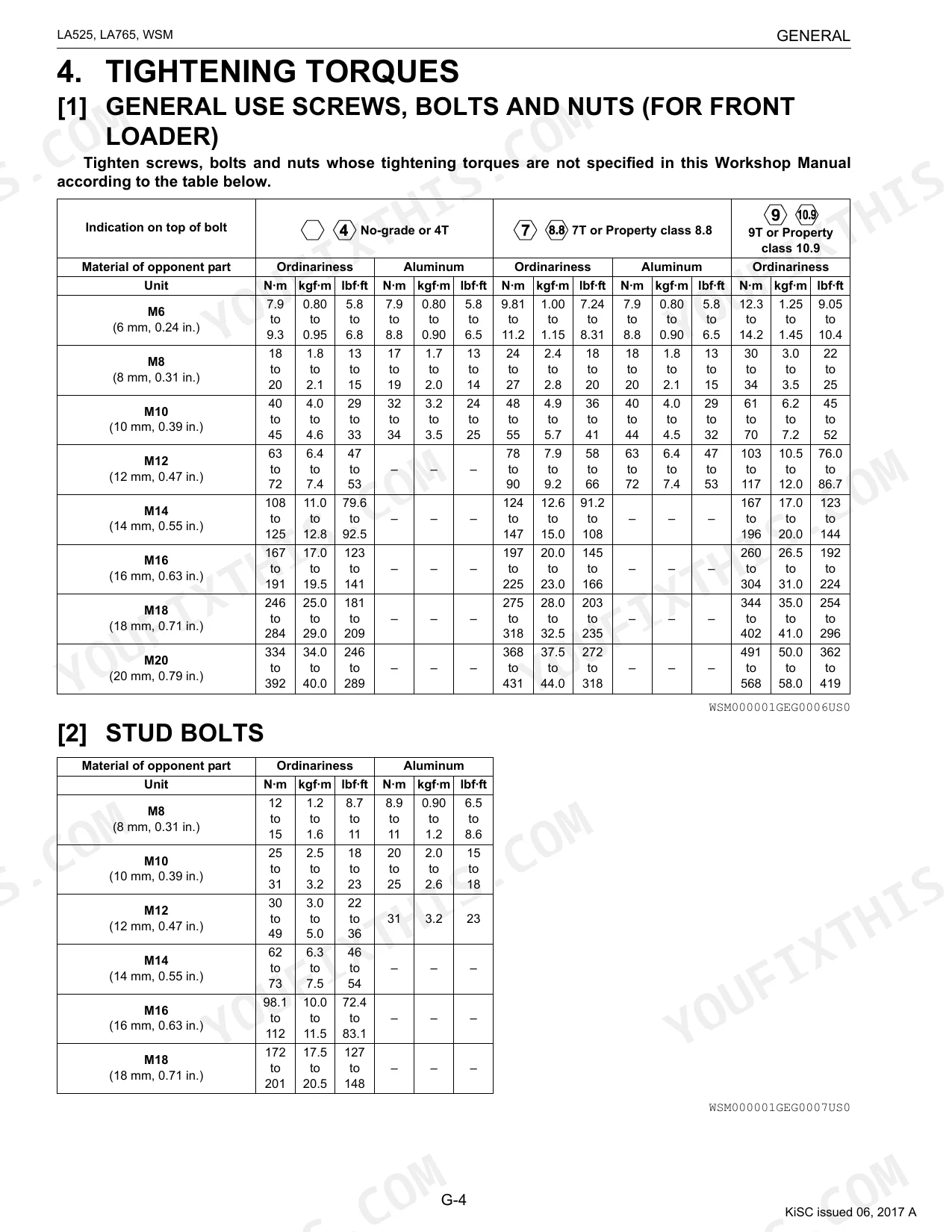

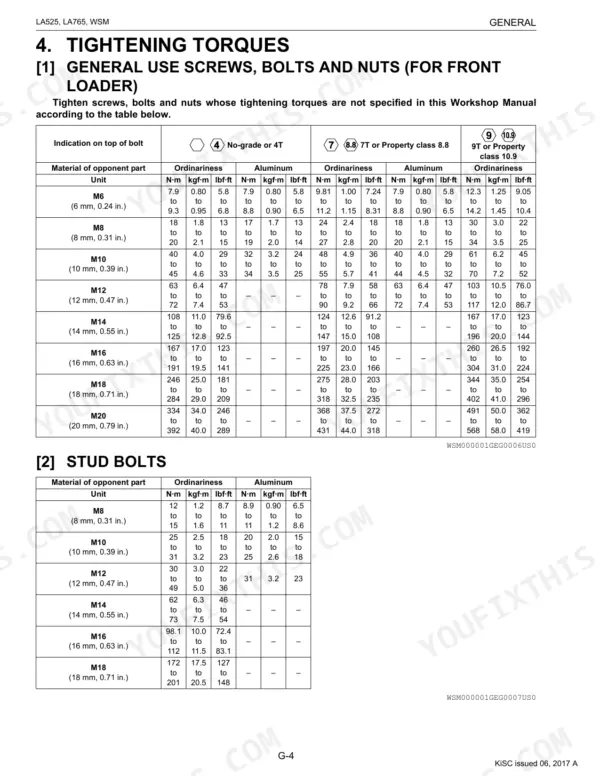

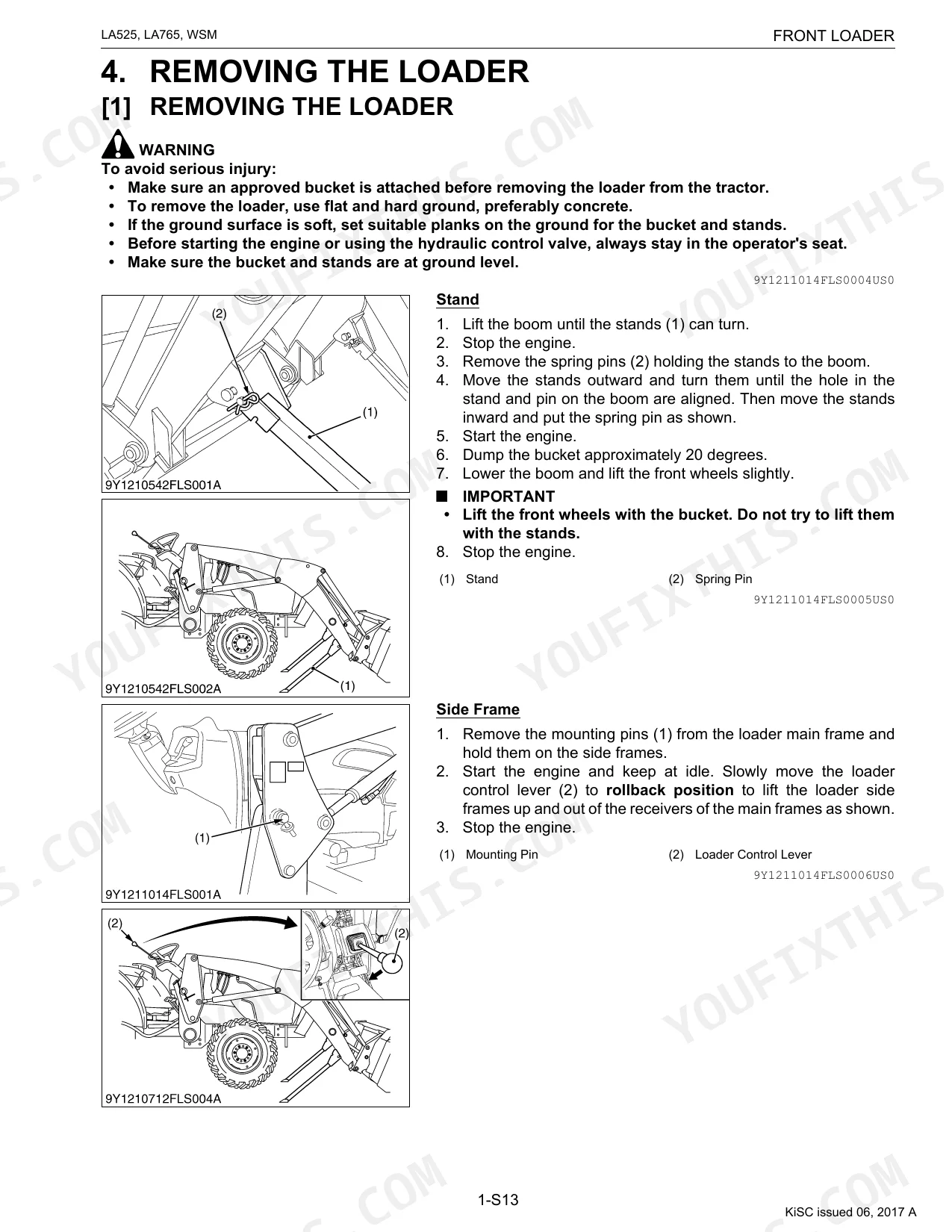

| G General | 20-33 | Loader Identification, Lubricants, Tightening Torques (Stud Bolts, American Standard Screws, Bolts and Nuts with Unc or Unf Threads, Plugs and Grease Fittings, Hydraulic Fittings) |
| Front Loader | 34-80 | Hydraulic Circuit, Hydraulic Block (Structure), Control Valve Assembly (Structure, Operation), Troubleshooting, Servicing Specifications, Tightening Torques |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| LA525 | ||
| Main frame mounting bolt (M16) torque | 226 N-m (23.0 kgf·m, 166 lbf·ft) | p. 31 |
| Front guard mounting bolt torque | 124 to 147 N-m (12.6 to 15.0 kgf·m, 91.2 to 108 lbf·ft) | p. 74 |
| LA765 | ||
| Main frame mounting bolt (M16) torque | 226 N-m (23.0 kgf·m, 166 lbf·ft) | p. 32 |
| Sub frame mounting bolt and nut (M16) torque | 226 N-m (23.0 kgf·m, 166 lbf·ft) | p. 32 |
| All Models | ||
| Hydraulic fluid / transmission oil type | KUBOTA SUPER UDT-2 fluid | p. 24 |
| Hose fitting, Flare nut (UNF) 9/16 tightening torque | 22.0 to 25.0 N-m (2.2 to 2.5 kgf·m, 16.0 to 19.0 lbf·ft) | p. 27 |
| Hose fitting, Flare nut (UNF) 3/4 tightening torque | 36.0 to 40.0 N-m (3.67 to 4.07 kgf·m, 26.6 to 29.5 lbf·ft) | p. 27 |
| Piston rod bend allowable limit | 0.25 mm (0.0098 in.) | p. 58 |
| Adapter and elbow tightening torque | 48 to 54 N-m (4.9 to 5.5 kgf·m, 35 to 40 lbf·ft) | p. 27 |
| Fitting tightening torque | 39 to 60 N-m (4.0 to 6.1 kgf·m, 29 to 44 lbf·ft) | p. 27 |
| Main frame mounting bolt (M16) torque | 226 N-m (23.0 kgf·m, 166 lbf·ft) | p. 31 |
| L2501 | ||
| Transmission case capacity (L2501, 2WD, Manual Transmission) | 27.0 L (7.1 U.S.gals, 5.9 Imp.gals) | p. 24 |
Kubota LA525, LA765 Common Problems This Manual Covers
Loader arms drift down or lift weakly

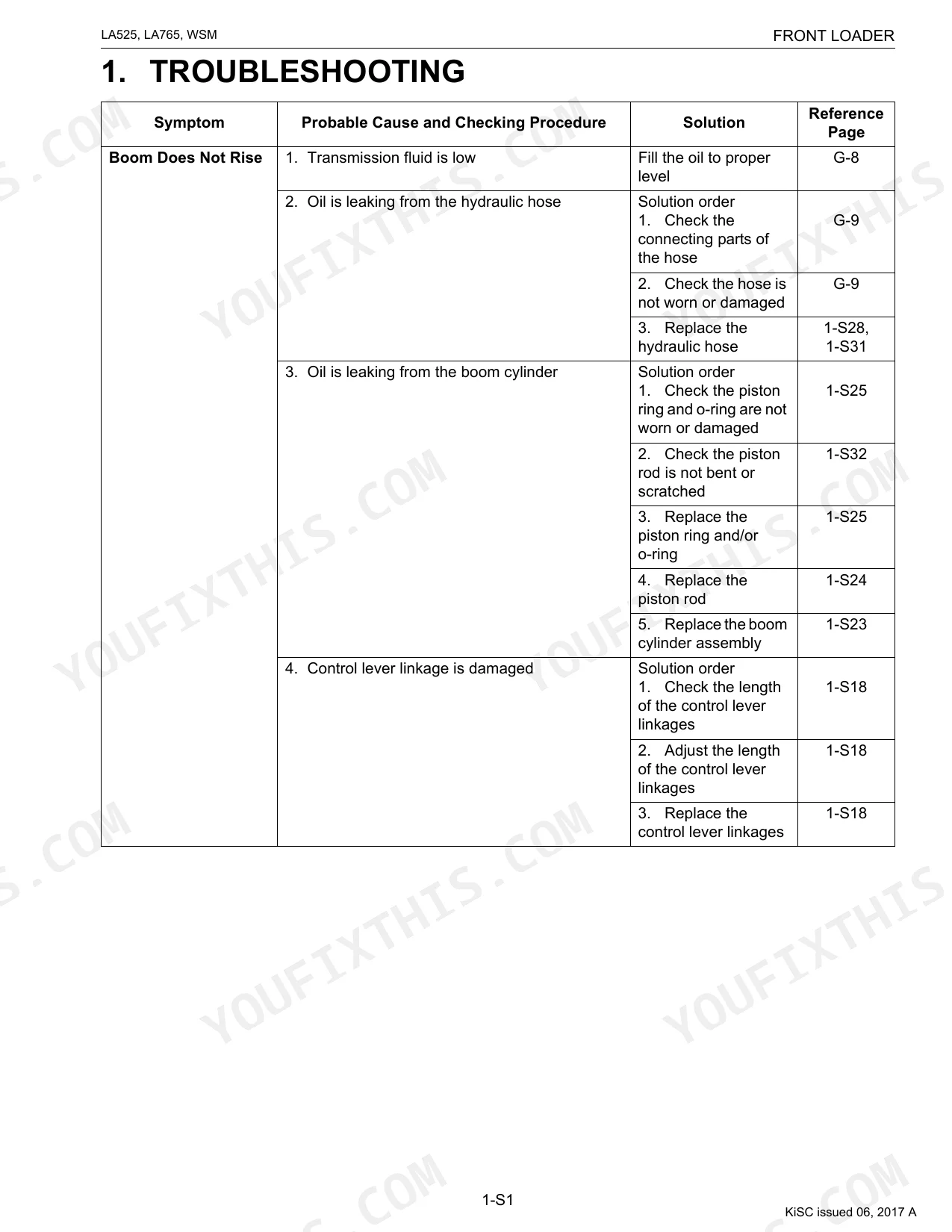

Boom drift, weak lift or sluggish curl usually points at low or contaminated fluid, air in the circuit, or wear in the cylinders and control valve. The troubleshooting section walks you through isolating the cause.
Manual Section: Troubleshooting p. 47Hydraulic oil leaks at loader connections
Repeated oil loss or visible seepage around the loader usually means worn cylinder seals or O-rings. The checking, disassembling and servicing section covers rebuilding the cylinders and control valve.
Manual Section: Checking, Disassembling And Servicing p. 47Loose mounting hardware after break-in
Clunking or misalignment at the frame often traces to mounting bolts that were never re-torqued after the first hours of use. The tightening-torque tables give the correct values for the main and sub frame bolts.
Manual Section: Tightening Torques p. 47Stiff operation from missed greasing
Binding pivots and stiff linkage come from skipping grease points. The General section lists lubricants and the grease-fitting torques so pivots stay serviced.
Manual Section: G General p. 20Erratic bucket or boom function

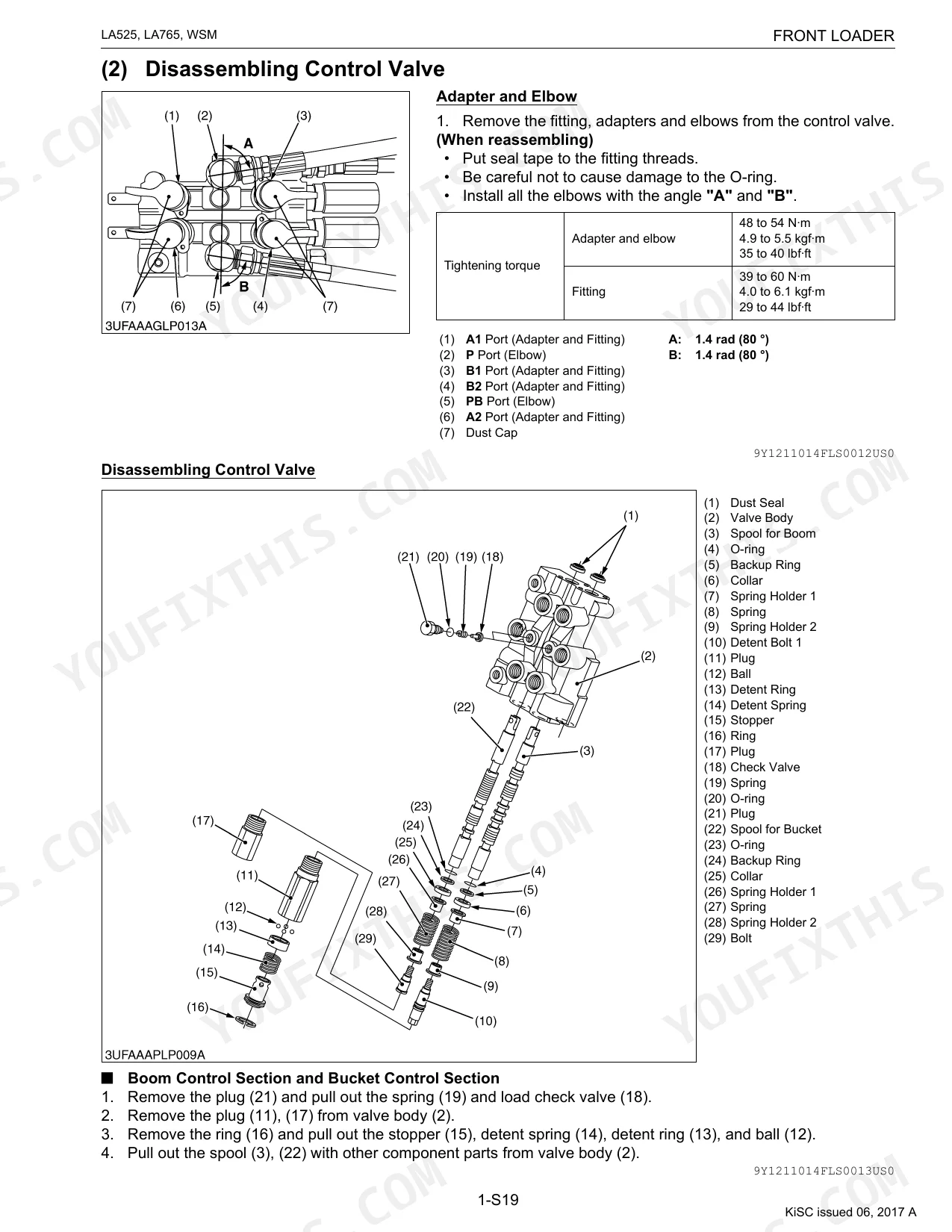

Inconsistent response as levers are worked can indicate wear or contamination in the control valve. This section details the control valve structure and operation for inspection.
Manual Section: Control Valve Assembly p. 35Sluggish response under load

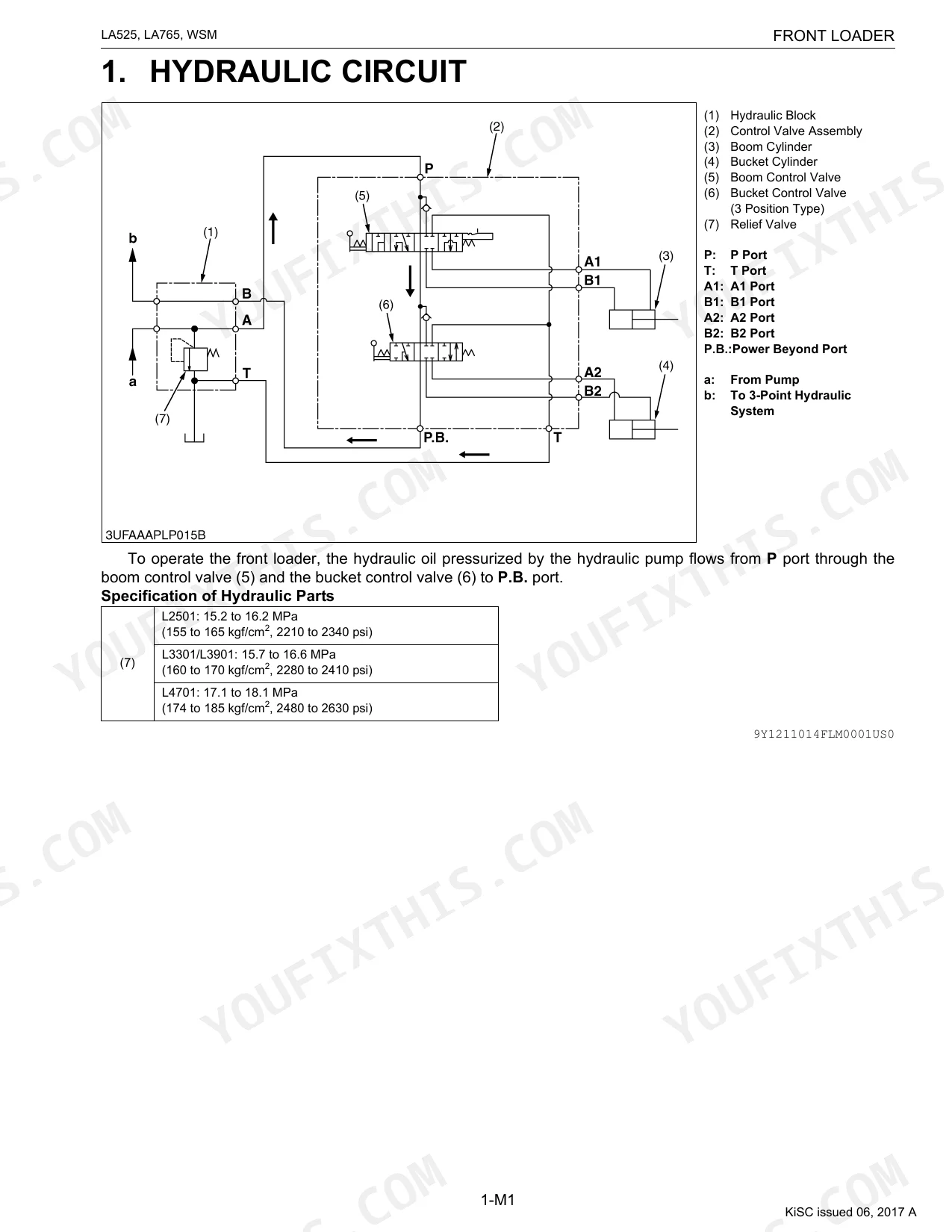

Poor loader performance after long use can stem from the hydraulic supply and circuit routing. The hydraulic circuit section shows how the loader is plumbed so you can trace restrictions.
Manual Section: Hydraulic Circuit p. 35Frequently Asked Questions
Which loaders does this manual cover?
It is the factory workshop manual for the Kubota LA525 and LA765 front loaders, publication 9Y111-10142, covering both models across its 80 pages.
Which tractors do these loaders fit?
The manual references the Kubota tractors these loaders mount to, including the L2501, L3301, L3901 and L4701, with transmission and torque data tied to those pairings.
What is the main frame mounting bolt torque?
The tightening-torque data specifies the main frame mounting bolt (M16) at 226 N-m, one of several loader mounting values the servicing section calls out. p. 31
Does it give the hydraulic relief valve setting?
Yes. The servicing specifications list the relief valve setting pressure at 15.2 to 16.2 MPa, useful when diagnosing weak lift or checking system pressure. p. 58
Is this Kubota LA525 manual a download or a disc?
Instant PDF download. The full 80-page searchable Workshop Manual lands in your hands right after payment. Open it on a laptop, tablet, or phone, right there in the shop.
Are there any print restrictions on this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this Kubota LA525 manual show the hydraulic circuits?
Yes, this Kubota LA525, LA765 Workshop Manual includes hydraulic system diagrams, circuit schematics, and component specifications.
