Three model variants (ZD21N-EC, ZD21-EC, ZD28-EC) share a single book here. OEM #9Y011-15151 organizes 253 pages across seven systems: general, engine, hydrostatic transaxle, front axle, hydraulic, electrical, and the rotary mower deck. Wiring diagrams map the starting system, charging circuit, and safety switches; the hydraulic schematics trace the HST pump, check valve, and high-pressure relief valve from circuit to cylinder. More than 150 service procedures sit beside torque tables, clearance specs, and exploded views of every assembly. The fuel tank holds 30 L; fill the ZD21-EC crankcase to 3.5 L and the ZD28-EC to 3.4 L before the first start. Bookmarked by section and searchable by keyword, the right page loads on your tablet at the machine. No more forum guesses across three variants.
What's Inside This Kubota ZD21N-EC, ZD21-EC, ZD28-EC Manual
| System | Pages | Key Topics |
|---|---|---|
| G General | 12-58 | General |
| 1 Engine | 59-137 | Engine Body, Lubricating System, Cooling System, Fuel System, Governor, Tightening Torques |
| 2 Transaxle | 138-177 | Hydrostatic Transmission, Pump and Motor, Check Valve and High Pressure Relief Valve, Control Linkage, Final Reduction Gear Section, PTO System |
| 3 Front Axle | 178-186 | Structure, Front Axle Pivot, Front Wheel, Wheel Bracket, Tightening Torques |
| 4 Hydraulic System | 187-201 | Hydraulic Circuit, Hydraulic Pump, Hydraulic Control Valve, Valve Adaptor, Lift Cylinder, Mower Linkage |
| 5 Electrical System | 202-236 | Wiring Diagram, Starting System, Charging System, Battery, Safety Switch, Gauges |
| 6 Rotary Mower | 237-253 | Power Transmission, Lifting Mechanism, Mower Blades, Gear Box, Pinion Shaft, Tightening Torques |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel tank capacity | 30 L (5.8 U.S.gals., 4.8 Imp.gals.) | p. 20 |
| Front Tire Pressure | 207 kPa (30 psi) | p. 27 |
| Rear Tire Pressure | 140 kPa (20 psi) | p. 27 |
| Engine Oil Filter Cartridge Replacement Interval | Every 200 hours | p. 24 |

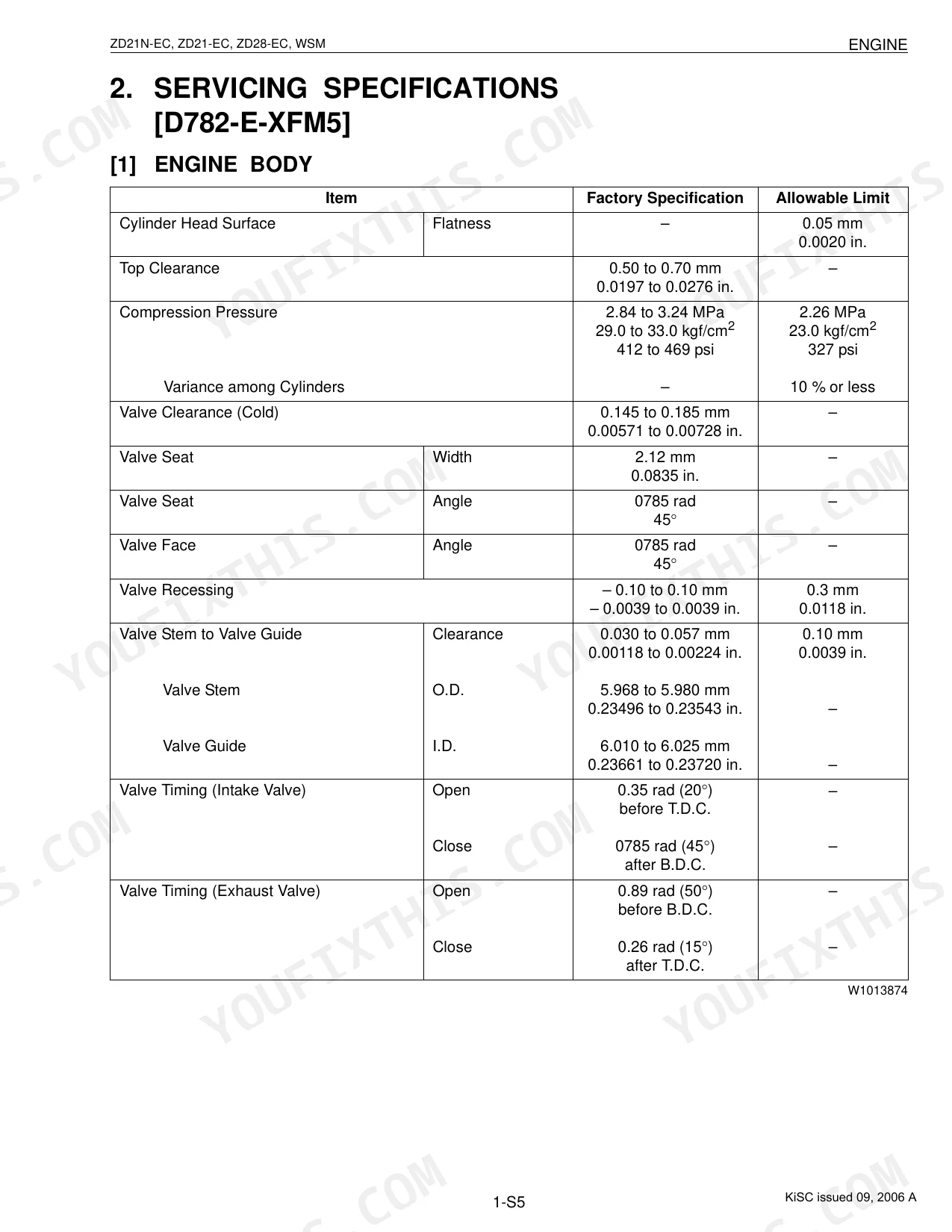

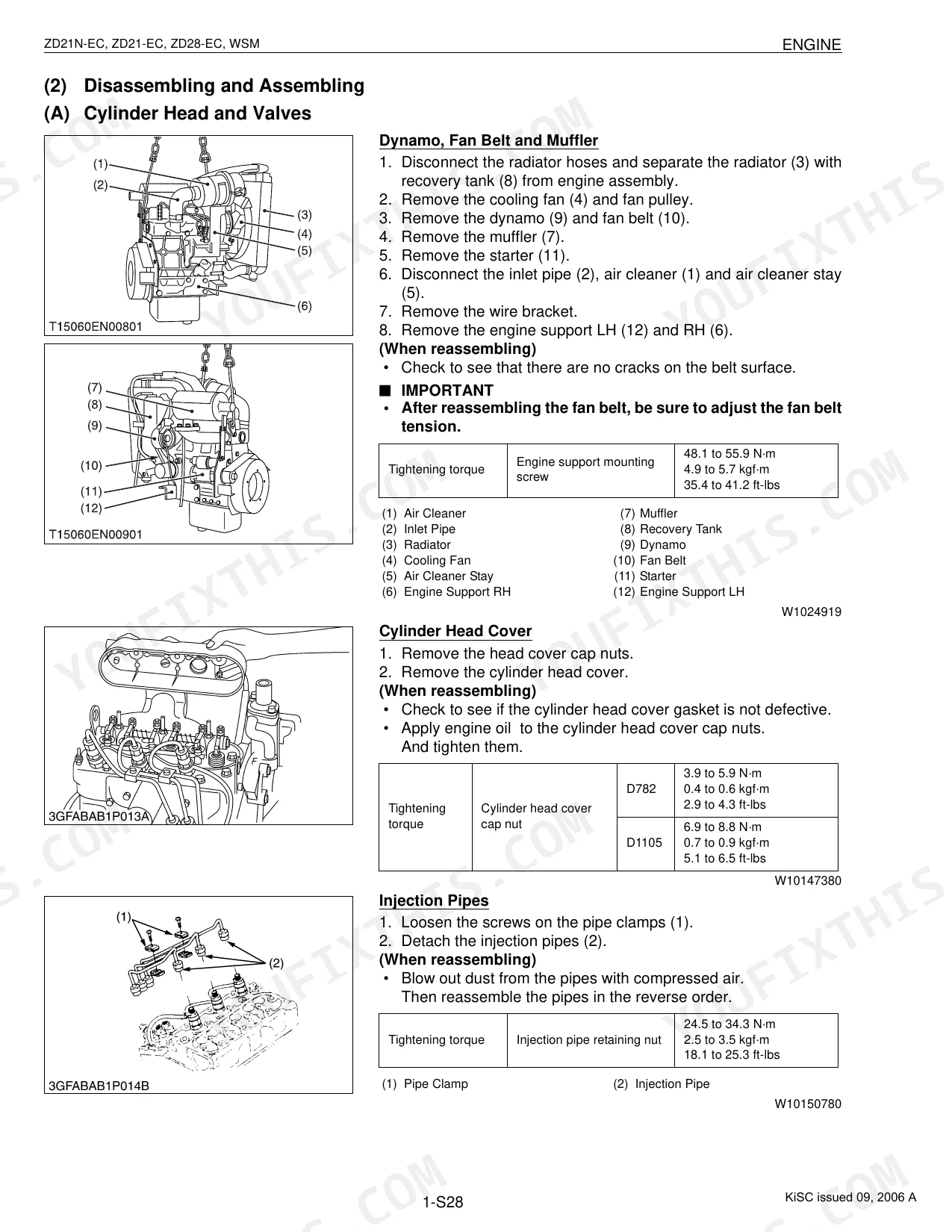

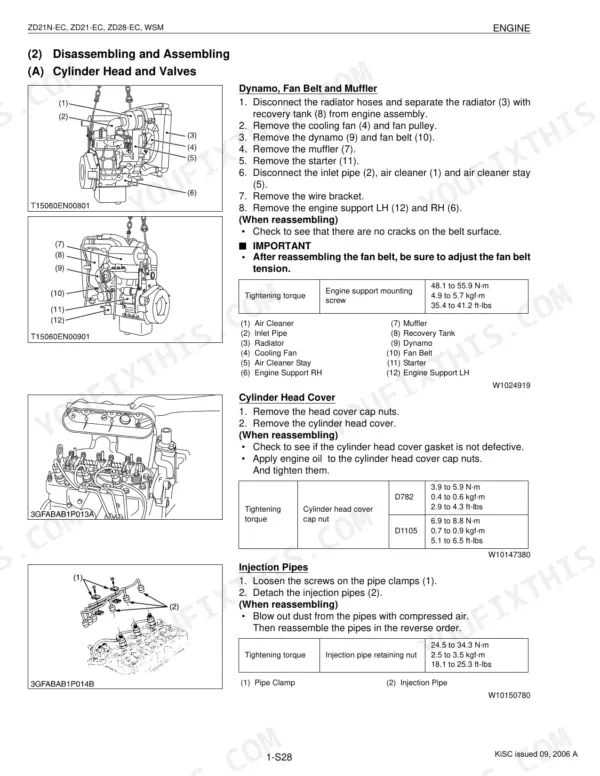

| Valve Clearance (Cold) | 0.145 to 0.185 mm | p. 68 |
| Mower Blade Screw Torque | 98.1 to 117.7 N·m | p. 244 |
| ZD21N-EC, ZD21-EC | ||
| Engine crankcase capacity | 3.5 L (3.7 U.S.qts., 3.1 Imp.qts.) | p. 20 |
| Maximum Gross Power (SAE) | 15.7 kW (21 HP) | p. 9 |
| ZD28-EC | ||
| Maximum Gross Power (SAE) | 20.9 kW (28 HP) | p. 9 |
| Engine Crankcase Capacity | 3.4 L | p. 9 |
| D782-E-XFM5 (ZD21N-EC, ZD21-EC) | ||

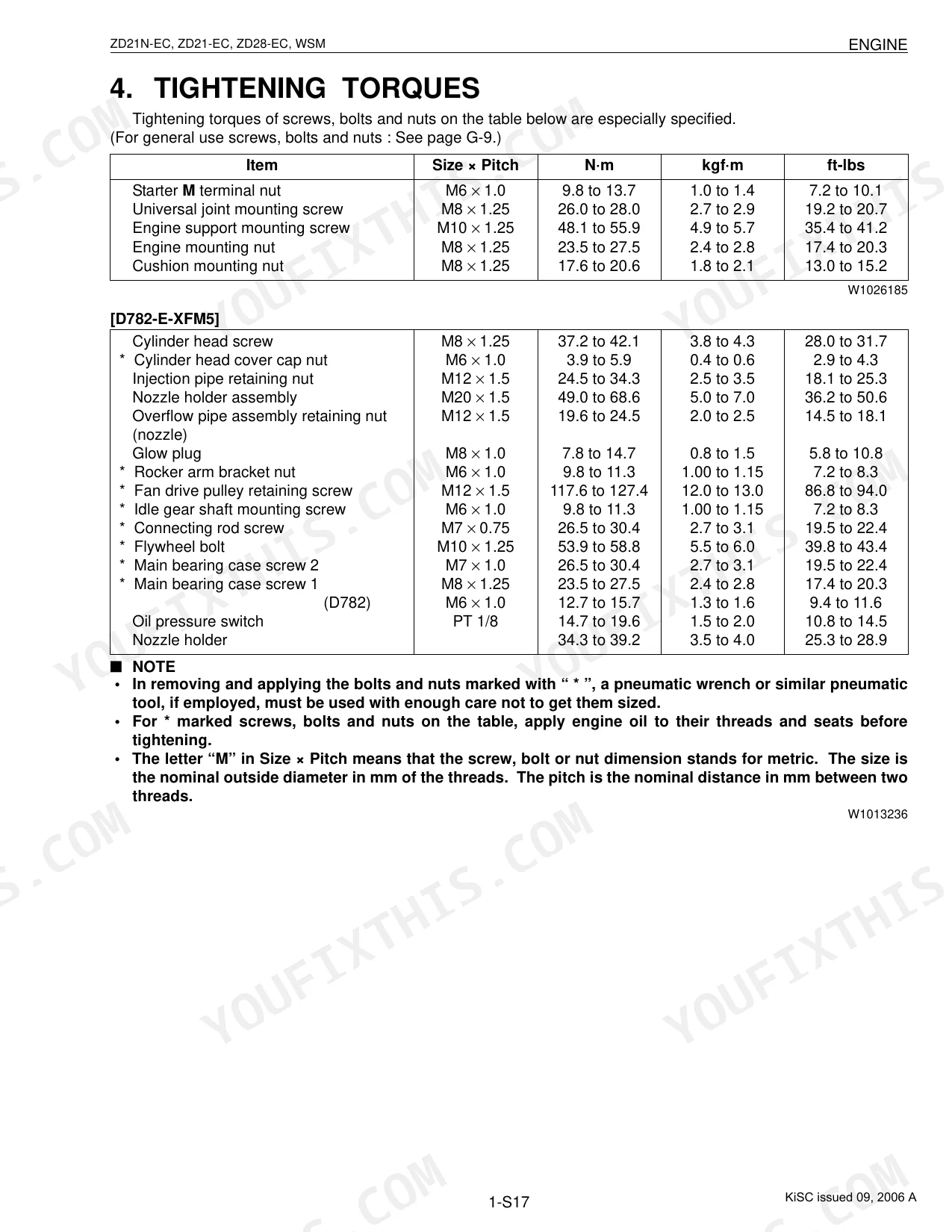

| Cylinder Head Screw Torque | 37.2 to 42.1 N·m | p. 80 |
| D1105-E2-ZD (ZD28-EC) | ||
| Cylinder Head Screw Torque | 63.7 to 68.6 N·m | p. 81 |
Kubota ZD21N-EC, ZD21-EC, ZD28-EC Common Problems This Manual Covers
Kubota ZD21-EC engine runs rough at high idle and pushes white or dark gray exhaust smoke
Inspect the valve train and verify clearances on page 68. Adjust the cold valve clearance to exactly 0.145 to 0.185 mm. Torque the cylinder head screws to 37.2 to 42.1 N·m as shown on page 80. Replace the engine oil and filter every 200 hours.
Manual Section: Engine TroubleshootingRotary mower deck leaves uneven grass strips and blade speed feels excessively slow under load
Remove the mower deck belt and check the spindles for binding. Inspect the cutting edges and replace dull blades. Torque the mower blade screws to 98.1 to 117.7 N·m as directed on page 244. Check the general maintenance intervals on page 24.
Manual Section: Rotary Mower TroubleshootingTurn the key to start position but the starter motor does not operate or click

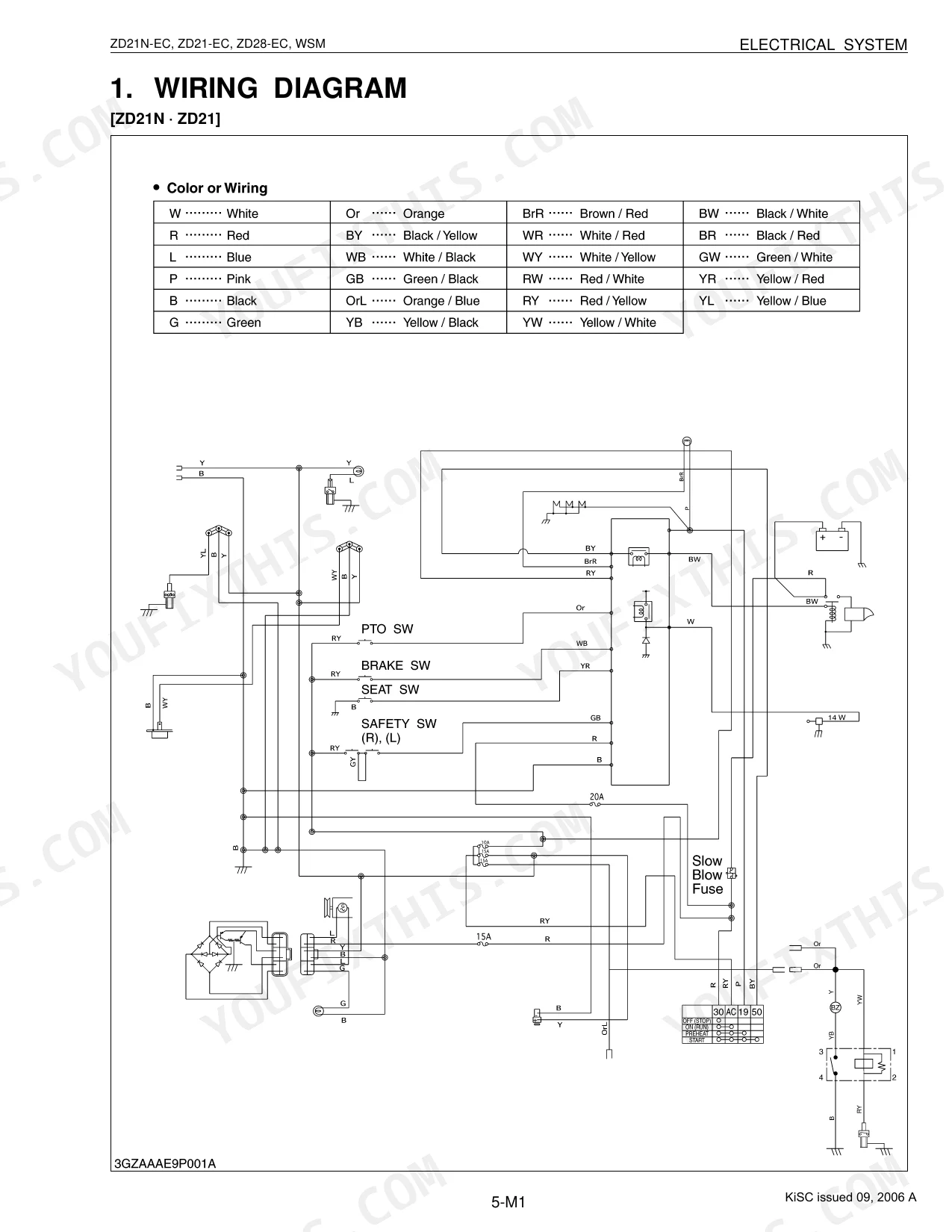

Check the battery voltage and test the safety switch circuit using the wiring diagram on page 204. Clean the starter terminals to ensure a solid ground connection. Torque the starter B terminal nut to 5.9 to 11.8 N·m according to page 222.
Manual Section: Electrical System TroubleshootingFront wheels wander to right or left during operation and steering feels loose on flat ground
Verify the front tire pressure is set to exactly 207 kPa (30 psi) as specified on page 27. Inspect the front axle pivot and wheel brackets for excessive play. Tighten the front wheel bolt and lock nut to 20 to 25 N·m using the specs on page 184.
Manual Section: Front Axle TroubleshootingFrequently Asked Questions
What are the recommended service intervals?

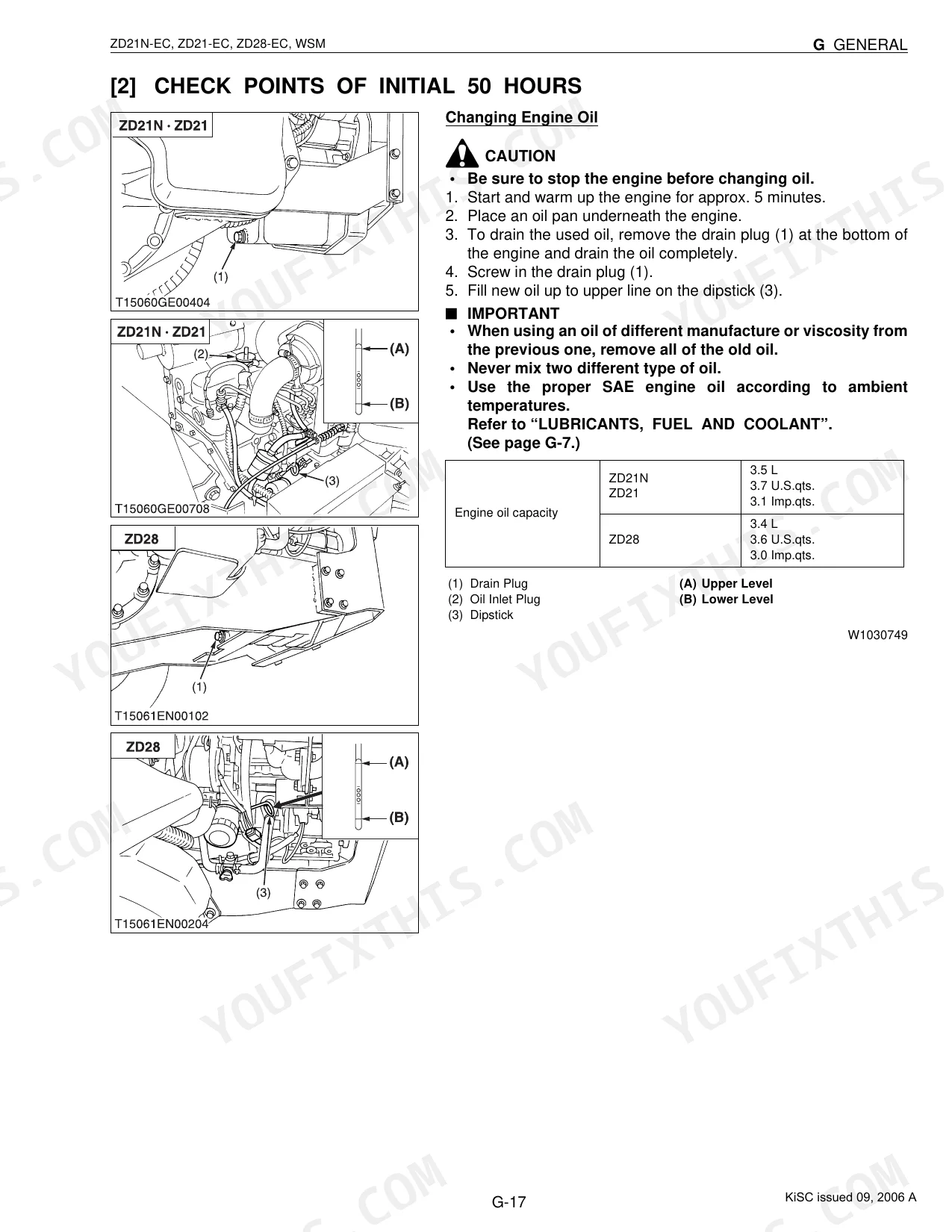

Engine oil gets its first change early, then every 100 hours after that. Replace the engine oil filter on the same initial schedule, then every 200 hours. Clean the air cleaner element every 50 hours and swap it once a year.
What fluids and capacities does this machine require?
Fuel is No. 2-D diesel, tank capacity 30 L (7.9 U.S.gals.). On the ZD21N-EC and ZD21-EC, the engine crankcase holds 3.5 L (3.7 U.S.qts.) of API service classification CC or CD oil. Cooling system capacity on those same models is 2.6 L (2.7 U.S.qts.) of fresh clean water with anti-freeze.

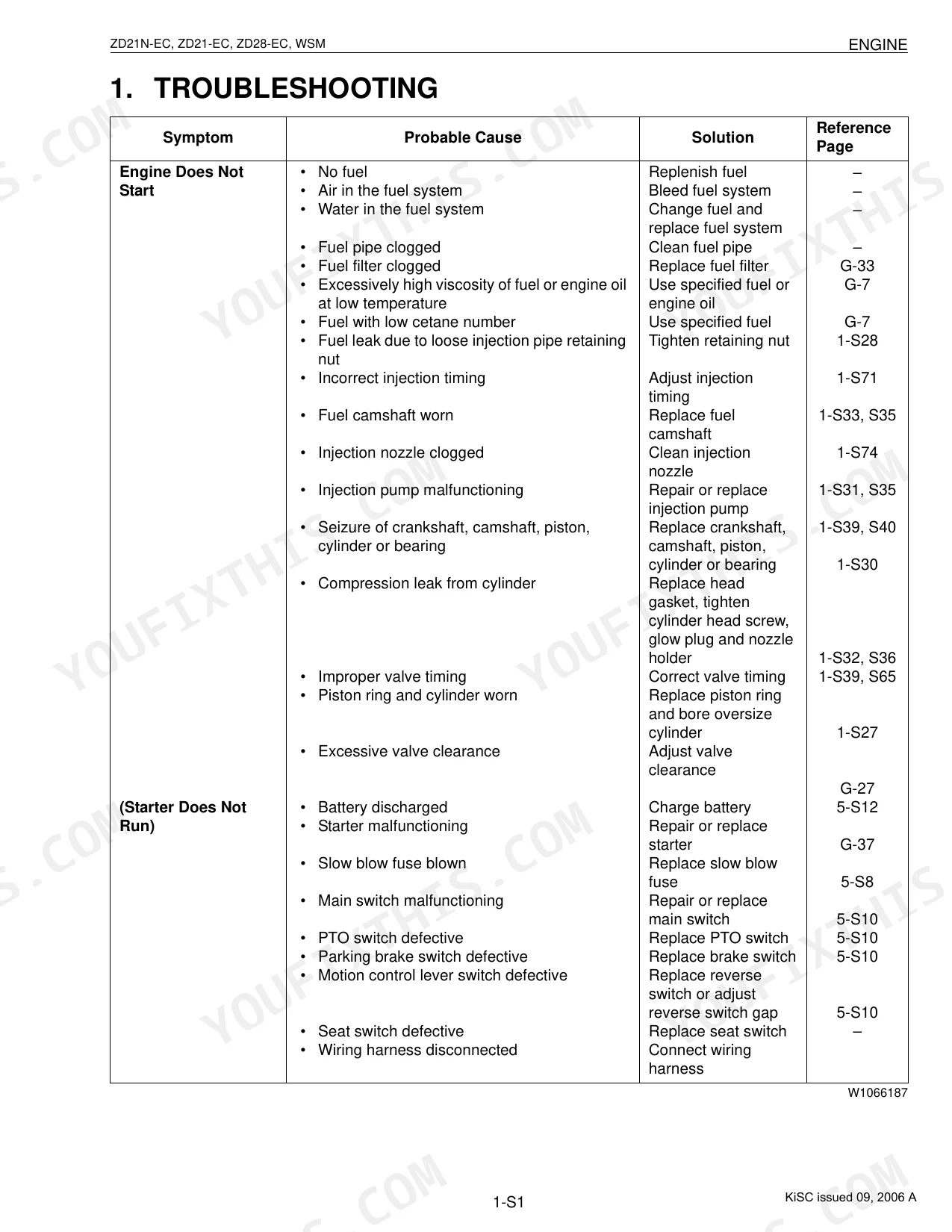

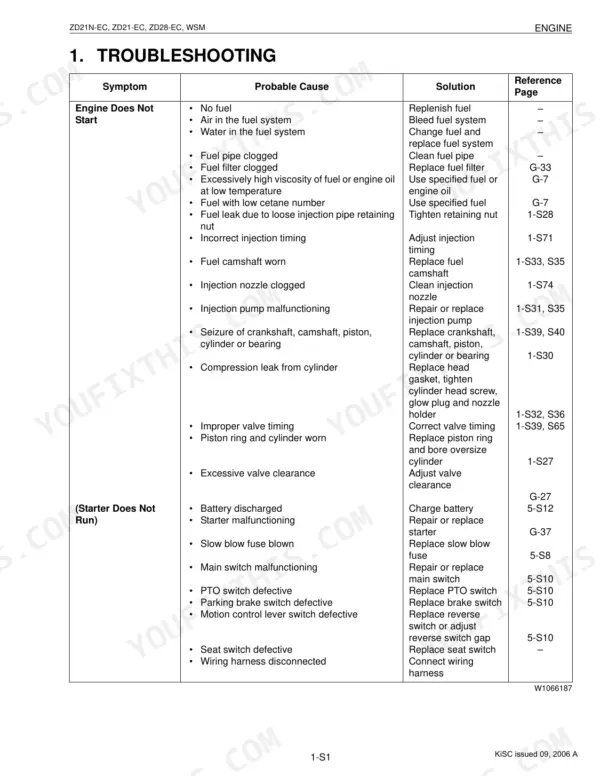

How to troubleshoot engine won't start?
Start with the basics: no fuel, air in the fuel system, or a clogged fuel filter. Fixes are replenishing fuel, bleeding the system, or replacing the fuel filter (page G-33). Beyond that, look at a discharged battery (charge it, page G-27) or a faulty starter (repair or replace, page 5-S12).

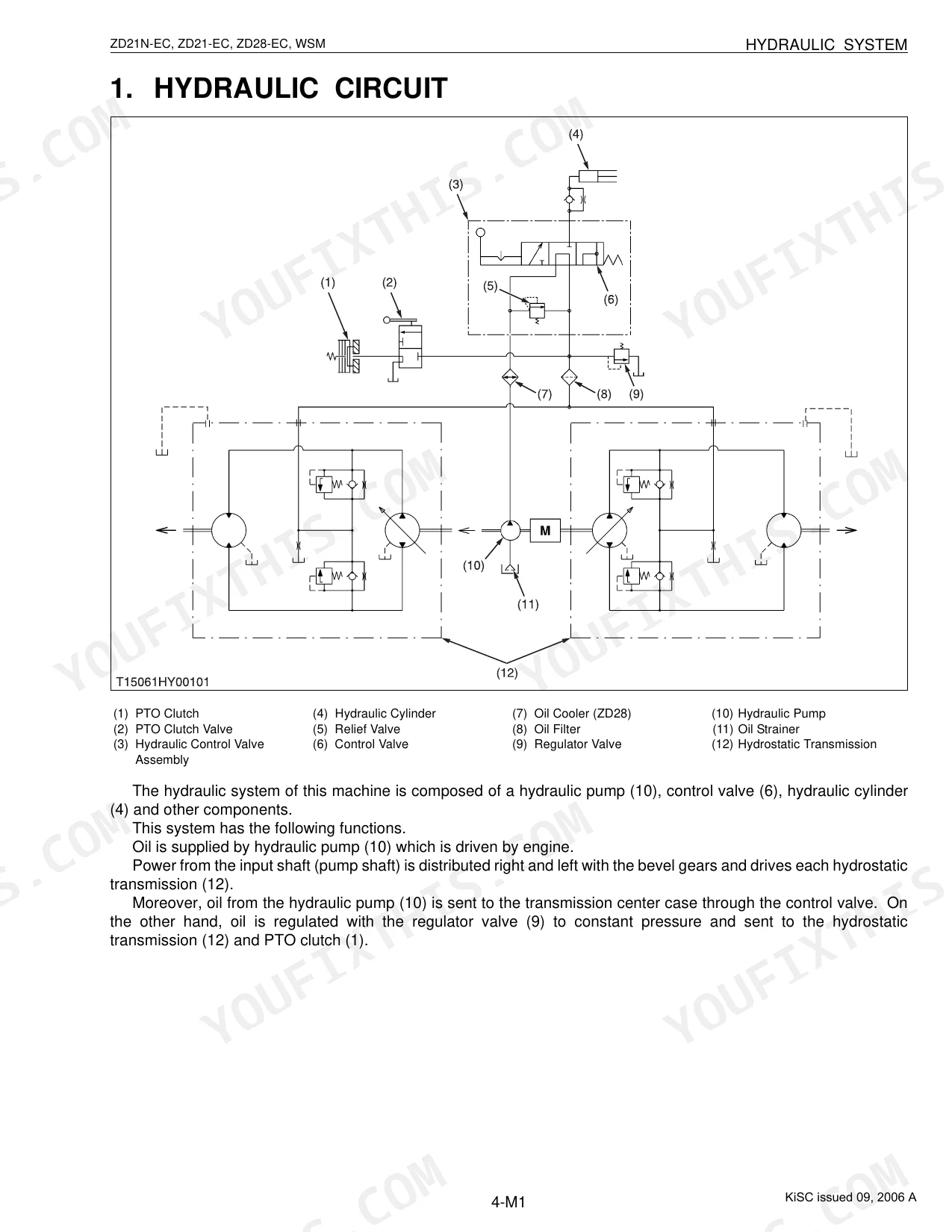

What are the hydraulic system specifications?
The regulator valve sets at 0.50 to 0.69 MPa (5.0 to 7.0 kgf/cm², 71.2 to 99.6 psi), and PTO clutch operating pressure runs the same range. The check and high-pressure relief valve sets much higher: 28.4 to 29.4 MPa (290 to 300 kgf/cm², 4125 to 4269 psi).
Is this Kubota ZD21N-EC, ZD21-EC, ZD28-EC Workshop Manual a digital download?
Yes, it downloads instantly. The full 253-page searchable Workshop Manual is yours the moment payment clears, ready to open on a laptop, tablet, or phone right in the shop.
Are there any print restrictions on this Kubota ZD21N-EC, ZD21-EC, ZD28-EC?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Are there wiring harness diagrams in this Kubota ZD21N-EC, ZD21-EC, ZD28-EC?
Yes. Full electrical schematics are included, with wire colors, connector locations, and circuit descriptions.
Document Quality
This document is a scanned PDF with an OCR text layer, allowing you to search and copy text throughout. The text is generally crisp and easy to read on all pages. Diagrams and illustrations are primarily raster images, but their labels are consistently clear and readable. Pages are clean with no noticeable scan artifacts, stains, or skewed content. You will find several blank pages that serve as section dividers with only a title.
