This operator manual stays locked on a single machine: the Kubota R430 Wheel Loader, across 112 pages. Fourteen of them cover safety, from ROPS and FOPS requirements to travel precautions and load-transport protocols, and a dedicated instrument panel walkthrough decodes every dashboard indicator before you turn the key. The operations section runs through typical job cycles like sand pile loading, V-shift truck loading, and ground leveling, while the maintenance chapter lays out service intervals from daily checks through 3,000-hour EGR and turbocharger inspections. The specifics are here too: 5.0 L of engine oil, 58 L in the hydraulic system, wheel bolts torqued to 275-314 N-m. Bookmarked sections let you jump straight to what you need and get the loader running again.
What's Inside This Kubota R430 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 11-24 | General Precautions, ROPS and Fops, Precautions for Operating the Machine, Precautions for Traveling, Precautions for Safely Loading and Transporting the Machine |
| Servicing of the Wheel Loader | 25-26 | Dealer Service, Warranty Policy, Procedure for Scrapping the Wheel Loader |

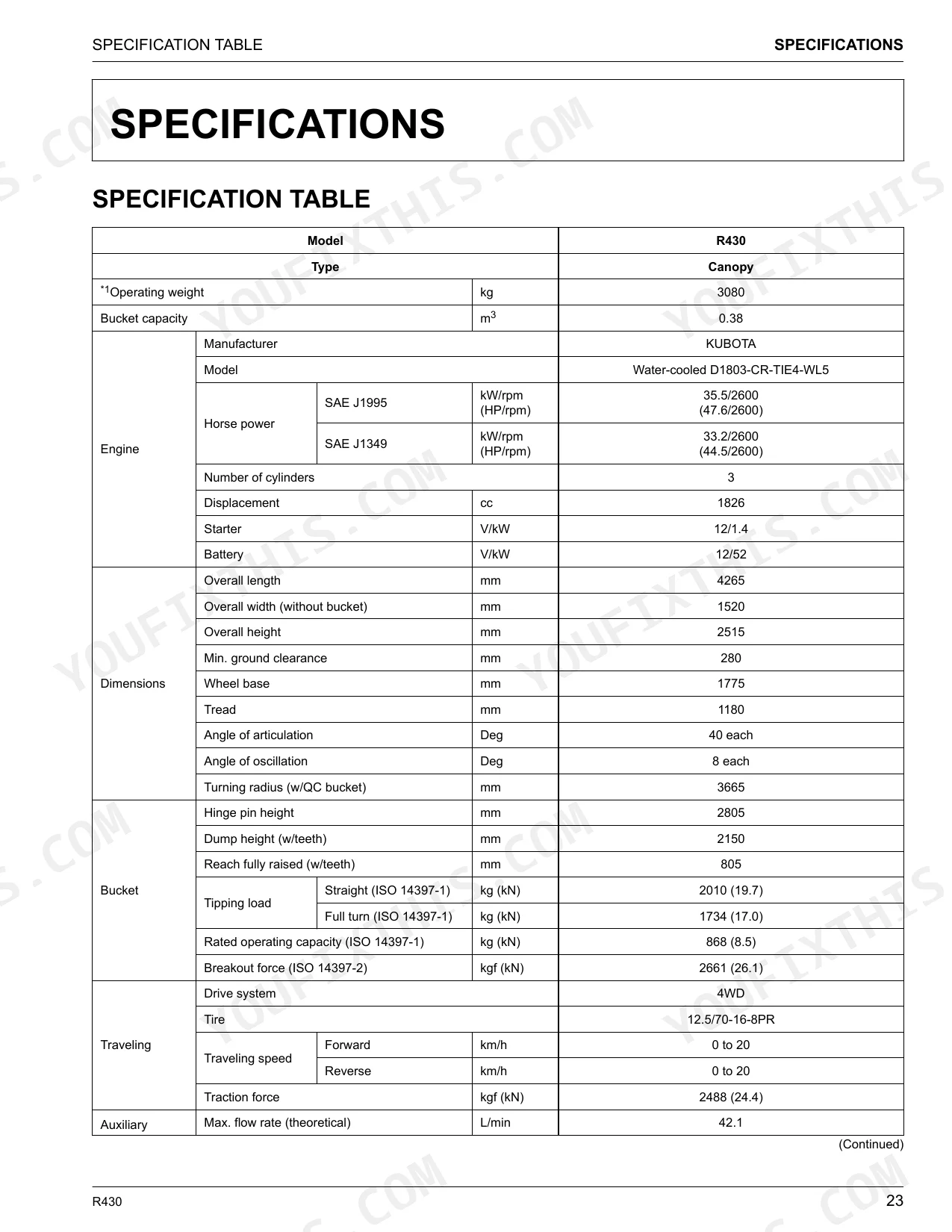

| Specifications | 27-28 | Operating Weight, Bucket Capacity, Engine Specifications, Dimensions, Tipping Load, Traveling Speed |
| Machine Parts | 29-30 | Description of Machine Parts, Bucket, Lift Arm, Steering Wheel, Engine Hood, Hydraulic Oil Tank |

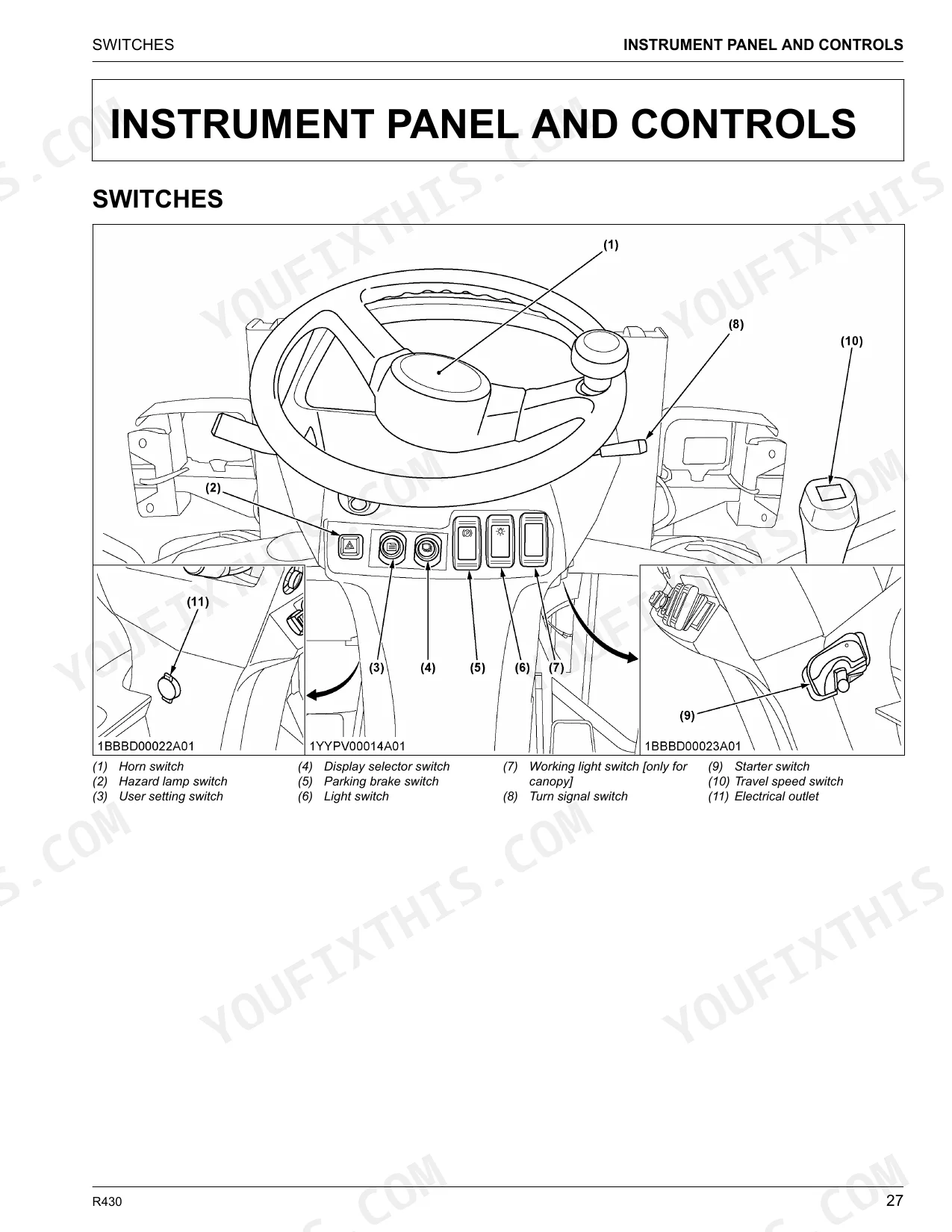

| Instrument Panel and Controls | 31-33 | Switches, Control Pedals and Levers, Instrument Panel |

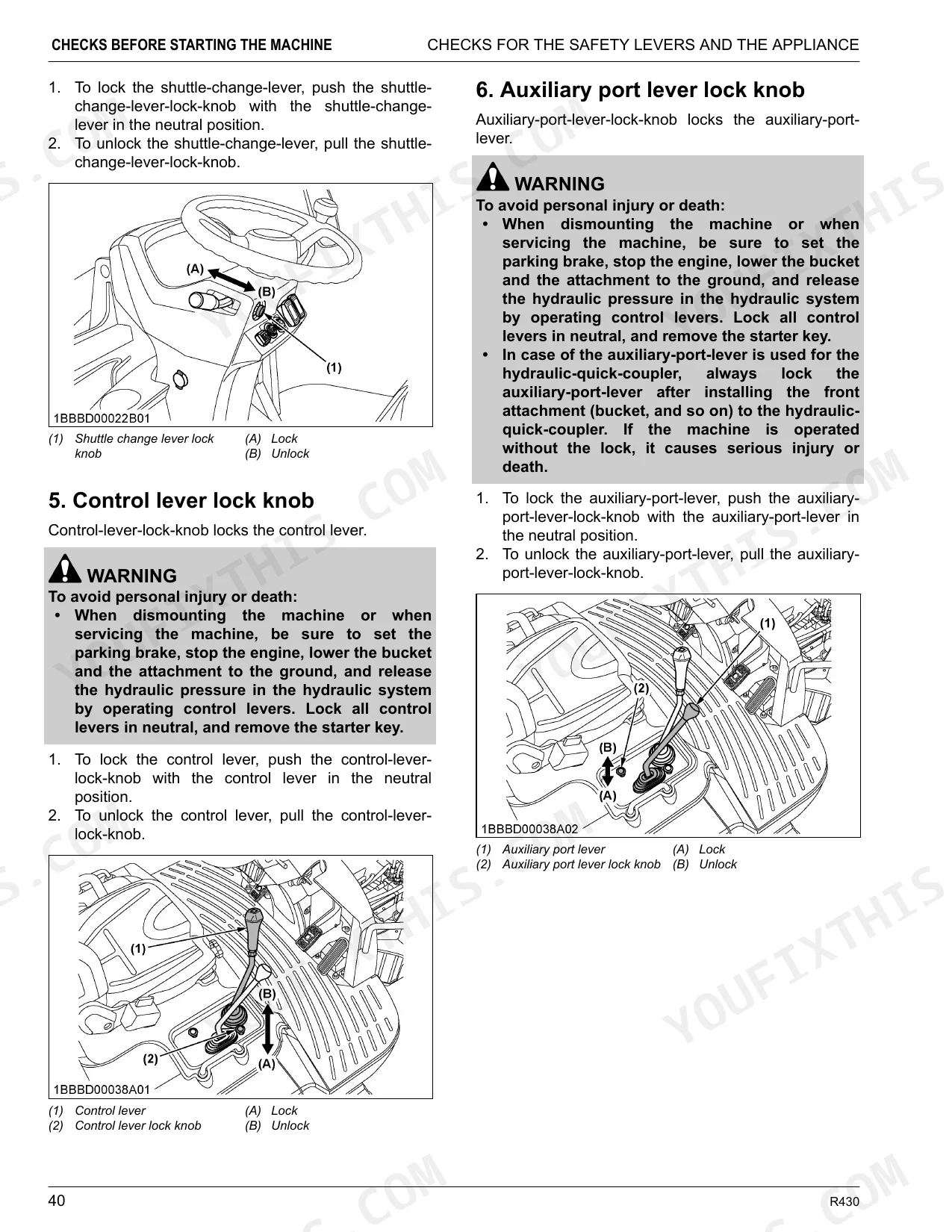

| Checks Before Starting the Machine | 34-44 | Daily Check Items |
| Operation of the Engine | 45-47 | Starting the Engine (Checkpoints After Starting the Engine), Starting the Engine Under Cold Conditions, Stopping the Engine, Starting the Engine with an Auxiliary Battery |
| Operation of the Machine | 48-61 | Guide for the Operator, Working in the Vicinity of Overhead Power Lines, Running-In of the Machine, Starting of the Machine (Operator's Seat, How to Use the Seat Belt) |

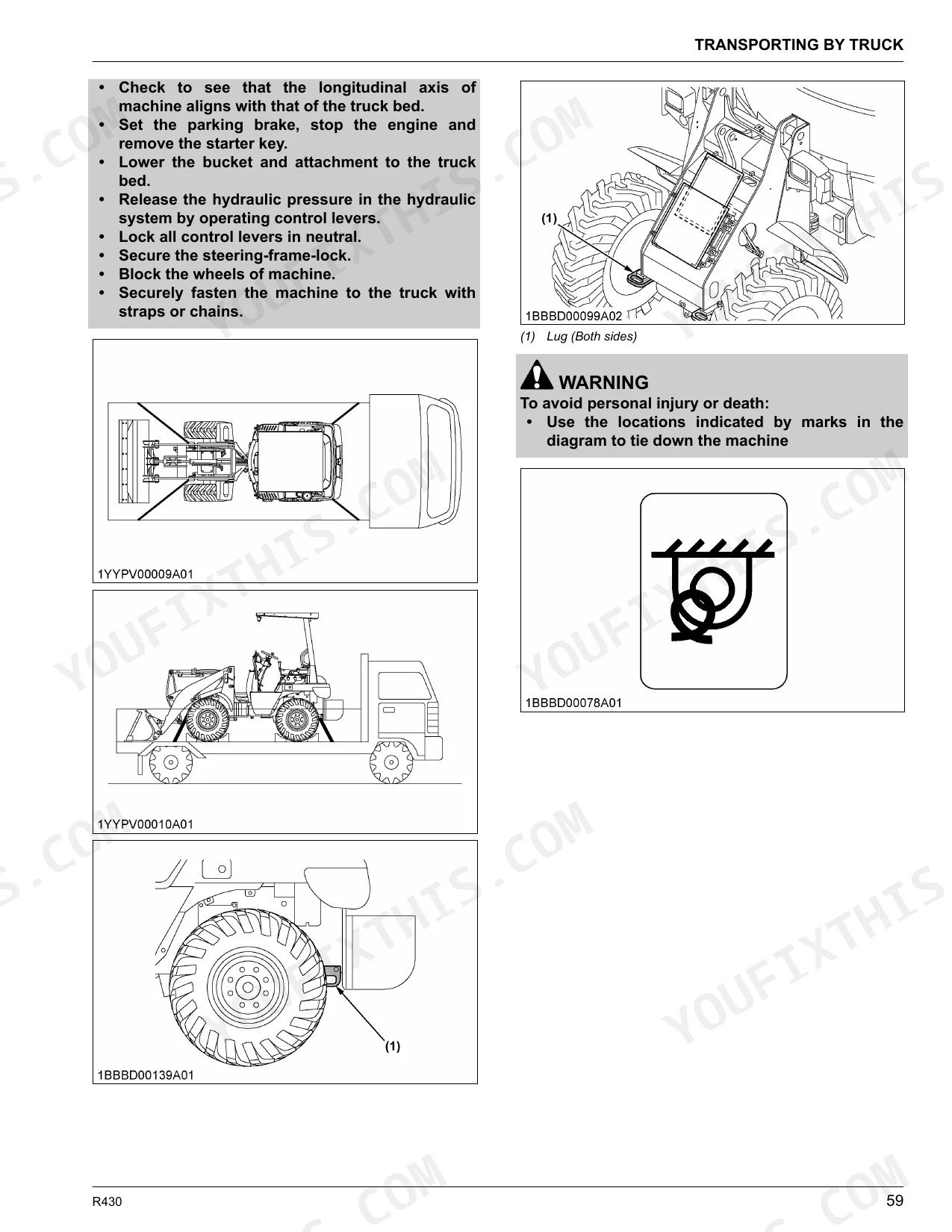

| Transporting by Truck | 62-63 | Loading Procedures, Ramps, Securing the Machine, Parking Brake, Steering Frame Lock, Control Levers |
| Handling the Wheel Loader in Cold Weather | 64 | Engine Oil Viscosity, Battery Charge, Antifreeze Mixing Ratio, Removing Mud and Water, Draining Fuel System Water |
| Maintenance | 65-69 | Precautions for Maintenance, Maintenance Intervals, Daily Check, Service Every 250 Hours, Service Every 1000 Hours, Periodic Replacement of Important Component Parts |
| Periodic Service | 70-97 | Opening and Closing of Covers (and Closing the Engine Cover, The Document Folder and the Magazine Rack, The Grease Gun Holder to Store the Grease Gun) |
| Taking Out of Operation and Storing | 98 | Storing Procedures, Measures Prior to Taking Out of Operation, Measures During Storing, Restarting After Storing, Washing Precautions |

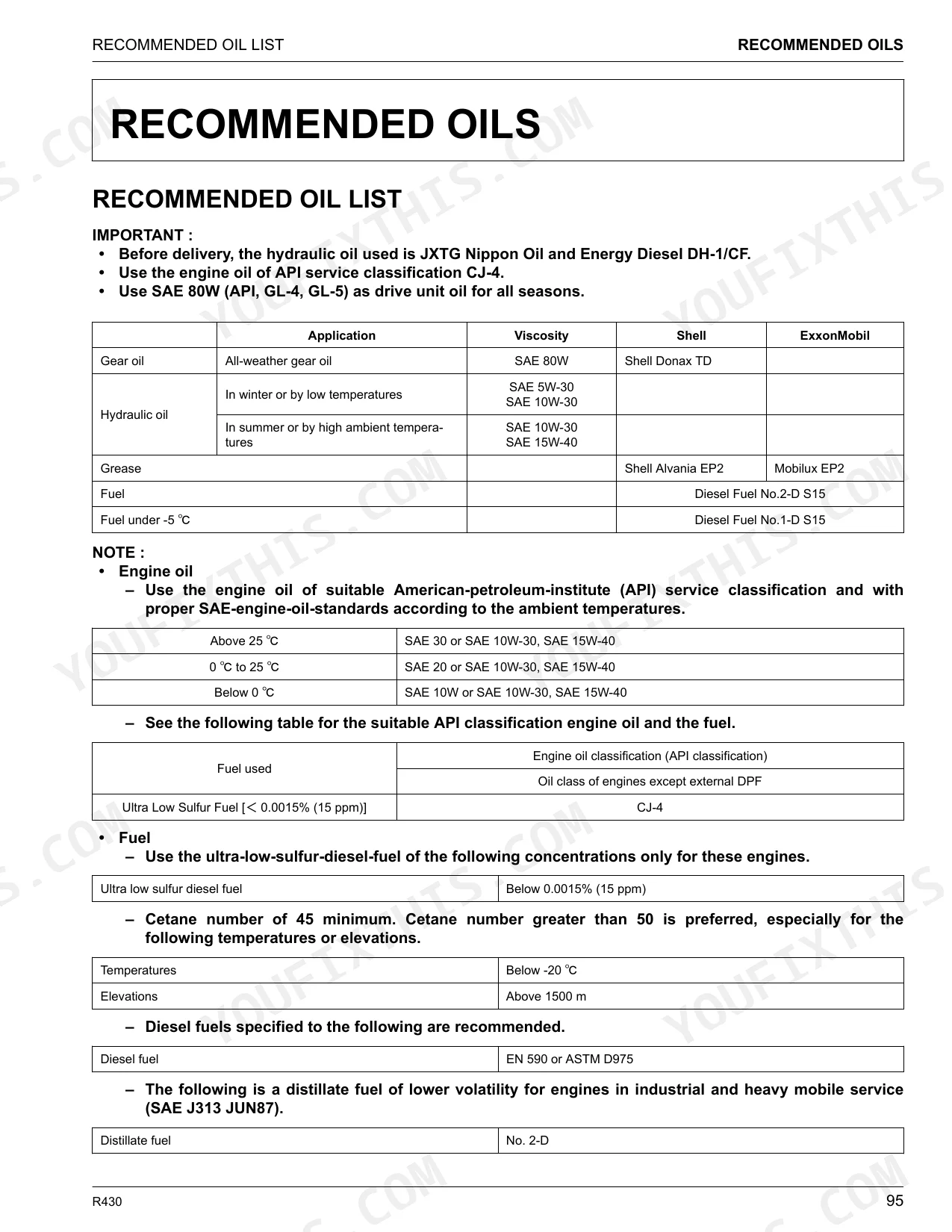

| Recommended Oils | 99-102 | Oil, Grease, Hydraulic Oil, Engine Oil, Fuel, Biodiesel Fuel (Bdf) |
| Troubleshooting | 103-107 | Starting Difficulties, Insufficient Engine Power, Engine Suddenly Stops, Water Temperature in Red Zone (Overheating), Hydraulic System, Electric System |
| Appendix | 108 | Service Hour Meter, Check Points, Hour Meter Indicator, Engine Oil, Hydraulic Oil, Air Cleaner Element |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel bolt tightening torque | 275 N⋅m to 314 N⋅m (28 kgf⋅m to 32 kgf⋅m) | p. 75 |
| LST oil filter Hexagon nut tightening torque | 73.6 N⋅m to 83.4 N⋅m (7.5 kgf⋅m to 8.5 kgf⋅m) | p. 85 |
| Engine oil capacity | 5.0 L | p. 71 |
| Hydraulic oil system whole oil volumes | 58 L | p. 88 |
| Fuel tank capacity | 54 L | p. 72 |
| Brake fluid capacity | 0.3 L | p. 73 |
| Axle case oil capacity | Front 3.0 L, Rear 3.0 L | p. 85 |
| Coolant capacity | Radiator 9.0 L, Recovery tank 1.1 L | p. 64 |
| Engine oil change interval | every 250 hrs | p. 67 |
| Hydraulic oil replace interval | every 1000 hrs | p. 67 |
| Fuel filter cartridge replace interval | every 500 hrs | p. 68 |
| Air cleaner element Outer element clean interval | every 200 hrs | p. 67 |
Kubota R430 Common Problems This Manual Covers
Water separator filled-up indicator lights up on the dashboard during morning startup p. 72
Drain the water from the fuel filter right away. Slide a catch pan under the separator and open the drain plug. Refill the 54 L fuel tank with clean diesel so condensation does not collect overnight. See page 72 for the correct draining points.
Manual Section: Periodic ServiceEngine oil pressure warning indicator flashing on the instrument panel during operation p. 71
Shut the engine down at once and pull the dipstick. Add approved oil if the level reads low; the crankcase holds 5.0 L, per page 71. Look the block over for external leaks before you restart.
Manual Section: Periodic ServiceBattery charge indicator remains lit and engine turns over slowly in cold weather p. 76
Inspect the V-belt condition and tension as shown on page 76. Press the belt midway between the pulleys and confirm the deflection sits between 7 mm and 9 mm. Adjust the alternator bracket if it feels loose, and replace the belt if it is cracked or frayed.
Manual Section: Periodic ServiceHydraulic system low power and sluggish lift arm operation during heavy lifting p. 103
Check the hydraulic fluid sight glass and confirm the level is correct. This machine takes 58 L of hydraulic oil in total, as specified on page 88. Look over every visible hose for leaks, then work through the troubleshooting guide on page 103 if the fluid reads full.
Manual Section: TroubleshootingFrequently Asked Questions
What are the recommended service intervals?
The manual tables out service intervals by component. Engine oil, for instance, gets a daily check and a change every 250 hours; hydraulic oil is checked daily and replaced every 1000 hours. Fan belt tension and the radiator hoses and clamps both come due every 200 hours.
What fluids and capacities does this machine require?
Capacities run as follows: 54 L in the fuel tank, 42 L in the hydraulic oil tank, and 58 L for the hydraulic system as a whole. The engine oil capacity is 5.0 L and the brake fluid reservoir holds 0.3 L. On the cooling side, the radiator takes 9.0 L and the recovery tank 1.1 L, while the front and rear axle cases each need 3.0 L. Recommended oils include SAE 80W gear oil, SAE 5W-30/10W-30/15W-40 hydraulic oil, and Diesel Fuel No.2-D S15.
How to troubleshoot engine won't start?
When the engine won't start, the usual culprits are fuel that's too viscous, air or water in the fuel system, a blown fuse, oil that's too thick in winter, or a dead battery with weak compression. Fixes range from checking and draining the fuel tank and filter, purging the fuel system, and replacing a blown fuse with one of the same capacity, to running an engine-block heater in winter or recharging or replacing the battery.
What are the hydraulic system specifications?
Maximum pressure on the hydraulic system is 18.6 MPa (190 kgf/cm²), with a theoretical peak flow rate of 42.1 L/min. The hydraulic oil tank holds 42 L, and the full system volume is 58 L. Kubota recommends hydraulic oil meeting ISO VG 32 or VG22 standards.
What torque specifications are listed?
Several torque figures appear in the manual. The M10 bolts for the auto leveler adjustment tighten to 48.1 N⋅m to 55.9 N⋅m (4.9 kgf⋅m to 5.6 kgf⋅m). Wheel bolts call for 275 N⋅m to 314 N⋅m (28 kgf⋅m to 32 kgf⋅m), and the hexagon nut on the LST oil filter goes to 73.6 N⋅m to 83.4 N⋅m (7.5 kgf⋅m to 8.5 kgf⋅m).
Is this Kubota R430 Operator Manual a digital download?
Yes, it's a 112-page Operator Manual in searchable PDF, available the moment checkout completes. Open it on a computer, tablet, or phone, with no shipping wait.
Is this Kubota R430 Operator Manual printable?
Yes. The PDF carries no DRM restrictions, so you can print any page or section you need for the shop. It works with any standard printer.
