This is the Kubota operator manual for the L305, L305DT, L345, L345DT, and L355SS tractors, covering both two-wheel-drive and four-wheel-drive models in one book. It runs on the Kubota D1301-DA, V1501-DA, and V1702-A diesel engines and walks owners through daily operation, servicing, and safe use.Inside you get model specifications, capacities, and maintenance schedules, plus instruction panel and control details, three-point hitch and drawbar setup, wheel tread and ballast, and full check and maintenance procedures. The adjustments section covers the clutch, brake, steering wheel, and fan belt, and a troubleshooting guide helps with hard starting and low output.Wiring diagrams for the L305/L345 and the L355SS are included, along with implement limitation tables for each model. It is a searchable PDF you can download now, print, or keep on a tablet in the barn or shop.
What's Inside This Kubota L305–L355 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Abbreviations List | - | Abbreviations and Definitions Table, Two Wheel Drive, Four Wheel Drive |
| For Safe Operation | - | Operating Safely, Operate Sensibly - Avoid Roll-Overs, Road Transporting, Safe PTO Operation, Safe 3-Point Hitch Operation |
| Servicing of Tractor | - | Importance of Dealer Service, Tractor Serial Number Location, Engine Serial Number Location |
| Specifications | - | L305 Specifications (Engine, Capacities, Tires, Dimensions, Weight, PTO Shaft, Rear PTO, Clutch, Steering, Transmission, Min. Turning Radius, Brake, Differential) |
| Handling New Tractor | - | How a New Tractor Is Handled, Do Not Operate the Tractor at Full Speed for the First 100 Hours, Changing Lubricating Oil for New Tractors, Loading and Unloading |

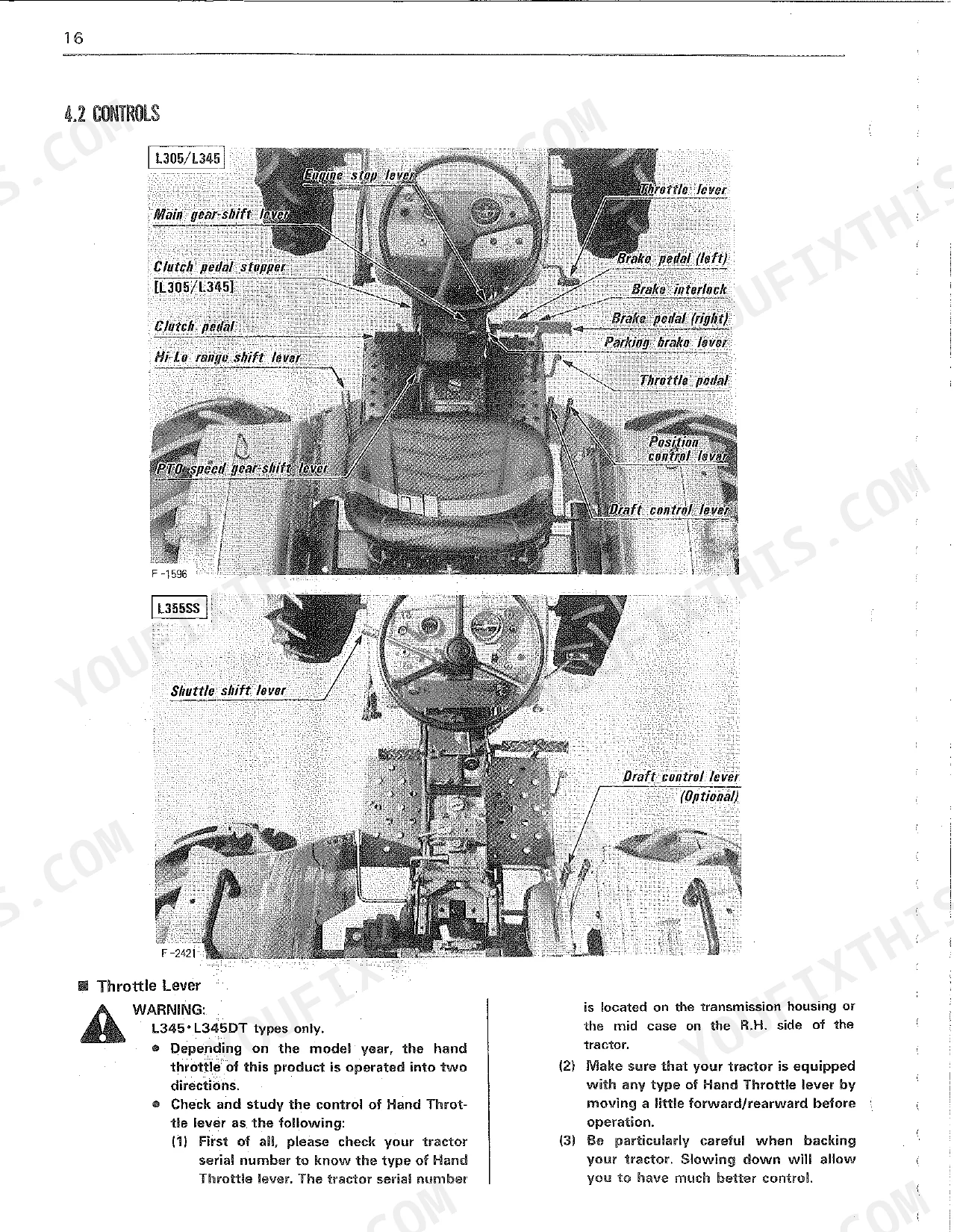

| Instrument Panel and Controls | - | Switches (Main Switch, Glow Plug Indicator, Hazard Lamp Switch, Horn Button, Hour Meter, Decompression Knob, Engine Oil Pressure Lamp, Battery Charge Lamp, Temperature Gauge, Fuses) |
| Three-Point Hitch & Drawbar | - | Top Link, Lifting Rod, Check Chains |
| Wheels, Tires and Tread | - | Tread ([Front] 2WD, [Front] 4WD, [Rear]), Tires, Ballast, Toe-In [for 2WD and 4WD] |

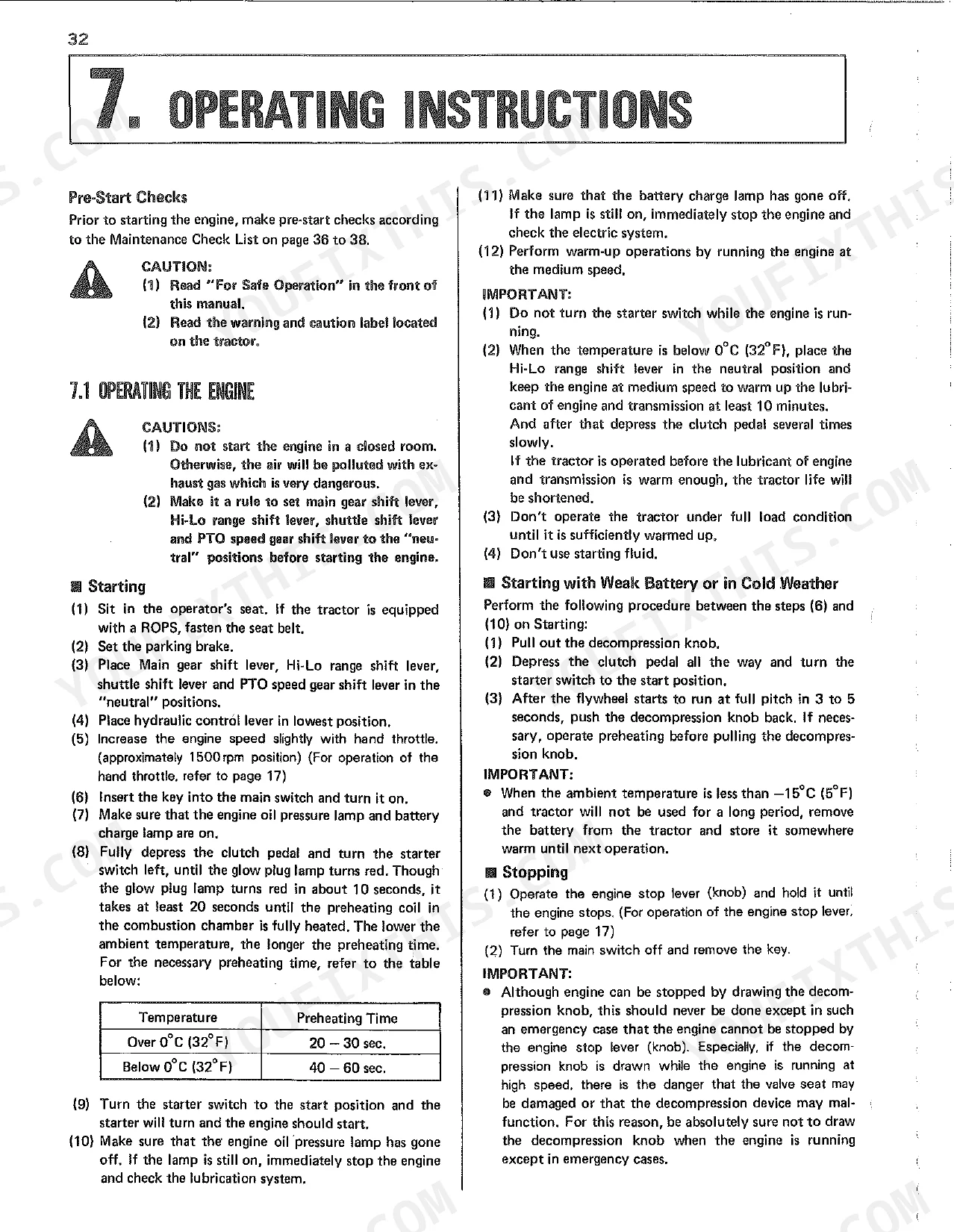

| Operating Instructions | - | Pre-Start Checks, Operating the Engine (Starting, Starting with Weak Battery or in Cold Weather, Stopping), Operating the Tractor (Starting, Stopping, Parking, Turning), Pulling |

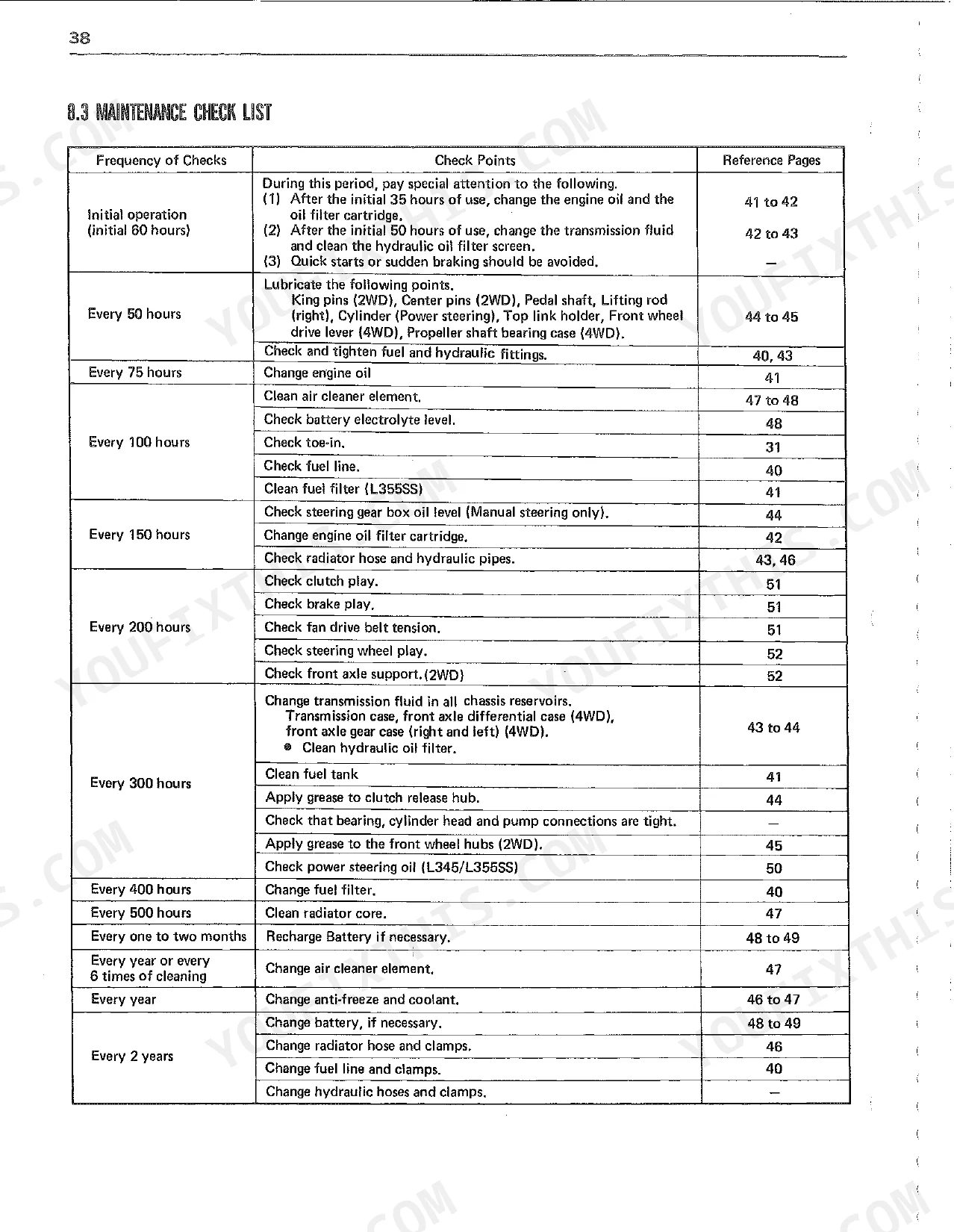

| Maintenance | - | Daily Check, Lubricants, Maintenance Check List |
| Check and Maintenance | - | Fuel (Checking and Refueling, Bleeding the Fuel Line, Checking Fuel Line, Changing the Fuel Filter [L305/L345], Cleaning the Fuel Filter Pot [L355SS], Clean Fuel Tank) |
| Adjustments | - | Fan Drive Belt Tension, Clutch, Brake, Steering Wheel, Front Axle Support [2WD], Orifice Lever [L355SS], Shuttle Shift Lever [L355SS] |
| Troubleshooting | - | Engine Troubleshooting (When: Engine Is Difficult to Start, Output Is Insufficient, Color of Exhaust Is Especially Black) |
| Long-Term Storage | - | Tractor Storage Procedures, Clutch Pedal Block, Muffler Opening Protection |
| Options | - | S.M.V. Emblem, Recommended to Forwarn Overtaking Traffic, Emblem Bracket |
| Wiring Diagram | - | L305/L345 Wiring Diagram, L355SS Wiring Diagram, Color of Wire Harness |
| Specifications of Implement Limitations | - | L305 Implement Limitations, L345 Implement Limitations, L355SS Implement Limitations, Detailed Implement Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Rear wheel bolt torque | 196-226 N-m (20-23 kgf-m, 145-165 ft-lbs) | p. 33 |
| Transmission and Hydraulic Oil (SHELL DONAX-TD, Mobil fluid 423, Exxon Torque Fluid 56) | L305/L345 (2WD): 30ℓ (31.7 U.S.qts.); L305/L345 (4WD): 31ℓ (32.7 U.S.qts.); L355SS (4WD): 32ℓ (33.4 U.S.qts.) | p. 43 |
| Hydraulic oil filter cleaning interval | Every 300 service hours | p. 49 |
| Battery voltage and capacity | 12V 100Ah | p. 15 |
| Starter motor power | 1.4 kW | p. 15 |
| Engine coolant capacity | L305: 5.8ℓ (6.1 U.S. qts.); L345/L355SS: 7.0ℓ (7.4 U.S. qts.) | p. 52 |
| Hydraulic hoses replacement interval | Every 2 years | p. 44 |
| Normal steering wheel play | 20 to 50 mm (0.8 to 2.0 in.) | p. 58 |
| L305 | ||
| Engine Oil Capacity | 6.3 L (6.6 U.S. qts.) | p. 43 |
| L345, L355SS | ||
| Engine Oil Capacity | 9.1 L (9.6 U.S. qts.) | p. 43 |
| L305 (2WD), L345 (2WD) | ||
| Transmission Fluid Capacity (2WD models) | 30 L (31.7 U.S. qts.) | p. 43 |
| L305DT, L345DT | ||
| Transmission Fluid Capacity (L305DT, L345DT) | 31 L (32.8 U.S. qts.) | p. 43 |
Kubota L305–L355 Series Common Problems This Manual Covers
Hard steering or fluid leak at column
Owners of the L305DT and L345DT often report heavy steering or hydraulic seepage at the steering column. The adjustments section covers setting steering wheel play back to specification.
Manual Section: Adjustments p. 57Three-point hitch will not lift
A hitch that drops or refuses to raise is a frequent complaint on these tractors. The three-point hitch and drawbar section covers the top link, lifting rod, and check chains that set it up correctly.
Manual Section: Three-point Hitch & Drawbar p. 31Engine hard to start or will not crank

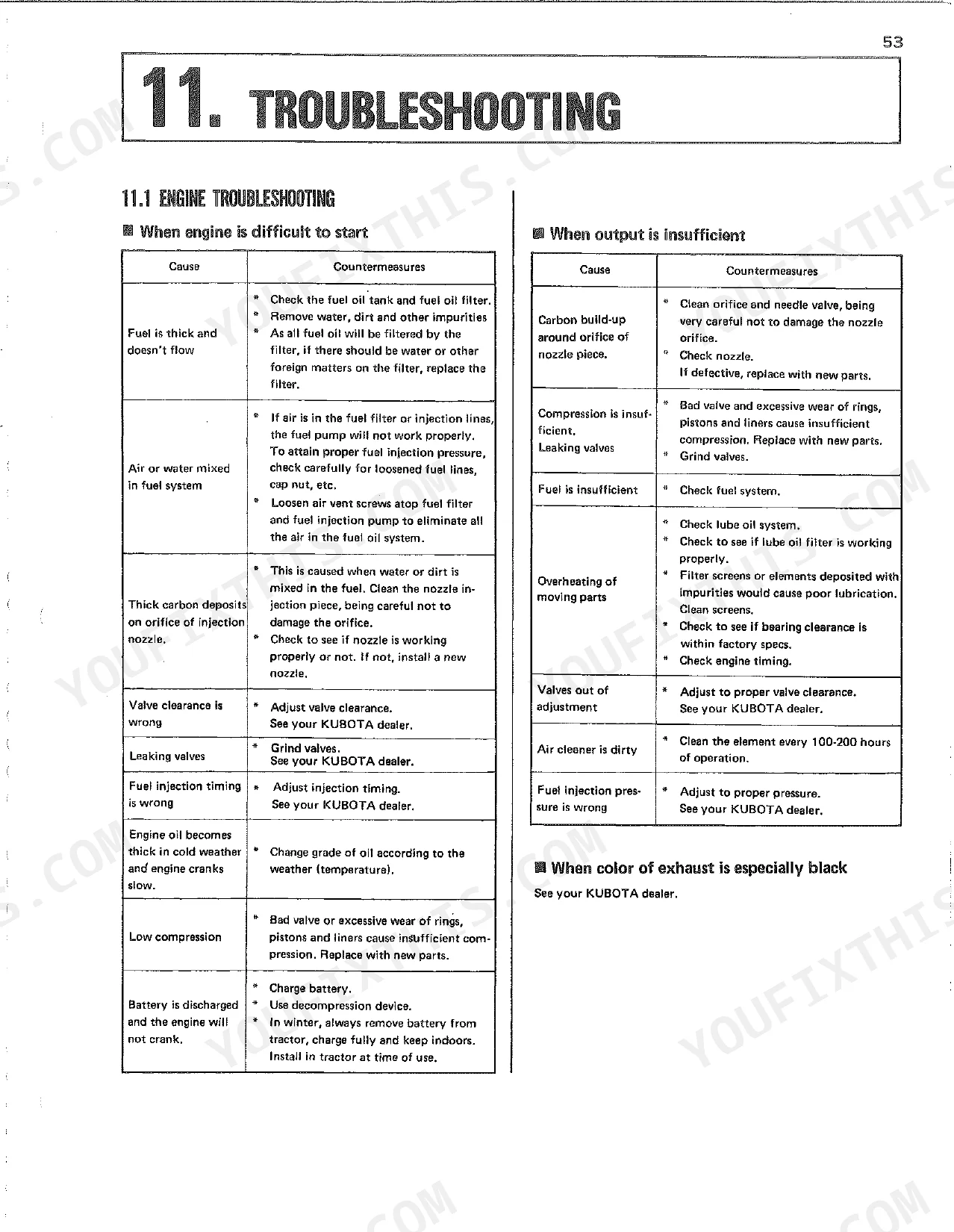

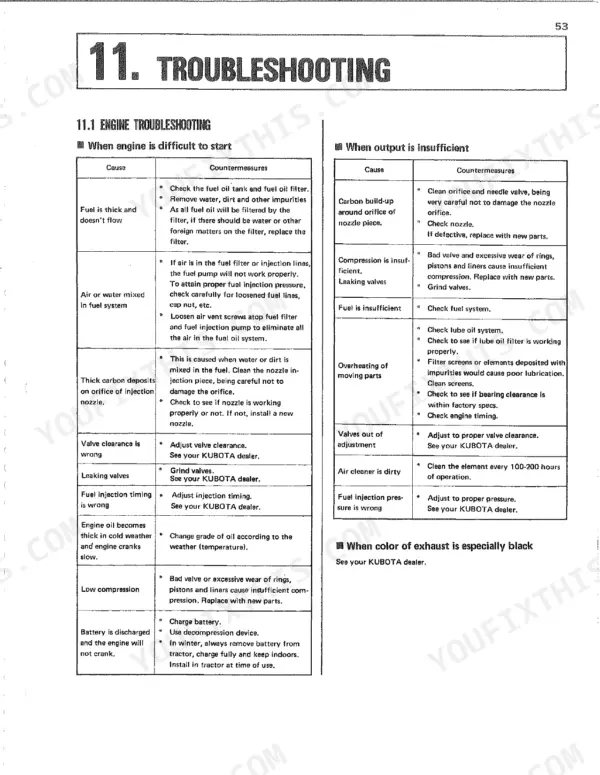

A no-crank or slow-start condition often traces to a weak battery or the starter circuit. The troubleshooting section lists causes for an engine that is difficult to start.
Manual Section: Troubleshooting p. 59Engine overheating
Overheating on these Kubota diesels usually comes from restricted radiator airflow or low coolant. The check and maintenance section covers cooling system service and coolant capacities.
Manual Section: Check and Maintenance p. 45Clutch or brake free play out of spec
Dragging clutch or a soft brake pedal means free play has drifted. The adjustments section gives the clutch and brake free play settings, both specified at 25 to 35 mm.
Manual Section: Adjustments p. 57Poor traction from wrong tread or ballast
Instability or slip is often a tread, tire, or ballast setup issue rather than a fault. The wheels, tires and tread section covers tread settings for 2WD and 4WD, ballast, and toe-in.
Manual Section: Wheels, Tires and Tread p. 33Frequently Asked Questions
Which models does this manual cover?
It covers the Kubota L305 and L305DT, L345 and L345DT, and the L355SS tractors, including both two-wheel-drive and four-wheel-drive versions, with the D1301-DA, V1501-DA, and V1702-A engines.
Is this an operator manual or a service manual?
It is the operator manual. It covers safe operation, controls, specifications, maintenance schedules, adjustments, and basic troubleshooting, rather than full engine or transmission overhaul procedures.
Does it list oil and fluid capacities?
Yes. The maintenance section covers lubricants and the daily check list, including engine oil and transmission fluid capacities, which differ between the 2WD, DT four-wheel-drive, and L355SS models. p. 42
Are wiring diagrams included?

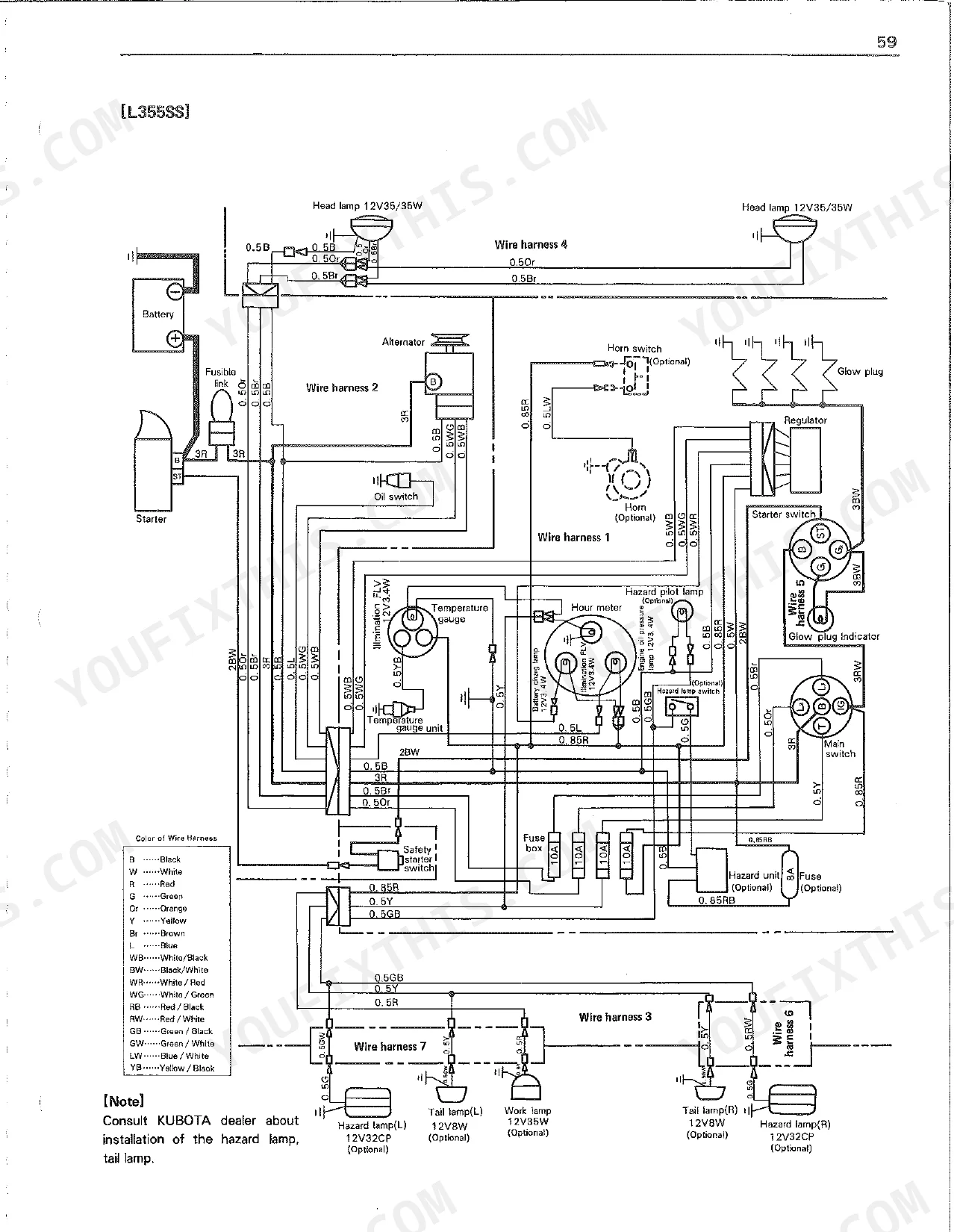

Yes. The wiring diagram section includes separate diagrams for the L305/L345 and the L355SS, along with the color coding for the wire harness. p. 64
What do I get after purchasing this Kubota L305–L355 Series manual?
Instant PDF download. You get the full 72-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Kubota L305–L355 Series Operator Manual have electrical diagrams?
Yes. The operator manual includes the overall electrical wiring diagram for the L305, L345, and L355SS, showing circuit layout and wire routing, rather than the connector pinouts you would find in a full workshop manual.
