This Kubota Operator's Manual covers the ZG222A-AU and ZG227A-AU gasoline zero-turn mowers, running the KGZ770-MA3 and KGZ770-MA2 engines. Publication K3277-7121-6, it runs 105 pages and is the factory operator's manual for owners running and maintaining these machines.
It opens with safe operation, the full specification table, implement limitations, and the instrument panel and control layout, then covers mower mounting, engine and machine operation, foldable ROPS, and cutting-height adjustment.
Maintenance content runs deep: service intervals, periodic service from daily checks through the longer-hour tasks, tire and wheel care, motion control and deck leveling, tightening torque charts, storage, a troubleshooting chart, and engine emission information. Whether setting tire pressures, torquing blade bolts, or tracing a no-start, this PDF gives owners the numbers and steps Kubota built for the ZG222A-AU and ZG227A-AU.
What's Inside This Kubota ZG222A-AU, ZG227A-AU Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 8-17 | Operating Procedures, Slope Operation, Stopping Procedures, PTO Usage, Lift Link Usage, Servicing and Storage, Safety Labels |
| Servicing of Machine | 18-19 | - |
| Specifications | 20-22 | Engine Specifications, Capacities, Dimensions, Traveling System, PTO Specifications, Mower Deck Specifications |
| Implement Limitations | 23 | Maximum Loading Weight, Front Axle Load, Rear Axle Load, Implement Weight, Maximum Total Weight |

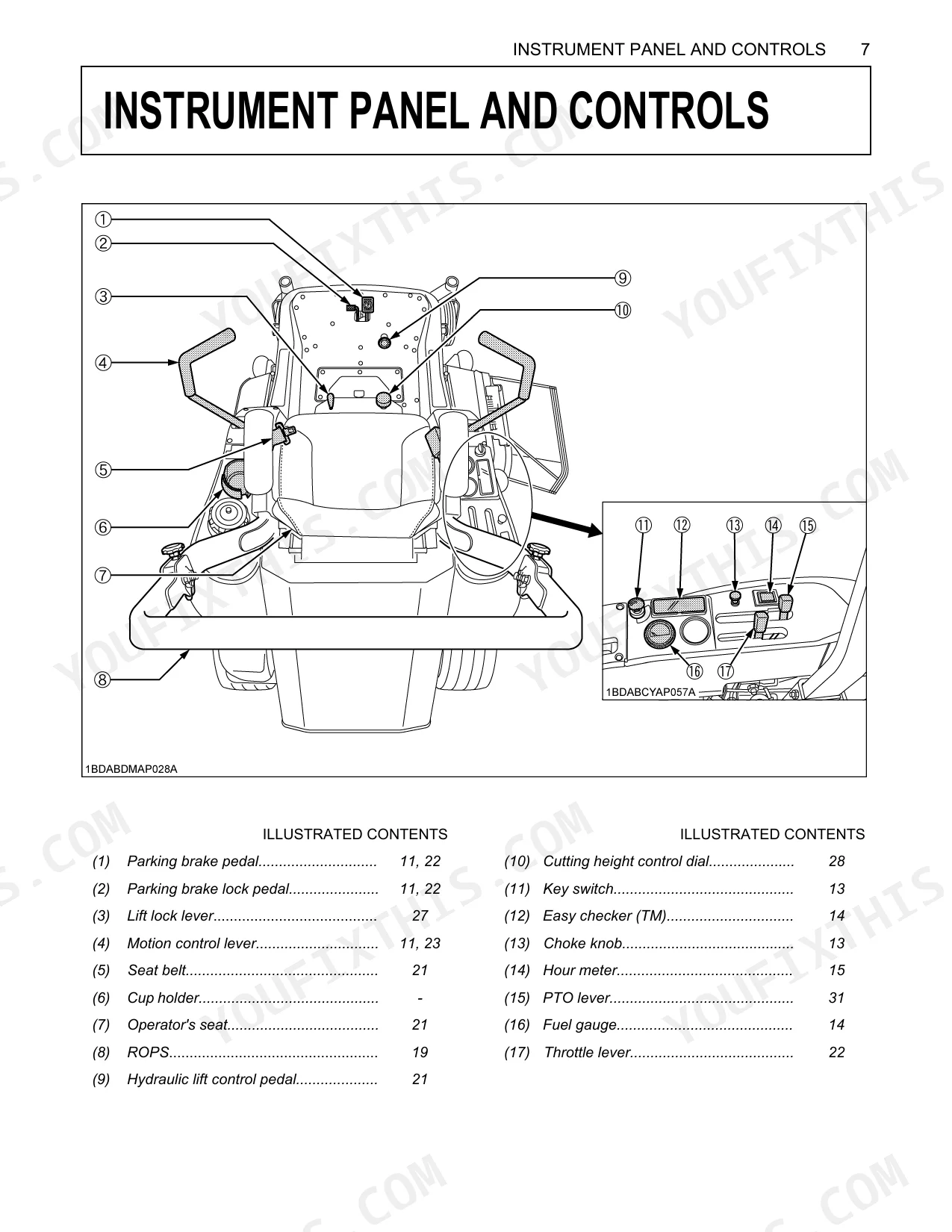

| Instrument Panel and Controls | 24-25 | Parking Brake, Motion Control Lever, Key Switch, Easy Checker (Tm), PTO Lever, Throttle Lever |
| Mower Mounting | 26-27 | Mounting the Mower Deck, Mower, Dismounting the Mower Deck |

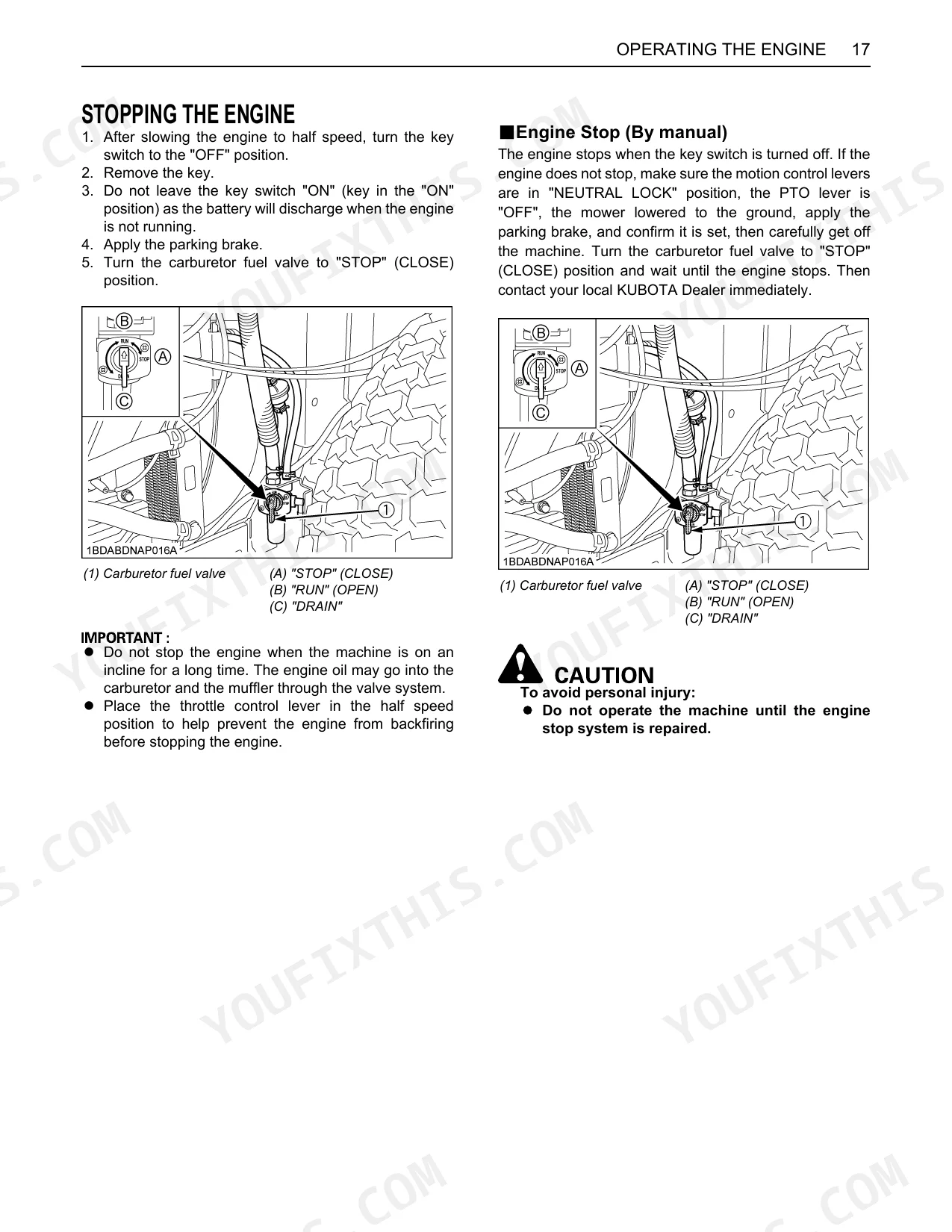

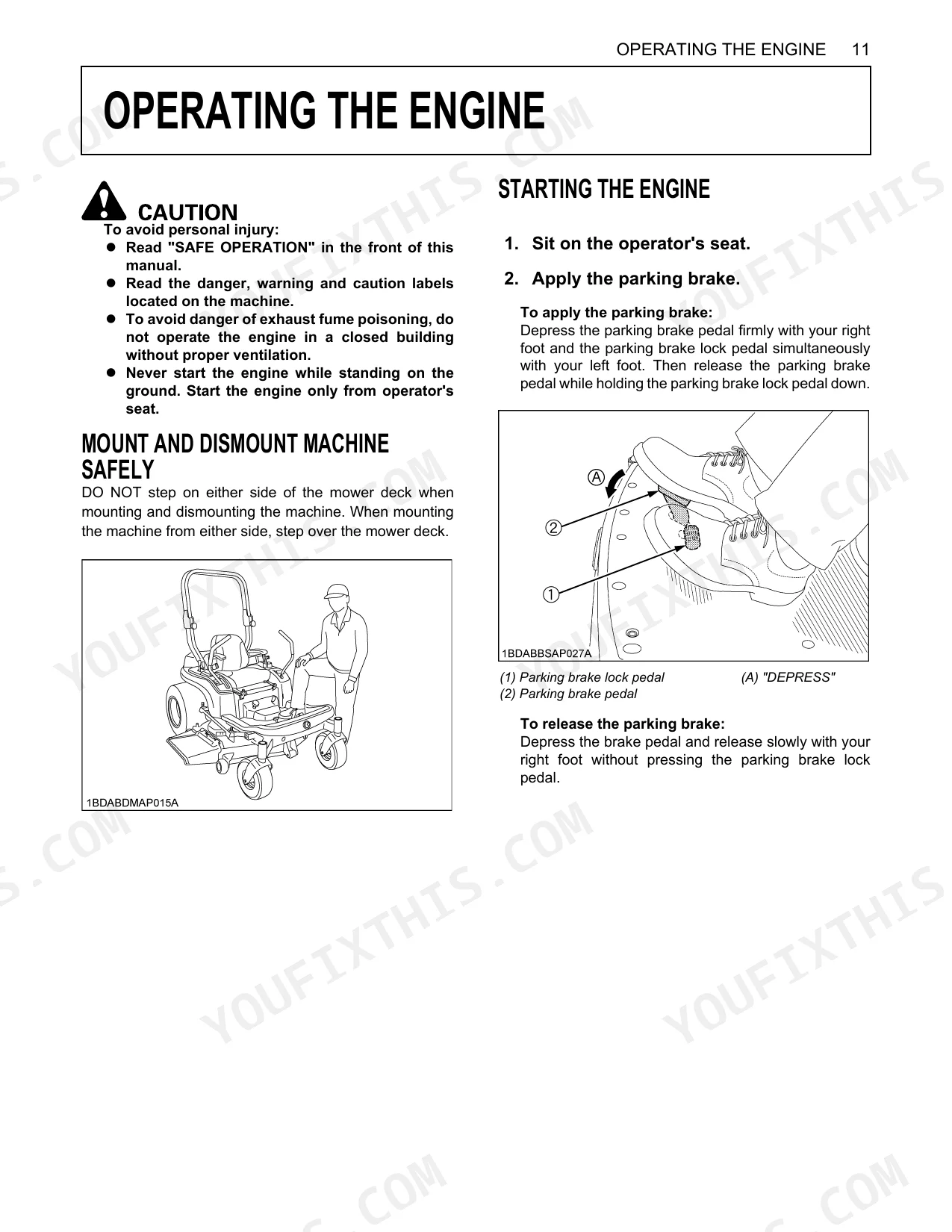

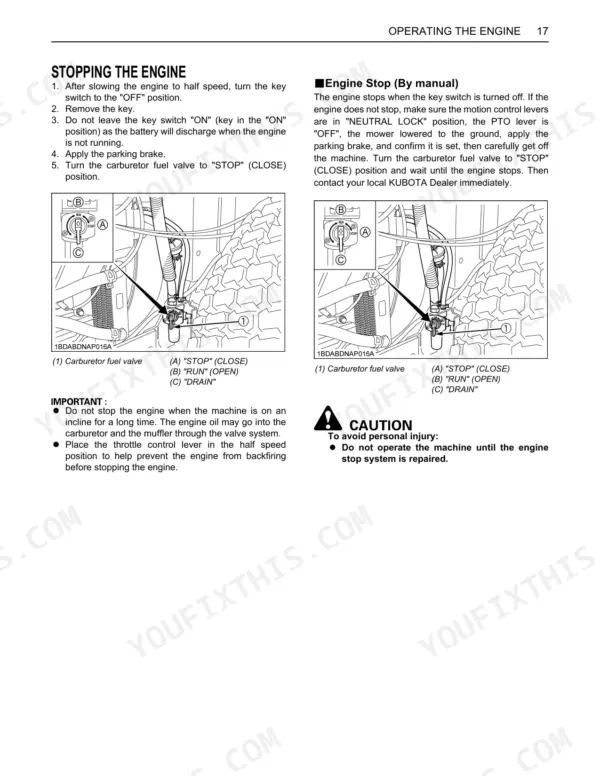

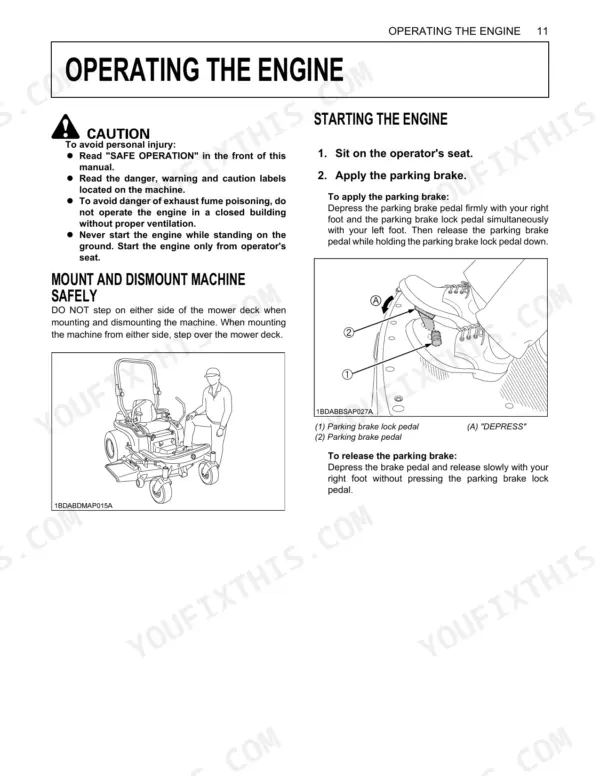

| Operating the Engine | 28-34 | Mount and Dismount Machine Safely, Starting the Engine, Check During Operating, Cold Weather Starting, Warming Up, Jump Starting, Stopping the Engine |

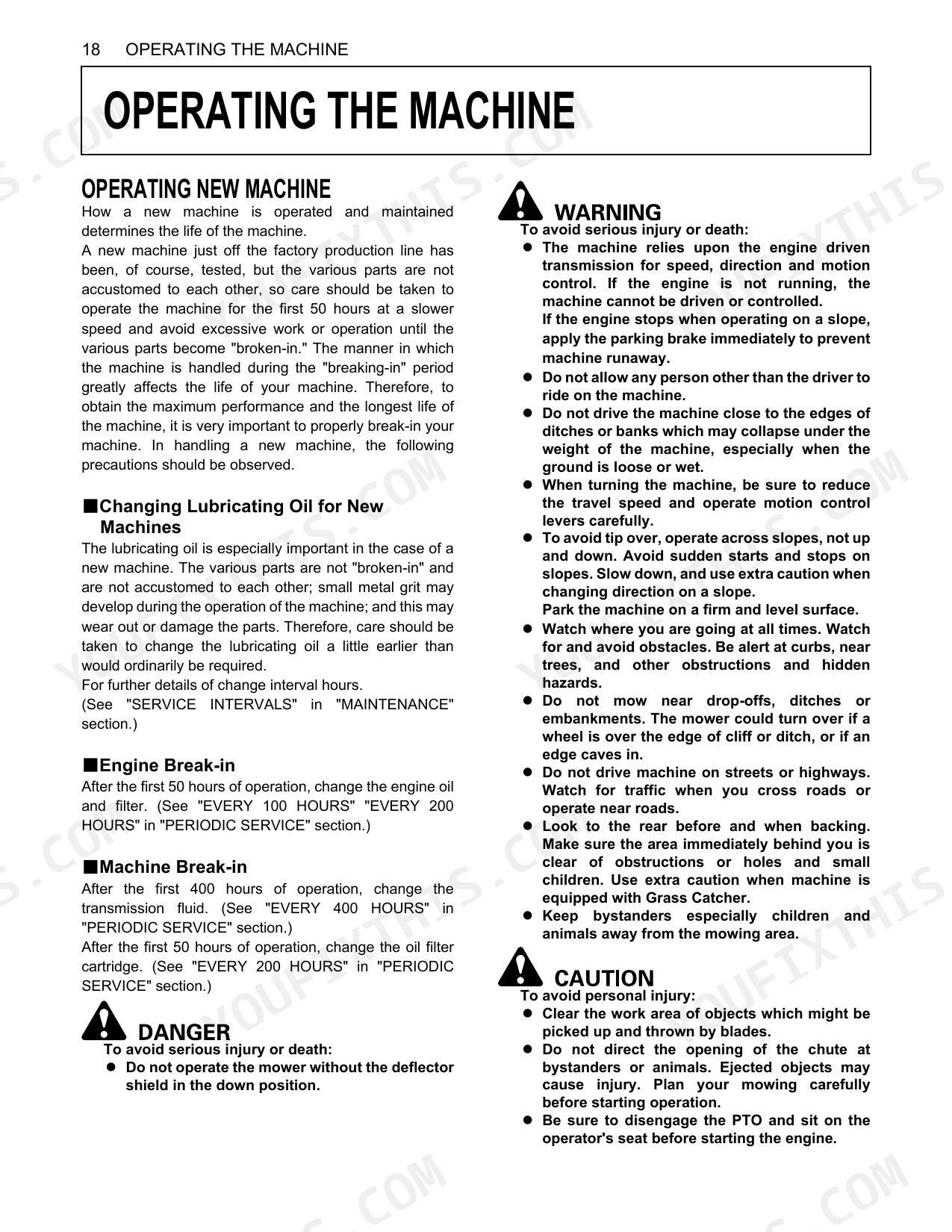

| Operating the Machine | 35-44 | Operating New Machine, Operating Foldable ROPS, Starting, Work Light - Optional, Stopping, Parking, Transporting |
| Operating the Mower | 45-48 | Making the Most of Your Mower, Cutting Height, Operating Mower |
| Tires and Wheels | 49-50 | Tires, Wheels, Remove and Install Front Caster Wheels |
| Maintenance | 51-55 | Service Intervals, Periodic Service Chart Label, Lubricants and Fuel |
| Periodic Service | 56-87 | How to Open the Hood and Step, How to Raise the Operator's Seat, How to Open the Lever Guide, Lift Up Point, Daily Check, Every 50 Hours, Every 100 Hours, Every 150 Hours |
| Adjustment | 88-95 | Motion Control Lever, Mower Deck Level, Tightening Torque Chart |
| Storage | 96-98 | Machine Storage, Removing the Machine From Storage |

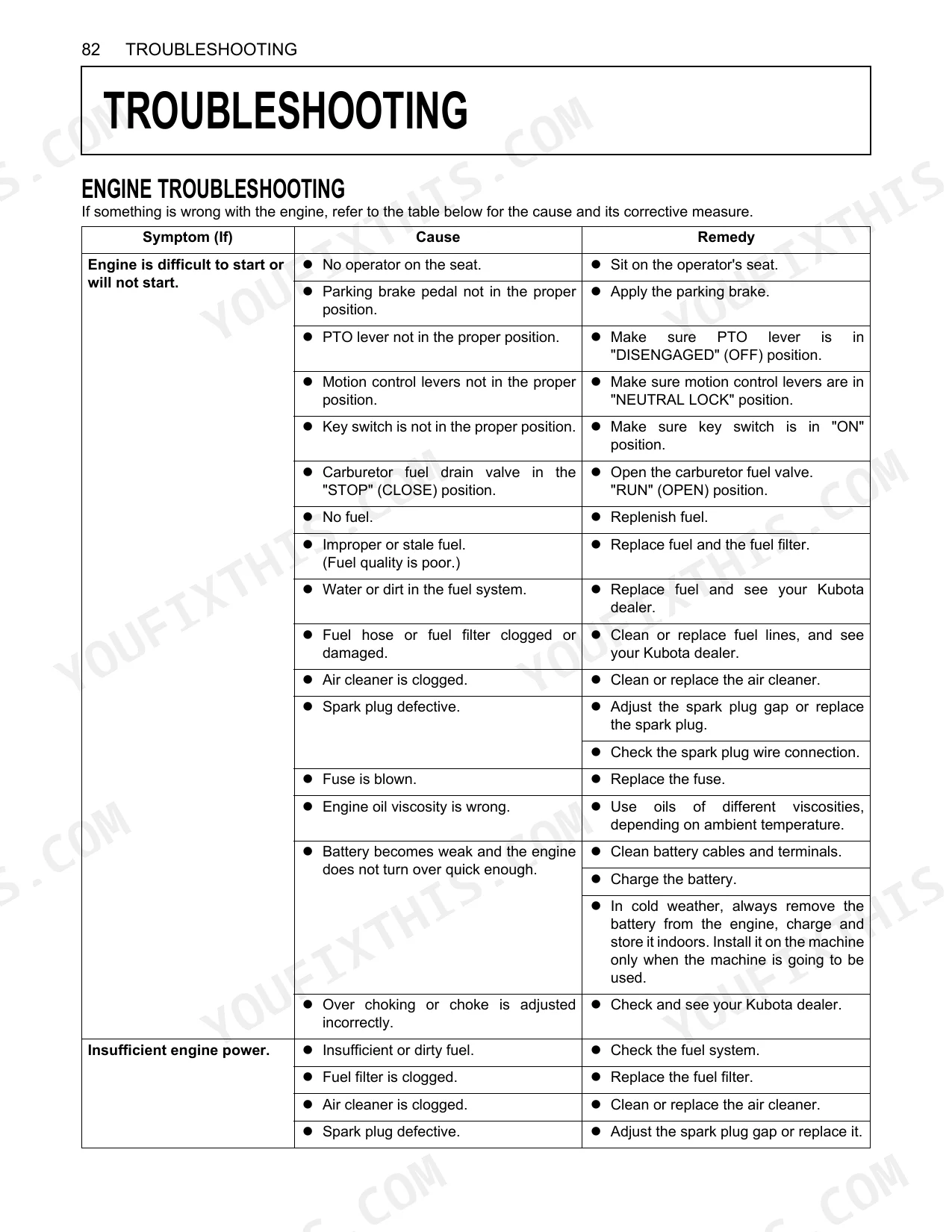

| Troubleshooting | 99-103 | Engine Troubleshooting, Battery Troubleshooting, Machine Troubleshooting, Mower Troubleshooting |
| Engine Emission Related Information | 104 | Engine Conformity, Emission Compliance Period, Carburetor, High Altitude Operation, Altitude Compensation Kit |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel tank capacity | 27 L (7.1 U.S. gals.) | p. 20 |
| Transmission case fluid capacity (including Rear axle gear case) | 7.5 L (7.9 U.S.qts.) | p. 20 |
| Front tire inflation pressure | 270 kPa (40 psi) | p. 49 |
| Rear tire inflation pressure | 140 kPa (20 psi) | p. 49 |
| Spark plug gap | 0.6 to 0.7 mm (0.024 to 0.028 in.) | p. 78 |
| Blade bolt tightening torque | 103 to 118 N-m (76 to 87 lbf-ft) | p. 86 |
| Engine oil change interval | every 100 Hr | p. 51 |
| ZG222A-AU | ||
| Engine crankcase capacity (with filter) | 1.8 L (1.9 U.S.qts.) | p. 20 |
| Max. engine power (Gross) | 16.4 kW (22 HP) | p. 20 |
| Engine crankcase oil capacity (with filter) | 1.8 L (1.9 U.S.qts.) | p. 20 |
| ZG227A-AU | ||
| Max. engine power (Gross) | 20.1 kW (27 HP) | p. 20 |
| Engine crankcase oil capacity (with filter) | 2.0 L (2.1 U.S.qts.) | p. 20 |
Kubota ZG222A-AU, ZG227A-AU Common Problems This Manual Covers
Hard starting or no start
The engine is slow to fire or will not start, often from choke setting or a safety-system fault. The engine section covers starting, cold-weather starting, and warming up.
Manual Section: Operating the Engine p. 28Uneven or scalped cut
The deck leaves a stepped or scalped finish when it sits out of level. The adjustment section covers deck leveling and the anti-scalp setup for an even cut.
Manual Section: Adjustment p. 88Weak drive or will not move
The mower feels sluggish or fails to move under load. The machine-operation section covers correct operation and break-in of a new machine that keep the drive strong.
Manual Section: Operating the Machine p. 35Poor blade engagement
The blades bog down or leave a ragged cut in thick grass. The mower section covers cutting height and getting the most from the deck.
Manual Section: Operating the Mower p. 45Battery goes flat or slow cranking
The engine cranks slowly or not at all when the battery is weak or poorly connected. The battery troubleshooting chart helps trace charging and connection faults.
Manual Section: Troubleshooting p. 99Low tire pressure spoils the cut
Unevenly inflated tires tilt the deck and leave an uneven finish. The tires and wheels section gives the correct front and rear inflation pressures.
Manual Section: Tires and Wheels p. 49Frequently Asked Questions
Which models does this manual cover?
It covers the Kubota ZG222A-AU and ZG227A-AU gasoline zero-turn mowers, fitted with the KGZ770-MA3 and KGZ770-MA2 engines.
What is the blade bolt torque?
The blade bolt tightening torque is 103 to 118 N-m (76 to 87 lbf-ft), listed with the tightening torque chart in the adjustment section. p. 88
How often should I change the engine oil?
The maintenance schedule calls for an engine oil change every 100 hours and an oil filter replacement every 200 hours. p. 51
How is the manual delivered?
You get an instant download link at checkout, so you can save the file and start using it right away.
Is this Kubota ZG222A-AU Operator Manual a digital download?
Immediate download of the full 105-page searchable Operator Manual. Open it on any device, from the laptop at your desk to the phone out in the field.
Are there any print restrictions on this manual?
Yes. Print as many copies as you want, with no restrictions. Plenty of mechanics print just the section they need and carry it to the shop floor.
