This Kubota Workshop Manual covers the SM-E2B series diesel engines: the Z482-E2B, Z602-E2B, D662-E2B, D722-E2B, D782-E2B, and D902-E2B. Publication 9Y011-03173, it runs 140 pages and is the factory service manual for technicians repairing and overhauling these engines.It is organized into three parts. General covers engine identification, precautions, the maintenance check list, and special tools. Mechanism explains engine body and cooling system construction. Servicing holds the troubleshooting charts, servicing specifications, tightening torques, and the checking, disassembling, and assembling procedures.You get factory specifications and allowable limits for valve clearance, compression pressure, injection pressure, and fan belt tension, plus tightening torque values for general and special-use fasteners. Whether diagnosing a no-start, setting valve clearance, or torquing the cylinder head, this PDF gives the numbers and procedures Kubota specifies for the E2B diesel engines.
What's Inside This Kubota Super Mini Series Engines Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 22-58 | Engine Identification (Model Name and Engine Serial Number, Cylinder Number), Maintenance Check List |
| Mechanism | 59-62 | Engine Body (Half-Floating Head Cover, Closed Breather, Piston, Oil Pan), Cooling System (Cooling Fin) |
| Servicing | 63-140 | Troubleshooting, Servicing Specifications, Tightening Torques (General Use Screws, Bolts and Nuts, Special Use Screws, Bolts and Nuts), Checking |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

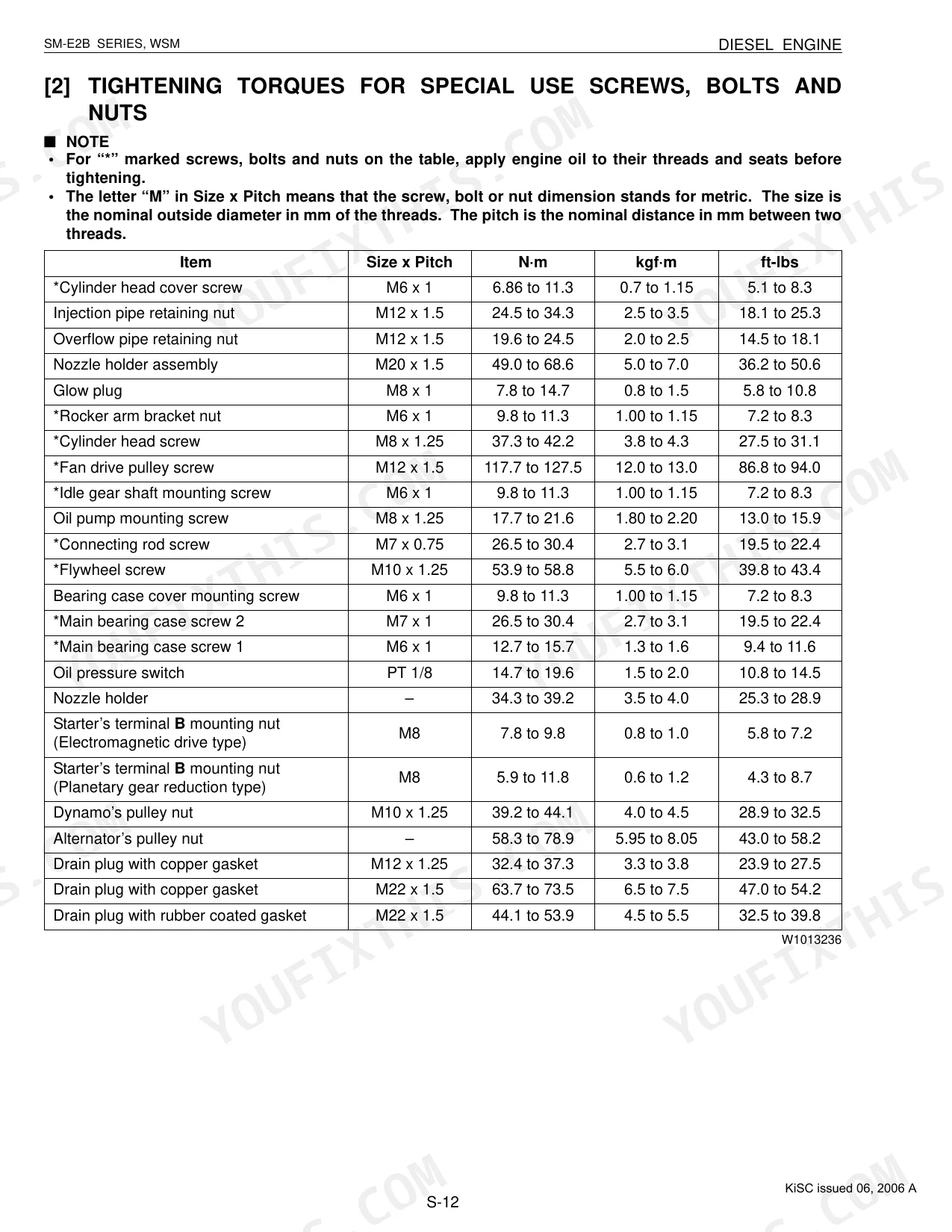

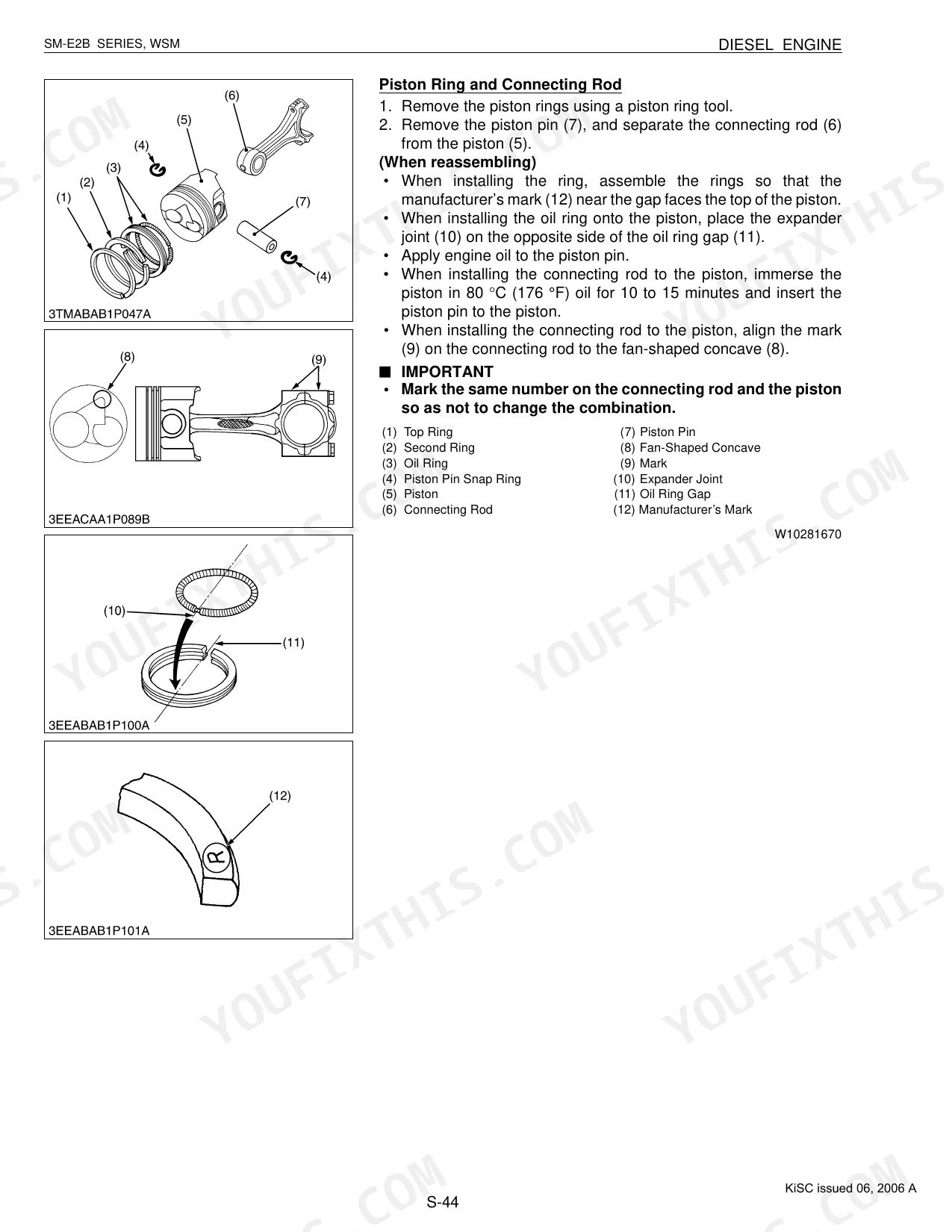

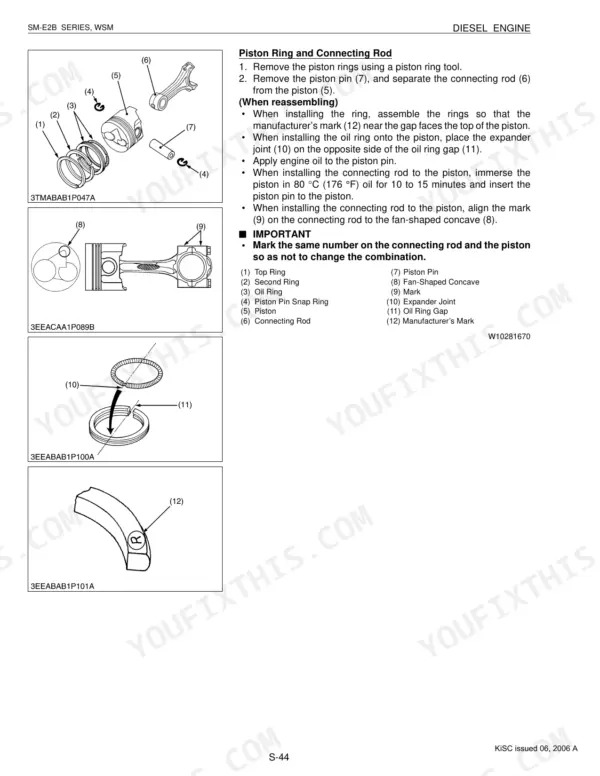

| Cylinder head screw torque | 37.3 to 42.2 N·m (3.8 to 4.3 kgf·m, 27.5 to 31.1 ft-lbs) | p. 75 |
| Connecting rod screw torque | 26.5 to 30.4 N·m (2.7 to 3.1 kgf·m, 19.5 to 22.4 ft-lbs) | p. 75 |
| Fuel filter cartridge replacement interval | Every 400 hours service | p. 38 |
| Fan belt tension (deflection) | 7.0 to 9.0 mm (0.28 to 0.35 in.) at 98 N (10 kgf, 22 lbs) force | p. 35 |
| Fan belt replacement interval | Every 2 years | p. 40 |
| Fuel hose and clamp bands replacement interval | Every two years | p. 32 |
| Fuel injection pressure | 13.73 to 14.71 MPa (140 to 150 kgf/cm2, 1991 to 2134 psi) | p. 45 |
| Nozzle holder assembly tightening torque | 49.0 to 68.6 N·m (5.0 to 7.0 kgf·m, 36.2 to 50.6 ft-lbs) | p. 46 |
| Cylinder head gasket replacement | Replace with a new one | p. 95 |
| Glow plug tightening torque | 7.8 to 14.7 N·m (0.8 to 1.5 kgf·m, 5.8 to 10.8 ft-lbs) | p. 75 |
| Z482-E2B, D662-E2B, D722-E2B | ||
| Oil filter cartridge replacement interval (101 mm oil pan depth) | Initial 50 hours, then every 150 hours | p. 26 |
| Z482-E2B, D662-E2B, D722-E2B, D782-E2B | ||
| Oil filter cartridge replacement interval (121 mm oil pan depth) | Initial 50 hours, then every 200 hours | p. 26 |
Kubota Super Mini Series Engines Common Problems This Manual Covers
Hard starting or no start

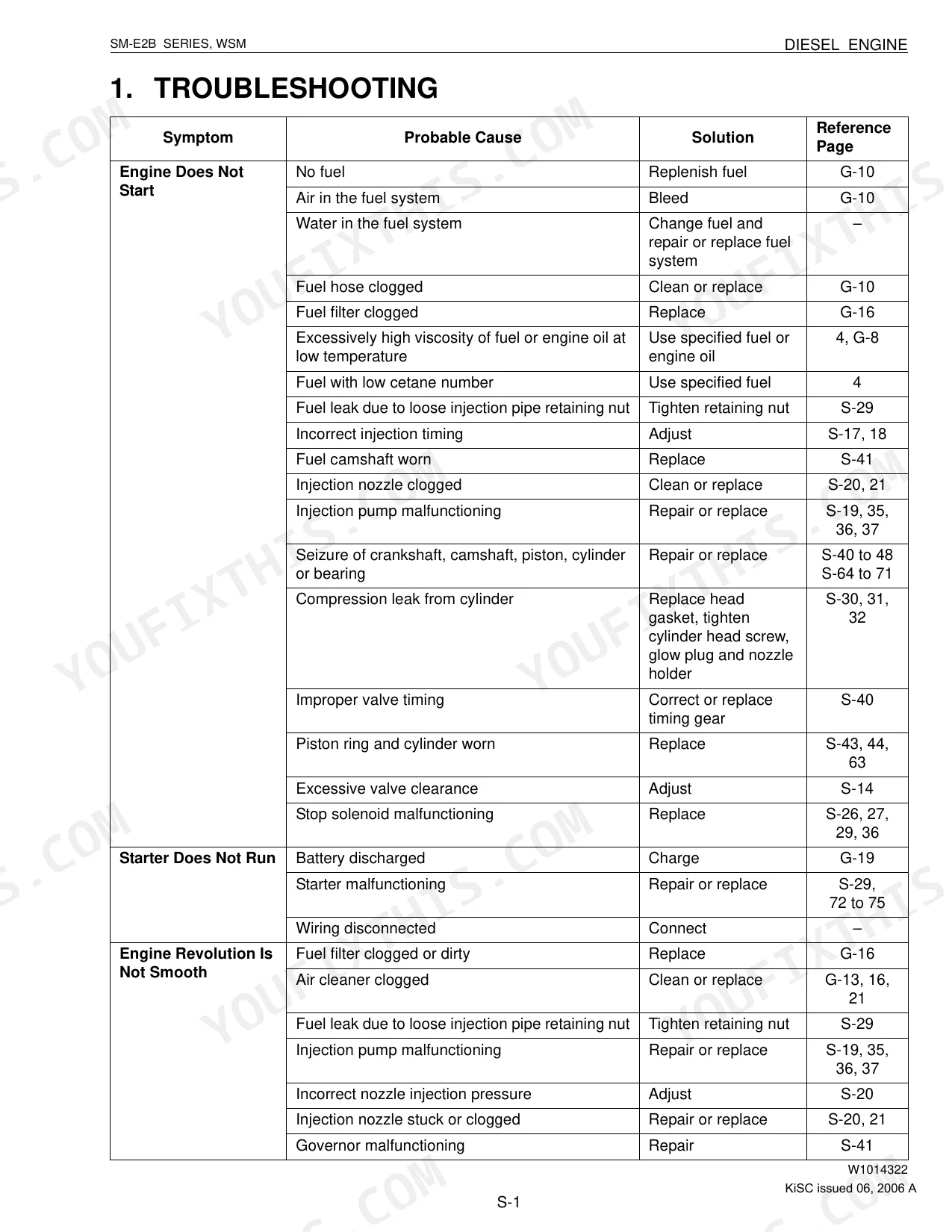

The engine is slow to fire or will not start after service or a fuel hose change. The troubleshooting chart points to air in the fuel system, a glow-system fault, a weak battery, or a defective injection nozzle.
Manual Section: Troubleshooting p. 64Engine overheating

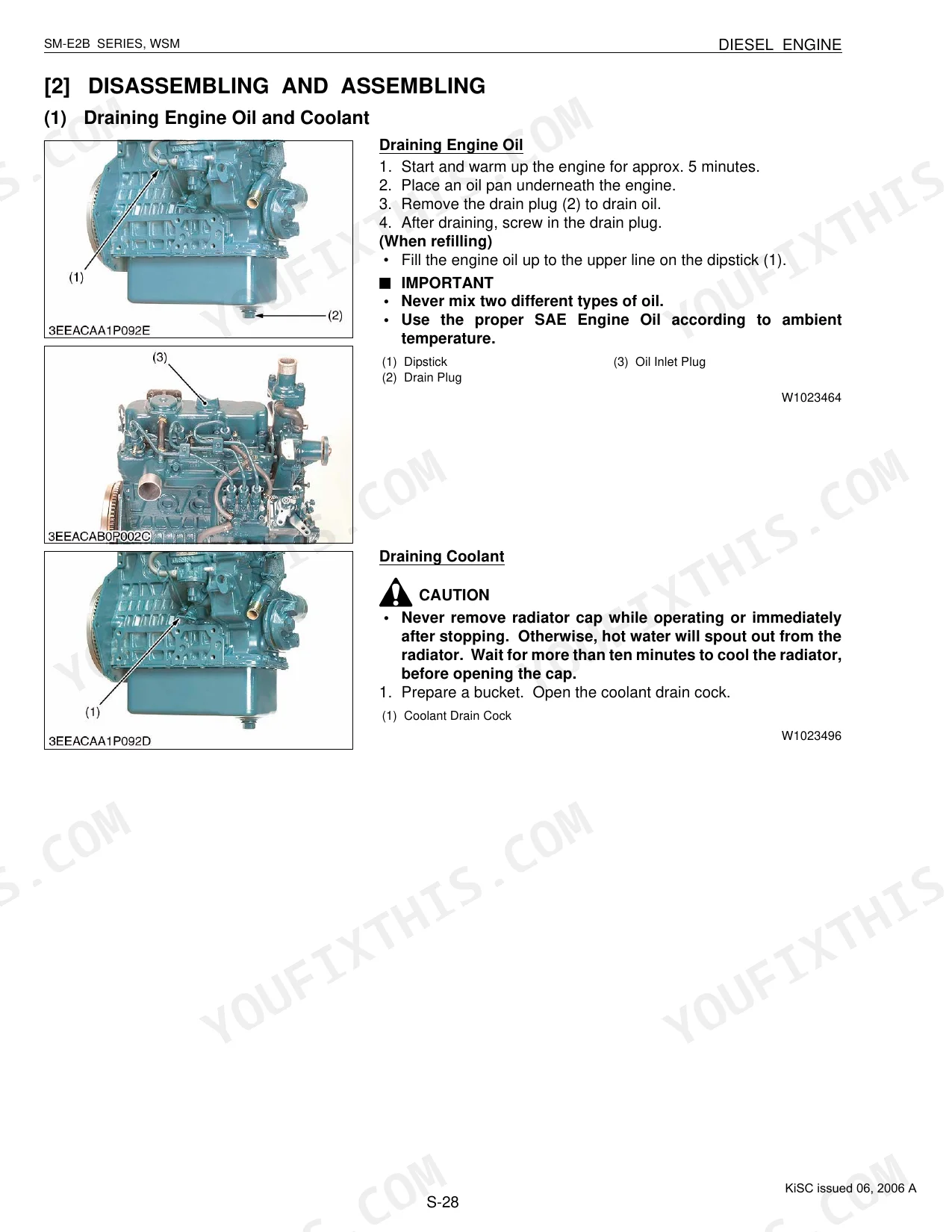

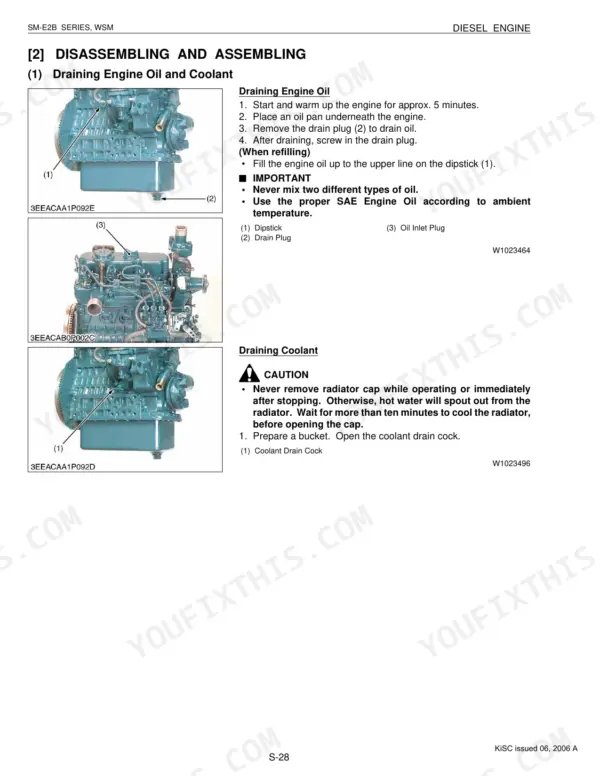

Coolant temperature climbs during operation from a dirty radiator, loose fan belt, or low coolant. The check and maintenance section covers radiator fin cleaning, fan belt tension, and coolant service.
Manual Section: Check And Maintenance p. 28Oil pressure lamp stays on
The low oil pressure lamp does not go out promptly after start, risking bearing damage if the engine keeps running. The troubleshooting chart traces low oil level, a clogged relief valve, or excessive bearing clearance.
Manual Section: Troubleshooting p. 64Low compression or rough idle
Starting problems and rough running on these small diesels often trace to valve clearance or compression that has drifted out of spec. Servicing specifications give the factory valve clearance and compression pressure limits.
Manual Section: Servicing Specifications p. 67Worn injector nozzle, smoky exhaust
White smoke, knocking, or power loss can come from a worn injection nozzle or wrong injection pressure. The checking and servicing procedures cover testing and setting the nozzle and injection pump.
Manual Section: Checking, Disassembling And Servicing p. 76Head bolt torque on reassembly
After a head gasket or overhaul, the cylinder head screws must be torqued to spec or the joint will leak. The tightening torques section gives the cylinder head screw value of 37.3 to 42.2 N·m.
Manual Section: Tightening Torques p. 74Frequently Asked Questions
Which engines does this workshop manual cover?
It covers the Kubota SM-E2B series diesel engines: the Z482-E2B, Z602-E2B, D662-E2B, D722-E2B, D782-E2B, and D902-E2B, under publication 9Y011-03173.
Does it include torque specs and clearances?

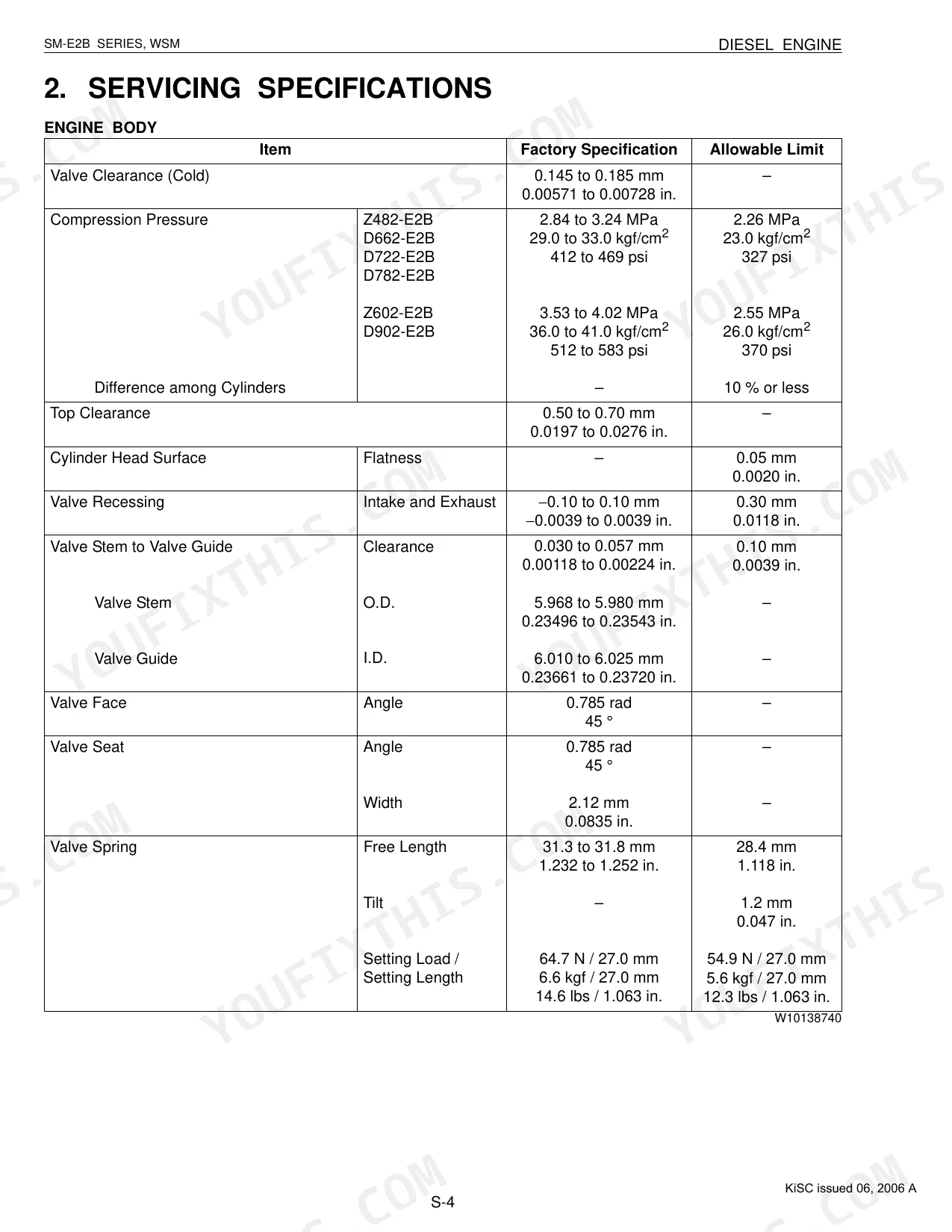

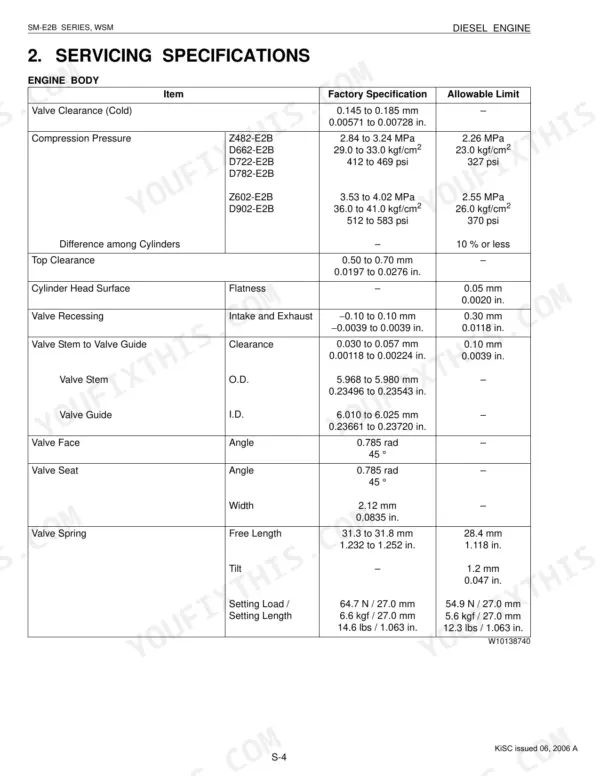

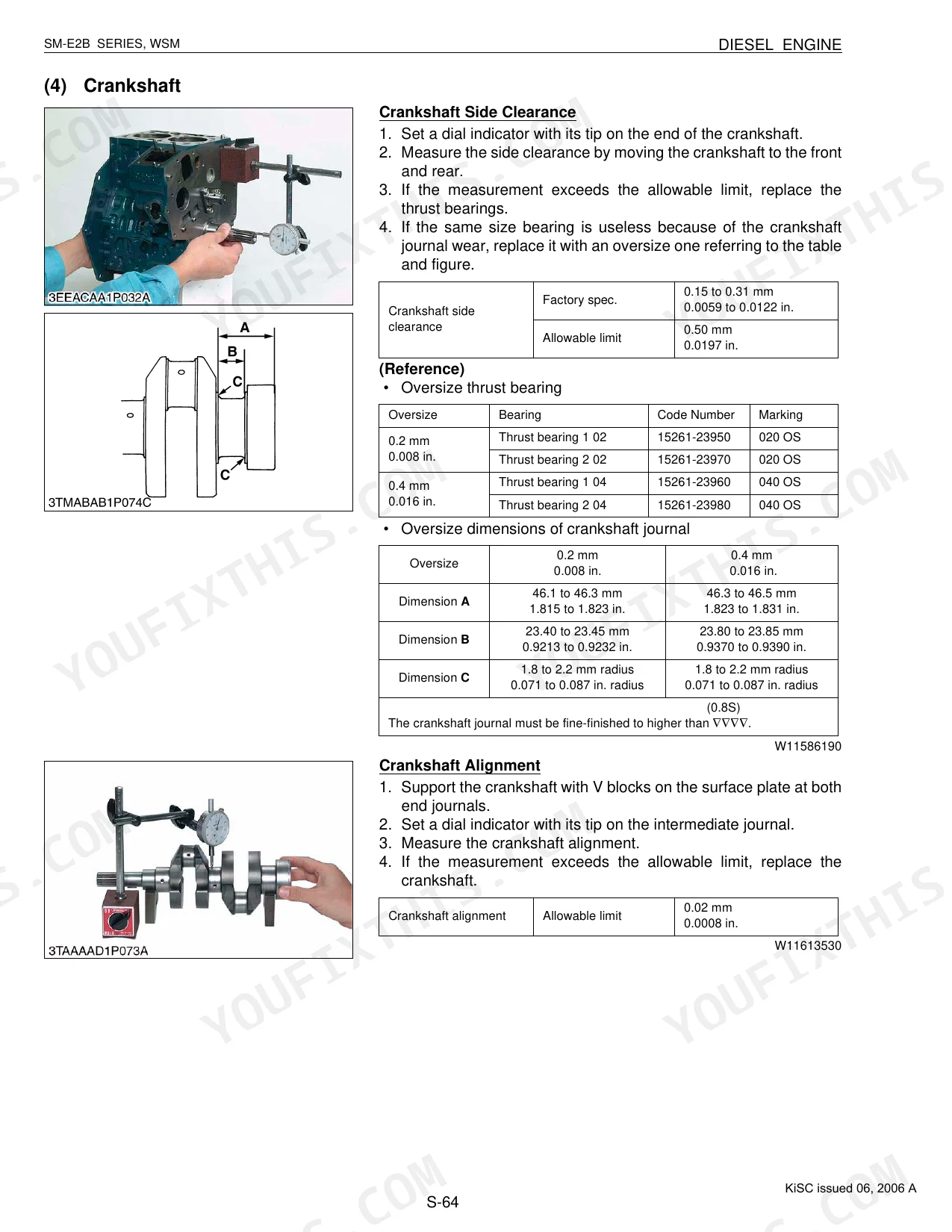

Yes. The servicing specifications give values such as a cold valve clearance of 0.145 to 0.185 mm and the compression pressures, and the tightening torques section covers the fastener values. p. 67
How do I diagnose a no-start?
The troubleshooting section works through no-start causes including air in the fuel system, glow-system faults, a weak battery, and defective nozzle injection. p. 64
