Kubota's ZG222–ZG227 zero-turn line shares one factory workshop manual, OEM #9Y111-05934, and this is it: 267 pages on the engine, hydrostatic transaxle, front axle, hydraulic system, electrical system, and mower deck across the ZG222A, ZG227A, ZG222SA, ZG227LA, and AU-market variants. Hydraulic circuit schematics map the mower lift, pump, and control valve assembly; wiring diagrams trace the starting system, safety switches, charge coil, and fuel cutoff solenoid. Troubleshooting charts cover the transaxle, hydraulic, electrical, and mower sections, backed by 100 pages of step-by-step procedures and a maintenance schedule spanning daily checks through every-4-year intervals. Down for a no-start? Fill the crankcase to 1.8 L before startup, then torque the cylinder head screws to 41.2 to 50.0 N·m. Search any spec by keyword and reach the machine with the right number.
What's Inside This Kubota ZG222–ZG227 Series Manual

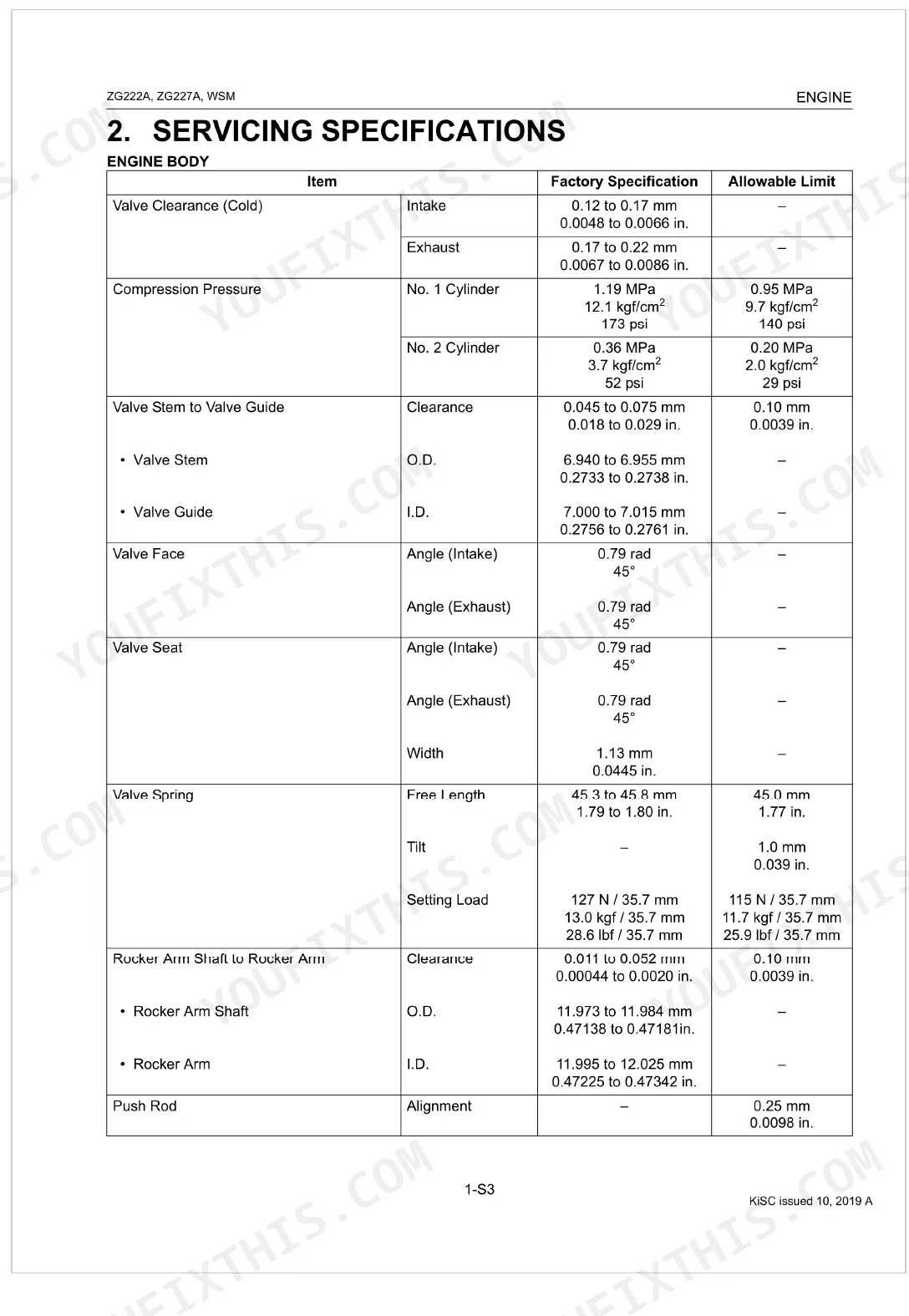

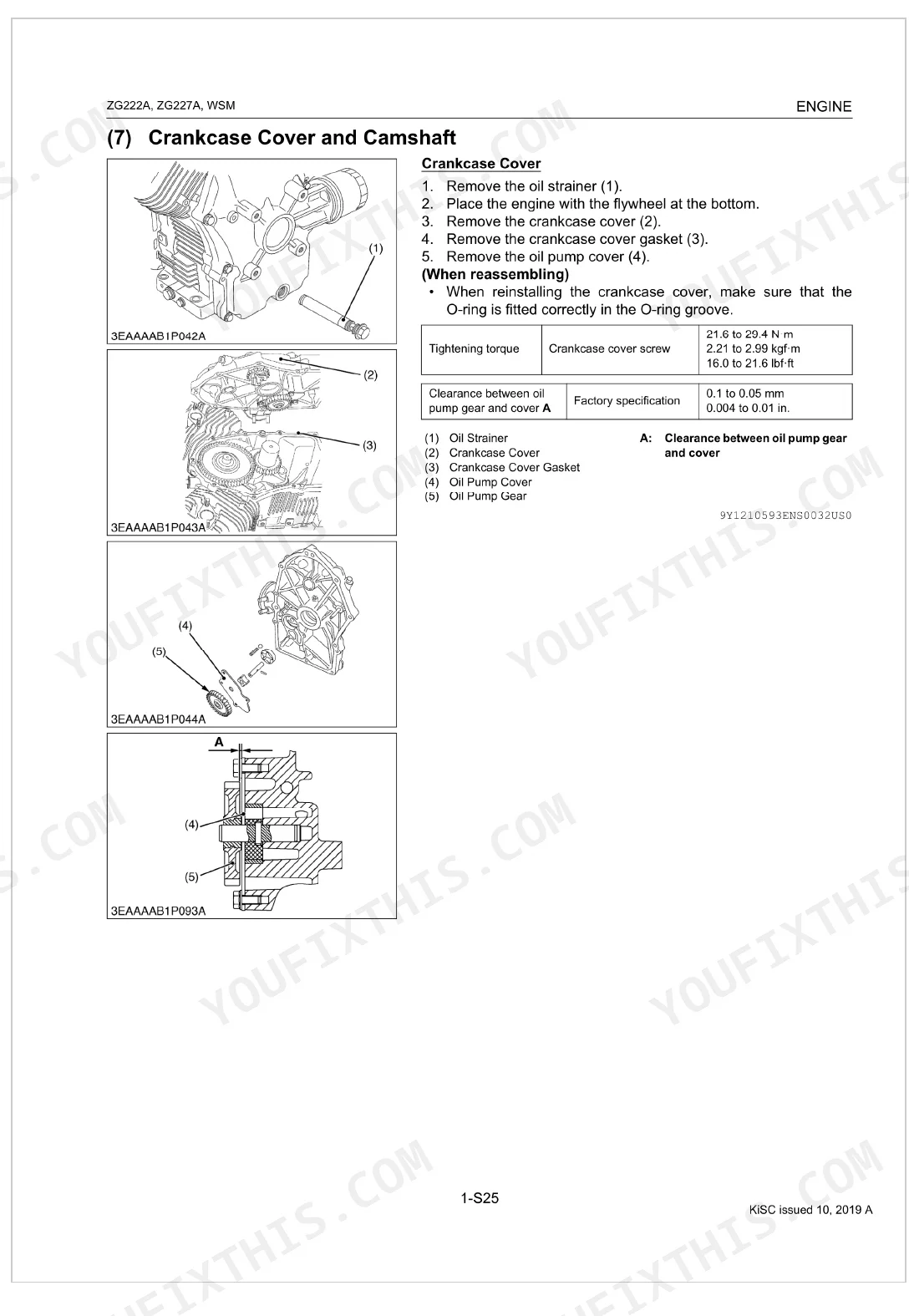

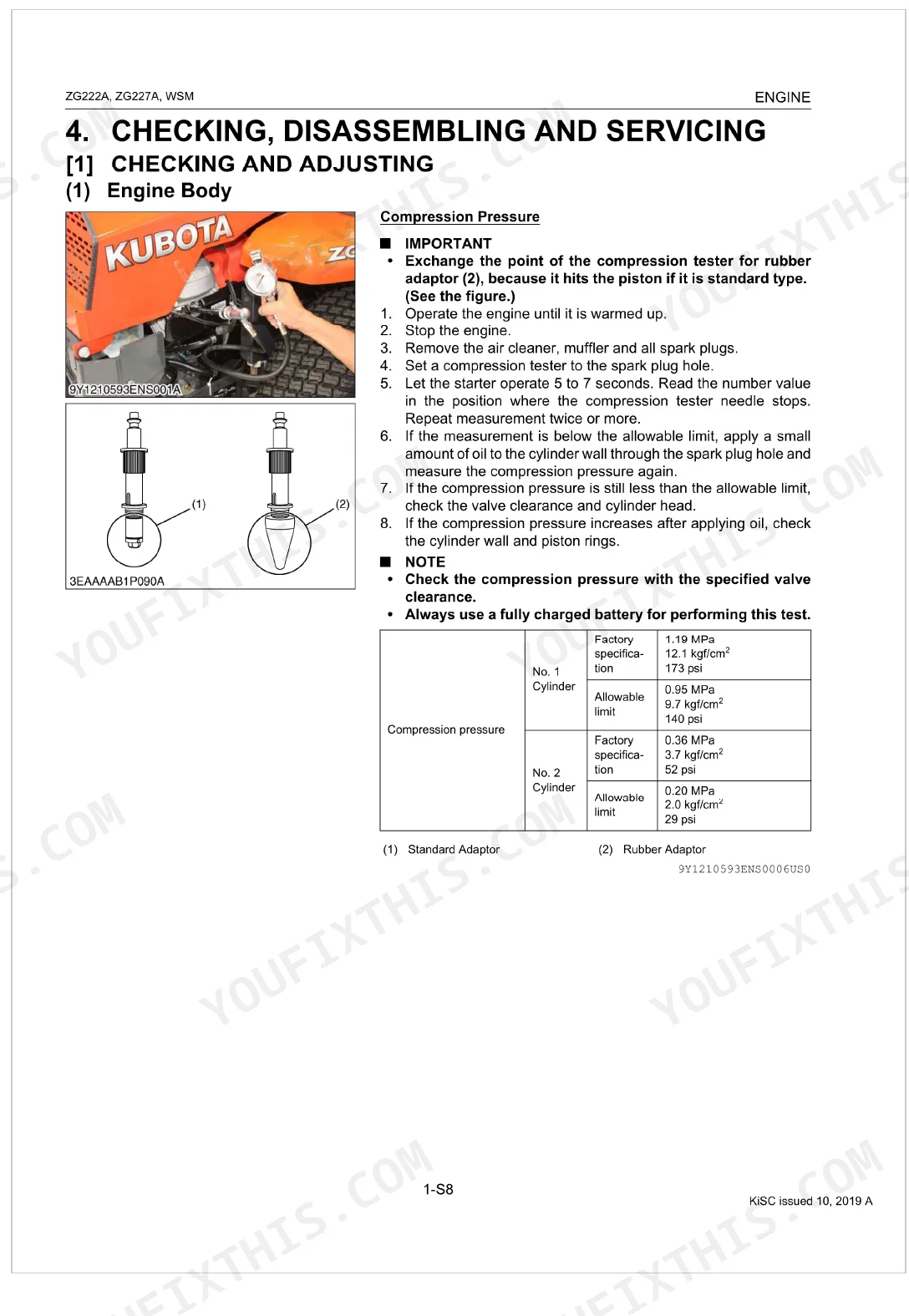

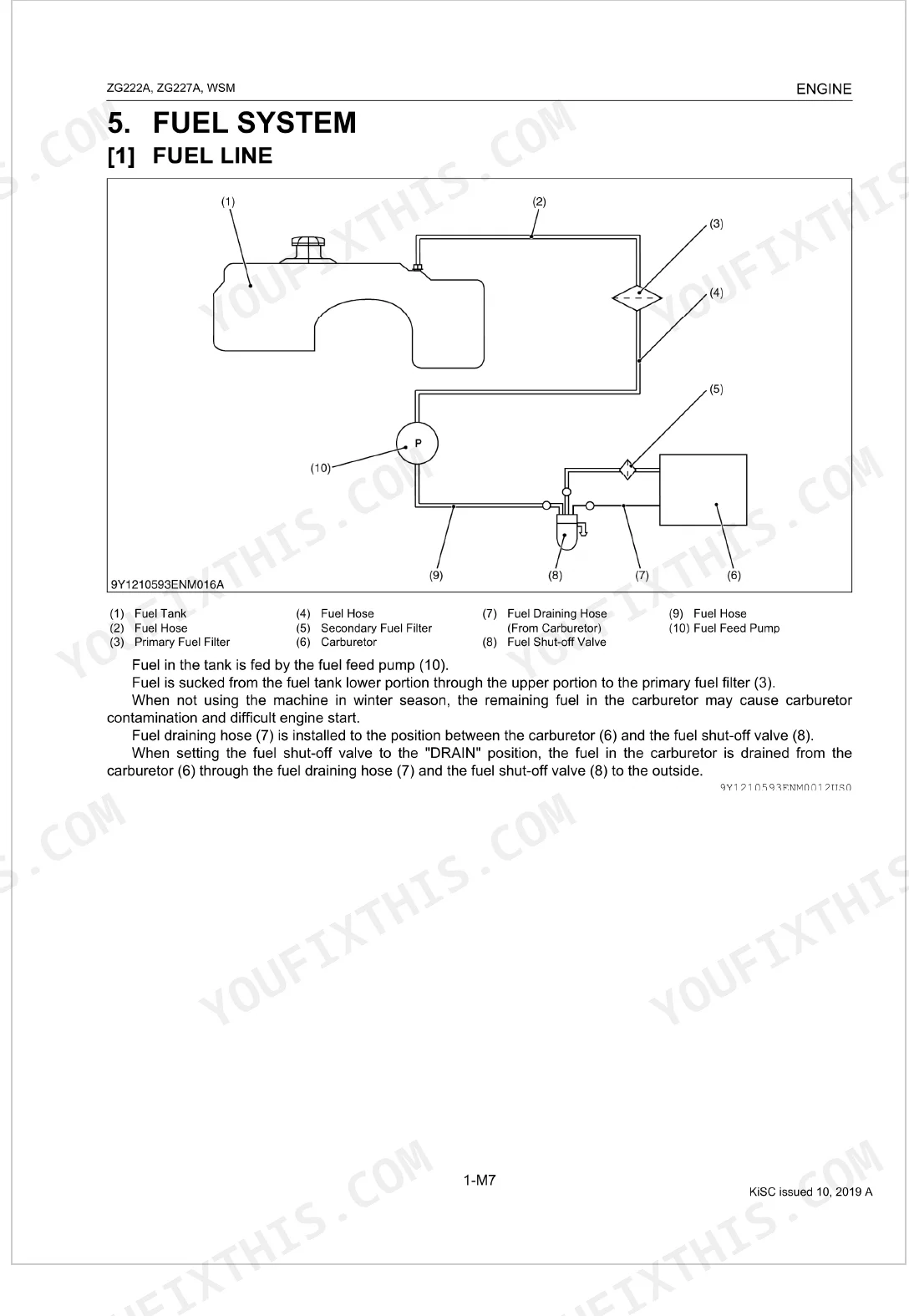

| System | Pages | Key Topics |
|---|---|---|
| Information | 4-24 | Safety First, Safety Decals, Specifications (North America And Canada Models, Australia Models), Dimensions (North America And Canada Models |
| General | 25-81 | Identification, Cylinder Number, Handling Precautions For Electrical Parts And Wiring (Battery, Fuse, Connector, Handling Of Circuit Tester, Color Of Wiring), Lubricants And Fuel |
| Engine | 82-144 | Feature, Engine Body (Cylinder Head, Closed Breather, Camshaft, Combustion Chamber, Piston And Piston Ring, Gear Train Made Of Reinforced Nylon) |
| Transaxle | 145-186 | Structure, Travelling System (Hydrostatic Transmission), Tightening Torques, Checking |
| Front Axle | 187-194 | Troubleshooting, Tightening Torques, Checking, Disassembling And Servicing (Disassembling And Assembling) |

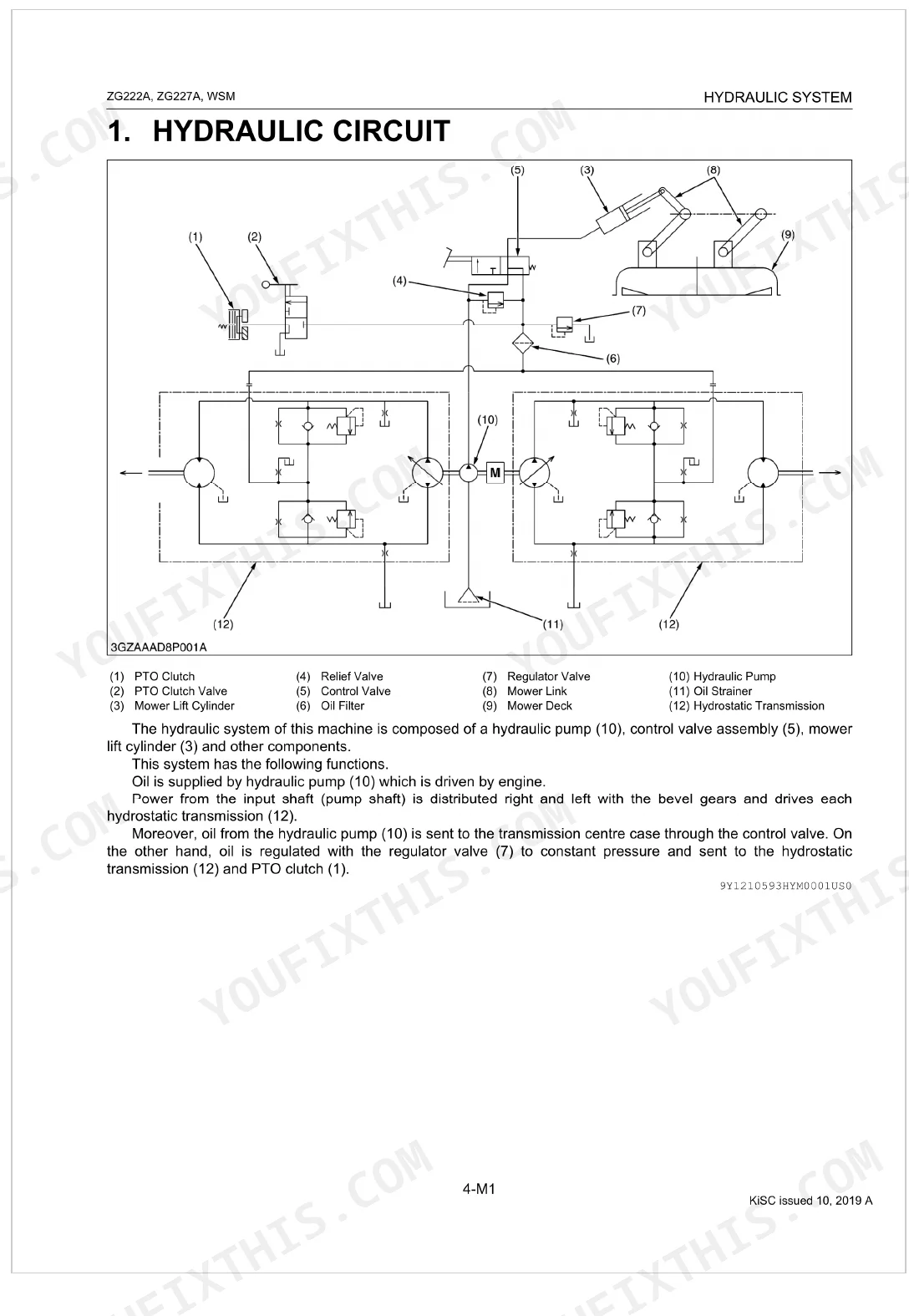

| Hydraulic System | 195-210 | Hydraulic Circuit, Hydraulic Pump, Hydraulic Control Valve And Valve Adaptor, Lift Cylinder, Mower Linkage, Troubleshooting, Servicing Specifications, Tightening Torques |
| Electrical System | 211-241 | Wiring Diagram, Starting System (Starter, Safety Switch, Relay, Fuel Pump, Fuel Cut Off Solenoid), Charging System (Charge Coil, Regulator, Easy Checker), Gauges (Fuel Quantity) |
| Mower | 242-267 | Structure (Power Transmission, Lifting Mechanism), Troubleshooting, Servicing Specifications, Tightening Torques, Checking |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

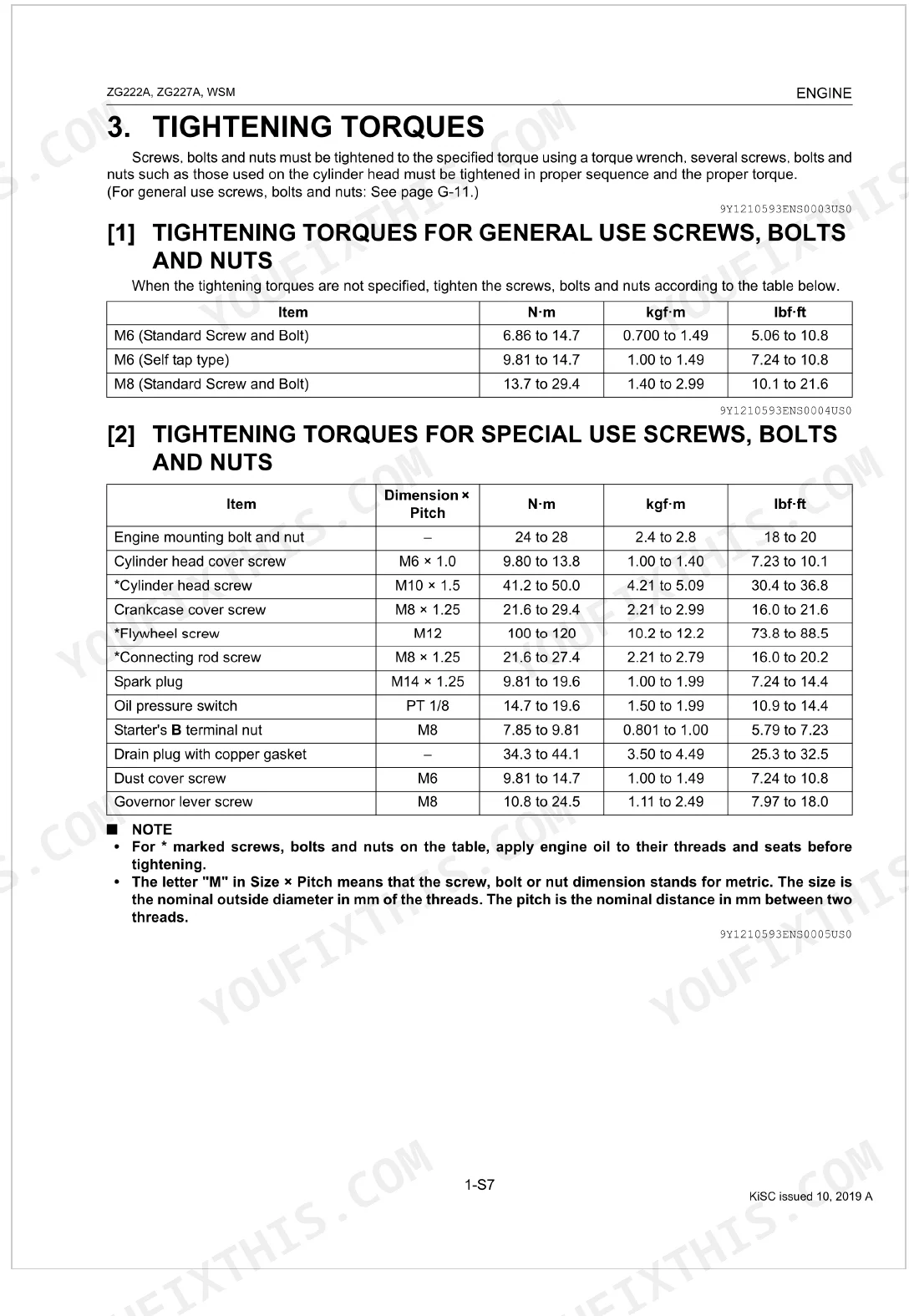

| Engine mounting bolt and nut torque | 24 to 28 N·m (2.4 to 2.8 kgf·m, 18 to 20 lbf·ft) | p. 111 |
| Cylinder head cover screw torque | 9.80 to 13.8 N·m (1.00 to 1.40 kgf·m, 7.23 to 10.1 lbf·ft) | p. 111 |
| Transmission including rear axle gear case capacity | 7.5 L | p. 35 |
| Front tire pressure | 270 kPa (40 psi) | p. 46 |
| Rear tire pressure | 140 kPa (20 psi) | p. 46 |
| Engine Idling Speed | 1700 to 1900 min⁻¹ (rpm) | p. 115 |
| Spark Plug Air Gap | 0.60 to 0.70 mm | p. 115 |
| Cylinder head screw tightening torque | 41.2 to 50.0 N·m | p. 111 |
| ZG222SA, ZG222A, ZG222A-AU | ||
| Maximum engine power (Gross) | 16.4 kW (22 HP) | p. 19 |
| Engine crankcase (with filter) capacity | 1.8 L | p. 35 |
| ZG227A, ZG227LA, ZG227A-AU | ||
| Maximum engine power (Gross) | 20.1 kW (27 HP) | p. 19 |
| Engine crankcase (with filter) capacity | 2.0 L | p. 35 |
Kubota ZG222–ZG227 Series Common Problems This Manual Covers
Kubota ZG222A zero-turn mower won't start, starter cranks slowly or not at all
Check battery condition and terminal connections for corrosion; a weak or discharged battery is the first thing to rule out. Inspect all safety switches (seat, motion levers, PTO) against the wiring layout on page 213. If the engine cranks freely but won't fire, pull the spark plugs and confirm the gap sits at 0.60 to 0.70 mm before condemning the ignition system.
Manual Section: Electrical System TroubleshootingBlades stop turning after PTO engagement, belt visibly spinning but deck stays silent p. 249
Remove the deck and inspect blade spindle bearings for seizure or play. Torque each blade mounting screw to 103 to 118 N·m (page 249). Check PTO belt condition; a glazed or cracked belt slips under load without fully failing. Confirm mower gear box oil level too, which the schedule calls for every 50 hours.
Manual Section: Mower TroubleshootingMachine pulls hard to one side, won't track straight at normal operating speed p. 163
Verify both motion control levers return fully to neutral; uneven return pulls the machine off line with no drivetrain fault behind it. Adjust lever pivot friction as needed and confirm lever mounting bolts are torqued to 18 to 20 N·m (page 163). Then check total transmission fluid level: the system holds 7.5 L across all models.
Manual Section: Transaxle TroubleshootingDeck lift stops short of full height, mower drops under its own weight when released p. 206
Start with the hydraulic fluid level in the transmission case; low fluid is the most common cause of lift failure. Measure hydraulic relief valve setting pressure at the test port: spec is 3.9 to 4.4 MPa (page 206). Inspect the lift cylinder seals for internal bypass. If the mower drops with no operator input, the control valve or cylinder seals need replacement.
Manual Section: Hydraulic System TroubleshootingEngine overheats at full throttle during extended mowing, high-temp warning activates
Clean the engine shroud panels and cooling fins thoroughly; the maintenance schedule on page 39 calls for this every 100 hours. Verify engine oil level against the page 35 capacity specs (1.8 L on the ZG222A, 2.0 L on the ZG227LA). Inspect the air cleaner primary element, which also needs cleaning every 100 hours. Confirm idle speed holds 1,700 to 1,900 rpm (page 115); a too-low idle under sustained load builds heat fast.
Manual Section: Engine Troubleshooting (General)Uneven cut height across the full deck width, scalping on turns despite repeated level adjustments p. 46
Set front tire pressure to 270 kPa (40 psi) and rear tires to 140 kPa (20 psi) per page 46; a pressure mismatch throws the deck out of level before you ever touch the link arms. Inspect all deck hangers and link arms for wear or bending. Measure blade tip height at all four corners and adjust until level.
Manual Section: Mower TroubleshootingFrequently Asked Questions
What are the recommended service intervals?
The "MAINTENANCE CHECK LIST" lays out service intervals component by component. Engine oil gets changed every 100 hours, the engine oil filter every 200 hours, and the transmission oil filter every 200 hours. Fuel line connections should be checked once a year, or every 100 service hours, whichever comes first.
What fluids and capacities does this machine require?
Each system takes a specific fluid and quantity. The fuel tank holds 27 L (7.1 U.S.gals) of automobile unleaded or regular gasoline, 87 octane or higher. The engine crankcase (with filter) takes 1.8 L (1.9 U.S.qts) of API Service Classification SG, SH, SJ or higher engine oil. The transmission case, including the rear axle gear case, holds 7.5 L (7.9 U.S.qts) of KUBOTA UDT or SUPER UDT fluid.

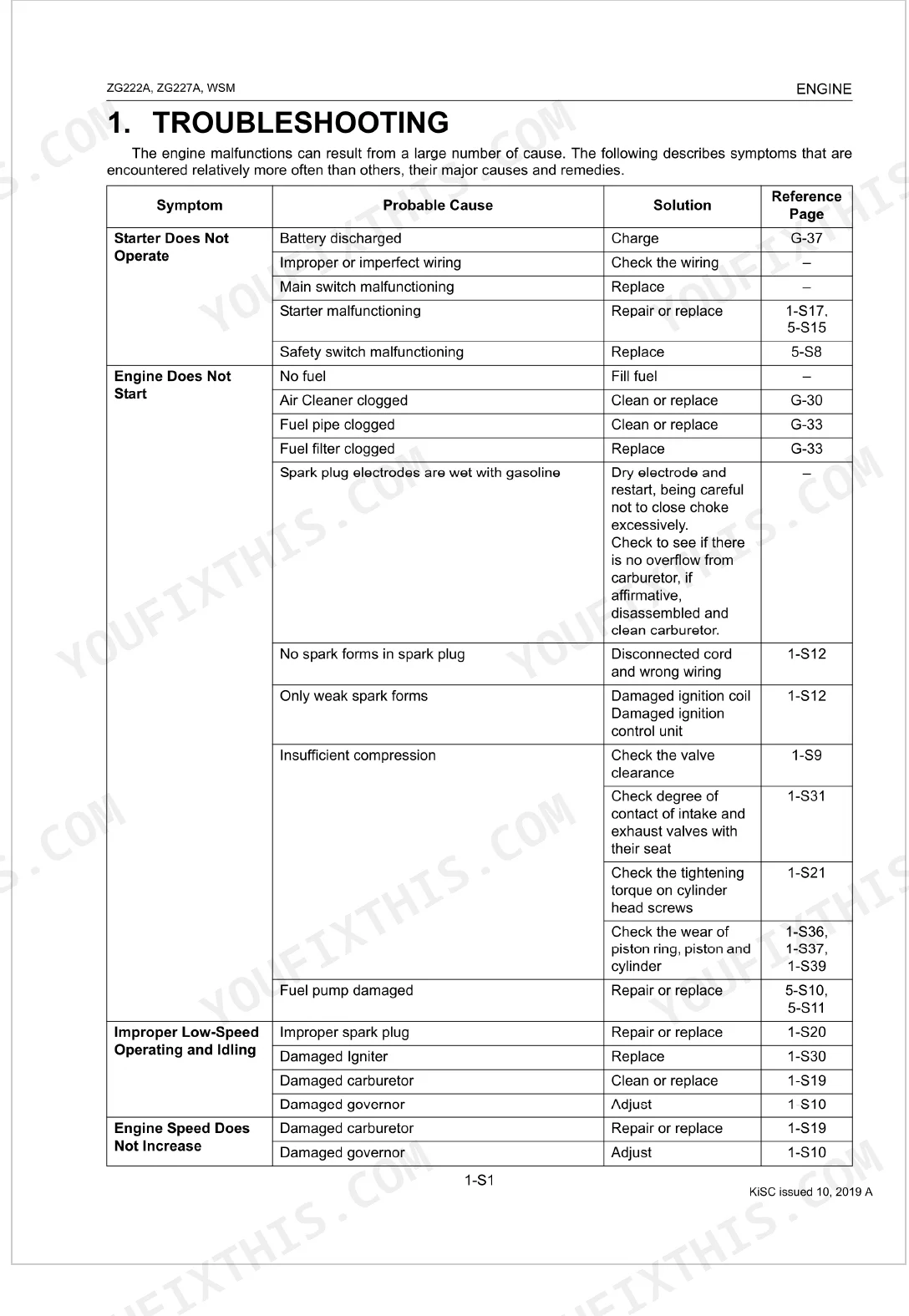

How to troubleshoot engine won't start?
On the ZG222A, a no-start usually traces to a discharged battery (recharge, page G-37), faulty or imperfect wiring (check the wiring), or a bad main switch (replace). If the starter motor stays dead, look for a blown slow blow fuse (replace, page G-50) or a damaged safety switch (replace, page 5-S8). A no-start can also come from a clogged air cleaner (clean or replace, page G-30) or a clogged fuel pipe or filter (clean or replace, page G-33).
What are the hydraulic system specifications?
The key hydraulic figure here is the Relief Valve (Control Valve) setting pressure. Its factory spec is 3.9 to 4.4 MPa (40 to 45 kgf/cm², 566 to 638 psi), with no allowable limit listed beyond that.
What format is this Kubota ZG222–ZG227 Series manual in?
It's an instant PDF download. The full 267-page searchable Workshop Manual is yours the moment payment clears, ready to open on a laptop, tablet, or phone right there in the shop.
Are there any print restrictions on this Kubota ZG222–ZG227 Series manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Can I find wiring schematics in this Kubota ZG222–ZG227 Series manual?
Yes, this Kubota ZG222–ZG227 Series Workshop Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
Document Quality
This document is a scanned PDF that includes an OCR text layer, which means you can search and copy the full text content. The text quality is consistently crisp and easy to read across all pages. Diagrams and illustrations are clear raster images, and their labels are well-defined and easily legible at various zoom levels. The pages are clean, showing no significant scan artifacts, stains, or skewed content. You will find that pages 4 and 25 serve as section title pages, containing only the respective section headers.
