All 99 pages of the Kubota ZG327A-AU Operator Manual (OEM #K3287-7126-1) cover one job: running and maintaining your Zero Turn Mower the way Kubota built it to run. Inside, you get 7 pages of safety procedures covering ROPS operation, PTO engagement, and hydraulic fluid hazards, then 14 pages of step-by-step machine operation from cold-weather starting through motion control lever use and mowing tips. A full service interval schedule walks you through every 50-, 100-, 200-, and 400-hour task, plus troubleshooting charts for engine, battery, and mower faults. Fill the tank to 48 L, top the crankcase to 2.0 L with filter, and bring the transmission case to its 12.1 L mark before the season starts. Guessing at fluid levels costs engines. Get the factory numbers, not a forum guess. Bookmarked by section; open it on your tablet and find your answer without hunting page by page.
What's Inside This Kubota ZG327A-AU Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 8-17 | ROPS, PTO, lift link, parking brake, battery, hydraulic fluid |
| Servicing of Machine | 18 | Engine Oil, Air Cleaner Primary Element, Fuel Filter, Parking Brake, Mower Blades, Hydraulic Oil Filter |

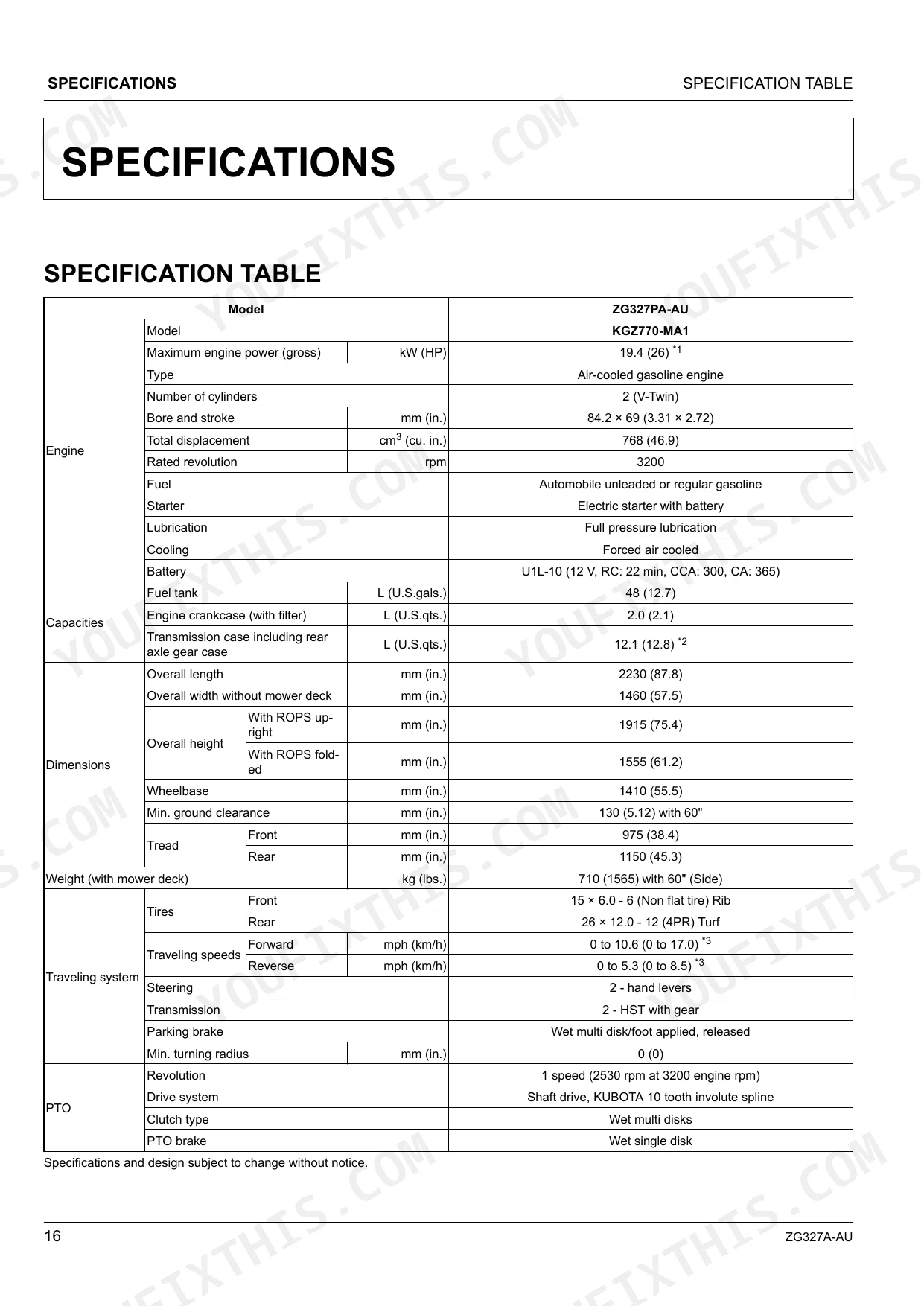

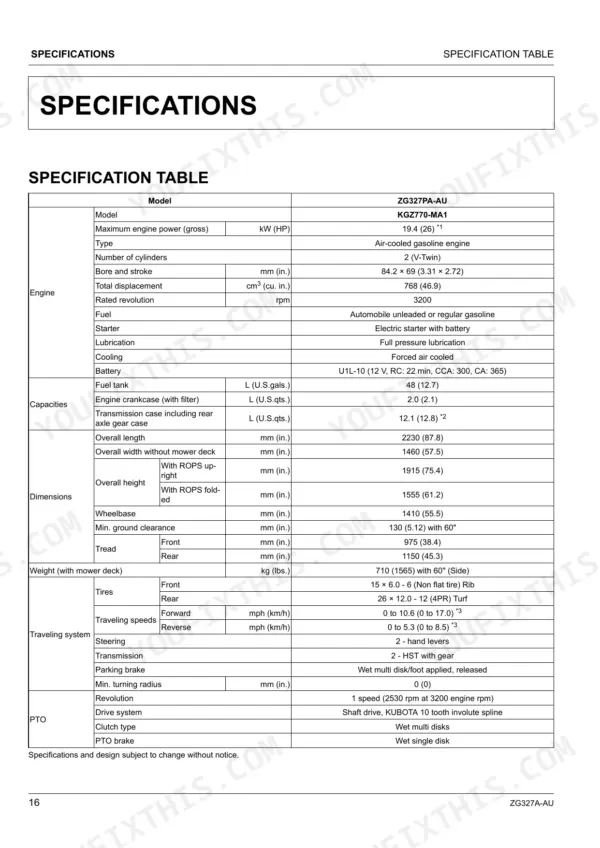

| Specifications | 19-20 | Specification Table |
| Implement Limitations | 21 | maximum specifications, maximum loading weight, Front axle Wf, Rear axle Wr, Implement weight W1, Maximum total weight |

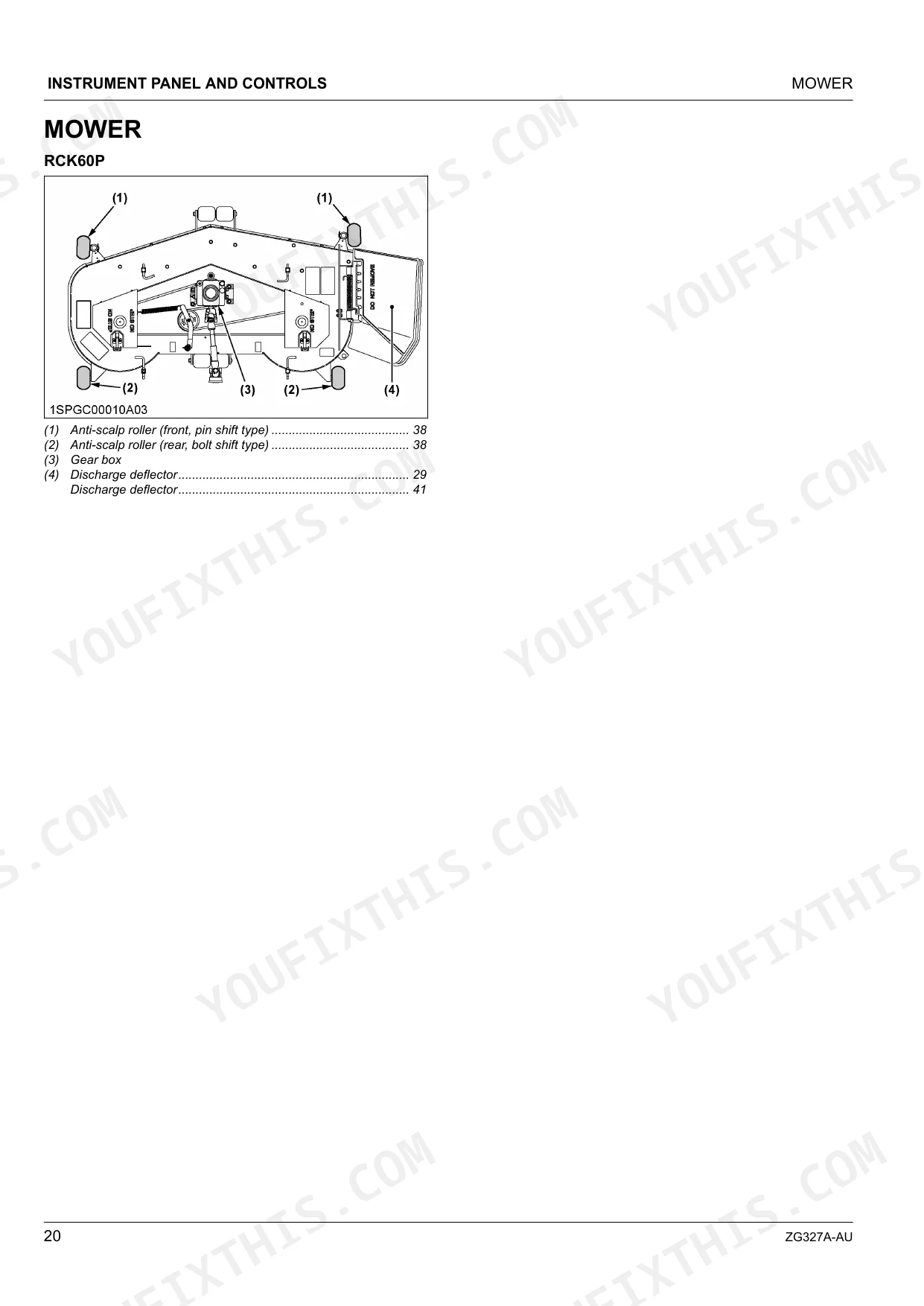

| Instrument Panel and Controls | 22-23 | Instrument Panel, Switches and Hand Controls, Mower |
| Mower Mounting | 24-25 | Mounting the Mower Deck, Adjusting the Mower, Dismounting the Mower Deck |
| Operating the Engine | 26-31 | Getting on and Off the Machine Safely, Starting the Engine, Throttle Lever and Choke Knob, Key Switch, Stopping the Engine, Engine Stop, Check During Operating, Easy Checker™ |

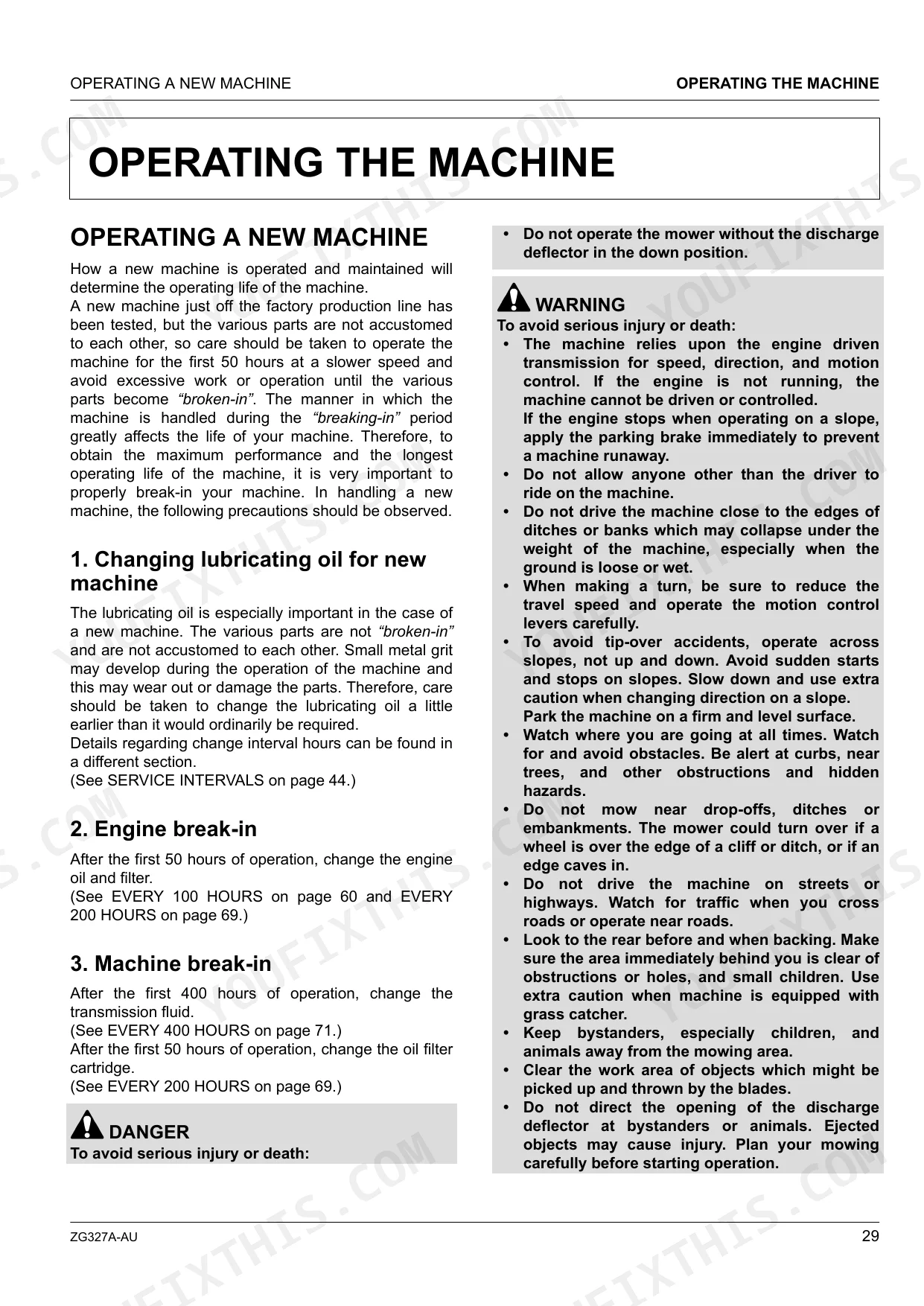

| Operating the Machine | 32-40 | Operating a New Machine, Changing Lubricating Oil for New Machine, Engine Break-in, Machine Break-in, Operating the Foldable ROPS, Folding the ROPS |

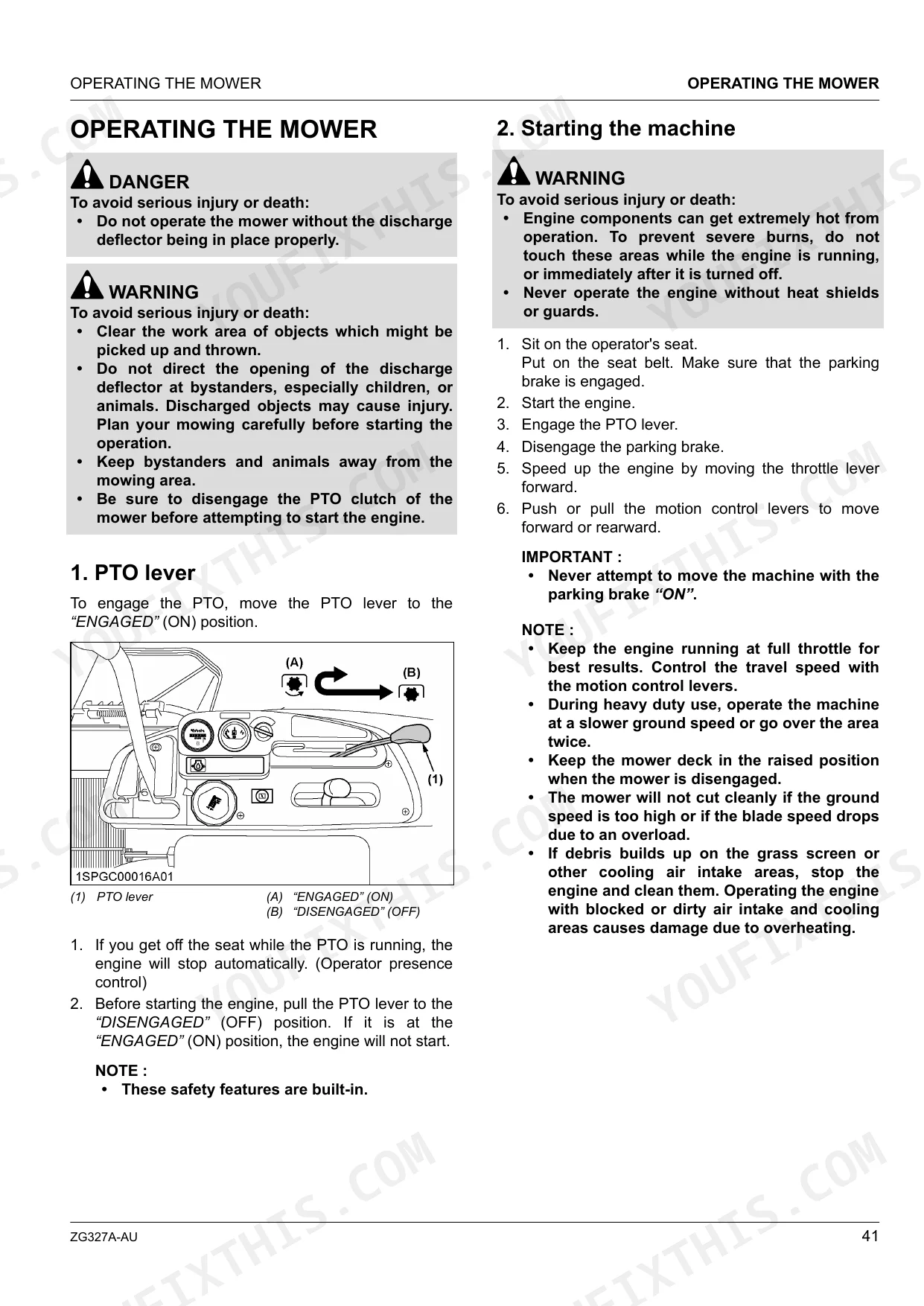

| Operating the Mower | 41-44 | Mowing Tips, Cutting Height, Cutting Height Reference Chart, PTO Lever, Starting the Machine |
| Tires and Wheels | 45-46 | Tires, Inflation Pressure, Wheels, Removing the Front Caster Wheels, Installing the Front Caster Wheels |
| Maintenance | 47-51 | Service Intervals, Periodic Service Chart Label, Lubricants and Fuel |
| Periodic Service | 52-80 | Opening the Hood, and Step, Hood, Step, Raising and Lowering the Operator'S Seat, Opening the Lever Guide, Lift-Up Point, Front Side |
| Adjustment | 81-87 | Motion Control Lever, HST Neutral, Motion Control Lever Neutral Position, Maximum Speed, Motion Control Lever Alignment, Checking the Alignment, Aligning the Motion Control Levers |
| Storage | 88-90 | Storing the Machine, Removing the Machine From Storage, Fuel, Inspecting and Cleaning Fuel Filter Bowl |
| Troubleshooting | 91-95 | Engine Troubleshooting, Battery Troubleshooting, Machine Troubleshooting, Mower Troubleshooting |
| Engine Emission Related Information | 96 | KGZ770-MA1 Engine Conforms to U.S. EPA and California Emission Regulations for Off-Road Large or Small Sl Engines, Catalytic Muffler, Carburetor |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Metric cap screws M6 Class 8.8 (N·m) | 9.81-11.3 N·m | p. 86 |
| Fuel tank capacity | 48 L (12.7 U.S. gals.) | p. 50 |
| Engine crankcase (with filter) capacity | 2.0 L (2.1 U.S.qts.) | p. 50 |
| Engine oil change interval | every 100Hr | p. 47 |
| Engine oil filter replacement interval | every 200Hr | p. 47 |
| Maximum engine power (gross) | 19.4 kW (26 HP) | p. 19 |
| Engine crankcase capacity (with filter) | 2.0 L (2.1 U.S.qts.) | p. 19 |
| Transmission case capacity (including rear axle gear case) | 12.1 L (12.8 U.S.qts.) | p. 19 |
| Mower gear box oil capacity | 0.4 L (0.4 U.S.qts.) | p. 50 |
| Front/Rear tire inflation pressure | 120 kPa (1.2 kgf/cm², 17 psi) | p. 45 |
| Mower cutting width | 1524 mm (60.0 in.) | p. 20 |
| M8 bolt (7T) tightening torque | 77.6-90.2 N·m | p. 87 |
Kubota ZG327A-AU Common Problems This Manual Covers
Kubota ZG327A-AU engine cranks but won't start, or fires briefly and immediately dies p. 26
Check fuel level first; the tank holds 48 L (12.7 U.S. gals.) and a low tank after a long cut is a common miss. Pull the choke knob fully out for cold starts, per the startup sequence on page 26. Confirm the parking brake is set and you are seated; both safety interlocks must close before the engine will fire.
Manual Section: Operating the EngineDashboard warning indicator light stays on or keeps flashing during engine operation p. 22
Identify the specific indicator using the panel layout on page 22. An oil pressure or temperature light means shut the engine down immediately and check oil level; crankcase capacity is 2.0 L (2.1 U.S. qts.) with filter. If the level is correct, inspect the sensor connector for corrosion before restarting.
Manual Section: Instrument Panel and ControlsEngine loses power or runs rough at full throttle under mowing load p. 91
Inspect the air cleaner primary element first: clean it every 100 hours and replace it every 1,000 hours or annually. A clogged element starves the engine under load. Confirm the throttle lever is at full speed before engaging the PTO on page 41. Check the engine troubleshooting guide on page 91 if power loss continues.
Manual Section: Engine TroubleshootingMower leaving uncut strips or uneven cut height across the 60-inch deck p. 91
Verify the cutting height setting is equal on both sides of the deck using the reference chart on page 41. Check both front caster tire pressures; spec is 120 kPa (17 psi). Inspect under the deck for packed grass clippings that restrict blade airflow and cause uneven lift.
Manual Section: Mower TroubleshootingMachine won't move or drifts to one side with motion control levers centered p. 91
Verify both motion control levers return fully to neutral when released. If the machine still creeps or pulls to one side, the HST neutral position needs adjustment: follow the procedure on page 81. Confirm front caster tire pressure is equal on both sides at 120 kPa (17 psi); unequal inflation causes consistent directional pull.
Manual Section: Machine TroubleshootingMower blades won't engage or PTO shuts off immediately after switching on p. 91
Confirm you are seated with the parking brake released before operating the PTO lever on page 41; safety interlocks cut power if either condition is unmet. Verify the mower deck is fully latched following the mounting procedure on page 24. If blades turn slowly after engaging, check mower gear box oil level (capacity 0.4 L / 0.4 U.S. qts.) on page 52.
Manual Section: Mower TroubleshootingFrequently Asked Questions
What are the recommended service intervals?
The manual provides a detailed periodic service chart. For example, engine oil should be changed every 100 hours, the engine oil filter replaced every 200 hours, and the HST transmission oil filter replaced every 200 hours. The air cleaner primary element should be replaced every 1000 hours or 1 year, whichever comes faster.
What fluids and capacities does this machine require?
The machine requires Automobile unleaded or regular gasoline with a fuel tank capacity of 48 L (12.7 U.S. gals.). The engine crankcase requires 2.0 L (2.1 U.S.qts.) of SAE10W-30 or 10W-40 engine oil. The transmission case, including the rear axle gear case, requires 12.1 L (12.8 U.S.qts.) of KUBOTA UDT or SUPER UDT fluid. The mower gear box requires 0.4 L (0.4 U.S.qts.) of SAE10W-30 gasoline engine oil or GL-3 SAE90 gear oil.
How to troubleshoot engine won't start?
If the engine is difficult to start or won't start, common causes include no operator on the seat, parking brake not in the proper position, or the PTO lever not disengaged. Remedies involve sitting on the operator's seat, applying the parking brake, ensuring the PTO lever is in the "DISENGAGED" (OFF) position, and checking the key switch is in "ON" position. Other issues could be no fuel, improper fuel, or a clogged fuel filter.
What are the hydraulic system specifications?
The manual specifies that the transmission system is a 2-HST with gear, and the transmission case, including the rear axle gear case, has a capacity of 12.1 L (12.8 U.S.qts.). It requires KUBOTA UDT or SUPER UDT fluid for optimum protection and performance. The hydraulic oil filter should be replaced every 400 service hours.
What torque specifications are listed?
The manual provides general torque specifications for American standard cap screws (GR.5, GR.8) and Metric cap screws (Class 8.8, Class 10.9) based on thread size. For example, an M8 Class 8.8 screw has a tightening torque of 23.6-27.4 N·m (17.4-20.2 lbf·ft). Specific torque values include front caster wheel bolts at 20 to 25 N·m (14.8 to 18.4 lbf·ft) and blade bolts at 103 to 118 N·m (76.0 to 87.0 lbf·ft).
Is this Kubota ZG327A-AU Operator Manual a digital download?
You get a 99-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone — bring it right to the shop floor.
Is this Kubota ZG327A-AU Operator Manual printable?
Yes, print as many copies as you want — there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This document is a high-quality scanned PDF with an OCR layer, allowing you to search and copy the full text. The text throughout is crisp and consistently easy to read, with no blurriness or fading. Diagrams and illustrations are raster images, but they are clear and their labels are readable. All pages are clean, with no scan artifacts, stains, marks, or skewed content. There are no notable blank or filler pages.
