Kubota built the ZD1211-AU, ZD1221R-AU, ZD1221L-AU, and ZD1221RL-AU to run a certain way, and this Operator Manual (OEM #K3444-7126-1) is how you keep them there. Twelve pages of safety cover ROPS operation, slope handling, and PTO use. A full instrument panel walkthrough maps every switch, gauge, and the Easy Checker™ LCD monitor. The 27-page maintenance section runs from the 50-hour OPC system check to the 3,000-hour injection pump check, with the transmission fluid change at every 400 hours, fluid capacities, daily inspection checklists, and five troubleshooting charts for engine, drivetrain, battery, machine, and mower faults. Before startup, top off the 49 L fuel tank and fill the crankcase to 3.9 L. Wheel bolts torque to 108.5 to 130.2 N·m. Bookmarked by section, so any spec searches fast on your phone at the machine.
What's Inside This Kubota ZD1211–ZD1221 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Specifications | 22-23 | Specification Table (Engine, Capacities, Dimensions, Weight, Traveling system, Mower, PTO, PRO commercial deck) |
| Implement Limitations | 24 | Maximum loading weight, Implement weight W1, Maximum total weight, Option: When using the hitch kit (Mower, Dismounting the Mower Deck, Installing Parts to the Mower) |

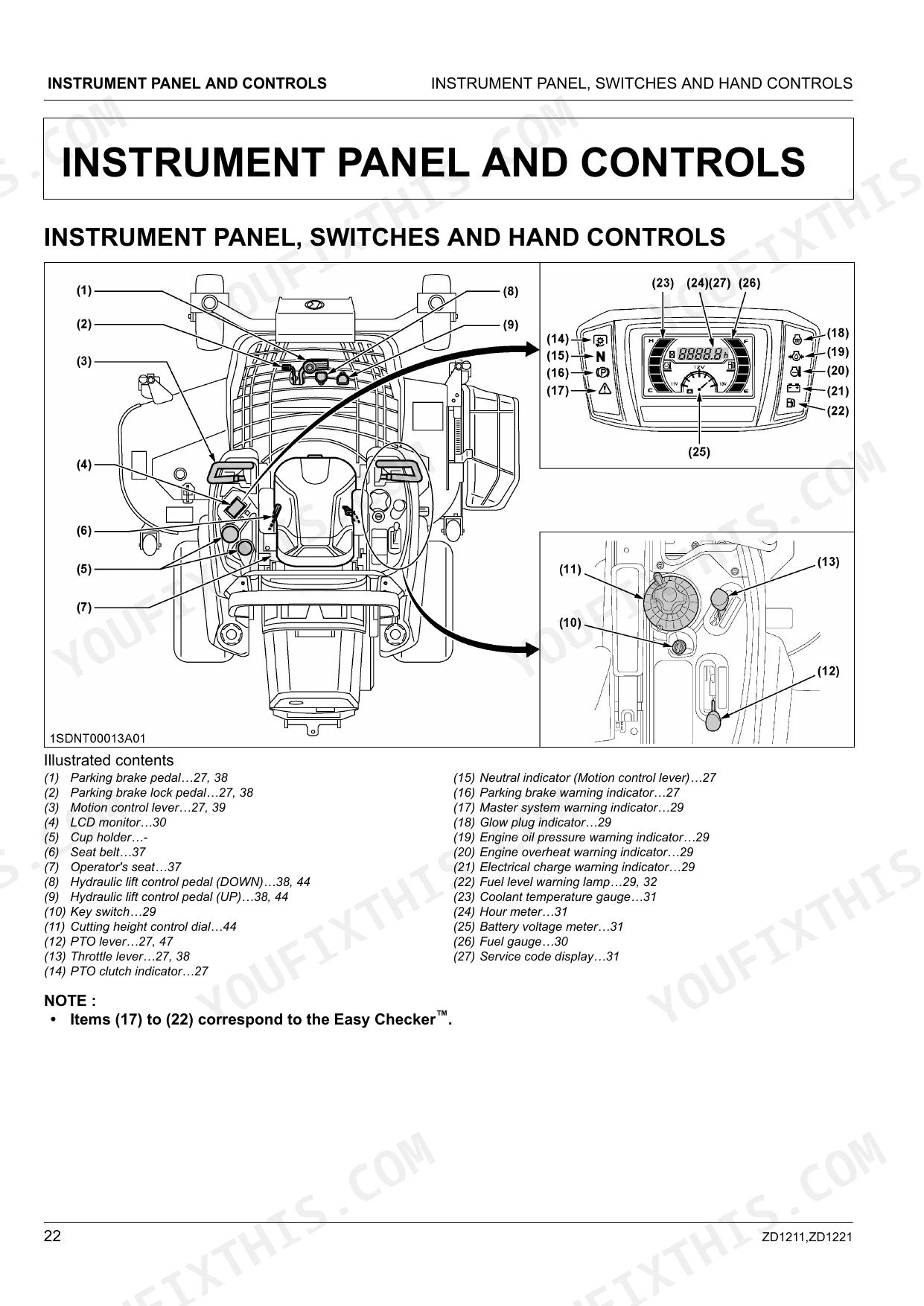

| Instrument Panel and Controls | 25-26 | Instrument Panel, Switches and Hand Controls, Illustrated contents, Mower (Rck60P, Rck72P, Rck60R, Rck72R) |

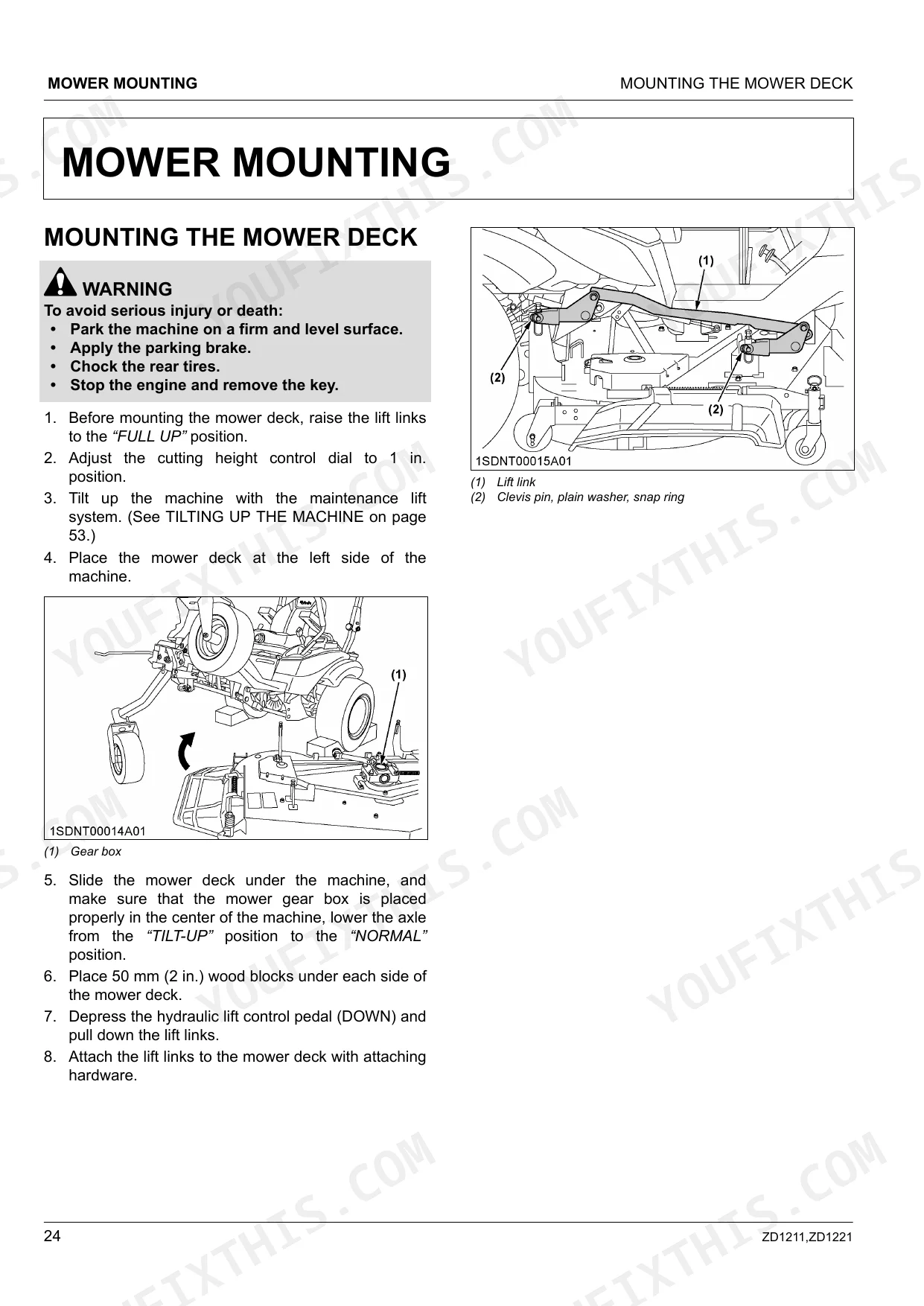

| Mower Mounting | 27-29 | Installation Of Skid, Installation Of Gauge Wheel, Installation Of Bolt (Stopping the Engine, Check During Operating) |

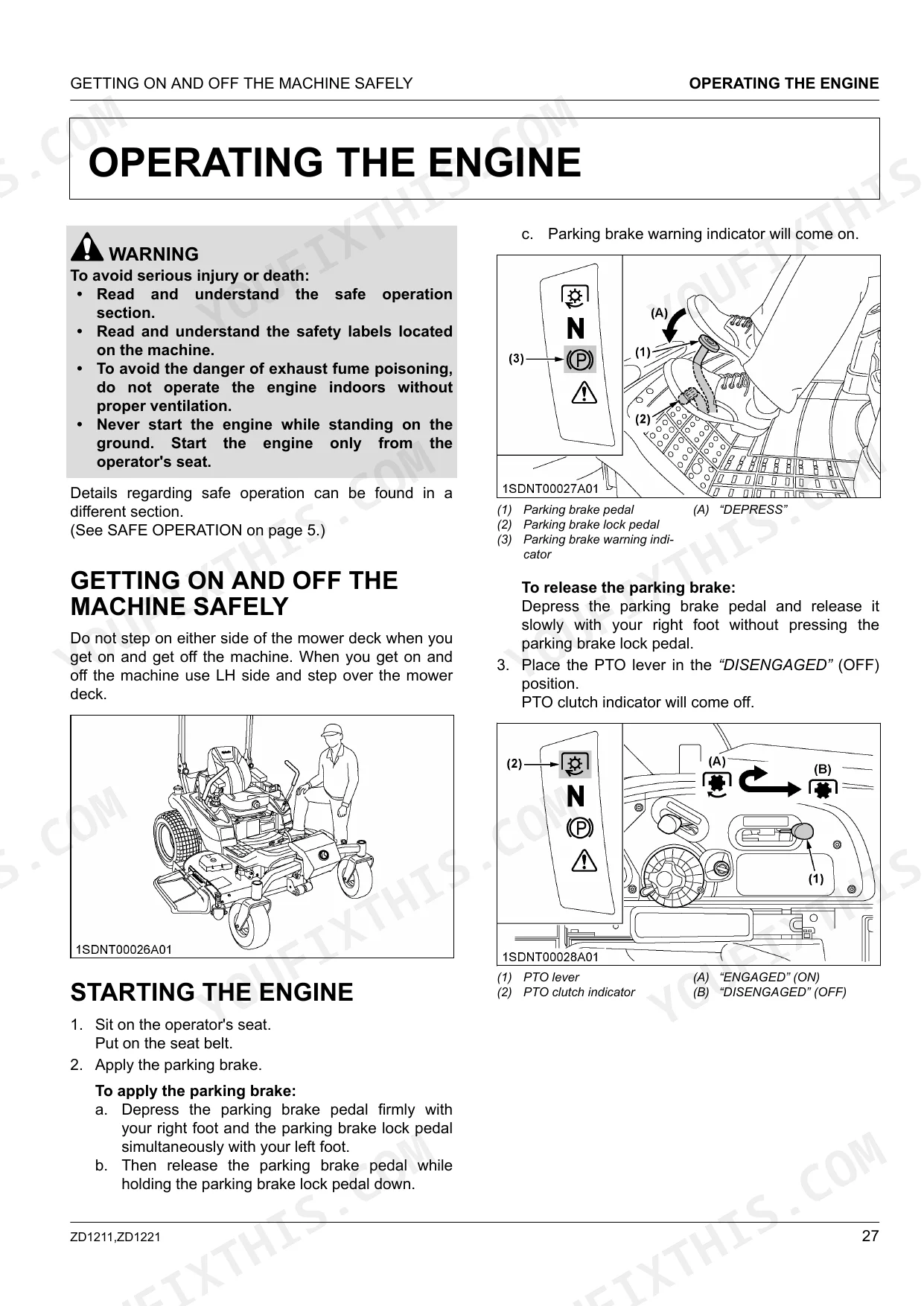

| Operating the Engine | 30-36 | Key Switch (Off, Preheat, Start), Engine Stop Lever, Easy Checker™ (Cold Weather Starting, Warming Up the Engine), Fuel Gauge (Jump Starting), Coolant Temperature Gauge, Hour Meter |
| Operating the Machine | 37-46 | Changing Lubricating Oil For New Machine, Engine Break-In, Machine Break-In, Folding The ROPS, Raising The ROPS To The Upright Position, Foldable ROPS, Operator's Seat, Seat Belt |
| Tires and Wheels | 53-54 | Inflation Pressure, Removing The Front Caster Wheels (Tilting Up the Machine), Installing The Front Caster Wheels (Opening the Lever Guide, Lift-Up Point) |
| Periodic Service | 55-65 | Hood, Front Cover, Step (Daily Check, Lubricants, Fuel and Coolant), Front Side:, Rear Side:, Checking The Engine Oil Level, Checking The Amount Of Fuel And Refueling |

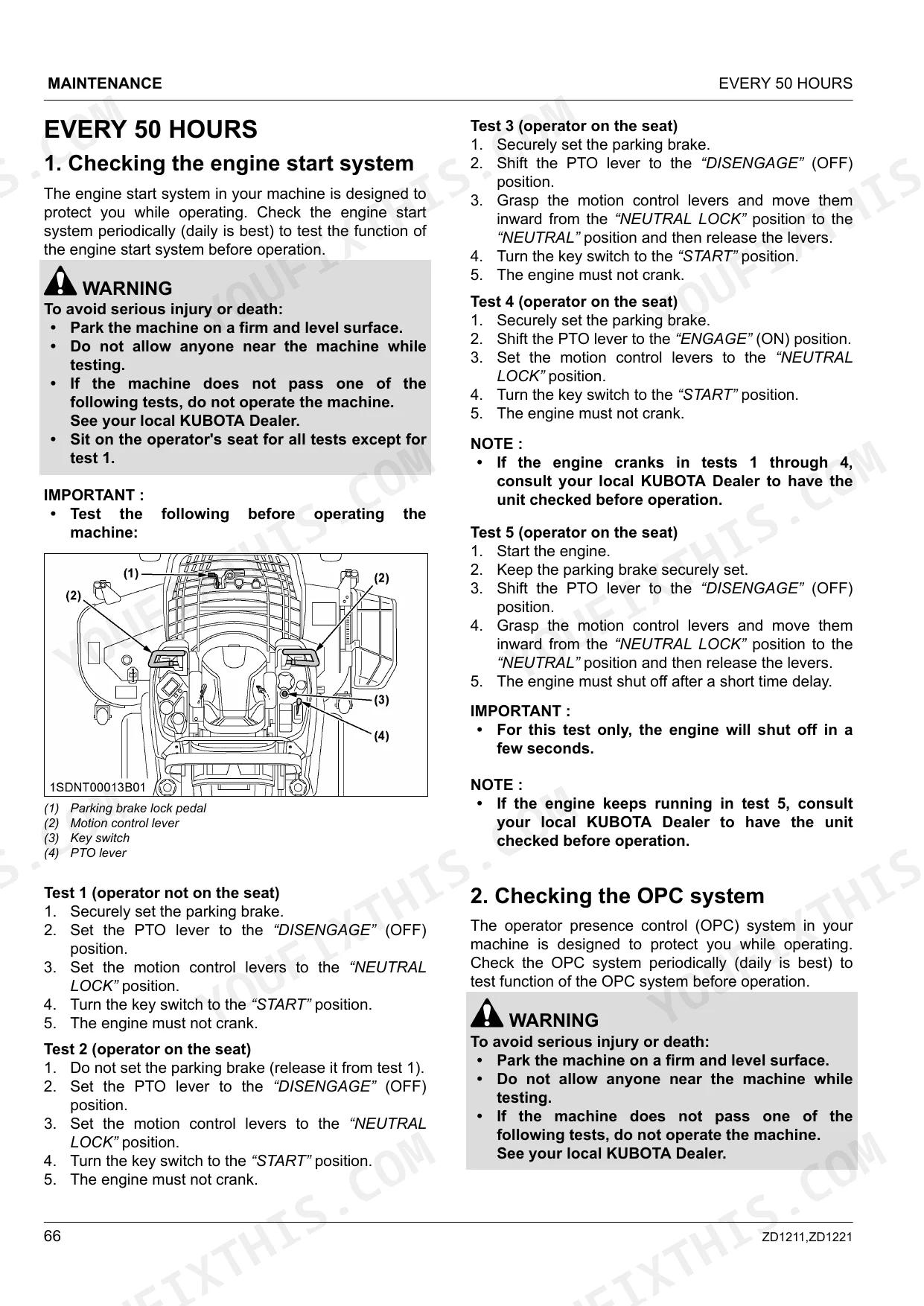

| Maintenance | 66-89 | Checking The Engine Start System, Checking The OPC System (Every 50 Hours), Checking Gear Box Oil Level, Greasing, Oiling, Cleaning Air Cleaner Primary Element (Every 100 Hours) |
| Adjustment | 90-96 | HST Neutral, Maximum Speed, Motion Control Lever Operating Strength, Motion Control Lever Alignment (Checking The Alignment, Aligning The Motion Control Levers), Anti-Scalp Rollers |
| Storage | 97-98 | Storing the Machine, Removing the Machine From Storage, Start the engine |

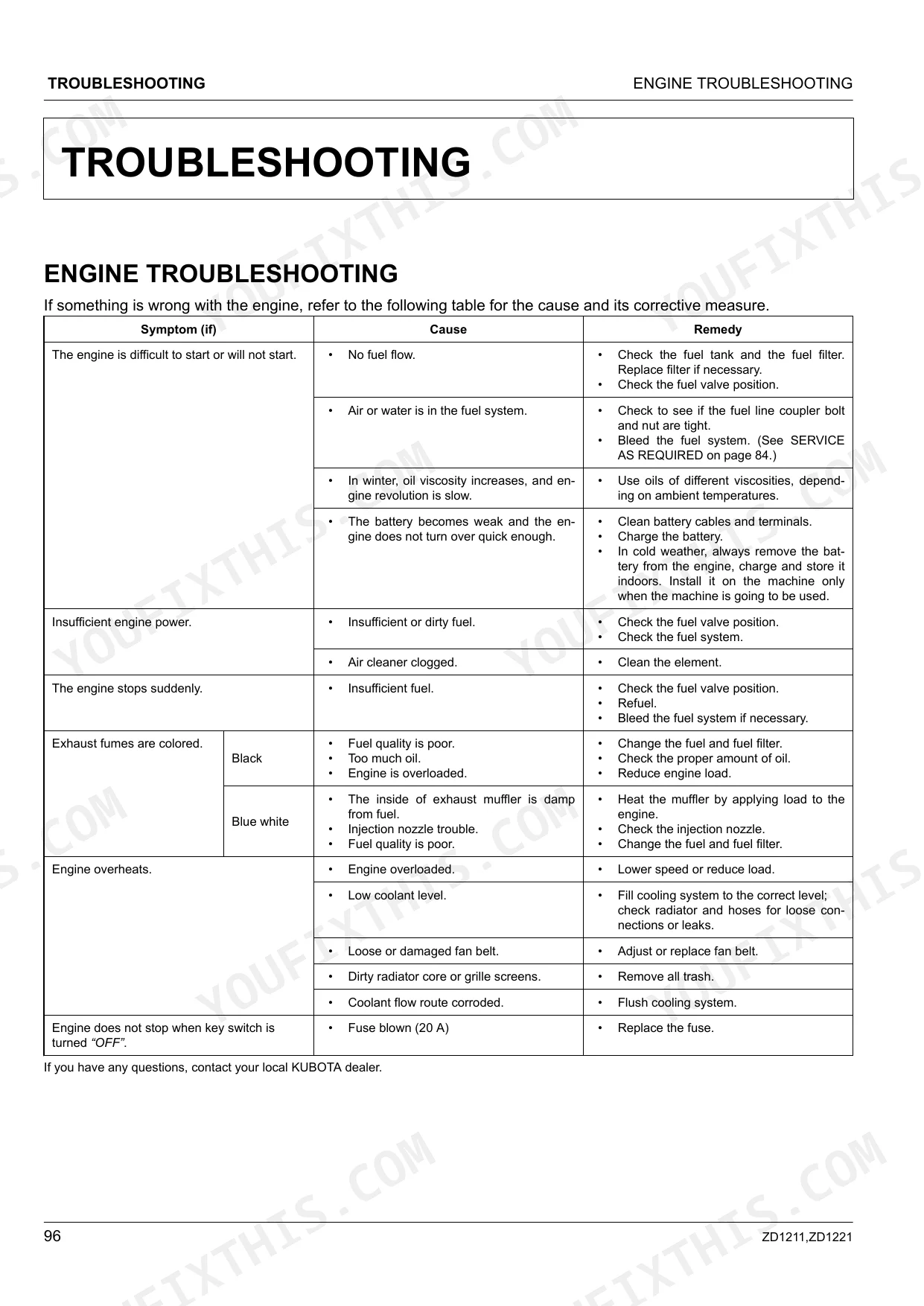

| Troubleshooting | 99-103 | Engine Troubleshooting (Symptom, Cause, Remedy), Power Train Trouble Shooting, Battery Troubleshooting, Machine Troubleshooting, Mower Troubleshooting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel tank capacity | 49 L (12.9 U.S.gals.) | p. 22 |
| Wheel bolts and nuts tightening torque | 108.5 to 130.2 N⋅m (80 to 96 lbf⋅ft, 11.1 to 13.3 kgf⋅m) | p. 53 |
| Front caster wheels nut tightening torque | 20 to 25 N⋅m (14.8 to 18.4 lbf⋅ft, 2 to 2.5 kgf⋅m) | p. 54 |
| Engine start system check | every 50Hr | p. 66 |
| OPC system check | every 50Hr | p. 66 |
| Engine Coolant Capacity | 3.5 L (3.70 U.S.qts.) | p. 22 |
| Transmission Case Capacity (including rear axle gear case) | 12.1 L (12.8 U.S.qts.) | p. 22 |
| ZD1211-AU, ZD1221R-AU | ||
| Engine crankcase (with filter) capacity | 3.9 L (4.1 U.S.qts.) | p. 22 |
| ZD1211-AU | ||
| Engine Power | 18.5 kW (24.8 HP) | p. 22 |
| Engine Crankcase Capacity (with filter) | 3.9 L (4.1 U.S.qts.) | p. 22 |
| ZD1221R-AU, ZD1221L-AU, ZD1221RL-AU | ||
| Engine Power | 21.7 kW (29.1 HP) | p. 22 |
| Engine Crankcase Capacity (with filter) | 5.7 L (6.0 U.S.qts.) | p. 22 |
Kubota ZD1211–ZD1221 Series Common Problems This Manual Covers
Kubota ZD1211-AU master system warning indicator flashing on the instrument panel during operation p. 32
Identify which indicator is active using the Easy Checker™ warning lamp guide on page 32. Confirm engine oil, coolant, and fuel in the 49 L (12.9 U.S.gals.) tank sit at correct levels. If the warning stays on after you correct the fluids, take the machine out of service and work through the troubleshooting chart on page 99.
Manual Section: Check During Operating (Easy Checker™)Engine won't turn over or cranks slowly, starter not engaging on a cold morning p. 30
Begin with battery condition; a low charge is the most common cold-weather no-start. Clean corroded terminals and inspect the battery every 100 hours per the schedule on page 66. On cold mornings, turn the key switch to the preheat position shown on page 30 and hold until the glow plug light goes out before cranking.
Manual Section: Operating the EngineMower leaving uneven cut heights with streaks of uncut grass after each pass p. 88
Inspect each blade for dullness, chips, or bent edges, the top cause of uneven cutting on zero-turn mowers. Clear any grass packed under the deck that blocks discharge. When blades need replacing, torque the blade bolts to 102.9 to 117.6 N·m (75.9 to 87 lbf·ft) per page 88.
Manual Section: Checking and Replacing BladesMachine creeps or drifts when motion control levers are released to neutral position p. 90
Confirm the motion control levers return fully to the neutral lock when released. Check that rear tire pressure matches on both sides at 83 kPa (12 psi) per the spec on page 53, since uneven pressure pulls the machine. If the levers sit out of alignment, follow the HST neutral and lever alignment procedure on page 90.
Manual Section: AdjustmentEngine overheat warning lamp illuminated or coolant temperature gauge reading in the red p. 34
Stop the engine right away and let it cool before you open any cap. Check the coolant level and top up to the mark; the system holds 3.5 L (3.70 U.S.qts.). Clear grass and debris off the radiator screen. If the gauge swings back into the red after restart, follow the overheat remedy on page 34.
Manual Section: Coolant Temperature Gauge (Engine Overheat)Frequently Asked Questions
What are the recommended service intervals?
Service intervals run on a chart keyed to running hours. The engine start system and OPC system get a check every 50 hours. Engine oil and filter change at every 200 hours; transmission fluid and rear axle gear case oil at every 400 hours. Air cleaner primary and secondary elements are replaced every 1000 hours or once a year, whichever comes first.
What fluids and capacities does this machine require?
Fuel is No.2-D diesel, tank capacity 49 L (12.9 U.S.gals.). The engine crankcase (with filter) takes API service classification CF, CF-4, CG-4, CH-4 or CI-4 oil: 3.9 L (4.1 U.S.qts.) on the ZD1211-AU and 5.7 L (6.0 U.S.qts.) on the ZD1221R/L-AU models. Transmission case and rear axle gear case use KUBOTA SUPER UDT-2 fluid at 12.1 L (12.8 U.S.qts.).
How to troubleshoot engine won't start?
Hard starting or a no-start usually traces to no fuel flow, air or water in the fuel system, thicker oil viscosity in winter, or a weak battery. Work through it by checking the fuel tank and filter, bleeding the fuel system (page 84), matching oil viscosity to the temperature, and cleaning or charging the battery. If the engine still only cranks through tests 1 to 4, see your local KUBOTA Dealer.
What are the hydraulic system specifications?
Integrated with the transmission, the hydraulic system runs on KUBOTA SUPER UDT-2 fluid. The transmission case, including the rear axle gear case (RH and LH), holds 12.1 L (12.8 U.S.qts.). Stick to genuine KUBOTA filters to avoid serious damage or early failure of the hydraulic system.
What torque specifications are listed?
Torque values are listed for American standard cap screws (GR.5, GR.8) and metric cap screws (Class 8.8, Class 10.9). An M8 metric screw at Class 8.8 takes 23.6-27.4 N·m (17.4-20.2 lbf·ft); an M12 at Class 10.9 takes 103-117 N·m (76.0-86.8 lbf·ft). Blade bolts get their own figure: 102.9 to 117.6 N·m (75.9 to 87 lbf·ft).
How quickly can I access this Kubota ZD1211–ZD1221 Series manual after buying?
Download starts the moment checkout completes: a 106-page Operator Manual in searchable PDF. Open it on a computer, tablet, or phone with no shipping wait.
Can I print this Kubota ZD1211–ZD1221 Series manual?
No restrictions. Print single pages, full chapters, or the whole manual. The PDF is fully unlocked.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text quality is consistently crisp and easy to read across all pages. Diagrams and illustrations are raster images; while some may show slight pixelation when highly magnified, all labels and details within them remain clearly readable. The pages are clean, free of scan artifacts, stains, or skewed content, and there are no notable blank or filler pages.
