This Kubota ZD1211 manual stays on one machine family: the ZD1211, ZD1211R, ZD1211L, and ZD1211RL zero-turn mowers. Electrical coverage runs from the starting system and charging circuit to Kubota's Easy Checker™ diagnostics, while the hydraulic schematics trace every line through the pump, control valve, and lift cylinder. The 286 pages break down into 50 pages of step-by-step procedures, 20 pages of test values, and 30 pages of maintenance schedules, spanning the engine, hydrostatic transaxle, front axle, and mower deck. Blade bolts torque to 102.9 to 117.6 N·m; front axle end play stays within 0 to 0.2 mm. That factory precision sits on every spec page. When your machine is down, you want real numbers, not forum guesses. Everything is bookmarked and keyword-searchable, so you can pull it up on a tablet and walk straight to the machine.
What's Inside This Kubota ZD1211 Series Manual
| System | Pages | Key Topics |
|---|---|---|

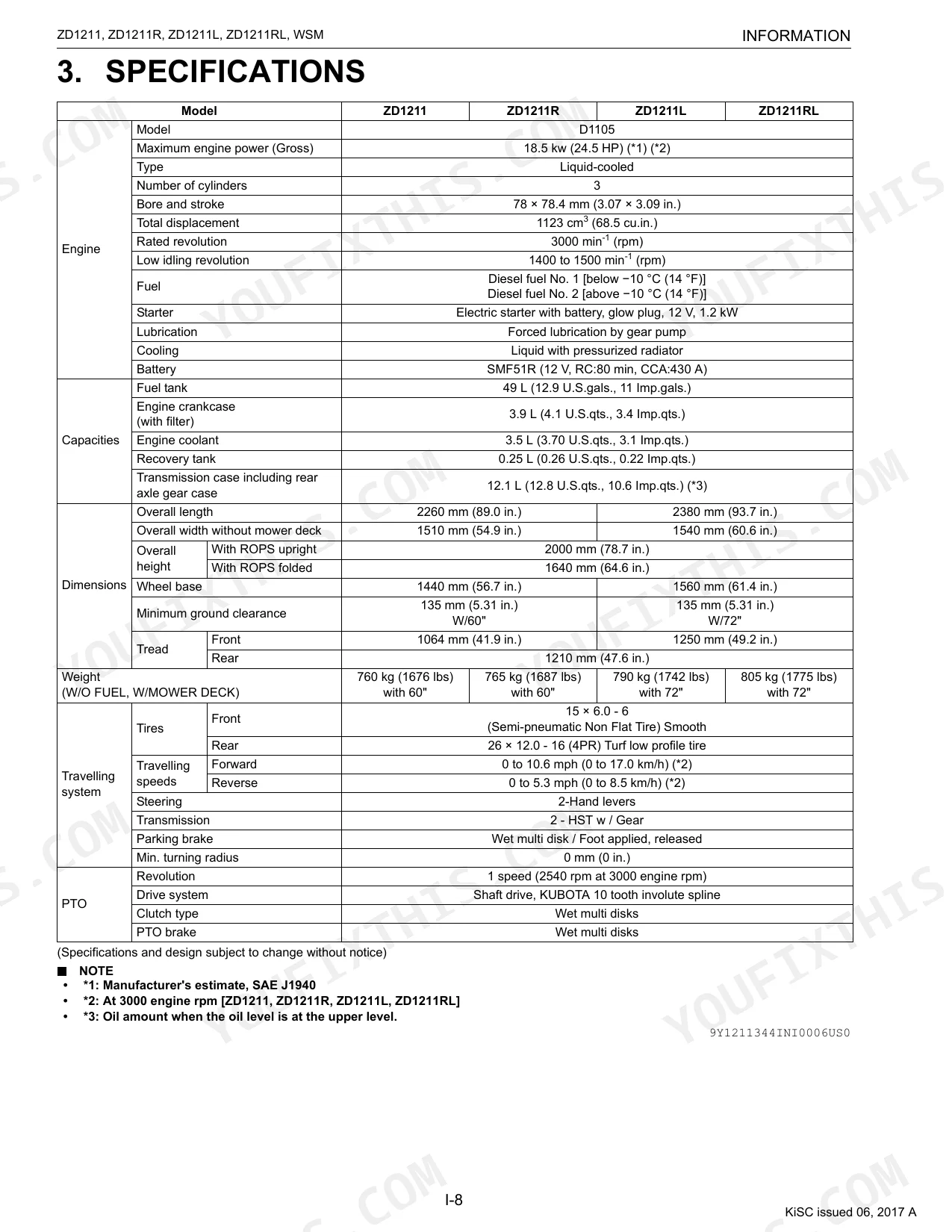

| I Information | 4-15 | Safety First, Safety Decal, Specifications, Dimensions |

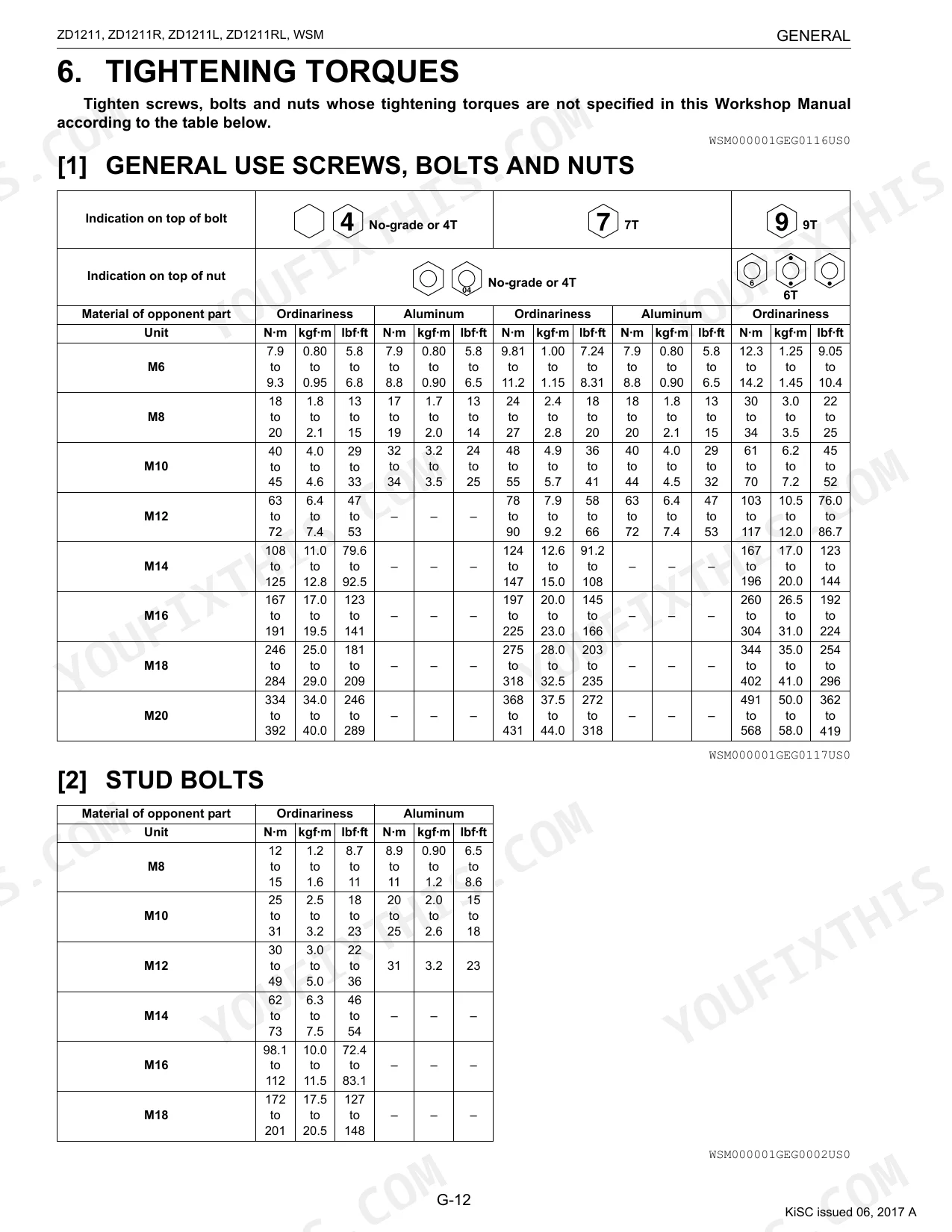

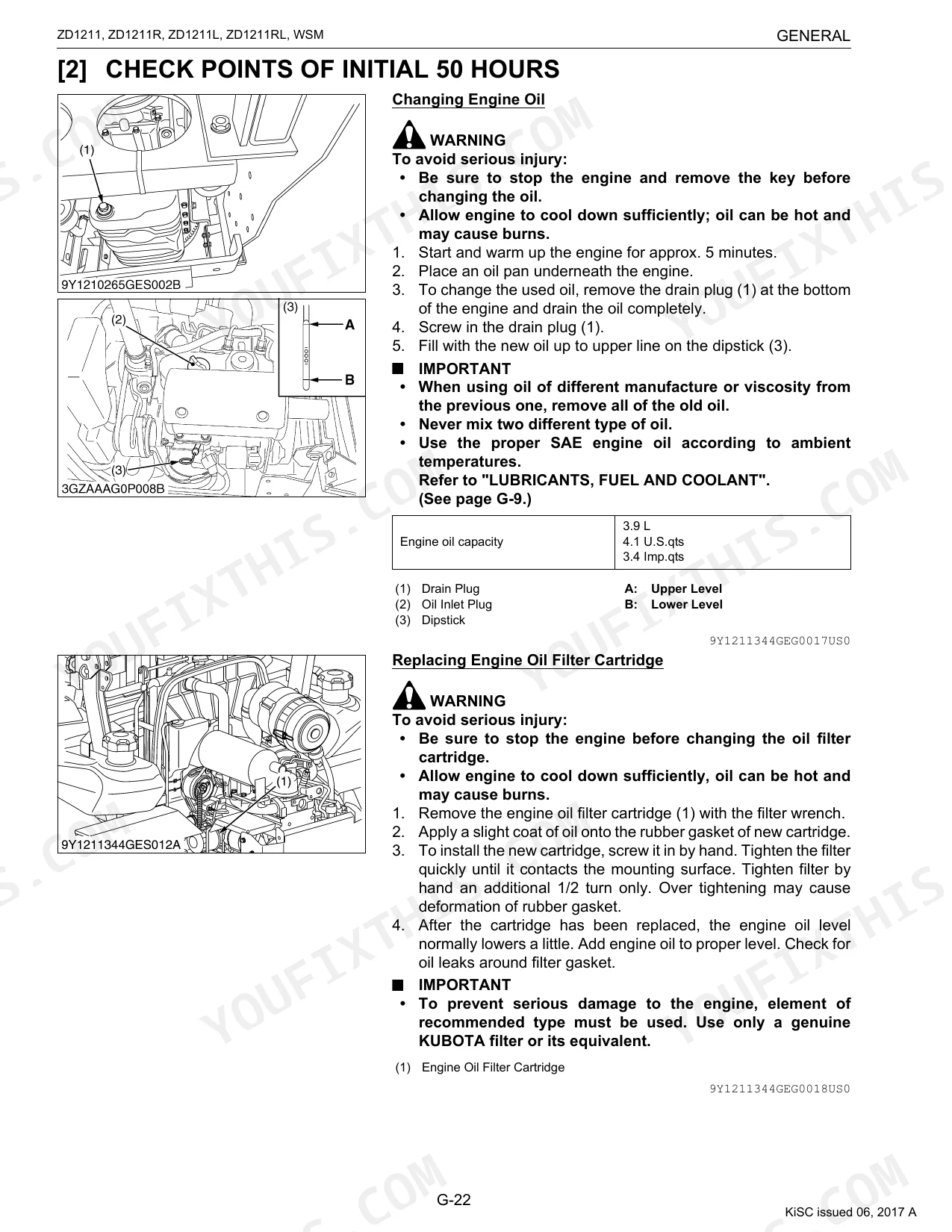

| G General | 16-71 | Identification, General Precautions, Handling Precautions for Electrical Parts and Wiring, Lubricants, Fuel and Coolant, Tightening Torques, Maintenance Check List |

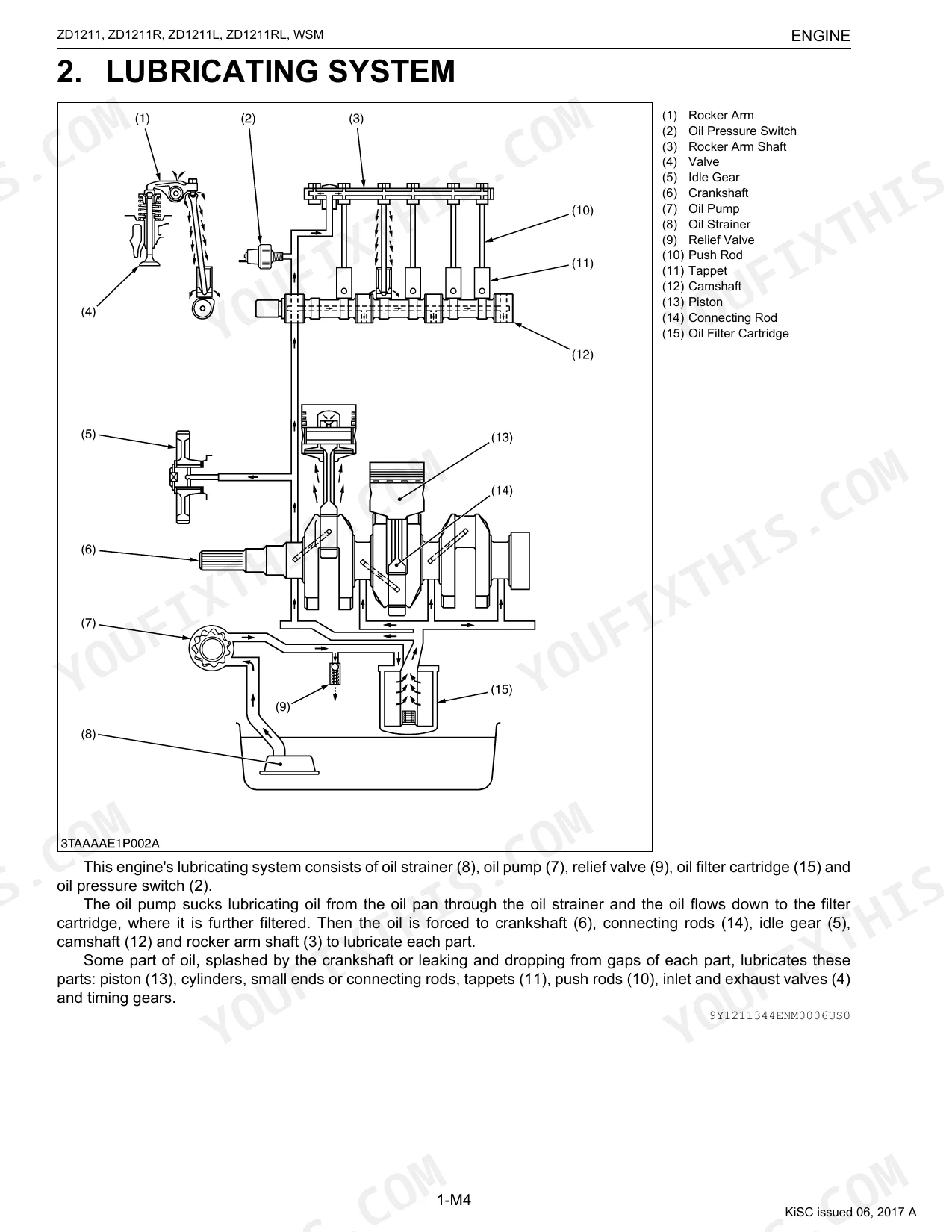

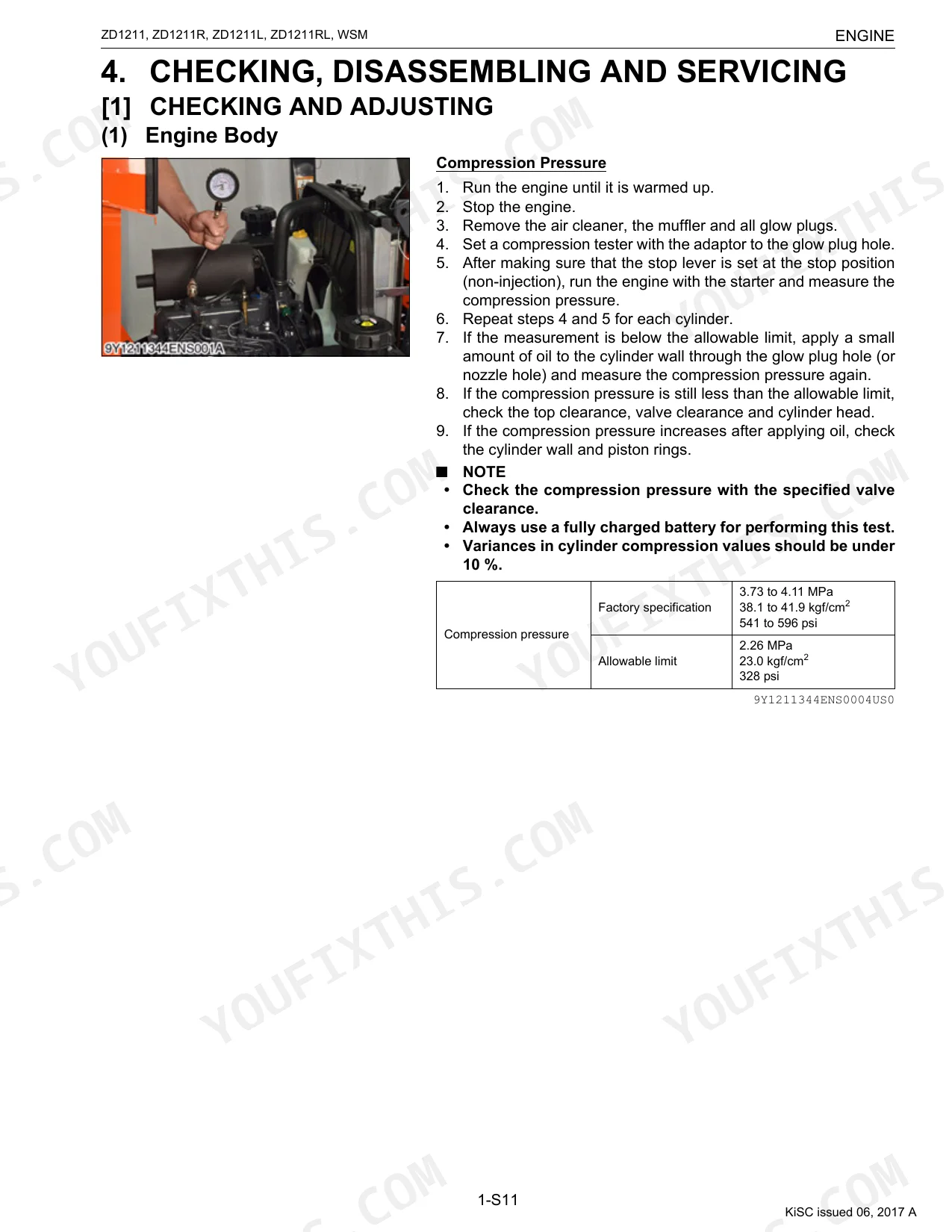

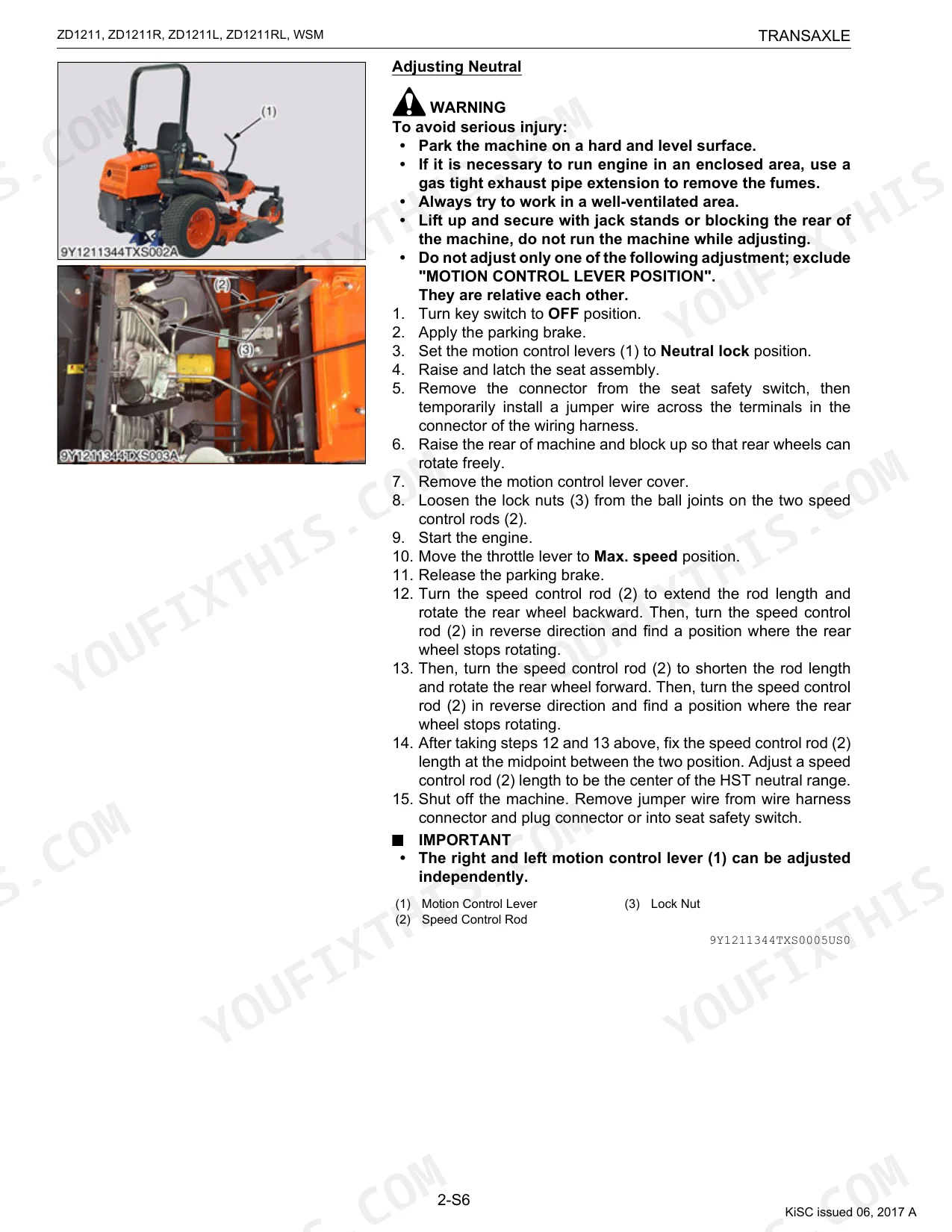

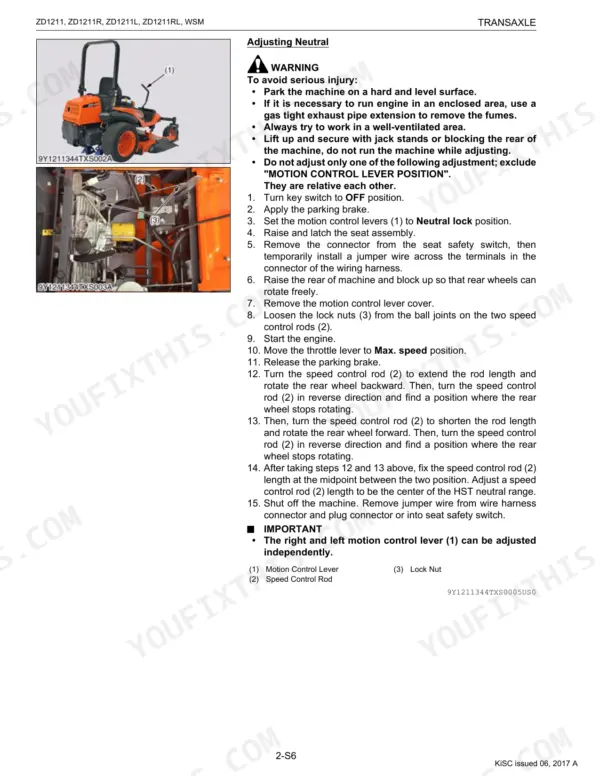

| 1 Engine | 72-132 | Engine Body, Lubricating System, Cooling System, Fuel System, Servicing Specifications, Tightening Torques |
| 2 Transaxle | 133-188 | Structure, Travelling System, Hydrostatic Transmission, PTO System, Parking Brake, Servicing Specifications |
| 3 Front Axle | 189-198 | Structure, Troubleshooting, Servicing Specifications, Tightening Torques, Checking and Adjusting, Disassembling and Assembling |
| 4 Hydraulic System | 199-219 | Hydraulic Circuit, Hydraulic Pump, Hydraulic Control Valve, Lift Cylinder, Servicing Specifications, Tightening Torques |
| 5 Electrical System | 220-262 | Electrical Diagram, Starting System, Charging System and Easy Checker™, Gauges, Servicing Specifications, Tightening Torques |
| 6 Mower | 263-286 | Power Transmission, Mower Linkage, Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Assembling |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Trouble of hydraulic system solution | Check hydraulic system | p. 208 |
| Mower blade screw tightening torque | 102.9 to 117.6 N·m (10.50 to 11.99 kgf·m, 75.90 to 86.73 lbf·ft) | p. 270 |
| Front Axle End Play Clearance (Factory Specification) | 0 to 0.2 mm (0 to 0.008 in.) | p. 194 |
| Front Axle End Play Clearance (Allowable Limit) | 0.5 mm (0.02 in.) | p. 194 |
| Pinion Shaft (without Mower Belt) Turning Force (Factory Specification) | Less than 117.7 N (12.0 kgf, 26.5 lbf) | p. 269 |
| Pinion Shaft (without Mower Belt) Turning Torque (Factory Specification) | Less than 1.47 N·m (0.15 kgf·m, 1.08 lbf·ft) | p. 269 |
| Radiator screen maintenance interval | Daily or after every 5 hours of operation | p. 37 |
| Air cleaner primary element cleaning pressure | Under 205 kPa (2.1 kgf/cm2, 30 psi) | p. 46 |
| Air cleaner primary element replacement interval | Once yearly or after every sixth cleaning, whichever comes first | p. 46 |
| Hydraulic oil filter replacement interval | Every 400 service hours | p. 35 |
| Fuel filter element check interval | Every 100 service hours | p. 31 |
| Fuel filter element replacement interval | Every 400 service hours | p. 31 |
Kubota ZD1211 Series Common Problems This Manual Covers
Front caster wheel on the ZD1211 loosens over rough terrain, then drops and takes the spindle housing with it p. 195
Inspect the caster wheel hardware before every run on rough ground. Torque the wheel bolt and lock nut to 20 to 25 N·m and the bracket lock nut to 45 to 55 N·m (page 195). Measure front axle end play (page 194) and replace the assembly if it exceeds 0.5 mm. Look over the spindle housing for cracks or impact damage before anything goes back together.
Manual Section: 3 Front AxleMower leaves a visible ledge or uneven strip across the lawn after each pass p. 270
Verify blade condition and balance. Torque all blade mounting screws to 102.9 to 117.6 N·m (page 270). Check that the deck sits level side-to-side and pitched correctly front-to-back per the Mower Linkage section (page 263). If the cut stays uneven after leveling, measure pinion shaft turning torque (page 269): factory spec is less than 1.47 N·m, and higher resistance points to a failing spindle bearing.
Manual Section: 6 MowerEngine temperature climbs above normal or coolant temperature warning light triggers during operation p. 37
Clean the radiator screen every 5 hours of operation (page 37); packed debris is the top cause of thermal shutdowns. Inspect fan belt deflection against the 7.0 to 9.0 mm spec (page 93) and swap out any glazed or cracked belt right away. Top off coolant in the reservoir. If overheating continues, work the engine troubleshooting procedures to rule out coolant contamination.
Manual Section: 1 EngineHydraulic drive feels sluggish, jerky, or pulls to one side under load p. 149
Replace the hydraulic oil filter at 400 service hours (page 35). Inspect every hydraulic hose annually for cracking or abrasion, and renew the full hose set every 4 years (page 39). When sluggish response hangs on, have a technician measure HST charge relief valve pressure against the 0.75 to 0.95 MPa spec (page 149). The transaxle troubleshooting section carries more loss-of-power diagnostics.
Manual Section: 2 TransaxleEngine cranks but won't fire, or starts hard and stumbles during initial warm-up

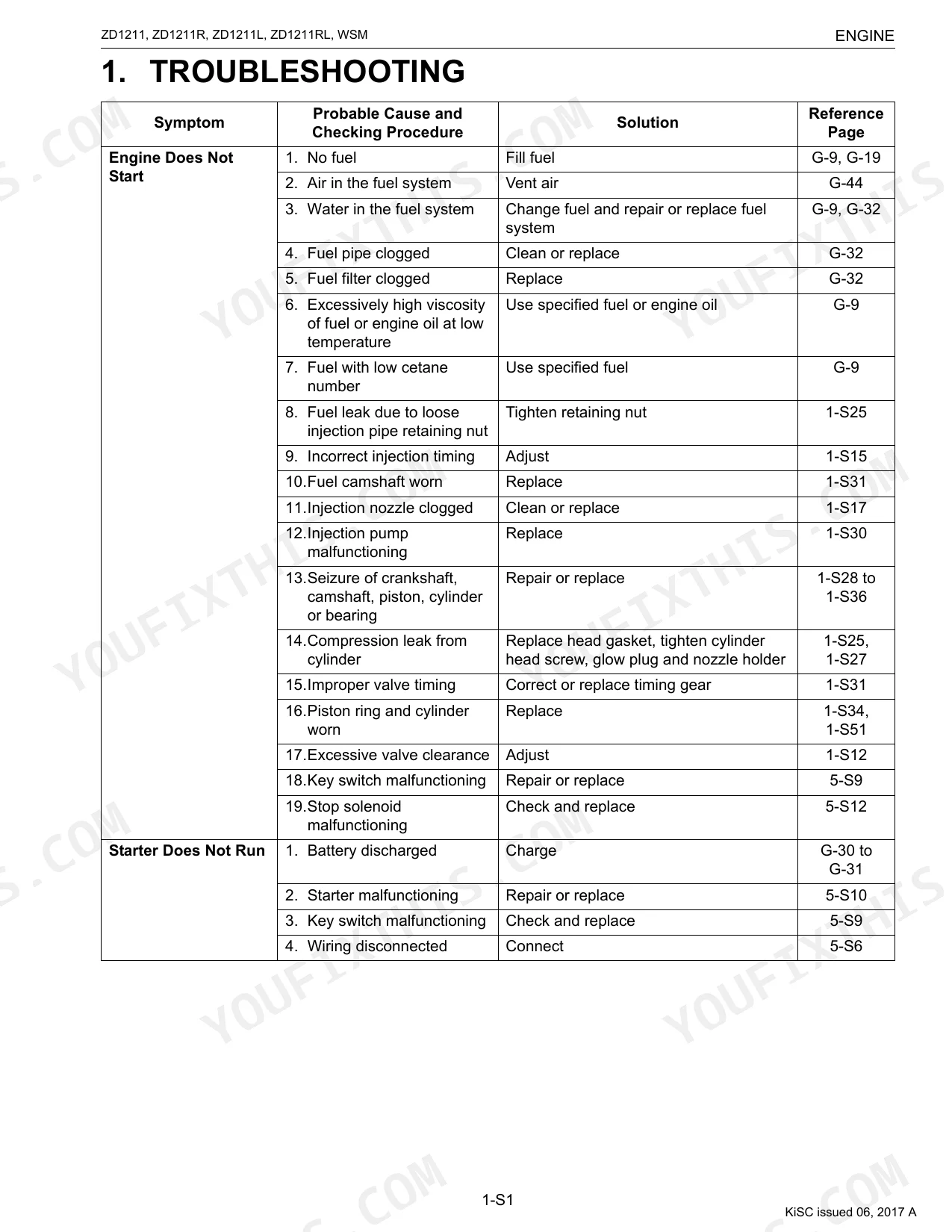

Service the fuel filter element every 100 service hours and replace it at 400 hours (page 31). Confirm the shutoff valve is open and the tank holds clean, fresh diesel. Drain and clean the fuel bowl if the fuel looks cloudy or separated. When the engine cranks but won't catch, follow the engine troubleshooting table to isolate injection system faults.
Manual Section: 1 EngineFrequently Asked Questions
What do Kubota ZD1211 error codes mean?
When something goes wrong in the power train, the ZD1211 shows an error code on the LCD monitor and the master system warning indicator blinks. 'Err 1' means a water temperature sensor power circuit problem, 'Err 2' a fuel sensor power circuit problem, and 'Err 3' a meter panel memory reading fault.
What are the torque specs for ZD1211 blade bolts?
Mower blade screws on the ZD1211 take 102.9 to 117.6 N·m of tightening torque, which works out to 10.50 to 11.99 kgf·m or 75.90 to 86.73 lbf·ft. Stay in that range for assembly that holds and runs safely.
How will I receive this Kubota ZD1211 Series Service Manual?
Immediate download of the complete 286-page searchable Service Manual. Open it on any device: laptop at your desk or phone out in the field.
Are there any print restrictions on this Kubota ZD1211 Series manual?
Yes. The PDF carries no DRM restrictions, so print any page or section your shop needs. Works with any standard printer.
Are there hydraulic schematics in this Kubota ZD1211 Series manual?
Yes, this Kubota ZD1211 Series Service Manual includes hydraulic system diagrams, circuit schematics, and component specifications.
Document Quality
This is a scanned document with an added OCR text layer, allowing you to search and copy the full text content. The main body text is crisp and clear throughout. Diagrams and illustrations appear to be scanned images, which remain generally readable but may show some pixelation when zoomed in significantly. Pages are clean with no notable scan artifacts or skewing. The document includes several blank pages that serve as section dividers.
