Working on a ZD18 or ZD21 and need numbers straight from the factory? This 240-page service manual covers both zero-turn mowers end to end, engine through mower deck. Wiring diagrams map the full electrical system, starter circuit, glow plug, and safety switches; hydraulic schematics trace fluid through the pump, control valve, and lift cylinder. Torque tables run through the engine and transaxle sections, troubleshooting charts cover the hydrostatic transmission and front axle, and 100-plus exploded views span mower blades to anti-scalp rollers. Blade bolt torque is 98.1 to 117.7 N·m (72.3 to 86.8 ft-lbs), and the factory schedules the transmission oil filter swap at every 300 service hours. Stop hunting forums for figures your dealer charges to read off a chart. Bookmarked and keyword-searchable, so you can pull it up right beside the machine.
What's Inside This Kubota ZD18, ZD21 Manual
| System | Pages | Key Topics |
|---|---|---|

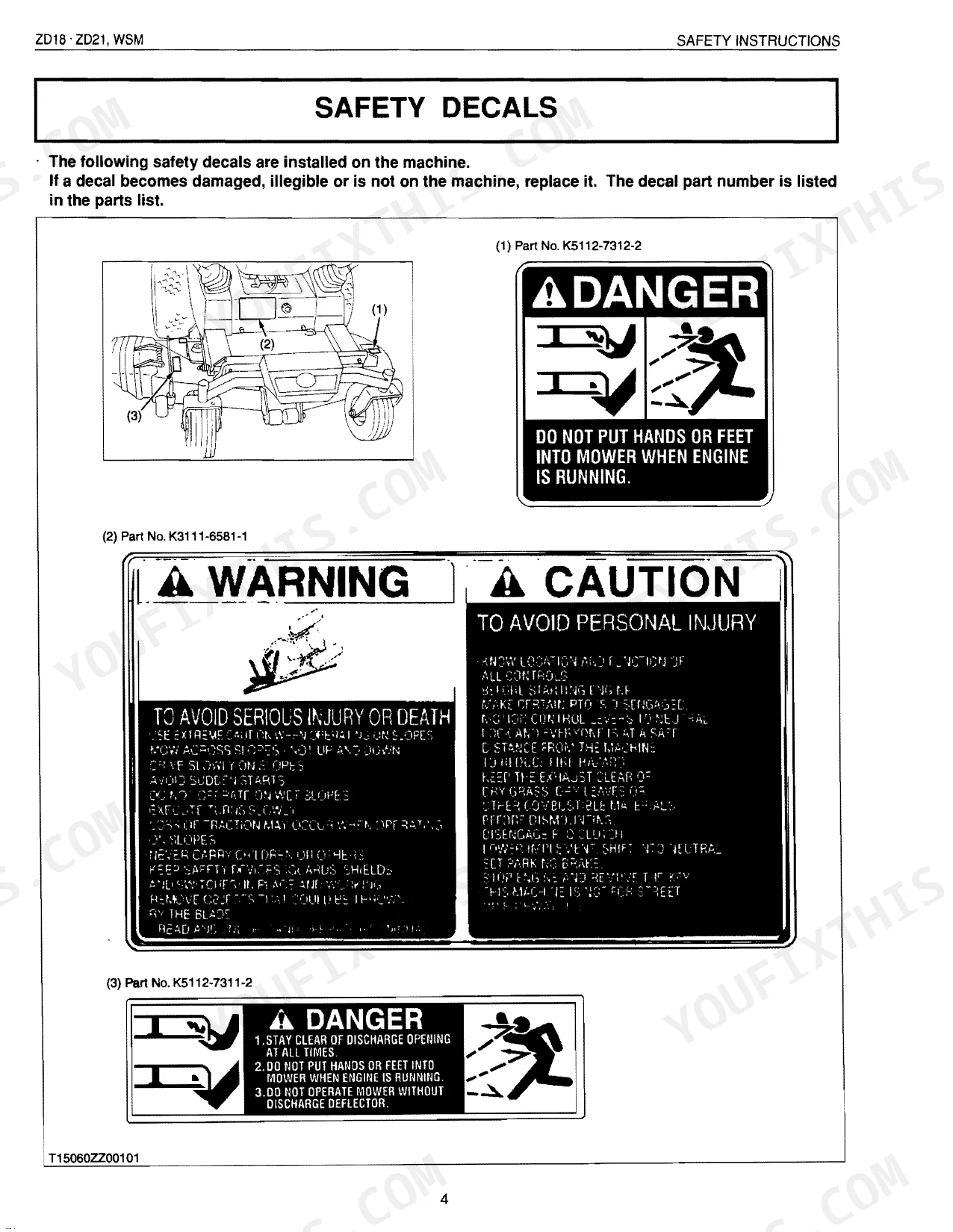

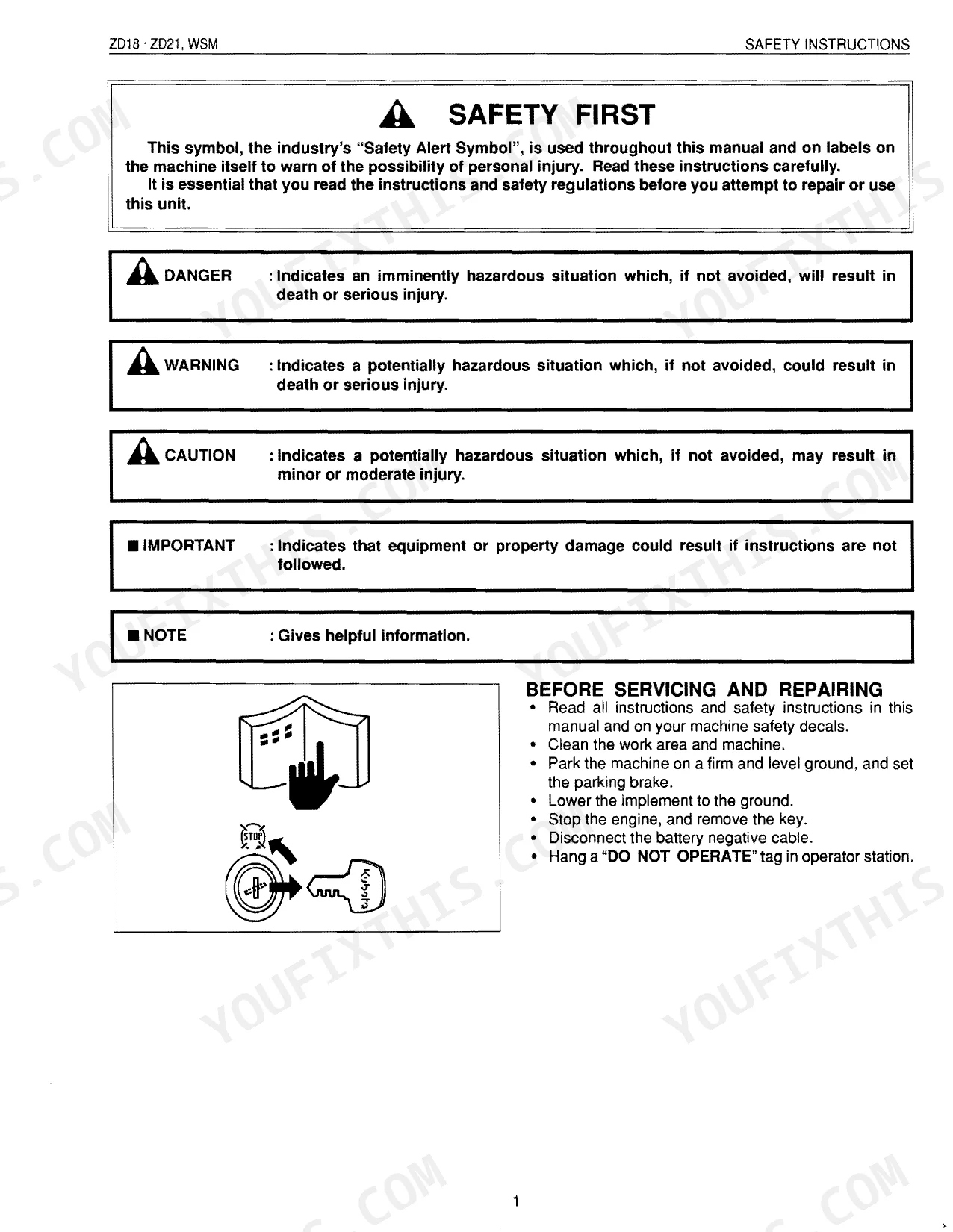

| Safety Decals | 4-6 | Do Not Put Hands or Feet Into Mower When Engine Is Running, to Avoid Serious Injury or Death, to Avoid Possible Injury or Death From a Machine Runaway, Hot Exhaust, Danger/Poison |

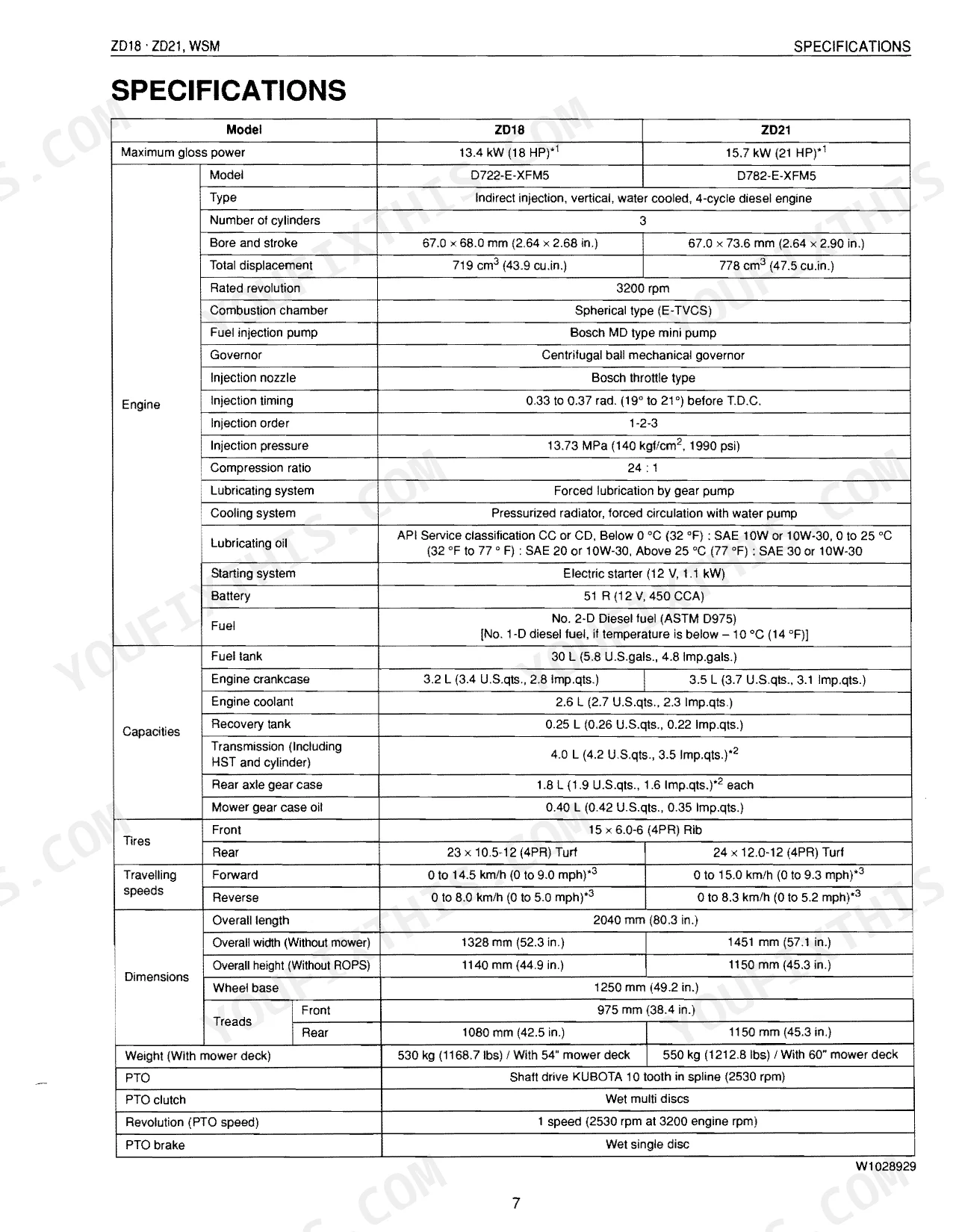

| Specifications | 7-8 | Model, Maximum gloss power, Engine, Capacities, Tires, PTO |
| Dimensions | 9-12 | Overall length, Overall width (Without mower), Overall height (Without ROPS), Wheel base, Treads |

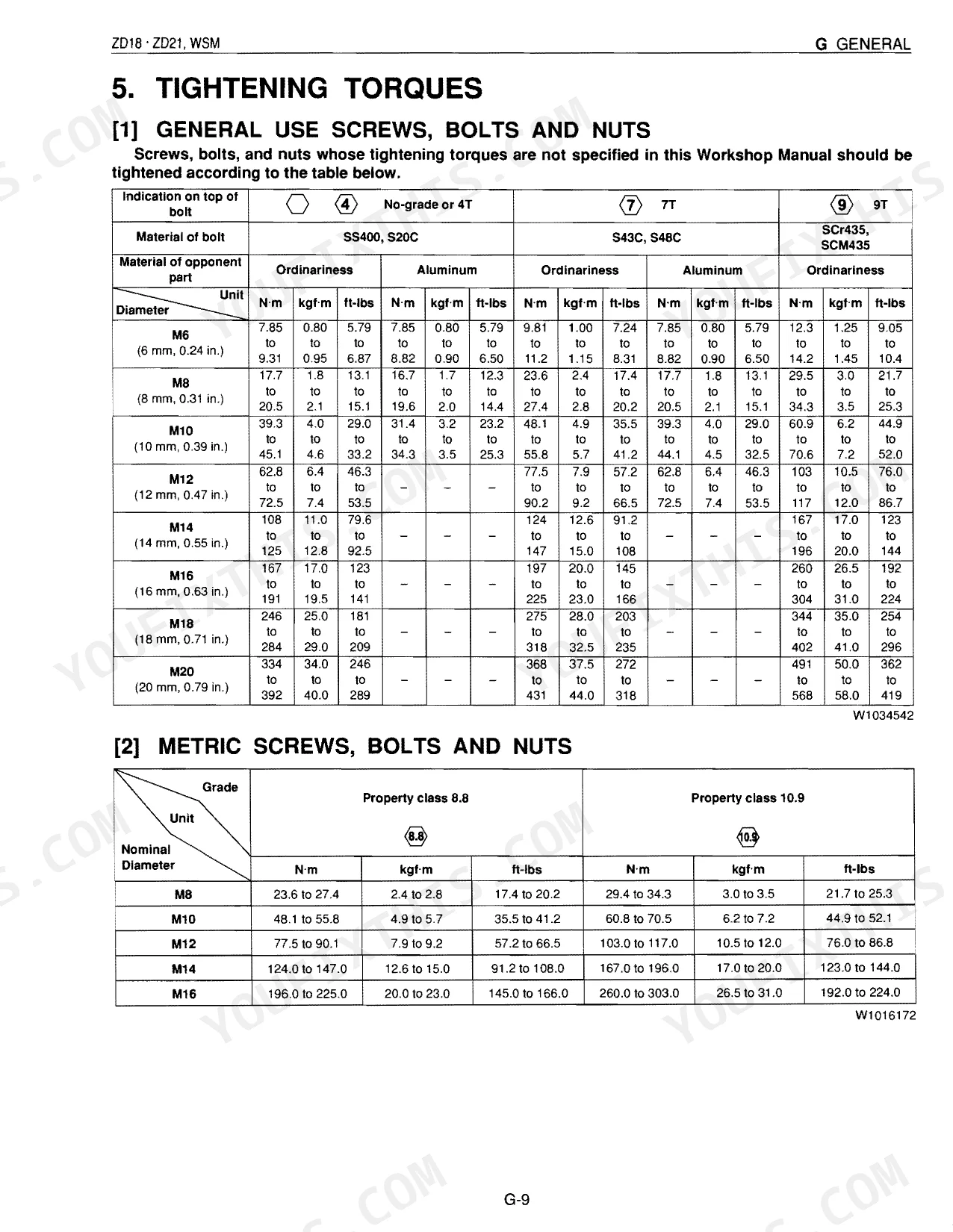

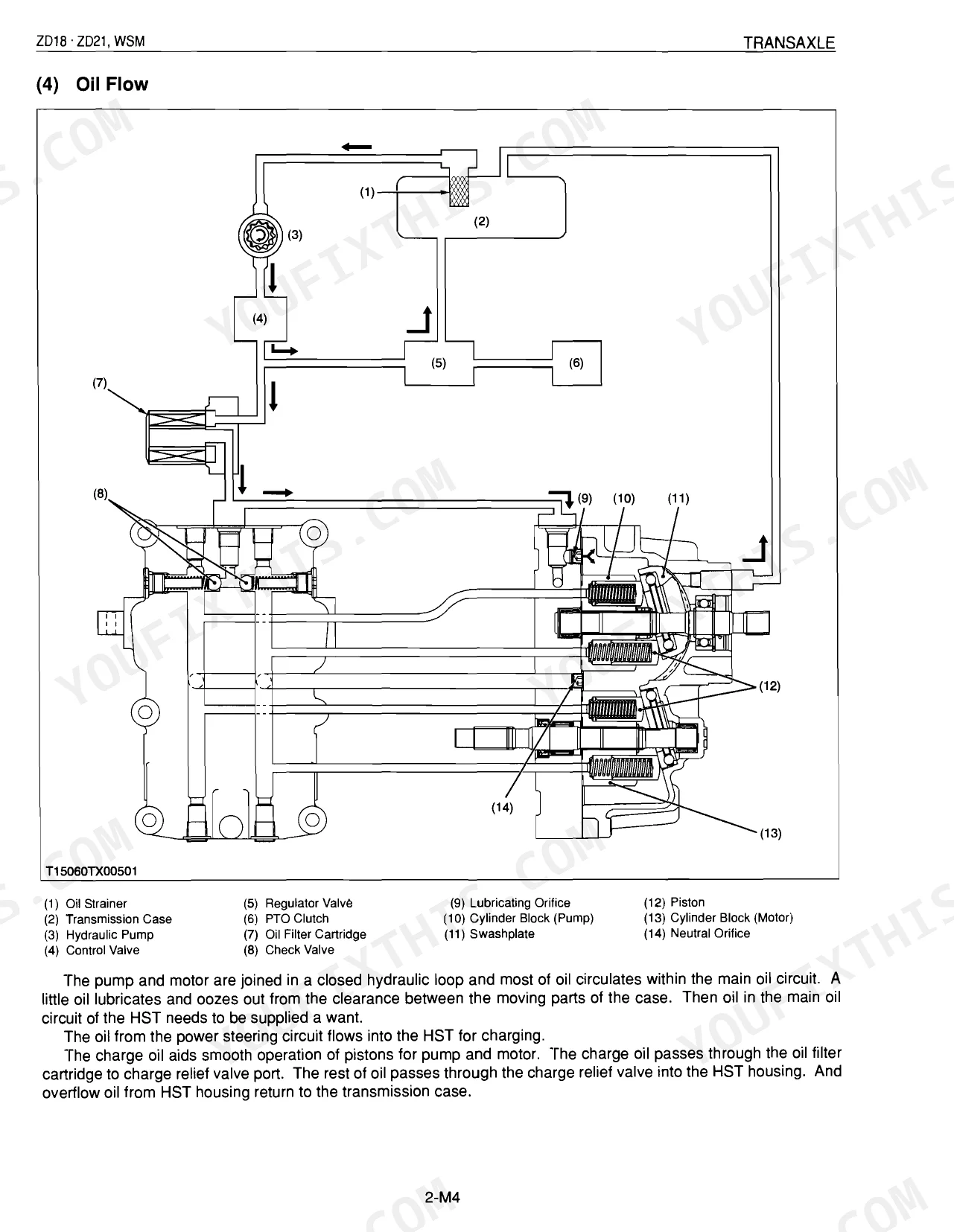

| General | 13-58 | Identification, General Precautions, Handling Precautions for Electrical Parts and Wiring, Lubricants, Fuel and Coolant, Tightening Torques, Check and Maintenance |
| Engine | 59-112 | Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing, Engine Body, Fuel System |
| Transaxle | 113-150 | Structure, Hydrostatic Transmission, PTO System, Parking Brake, Troubleshooting, Tightening Torques |
| Front Axle | 151-162 | Structure, Troubleshooting, Servicing Specifications, Tightening Torques, Checking and Adjusting, Disassembling and Assembling |
| Hydraulic System | 163-182 | Hydraulic Circuit, Hydraulic Pump, Hydraulic Control Valve and Valve Adaptor, Lift Cylinder, Mower Linkage, Troubleshooting |

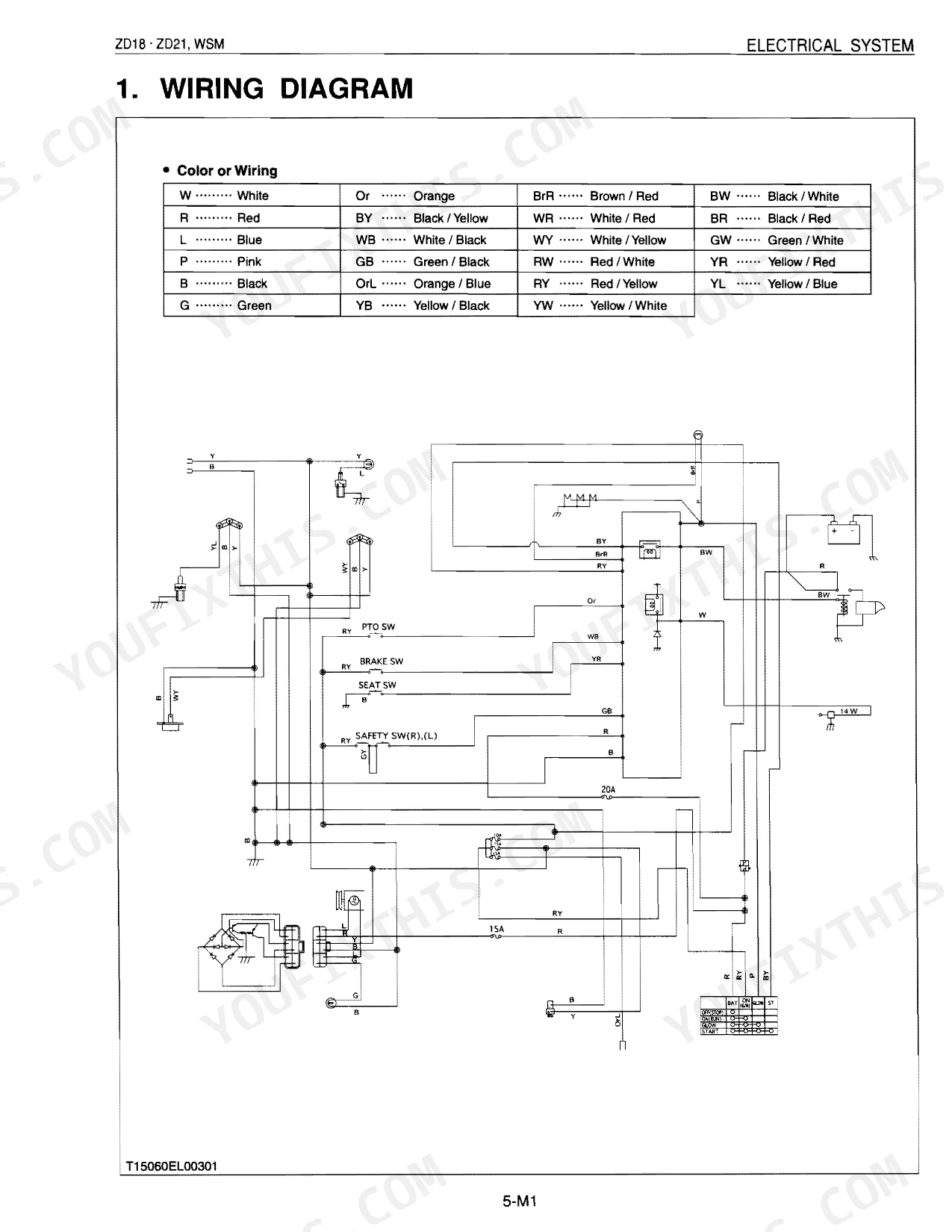

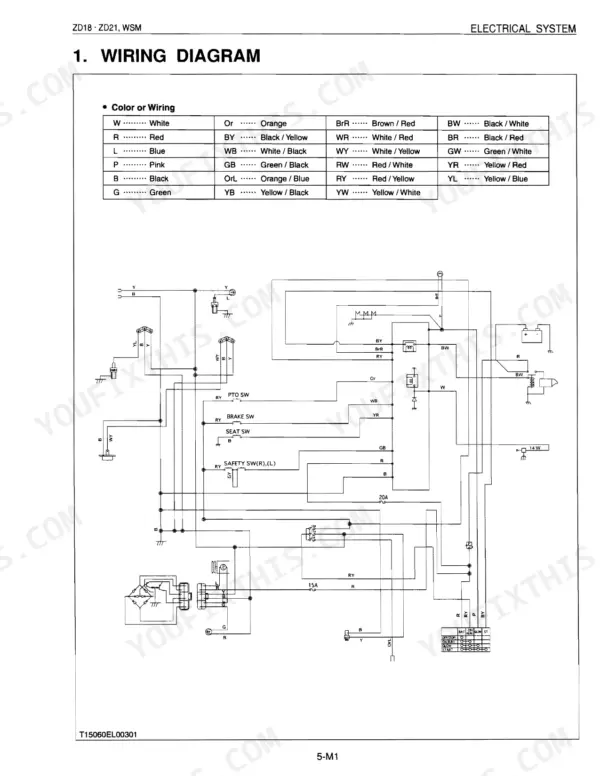

| Electrical | 183-216 | Wiring Diagram, Starter, Glow Plug, Safety Switch, AC Dynamo, Regulator |
| Mower | 217-240 | Power Transmission, Lifting Mechanism, Mower Blades, Gear Box, Anti-scalp Rollers, Cutting Height |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Mower blade screw tightening torque | 98.1 to 117.7 N·m (10.0 to 12.0 kgf·m, 72.3 to 86.8 ft-lbs) | p. 225 |
| Front wheel mounting bolt and lock nut tightening torque | 1.0 to 1.5 N·m (0.1 to 0.15 kgf·m, 0.74 to 1.11 ft-lbs) | p. 159 |
| Rear wheel mounting nut tightening torque | 48.0 to 56.0 N·m (4.9 to 5.7 kgf·m, 35.4 to 41.2 ft-lbs) | p. 130 |
| Transmission oil filter cartridge replacement interval | every 300 service hours | p. 31 |
| Transmission oil filter type | highly efficient, 10 µm filter | p. 31 |
| Engine oil filter replacement interval | every 200 hours | p. 25 |
| Transmission strainer O-rings replacement condition | replace if damaged, cracked or hardened | p. 32 |
| Mower gear box oil seals replacement instruction | Replace the mower gear box oil seals (1). (2). | p. 46 |
| Radiator screen cleaning interval | Daily or after every 5 hours of operation | p. 29 |
| Fan belt tension (deflection) | Approx. 10 mm (0.4 in.) when depressed with 98 N (10 kgf, 22 lbs) force | p. 69 |
| ZD18 | ||
| Maximum Gross Power | 13.4 kW (18 HP) | p. 7 |
| ZD21 | ||
| Maximum Gross Power | 15.7 kW (21 HP) | p. 7 |
Kubota ZD18, ZD21 Common Problems This Manual Covers
Machine jerks under load, loses drive, or quits moving entirely on the ZD18 or ZD21 p. 127
Check transmission fluid level immediately; system capacity is 4.0 L (4.2 U.S.qts., 3.5 Imp.qts.). Pull the strainer and inspect O-rings per page 32, replacing any that are cracked or hardened. Replace the transmission oil filter cartridge every 300 service hours per page 31. Inspect all hydraulic lines and fittings for external leaks before returning to service.
Manual Section: Transaxle/Transmission TroubleshootingEngine temperature climbs fast, machine shuts down unexpectedly, or overheat warning appears
Clean the radiator screen daily or every 5 hours of operation per page 29; packed grass and debris are the leading cause. Check fan belt deflection at page 69: correct tension is approximately 10 mm (0.4 in.) when pressed with 98 N (22 lbs) of force. Clear debris from radiator fins with compressed air before the next mowing session.

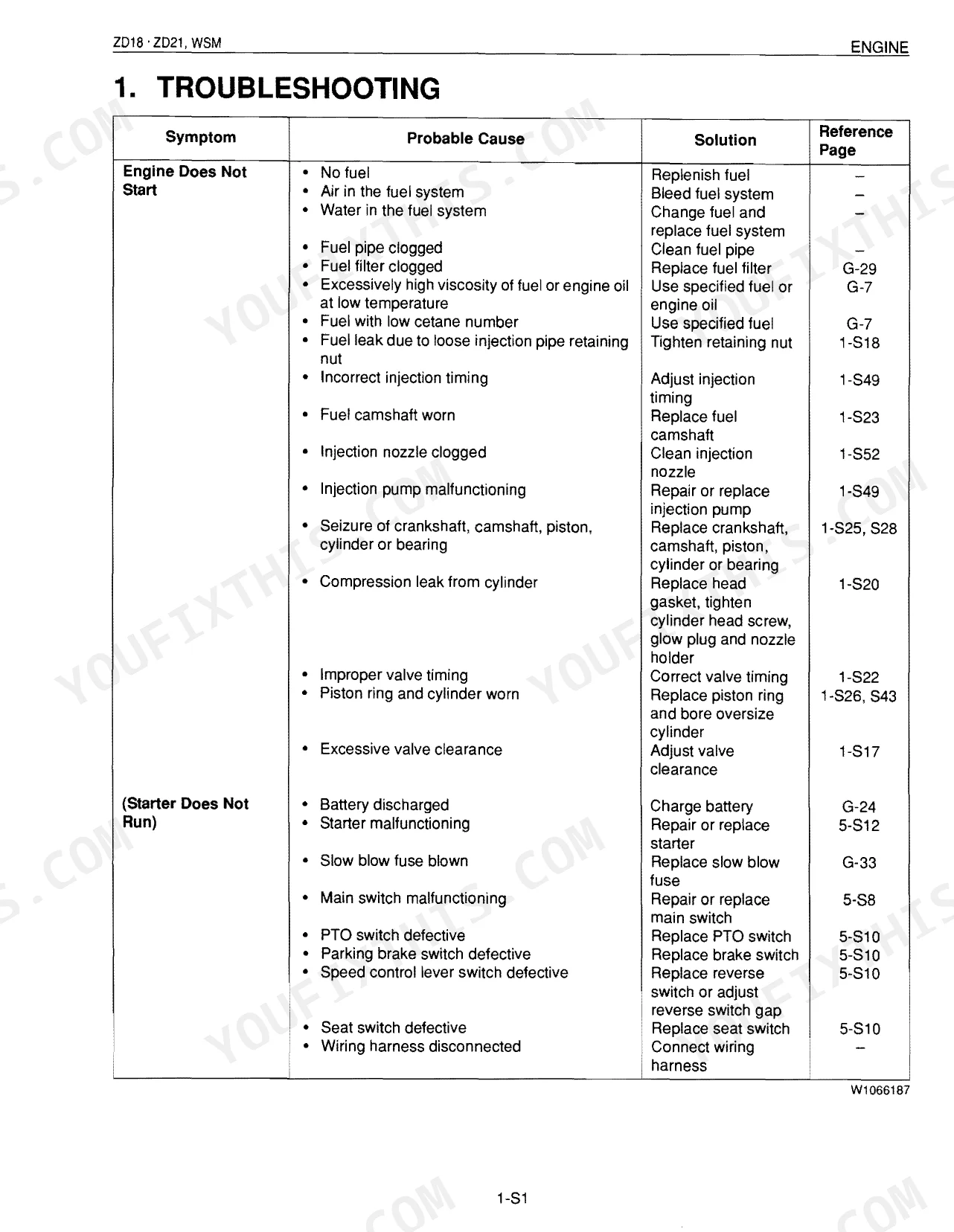

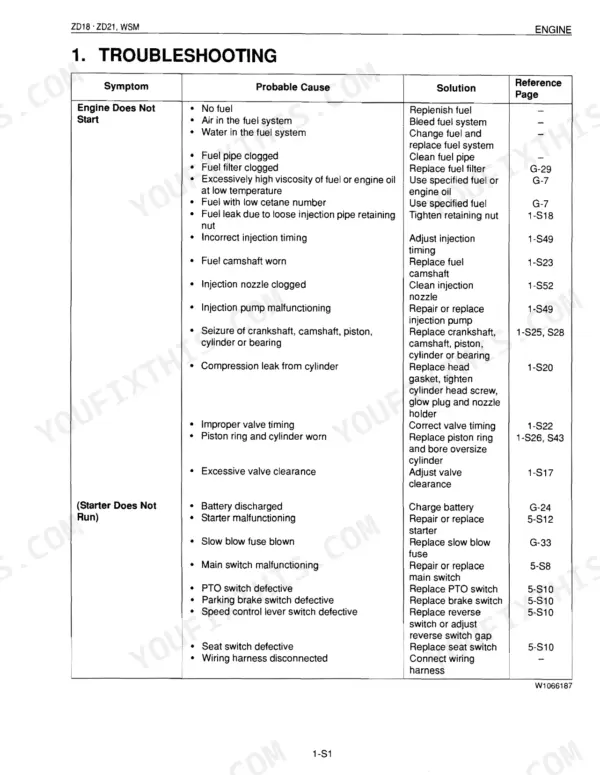

Manual Section: Engine TroubleshootingEngine sputters and loses power under load, then stalls and won't restart
Start with fuel level; the tank holds 30 L (5.8 U.S.gals.). Confirm the shutoff valve is open and look the air filter over for blockage. Work through the troubleshooting chart for low-power and no-restart diagnostics. If the engine cranks but won't fire, measure valve clearance cold: spec is 0.145 to 0.185 mm per page 65.
Manual Section: Engine TroubleshootingDeck gearbox leaking oil, running hot, or blade engagement feels sluggish and noisy p. 223
Inspect the gearbox housing for oil seepage around the seal faces. Replace mower gear box oil seals per page 46 at the first sign of wetness or cracking. With the deck off, torque blade screws to 98.0 to 117.6 N·m (72.0 to 86.8 ft-lbs) per page 47. Recheck for leaks after the first cutting hour.
Manual Section: Rotary Mower TroubleshootingMower deck won't raise or drops slowly after lifting, hydraulic cylinder feels weak p. 175
Verify hydraulic fluid is at the correct level; total system capacity is 4.0 L (4.2 U.S.qts.). Check relief valve pressure: spec is 2.94 to 3.43 MPa (427 to 498 psi) per page 176. Inspect lift cylinder seals and control valve for leaks. If pressure is within spec but lift stays slow, pull the hydraulic control valve and check it for debris.
Manual Section: Hydraulic System Troubleshooting (Mower Lift)Frequently Asked Questions
What are the torque specs for the blade bolts on a Kubota ZD18 or ZD21?
Blade screws torque to 98.1 to 117.7 N·m (10.0 to 12.0 kgf·m, 72.3 to 86.8 ft-lbs).
What are the torque specs for the wheel lugs on a Kubota ZD18 or ZD21?
The front wheel bolt and lock nut torque to 1.0 to 1.5 N·m (0.1 to 0.15 kgf·m, 0.74 to 1.11 ft-lbs). The rear wheel mounting nut takes 48.0 to 56.0 N·m (4.9 to 5.7 kgf·m, 35.4 to 41.2 ft-lbs).
What are the replacement specifications for hydraulic oil filter?
Change the transmission oil filter cartridge every 300 service hours. To avoid serious hydraulic-system damage, fit a highly efficient 10 µm filter, and use only a genuine KUBOTA filter or its equivalent.
What are the replacement specifications for engine oil filter?
Replace the engine oil filter cartridge every 200 hours. To avoid serious engine damage, fit only the recommended element: a genuine KUBOTA filter or its equivalent.
What format is this Kubota ZD18, ZD21 manual in?
Instant PDF download. The full 240-page searchable Service Manual lands right after payment, ready to open on a laptop, tablet, or phone out in the shop.
Can I print this Kubota ZD18, ZD21 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Can I find hydraulic circuit diagrams in this Kubota ZD18, ZD21 manual?
Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the Kubota ZD18, ZD21.
Document Quality
This document is a scanned PDF, offering full text searchability and copy-paste functionality thanks to an OCR layer. The text quality is generally clear and readable, though some pages exhibit minor blurriness or artifacts from the scanning process. Diagrams and illustrations are raster images, but their labels remain legible. Pages are mostly clean, with occasional minor skewing or faint scan artifacts present. Note that there are several blank pages throughout the document.
