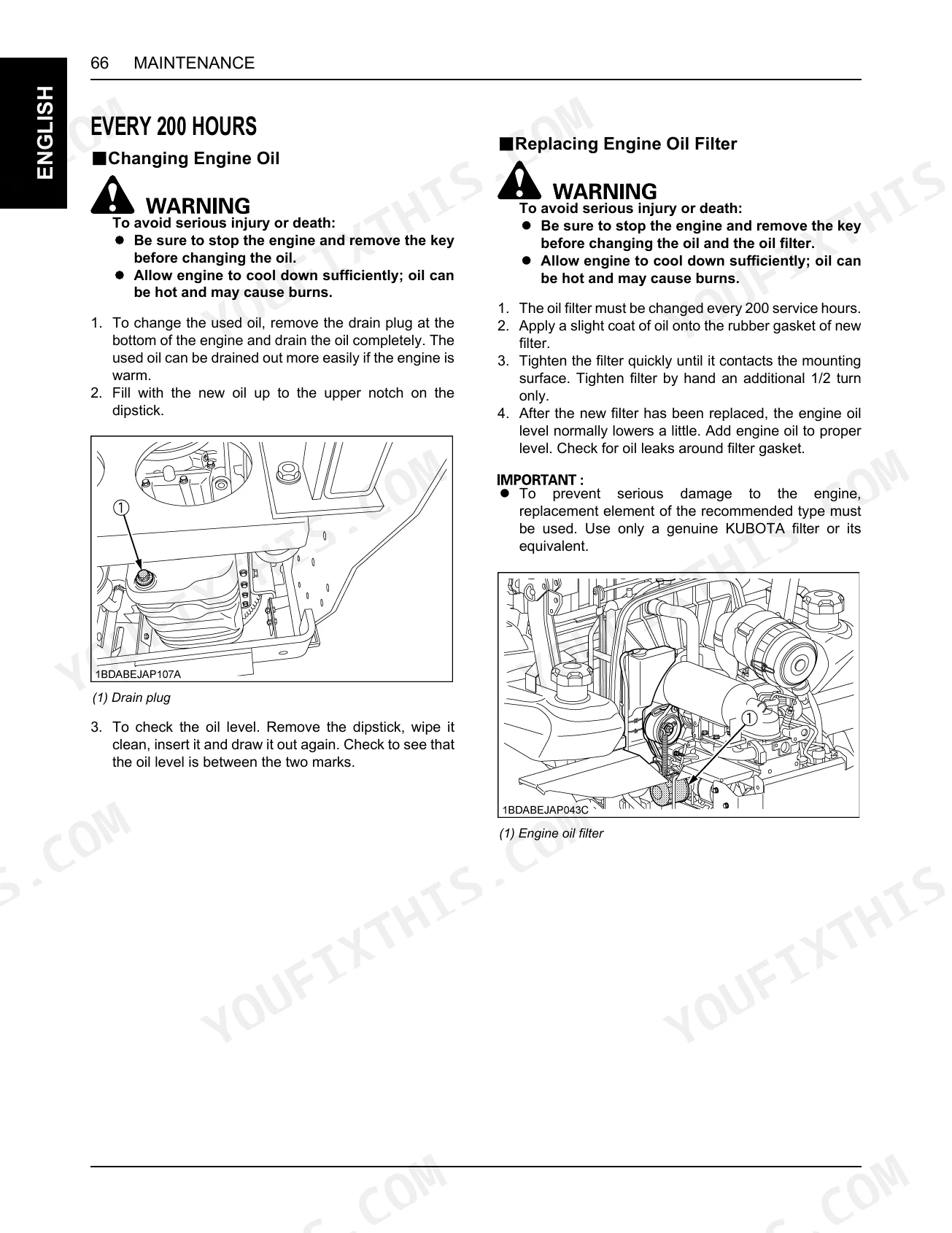

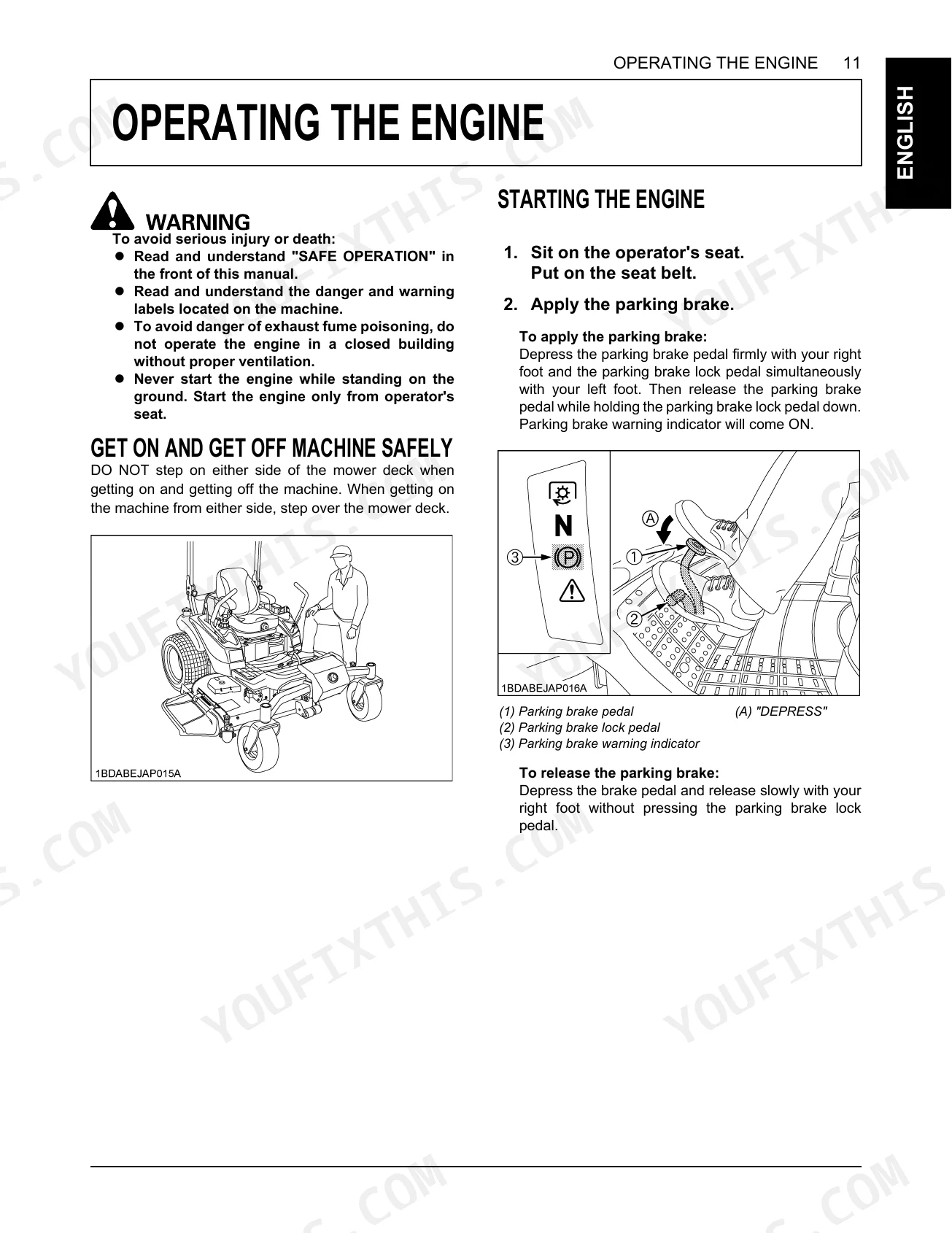

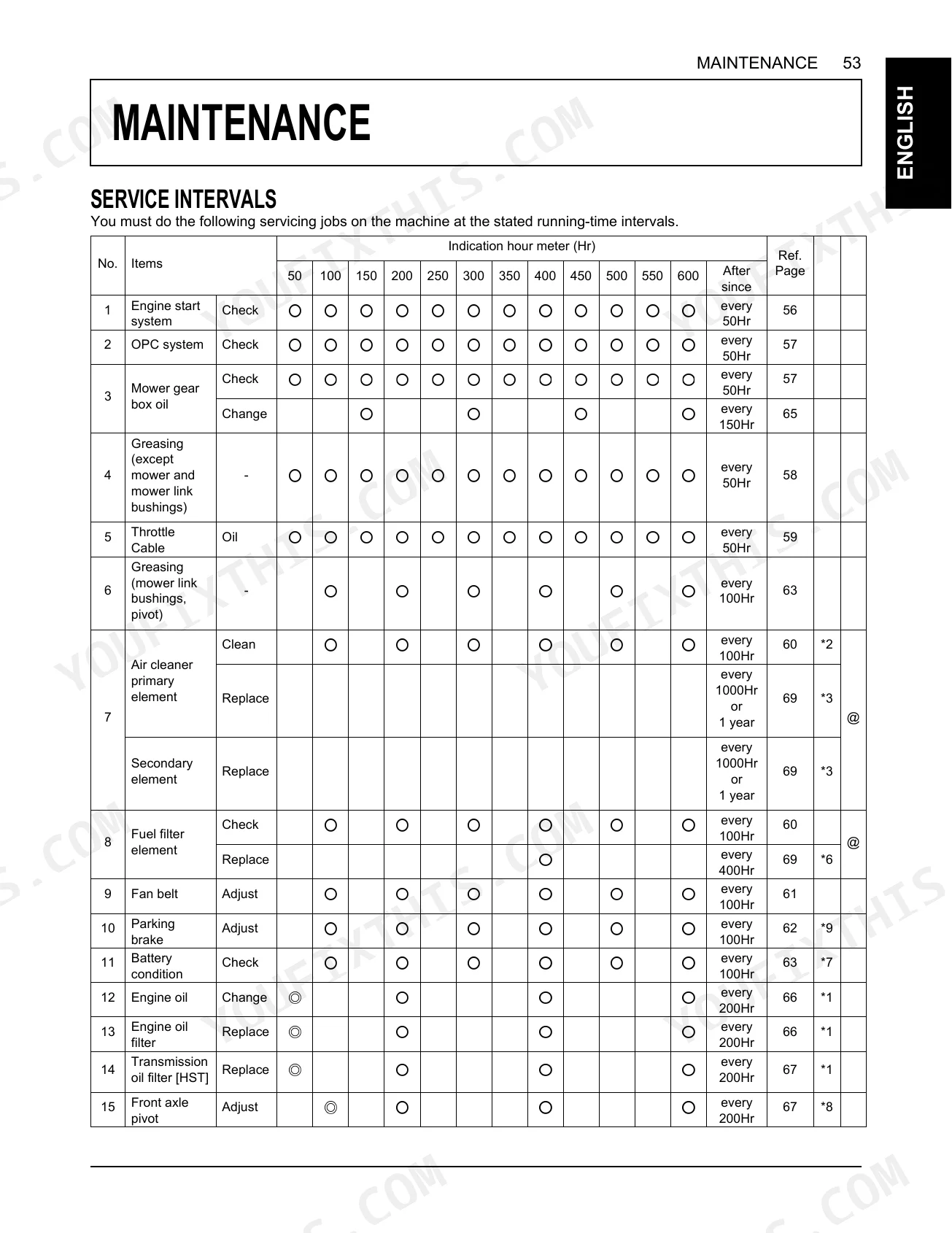

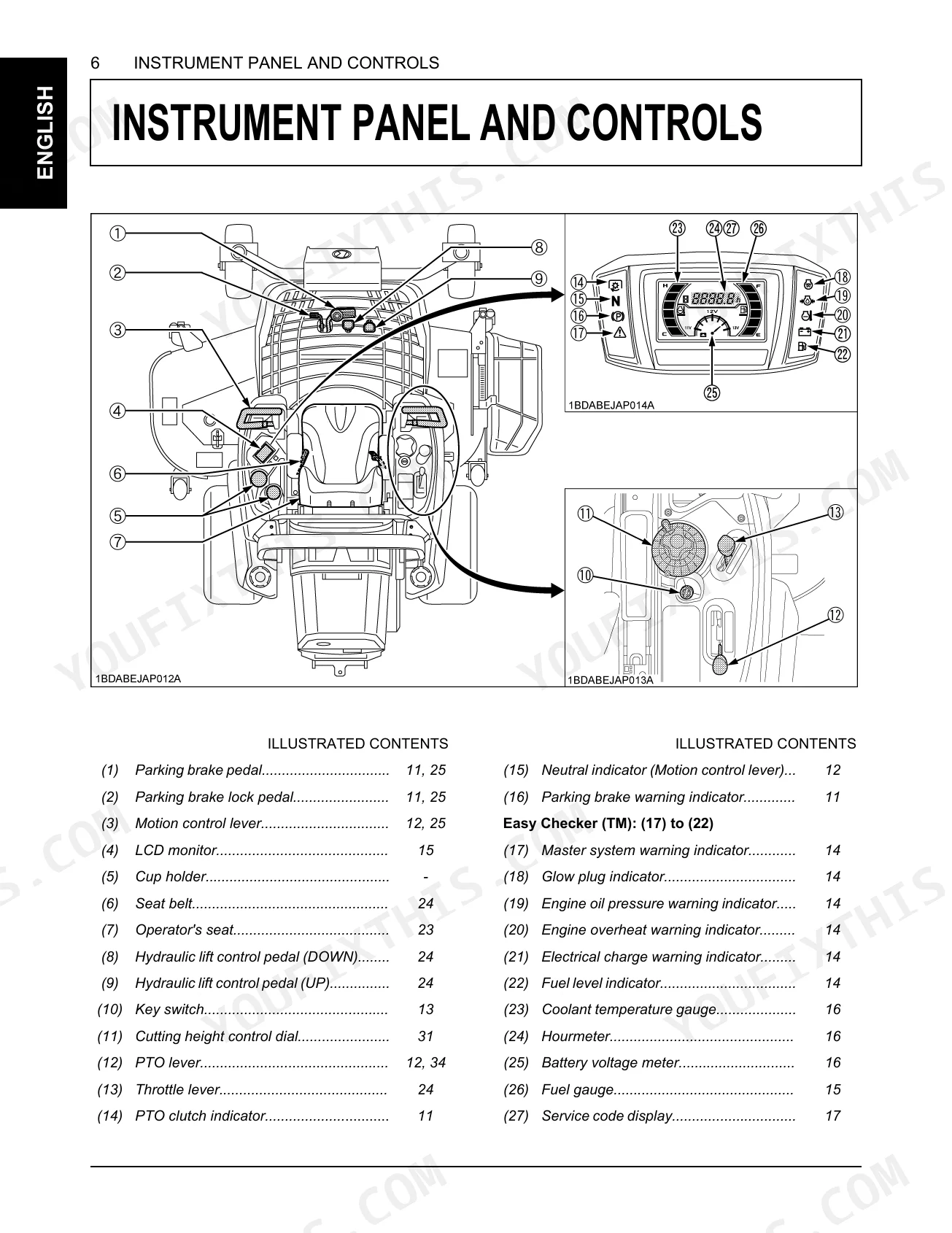

This Kubota ZD1211 Operator Manual (OEM #K3441-7125-5) runs 113 pages and applies to the ZD1211, ZD1211R, ZD1211L, and ZD1211RL zero turn mowers, from first startup through seasonal storage. Seven pages of safety cover slope work, PTO use, and child-safety rules. Every LCD Monitor indicator and Easy Checker warning light gets explained, so a flagged warning no longer means guesswork. The maintenance schedule spans 50-hour blade checks to 3000-hour injection pump inspections, with full fluid capacities and adjustment steps for HST neutral and mower deck leveling. Troubleshooting charts sort engine, power train, battery, and mower faults. Blade bolts torque to 102.9 to 117.6 N-m (75.9 to 87 lbf-ft); top the gear box to 0.5 L before you cut. Bookmarked and searchable, it opens on your phone out at the machine.
What's Inside This Kubota ZD1211 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Universal Symbols | 3 | Safety Alert Symbol, Cutting Height, Engine Speed Control |
| Safe Operation | 9-20 | Before Operating, Operating (Starting, Working), Children, Operators, Age 60 Years and Above, Pulling Loads, Operation on Slopes, Stopping |
| Servicing of Machine | 21-22 | Warranty, Scrapping the Machine and Its Procedure, Machine Identification Plate, Engine Serial Number, Mower Identification Plate |
| Specifications | 23-24 | Model, Engine, Capacities, Dimensions, Weight, Traveling System, PTO, PRO Commercial Deck Fabricated Deck |
| Implement Limitations | 25 | Maximum Loading Weight, Implement Weight, Maximum Total Weight, Option When Using the Hitch Kit, Maximum Loading Weight with Hitch Kit, Maximum Total Weight with Hitch Kit |
| Instrument Panel and Controls | 26-27 | Parking Brake Pedal, Parking Brake Lock Pedal, Motion Control Lever, LCD Monitor, Easy Checker TM, Key Switch, Cutting Height Control Dial, PTO Lever |
| Mower Mounting | 28-30 | Mounting The Mower Deck, Mower, Dismounting The Mower Deck, Installing Parts To The Mower (Installation: Skid, Gauge Wheel, Bolt) |
| Operating the Engine | 31-39 | Get On And Get Off Machine Safely, Starting The Engine (Key Switch), Stopping The Engine (Engine Stop Lever), Check During Operating (Immediately Stop The Engine If:, Easy Checker) |
| Operating the Machine | 40-50 | Operating New Machine (Changing Lubricating Oil For New Machines, Engine Break-In, Machine Break-In) |
| Operating the Mower | 51-56 | Making The Most Of Your Mower, Cutting Height, Operating Mower (Pto Lever, Starting), Treatment Of Mower Deck Inside Skid (Removing Skids) |
| Tires and Wheels | 57-58 | Tires |
| Periodic Service | 59-72 | How To Open The Hood, Front Cover & Step, How To Raise The Operator's Seat, How To Tilt Up The Machine, How To Open The Lever Guide, Lift-Up Point (Front Side:, Rear Side:) |
| Maintenance | 73-96 | Service Intervals (Checking: Hydraulic Hose, Intake Air Line, Engine Breather Hose, Mower Gear Box Oil Seal) |
| Adjustment | 97-104 | Motion Control Lever, HST Neutral, Maximum Speed Forward, Motion Control Lever Operating Force |
| Storage | 105 | Storage Safety Warnings, Machine Storage, Removing the Machine From Storage |
| Troubleshooting | 106-111 | Engine Troubleshooting, Power Train Troubleshooting, Battery Troubleshooting, Machine Troubleshooting, Mower Troubleshooting, Mower Loads Down Machine |

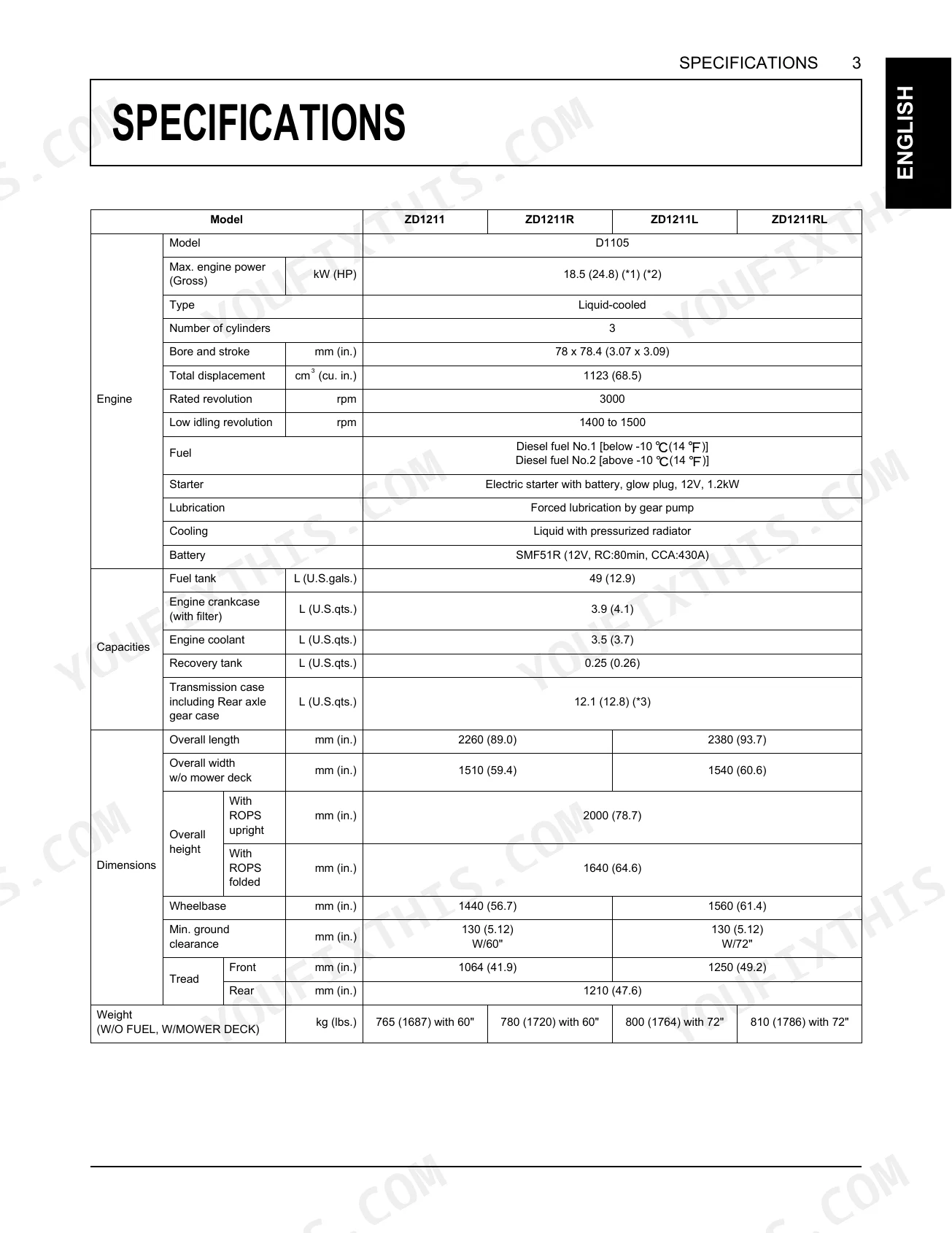

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Blade bolt tightening torque | 102.9 to 117.6 N-m (10.5 to 12 kgf-m, 75.9 to 87 lbf-ft) | p. 96 |
| Mower deck gear box bracket bolt tightening torque | 77.5 to 90.2 N-m (8.0 to 9.2 kgf-m, 57.1 to 66.5 lbf-ft) | p. 96 |
| Front caster wheel bolt tightening torque | 20 to 25 N-m (14.8 to 18.4 lbf-ft) (2 to 2.5 kgf-m) | p. 58 |
| Front caster wheel bearing play | Tighten the nut gradually until wheel bearing play is eliminated and wheel turns freely by hand (functional check) | p. 58 |
| Max. engine power (Gross) | 18.5 kW (24.8 HP) | p. 23 |
| Total displacement | 1123 cm³ (68.5 cu. in.) | p. 23 |
| Fuel tank capacity | 49 L (12.9 U.S.gals.) | p. 23 |
| Engine crankcase (with filter) capacity | 3.9 L (4.1 U.S.qts.) | p. 23 |
| Transmission case including Rear axle gear case capacity | 12.1 L (12.8 U.S.qts.) | p. 23 |
| Forward traveling speed | 0 to 10.6 mph (0 to 17.0 km/h) | p. 24 |
| ZD1211, ZD1211L | ||
| Mower gear box oil capacity | 0.5 L (0.53 U.S.qts.) | p. 24 |
| ZD1211R, ZD1211RL | ||
| Mower gear box oil capacity | 0.4 L (0.42 U.S.qts.) | p. 24 |
Kubota ZD1211 Series Common Problems This Manual Covers
Kubota ZD1211 front caster wheel hardware backing out during operation over uneven ground p. 58
Inspect the lynch pin and retaining hardware before operation. Torque the front caster wheel bolt to 20 to 25 N-m (14.8 to 18.4 lbf-ft) as specified on page 58. Replace missing pins immediately to prevent spindle damage during field work.
Manual Section: Tires and WheelsUneven cut with a visible ridge left in the grass after mowing p. 96
Check the cutting blades for wear and confirm the blade bolts are torqued to 102.9 to 117.6 N-m (75.9 to 87 lbf-ft) per page 96. Walk through the troubleshooting steps on page 106 to confirm your forward speed suits the grass conditions.
Manual Section: TroubleshootingMower deck gearbox runs hot and makes excessive noise after servicing the fluid p. 65
Drain the incorrect fluid. Refill ZD1211 and ZD1211L models with API service Classification SH, SJ or higher SAE10W-30 engine oil as shown on page 65. Confirm the level on the gauge sits between the notch and tip.
Manual Section: Periodic ServiceEngine rpm drops significantly and mower loads down the machine during operation p. 24
Ease off your forward traveling speed below the maximum 10.6 mph (17.0 km/h) listed on page 24. Clear any debris wrapped around the mower spindles. Confirm the front of the deck is not set lower than the rear before you resume.
Manual Section: TroubleshootingFrequently Asked Questions
What does the alarm on a Kubota ZD1211 mean?
When coolant temperature climbs to the overheat point, the alarm whistles, and you should check the machine against the "TROUBLESHOOTING" section. Beyond that, the Easy Checker (TM) warning lamps flag low engine oil pressure, engine overheat, electrical charge problems, low fuel level, or master system warnings, and the indicator flashes as a warning when a sensor malfunctions.
What is the torque spec for Kubota ZD1211 blade bolts?
Torque the three blade bolts to 102.9 to 117.6 N-m (10.5 to 12 kgf-m, 75.9 to 87 lbf-ft) when you reinstall them after a mower belt change. The bolts use Right hand threads, so turn them counterclockwise to loosen.
What are the replacement specifications for Front caster hardware?
During front caster wheel installation, seat the nylon sleeve correctly with the wheel bolt and lock nut. Tighten the nut gradually until wheel bearing play is gone and the wheel spins freely by hand. Final torque on the wheel bolt nut is 20 to 25 N-m (14.8 to 18.4 lbf-ft, or 2 to 2.5 kgf-m).
How will I receive this Kubota ZD1211 Series Operator Manual?
Immediate download of the complete 113-page searchable Operator Manual. Open it on any device, whether that's the laptop at your desk or your phone out in the field.
Are there any print restrictions on this Kubota ZD1211 Series manual?
No. The PDF carries no DRM, so you can print any page or section you need for the shop. It works with any standard printer.
