Maintaining your Z231KW-AU Zero Turn Mower requires exact specifications, not guesswork. This 76-page Operator Manual (OEM #K3004-7125-1) delivers factory-approved procedures directly to your device. The guide starts with 13 pages of safety protocols covering ROPS, slope operation, and the OPC system, followed by a complete instrument panel walkthrough mapping every control. Moving into maintenance, it details service intervals from daily inspections to 500-hour milestones, including 100-hour engine oil changes and 200-hour air cleaner replacements. You will find precise torque values, such as tightening the blade bolts to 103 to 118 N·m (76 to 87 lbf·ft) and setting the electric clutch air gap to 0.4 mm (0.015 in.). Fully bookmarked and searchable, this PDF allows you to quickly locate the right numbers on your phone or tablet and get back to work.
What's Inside This Kubota Z231KW-AU Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 8-17 | Roll-Over Protective Structures (ROPS), Seat Belt, Motion Control Levers, Parking Brake, Power Take-Off (PTO), Operator Presence Control (Opc) System |

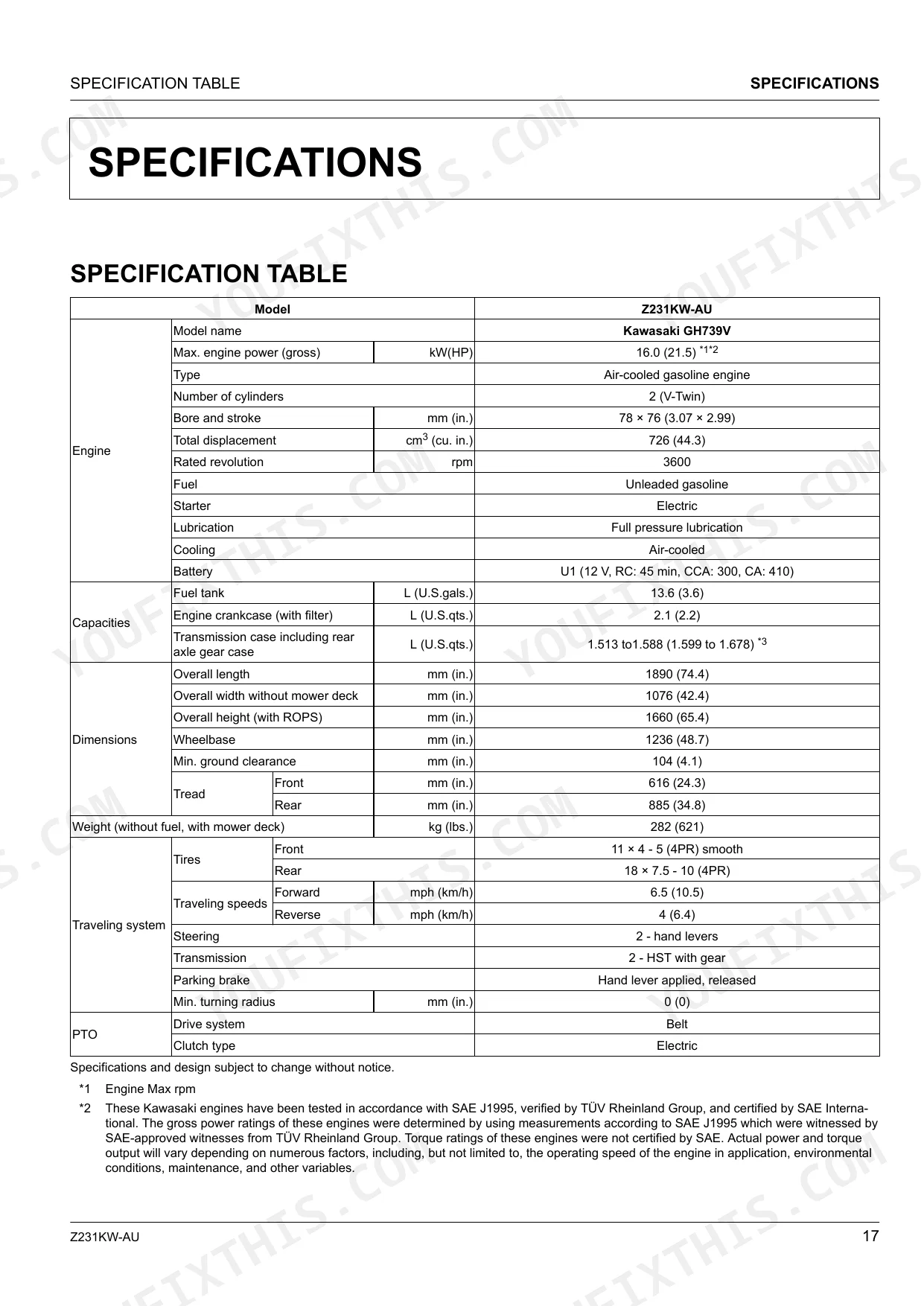

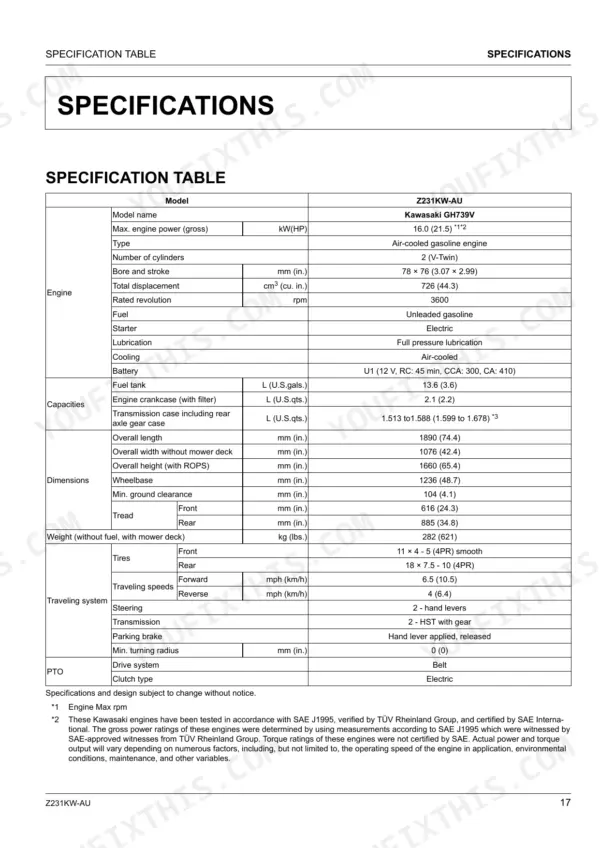

| Specifications | 20-21 | Specification Table, Engine Specifications, Capacities, Dimensions, Weight, Tires, Traveling System, PTO (Mower) |

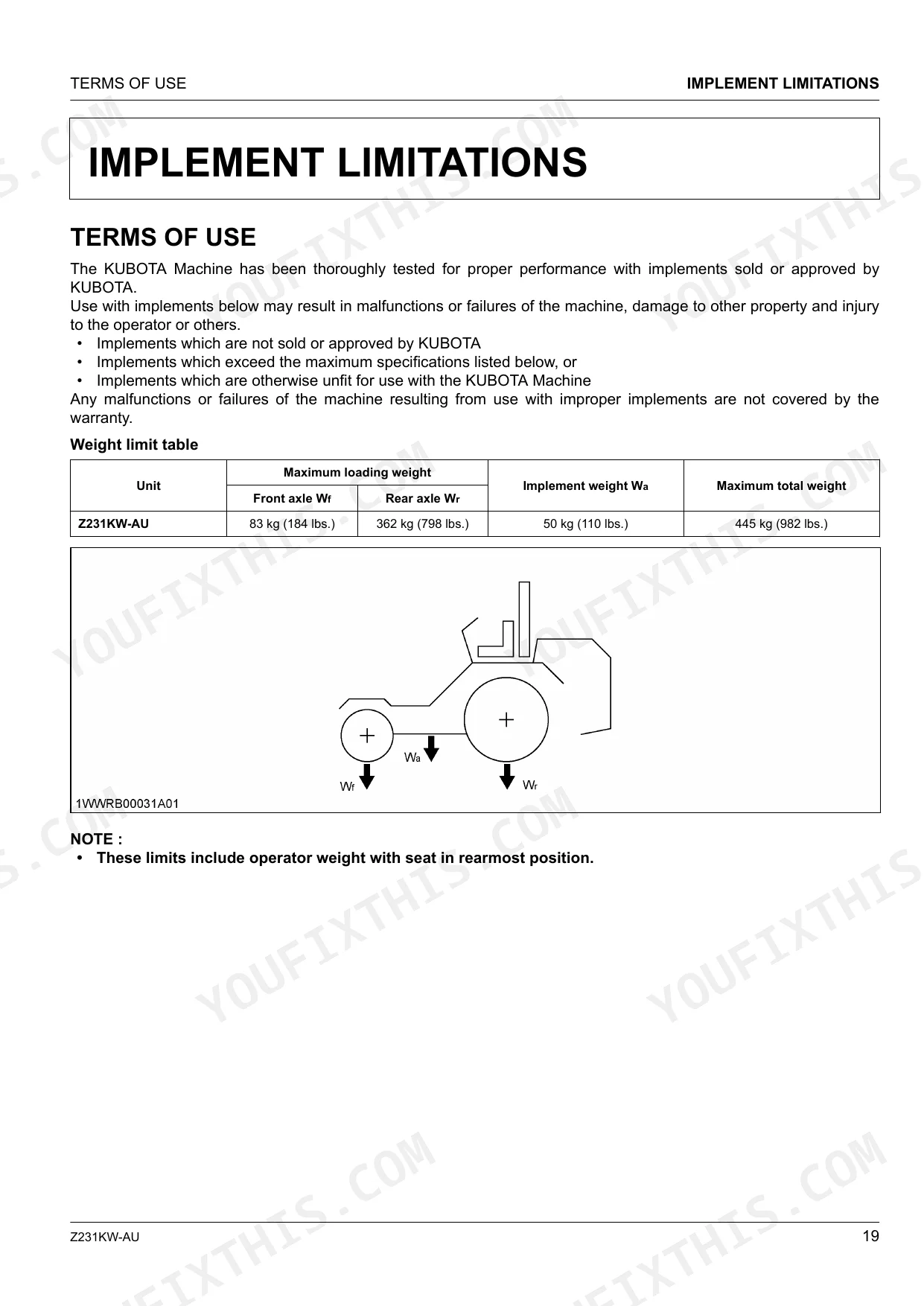

| Implement Limitations | 22 | Terms of Use, Weight Limit Table, Maximum Loading Weight, Implement Weight, Maximum Total Weight, Front Axle Weight, Rear Axle Weight (Mower, Dismounting the Mower Deck) |

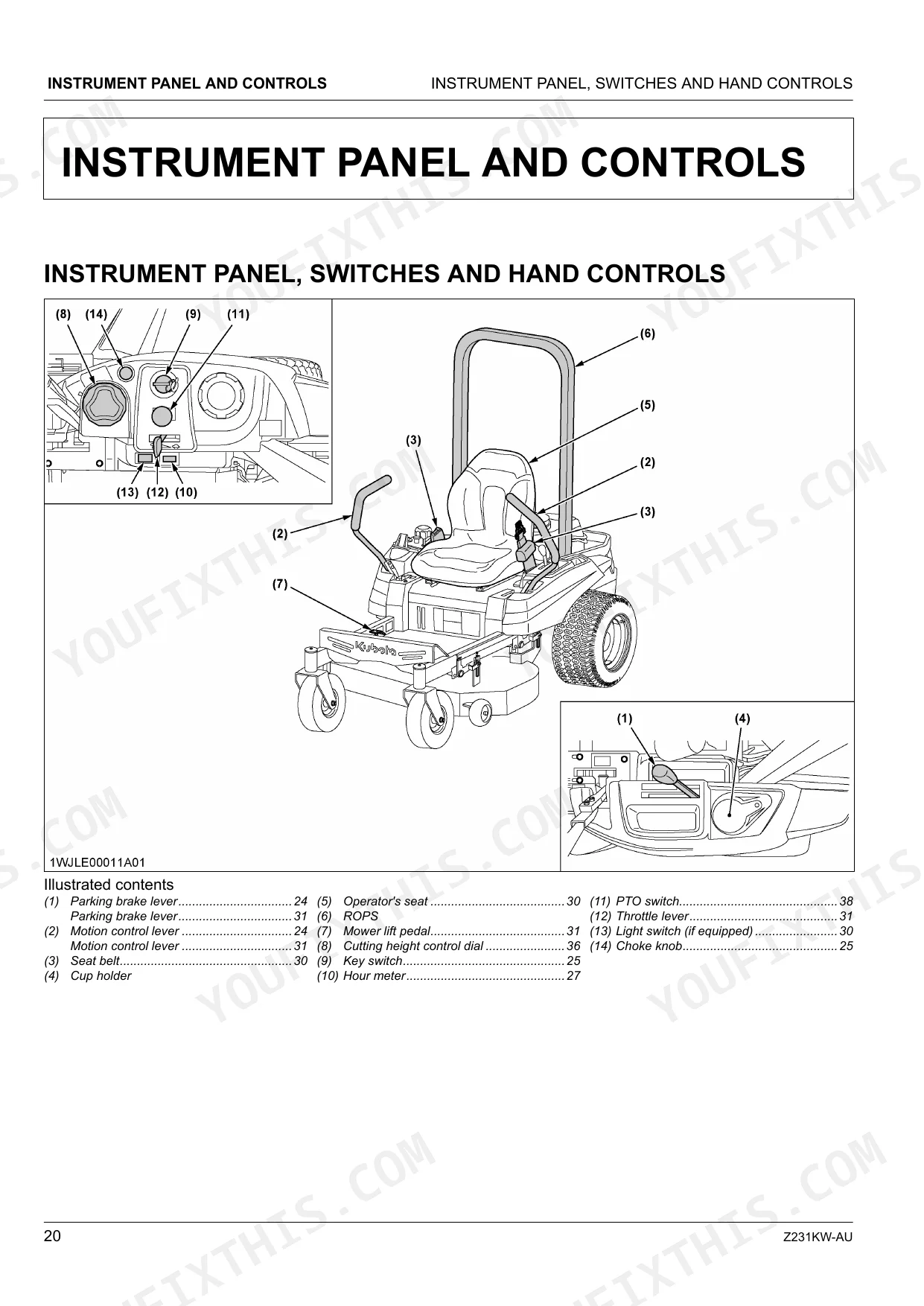

| Instrument Panel and Controls | 23-24 | Instrument Panel, Switches and Hand Controls, Illustrated Contents, Parking Brake Lever, Motion Control Lever, Seat Belt, Cup Holder, Operator's Seat |
| Mower Mounting | 25-26 | Mounting the Mower Deck, Mower, Dismounting the Mower Deck (Stopping the Engine, Check During Operating) |

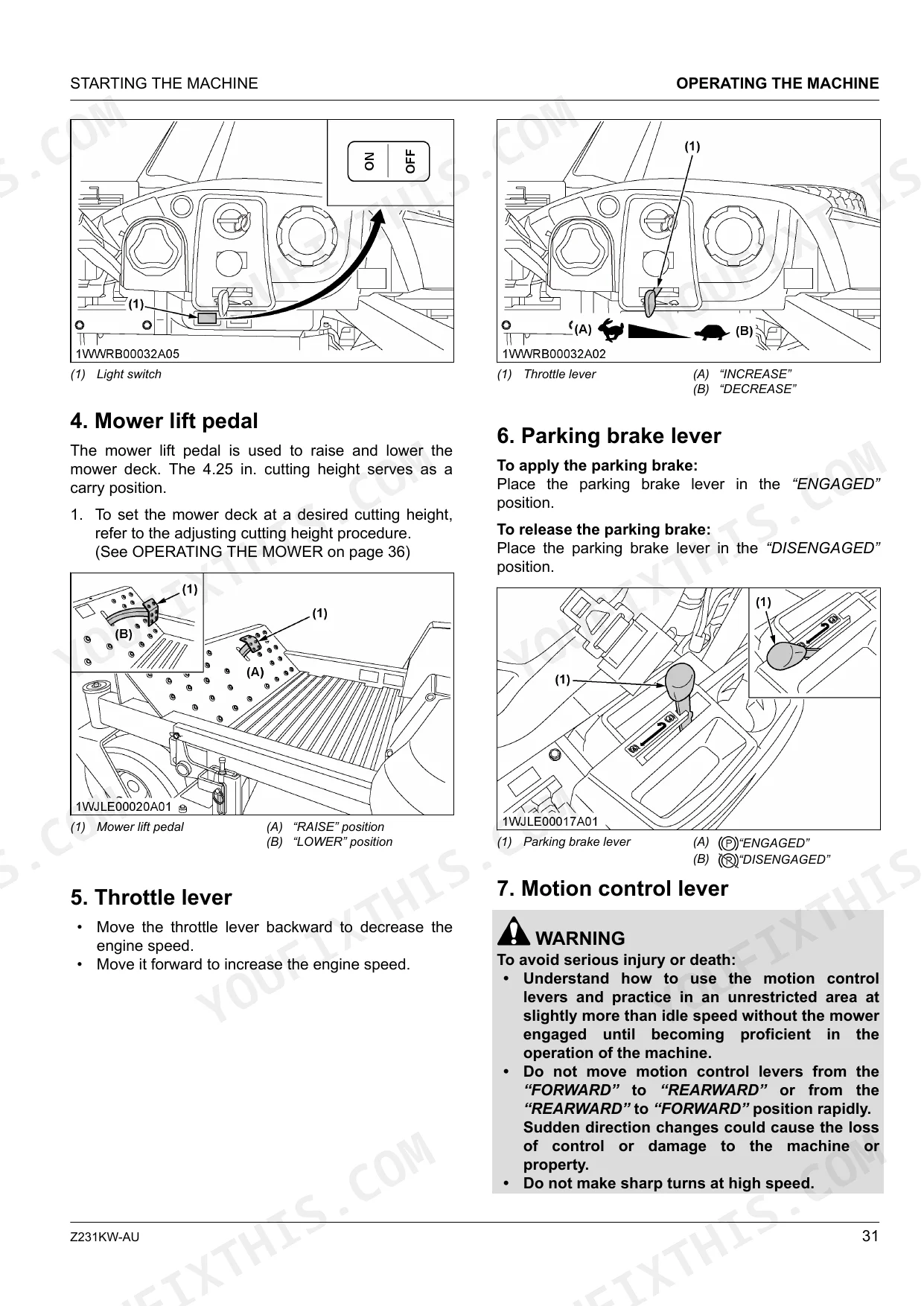

| Operating the Engine | 27-31 | Getting on and Off the Machine Safely, Starting the Engine (Cold Weather Starting, Warming Up the Engine, Choke Knob, Throttle Lever, Key Switch, Jump Starting) |
| Operating the Machine | 32-38 | Operating a New Machine (Changing Lubricating Oil for New Machine, Engine Break-In) |
| Tires and Wheels | 42-43 | Lubricants And Fuel, Tires, Inflation Pressure, Tire Sizes, Recommended Inflation Pressure, Wheels, Removing the Front Caster Wheels, Periodic Service |
| Maintenance | 44-45 | Service Intervals (Indication Hour Meter, Items, Engine Oil Change, Engine Start System Check, Opc System Check, Muffler and Spark Arrester Check, Air Cleaner Maintenance, Fuel Filter Maintenance, Battery Condition Check, Throttle Cable Adjustment, Choke Cable Adjustment, Spark Plug Maintenance, Engine Shroud Cleaning, Engine Oil Filter Replacement, Combustion Chamber Cleaning, Valve Seats and Clearance, Electric Clutch Adjustment, Fuel Line Maintenance, Engine Valve Clearance Check, Fuse Replacement, Blade Replacement, Mower Belt Replacement) |
| Periodic Service | 46-61 | Raising and Lowering the Operator's Seat |
| Storage | 69 | Storing the Machine (Repair Parts, Check Bolts and Nuts, Apply Grease or Engine Oil, Inflate Tires, Lower Mower, Remove and Store Battery, Drain Fuel Tank and Lines or Use Stabilizer, Store Machine in Dry Place, Clean Mower and Grass Catcher) |

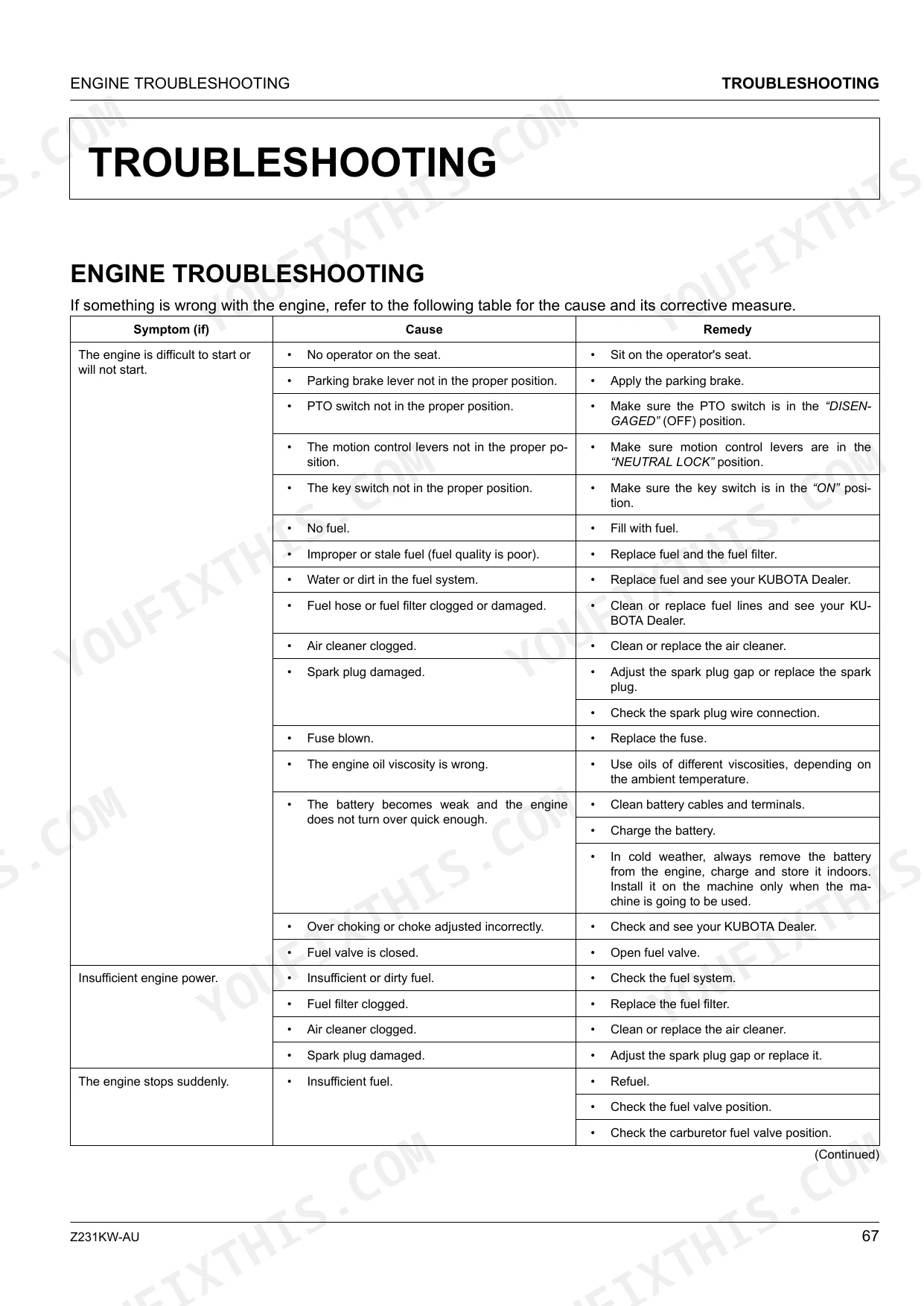

| Troubleshooting | 70-74 | Engine Troubleshooting (Mower Troubleshooting), Battery Troubleshooting, Machine Troubleshooting, Index, Mower Troubleshooting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Blade bolt torque | 103 to 118 N·m (76 to 87 lbf·ft) | p. 60 |
| Blade mounting bolt torque (attaching blade to spindle) | 103 to 118 N·m (76 to 87 lbf·ft) | p. 60 |
| Blade length | 548 (21.6) mm (in.) | p. 21 |
| Number of blades | 2 | p. 21 |
| Cutting width | 1067 (42) mm (in.) | p. 21 |
| Cutting height | 38.1 to 108 (1.5 to 4.25) mm (in.) | p. 21 |
| Guide plate bolt tightening torque | 23.6 to 27.4 N·m (2.4 to 2.8 kgf·m, 17.4 to 20.2 lbf·ft) | p. 62 |
| Recommended gap between motion control levers | 0 to 2 mm (0 to 0.08 in.) | p. 63 |
| Engine Crankcase Oil Capacity (with filter) | 2.1 L (2.2 U.S.qts.) | p. 20 |
| Fuel Tank Capacity | 13.6 L (3.6 U.S.gals.) | p. 20 |
| Front Tire Inflation Pressure | 170 kPa (25 psi) | p. 42 |
| Rear Tire Inflation Pressure | 83 kPa (12 psi) | p. 42 |
Kubota Z231KW-AU Common Problems This Manual Covers
Mower pulls to one side or fails to track straight during operation. p. 63
Check the tire pressure and motion control lever alignment. Adjust the gap between the motion control levers to 0 to 2 mm (0 to 0.08 in.) as detailed on page 63. Secure the guide plate bolts to 23.6 to 27.4 N·m (17.4 to 20.2 lbf·ft) according to page 62.
Manual Section: Machine TroubleshootingRear axle continues to rotate while motion control levers are locked in neutral. p. 62
Recalibrate the HST neutral position guide plate. Set the guide plate and torque the bolts to 23.6 to 27.4 N·m (17.4 to 20.2 lbf·ft) as referenced on page 62. Confirm the rear tire inflation pressure sits at exactly 83 kPa (12 psi) using the specs on page 42.
Manual Section: Machine TroubleshootingGrass cuts unevenly, leaves streaks, or blades scalp the turf. p. 65
Verify the mower deck front-to-rear adjustment tolerance is less than 6 mm (0.25 in.) following page 65. Examine the blades for wear. Swap out damaged blades and torque the mounting bolts to 103 to 118 N·m (76 to 87 lbf·ft) as instructed on page 61.
Manual Section: Mower TroubleshootingEngine struggles to start or fails completely after extended storage. p. 44
Empty the stale fuel and refill the system. The fuel tank holds 13.6 L (3.6 U.S.gals.) per the technical specifications on page 20. Install a new spark plug if the current one is older than 1 year, based on the maintenance intervals on page 44.
Manual Section: Engine TroubleshootingFrequently Asked Questions
What are the replacement specifications for blades on the Kubota Z231KW-AU?
When replacing blades, tighten the blade bolts to a torque of 103 to 118 N·m (76 to 87 lbf·ft). The blade bolts have right-hand threads; turn them counterclockwise to loosen. The manual advises replacing blades if they are cracked or show significant wear, and sharpening them if merely worn.
How do I calibrate the HST neutral position on the Kubota Z231KW-AU to stop the rear axle from creeping in neutral?
Recalibrate the HST neutral position guide plate. Set the guide plate and torque the bolts to 23.6 to 27.4 N·m (17.4 to 20.2 lbf·ft) as referenced on page 62. Confirm the rear tire inflation pressure is exactly 83 kPa (12 psi) per the specifications on page 42.
What is the mower deck front-to-rear adjustment tolerance on the Kubota Z231KW-AU?
Verify the mower deck front-to-rear adjustment tolerance is less than 6 mm (0.25 in.) following page 65. Examine the blades for wear and torque the mounting bolts to 103 to 118 N·m (76 to 87 lbf·ft) as instructed on page 61.
How do I adjust the motion control levers on the Kubota Z231KW-AU if the mower pulls to one side?
Adjust the gap between the motion control levers to 0 to 2 mm (0 to 0.08 in.) as detailed on page 63. Secure the guide plate bolts to 23.6 to 27.4 N·m (17.4 to 20.2 lbf·ft) per page 62. Also check tire pressure for even inflation.
What spark plug replacement interval does the Kubota Z231KW-AU operator manual specify?
Replace the spark plug if it is older than 1 year, based on the maintenance intervals on page 44. The fuel tank holds 13.6 L (3.6 U.S.gals.) per the technical specifications on page 20; fill with fresh fuel if the mower sat over winter.
