This is the factory operator's manual for the Kubota SVL95-2s compact track loader, a 143-page English guide for the SVL95-2s powered by the Tier 4 Final Kubota V3800-TIEF4 diesel engine. It is the owner and operator reference for running, checking, and maintaining the machine.Inside are the technical data and machine-part layout, the instrument panel and control elements, the full checks-before-start routine, engine starting including cold conditions, lifting and transporting the loader, and the maintenance and regular-check schedules. It also covers track adjustment, fuse replacement, fuel-system purging, the error-code list, cold-weather operation, long storage, and recommended oils and fluids.Owners and mechanics can use it to operate the SVL95-2s safely, follow the DPF and DEF systems correctly, service it on schedule, and read fault codes when something goes wrong.
What's Inside This Kubota SVL95-2s Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Dealer Service | 29-30 | - |
| Technical Data | 31 | - |

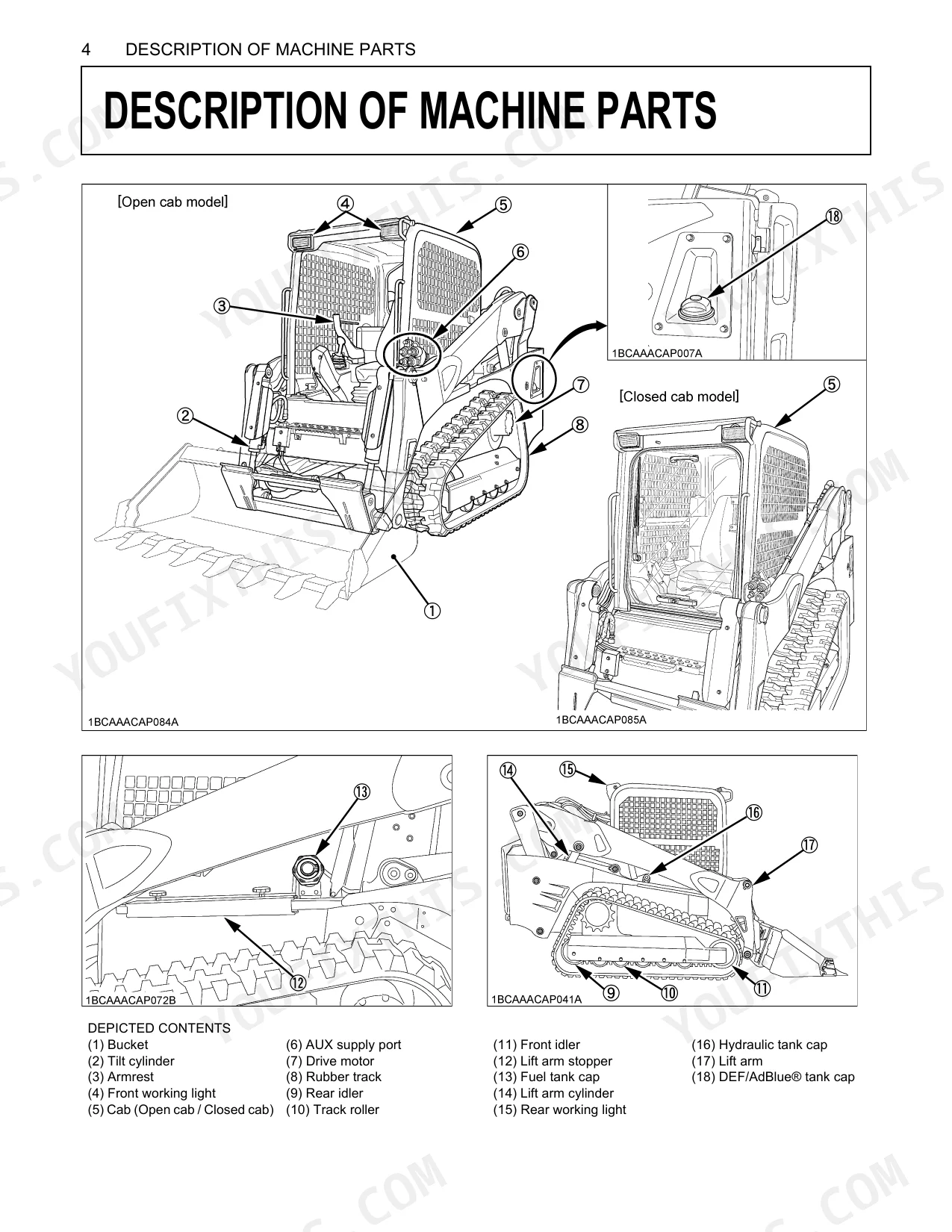

| Description of Machine Parts | 32 | - |

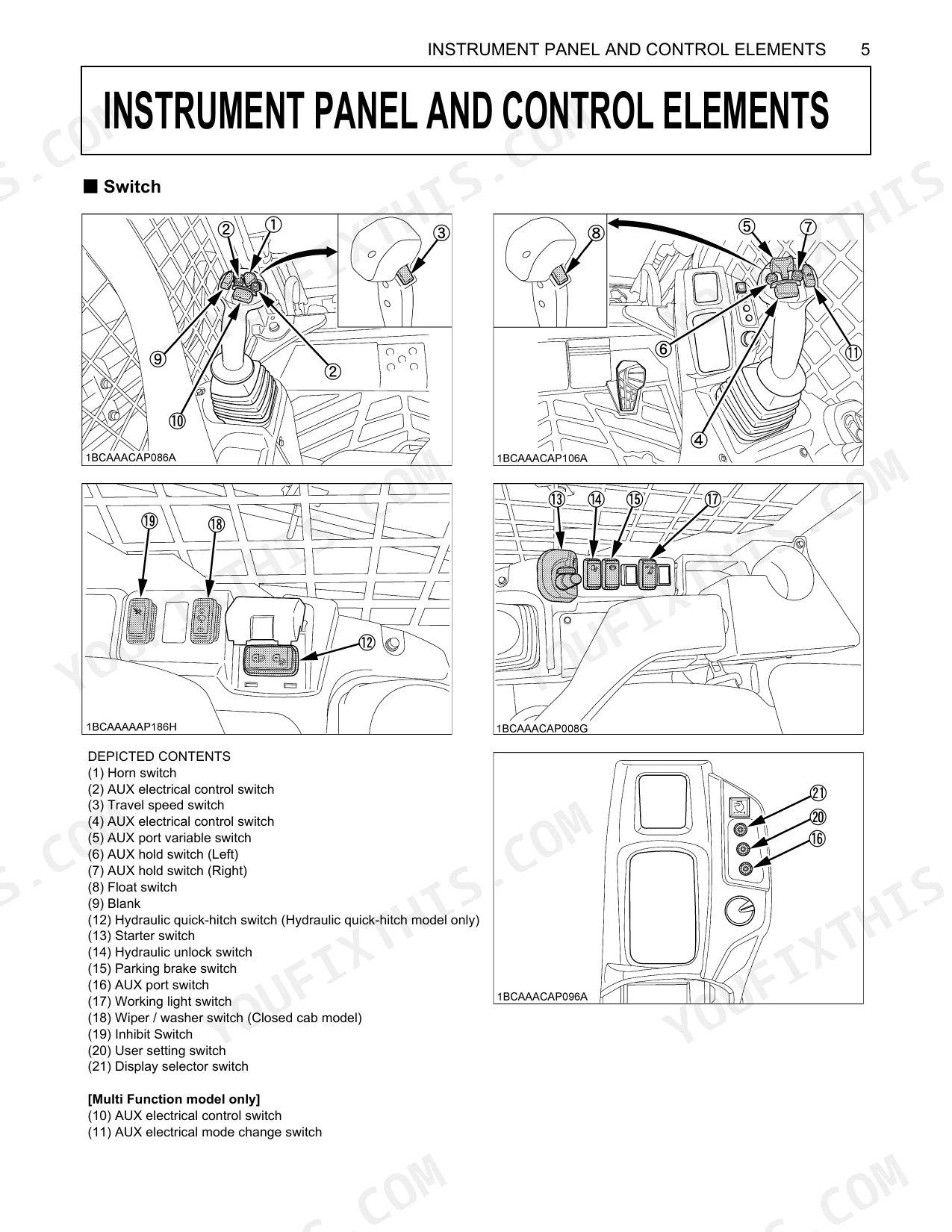

| Instrument Panel and Control Elements | 33-35 | - |

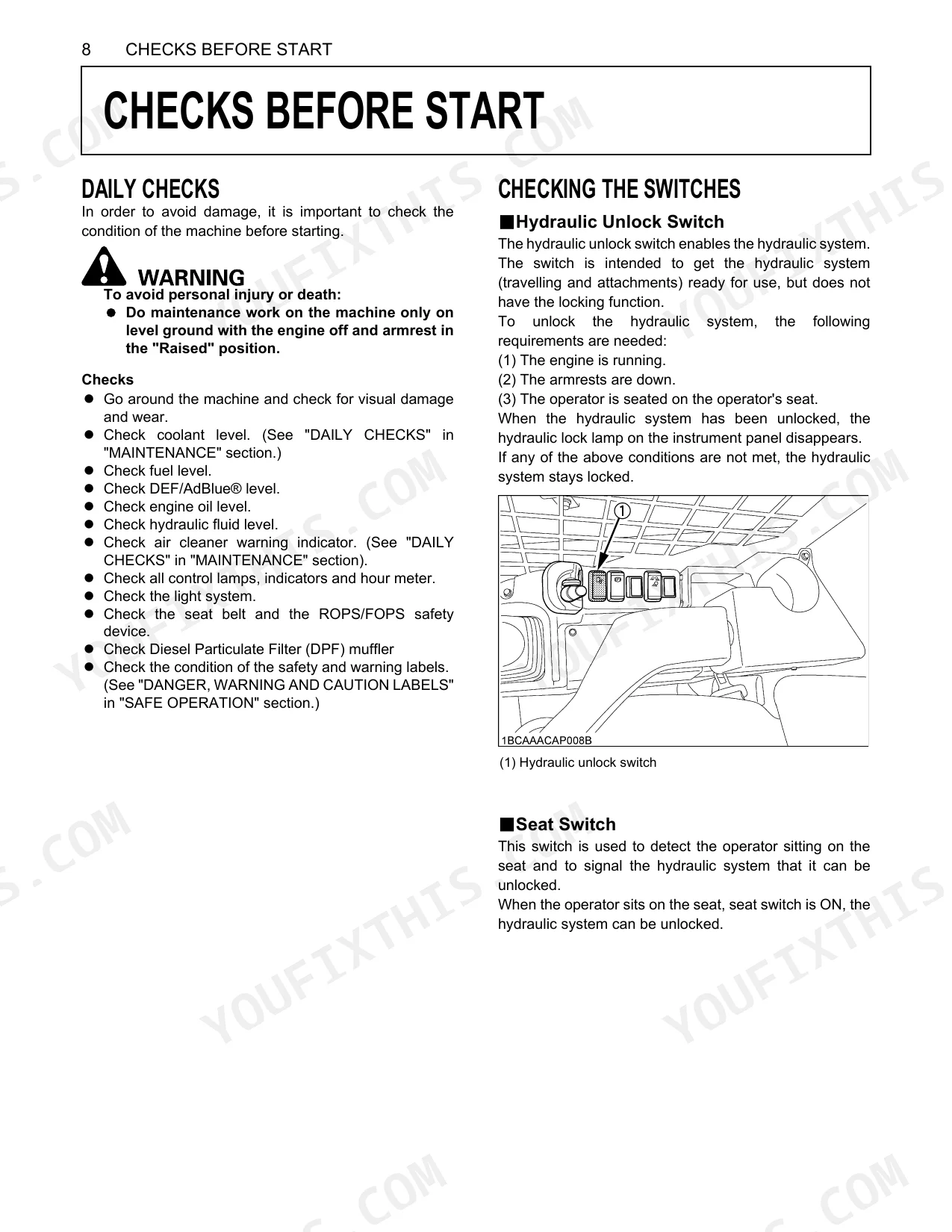

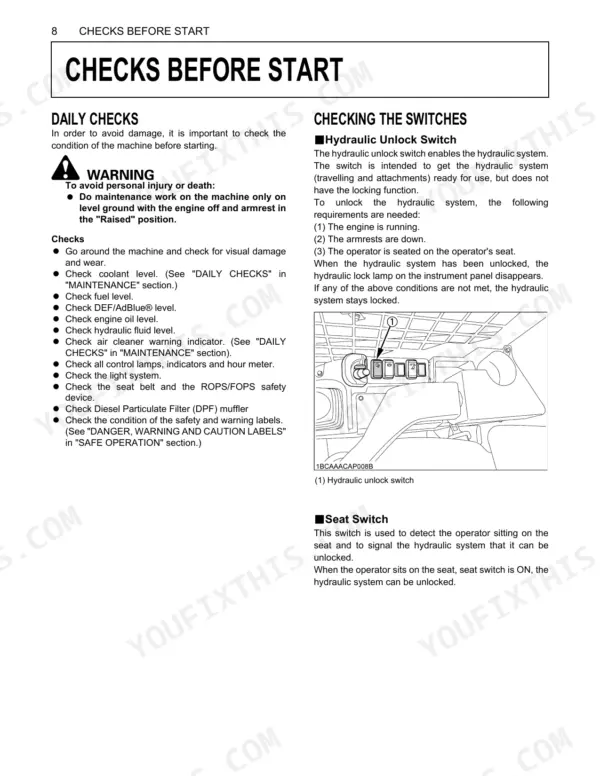

| Checks Before Start | 36-57 | Daily Checks, Checking the Switches, Hydraulic Unlock Switch, Seat Switch, Parking Brake Switch, Aux Port Switch, Inhibit Diesel Particulate Filter Regeneration Switch |
| Operation of the Engine | 58-61 | Starting the Engine, Checkpoints After Starting the Engine, Starting the Engine Under Cold Conditions, Stopping the Engine, Starting with an Auxiliary Battery |
| Lifting the Machine | 83-85 | - |
| Transporting the Machine | 86-88 | Loading the Machine on a Transport Vehicle, Towing an Operable Machine, Towing an Inoperable Machine |

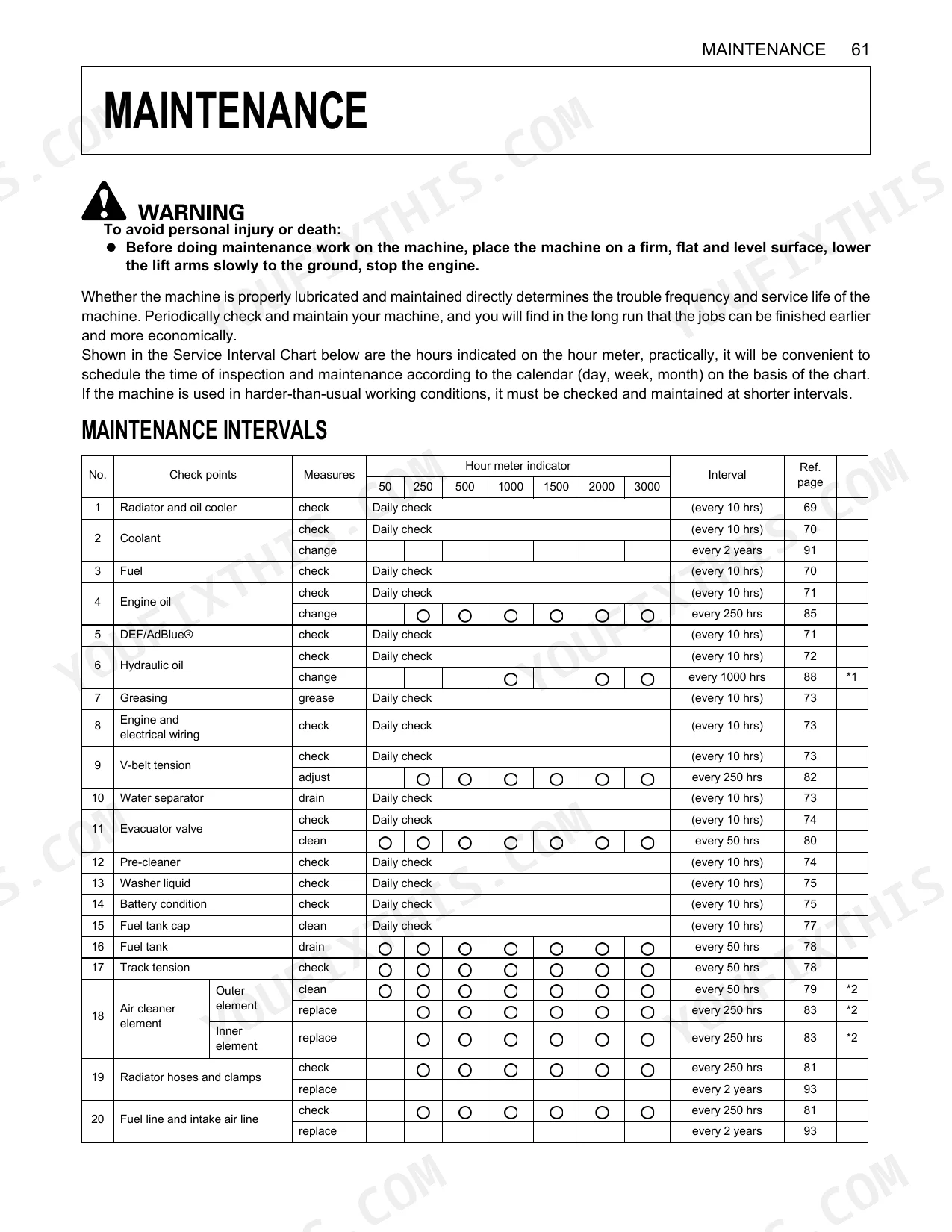

| Maintenance | 89-105 | Maintenance Intervals, Opening and Closing of Components, Rear Door, Engine Hood, Radiator and Oil Cooler, Where to Keep Operator's Manual, Tilting Up the Cab, Operator Station |
| Regular Checks and Maintenance Work | 106-122 | Every 50 Service Hours, Draining the Water From the Fuel Tank, Checking Track Tension, Checking Air Cleaner Element, Cleaning Air Cleaner Element, Cleaning Evacuator Valve, Every 250 Service Hours |
| Other Adjustments and Replacements | 123-126 | Purging of the Fuel System, Tracks, Fuses, Replacing Fuses, Fuse Capacities and Circuits, Electrical Outlet, Slow Blow Fuse |

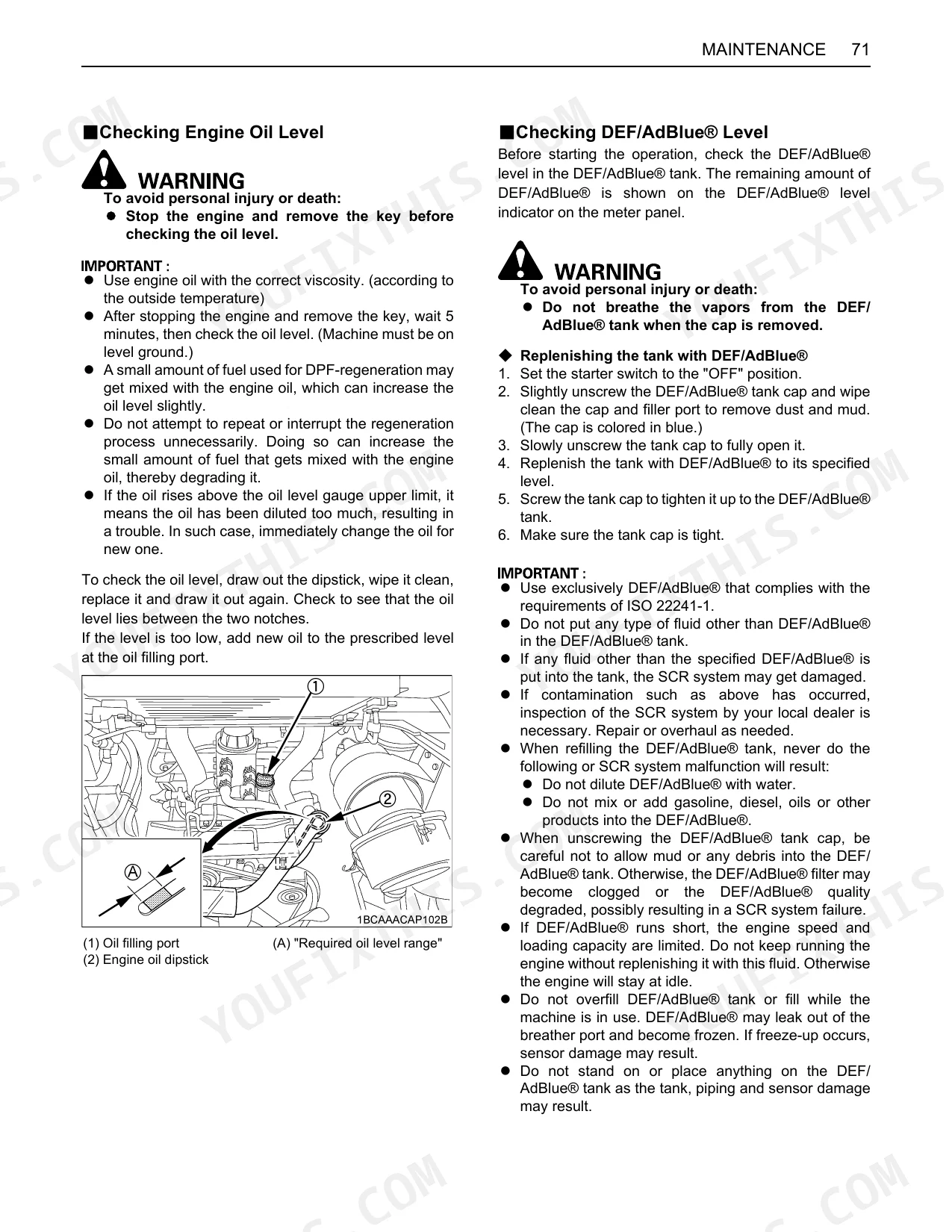

| Troubleshooting | 127-136 | List of Error Code Numbers |
| Operation Under Cold Weather Conditions | 137 | Preparation for Operation in Cold Weather, Procedure After Completion Work |
| Long Storage | 138-139 | Cylinder Rods, Battery, DEF/AdBlue®, Coolant, Anti-Freeze, Hydraulic Oil |
| Recommended Oils | 140-142 | Engine Oil, Gear Oil, Hydraulic Oil, Grease, Fuel |
| Appendices | 143 | Main Dimensions |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cab lock bolts tightening torque | 77.5 to 90.2 N-m | p. 96 |
| Track adjustment grease fitting tightening torque | 98 to 108 N-m | p. 123 |
| Operating weight (Open Cab) | 5125 kg | p. 31 |
| Total displacement | 3769 cc | p. 31 |
| Rated operating capacity | 1451 kg | p. 31 |
| Fuel tank capacity | 111 L | p. 31 |
| Max. hydraulic pressure | 24.5 MPa | p. 31 |
| Engine oil volume (with engine oil filter) | 11 L | p. 113 |
| DEF/AdBlue® tank capacity | 18.8 L | p. 100 |
| Hydraulic system oil volume | 68 L | p. 116 |
| Track tension (clearance) | 20 to 30 mm | p. 107 |
| Cab stopper pin tightening torque | 77.5 to 90.2 N-m | p. 96 |
Kubota SVL95-2s Common Problems This Manual Covers
DPF or DEF warning and error codes
Tier 4 machines flag DPF regeneration and DEF quality faults on the display, and interrupted regeneration builds soot. The Troubleshooting section lists the error code numbers and their meaning.
Manual Section: Troubleshooting p. 127Loose or thrown track
Track tension outside the 20 to 30 mm clearance leads to derailing and fast wear. The Other Adjustments and Replacements section covers track checking and adjustment.
Manual Section: Other Adjustments and Replacements p. 123Hard starting in cold conditions
Cold soaks slow diesel starting and thicken hydraulic oil on the SVL95-2s. The Operation of the Engine section covers starting under cold conditions and auxiliary-battery starting.
Manual Section: Operation of the Engine p. 58Air-locked fuel system after running dry
Running the tank empty draws air in and stops the engine firing. The Other Adjustments and Replacements section covers purging the fuel system.
Manual Section: Other Adjustments and Replacements p. 123Overheating or high hydraulic oil temperature
A clogged radiator or oil cooler pushes coolant and hydraulic temperatures up during hard loading. The Regular Checks and Maintenance Work section covers cleaning and coolant service.
Manual Section: Regular Checks and Maintenance Work p. 106Wear from skipped service
Missing the oil, filter, and DPF intervals shortens engine and hydraulic life. The Maintenance section lays out the service schedule and intervals.
Manual Section: Maintenance p. 89Frequently Asked Questions
Which machine does this manual cover?
It covers the Kubota SVL95-2s compact track loader with the Tier 4 Final V3800-TIEF4 diesel engine, as shown on the cover and the Technical Data page. p. 31
Is this an operator manual or a repair manual?
It is the operator's manual: controls, checks, operation, and owner-level maintenance for the SVL95-2s. It is not a full workshop teardown manual.
Does it list the error codes?
Yes. The Troubleshooting section carries the list of error code numbers so you can match a display warning to its cause. p. 127
Does it cover DEF/AdBlue and the DPF?
Yes. Checks-before-start covers the DPF regeneration switch, and the maintenance sections cover DEF/AdBlue tank service and DPF cleaning intervals. p. 89
What format is this Kubota SVL95-2s manual in?
A 143-page Operator Manual in searchable PDF, ready the moment you check out. Open it on a computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this Kubota SVL95-2s manual?
Yes, you can print freely. There's no DRM or copy protection, so run off the full manual or just the pages you need. Any home or office printer handles it.
