This is the Kubota F2000 front mower operator manual, a 52 page guide for the diesel powered F2000 and its D950-FM engine rated at 20 HP. It walks an owner through safe operation, the instrument panel and controls, the lift link and hydraulic control, and the day to day running of the machine.The manual carries the full specification table, maintenance schedules with service intervals, adjustment procedures for the clutch, brake, and fan belt, plus a troubleshooting section for the engine, mower, and battery. A wiring diagram and lubricant specifications round it out.With it you can look up torque values, set the correct tire pressures, follow the right oil and filter change intervals, bleed the fuel system after service, and work through common running problems instead of guessing.
What's Inside This Kubota F2000 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | - | Before Operating the Front Mower, Operating the Front Mower, Stopping the Front Mower, Using the PTO, Using the Lift Link, Servicing the Front Mower |
| Servicing of Front Mower | - | Front Mower Product Identification Number, Engine Product Identification Number, Kubota F2000 |
| Specifications | - | Specification Table (Model, Engine, Capacities, Tires, Traveling Speeds, Dimensions, Weight, PTO Shaft, Front PTO, Clutch, Steering, Transmission, Min. Turning Radius, Brake, Differential) |
| Operating New Front Mower | - | Do Not Operate the Front Mower at Full Speed for the First 100 Hours, Changing Lubricating Oil for New Front Mowers, Engine Break-In, Machine Break-In, Read Safe Operation |

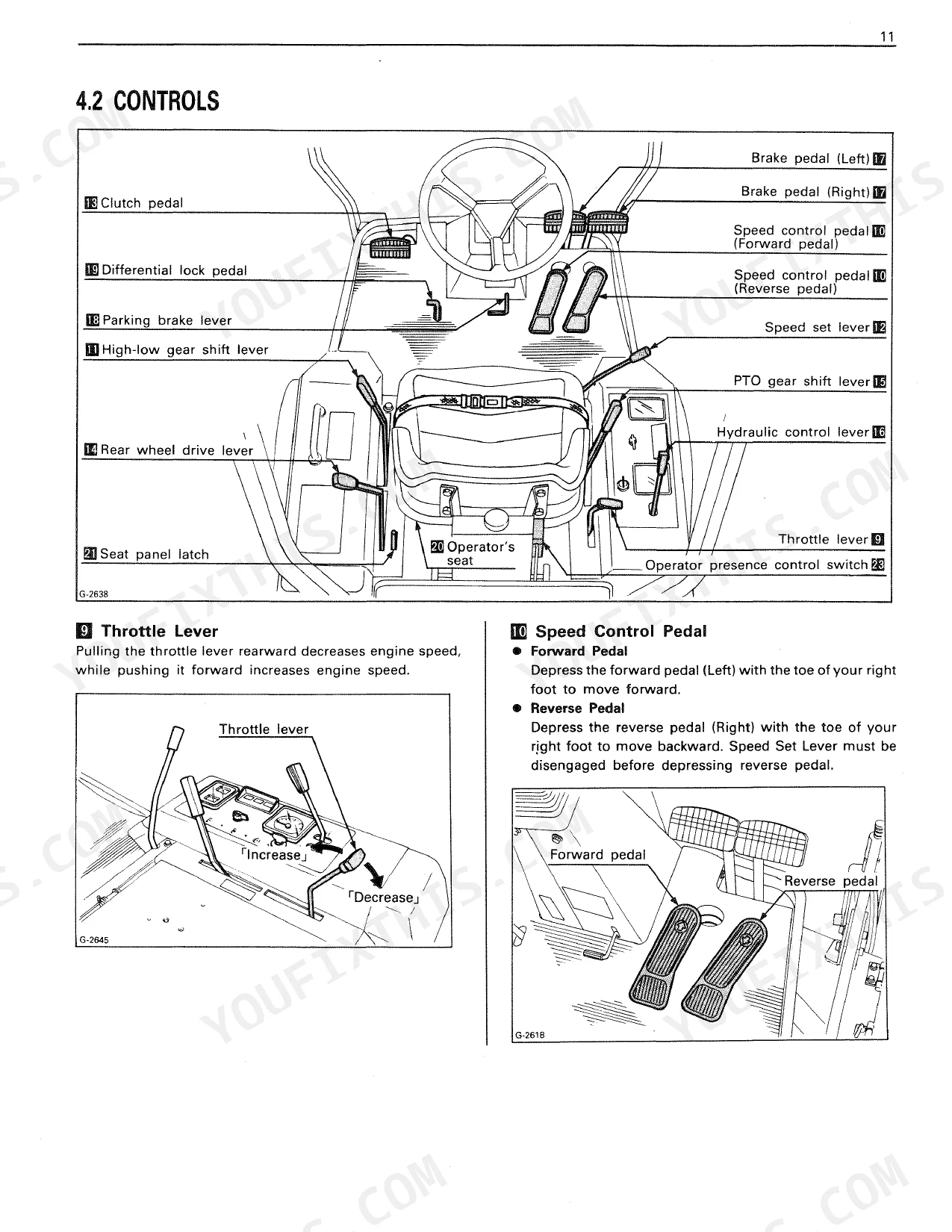

| Instrument Panel and Controls | - | Switches (Key Switch, Engine Oil Pressure Light, Coolant Temperature Gauge, Fuel Gauge, Battery Charge Light, Hour Meter/Tachometer, Head Light Switch, Engine Stop Knob) |
| Lift Link and Hydraulic Control | - | Lifting Rod, Lift Link, Implement Lowering Speed Control |
| Wheels, Tires and Ballast | - | Wheel Adjustment, Tires, Ballast, Toe-In |

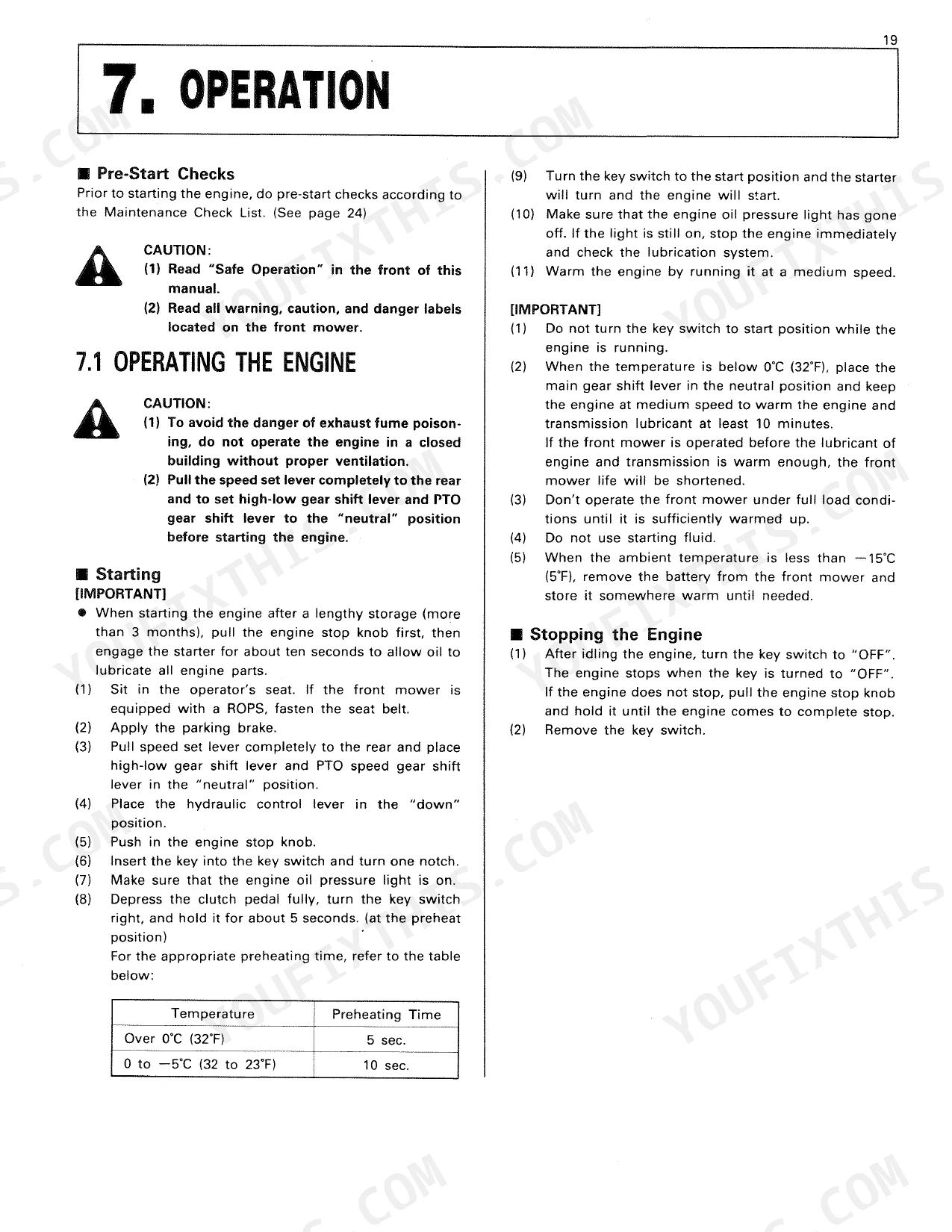

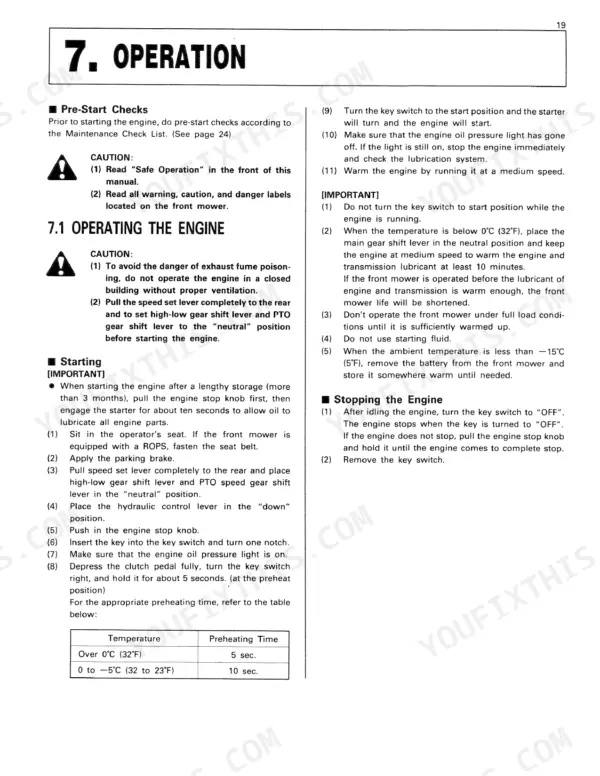

| Operation | - | Operating the Engine, Operating the Front Mower, Check During Driving |
| Maintenance | - | Daily Check, Lubricants, Maintenance Check List |
| Check and Maintenance | - | Fuel, Engine Oil, Air Cleaner, Cleaning Air Filter Element, Battery, Transmission Fluid, Fuse, Changing Rear Axle Differential Case Oil |
| Adjustments | - | Fan Drive Belt, Clutch, Brake |

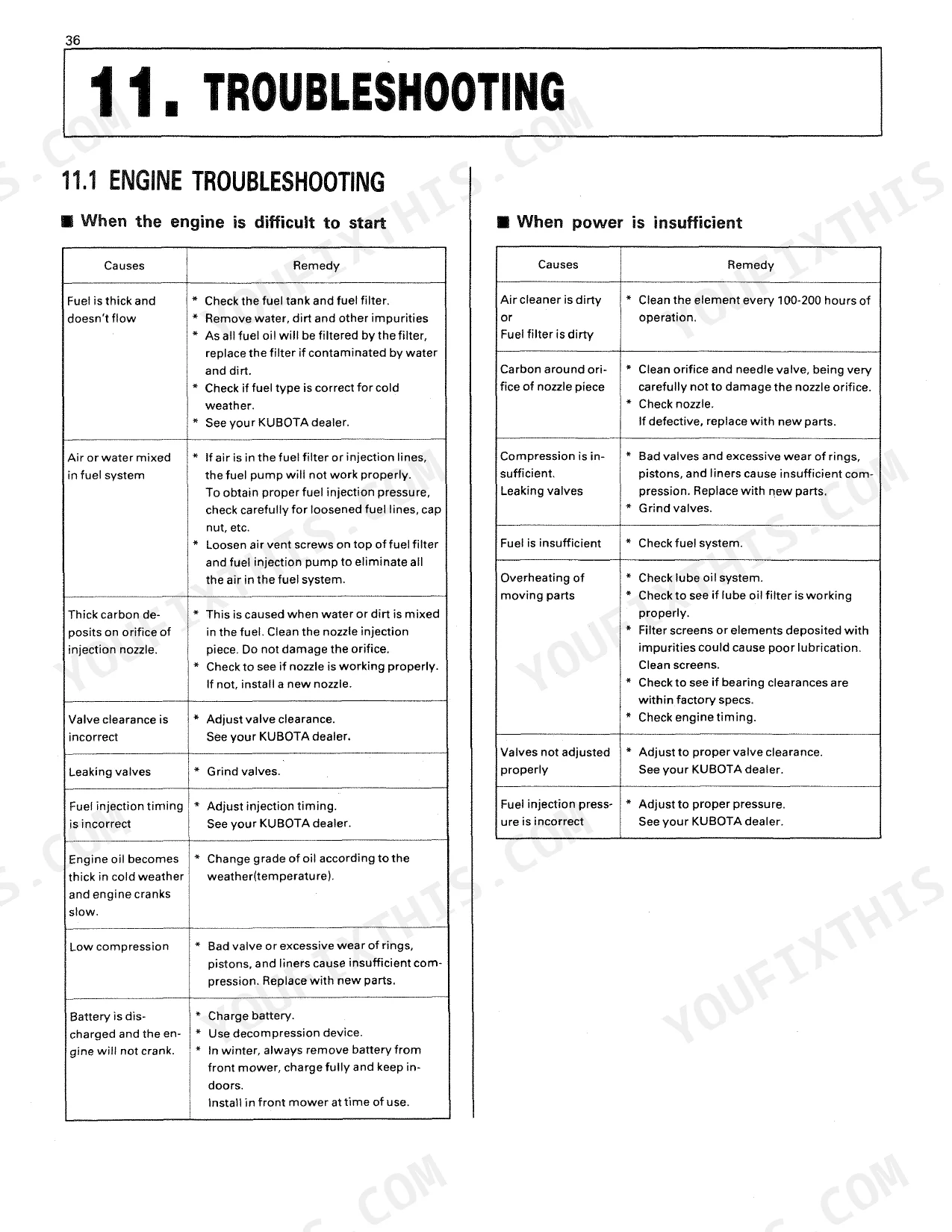

| Troubleshooting | - | Engine Troubleshooting, Front Mower Troubleshooting, Battery Troubleshooting |
| Long-Term Storage | - | Directions for Storage, Maintenance Free Type Battery Charging |
| Lubricant Specifications | - | Engine Oil (Viscosity Chart), Transmission Oil, Others, Kubota Lubricants |

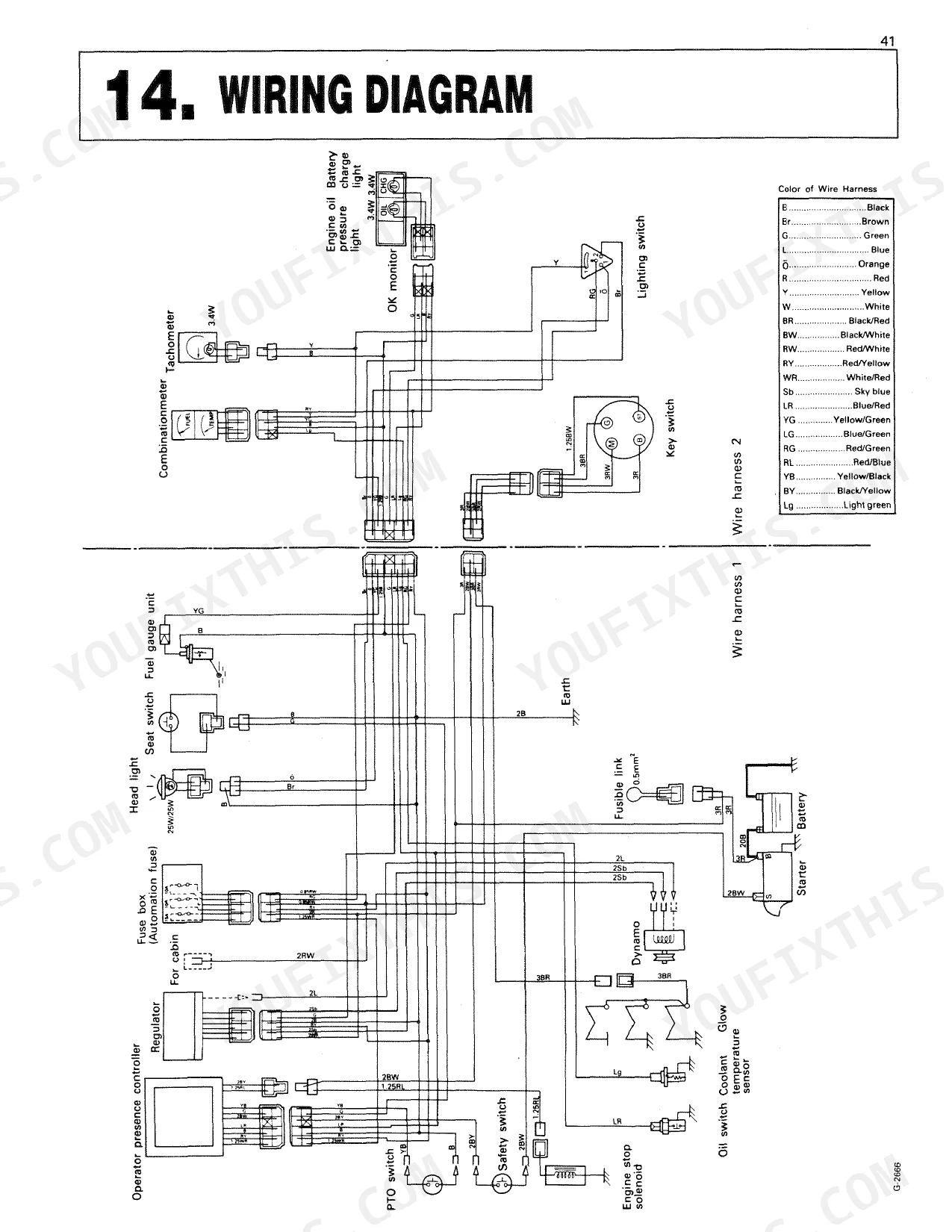

| Wiring Diagram | - | Color of Wire Harness, Head Light, Seat Switch Fuel Gauge Unit, Combinationmeter Tachometer, Engine Oil Battery Pressure Charge Light, Ok Monitor, Lighting Switch, Key Switch |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front wheel lug nut torque | 49 N·m (36 ft·lbs) | p. 23 |
| Rear wheel lug nut torque | 88.3 N·m (65 ft·lbs) | p. 23 |
| Fuel filter cleaning interval | Every 100 hours | p. 32 |
| Fuel filter change interval | Every 400 hours | p. 30 |
| Engine crankcase oil capacity | 3.3 U.S.qts. (3.1ℓ) | p. 29 |
| Engine oil change interval | Every 75 hours | p. 30 |
| Transmission fluid capacity | 13.4 U.S.qts. (12.7 ℓ) | p. 29 |
| Transmission oil filter cartridge change interval | Every 200 service hours | p. 34 |
| Engine gross power | 20 HP | p. 12 |
| Fuel tank capacity | 9.0 U.S.gals. (34ℓ) | p. 12 |
| Transmission case fluid capacity | 13.4 U.S.qts. (12.7ℓ) | p. 12 |
| Rear tire pressure | 200kPa (28psi) | p. 24 |
Kubota F2000 Common Problems This Manual Covers
Electrically dead or no start
The machine can go completely dead or refuse to start even after a new battery, usually from loose ignition wiring or a poor switch connection. The battery and engine troubleshooting charts walk you through the checks.
Manual Section: Troubleshooting p. 42Engine hard to start after fuel work

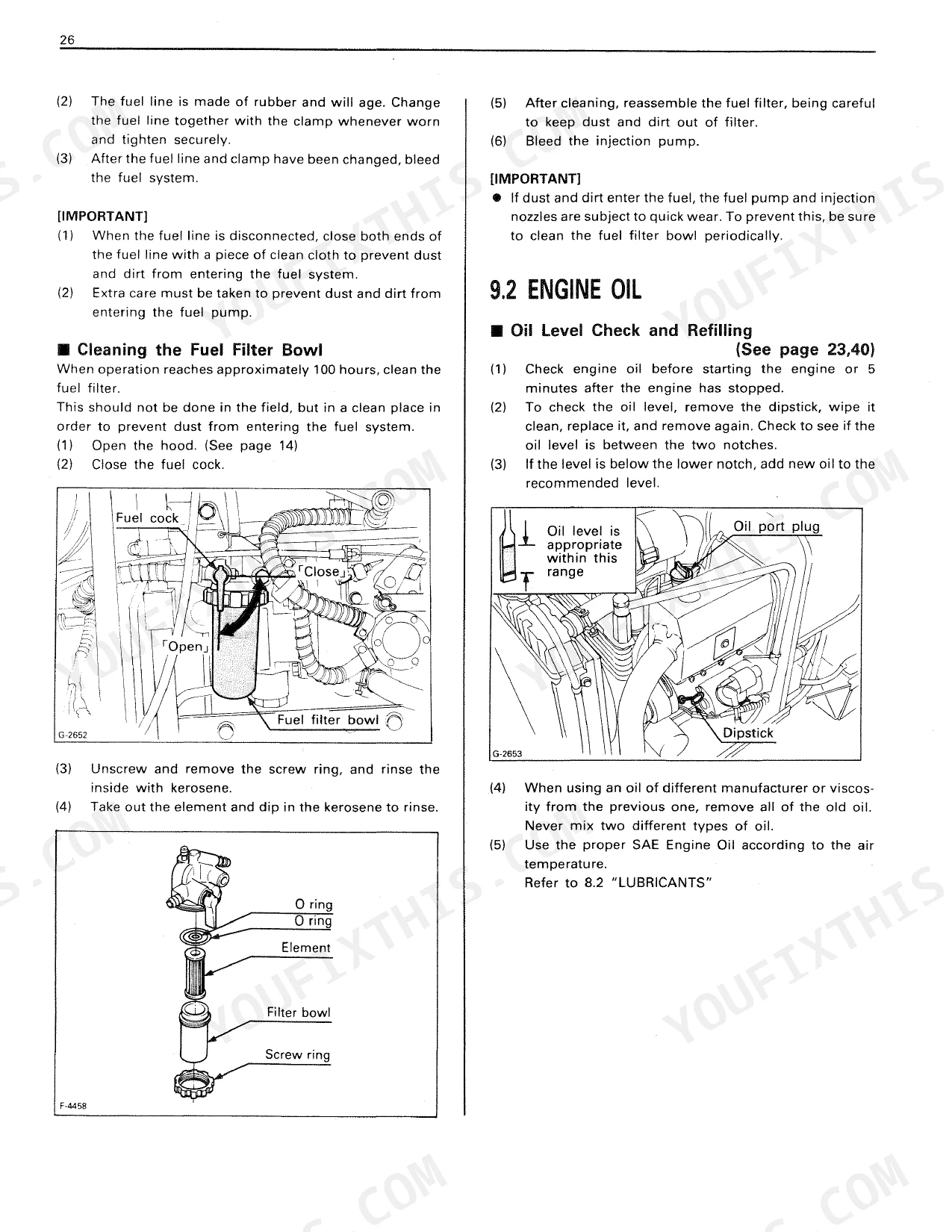

Air trapped in the fuel system after a filter or fuel job makes the engine slow to prime and run poorly. The fuel service steps cover venting the system correctly.
Manual Section: Check and Maintenance p. 31Weak or erratic hydraulics after service
Lift and implement functions can feel weak or erratic until the fluid is cycled and the level rechecked. The lift link and hydraulic control section explains the correct setup.
Manual Section: Lift Link and Hydraulic Control p. 21Drive lever slips under load
The hydrostatic drive lever can fail to hold position or slip when a set screw loosens with vibration. Checking control operation while driving helps catch it early.
Manual Section: Operation p. 25Missed service intervals
Skipped oil, filter, and fluid changes shorten the life of the engine and transmission. The maintenance schedule lists the daily checks and interval based service the F2000 needs.
Manual Section: Maintenance p. 29Clutch, brake, or belt out of adjustment
Free travel on the clutch and brake and tension on the fan drive belt drift with use. The adjustments section gives the correct settings to restore them.
Manual Section: Adjustments p. 41Frequently Asked Questions
Which machine and engine does this manual cover?
It is the operator manual for the Kubota F2000 front mower, which uses the D950-FM diesel engine rated at 20 HP. Publication number 7661762110.
Does it give torque specs for the wheels?
Yes. The manual lists the front wheel lug nut torque at 49 N.m (36 ft.lbs), along with tire pressures and other service values you set during maintenance. p. 23
Does it include maintenance intervals?
Yes. The maintenance section gives the daily checks and the service intervals for engine oil, filters, and transmission fluid so you can keep the F2000 on schedule. p. 29
Does it cover troubleshooting and the wiring diagram?
Yes. The troubleshooting section covers engine, mower, and battery faults, and a separate wiring diagram maps the harness colors and circuits for electrical work. p. 42
How quickly can I access this manual after buying?
Immediate download of the complete 52-page searchable Operator Manual. Open it on any device, whether that's a laptop at your desk or a phone in the field.
Can I print specific sections of this Kubota F2000 Operator Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
