This operator manual covers the Kubota G3200, G4200, G4200H, G5200H, and G6200H diesel lawn and garden tractors in a single 37 page reference. These G series machines run Kubota Z400, Z430, and D640 diesel engines, and the manual notes where a procedure or capacity differs between the gear drive and hydrostatic (H) models.Inside you get the safe operation rules, the specification table, starting and operating instructions, daily checks, and the full check and maintenance routine for fuel, oil, air cleaner, battery, and transmission fluid.Adjustment steps, a troubleshooting guide for the engine, tractor, and battery, long term storage directions, and a wiring diagram are all included. Use it to run the correct service intervals, set the right tire pressures and belt tension, and work through cold start and drive problems by model.
What's Inside This Kubota G3200–G6200 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Abbreviations List | - | Abbreviations, Definitions |
| For Safe Operation | - | Pre-Operation Safety Checklist, Slope & Stability Precautions, Passenger & Bystander Rules |
| Servicing of Tractor | - | - |
| Specifications | - | Model, Engine, Type, Cylinder, Total Displacement, Gross Power and Revolutions, Cylinder Bore and Stroke, Fuel |

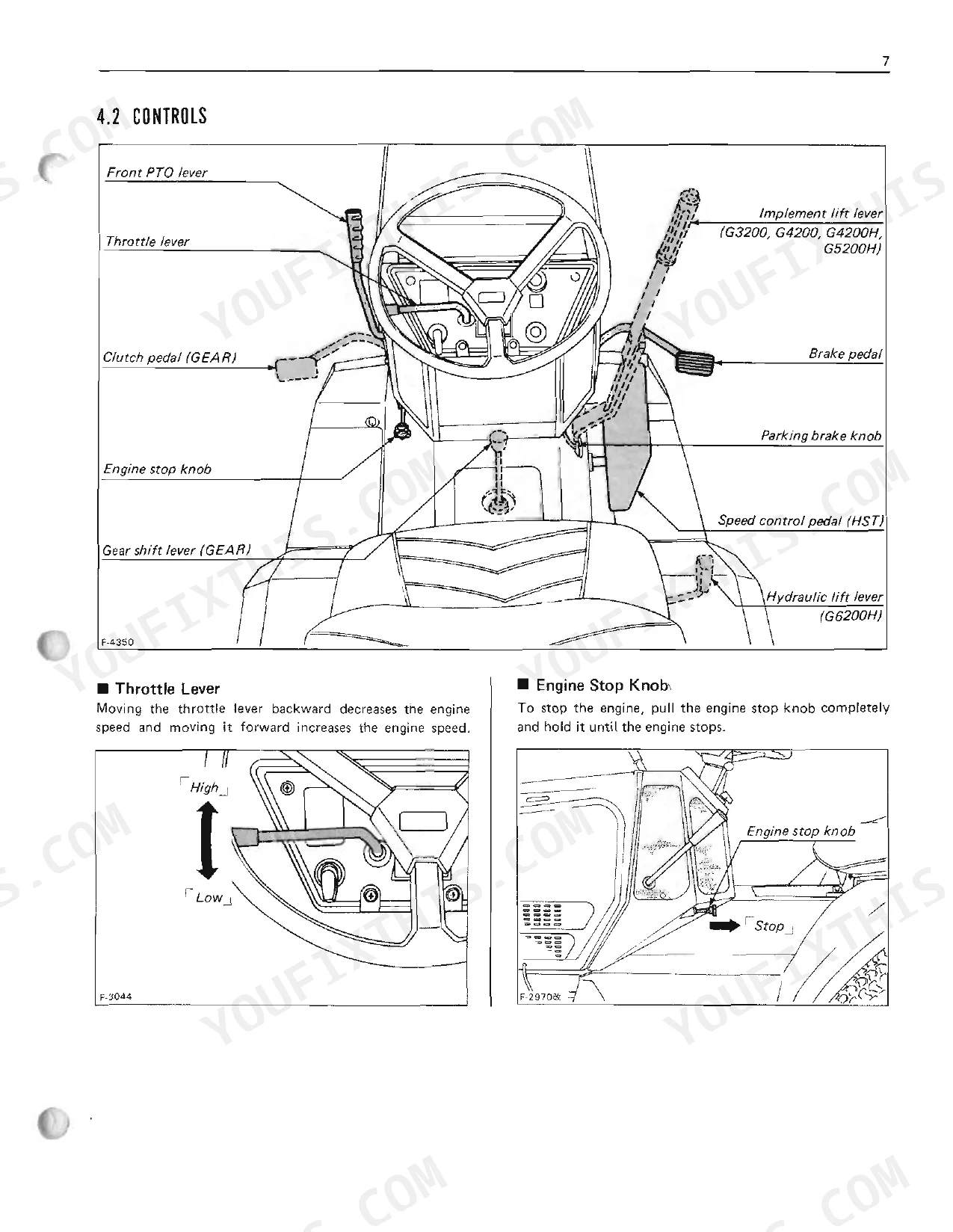

| Instrument Panel and Controls | - | Key Switch, Hour Meter/Heat Indicator, Light Switch, Glow Plug Light, Engine Oil Pressure Light, Throttle Lever, Engine Stop Knob, Speed Control Pedal (HST), Gear Shift Lever (Gear), Clutch Pedal (Gear), Brake Pedal, Parking Brake Knob, Front PTO Lever, Lift Lever, Ballast, Hydraulic Lift Lever |
| Operating Instructions | - | Engine Start & Warm-Up Procedure, PTO Setup, Engine Stop Sequence |
| Maintenance | - | Daily Pre-Op Checks: Tires, Oil, Fluids, Brakes, Clutch, Lights, Safety Switches |
| Check and Maintenance | - | Fuel Type Selection, Fuel Tank Filling, Fuel Filter & Line Bleeding Procedure |
| Adjustments | - | Fan Drive Belt Tension |
| Troubleshooting | - | Engine Troubleshooting, Tractor Troubleshooting, Battery Troubleshooting |
| Long-Term Storage | - | Caution, Repair the Parts Where Needed, Check Bolts and Nuts, Tighten As Necessary, Apply Grease or Engine Oil to Parts Most Likely to Rust |
| Wiring Diagram | - | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel filter cleaning interval | Every 100 hours of use | p. 20 |
| Fuel pre-filter change interval | Every 500 hours | p. 20 |
| Air cleaner element change interval | Once yearly or every 6th time the air cleaner is cleaned, whichever occurs first | p. 27 |
| Compressed air pressure for cleaning air filter element | Not exceed 205 kPa (2.1 kgf/cm², 30 psi) | p. 27 |
| Glow plug preheating time (Over 0°C / 32°F) | 20-30 sec. | p. 15 |
| Glow plug preheating time (0 to -5°C / 32 to 23°F) | 40-60 sec. | p. 15 |
| G3200, G4200, G4200H, G5200H | ||
| Battery capacity | 12V, 35 Ah | p. 10 |
| G6200H | ||
| Battery capacity | 12V, 45 Ah | p. 10 |
| HST models | ||
| Transmission oil filter cartridge change interval (initial) | After initial 100 hours of use | p. 18 |
| Transmission oil filter cartridge change interval (regular) | Every 200 service hours | p. 23 |
| G3200, G4200 | ||
| Transmission case capacity | 8.0ℓ (8.5 U.S. qts.) | p. 10 |
| G4200H, G5200H | ||
| Transmission case capacity | 7.0ℓ (7.5 U.S. qts.) | p. 10 |
Kubota G3200–G6200 Series Common Problems This Manual Covers

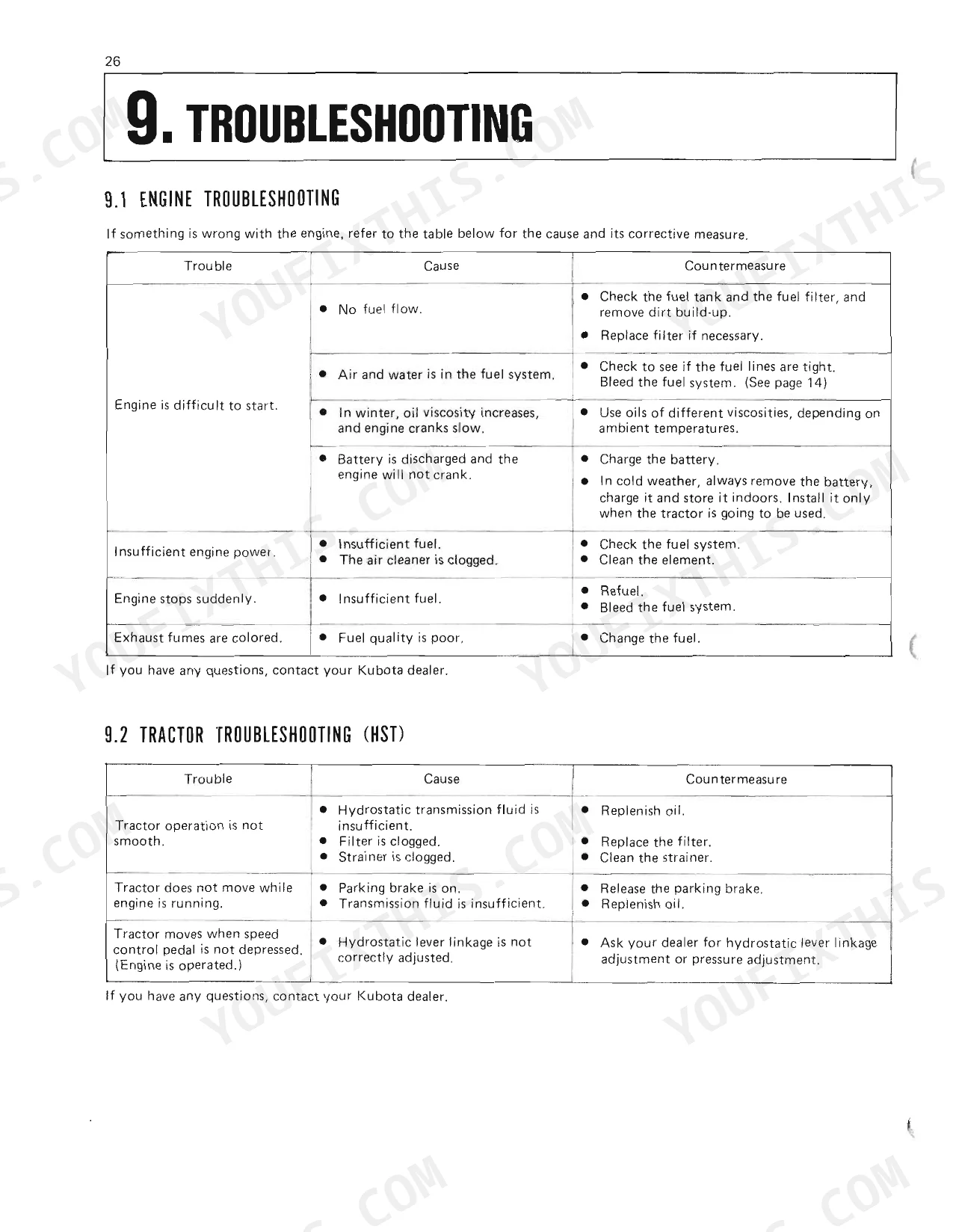

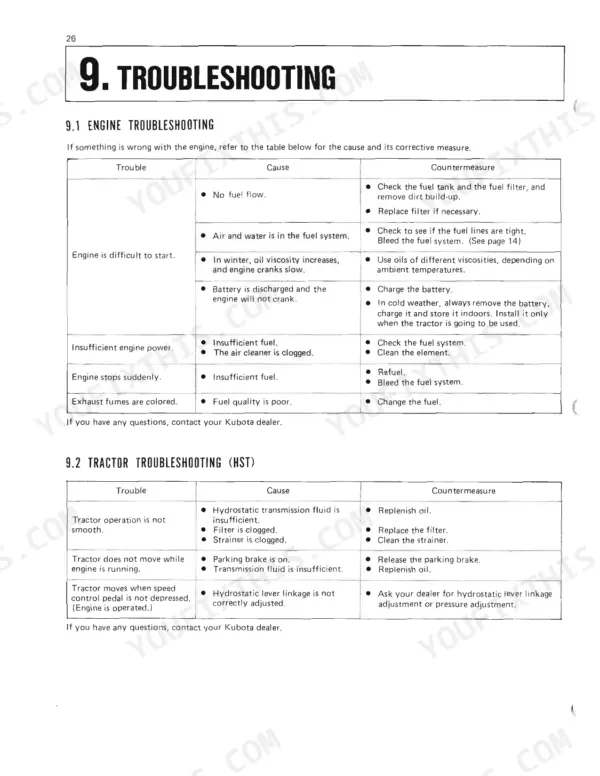

Hard starting in cold weather
These diesels can be hard to start or fail to fire in the cold when the glow plug circuit, battery, or fuel supply is weak. The troubleshooting charts and starting procedure walk through the checks.
Manual Section: Troubleshooting p. 31Engine lacks power under load
A clogged fuel filter or restricted air cleaner starves the engine and cuts power under load. The check and maintenance section covers cleaning and replacing both.

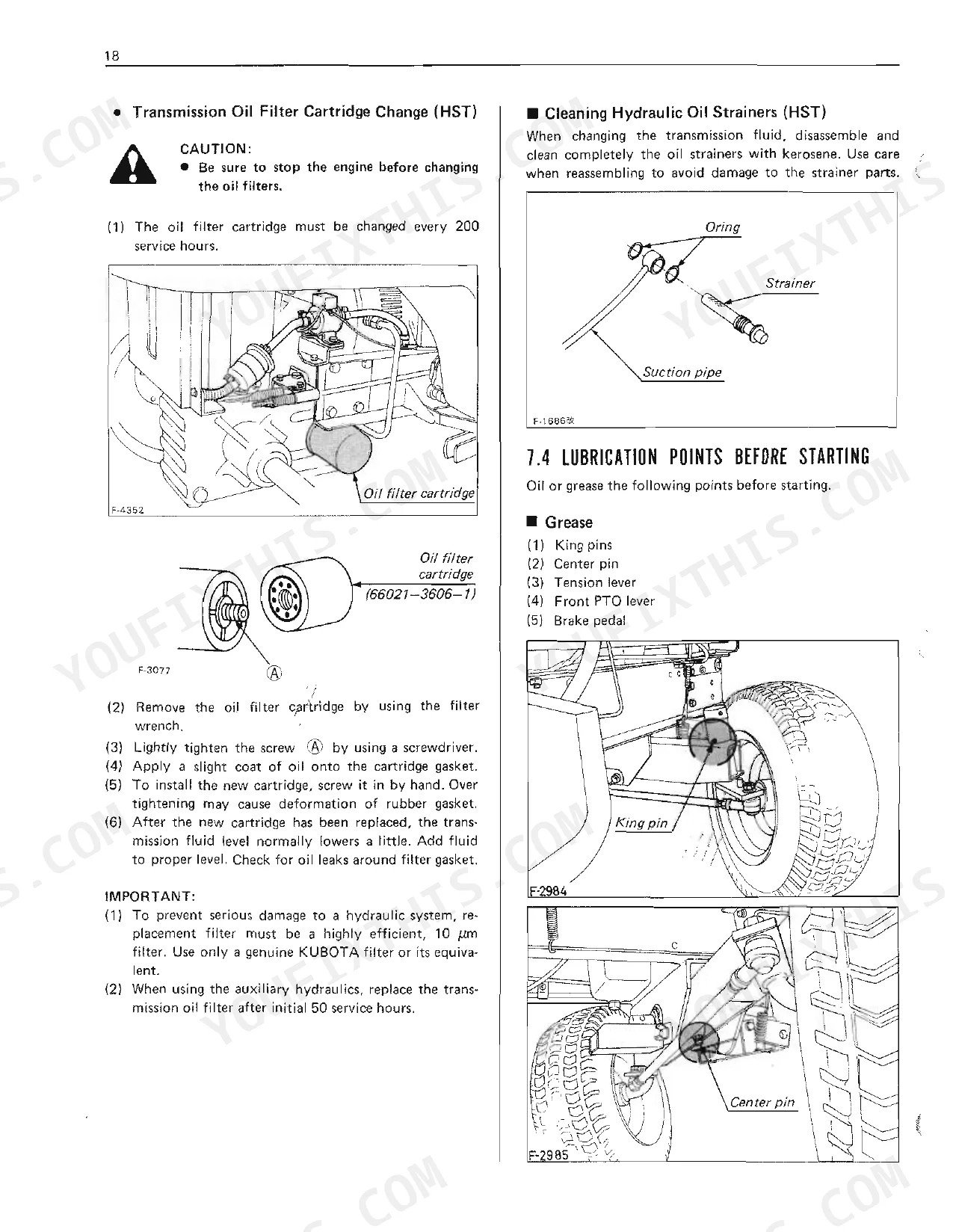

Manual Section: Check and Maintenance p. 19Weak or jerky hydrostatic drive
On the H models the drive can feel weak or jerky when the transmission fluid is low or degraded. Daily checks of the transmission fluid amount help catch it before wear sets in.
Manual Section: Maintenance p. 17Overheating during mowing
A dirty radiator screen or low coolant leads to overheating under heavy cutting loads. The daily check routine includes cleaning the radiator screen and checking coolant level.
Manual Section: Maintenance p. 17Fan belt slip and poor charging
A loose fan drive belt slips and can leave the battery undercharged. The adjustments section gives the correct belt deflection so you can reset the tension.
Manual Section: Adjustments p. 29Weak battery on cold cranking
A battery low on charge or electrolyte struggles to crank a cold diesel. The battery service steps cover charging rates and electrolyte specific gravity for each model.
Manual Section: Check and Maintenance p. 19Frequently Asked Questions
Which models does this manual cover?
It covers five Kubota G series diesel lawn and garden tractors: the G3200, G4200, G4200H, G5200H, and G6200H, with notes where capacities or steps differ between the gear drive and hydrostatic models.
Where are the specifications listed?
The specification table gives the model, engine, displacement, power, bore and stroke, and fuel details for each of the G series tractors covered. p. 10
How often should the fuel filter be serviced?
The manual calls for cleaning the fuel filter every 100 hours of use, with the pre-filter changed every 500 hours. The check and maintenance section details the procedure. p. 20

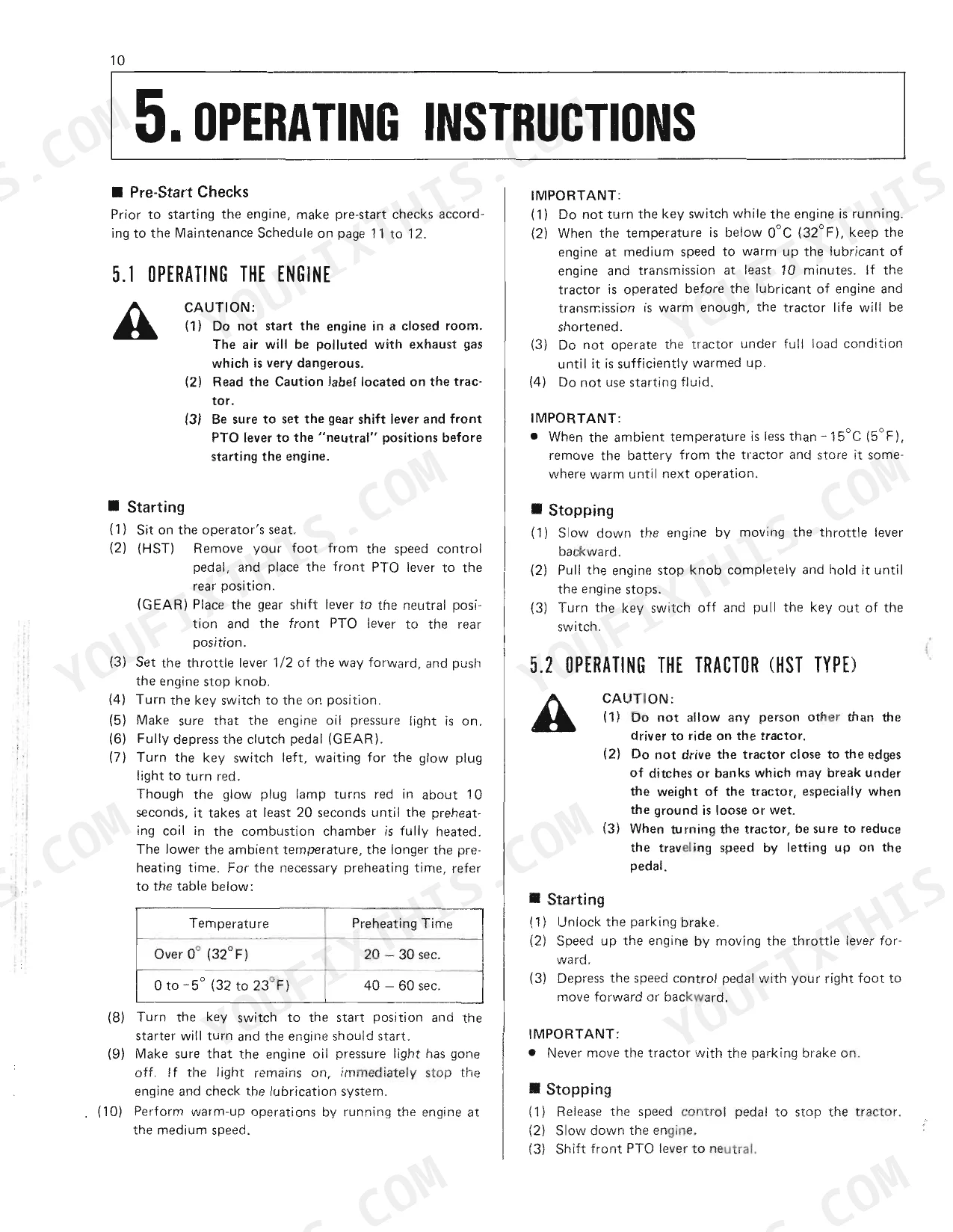

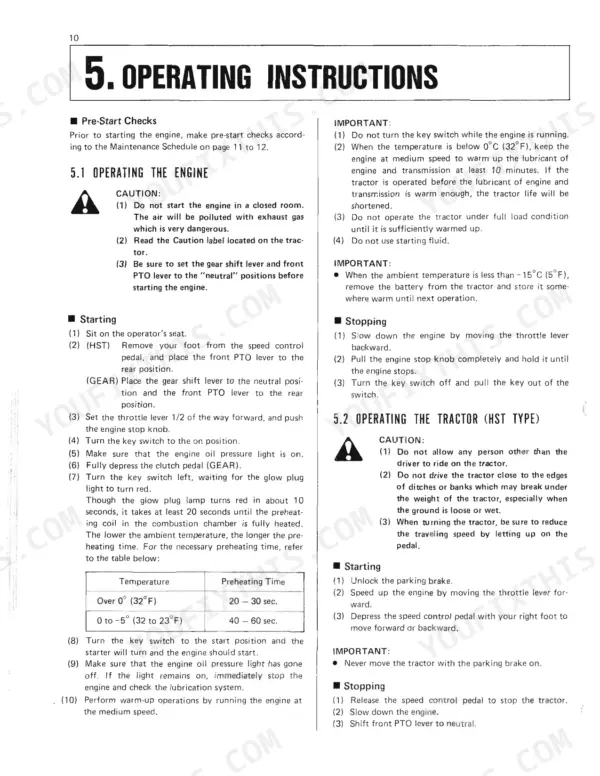

How long do I preheat the glow plugs before starting?
The operating instructions specify preheating 20 to 30 seconds above 0 degrees C, and 40 to 60 seconds between 0 and -5 degrees C, before turning the key to start. p. 15
How quickly can I access this manual after buying?
It's a 37-page Operator Manual in searchable PDF format, ready the moment checkout finishes. Read it on a computer, tablet, or phone with no shipping to wait on.
Can I print this manual?
Yes. Print as many copies as you like, with no restrictions. Plenty of mechanics run off just the section they need and carry it onto the shop floor.
