This Kubota Workshop Manual covers the F2000, F2100, F2100E, and F2400 front mowers, part number 9789710284, and includes the Workshop Manual Addition for the F2100, F2100E, and F2400. Its 394 pages document the D950-FM and D1105-F engines and every machine system.Mechanics get the mechanism and servicing detail for the engine, clutch, hydrostatic transmission, front and rear axles, brakes, steering, hydraulics, and electrical system, plus the Mower part for deck service and cutting height. Specifications, dimensions, and maintenance intervals are all included.Use it to diagnose a drivetrain that loses power, service the clutch and propeller shaft, set blade bolt torque, and check hydraulic relief pressure to the factory figures. Delivered as a downloadable, printable PDF for the workshop.
What's Inside This Kubota F2000–F2400 Series Manual

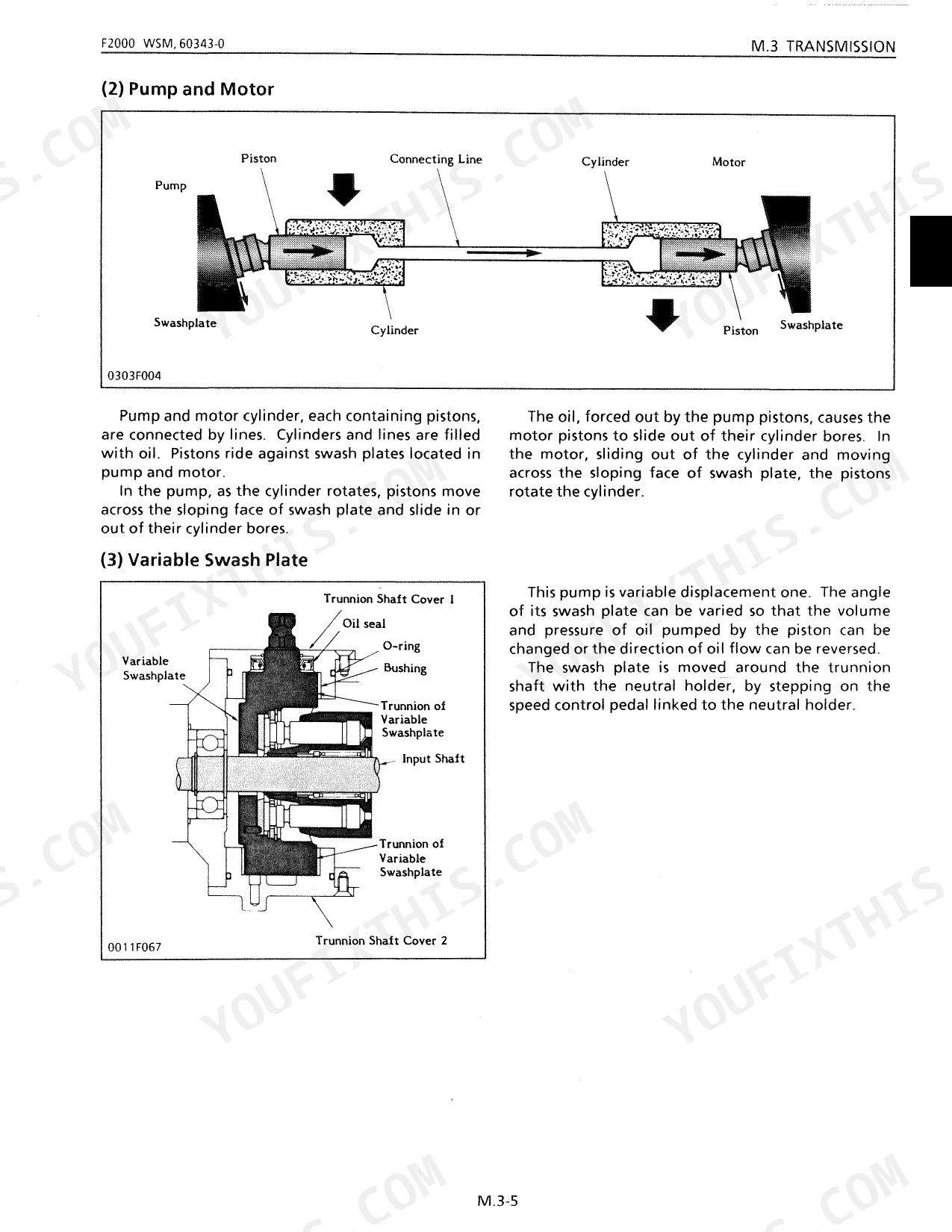

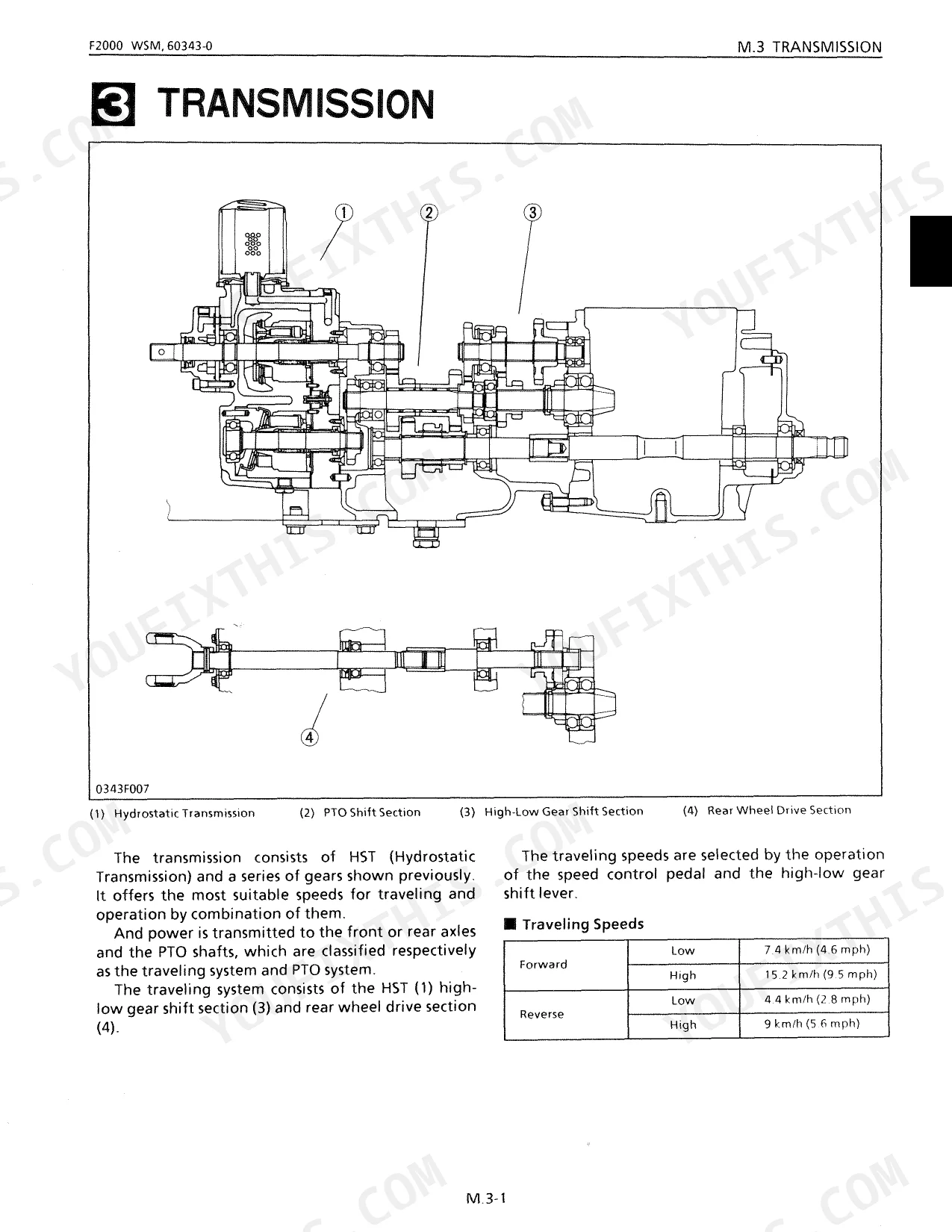

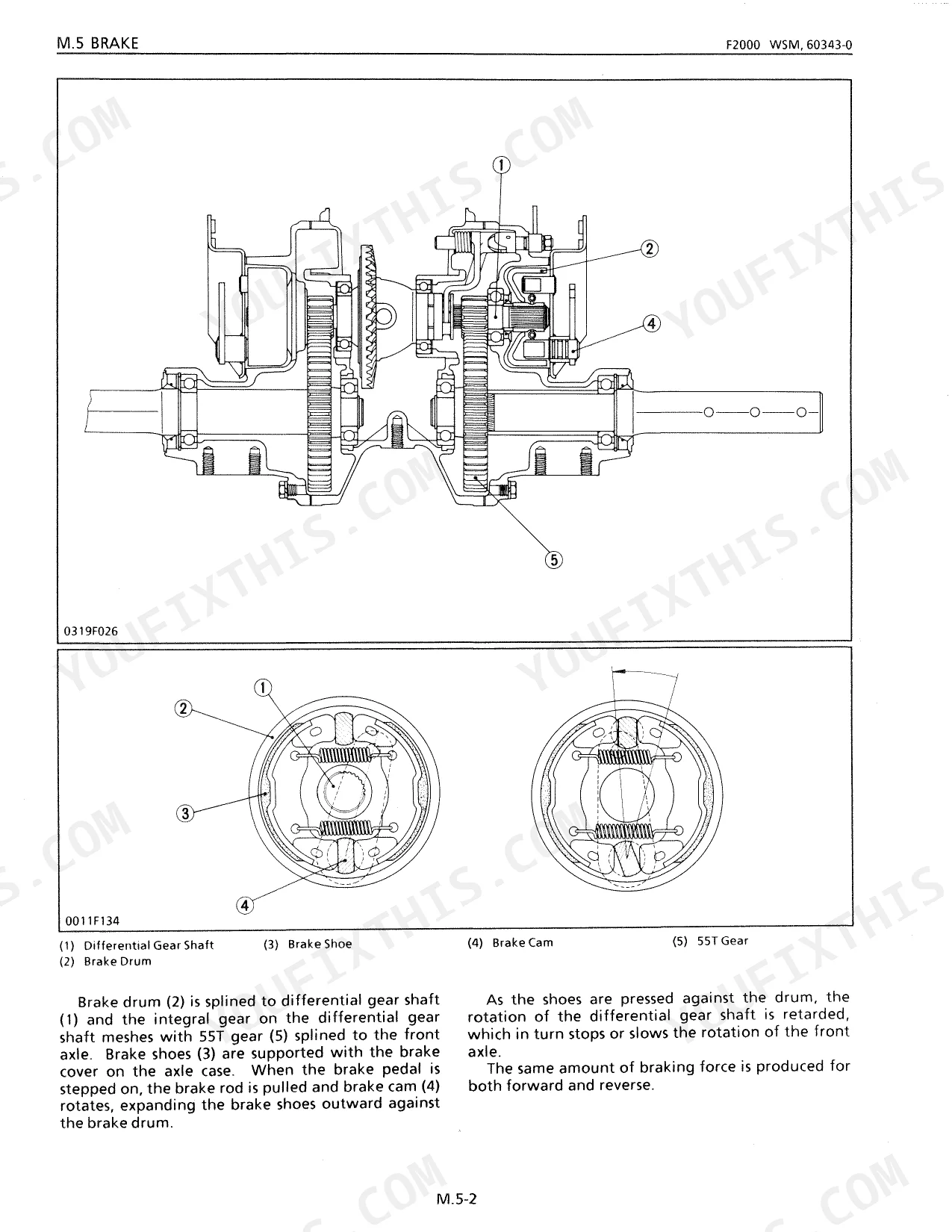

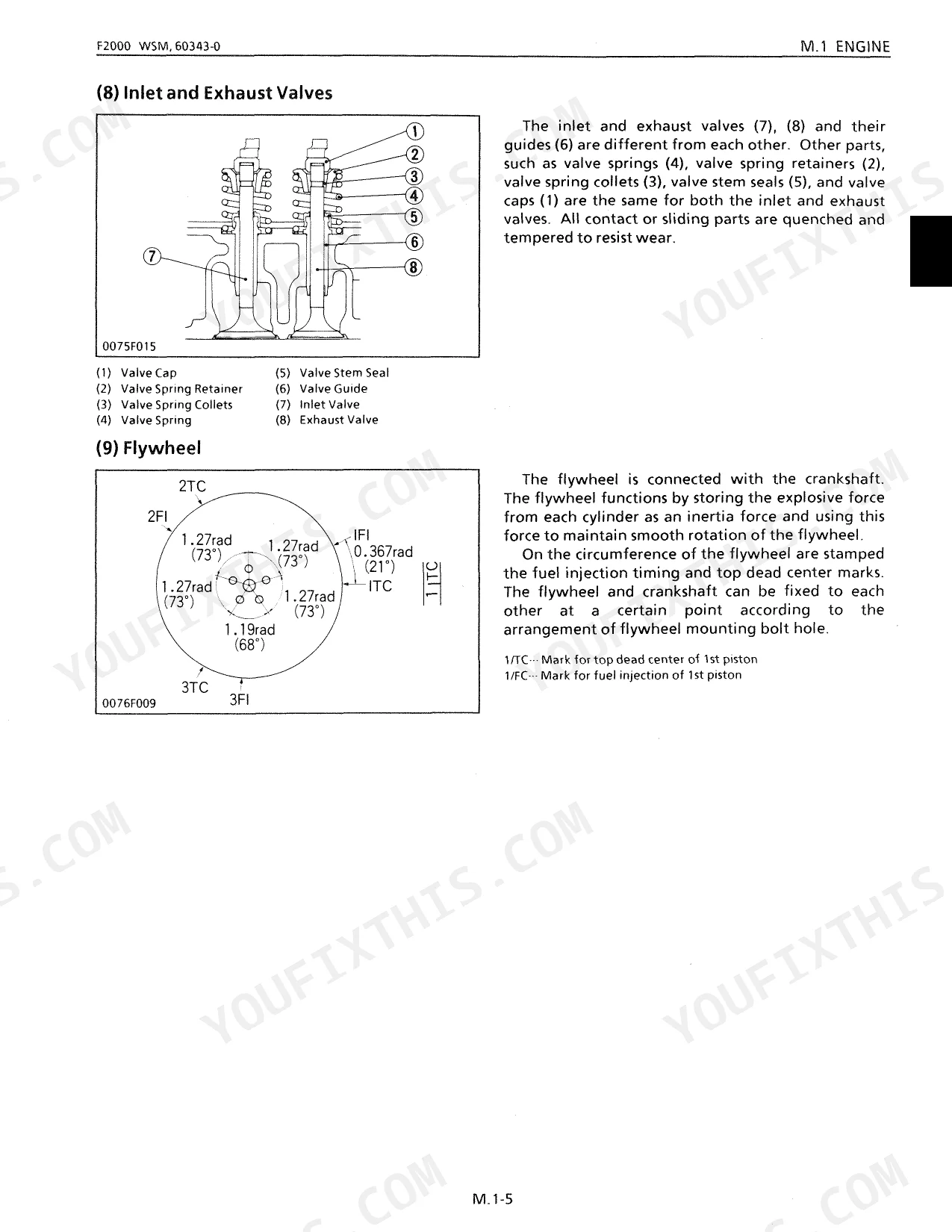

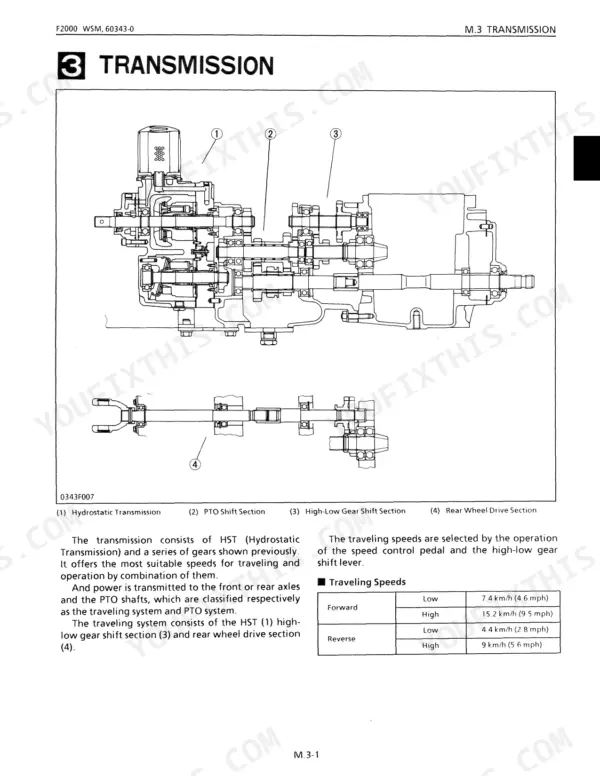

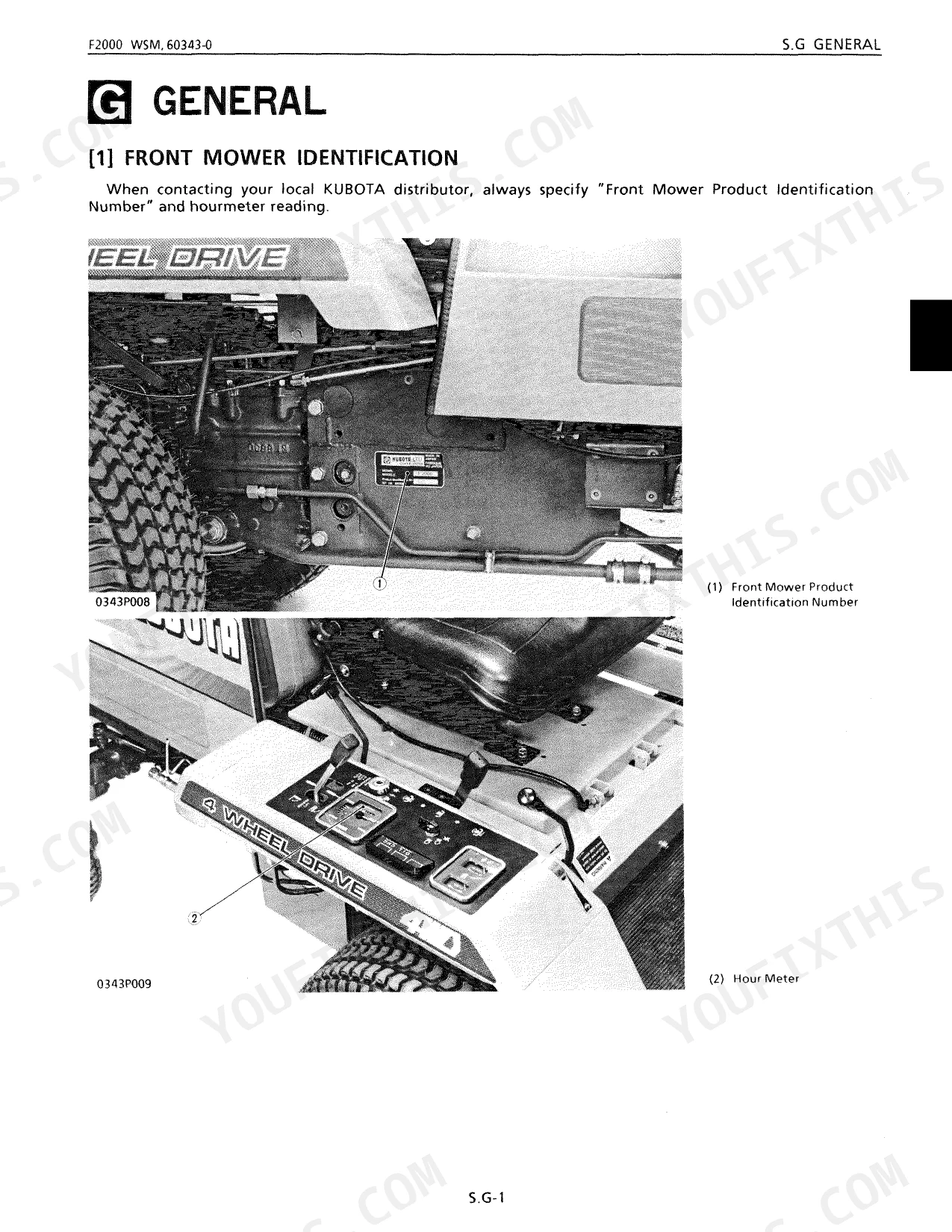

| System | Pages | Key Topics |
|---|---|---|
| Cover and Contents | 1-7 | Workshop Manual for F2000, F2100, F2100E and F2400 Front Mowers, Section Index |
| Specifications | 8 | Model, Engine, Capacities, Tires, Traveling Speeds, Dimensions, Weight, Front PTO |
| Dimensions | 9-16 | Overall Length, Overall Width, Overall Height, Wheel Base, Front Tread, Rear Tread |
| Mechanism | 17-96 | Features, Engine Body (Cylinder Block, Cylinder Head, Crankshaft, Pistons, Connecting Rods, Camshaft, Rocker Arms, Valves, Flywheel), Lubrication, Cooling, Fuel, Clutch, Hydrostatic Transmission, Front Axle, Brakes, Rear Axle, Power Steering, Hydraulic Circuit, Wiring Diagram and Electrical Circuit, Tyre Pressure and Toe-In |
| Servicing, General and Maintenance | 97-119 | General Precautions, Lubricants, Tightening Torques, Maintenance Check List, Check and Maintenance, Separation, Special Tools |
| Servicing, Engine | 120-189 | Separating Hydrostatic Transmission, Separating Transmission Case, Separating Front Frame, Separating Front Axle Case, Cylinder Head, Nozzle Holder, Fuel Pump, Hydraulic Pump |
| Servicing, Brakes, Rear Axle and Electrical System | 190-286 | Brakes, Rear Axle, Electrical System, Checking, Disassembling and Servicing |
| Mechanism (Addition, F2400 / F2100E) | 287-306 | F2400 Engine Features and Body, F2400 Transmission, F2400 Brakes, F2100E Rear Axle, F2400 Electrical System |
| Servicing (Addition, F2400 / F2100E) | 307-350 | F2400 General and Separation, F2400 Engine Overhaul, F2400 Brakes, F2100E Rear Axle Overhaul, F2400 Electrical Checks |
| Mower | 351-394 | Mower General, Mower Mechanism, Cutting Height Adjustment, Blade and Gearbox Overhaul, Belt Replacement |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Blade Screw (Center) Torque | 177 to 216 N·m (18 to 22 kgf·m, 130 to 160 ft-lbs) | p. 354 |
| Blade Screw (Outer) Torque | 177 to 216 N·m (18 to 22 kgf·m, 130 to 160 ft-lbs) | p. 354 |
| Clutch Pedal Play | 20 to 30 mm (0.79 to 1.18 in.) | p. 191 |
| Clutch Pedal Stroke | 100 to 110 mm (3.9 to 4.3 in.) | p. 191 |
| Clutch Disc Spline Boss to Propeller Shaft Backlash | 2.0 mm (0.079 in.) | p. 191 |
| Engine oil filter cartridge mesh size | 10 µ | p. 308 |
| Transmission oil filter cartridge (for HST, hydraulic system) mesh size | 10 µ | p. 308 |
| Relief Valve of Control Valve Setting Pressure | 10.8 to 11.8 MPa (110 to 120 kgf/cm², 1564 to 1706 psi) | p. 205 |
| RC60-F20, RC60-F24 | ||
| V-belt Spring length L | 155 mm (6.1 in.) | p. 361 |
| RC72-F20, RC72-F24 | ||
| V-belt Spring length L | 165 mm (6.5 in.) | p. 361 |
| F2000 | ||
| Fan Belt Tension Deflection | 10 mm/98N, 10 kgf (0.4 in./22 lbs) | p. 30 |
| F2100, F2400 | ||
| Fan Belt Tension Deflection | 7 mm/98N, 10 kgf (0.28 in./22 lbs) | p. 337 |
Kubota F2000–F2400 Series Common Problems This Manual Covers
Power loss or drive stops
Clutch or propeller shaft wear on this platform reduces or interrupts drive under load, often felt as whining or a machine that stops moving. The Servicing section covers clutch adjustment and inspection.
Manual Section: Servicing p. 97Hard starting or rough running
Fuel delivery problems, air restriction, or a basic engine fault can leave the engine starting poorly or running rough. The Mechanism section covers the engine fuel and cooling systems.
Manual Section: Mechanism p. 17Deck vibration or uneven cut
Worn spindle or blade parts, belt drive issues, or deck linkage wear leave an uneven cut or abnormal noise. The Mower section covers deck servicing and cutting height.
Manual Section: Mower p. 351Deck belt wears or slips
A stretched or damaged V-belt loses cutting power and needs replacement. The Mower section gives the belt spring length and deck belt service.
Manual Section: Mower p. 351Slow or weak hydraulics
Low fluid, contaminated oil, a restricted filter, or control valve wear make the hydraulics slow or weak. The Servicing section covers the relief valve setting pressure and diagnosis.
Manual Section: Servicing p. 97F2400 engine and system differences
The F2400 uses different engine, brake, and electrical details from the earlier models. The Servicing Addition section documents the F2400 specific service work.
Manual Section: Servicing (Addition) p. 307Frequently Asked Questions
Which models and engines does it cover?
It covers the Kubota F2000, F2100, F2100E, and F2400 front mowers with the D950-FM and D1105-F engines across 394 pages, including the workshop manual addition for the later models.
What is the mower blade bolt torque?
The center and outer blade screws torque to 177 to 216 N·m (130 to 160 ft-lbs). The Mower section covers blade removal and deck service. p. 351
What is the clutch pedal free play?
Clutch pedal play is 20 to 30 mm (0.79 to 1.18 in.) with a 100 to 110 mm stroke. The Servicing section details clutch checking and adjustment. p. 97
Does it cover the F2400's different engine?
Yes. The Servicing Addition section covers the F2400 engine, brakes, rear axle, and electrical service that differ from the earlier F2000 and F2100 models. p. 307
Is this Kubota F2000–F2400 Series Workshop Manual a digital download?
Yes, it downloads instantly as a PDF. The full 394-page searchable Workshop Manual is yours right after payment, ready to open on a laptop, tablet, or phone in the shop.
Can I print specific sections of this Kubota F2000–F2400 Series Workshop Manual?
Absolutely. The PDF is DRM-free, so print whatever sections you want to carry out to the shop. Standard letter or A4 paper works fine.
Are there wiring harness diagrams in this Kubota F2000–F2400 Series manual?
Yes. This workshop manual includes wiring diagrams covering the mower electrical circuits.
