This is the Kubota Operator Manual for the G2500 and G2505 front mounted snowblowers, form 70000-70228, built for the G3200, G4200, G4200H, and G5200H garden tractors. Its 24 pages guide safe setup, operation, adjustment, and maintenance of the attachment.The manual walks the owner through the operating controls, the attachment drive clutch, the chute crank and deflector, tire chains and rear weights, and preparing the machine for snow removal. Adjustment sections cover the skid shoes, the deflector, and the cutting edge.An illustrated parts assembly breakdown lists the housing, chute control and lift, jack shaft, coupling, and belt and pulley components with reference sizes, so you can identify and order the right hardware. Delivered as a downloadable PDF you can print for the shop or store with the machine.
What's Inside This Kubota G2500, G2505 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Messages | - | Make Absolutely Certain That the Operator(S), Prior to Operating, Warning, Before Starting Engine |
| Operating Procedure | - | Operating Controls, Attachment Drive Clutch, Crank for the Discharge Chute, Deflector for the Discharge Chute, Attachment Lift Lever, Tire Chains and Rear Weights |
| Preparing for Snow Removal | - | To Become Familiar with the Controls, Operate the Tractor and Snowblower in a Clear Area Before Removing Snow |
| Adjustments | - | Skid Shoes, Deflector, Cutting Edge |

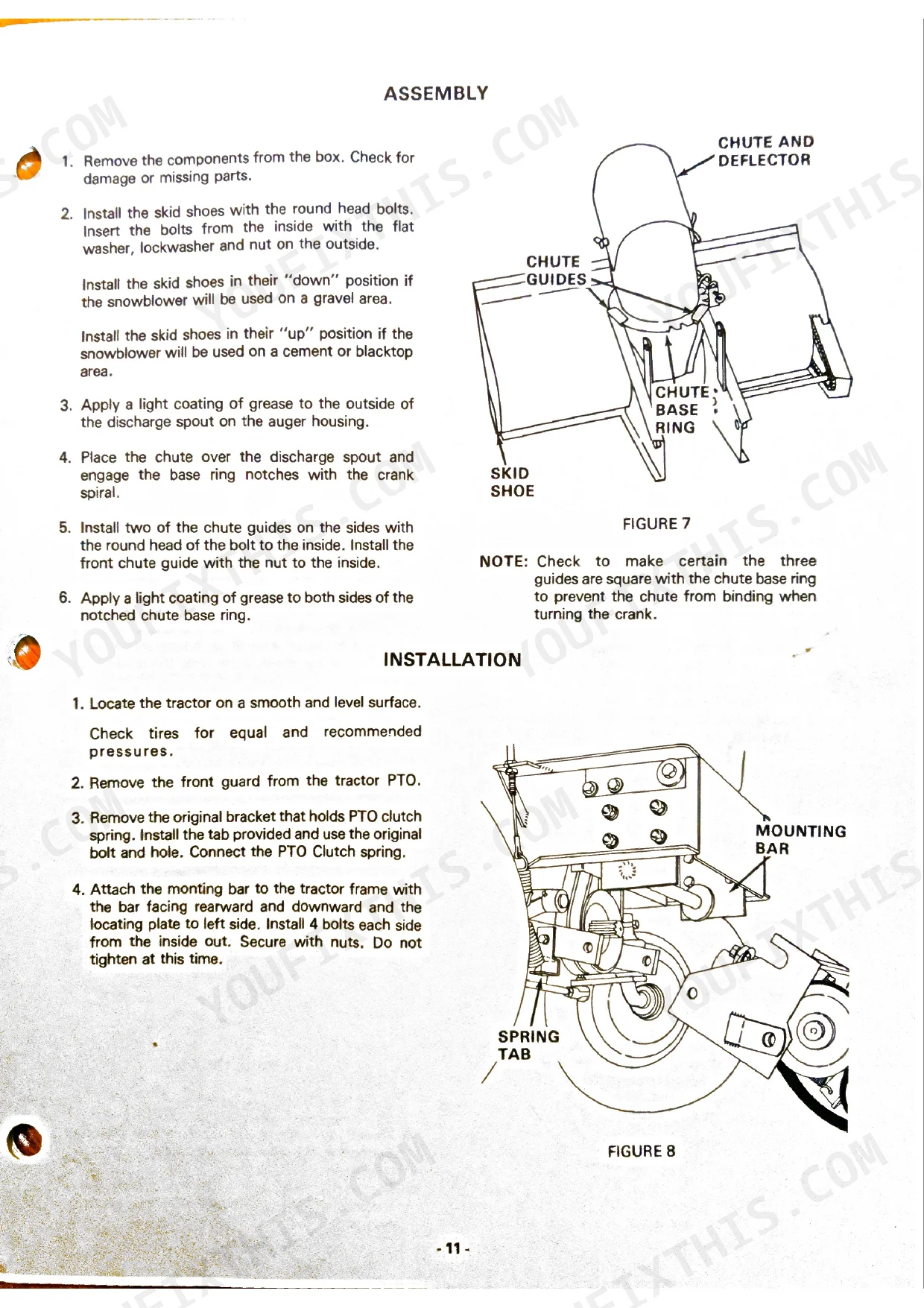

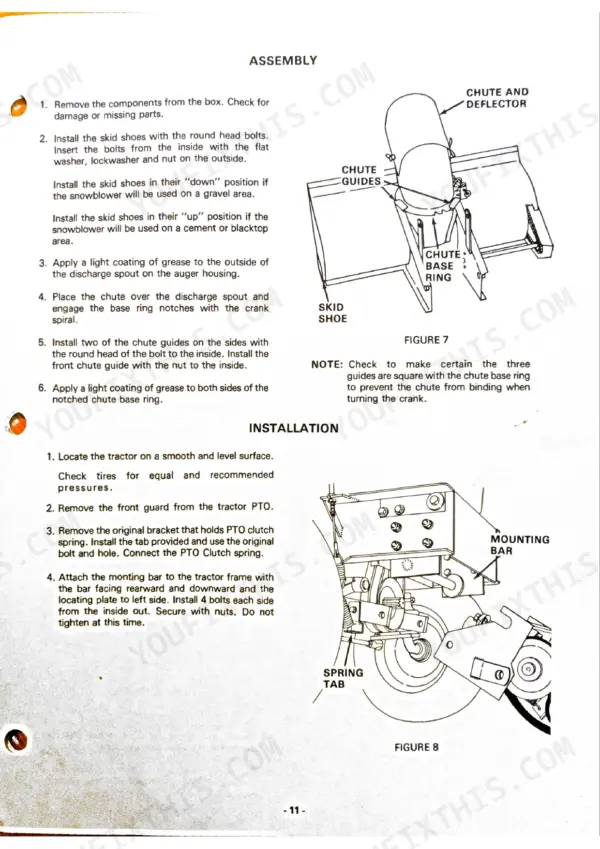

| Assembly | - | Remove the Components From the Box, Install the Skid Shoes with the Round Head Bolts, Apply a Light Coating of Grease to the Outside of the Discharge Spout on the Auger Housing |
| Maintenance | - | Grease the Discharge Chute Crank Pivot Points, Chute Guides and the Chute Base Ring Daily to Keep the Crank Turning Freely, Once a Month During Season or Every 25 Operating Hours |

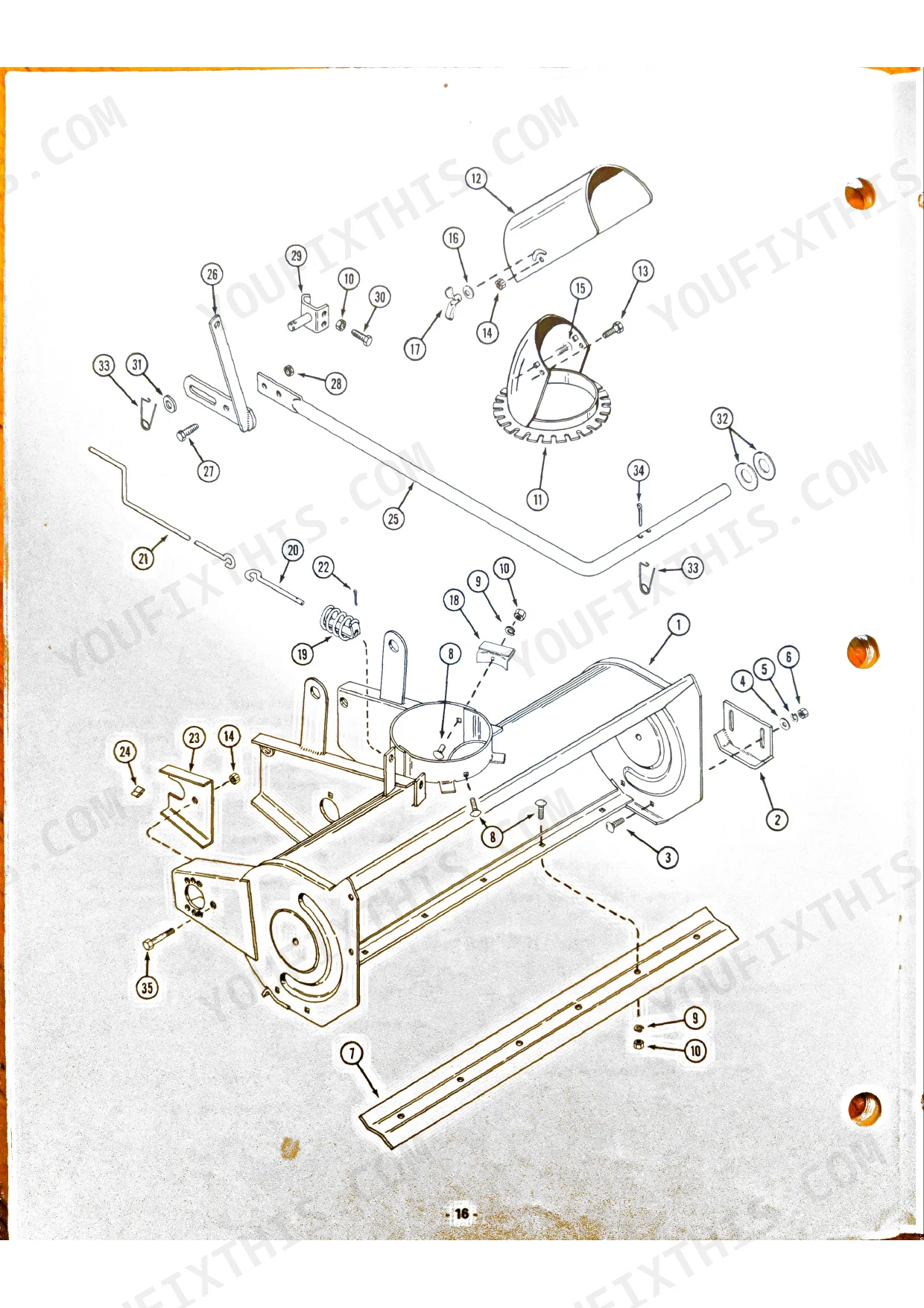

| Parts Assembly | - | Housing, Chute Control and Lift Assembly, Jack Shaft Assembly, Mounting Bracket, Coupling, Belt, Pulley and Idler, Decals and Accessories |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Drive chain slack (clearance) | 3/8'' (10 mm) and 1/2" (12 mm) | p. 10 |
| Auger drive chain (replacement value) | 75 pitches #40 roller chain | p. 19 |
| Drive Chain Slack | 3/8" (10 mm) to 1/2" (12 mm) | p. 10 |

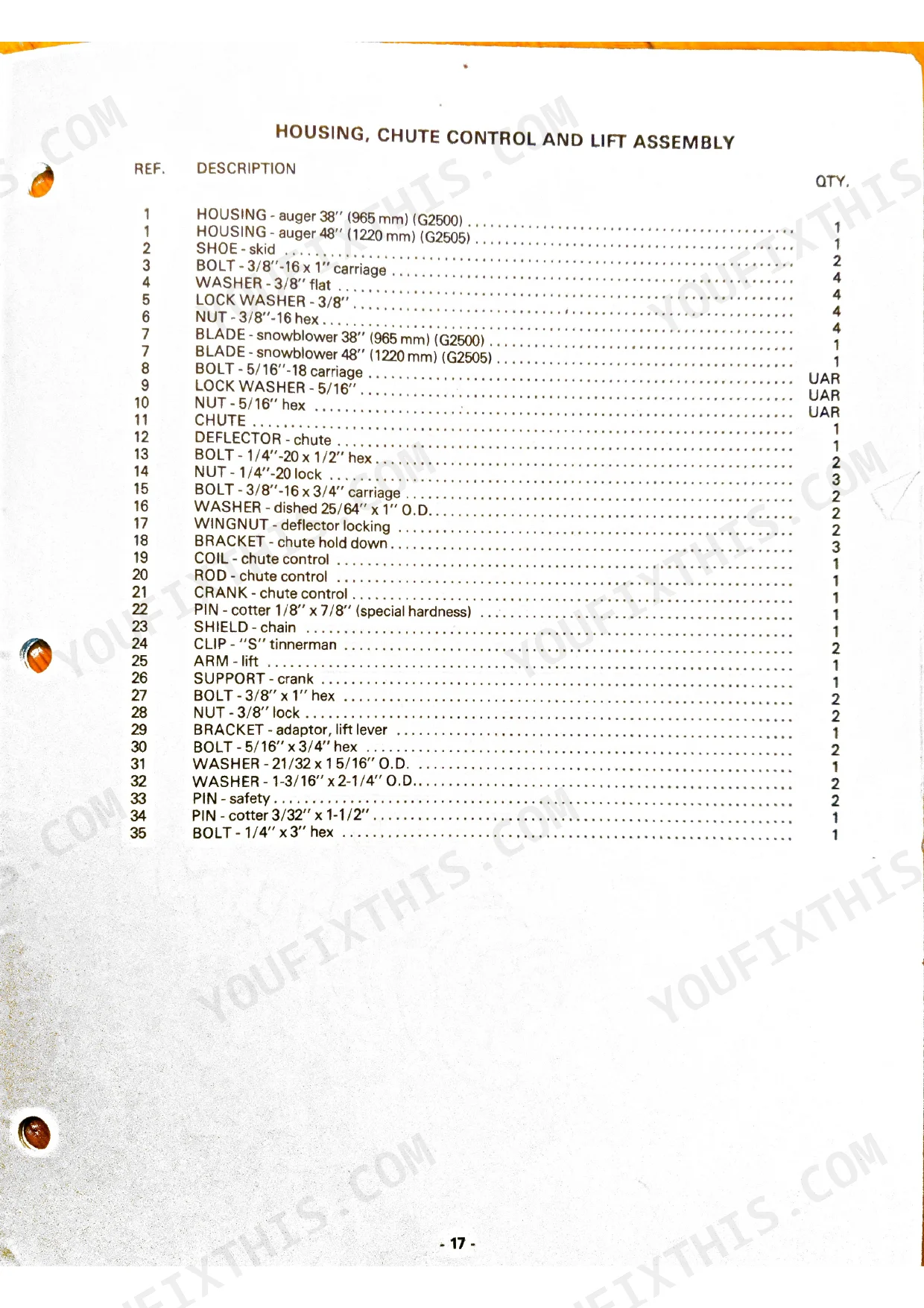

| Housing Bolt Size (Ref 3) | 3/8"-16 x 1" | p. 17 |
| Housing Nut Size (Ref 6) | 3/8"-16 hex | p. 17 |
| Chute Deflector Bolt Size (Ref 13) | 1/4"-20 x 1/2" hex | p. 17 |
| Cotter Pin Size (Ref 22) | 1/8" x 7/8" | p. 17 |
| Jack Shaft Pulley O.D. (Ref 8) | 4" (102 mm) | p. 19 |
| Jack Shaft Chain (Ref 11) | 75 pitches #40 roller chain | p. 19 |
| Mounting Bracket Bolt Size (Ref 8) | 1/2" x 2" | p. 21 |
| G2500 | ||

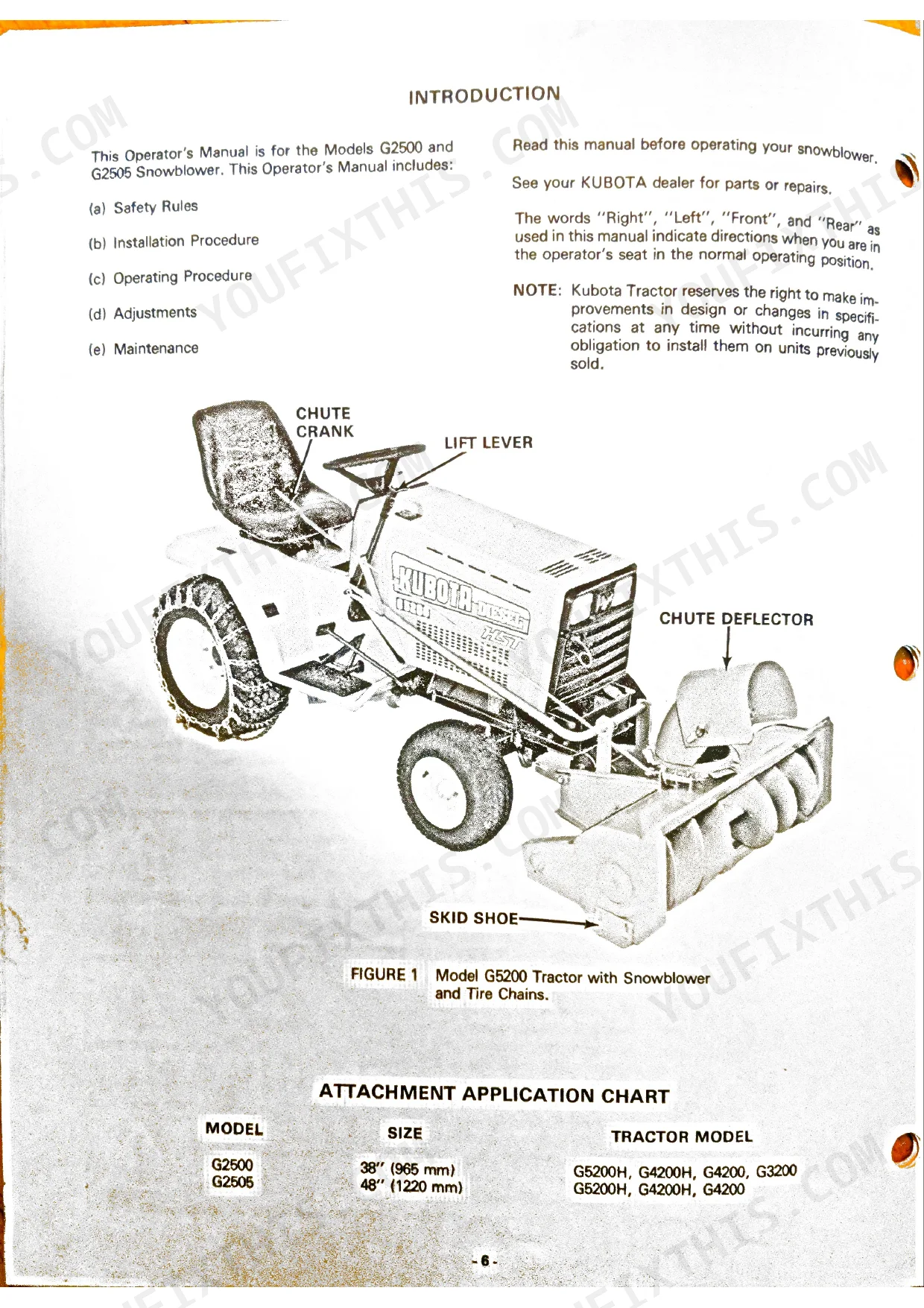

| G2500 Snowblower Size | 38" (965 mm) | p. 6 |
| G2505 | ||
| G2505 Snowblower Size | 48" (1220 mm) | p. 6 |
