Part of the Kubota Operator Manuals.
This is the factory Kubota Operator Manual for the D905-E, D1005-E, D1105-E, D1105-TE, V1205-E, V1205-TE, V1305-E, V1505-E, and V1505-TE diesel engines. These are the compact Kubota diesel powerplants fitted to generators, compact tractors, and industrial equipment across the range.The 38 page manual walks an owner through safe operation, daily pre-start checks, starting and stopping in normal and cold weather, and the full periodic service schedule: fuel system cleaning and bleeding, engine oil and filter changes, radiator and coolant care, and air cleaner service. A troubleshooting section and full specifications close it out.With this PDF you can set correct service intervals, bleed the fuel system, adjust fan belt tension, and confirm injection pressure and timing for your exact model before you turn a wrench.
What's Inside This Kubota 05-Series Diesel Engines Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | - | Observe Safety Instructions, Wear Safe Clothing and Personal Protective Equipment, Check Before Starting & Operating the Engine, Keep the Engine and Surroundings Clean |
| Servicing of the Engine | - | - |
| Names of Parts | - | - |
| Pre-Operation Check | - | Break-In |
| Operating the Engine | - | Starting the Engine, Cold Weather Starting, Stopping the Engine |
| Maintenance | - | Service Intervals |
| Periodic Service | - | Fuel (Level Check and Refueling, Air Bleeding the Fuel System, Check of Fuel Pipes and Clamp Bands, Cleaning of Fuel Filter, Filter Cartridge) |
| Carriage and Storage | - | Carriage |
| Troubleshooting | - | - |
| Specifications | - | - |
| Wiring Diagrams | - | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

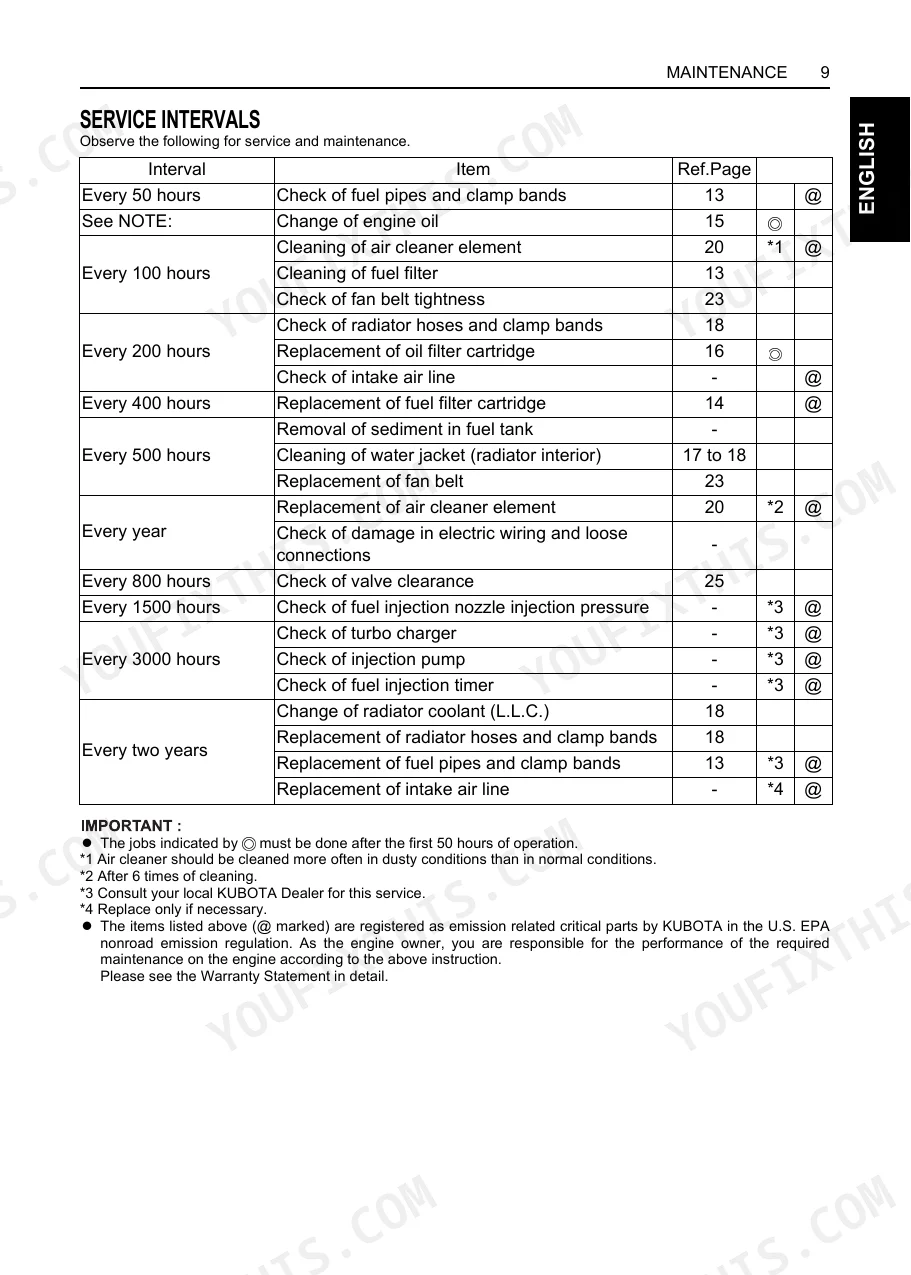

| Engine oil filter cartridge replacement interval | initial 50 hours of operation and every 200 hours thereafter | p. 27 |
| Fuel filter cartridge replacement interval | every 400 operating hours | p. 25 |
| Air filter element replacement interval | every year or every 6 cleanings | p. 31 |
| Air filter element cleaning compressed air pressure | under 205kPa (2.1kgf/cm², 30psi) | p. 31 |
| Radiator hoses and clamp bands check interval | every 200 hours of operation or 6 months, whichever comes first | p. 29 |
| Radiator hoses and clamp bands replacement interval | every 2 years | p. 29 |
| Injection pressure | 13.73 MPa (140 kgf/cm², 1991 psi) | p. 36 |
| Injection pump check interval | 3000 hours | p. 20 |
| Fuel injection timer check interval | 3000 hours | p. 20 |
| Engine Oil Change Interval (Initial) | 50 hours | p. 20 |
| Engine Oil Change Interval (Regular, oil pan depth > 125mm) | 200 hours | p. 21 |
| Engine Oil Change Interval (Regular, oil pan depth < 101mm) | 150 hours | p. 21 |
Kubota 05-Series Diesel Engines Common Problems This Manual Covers
Hard starting or stalling
These engines hard-start, fire and die, or refuse to restart after sitting when the fuel filter clogs, the system draws air, or fuel is contaminated. The periodic service routine covers cleaning the fuel filter, bleeding the fuel system, and checking fuel pipes and clamp bands.
Manual Section: Periodic Service p. 22Low oil pressure warning stays on
If the oil pressure lamp does not go out after you raise engine speed, stop and check the oil level immediately. The manual explains the warning lamps and the checks to run during operation before serious damage occurs.
Manual Section: Operating the Engine p. 15Overheating and coolant loss
Low coolant, a weak radiator cap, or a debris-clogged core cause these engines to run hot and lose coolant. Periodic radiator service, coolant changes, and hose and clamp inspection are covered in the maintenance schedule.
Manual Section: Periodic Service p. 22Black smoke and power loss

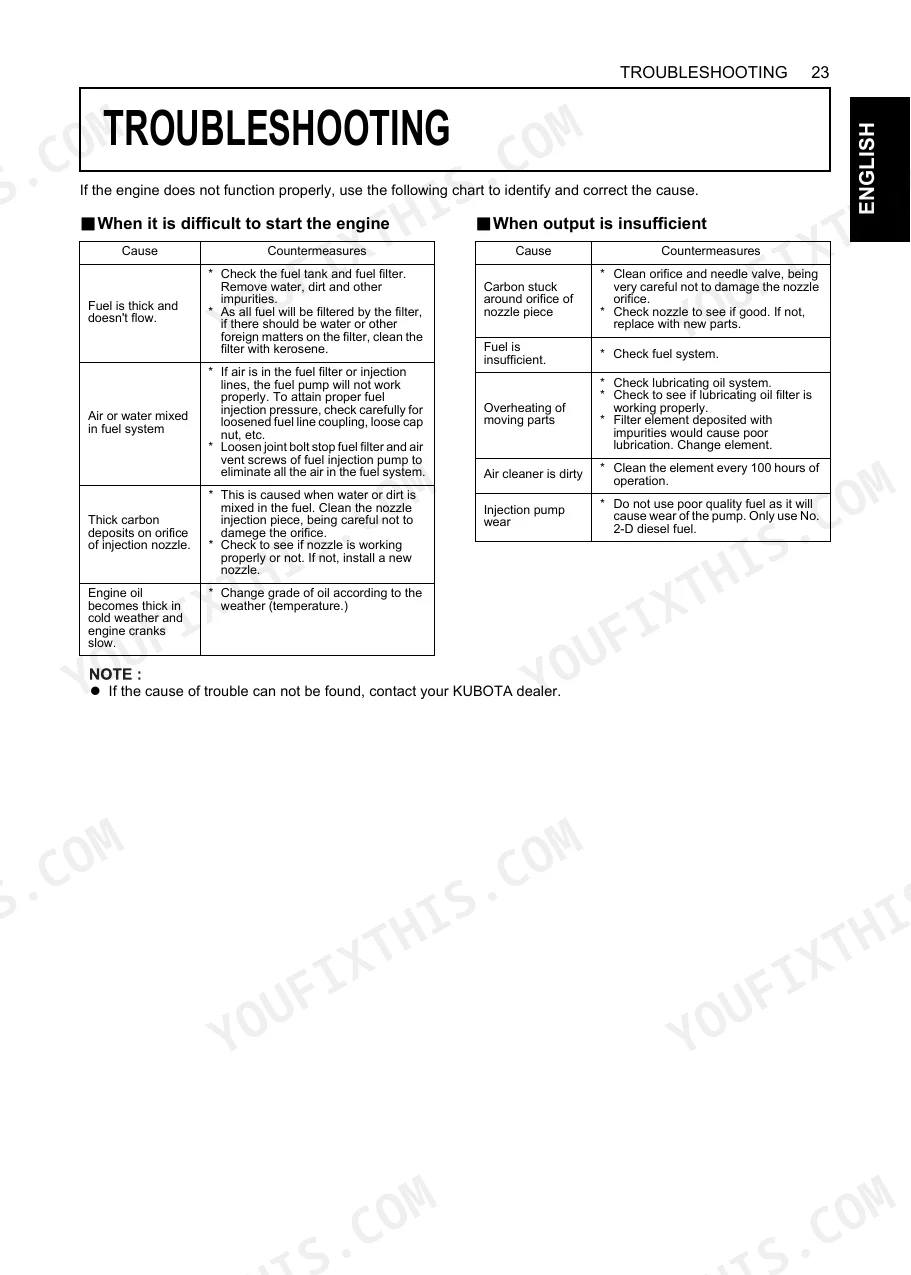

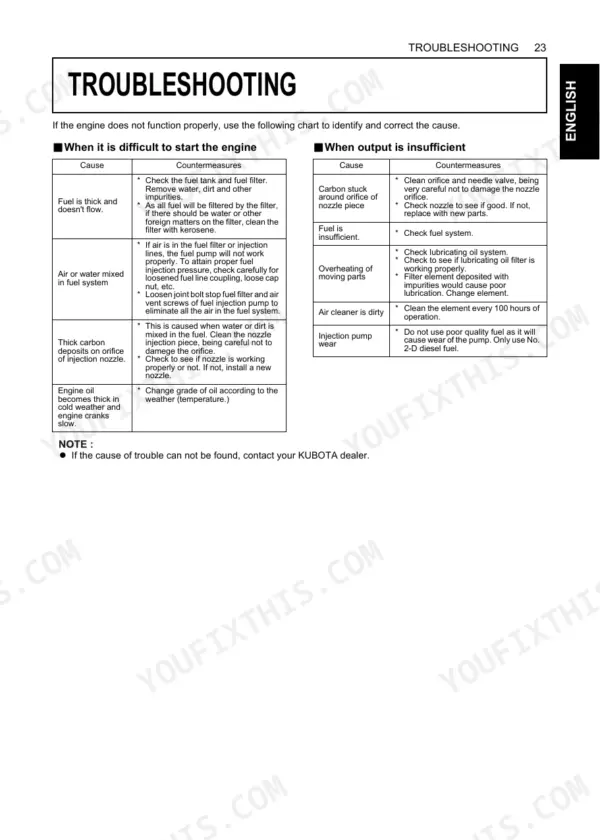

A restricted air cleaner, tired injectors, or an injection-pump fault show up as black exhaust, rough running, and lost power. The troubleshooting section maps these symptoms to their likely causes.
Manual Section: Troubleshooting p. 34Engine runs backward

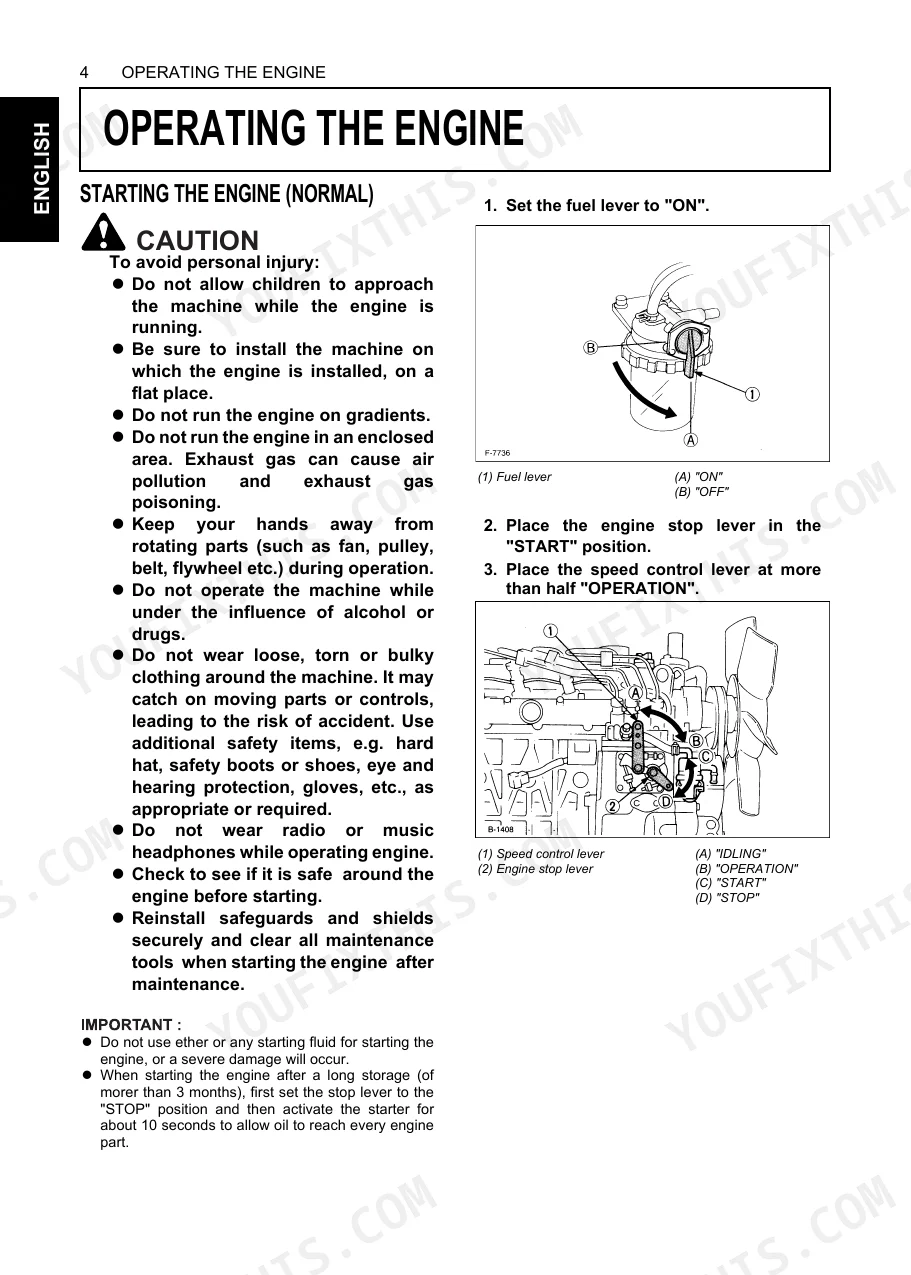

Kubota diesels can occasionally start and run in reverse rotation, pushing exhaust from the intake. The operating section explains how to recognize this condition and the correct remedy.
Manual Section: Operating the Engine p. 15Loose or squealing fan belt
A slack fan belt slips, cuts charging output, and lets the engine overheat. Periodic service gives the deflection you should set the belt to and how to adjust it.
Manual Section: Periodic Service p. 22Frequently Asked Questions
Which engines does this manual cover?
It covers nine Kubota diesel engines: the D905-E, D1005-E, D1105-E, D1105-TE, V1205-E, V1205-TE, V1305-E, V1505-E, and V1505-TE. Operation and service steps apply across all of them, with model-specific values called out where they differ.
Is this a repair manual or an operator manual?
It is the operator manual. It covers safe operation, daily checks, starting and stopping, the periodic service schedule, troubleshooting, and specifications. It is not a full teardown workshop manual, but it carries the maintenance and adjustment data an owner needs.
What are the engine oil change intervals?
The Maintenance section lists an initial oil change at 50 hours, then regular changes at 150 or 200 hours depending on oil pan depth. Capacities are 5.1 L for the D-series and 6.0 L for the V-series engines. p. 19
Where do I find injection pressure and timing?

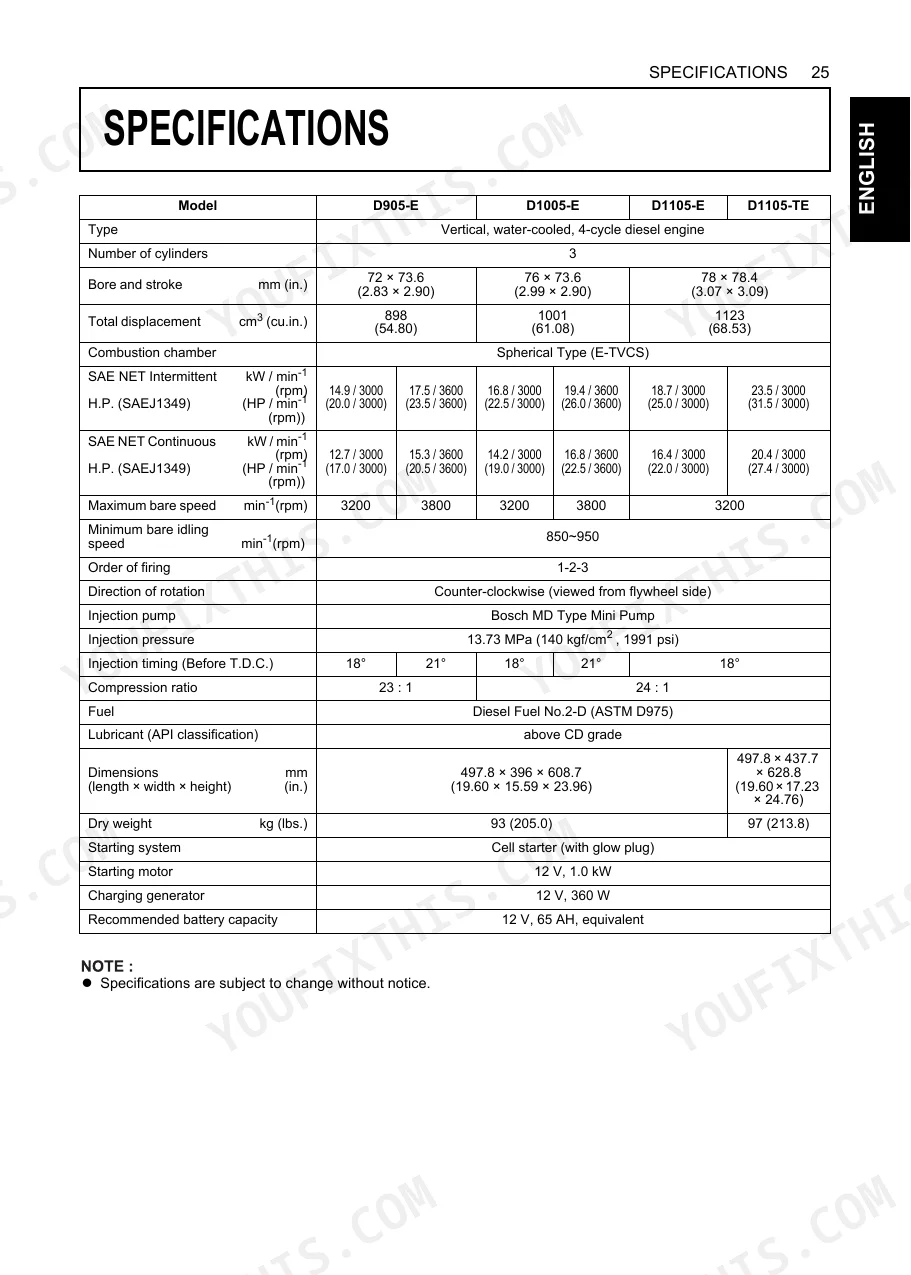

The Specifications section gives an injection pressure of 13.73 MPa for all models and injection timing before top dead center per engine, ranging from 18 to 22 degrees depending on your model. p. 36
What do I get after purchasing this Kubota D905-E & variants manual?
Checkout delivers a 38-page searchable PDF, ready to download right away. Open it on a laptop, tablet, or phone and bring it straight to the shop floor.
Can I print specific sections of this Kubota D905-E & variants Operator Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Can I find wiring schematics in this Kubota D905-E & variants manual?

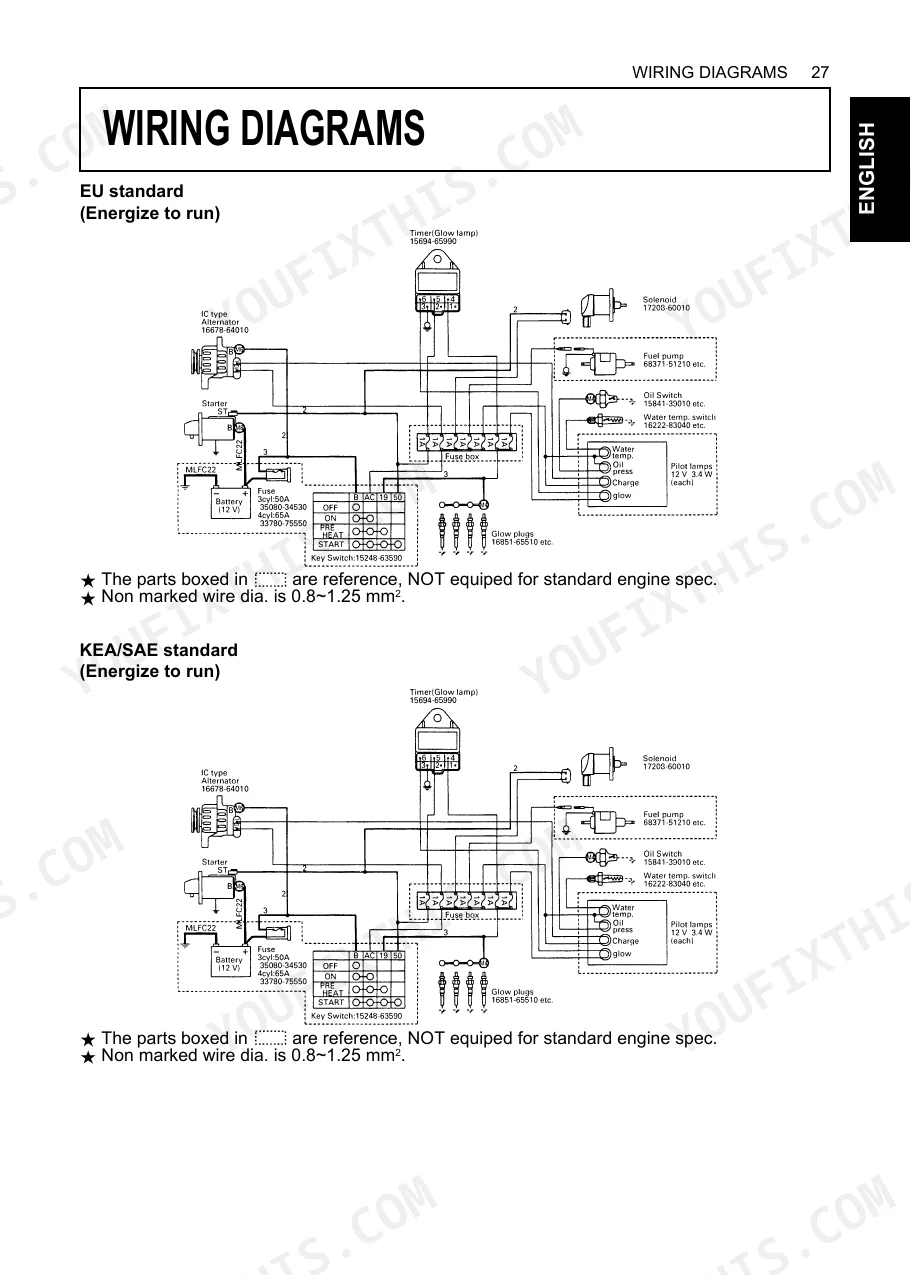

Yes. The manual includes an engine wiring diagram on page 38 for the D905-E and its variants, showing the engine harness layout. It is an operator-level diagram rather than full workshop electrical schematics.
