This is the operator manual for the Kubota B2320, B2620, and B2920 compact tractors, including the B2320NARROW, B2320DTN-1, B2320DT, B2320HSDN, B2320HSD, B2620HSD, and B2920HSD variants. It runs 88 pages and covers the D1005, D1105, and D1305 three-cylinder diesel engines used across the range.Inside you get the daily operating procedures, control layout, engine starting and stopping steps, PTO and 3-point hitch use, hydraulic settings, and the periodic service schedule. The specification tables list fuel and coolant capacities, engine ratings, and adjustment figures such as fan belt tension and clutch pedal free travel.If you own or service one of these B-series tractors, this manual gives you the factory reference for correct operation, routine maintenance intervals, and basic troubleshooting, delivered as a searchable PDF you can keep on any device.
What's Inside This Kubota B2320–B2920 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Universal Symbols | - | Safety Alert Symbol, Diesel Fuel, Fuel-Level, Engine-Rotation Speed, Hourmeter/Elapsed Operating Hours, Engine Coolant-Temperature, Parking Brake, Battery Charging Condition |
| Safe Operation | - | Before Operating the Tractor, Operating the Tractor (Starting, Working, Safety for Children), Parking the Tractor, Operating the PTO, Using 3-Point Hitch, Servicing the Tractor |
| Servicing of Tractor | - | Tractor Identification Plate, Tractor Serial Number, Engine Serial Number, ROPS Identification Plate, ROPS Serial No. |

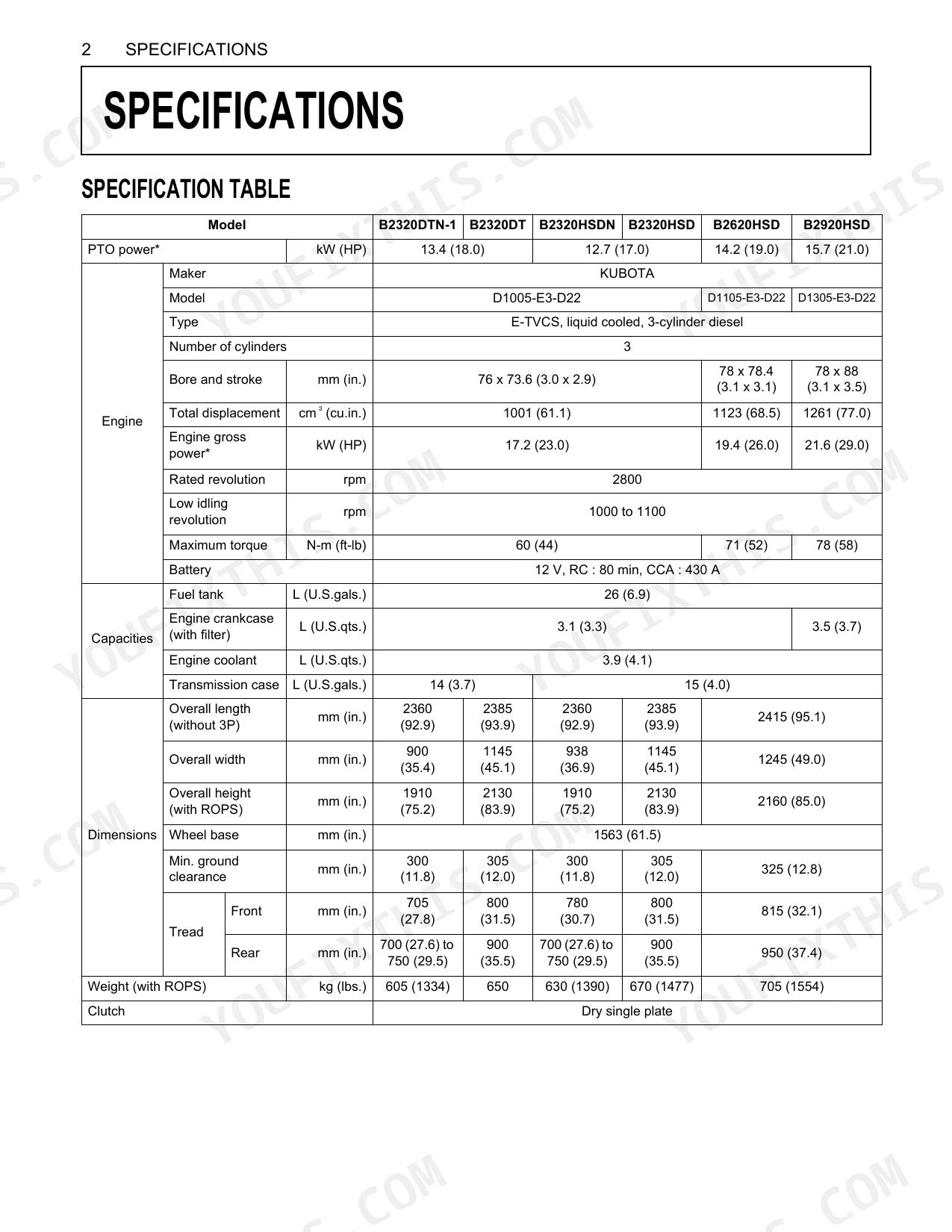

| Specifications | - | Specification Table, Traveling Speeds |
| Implement Limitations | - | Tread with Farm Tires, Lower Link End Max. Loading Weight, Actual Figures (Implement Weight W1 and / or Size, Max. Drawbar Load W2, Trailer Loading Weight W3, Max. Capacity) |

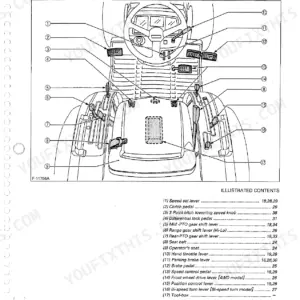

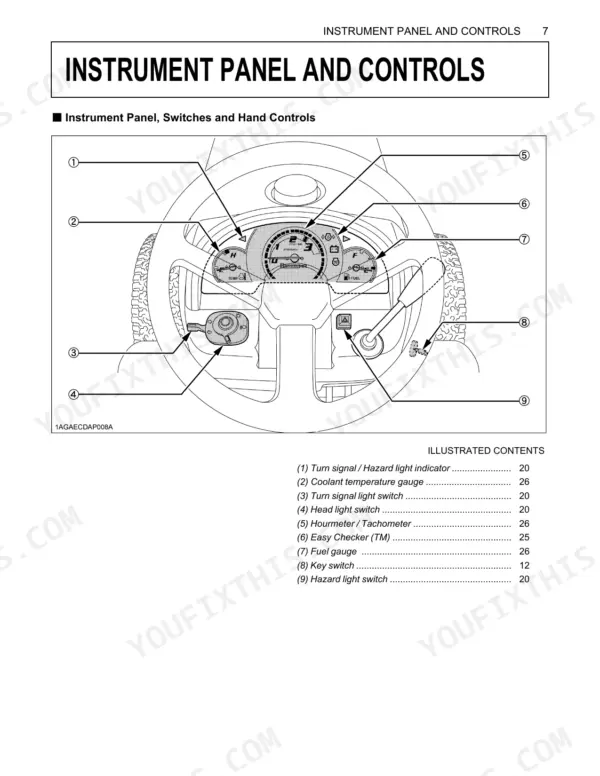

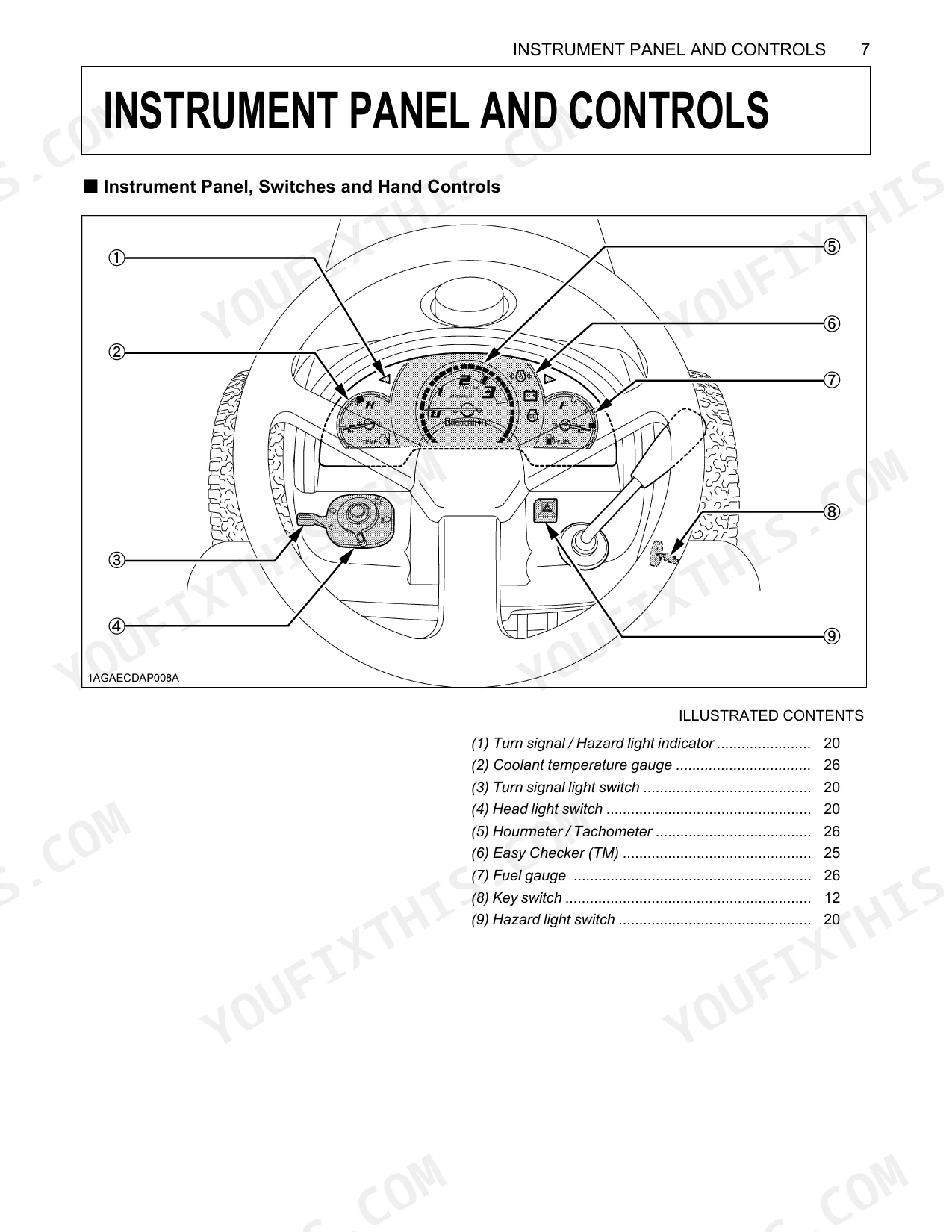

| Instrument Panel and Controls | - | Instrument Panel, Switches and Hand Controls, Foot and Hand Controls [HST Type], Foot and Hand Controls [Manual Transmission Type], Pedal Location Label |

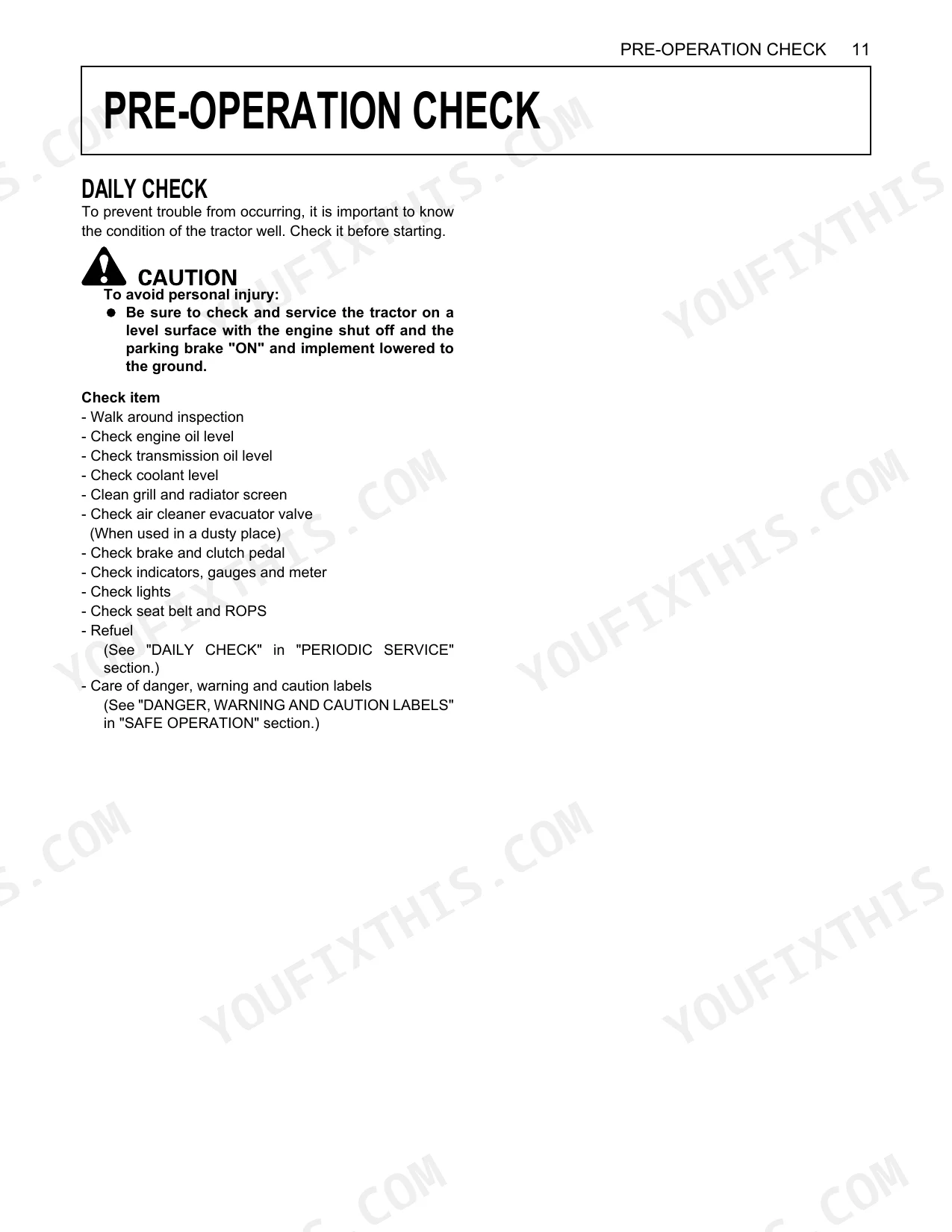

| Pre-Operation Check | - | Daily Check |
| Operating the Engine | - | Starting the Engine, Block Heater, Stopping the Engine, Warming Up, Warm-Up Transmission Oil at Low Ambient Temperatures, Jump Starting |
| Operating the Tractor | - | Operating New Tractor, Operating Foldable ROPS, Starting, Stopping, Check During Driving, Parking, Operating Techniques |

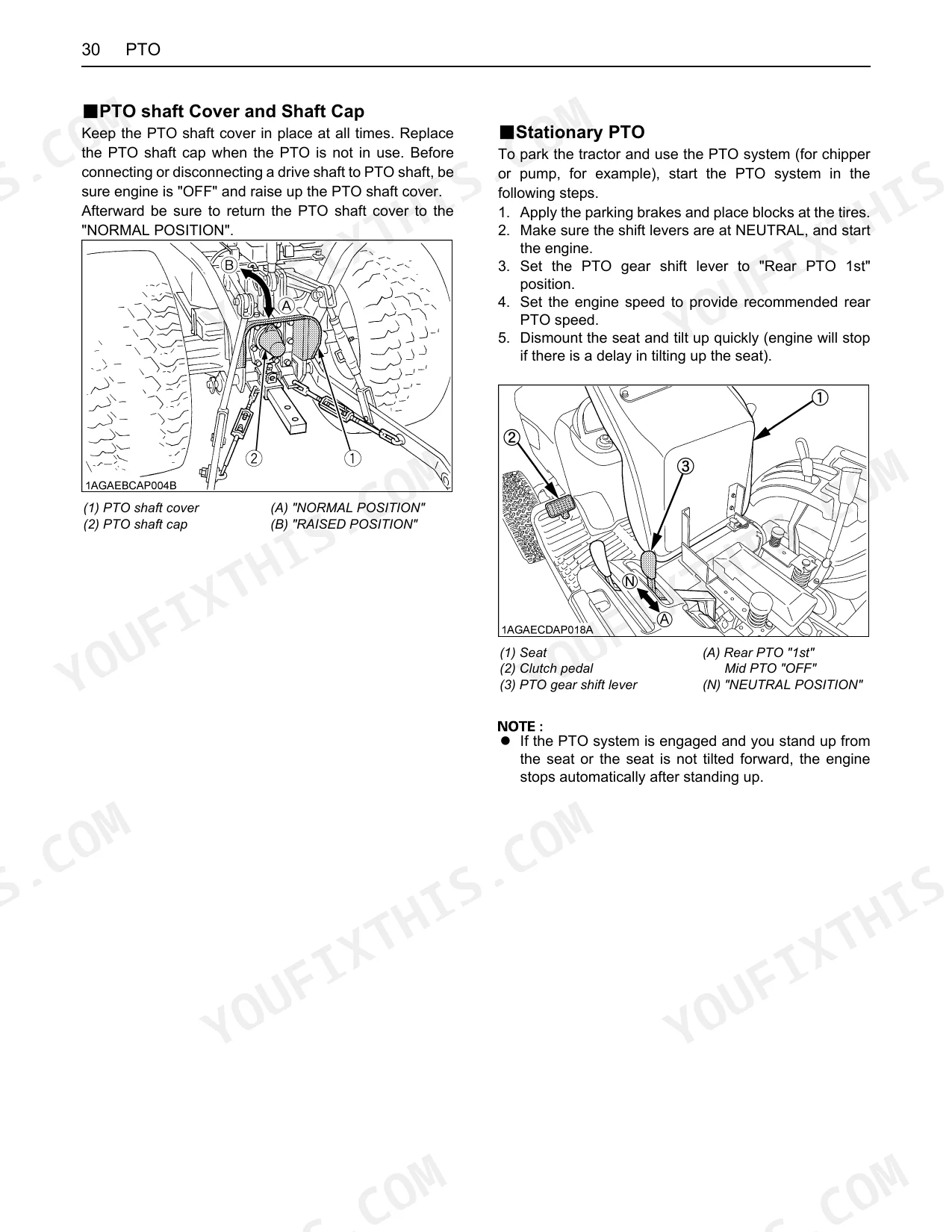

| PTO | - | PTO Operation, PTO Gear Shift Lever, Rear PTO Speed, Mid PTO [Except B2320DTN], PTO Shaft Cover and Shaft Cap, Stationary PTO |
| Three-Point Hitch & Drawbar | - | 3-Point Hitch, Selecting the Holes of Lifting Rods and Lower Links, Selecting the Top Link Mounting Holes, Drawbar, Lifting Rod, Top Link, Check Chains, Drawbar Length |
| Hydraulic Unit | - | 3-Point Hitch Control System, Hydraulic Control, Position Control, Implement Lowering Limit, 3-Point Hitch Lowering Speed, Auxiliary Hydraulics, Hydraulic Block Type Outlet |

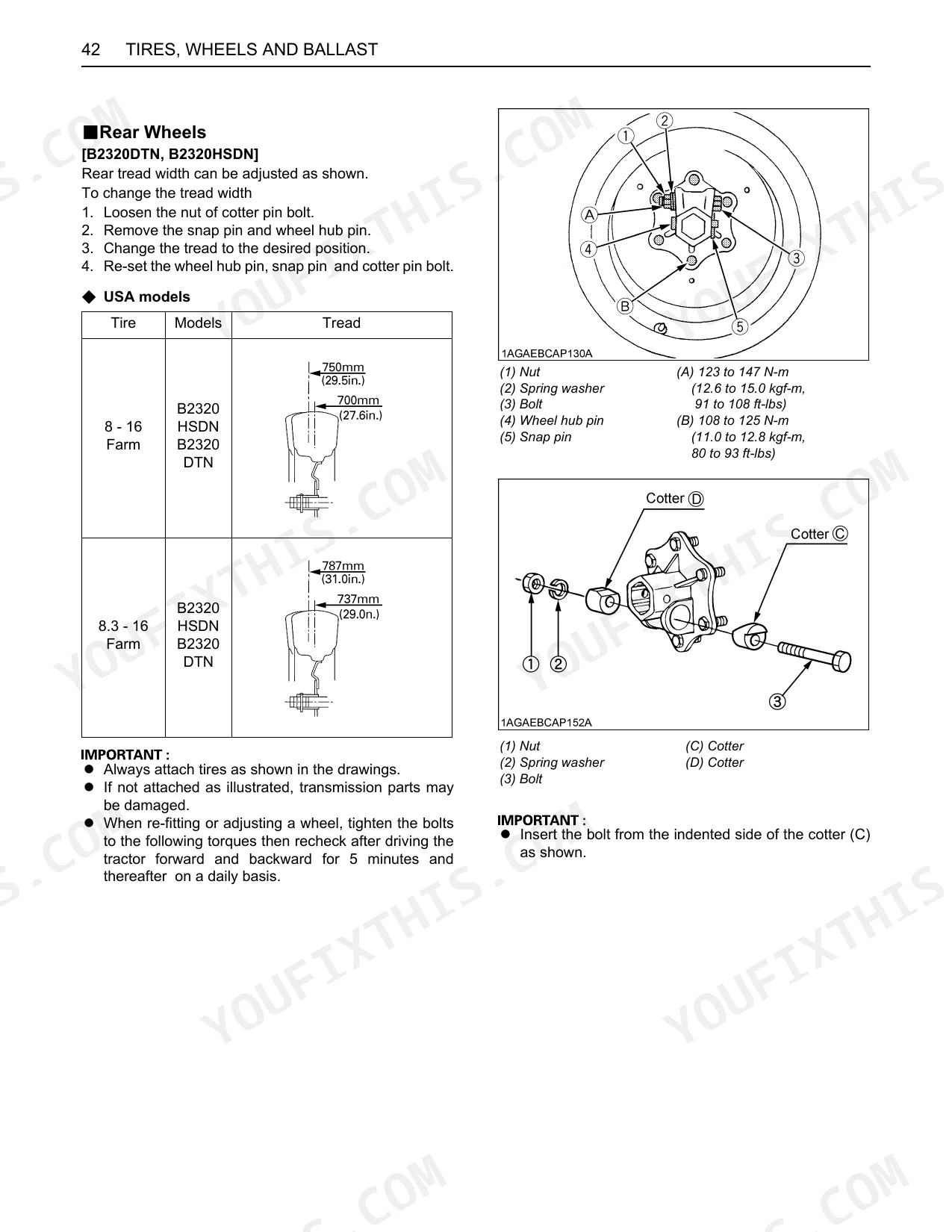

| Tires, Wheels and Ballast | - | Tires, Inflation Pressure, Dual Tires, Wheel Adjustment, Front Wheels, Rear Wheels, Ballast, Front Ballast |
| Maintenance | - | Service Intervals, Lubricants, Fuel and Coolant |
| Periodic Service | - | How to Open the Hood, Hood, Front Grille, Engine Side Cover, Daily Check, Walk Around Inspection, Checking and Refueling, Checking Engine Oil Level |
| Storage | - | Tractor Storage, Removing the Tractor From Storage |
| Troubleshooting | - | Engine Troubleshooting, If Something Is Wrong with the Engine, Refer to the Table Below for the Cause an, If You Have Any Questions, Consult Your Local Kubota Dealer. |
| Options | - | Rear Work Light, Front End Weights, Mounting Kit, Engine Block Heater |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front wheel lug nut torque (1) | 79 to 92 N-m (8.1 to 9.4 kgf-m, 58.3 to 67.9 ft-lbs) | p. 56 |
| Front wheel lug nut torque (2) | 145 to 150 N-m (14.8 to 15.3 kgf-m, 107.0 to 110.6 ft-lbs) | p. 56 |
| Battery Voltage | 12 V | p. 18 |
| Battery RC | 80 min | p. 18 |
| Fan belt tension (deflection) | 7 to 9 mm (0.28 to 0.35 in.) | p. 59 |
| Fan belt replacement interval | every 2 years | p. 62 |
| Primary air cleaner element replacement interval | Once yearly or after every sixth cleaning, whichever comes first | p. 58 |
| Primary air cleaner element replacement interval (service intervals table) | every 1 year | p. 62 |
| Proper brake pedal free travel | 30 to 40 mm (1-3/16 to 1-19/32 in.) | p. 60 |
| Number of cylinders | 3 | p. 18 |
| Rated engine revolution | 2800 rpm | p. 18 |
| Fuel tank capacity | 26 L (6.9 U.S.gals.) | p. 18 |
Kubota B2320–B2920 Series Common Problems This Manual Covers
Engine will not start
A no-start, especially after a seat, clutch, PTO, or brake check, is a common complaint on these B-series tractors. The troubleshooting table walks through likely causes when the starter will not engage or the engine cranks but does not fire.
Manual Section: Troubleshooting p. 87Tractor creeps in neutral
Owners report the HST speed control pedal not returning smoothly to neutral, leaving the tractor to creep. This section covers correct pedal operation and driving technique so you can spot a sticking linkage or weak return.
Manual Section: Operating the Tractor p. 333-point hitch drifts down
A raised implement that slowly settles or holds load weakly points to the hydraulic lift circuit. The hydraulic unit section explains the 3-point hitch control system, position control, and lowering speed adjustment.
Manual Section: Hydraulic Unit p. 50Weak charging or dead battery
Inconsistent charging or weak electrical accessories often trace back to a loose belt or charging fault. The periodic service section covers the walk-around checks, including belt and battery condition, that catch this early.
Manual Section: Periodic Service p. 65Overheating under load
Rising coolant temperature during work usually comes from low fluid levels or a clogged radiator screen. The maintenance section lists service intervals and the lubricant, fuel, and coolant checks that keep cooling in spec.
Manual Section: Maintenance p. 62Loose wheel hardware or soft tires
Incorrect tire pressure or under-torqued lug nuts show up as poor traction and vibration. This section gives inflation pressures, wheel adjustment steps, and ballast guidance for the front and rear wheels.
Manual Section: Tires, Wheels and Ballast p. 56Frequently Asked Questions
Which tractors does this manual cover?
It covers the Kubota B2320, B2620, and B2920 compact tractors, including the B2320NARROW, B2320DTN-1, B2320DT, B2320HSDN, B2320HSD, B2620HSD, and B2920HSD variants, both HST and manual transmission types.
Does it list the wheel lug nut torque?
Yes. The Tires, Wheels and Ballast section gives the front wheel lug nut torque of 79 to 92 N-m (58.3 to 67.9 ft-lbs) along with inflation pressures and wheel adjustment steps. p. 56
What engine is in these tractors?
The range uses the Kubota D1005, D1105, and D1305 three-cylinder diesel engines. The Specifications section lists the engine ratings, including 2800 rpm rated speed and fuel and coolant capacities. p. 18
How do I get the file after purchase?
The manual is delivered as an instant PDF download after checkout, so you can save it to your device and keep a copy for reference.
Is this Kubota B2320/B2620/B2920 Operator Manual a digital download?
Instant PDF download. You receive the full 88-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
