This is the factory operator's manual for the Kubota B2410 compact tractor, delivered as a 78-page PDF download. It covers the D1105-E-D16 diesel engine and the setup and daily use of this model.Inside is the full owner reference: safe operation, tractor identification, the specification table, implement limitations, the instrument panel and controls, starting and running the engine, PTO and 3-point hitch use, the hydraulic unit, tire and ballast settings, and the maintenance and periodic service schedules. A troubleshooting chart and an options list are included at the back.Use it to run the B2410 correctly, set the right service intervals, look up capacities and torque values, and work through common starting, fuel, or hydraulic complaints before they become larger repairs.
What's Inside This Kubota B2410 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Universal Symbols | - | Safety Alert Symbol, Diesel Fuel, Fuel-Level, Engine-Rotational Speed, Hourmeter/Elapsed Operating Hours, Engine Coolant-Temperature, Parking Brake, Battery Charging Condition |
| Safe Operation | - | Before Operating the Tractor, Operating the Tractor, Driving the Tractor on the Road, Parking the Tractor, Operating the PTO, Using 3-Point Hitch, Servicing the Tractor, Danger |
| Servicing of Tractor | - | Tractor Identification Plate, Tractor Serial Number, Engine Serial Number, Type, Serial No, Date of Purchase, Name of Dealer |
| Specifications | - | Specification Table, PTO Power, Maker, Model, Type, Number of Cylinders, Bore and Stroke, Total Displacement |

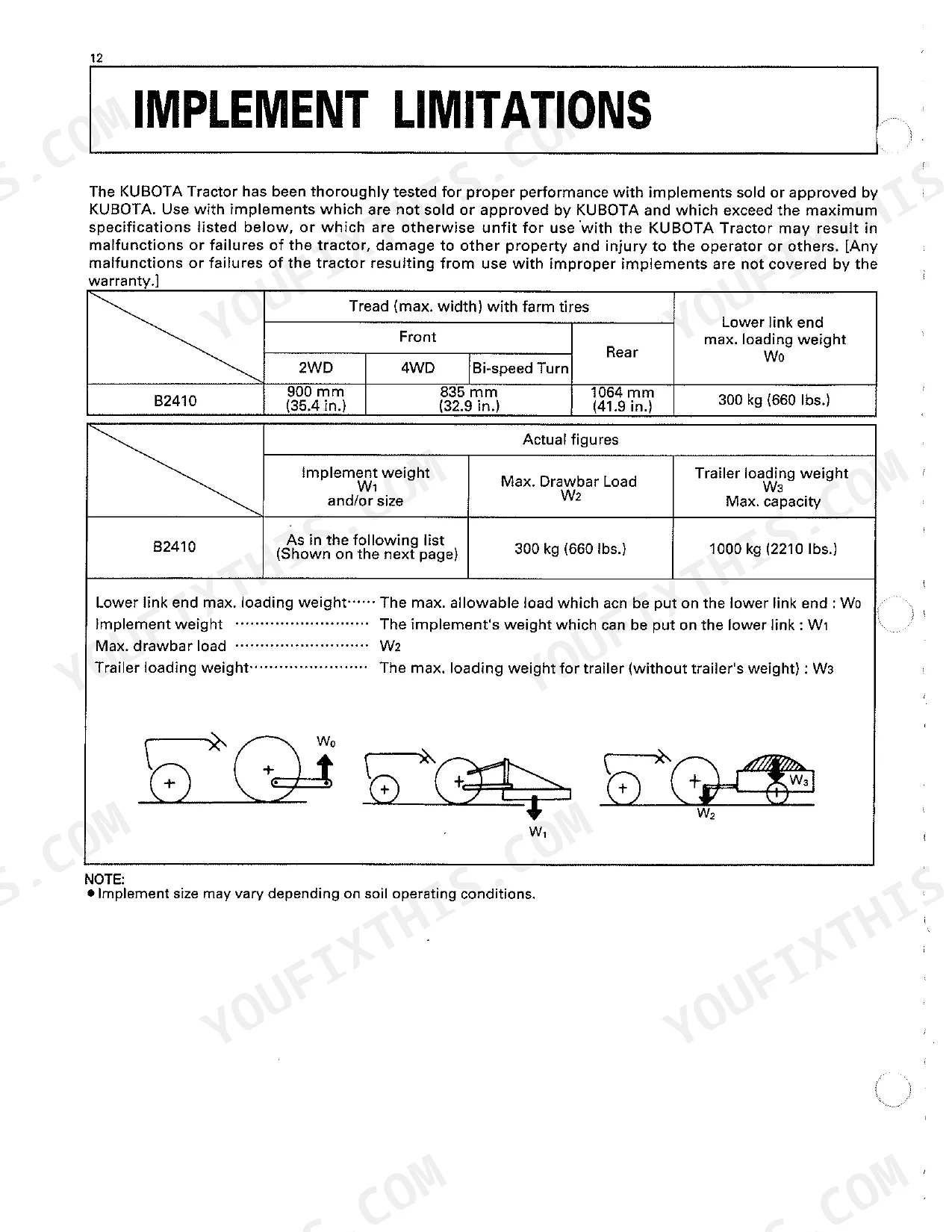

| Implement Limitations | - | Tread with Farm Tires, Actual Figures, Lower Link End Max. Loading Weight, Implement Weight, Max. Drawbar Load, Trailer Loading Weight, Implement |

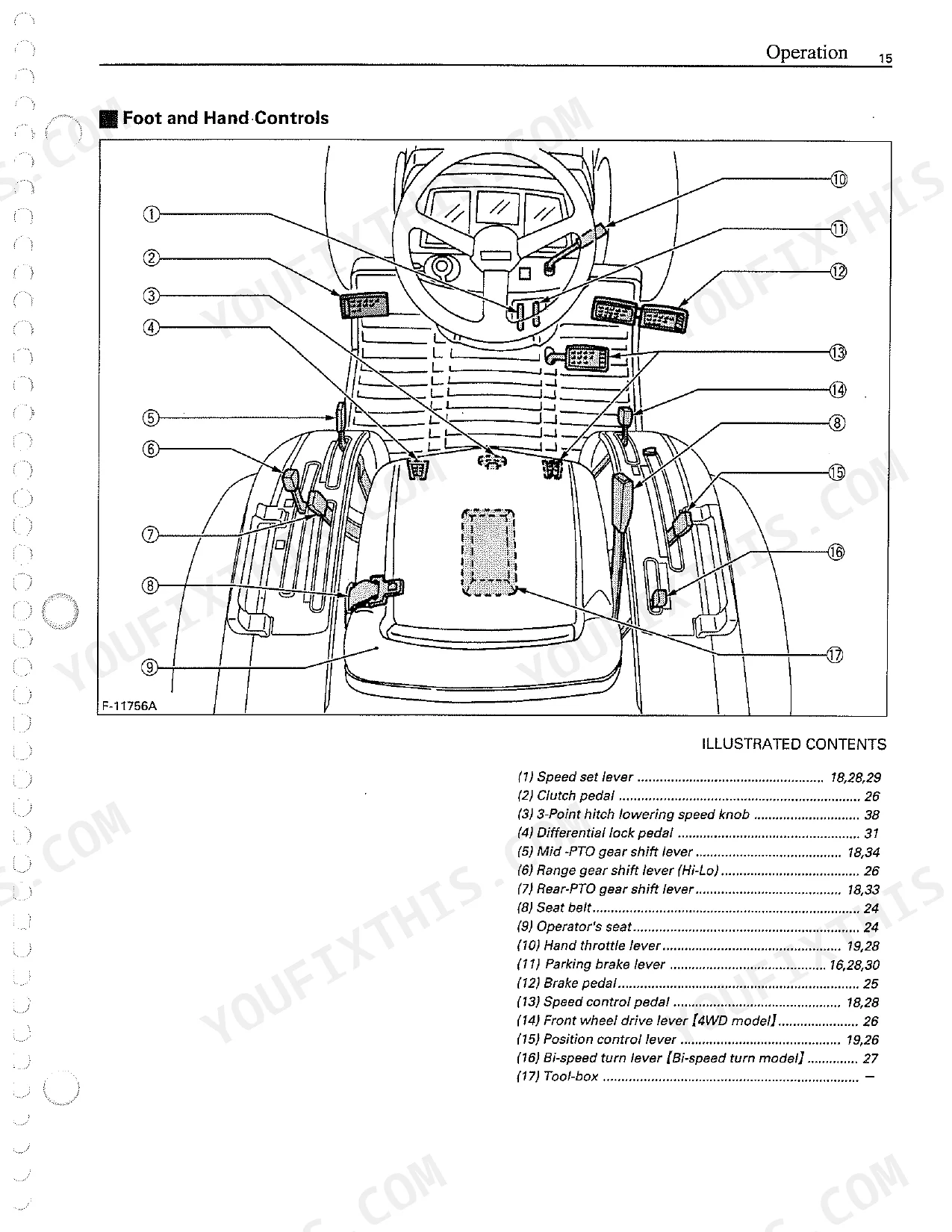

| Instrument Panel and Controls | - | Instrument Panel |

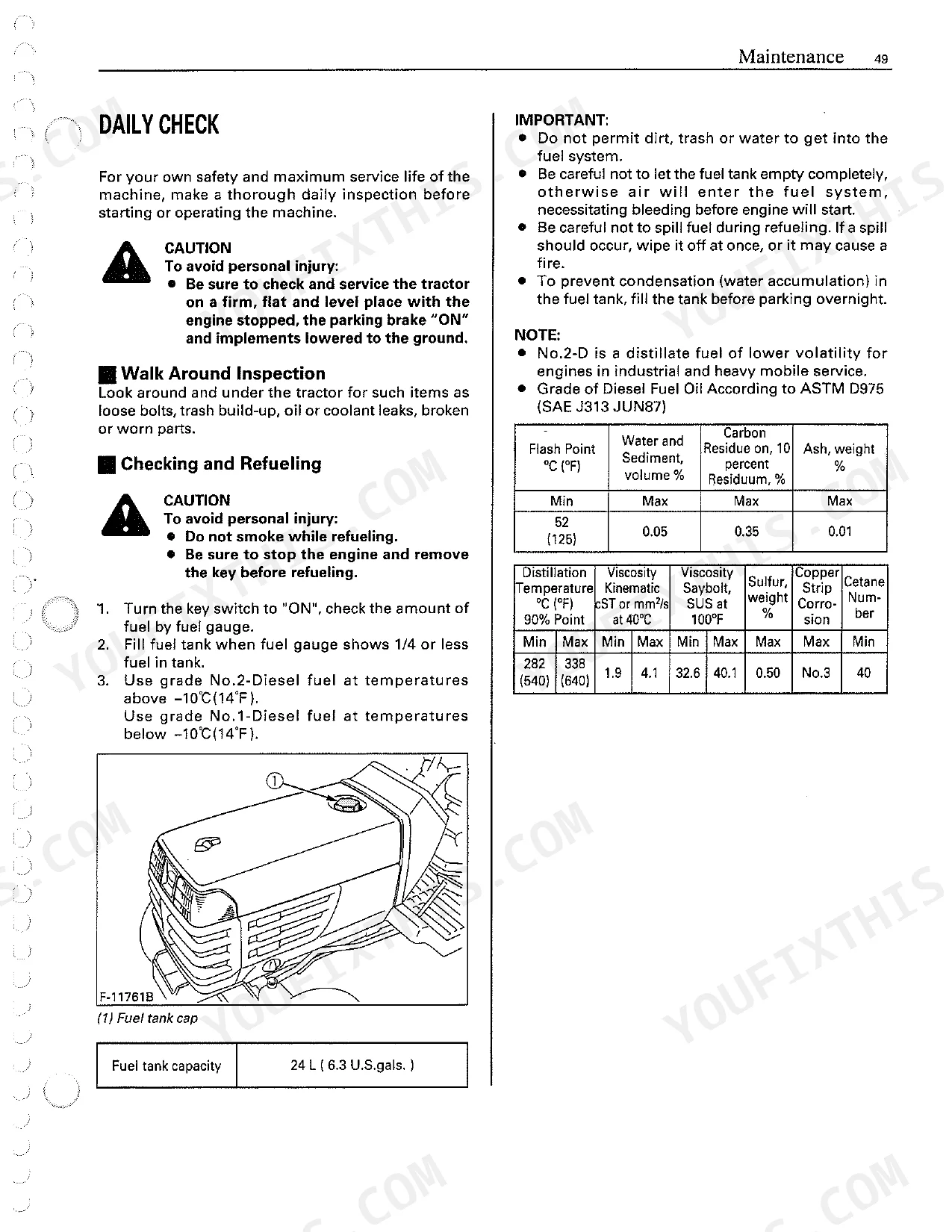

| Pre-Operation Check | - | Daily Check |

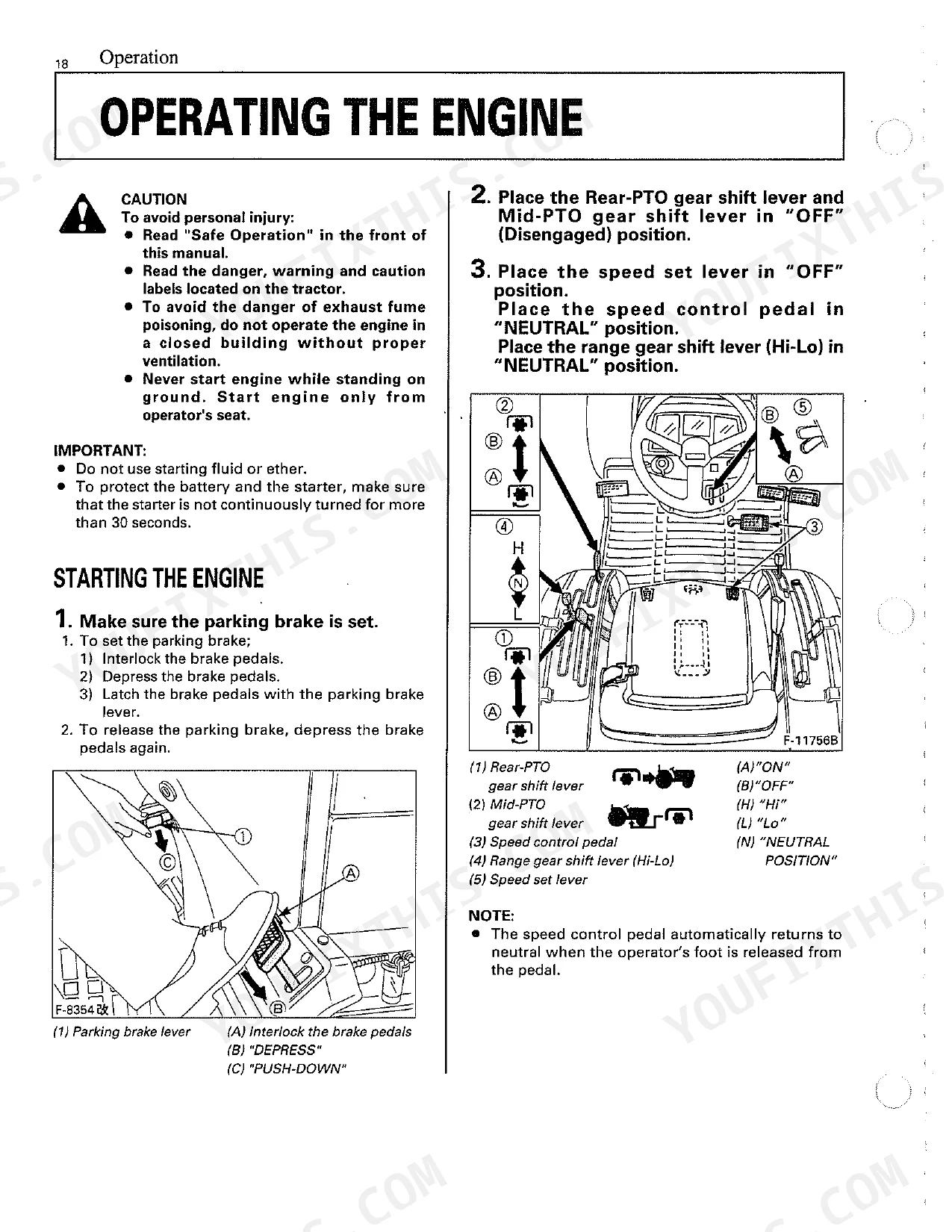

| Operating the Engine | - | Starting the Engine, Stopping the Engine, Warming Up, Jump Starting |
| Operating the Tractor | - | Operating New Tractor (Do Not Operate the Tractor at Full Speed for the First 50 Hours, Changing Lubricating Oil for New Tractors) |
| PTO | - | PTO Operation, Rear-PTO Gear Shift Lever, Mid-PTO Gear Shift Lever, PTO Shaft Cover and Shaft Cap |
| Three-Point Hitch & Drawbar | - | Top Link, Lifting Rod, Check Chains, Turnbuckle, Lower Link, Top Link Holder, Drawbar, 3-Point Hitch |
| Hydraulic Unit | - | 3-Point Hitch Control System (Position Control, 3-Point Hitch Lowering Speed), Auxiliary Hydraulics (Hydraulic Block Type Outlet), Mid Outlet, Rear Outlet |
| Tires, Wheels and Ballast | - | Tires (Inflation Pressure), Wheel Adjustment (Front Wheels, Rear Wheels), Ballast (Front Ballast, Front End Weights, Liquid Ballast in Rear Tires) |
| Maintenance | - | Service Intervals, Items, Period, Indication on Hour Meter, Since Then, Reference Page, Lubricants, Locations |
| Periodic Service | - | How to Open the Hood (Engine Side Cover and Front Grill) |
| Storage | - | Tractor Storage, Removing the Tractor From Storage |
| Troubleshooting | - | Engine Troubleshooting, Trouble, Cause, Countermeasure, Engine Is Difficult to Start or Won't Start, Insufficient Engine Power, Engine Stops Suddenly, Exhaust Fumes Are Colored |
| Options | - | Rear Work Light, Front End Weights, Mounting Kit, Engine Block Heater |
| Kubota Corporation | - | Since Its Inception in 1890, Kubota Corporation Has Grown to Rank As One of the Major Firms in Japan, To Achieve This Status |
| Back Cover | - | Kubota Tractor Corporation, Corporate Office, Western Division, Central Division, Northern Division, Southeast Division, Printed in Japan, Reprinted in U.S.A |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel bolt torque (Front) | 77 to 90 N·m (7.9 to 9.2 kgf-m, 57 to 67 ft-lbs.) | p. 55 |
| Wheel bolt torque (Rear, 1st range) | 123 to 147 N-m (12.6 to 15.0 kgf-m, 91 to 108 ft-lbs.) | p. 55 |
| Fuel line replacement interval | every 2 years | p. 52 |
| Radiator hose and clamp replacement interval | every 2 years | p. 52 |
| Transmission case capacity | 12.5 L (3.30 U.S.gals.) | p. 16 |
| Transmission fluid change interval | every 300 Hr | p. 52 |
| Fan belt tension deflection | 7 to 9 mm (1/4 to 3/8 in.) | p. 59 |
| Battery voltage | 12V | p. 16 |
| Battery Reserve Capacity (RC) | 79 min | p. 16 |
| Hydraulic pump capacity (3P) | 16.6 L/min (4.4 U.S.gals/min) | p. 16 |
| Hydraulic pump capacity (Power steering) | 9.8 L/min (2.6 U.S.gals/min) | p. 16 |
| Engine Gross Power | 17.9 kW (24.0 HP) | p. 16 |
Kubota B2410 Common Problems This Manual Covers
Starter will not crank
A B2410 where the starter does not engage, even after checking fuses and battery, is a reported no-start condition tied to the battery, a blown fuse, or the starter circuit. The troubleshooting section lists the difficult-to-start and won't-start causes and countermeasures.
Manual Section: Troubleshooting p. 75Fuel smell or leaking fuel line
Aging or cracked fuel hoses can leak onto a hot engine and create a fire risk, which is why fuel line inspection is stressed. The maintenance section sets the service intervals, including replacing the fuel line every 2 years.
Manual Section: Maintenance p. 52Weak or inconsistent hydraulic response
Weak, noisy, or inconsistent transmission and hydraulic response often traces to low or contaminated fluid or an incorrect fluid level. The hydraulic unit section covers the 3-point hitch control system and the auxiliary hydraulic outlets.
Manual Section: Hydraulic Unit p. 44Battery not charging or loose belt
A battery that keeps going dead can be a loose or incorrectly tensioned fan belt or a charging circuit issue. The periodic service section gives the fan belt tension deflection of 7 to 9 mm (1/4 to 3/8 in.) so the alternator drive stays correct.
Manual Section: Periodic Service p. 54Parking brake does not hold
A parking brake that will not hold securely is usually an adjustment issue or worn brake components. The periodic service section covers the checks and adjustments that keep the brake holding on slopes.
Manual Section: Periodic Service p. 54Underinflated rear tires
Soft tires reduce traction and stability and wear unevenly. The tires, wheels and ballast section lists inflation pressures, including 130 kPa (18 psi) for the 11.2-16 rear tire, along with wheel adjustment and ballast setup.
Manual Section: Tires, Wheels And Ballast p. 47Frequently Asked Questions
Which tractor does this manual cover?
It is the operator's manual for the Kubota B2410 compact tractor with the D1105-E-D16 diesel engine.
What is the wheel lug nut torque for the B2410?
The periodic service section specifies a front wheel bolt torque of 77 to 90 N·m (57 to 67 ft-lbs.) and a rear wheel bolt torque of 123 to 147 N-m in first range for this model. p. 54
How often should I change the oil and fluids?

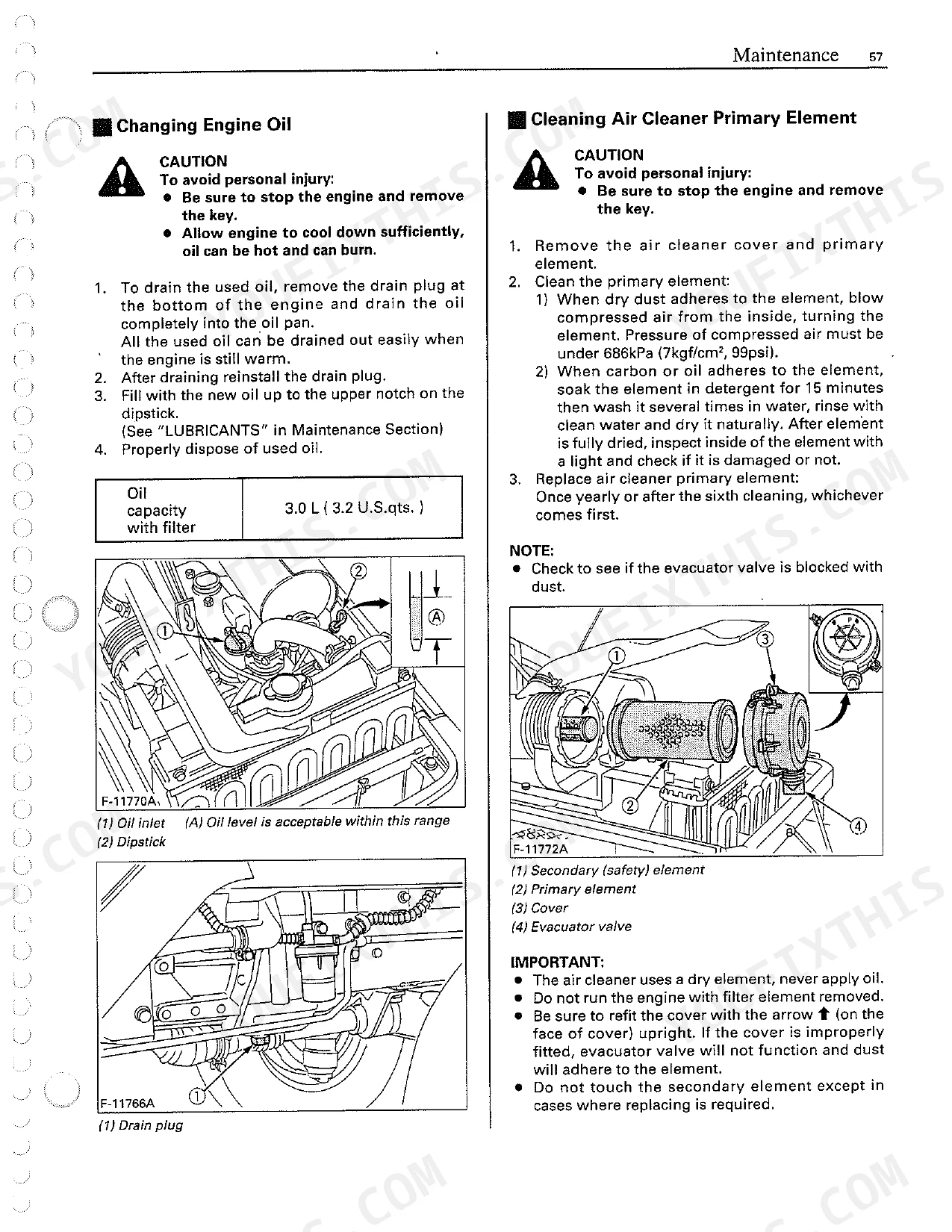

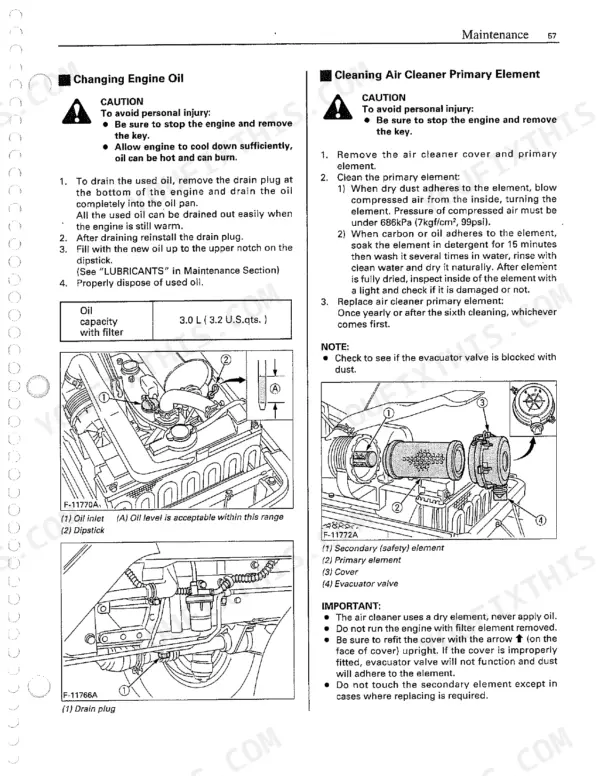

The maintenance section lists the service intervals, including an engine oil change every 100 hours and a transmission fluid change every 300 hours using Kubota UDT or Super UDT fluid. p. 52
Can I use it to diagnose a no-start?
Yes. The troubleshooting section lists engine problems such as difficult starting, insufficient power, sudden stalling, and colored exhaust with their causes and countermeasures. p. 75
How will I receive this Kubota B2410 Operator Manual?
Download starts the moment payment clears. The full 78-page searchable Operator Manual is yours instantly, ready to open on a laptop, tablet, or phone right in the shop.
Are there any print restrictions on this Kubota B2410 manual?
None at all. The file carries no DRM or copy protection, so print the whole manual or just the pages you need on any home or office printer.
