Built around one goal: returning your compact tractor to factory spec without guesswork. The B2320HSD, B2920HSD Workshop Manual (OEM #9Y111-02013) runs 370 pages, with hydraulic schematics that map the full HST circuit and front loader valve routing. A complete wiring diagram lays out the OPC system logic behind engine start and stop. Troubleshooting charts cover engine, transmission, brakes, steering, and hydraulics, backed by exploded views for disassembly reference and tightening torques. Rear wheel mounting nuts land at 145 to 150 N-m, front loader pipe joint bolts at 48 to 56 N-m. Swap the HST oil filter at 400 hours, the engine oil filter at 200. Bookmarked by system and searchable by keyword, it pulls up on a tablet right at the machine.
What's Inside This Kubota B2320HSD, B2920HSD Manual
| System | Pages | Key Topics |
|---|---|---|
| Record of Revisions | 3-3 | - |
| Safety First | 4-7 | Safety Starting, Avoid Fires, Prepare for Emergencies |
| Safety Decals | 8-11 | Care of Danger, Warning and Caution Labels |

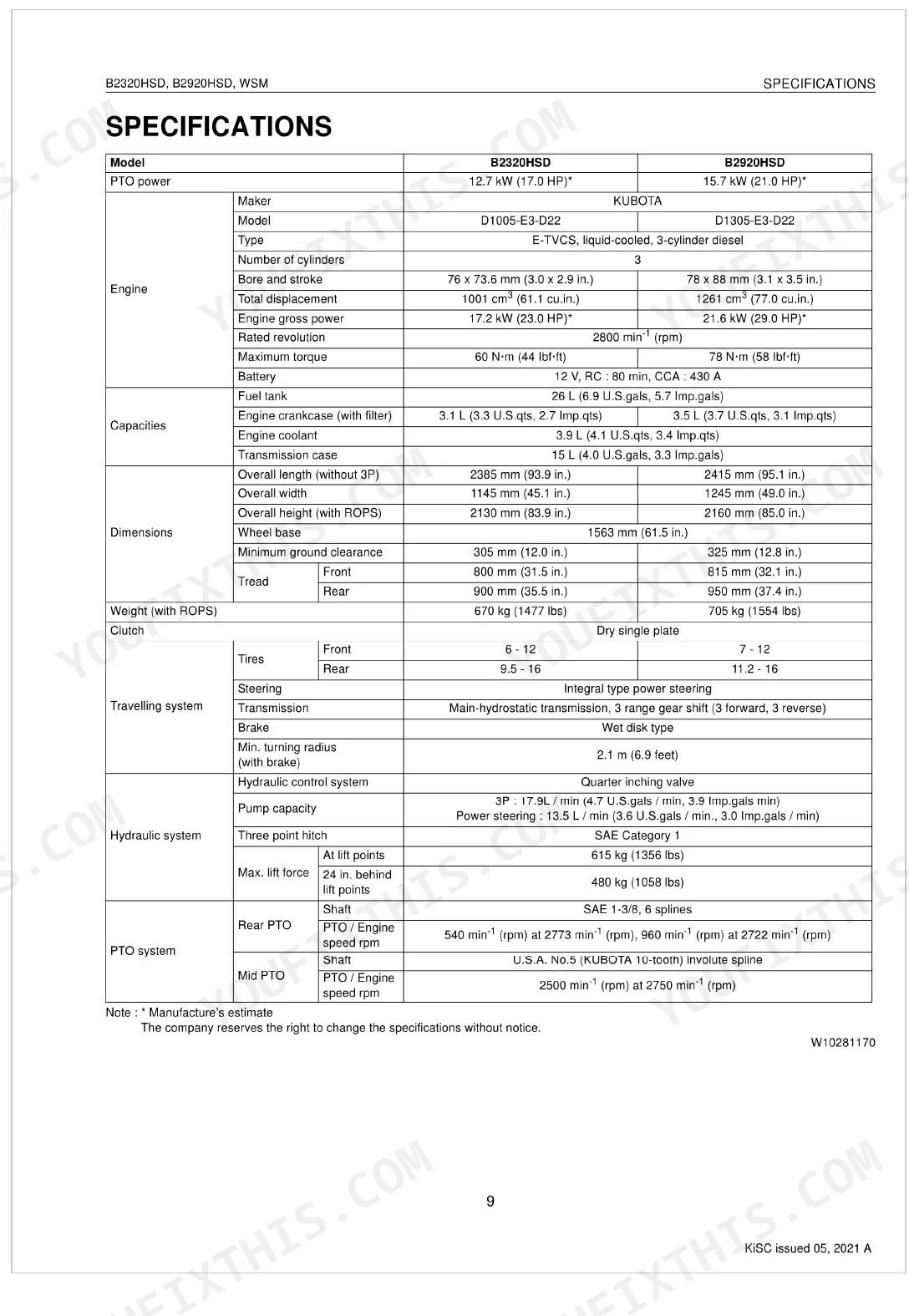

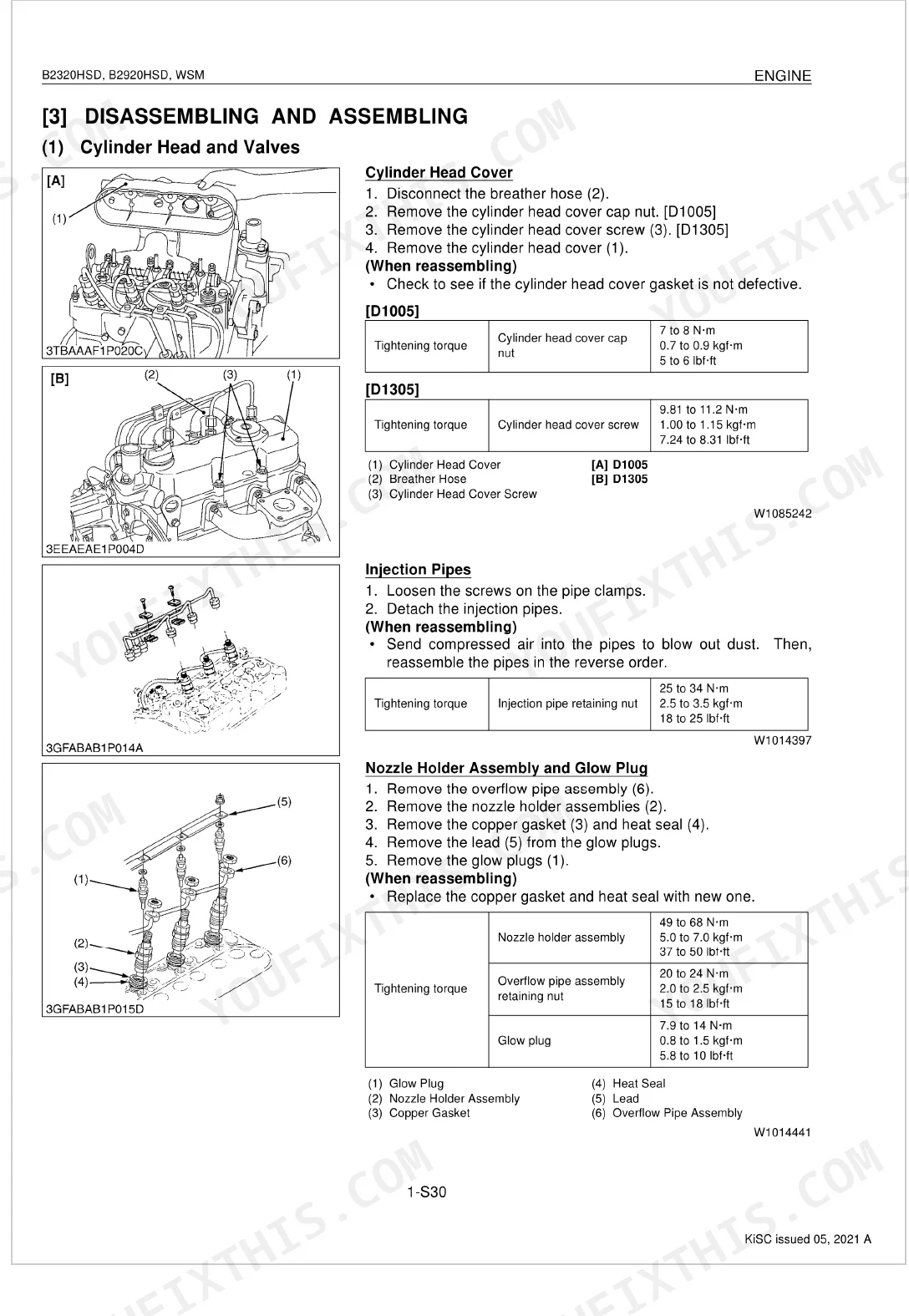

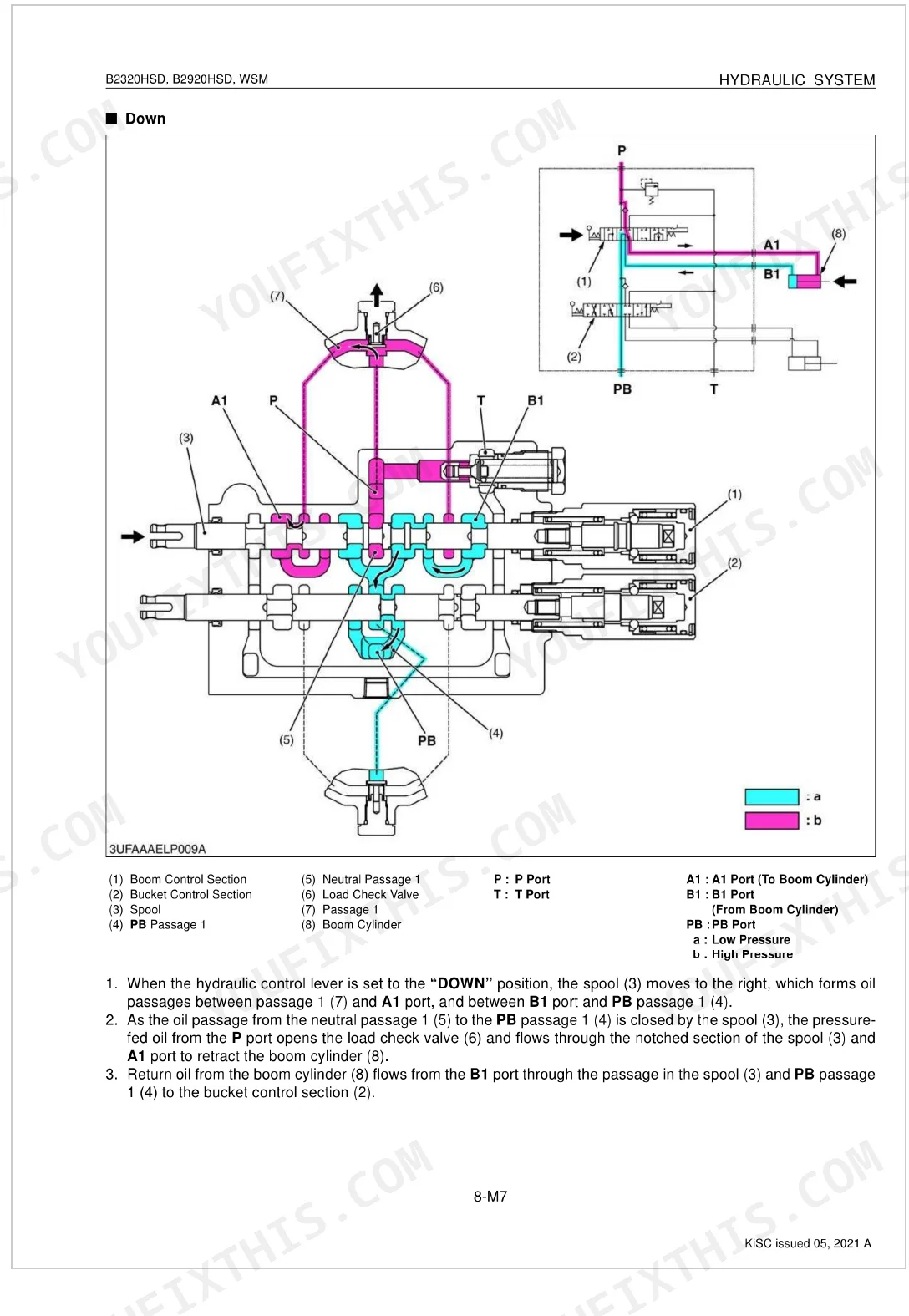

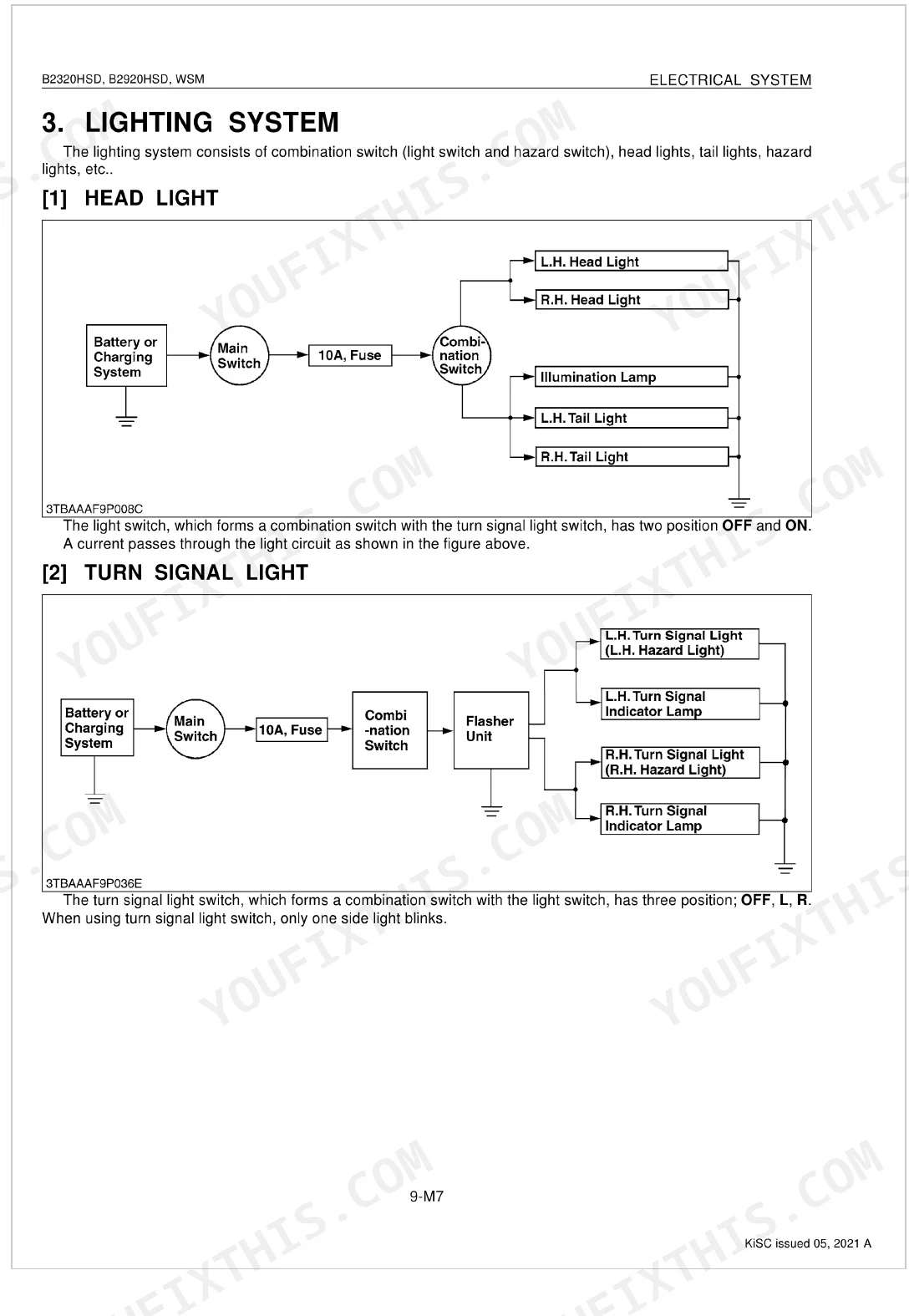

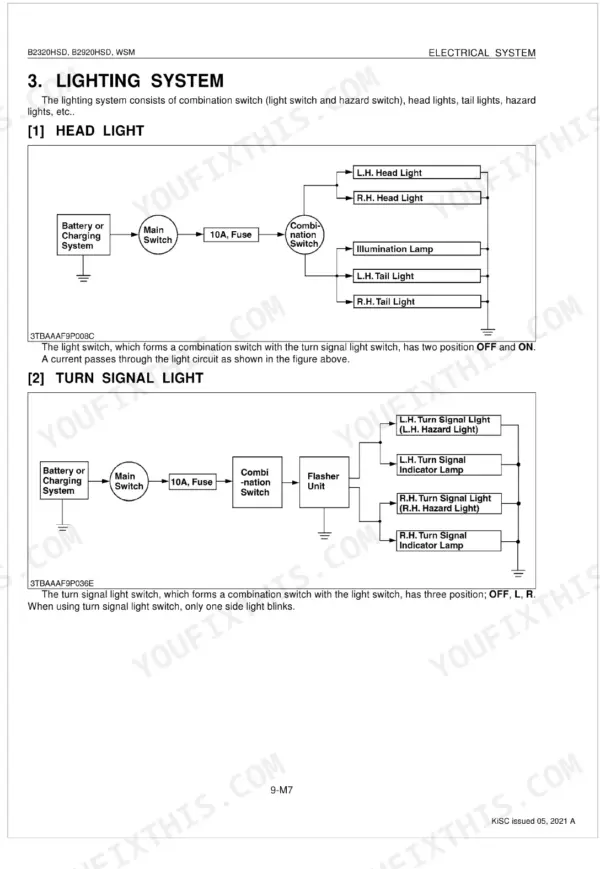

| Specifications | 12-14 | Model (PTO power, Engine, Capacities, Transmission case, Dimensions, Weight, Clutch, Travelling System, Hydraulic System, PTO system), Travelling Speeds |
| General | 15-69 | Tractor Identification (Model Name And Serial Number), Cylinder Number (Wiring, Battery, Fuse, Connector, Handling Of Circuit Tester), Lubricants, Fuel And Coolant |
| Engine | 70-142 | Engine Body (Closed Breather, Half-Floating Head Cover [D1305]), Governor, Troubleshooting, Servicing Specifications, Tightening Torques, Checking |
| Clutch | 143-160 | Linkage Mechanism, Troubleshooting, Servicing Specifications, Tightening Torques, Checking |
| Transmission | 161-230 | Structure, Power Train For Travelling System (Hydrostatic Transmission, Hi-Mid-Lo Gear Shift Section, Front Wheel Drive Section) |
| Rear Axle | 231-241 | Structure, Troubleshooting, Tightening Torques, Disassembling And Servicing (Disassembling And Assembling) |
| Brakes | 242-255 | Linkage, Operation, Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling And Servicing (Checking And Adjusting, Disassembling And Assembling) |
| Front Axle | 256-276 | Structure, Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling And Servicing (Checking And Adjusting, Disassembling And Assembling) |
| Steering | 277-298 | Structure (Steering Linkage, Power Steering), Troubleshooting, Servicing Specifications, Tightening Torques, Checking |
| Hydraulic System | 299-333 | Hydraulic Circuit (Hydrostatic Transmission With Front Loader Valve), Hydraulic Pump, Front Loader Valve Assembly (Structure, Operation) |
| Electrical System | 334-370 | Wiring Diagram, Engine Starting System And Stopping System (Opc System Circuit, Function Of Opc Controller) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

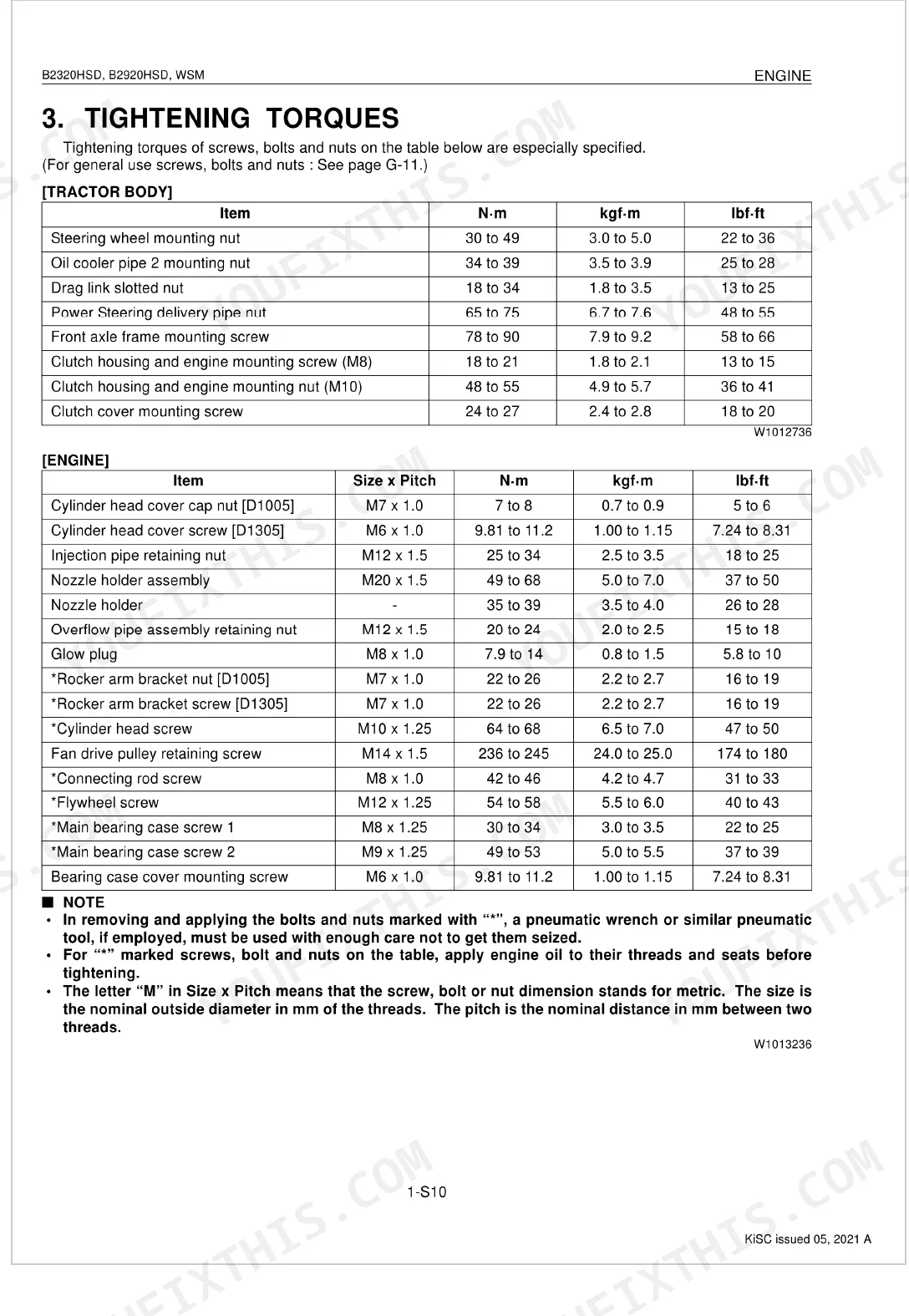

| Front loader pipe joint bolt torque | 48 to 56 N-m (4.9 to 5.7 kgf-m, 36 to 41 lbf-ft) | p. 27 |
| Rear wheel mounting nut torque | 145 to 150 N-m (14.8 to 15.3 kgf-m, 107 to 111 lbf-ft) | p. 27 |
| Front wheel mounting nut torque | 79 to 92 N-m (8.1 to 9.1 kgf-m, 59 to 67 lbf-ft) | p. 27 |
| Hydraulic oil filter (for HST) replacement interval | 400 hours | p. 29 |
| Engine oil filter replacement interval | 200 hours | p. 29 |
| Fuel filter element replacement interval | 400 hours | p. 29 |
| Air cleaner element (Primary) cleaning interval | 100 hours | p. 29 |
| Air cleaner element (Secondary) replacement interval | 200 hours | p. 29 |
| Fan belt tension (deflection at 98 N force) | 7.0 to 9.0 mm (0.28 to 0.35 in.) | p. 40 |
| Radiator hose and clamp replacement interval | 400 hours | p. 29 |
| Battery voltage | 12 V | p. 37 |
| Battery capacity at 5 H.R. | 36 | p. 37 |
Kubota B2320HSD, B2920HSD Common Problems This Manual Covers
Hydrostatic drive on the B2320HSD feels weak, jerky, or unresponsive once warmed up p. 161
Check transmission fluid level; this system holds 15 L (page 25). If fluid is dark or smells burnt, drain and refill, then swap in a fresh hydraulic/HST filter. Page 29 puts the filter on a 400-hour replacement cycle. Work the drive pedal slowly through its full range and check for air purging before suspecting internal HST wear.
Manual Section: Transmission Troubleshooting3-point hitch raises slowly or stops lifting under load, front loader feels sluggish p. 299
Verify transmission fluid is at the full mark; the shared hydraulic reservoir holds 15 L (page 25). Replace the hydraulic filter if you are past 400 hours per page 29. Measure pump delivery against the spec on page 303: the 3-point circuit should flow 17.9 L/min. Low flow with a clean filter points to the relief valve or pump wear.

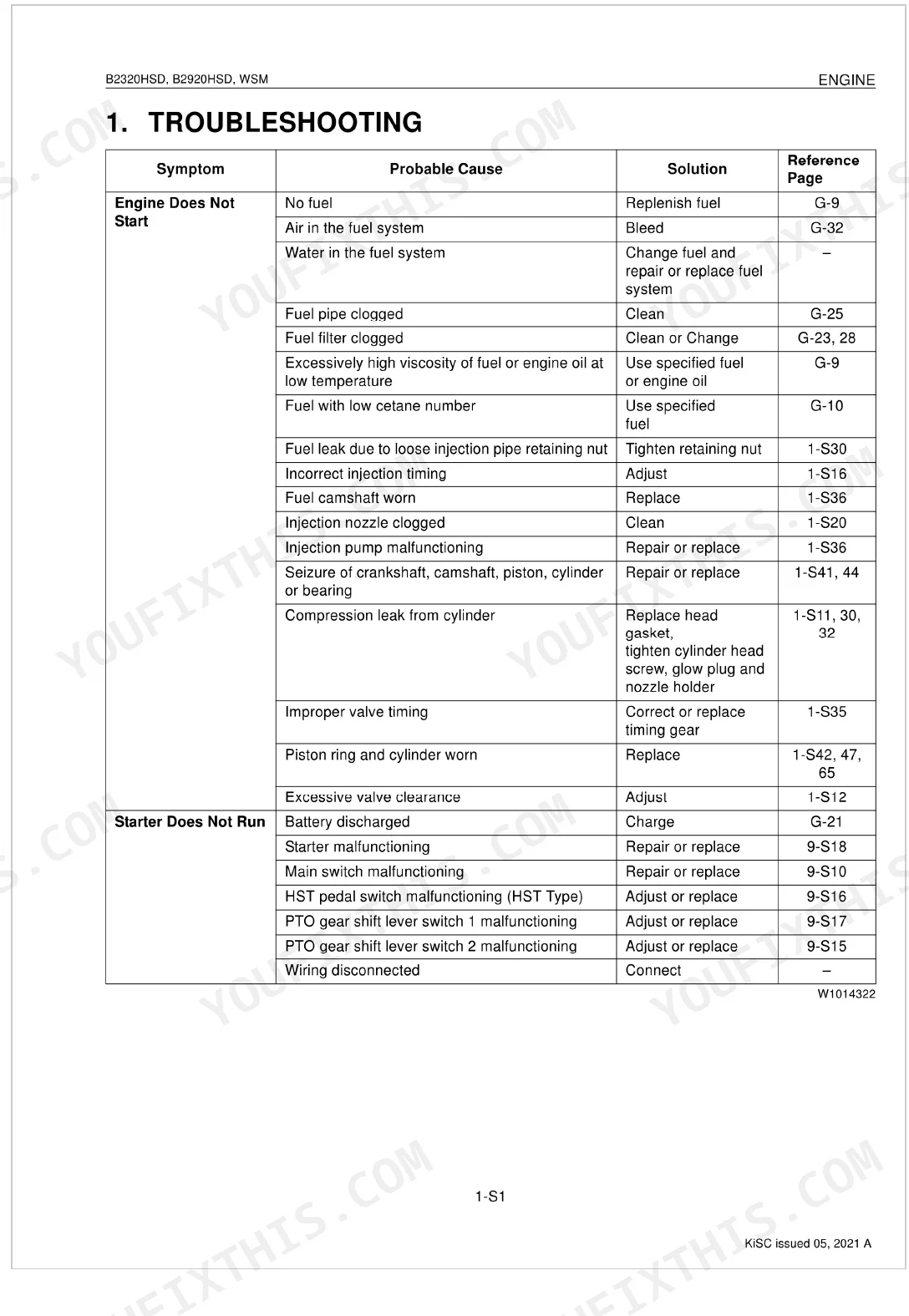

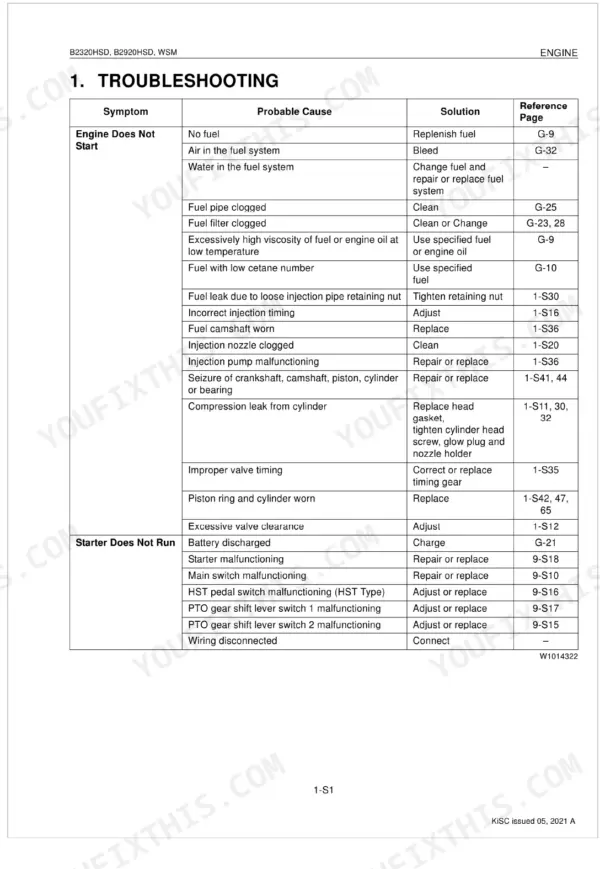

Manual Section: Hydraulic System TroubleshootingEngine cranks slowly or won't fire after sitting overnight, especially in cold weather

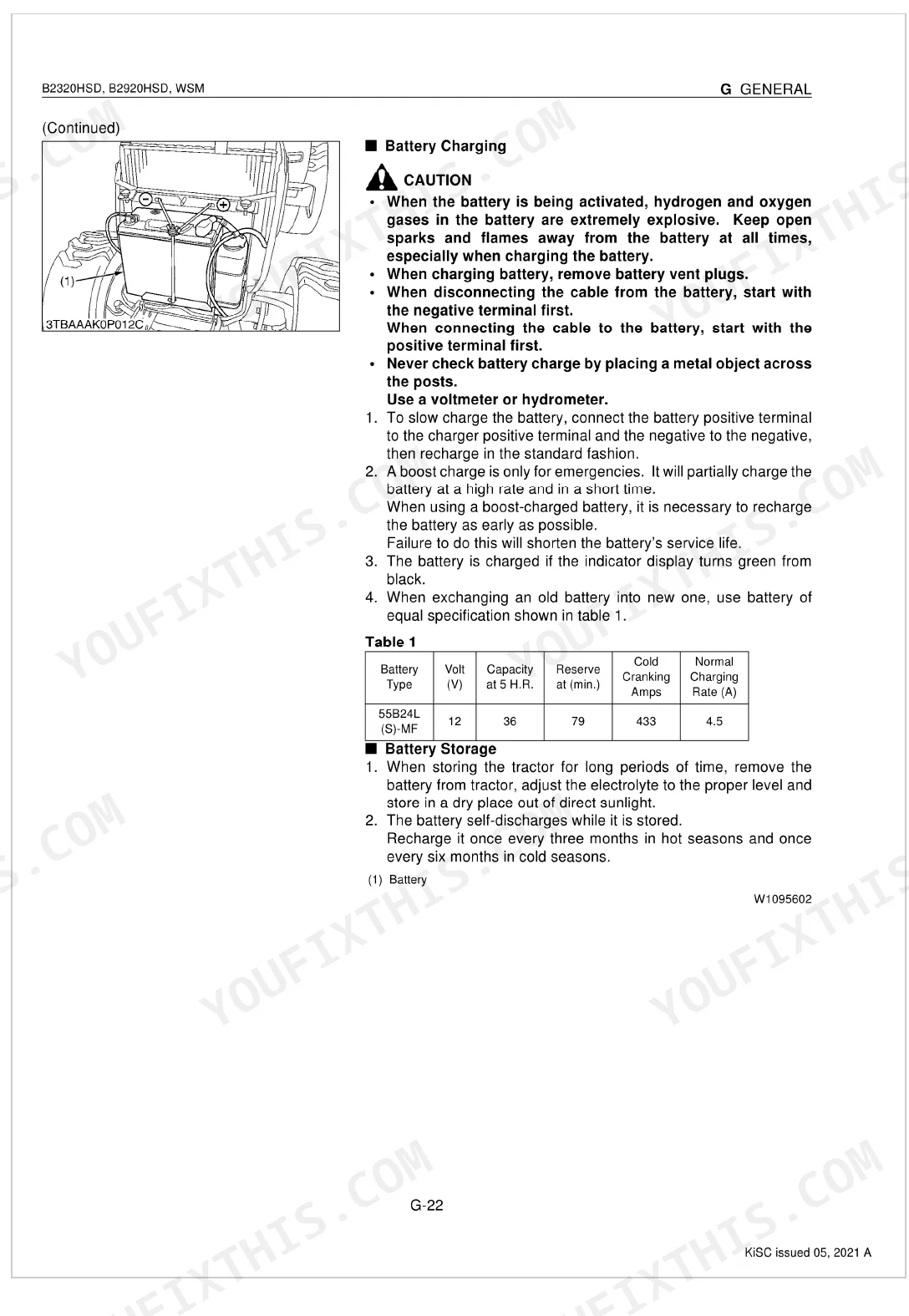

Test battery voltage and terminals first; spec is 12 V with 433 cold cranking amps (page 37). Clean off any corrosion and load-test the battery. Pull one glow plug and measure resistance: a good plug reads about 0.9 ohms (page 97). Replace any that read open or shorted. Bleed the fuel system if the tractor sat long enough for fuel to drain back.
Manual Section: Engine TroubleshootingEngine temperature gauge climbs into the red zone during mowing or heavy loader work
Clean the radiator screen and fins with compressed air first. Check fan belt deflection at 98 N of force: spec is 7.0 to 9.0 mm (page 40). A loose belt won't move enough air. Inspect coolant level and all hoses; page 29 schedules hose and clamp replacement at 400 hours. A clogged screen alone will spike temps fast.
Manual Section: Engine TroubleshootingPTO won't engage at all or slips out under load with rear implement attached p. 143
Adjust clutch pedal free travel to 20 to 30 mm (page 23); worn linkage is the most common slip trigger. Check PTO pedal adjustment per the 100-hour schedule on page 29. Work through the clutch troubleshooting steps at page 143. If adjustment alone doesn't restore engagement, pull the clutch cover and inspect the disc for glazing or wear.
Manual Section: Clutch TroubleshootingEngine stalls or runs rough under full load, black or white exhaust smoke visible
Inspect and clean the primary air cleaner every 100 hours; replace the secondary at 200 hours (page 29). A choked filter will cause smoke and power loss. Change the fuel filter at the same interval. If smoke persists, measure injection pump pressure: spec is 13.73 to 14.70 MPa (page 84). Check governor linkage for binding before pulling the pump.
Manual Section: Engine TroubleshootingFrequently Asked Questions
How do I reset the safety switches on a Kubota B2320HSD?
The manual covers checking and adjusting the HST safety switch. Measure length A; if it falls outside factory spec, adjust it to 17.3 to 17.7 mm (0.682 to 0.696 in.). When continuity does not read infinity, the switch is faulty and needs replacement.
Why won’t my Kubota B2320 start even though it’s in neutral?
A no-start in neutral usually traces to a few items in the troubleshooting guide: a PTO safety switch (1 or 2) that is misadjusted or defective, a disconnected or poorly connected starting-system wiring harness, or a bad key stop solenoid relay. The engine only cranks when the PTO switch is in neutral (ON), the HST pedal is in neutral (ON), the seat switch is occupied (ON), and the seat tilt switch is normal (OFF).
How do I fix a Kubota B2320 ignition or no-crank problem?
Work through the starting system for a no-crank fault. Likely culprits: a discharged or defective battery, a blown slow blow fuse, or a misadjusted or defective PTO safety switch. Also inspect the key stop solenoid relay, operator presence controller, and main switch. Fixes range from recharging or replacing the battery to swapping the fuse or repairing the faulty switch or controller.
What are the common Kubota B2920HSD starting problems and fixes?
On the B2920HSD, starting trouble most often comes from a discharged or defective battery, a blown slow blow fuse, or PTO safety switches (1 or 2) that are misadjusted or defective. A faulty key stop solenoid relay, operator presence controller, or main switch can also be the cause. Recharge or replace the battery, swap the fuse, or repair the specific faulty component.
How quickly can I access this Kubota B2320HSD, B2920HSD manual after buying?
Immediate download of the complete 370-page searchable Workshop Manual. Open it on any device, from the laptop at your desk to the phone out in the field.
Is this Kubota B2320HSD, B2920HSD Workshop Manual printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this Kubota B2320HSD, B2920HSD manual include wiring diagrams?
Yes. Full electrical schematics are included, with wire colors, connector locations, and circuit descriptions.
