This is the Kubota operator manual for the D1703-M-DI-E4 diesel engine, a 37 page PDF you download and keep. It is the direct injection Tier 4 Kubota three cylinder diesel used in generators, compressors, and compact industrial equipment, and this book is the factory reference for running and servicing it.The manual covers safe operation, the daily pre operation check, starting in normal and cold weather, stopping the engine, and the emission control system, along with the checks to watch while running. Maintenance and periodic service sections detail the scheduled work on fuel, engine oil, the radiator, air cleaner, and electric wiring, with intervals and capacities.A troubleshooting section helps with difficult starting, sudden stops, insufficient output, overheating, and abnormal exhaust, and the specifications and wiring diagram pages give the numbers and electrical layout. Owners and independent mechanics can service the engine correctly without hunting for figures.
What's Inside This Kubota D1703-M-DI-E4 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | - | Safety Instructions, Personal Protective Equipment, Fuel and Lubricants, Exhaust Gases, Battery Explosion, Warning and Caution Labels |
| Servicing of the Engine | - | Dealer Consultation, Parts Ordering, Engine Serial Number |

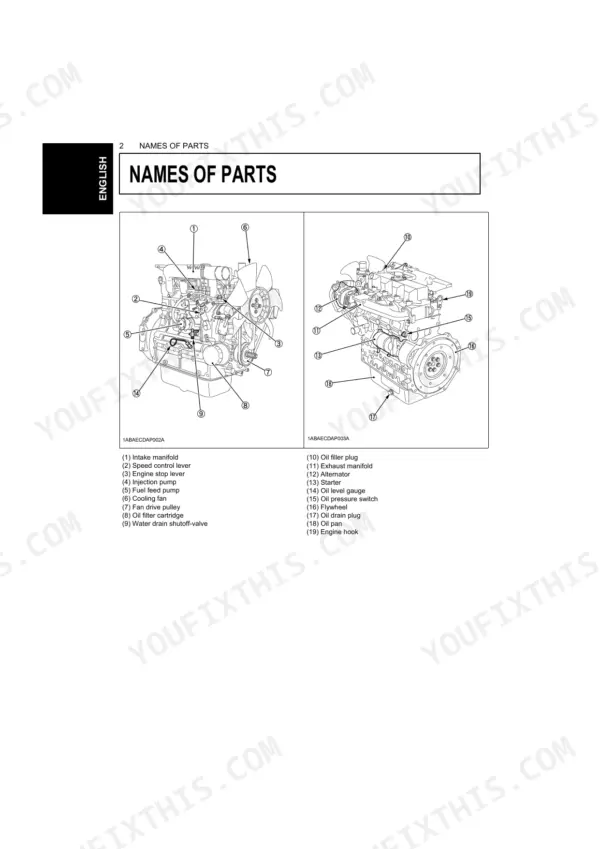

| Names of Parts | - | Intake Manifold, Injection Pump, Cooling Fan, Oil Filter Cartridge, Alternator, Flywheel |
| Pre-Operation Check | - | Break-In, Daily Check |
| Operating the Engine | - | Starting the Engine, Cold Weather Starting, Stopping the Engine, Checks During Operation, Reversed Engine Revolution and Remedies, Emission Control System |

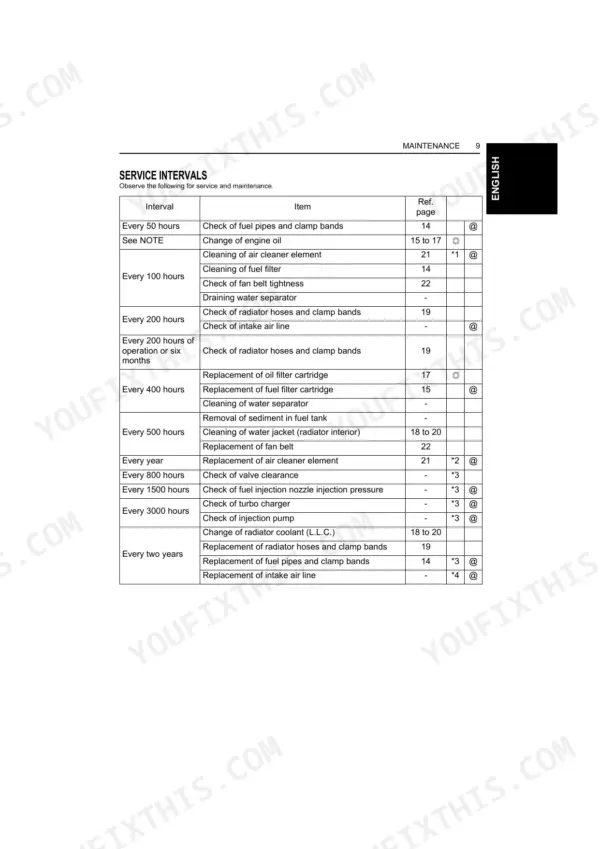

| Maintenance | - | Service Intervals |
| Periodic Service | - | Fuel, Engine Oil, Radiator, Air Cleaner, Electric Wiring |
| Carriage and Storage | - | Carriage, Storage |
| Troubleshooting | - | Difficult Starting, Engine Stops, Exhaust Color, Immediate Stop, Insufficient Output, Engine Overheats |
| Specifications | - | Number of Cylinders, Bore and Stroke, Total Displacement, Injection Pressure, Compression Ratio, Fuel Type |
| Wiring Diagrams | - | Alternator, Starter, Battery, Glow Plugs, Fuse Box, Key Switch |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Recommended battery capacity | 12 V, 60 AH | p. 36 |
| Fuel filter cartridge replacement interval | 400 operating hours | p. 15 |
| Fuel filter cleaning interval | 100 hours of operation | p. 14 |
| Injection pressure (1st Stage) | 18.6 Mpa (190 kgf/cm², 2702 psi) | p. 36 |
| Injection pressure (2nd Stage) | 22.6 Mpa (230 kgf/cm², 3271 psi) | p. 36 |
| Compressed air pressure for cleaning air cleaner element | under 205 kPa (2.1 kgf/cm², 30 psi) | p. 31 |
| Air cleaner element cleaning interval | Every 100 hours | p. 19 |
| Initial Engine Oil and Oil Filter Change Interval | 50 hours | p. 13 |
| Regular Engine Oil Change Interval | 400 hours | p. 20 |
| Engine Oil Capacity (D1703-M-DI-E4) | 7.0 L | p. 26 |
| Coolant Volume (D1703-M-DI-E4) | 5.5 L | p. 29 |
| Coolant Change Interval (L.L.C.) | Every 2 years | p. 30 |
Kubota D1703-M-DI-E4 Common Problems This Manual Covers
No crank or slow crank start
A weak or dead battery, corroded cables, or a failed safety switch will leave the starter turning slowly or not at all. The troubleshooting steps cover what to check when the engine will not turn over properly.

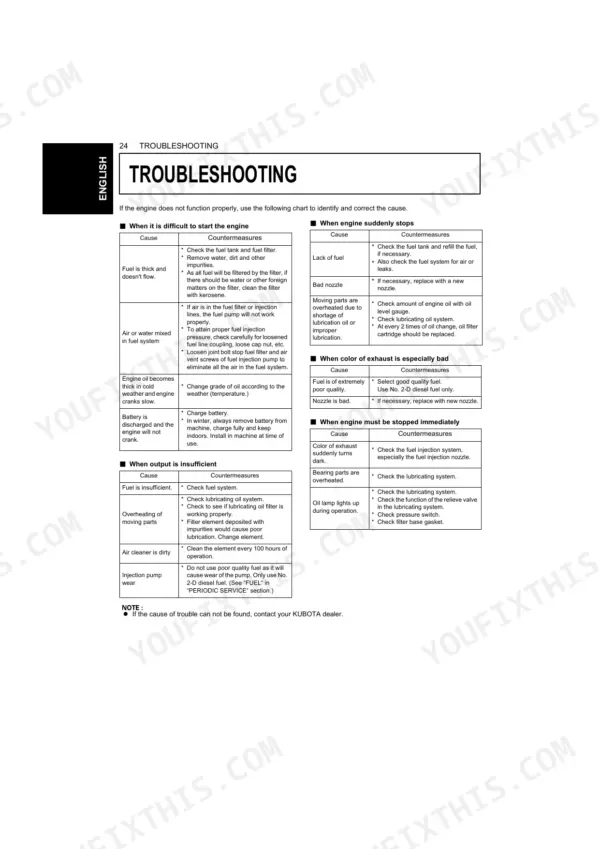

Manual Section: Troubleshooting p. 34Hard cold starting
Weak glow plugs, air in the fuel lines, or old diesel make cold starts difficult on this direct injection engine. The cold weather starting procedure explains the correct steps for low temperatures.
Manual Section: Operating the Engine p. 14Stalls after fuel filter change
Clogged filters, fuel starvation, or air drawn in after a filter change cause stalling and loss of fuel delivery until the system is bled. The fuel procedures cover cleaning, replacement, and air bleeding.
Manual Section: Periodic Service p. 22White smoke with rough running
Water contaminated diesel, air in the fuel system, or poor combustion typically shows as white smoke and rough idle. The troubleshooting section ties abnormal exhaust color to its causes.
Manual Section: Troubleshooting p. 34Loss of power and heavy soot
A restricted air intake or dirty air cleaner element starves the engine of air and drops power while raising soot. The air cleaner procedures cover cleaning and replacement of the element.
Manual Section: Periodic Service p. 22Overheating during operation
Low coolant, a dirty radiator, or a loose fan belt can drive temperatures up under load. The troubleshooting steps help you isolate the cooling fault when the engine overheats.
Manual Section: Troubleshooting p. 34Frequently Asked Questions
Which engine does this manual cover?
It covers the Kubota D1703-M-DI-E4 direct injection diesel engine, including its operation, maintenance schedule, specifications, and wiring.
What is the fuel injection pressure?
The manual lists the first and second stage injection pressures for the engine, given in MPa, kgf per square centimeter, and psi. The Specifications section holds the full technical data. p. 36
What is the engine oil change interval?
The first oil change is done early at 50 hours, then oil is changed on the regular interval listed. The Maintenance section sets out the full service schedule. p. 18
Are wiring diagrams included?
Yes. The Wiring Diagrams section shows the alternator, starter, battery, glow plug, fuse box, and key switch layout for tracing electrical faults. p. 37
What do I get after purchasing this Kubota D1703-M-DI-E4 manual?
Checkout delivers a 37-page searchable PDF that downloads instantly. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
