This is the Kubota operator manual for the D1803-M-DI-E3 and V2403-M-DI-E3 diesel engines, a 38 page PDF you download and keep. These are the direct injection Tier 3 Kubota diesels used in generators, compressors, and industrial machinery, and this is the factory guide to operating and maintaining them.The manual covers safe operation, the daily pre operation check, starting in normal and cold weather, stopping the engine, and the warning signs to watch while it runs. Maintenance and periodic service sections detail the scheduled work on fuel, engine oil, the radiator, air cleaner, electric wiring, and the fan belt, with the intervals and capacities for each model.A troubleshooting section walks through hard starting, stalling, overheating, low oil pressure, and abnormal exhaust, while the specifications and wiring diagram pages list the technical figures and electrical layout. Owners and independent mechanics can keep these engines serviced without guessing at intervals or values.
What's Inside This Kubota D1803-M-DI-E3, V2403-M-DI-E3 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | - | Safety Instructions, Personal Protective Equipment, Engine Checks, Fuel Handling, Exhaust Gases, Battery Explosion |
| Servicing of the Engine | - | Regular Maintenance, Parts, Major Service, Engine Serial Number |
| Names of Parts | - | Intake Manifold, Injection Pump, Cooling Fan, Oil Filter Cartridge, Alternator, Flywheel |
| Pre-Operation Check | - | Break-In, Daily Check |

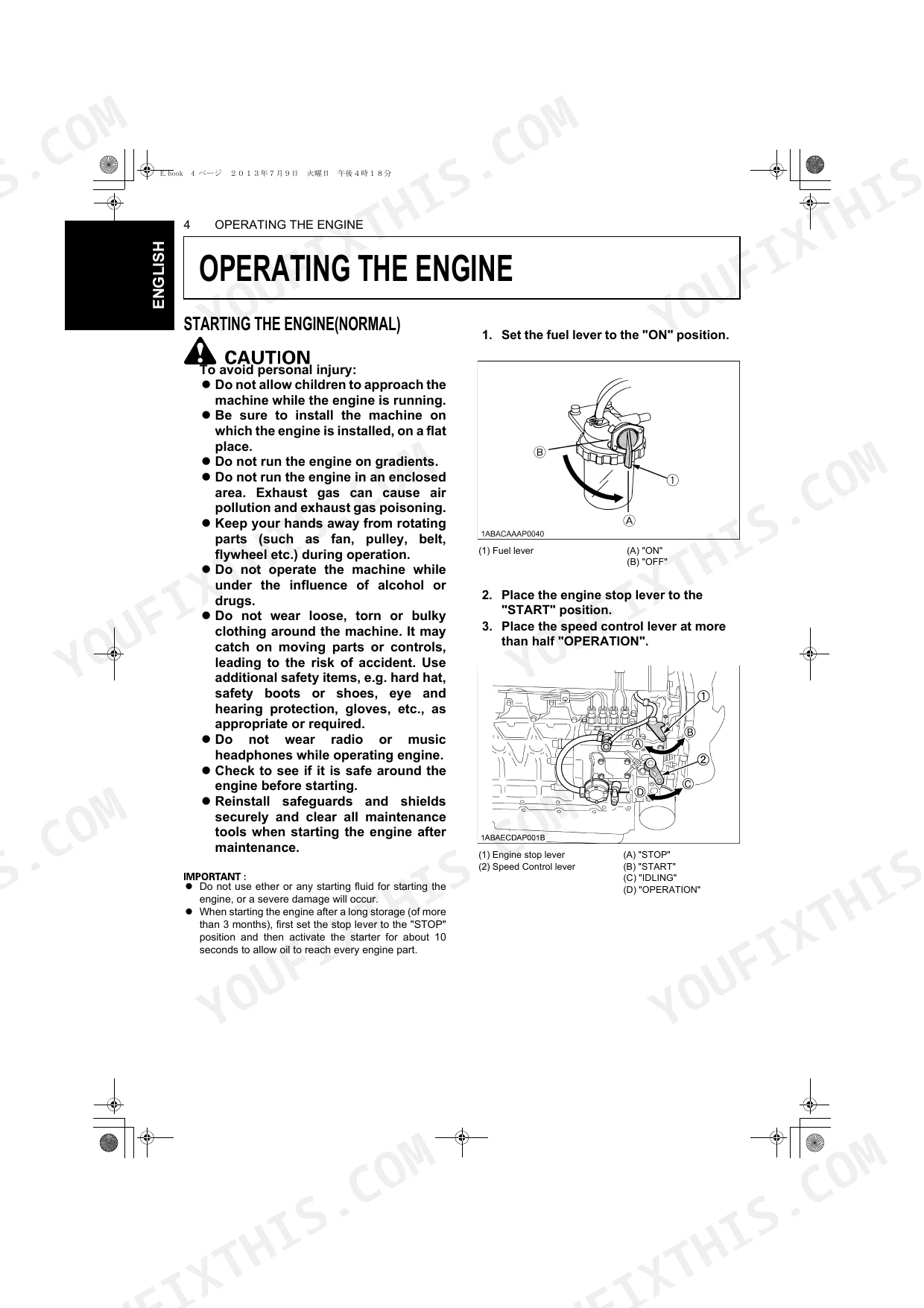

| Operating the Engine | - | Starting the Engine, Cold Weather Starting, Stopping the Engine, Checks During Operation, Reversed Engine Revolution and Remedies |

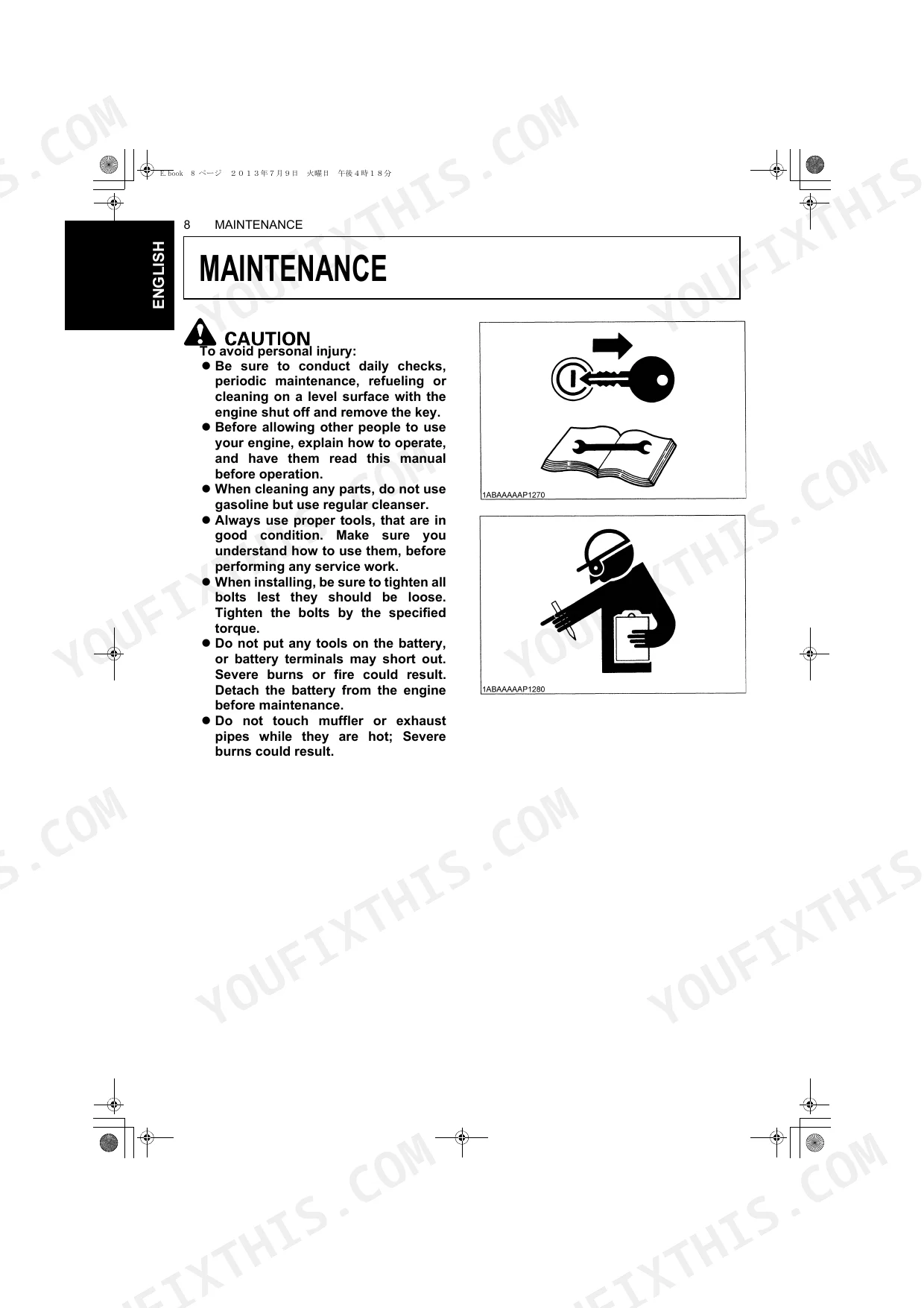

| Maintenance | - | Service Intervals |
| Periodic Service | - | Fuel, Engine Oil, Radiator, Air Cleaner, Electric Wiring, Fan Belt |
| Carriage and Storage | - | Carriage, Storage |

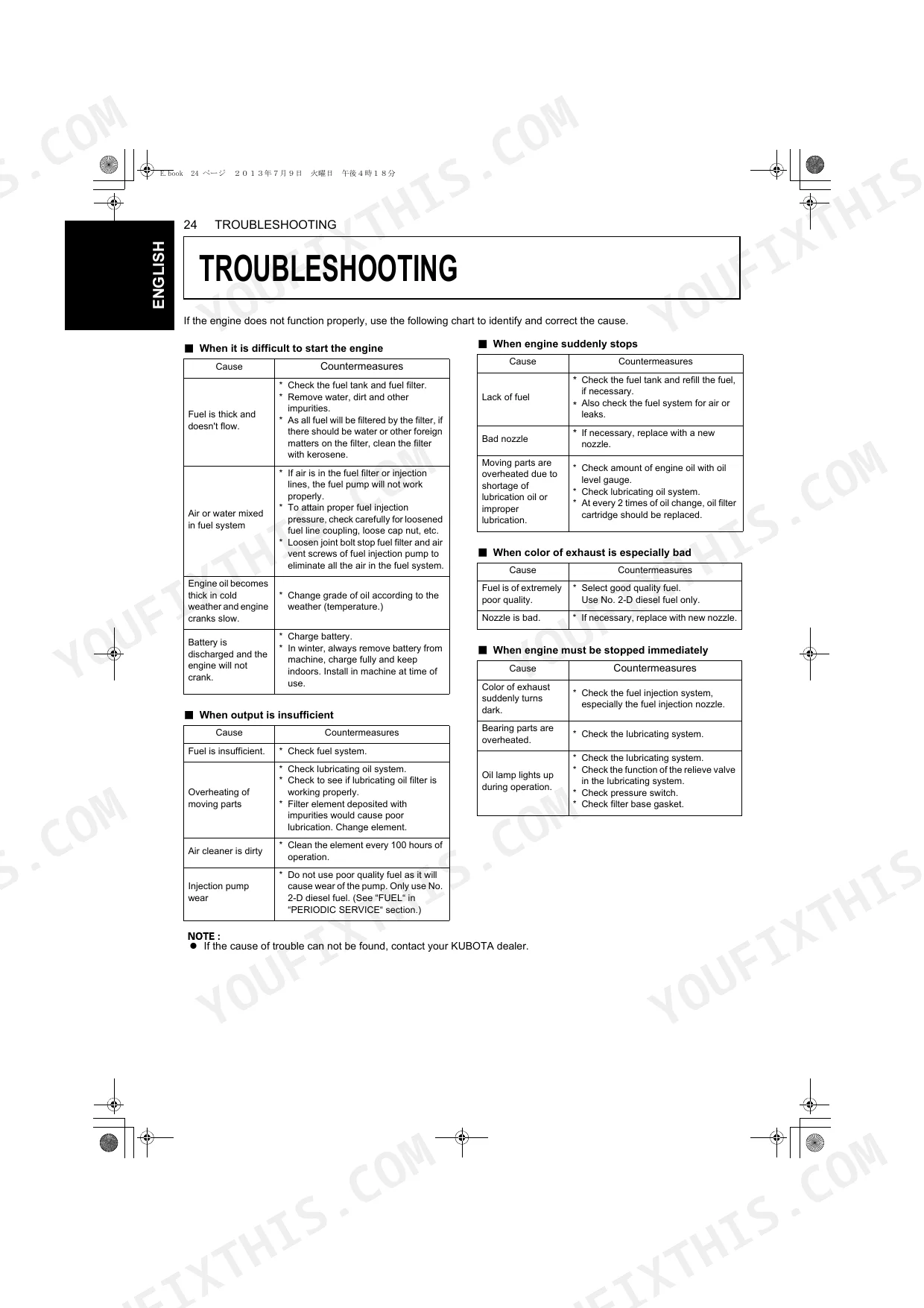

| Troubleshooting | - | Difficult Starting, Engine Stops, Exhaust Color, Output Insufficient, Engine Overheats, Oil Lamp |
| Specifications | - | Model, Number of Cylinders, Total Displacement, Injection Pump, Compression Ratio, Lubricant |
| Wiring Diagrams | - | Control Unit, Alternator, Starter, Battery, Fuse, Glow Plugs |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel filter cartridge replacement interval | Every 400 hours | p. 26 |
| Fuel filter cleaning interval | Every 100 hours | p. 25 |
| Recommended battery capacity | 12 V, 100 to 120 AH | p. 37 |
| Proper fan belt tension (deflection) | 7 to 9 mm (0.28 to 0.35 in.) under load of 10 kgf (22.1 lbs) | p. 33 |
| Fan belt tightness check interval | Every 100 hours | p. 20 |
| Radiator hoses and clamp check interval | Every 200 hours of operation or 6 months, whichever comes first | p. 30 |
| Radiator hoses and clamp replacement interval | Every two years or earlier | p. 30 |
| Air cleaner element cleaning interval | Every 100 hours | p. 20 |
| Air cleaner element replacement interval | Every year or after 6 times of cleaning | p. 20 |
| D1803-M-DI-E3 | ||
| Engine oil capacity | 7.0 L (1.85 U.S.gals.) | p. 27 |
| Coolant volume | 5.8 L (1.53 U.S.gals.) | p. 30 |
| V2403-M-DI-E3 | ||
| Engine oil capacity | 9.5 L (2.51 U.S.gals.) | p. 27 |
Kubota D1803-M-DI-E3, V2403-M-DI-E3 Common Problems This Manual Covers
Cranks but will not start
A no start with good cranking usually comes from a fuel or electrical fault such as clogged filters, air in the lines, or a weak battery. The troubleshooting steps cover what to check when the engine will not fire.
Manual Section: Troubleshooting p. 35Rough running after filter change
After replacing the fuel filter or running the tank dry, trapped air makes the engine run rough or lose power until it is bled. The fuel procedures cover air bleeding and filter cartridge replacement.
Manual Section: Periodic Service p. 23Overheating during operation
Low coolant, a dirty radiator, or a loose fan belt can push temperatures up and trip the warning. The troubleshooting section helps you find the cooling fault when the engine overheats.
Manual Section: Troubleshooting p. 35Low oil pressure lamp stays on
If the oil pressure lamp remains lit, the engine should be stopped at once and the lubrication checked. The checks during operation guidance explains the warning and the required response.
Manual Section: Operating the Engine p. 15White smoke from the exhaust
Water contaminated diesel or poor combustion often shows up as white smoke and rough running. The troubleshooting steps tie abnormal exhaust color to its likely causes.
Manual Section: Troubleshooting p. 35Fan belt tension neglected
A slack fan belt weakens cooling and charging, so it needs periodic checking and adjustment to the specified deflection. The periodic service steps cover fan belt tension.
Manual Section: Periodic Service p. 23Frequently Asked Questions
Which engines does this manual cover?
It covers the Kubota D1803-M-DI-E3 and V2403-M-DI-E3 direct injection diesel engines, with the specifications and capacities for each model noted where they differ.
What is the engine oil capacity?
The manual lists the engine oil capacity for each model, which differs between the three cylinder and four cylinder engines. The Periodic Service section covers oil checking and changing. p. 23
What are the injection pressure and compression ratio?
The specifications give the first stage injection pressure and the compression ratio for these engines. The Specifications section lists the full technical data. p. 37
Are wiring diagrams included?
Yes. The Wiring Diagrams section shows the control unit, alternator, starter, battery, fuse, and glow plug layout, useful for tracing electrical faults. p. 38
Is this Kubota D1803-M-DI-E3 manual a PDF I download?
The full 38-page searchable Operator Manual downloads right away. It opens on any device, from a laptop at your desk to a phone out in the field.
Am I free to print this Kubota D1803-M-DI-E3 Operator Manual?
Yes. The PDF carries no DRM, so you can print any page or section your shop needs. It works with any standard printer.
