This Kubota operator manual covers the L2250, L2550, L2850, and L3250 compact diesel tractors, powered by the D1302-DI-A, D1402-DI-A, V1702-DI-A, and V1902-DI-A engines. Its 68 pages walk through safe operation, the instrument panel and controls, PTO and 3-point hitch use, and the hydraulic unit, then cover the routine service owners handle themselves.
Inside you get specifications and fluid capacities, wheel and tire settings, daily and interval maintenance, clutch and brake adjustments, storage preparation, an engine troubleshooting guide, and a wiring diagram. Torque figures for the wheel hubs and tire inflation pressures are included so you can service the tractor to Kubota's numbers. It is the reference for operating these L-series tractors safely and keeping up maintenance, supplied as an instant PDF download you can read on any device or print.
What's Inside This Kubota L2250–L3250 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Abbreviation List | 2 | Two Wheel Drive, Four Wheel Drive, American Petroleum Institute |
| Foreword | 3-4 | - |
| Safe Operation | 5-10 | Before Operating the Tractor, Know Your Equipment and Its Limitations, Always Use the Seat Belt, Do Not Operate Under Influence, Carefully Check the Vicinity, Explain Operation to Others, Never Wear Loose Clothing, Do Not Allow Passengers |
| Servicing of Tractor | 11 | Your Dealer Is Interested in Your New Tractor, Tractor Serial Number Location, Engine Serial Number Location |

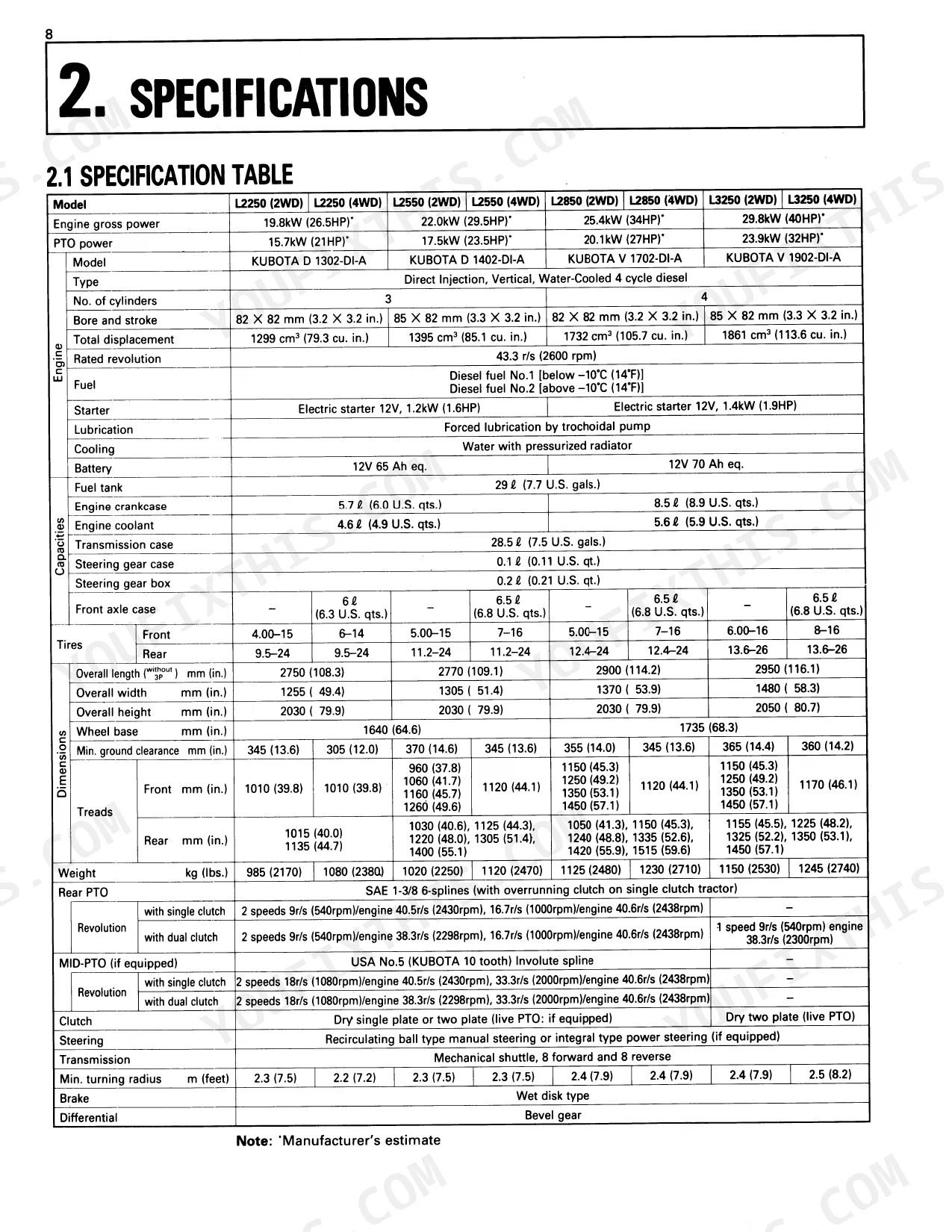

| Specifications | 12-14 | Specification Table, Traveling Speeds |
| Specifications of Implement Limitations | 15-16 | Tread (Max Width) with Farm Tires, Front, Rear, Lift Capacity Lower Link End, Actual Figures, Trailer Loading Weight Max Capacity, Max Drawbar Load, Lift Capacity 24 Inch Behind Lower Link End |
| Operating New Tractor | 17 | Loading and Unloading |

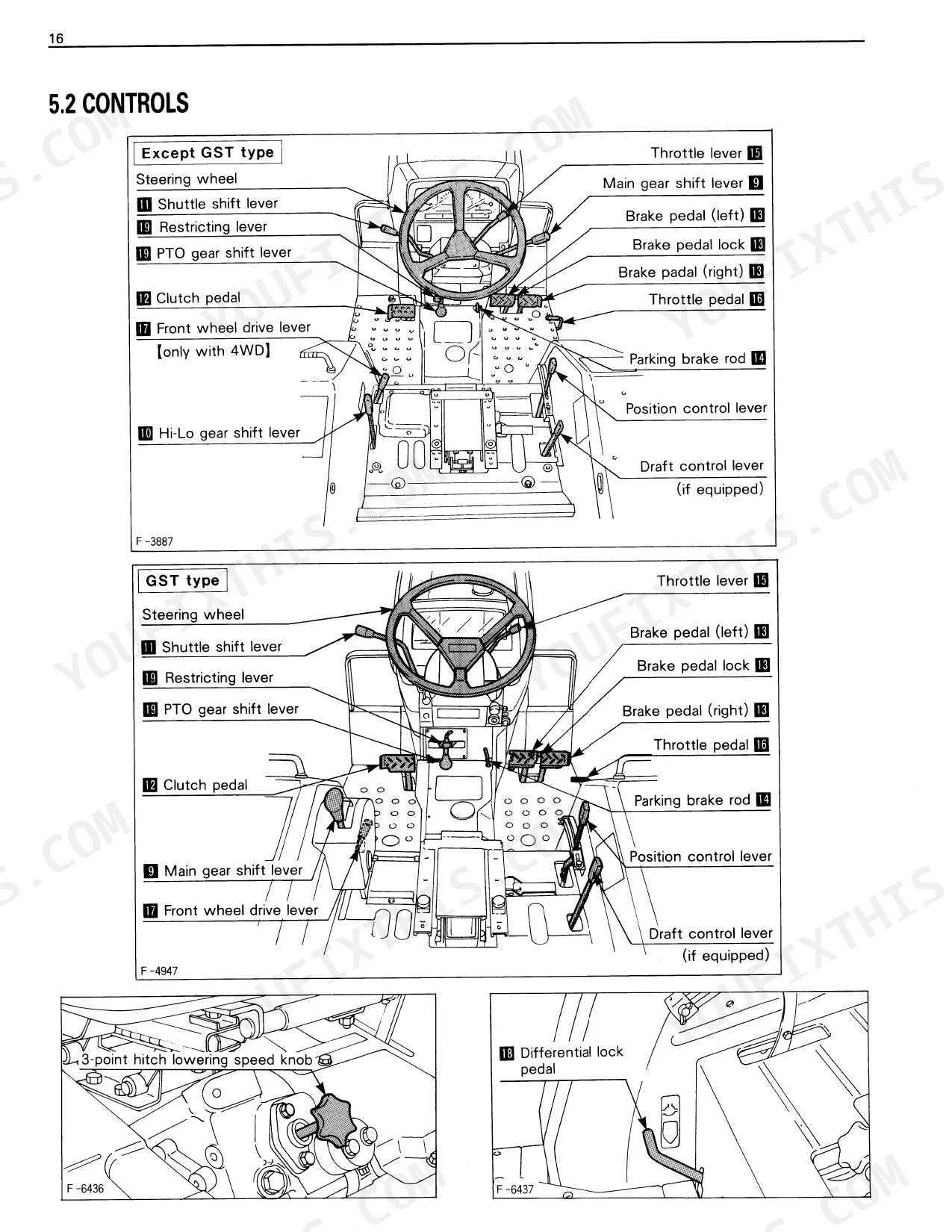

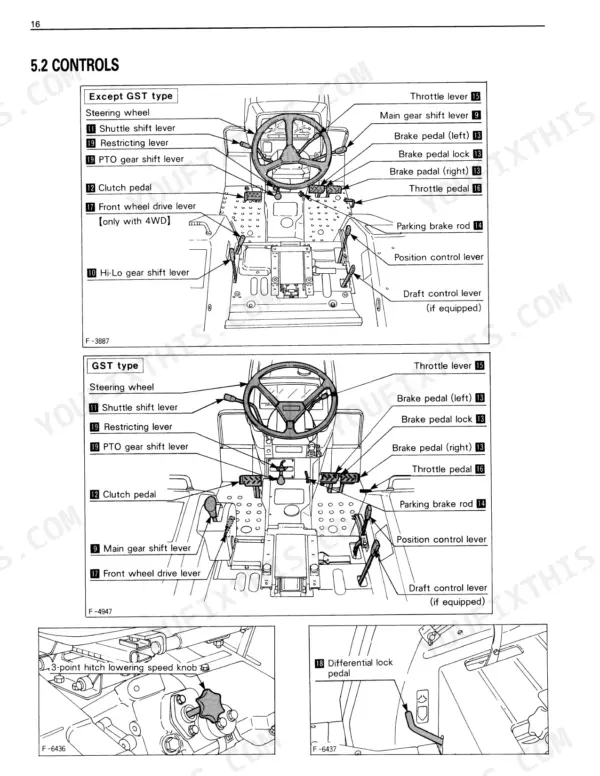

| Instrument Panel and Controls | 18-27 | Switches, Controls, PTO Operation |
| Three-Point Hitch & Drawbar | 28 | Top Link, Lifting Rod, Check Chains, Turnbuckle, Lower Link, Fixed Drawbar |
| Hydraulic Unit | 29-31 | Operation, Position Control, 3-Point Hitch Lowering Speed Knob, Draft Control (If Equipped), Hydraulic Block Type Outlet, When Implement Is Attached, Remove the Plugs, Route the Implement Inlet |

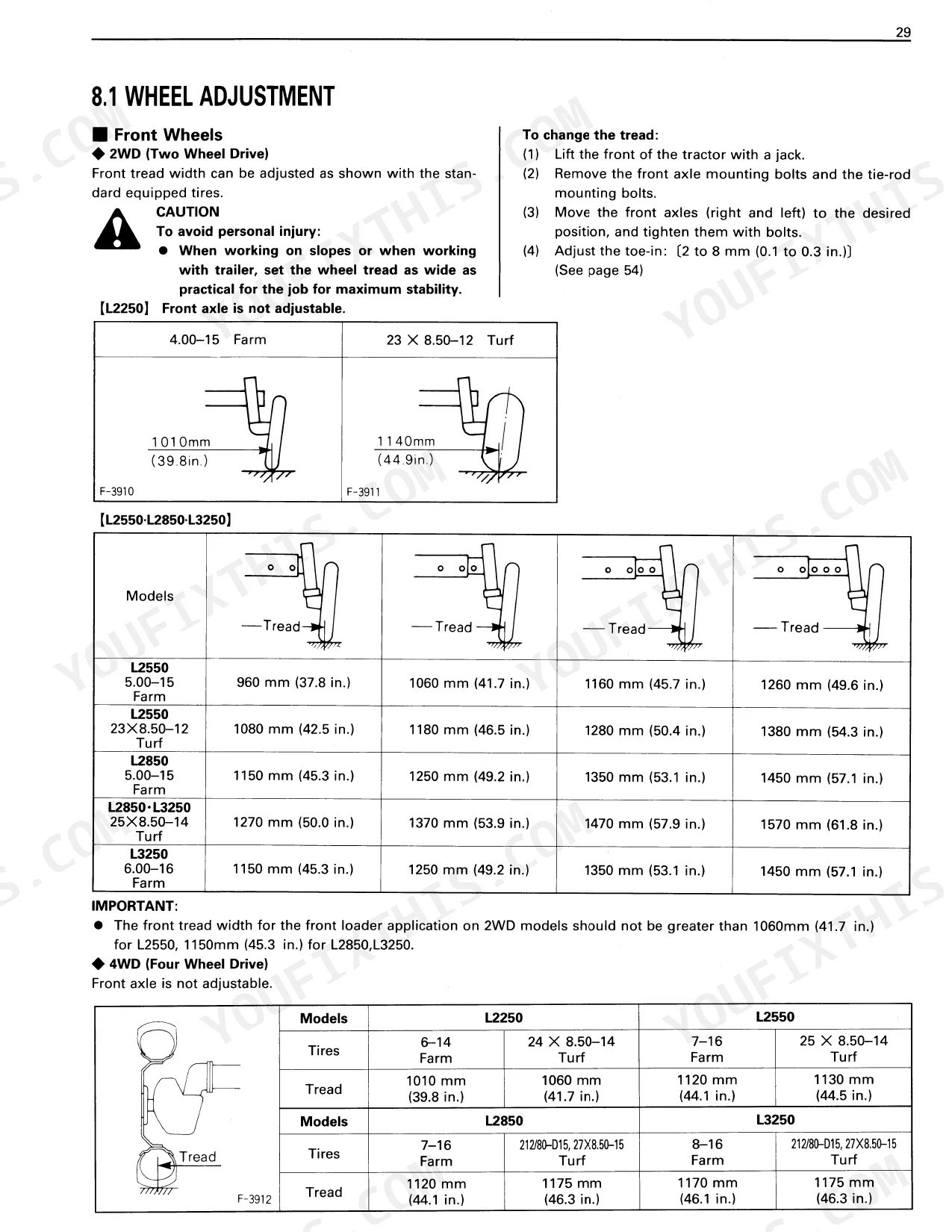

| Wheels, Tires and Ballast | 32-36 | Wheel Adjustment, Wheel Hub, Ballast |

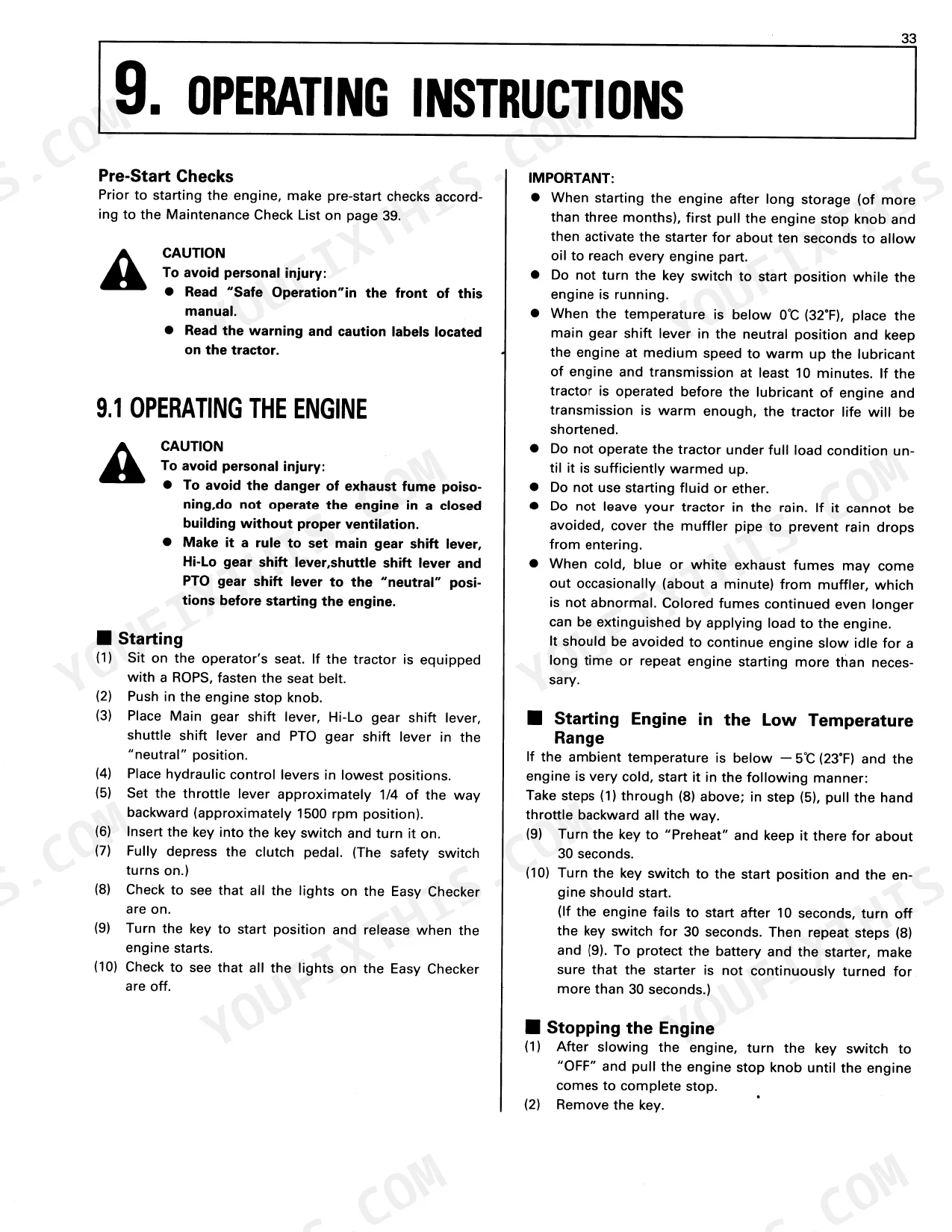

| Operating Instructions | 37-40 | Operating the Engine, Operating the Tractor, Pulling |
| Maintenance | 41-43 | Daily Check, Lubricants, Maintenance Check List |
| Check and Maintenance | 44-56 | Fuel, Engine Oil, Transmission Fluid, Front Axle Case Oil [4WD], Steering Gear Case Oil, Air Cleaner, Battery, Fuse and Light |
| Adjustments | 57-58 | Clutch Pedal Check and Adjustment, Toe-In Check and Adjustment |
| Storage | 59 | Tractor Storage |
| Engine Troubleshooting | 60 | Engine Is Difficult to Start, No Fuel Flow, Air and Water Are in the Fuel System, In Winter, Oil Viscosity Increases, Battery Becomes Weak, Insufficient Engine Power, Insufficient Fuel |
| Lubricant Specifications | 61 | Engine Oil, Engine Oil Viscosity Chart, Others, Power Steering, Front Wheel Bearings, Chassis Grease Fittings, Front Wheel Drive Unit, Transmission Fluid |
| Options | 62 | Smv (Slow Moving Vehicle) Emblem, Double Acting Remote Hydraulic Control Valve, Engine Precleaner, Engine Block Heater, Rear Work Light, Suitcase Weights, Rear Wheel Weights, Swing Drawbar |

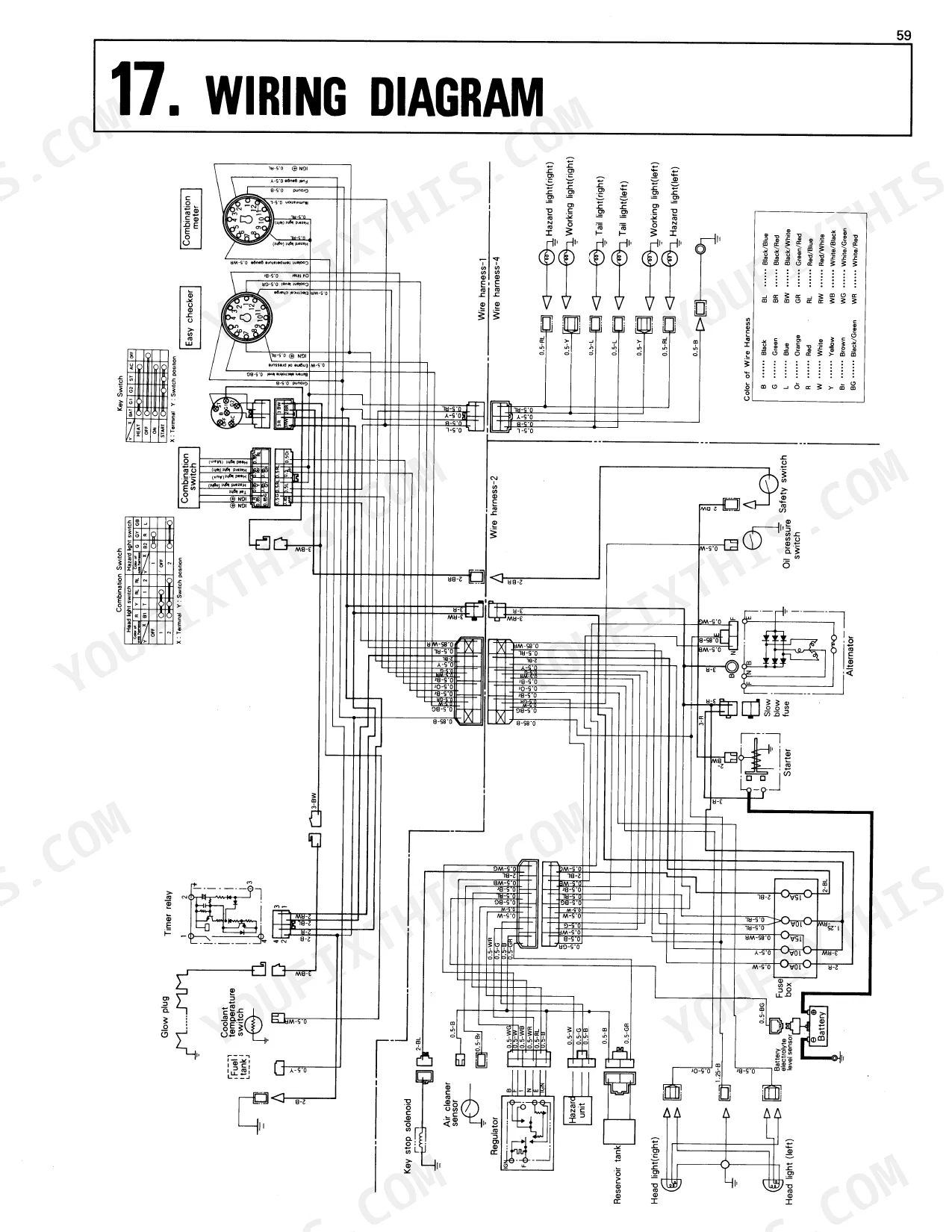

| Wiring Diagram | 63 | Wiring Diagram Illustration, Color of Wire Harness, Black, Black/Blue, Green, Black/Red, Blue, Black/White |
| Index | 64-68 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| L2250 2WD | ||
| Front wheel hub bolts torque | 137 N·m (14 kgf·m, 100 ft·lbs.) | p. 32 |
| All Models | ||
| Rear wheel hub bolts torque | 137 N·m (14 kgf·m, 100 ft·lbs.) | p. 32 |
| Clutch pedal free travel | 20 to 30 mm (0.8 to 1.2 in.) | p. 57 |
| Brake pedal free travel | 20 to 30 mm (0.8 to 1.2 in.) | p. 57 |
| Fuel tank capacity | 29 l (7.7 U.S. gals.) | p. 44 |
| Fuel filter element cleaning interval | 100 Hr | p. 43 |
| Radiator hose check interval | 200 Hr | p. 43 |
| Radiator hose replacement interval | 2 year | p. 43 |
| Engine oil filter cartridge replacement interval | 400 Hr | p. 43 |
| L2550, L2850, L3250 | ||
| Front wheel retaining nut torque | 215 N·m (22 kgf·m, 160 ft·lbs.) | p. 32 |
| models with Dual Clutch | ||
| Dual Clutch clearance | 0.9 to 1.0 mm (0.035 to 0.039 in.) | p. 57 |
Kubota L2250–L3250 Series Common Problems This Manual Covers
Weak or slow hydraulic lift
Slow or weak 3-point lift usually means low fluid, air in the system, or a clogged filter. The Hydraulic Unit section explains position and draft control and the lowering speed knob.
Manual Section: Hydraulic Unit p. 29Engine hard to start
Hard starting on these diesels often traces to no fuel flow, air or water in the fuel, thick cold oil, or a weak battery. The Engine Troubleshooting section walks through each cause.
Manual Section: Engine Troubleshooting p. 60Clutch slip or premature wear
Riding the clutch pedal wears the disc early and causes slipping. The Adjustments section gives the correct clutch pedal free travel and how to reset it.
Manual Section: Adjustments p. 57Dirty air cleaner or fuel filter
Power loss, smoke, or stalling frequently come from a clogged air cleaner element or fuel filter. The Check and Maintenance section covers cleaning and replacement intervals for both.
Manual Section: Check and Maintenance p. 44Loose wheels or wrong tire pressure
Wobble or poor traction can come from loose wheel hardware or incorrect inflation. The Wheels, Tires and Ballast section lists wheel hub torque and tire pressures.
Manual Section: Wheels, Tires and Ballast p. 32Missed service and fluid leaks
Skipped service and leaks under the tractor lead to bigger failures over time. The Maintenance section lays out daily checks, lubricants, and the service interval list.
Manual Section: Maintenance p. 41Frequently Asked Questions
Which tractors does this manual cover?
It covers the Kubota L2250, L2550, L2850, and L3250 tractors with their D1302-DI-A, D1402-DI-A, V1702-DI-A, and V1902-DI-A diesel engines.
What is the rear wheel hub torque?
The rear wheel hub bolts torque to 215 N.m (160 ft-lbs), with front hub nuts at 137 N.m (100 ft-lbs). These figures are in the Wheels, Tires and Ballast section. p. 32
What is the clutch pedal free play?
Clutch pedal free travel should be 20 to 30 mm (0.8 to 1.2 in.). The Adjustments section shows how to check and set it. p. 57
Does this cover a full engine rebuild?
No. This is the operator manual for running and maintaining the tractor: controls, service, adjustments, and troubleshooting. It is not the workshop manual for internal engine or transmission overhaul.
How do I get the manual?
It is an instant PDF download after purchase. Read it on a computer, tablet, or phone, and print the whole book or only the pages you need.
What format is this manual in?
It's a 68-page searchable PDF ready to download right away. It runs on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.

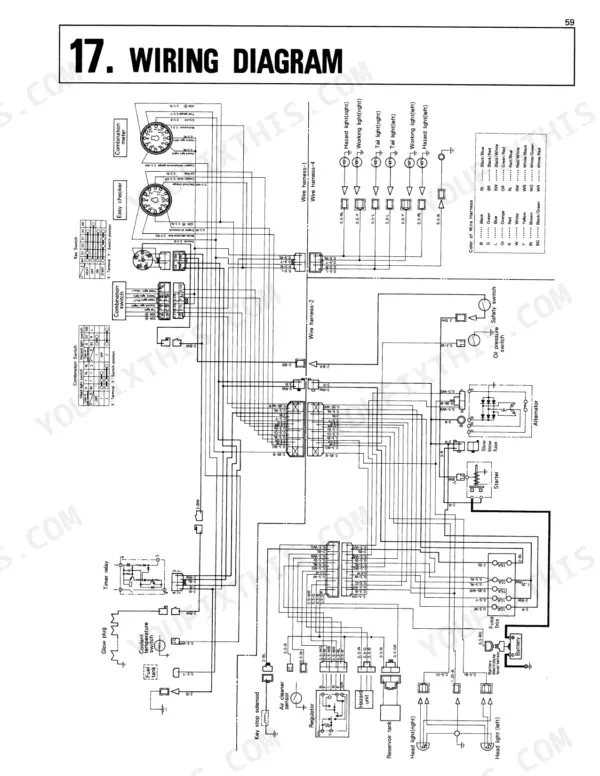

Are there wiring harness diagrams in this Kubota L2250–L3250 Series manual?
Yes. The manual includes the overall electrical wiring diagram for the L2250, L2550, L2850, and L3250, showing circuit layout and wire routing, rather than the connector-level schematics you would find in a full workshop manual.
