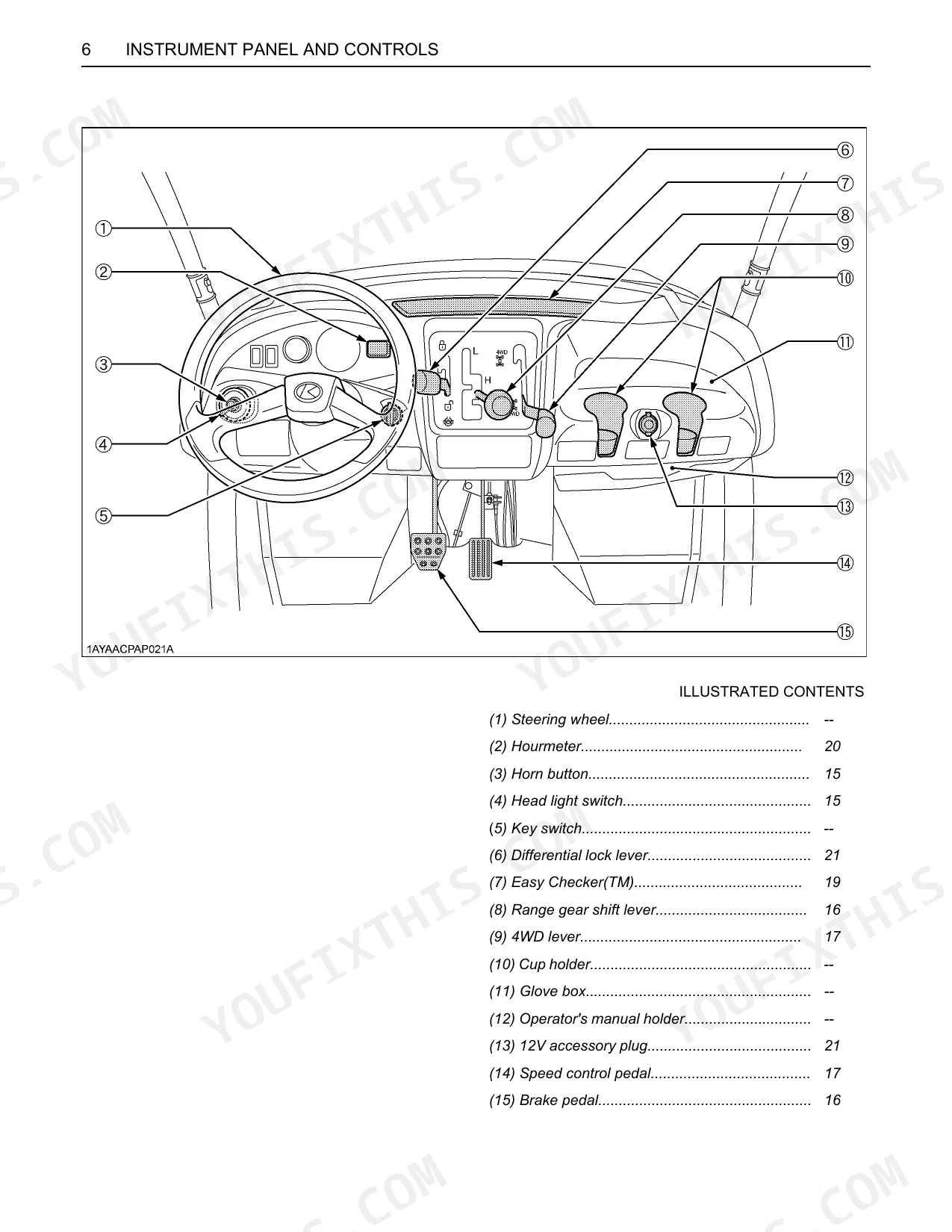

Looking for the Kubota RTV400Ci operator manual PDF straight from the factory? These 91 pages (OEM #K7211-7121-1) cover every operating procedure, maintenance interval, and safety protocol built into the RTV400Ci utility vehicle. Inside: 32 pages of scheduled maintenance from daily walkarounds to 4-year brake hose replacements, 5 pages of operating techniques covering 4WD engagement, differential lock, and hillside traversing, plus a complete instrument panel and EasyChecker dashboard guide. You also get fluid capacity specs, an 18-page safety section, and troubleshooting across engine, battery, and machine faults. Fill the engine with 1.6 L at each filter change and torque wheel bolts to 108.4 to 121.9 N-m (80 to 90 lbf-ft). No more digging through forums for basic maintenance numbers. Bookmarked by section and keyword-searchable; open it on your tablet and walk straight to the machine.
What's Inside This Kubota RTV400Ci Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| RTV400 Operators Manual K7211-71211 | 1 | Safe Operation, Specifications, Operating the Engine, Operating the Vehicle, Maintenance, Troubleshooting |
| Abbreviation List | 2 | 2Wd, 4Wd, Api, Asabe, ROPS, CVT |
| Kubota Corporation is... | 3 | - |
| Universal Symbols | 4 | Safety Alert Symbol, Brake, Battery Charging, Engine Oil-Pressure, Differential Lock, Headlight |

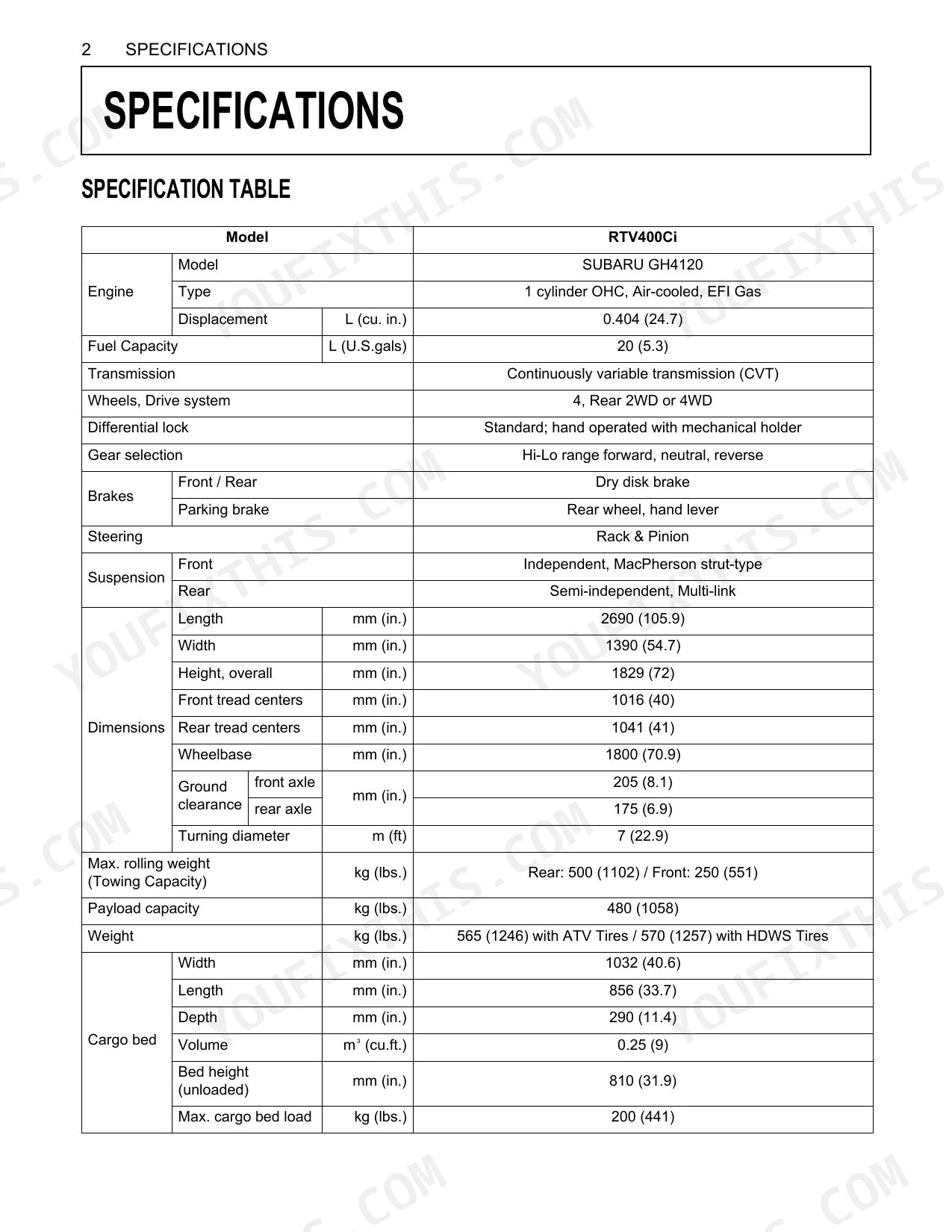

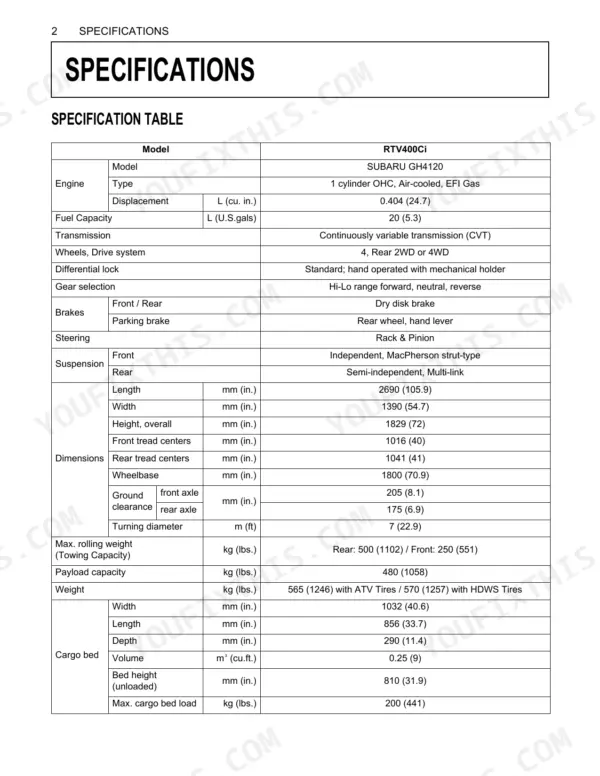

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Torque wheel bolts | 108.4 to 121.9 N-m (11 to 12.4 kgf-m) (80 to 90 lbf-ft) | p. 65 |
| Engine oil filter tightening | Tighten filter by hand an additional 1/2 turn only | p. 74 |
| Engine oil capacity (Filter exchanged) | 1.6 L (1.7 U.S.qts.) | p. 66 |
| Engine air cleaner element compressed air pressure for cleaning | under 205 kPa (2.1 kgf/cm², 30 psi) | p. 67 |
| Engine air cleaner element replacement interval | Once yearly or after every sixth cleaning, whichever comes first | p. 67 |
| Transmission oil capacity | 5.4 L (1.4 U.S.gals.) | p. 78 |
| Fuel line check/replacement interval | Check every 100 hours / Replace every 2 years | p. 52 |
| Engine cooling fin cleaning air pressure | not to exceed 205 kPa (2.1 kgf/cm², 30 psi) | p. 74 |
| Battery type | U1L-10 | p. 70 |
| Battery volts | 12 V | p. 70 |
| Proper brake pedal free travel | 7 to 14 mm (0.3 to 0.6 in.) on the pedal | p. 75 |
| Brake pedal stroke | Less than 65 mm (2.56 in.) on the pedal | p. 75 |
Kubota RTV400Ci Common Problems This Manual Covers
Kubota RTV400Ci engine bogs down and backfires under load, power loss intermittently
Check engine oil for fuel contamination by pulling the dipstick and smelling for gasoline. If contaminated, drain completely and refill with fresh oil to 1.6 L capacity (page 66). Inspect the fuel line for cracks or softness; replacement is recommended every 2 years or 100 hours (page 52). Review for the complete engine troubleshooting chart.
Manual Section: Engine TroubleshootingWarning lamps don't light up at startup or safety interlock won't let engine start
Verify the parking brake is set and seat belt is buckled before cranking. Watch the dashboard: all warning lamps should illuminate briefly as a self-check. Cross-reference any lamp that stays lit with the universal symbols chart on page 4. If the engine still won't crank, confirm brake pedal free travel measures 7 to 14 mm (page 75).
Manual Section: Engine TroubleshootingEngine temperature warning light on, machine running hot after working in dusty conditions
Shut down and let the engine cool completely before touching anything. Clean the radiator screen and all cooling air inlets of debris; use compressed air not exceeding 205 kPa to blow out packed dirt from the cooling fins. Verify engine oil level is correct. Check for the engine overheating troubleshooting sequence before restarting.
Manual Section: Engine TroubleshootingAbnormal vibration felt through steering wheel and floor while driving on flat ground
Check tire inflation on all four tires; correct pressure is 97 kPa (page 48). Inspect wheel bolt tightness, torquing to 108.4 to 121.9 N-m if any are loose (page 65). Walk around and look for anything obviously loose underneath. If vibration persists, check front toe-in, which should measure 0 to 20 mm (page 72).
Manual Section: Machine TroubleshootingBrakes feel soft or pedal travels too far before the machine slows down
Check brake fluid level and top off with Kubota DOT3 genuine brake fluid if low (page 61). Test pedal free travel; it should measure 7 to 14 mm (page 75). A stroke exceeding 65 mm before the machine stops means the system needs attention. Inspect brake pads visually and replace any worn below the 1 mm minimum (page 81).
Manual Section: Machine TroubleshootingEngine cranks slowly or not at all, headlights dim when trying to start
Inspect both battery terminals for white corrosion and clean with a wire brush. Check electrolyte level in each cell and top off with distilled water if plates are exposed. The correct replacement battery is a 12V U1L-10 rated at 300 cold-cranking amps (page 70). Review the battery troubleshooting chart for charging and load-test guidance.
Manual Section: Battery TroubleshootingFrequently Asked Questions
What are the torque specs for Kubota RTV400Ci wheel nuts and engine bolts?
The torque specification for wheel bolts is 108.4 to 121.9 N-m (11 to 12.4 kgf-m, 80 to 90 lbf-ft). For spark plugs, which are part of the engine, the initial tightening torque is 12 to 15 N-m (8.9 to 11 lbf-ft), and the retightening torque is 23 to 27 N-m (17 to 19 lbf-ft).
What do Kubota RTV400Ci error codes mean?
The Kubota RTV400Ci uses an Easy Checker(TM) system with warning lamps (Brake indication, Engine diagnostic, Engine oil pressure, Electrical charge) to indicate issues. For example, if the engine diagnostic light comes on, it indicates a sensor malfunction, and you should stop the vehicle and consult your local KUBOTA Dealer. The manual describes the meaning of these warning lamps but does not list specific alphanumeric error codes.

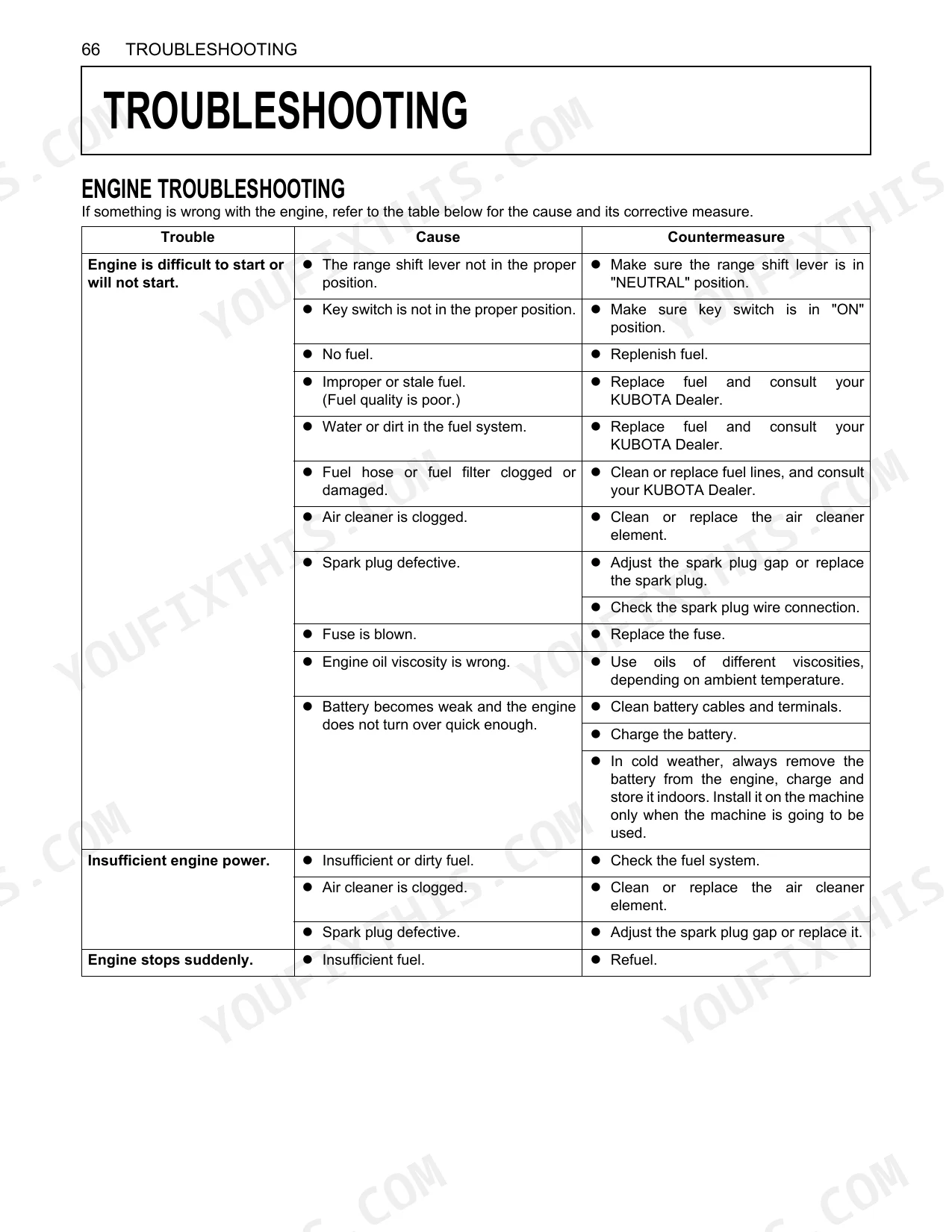

How do I fix a Kubota RTV400Ci that will not start?
If the engine is difficult to start or will not start, check if the range shift lever is in the "NEUTRAL" position and the key switch is in "ON". Other causes include no fuel, improper or stale fuel, water/dirt in the fuel system, clogged fuel hose/filter, clogged air cleaner, or a defective spark plug. Countermeasures include replenishing fuel, replacing fuel, cleaning/replacing fuel lines or air cleaner element, adjusting/replacing spark plugs, or charging the battery.
What are the replacement specifications for engine oil filter?
The engine oil filter should be replaced every 200 hours of operation. To prevent serious damage to the engine, it is important to use only a KUBOTA genuine filter when replacing the old one. The procedure involves removing the old filter, applying clean engine oil to the new filter's rubber seal, and tightening it by hand.
What are the replacement specifications for air cleaner element?
The engine air cleaner element and CVT air cleaner element should be replaced once yearly or after every sixth cleaning, whichever comes first. If the element is worn out, damaged, or too dirty to wash clean, it must be replaced with a new one. The manual does not provide specific part numbers or detailed technical specifications for the replacement elements.
What do I get after purchasing this Kubota RTV400Ci manual?
A 91-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone — no shipping wait.
Can I print specific sections of this Kubota RTV400Ci Operator Manual?
None at all — the PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Document Quality
This document is a scanned PDF, not a native digital file. It includes an OCR layer, allowing you to search and copy the full text content. The text is crisp and highly readable throughout, with diagrams and illustrations also being clear, though they are raster images and may show pixelation at high zoom. Pages are generally clean, with only minor scan artifacts and slight skewing on some pages, and page 19 is intentionally blank.
