This is the Kubota SVL75 operator's manual, a 113-page PDF for the compact track loader powered by the Kubota V3307DI-TE3 diesel engine. Covering machines in the 12312 and 12313 serial ranges, it is the factory book written for owners, operators, and mechanics who run and maintain the loader.It covers technical data, machine controls, daily checks, engine starting, and full operation of the lift arms, bucket, and auxiliary hydraulics, plus lifting, transporting, and cold weather procedures. The maintenance chapters lay out service intervals and the steps for filter changes, track tension, battery service, and fuse locations, with the capacities and clearances called out for each job.Supplied as a downloadable, bookmarked PDF with a searchable text layer, it prints cleanly at full size so you can keep it in the cab or at the bench.
What's Inside This Kubota SVL75 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Dealer Service | 25 | Machine Serial No., Engine Serial No., Warranty Policy |
| Technical Data | 26 | Model Name, Operating Weight, Engine Power, Rated Operating Capacity, Breakout Force, Fuel Tank Capacity |

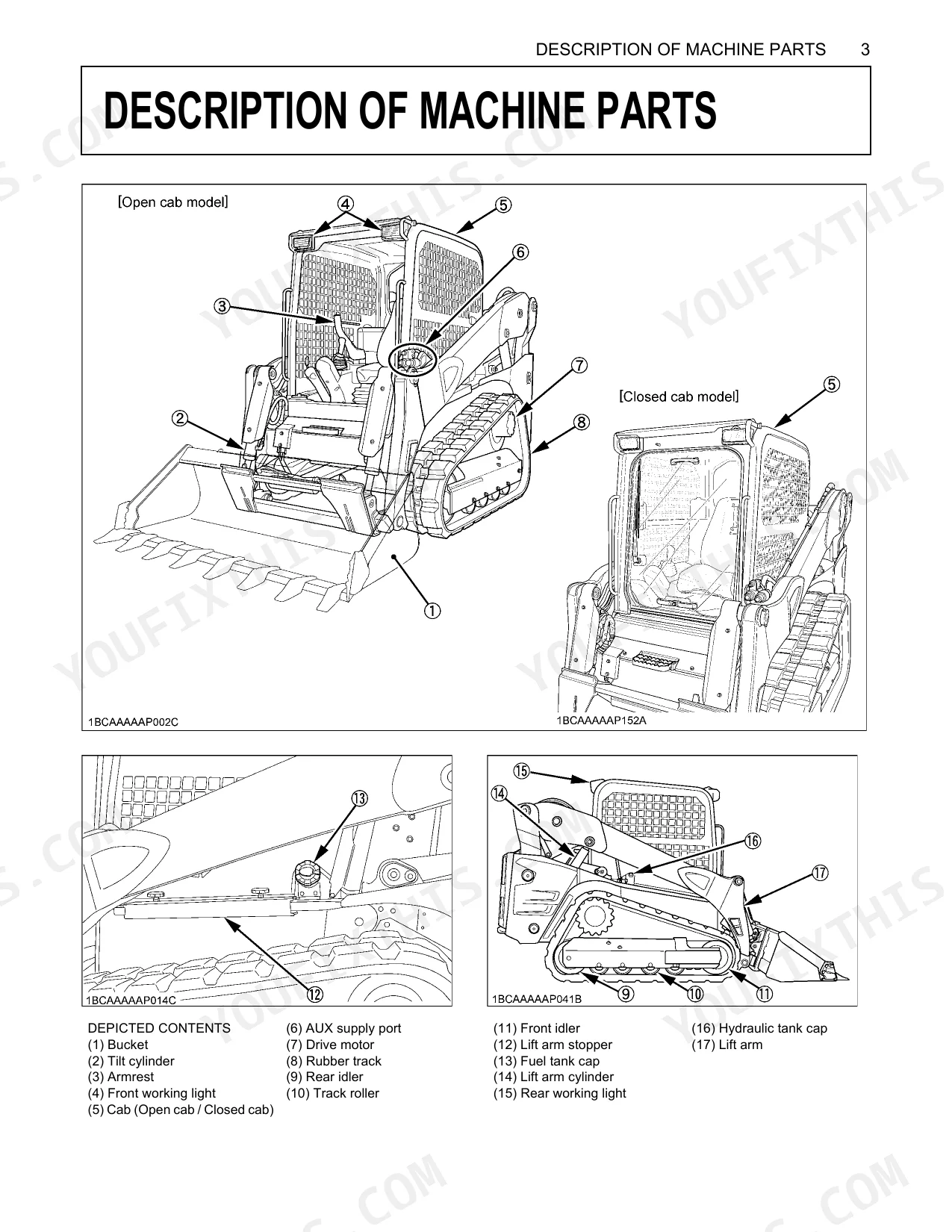

| Description of Machine Parts | 27 | Bucket, Tilt Cylinder, Drive Motor, Rubber Track, Lift Arm Cylinder, Lift Arm |

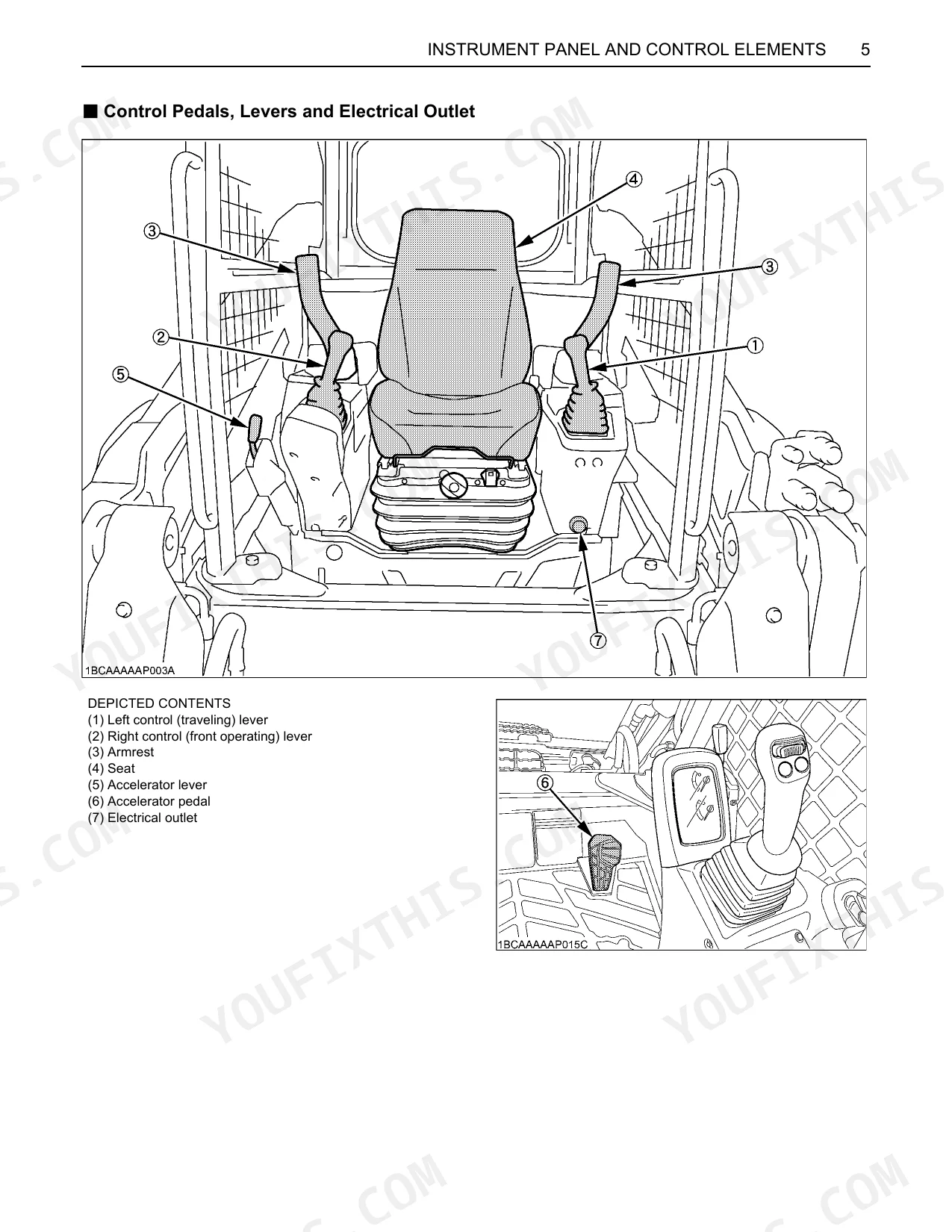

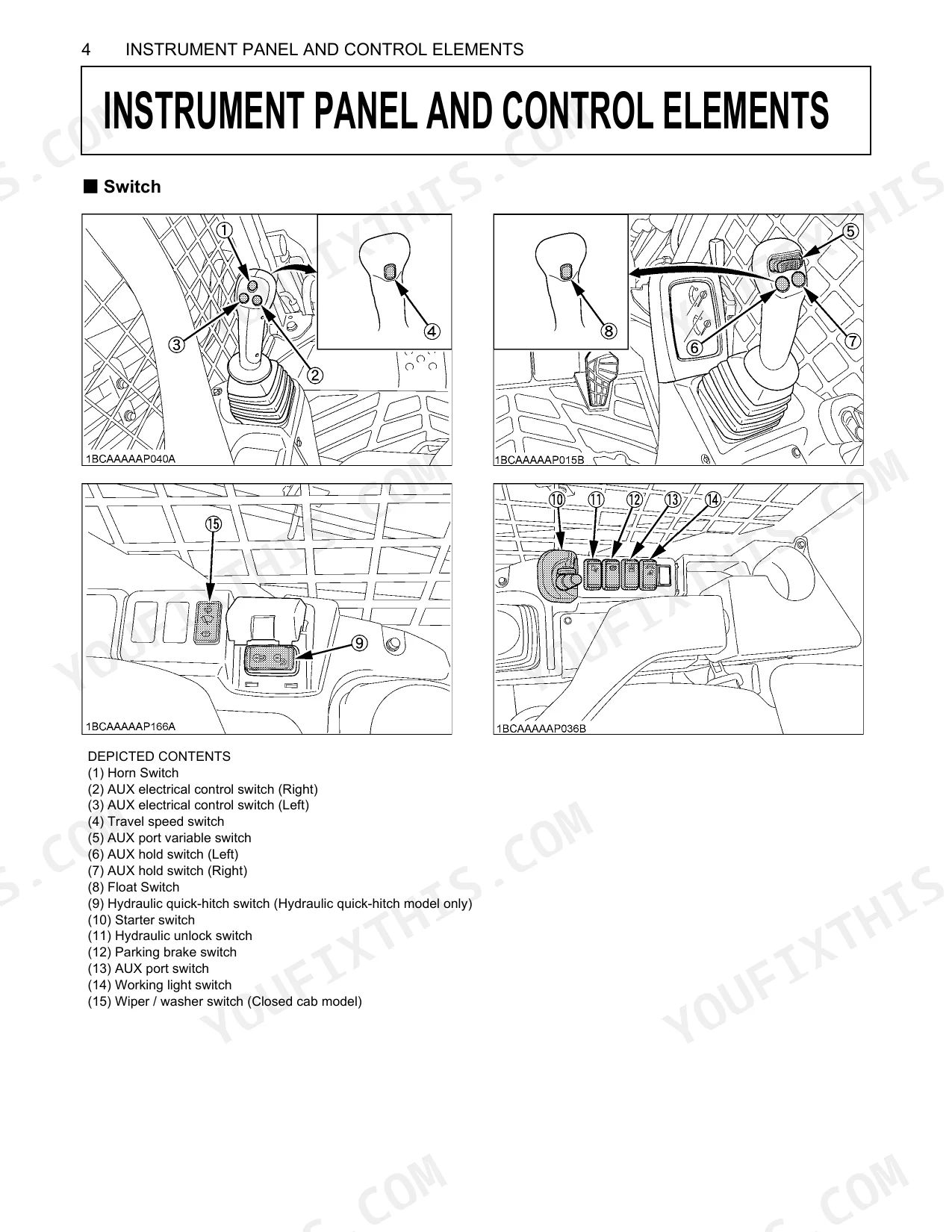

| Instrument Panel and Control Elements | 28-30 | Horn Switch, Travel Speed Switch, Starter Switch, Parking Brake Switch, Hydraulic Unlock Switch, Fuel Gauge Indicator |
| Checks Before Start | 31-46 | Daily Checks, Checking the Switches, Checking the Lamps and Indicators, Checking the Safety Devices, Door and Windows, Air-Conditioner |
| Operation of the Engine | 47-49 | Starting the Engine, Starting the Engine Under Cold Conditions, Stopping the Engine, Starting with an Auxiliary Battery |

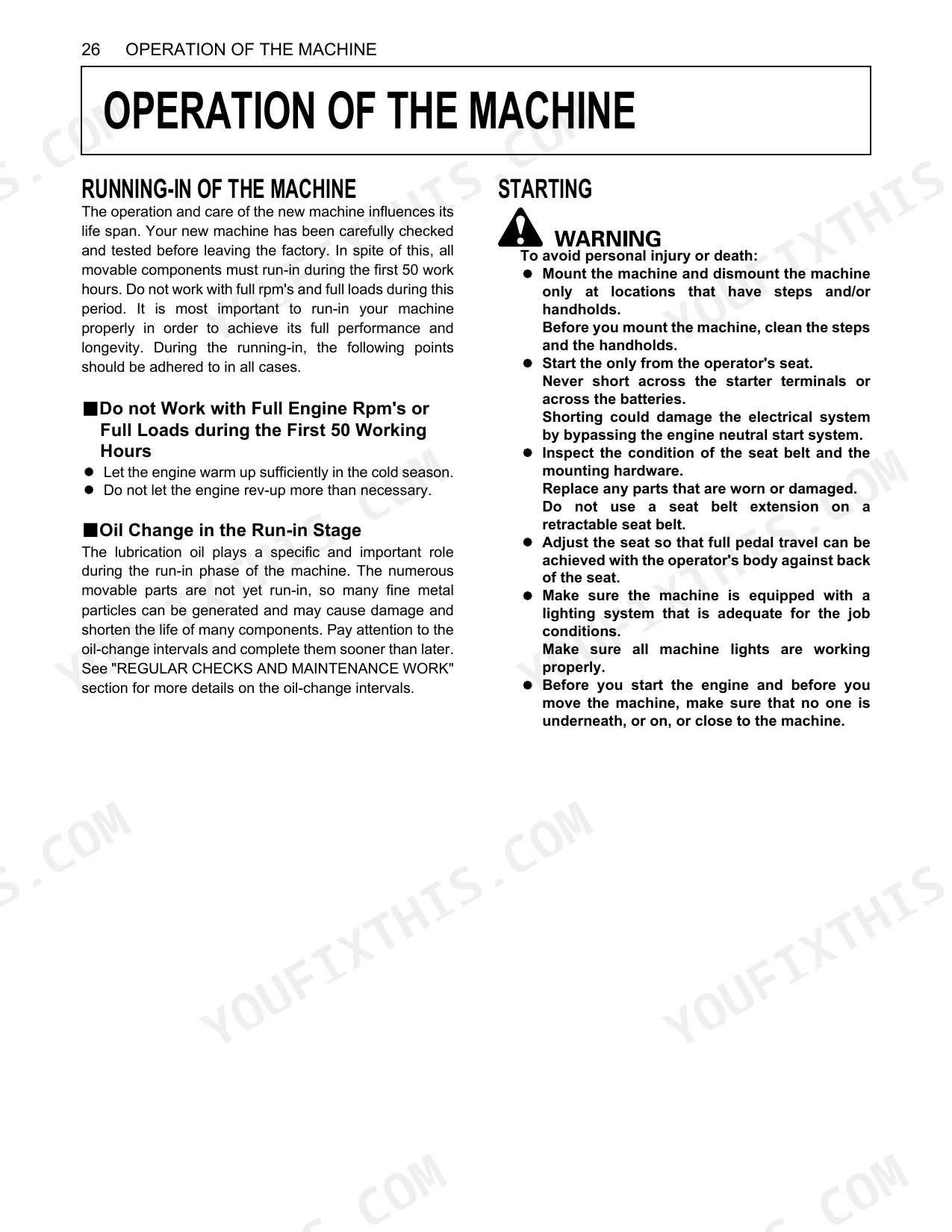

| Operation of the Machine | 50-67 | Running-In of the Machine, Starting, Driving, Turning, Operation of the Lift Arms, Operation of the Bucket, Auxiliary Hydraulic Control, Attachment Control Device |
| Lifting the Machine | 68-70 | Lifting Chains, Pads, Master Links, Chain Locations, Hook Positions, Hoist Hook |
| Transporting the Machine | 71-73 | Loading the Machine on a Transport Vehicle, Towing an Operable Machine, Towing an Inoperable Machine |

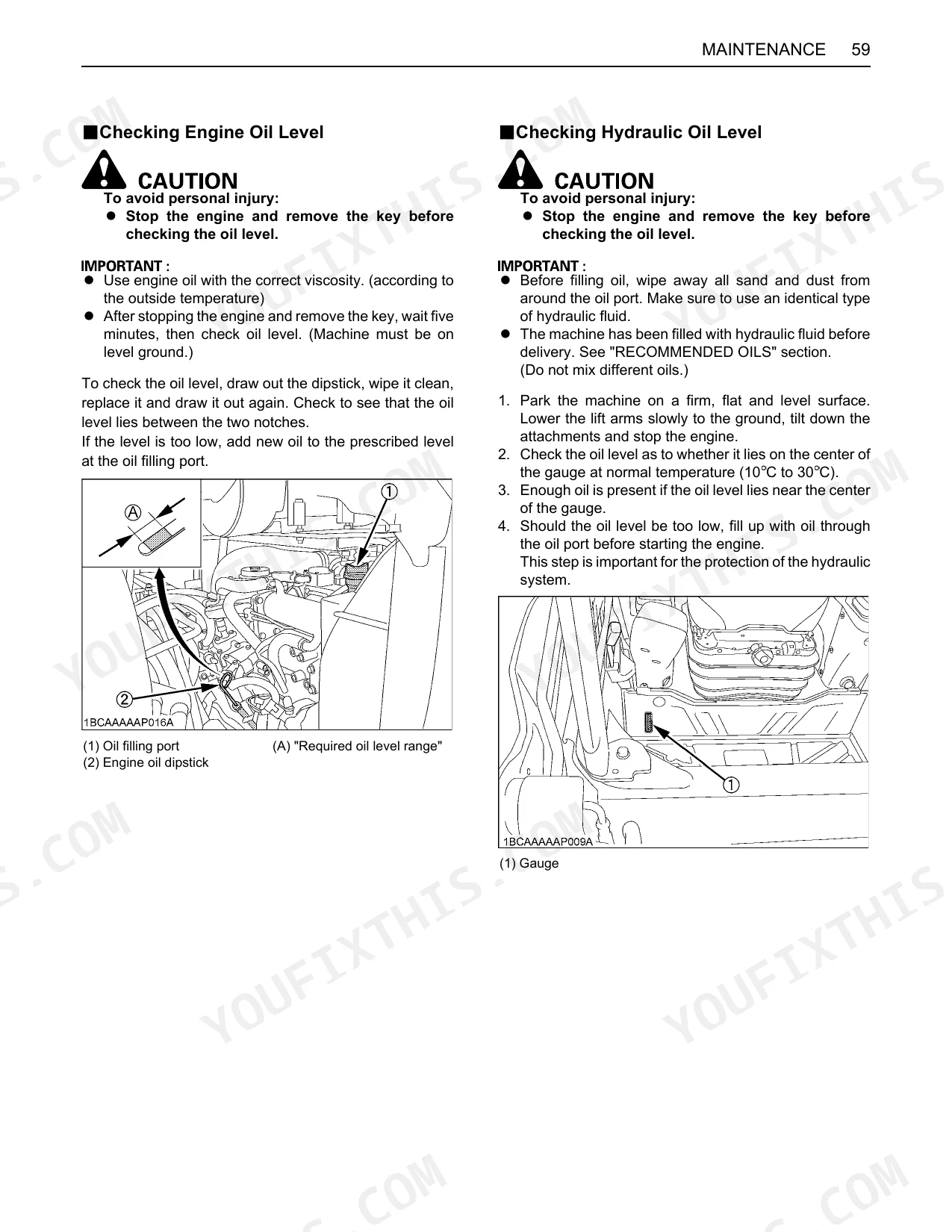

| Maintenance | 74-87 | Maintenance Intervals, Opening and Closing of Components, Discharging Mud From Operator Room and Main Frame, Daily Checks, Every 50 Service Hours, Every 250 Service Hours |
| Regular Checks and Maintenance Work | 88-102 | Maintenance Intervals, Opening and Closing of Components, Discharging Mud From Operator Room and Main Frame, Daily Checks, Every 50 Service Hours, Every 250 Service Hours |
| Other Adjustments and Replacements | 103-106 | Purging of the Fuel System, Tracks, Fuses |
| Troubleshooting | 107-108 | Engine Starting Difficulties, Engine Abnormal Exhaust Gas Color, Engine Overheating, Hydraulic System Low Power, Drive System Deviation, Electric System Malfunction |
| Operation Under Cold Weather Conditions | 109 | Preparation for Operation in Cold Weather, Procedure After Completion Work |
| Long Storage | 110-111 | Machine Cleaning, Oil Change, Cylinder Rods Greasing, Battery Removal, Anti-Freeze Addition, Component Parts Replacement |
| Recommended Oils | 112 | Engine Oil, Gear Oil, Hydraulic Oil, Grease, Fuel |
| Appendices | 113 | Main Dimensions |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Track tension clearance | 20 to 30 mm | p. 89 |
| Fuel injection nozzle (injection pressure) service | Consult your local KUBOTA Dealer for this service. | p. 99 |
| Fuel filter cartridge replacement interval | every 500 hrs | p. 74 |
| Hydraulic return filter replacement interval | every 500 hrs | p. 75 |
| Hydraulic suction filter replacement interval | every 1000 hrs | p. 75 |
| Outer air cleaner element cleaning interval | every 50 hrs | p. 74 |
| Outer air cleaner element replacement interval | every 250 hrs | p. 74 |
| Battery voltage | 12 Volts (V) | p. 87 |
| Battery capacity | 85.3 (at 5H.R(A.H)) | p. 87 |
| Glow plugs fuse capacity | 50A | p. 105 |
| Rated operating capacity | 1043 kg | p. 26 |
| Tipping load | 2980 kg | p. 26 |
Kubota SVL75 Common Problems This Manual Covers
Power loss under load
Operators report the machine losing power or failing to hold hydraulic performance under load, often tied to fuel starvation or injector and high-pressure fuel faults. The troubleshooting section walks through low engine power and weak hydraulic symptoms.
Manual Section: Troubleshooting p. 107Loss of drive from clogged filters
Loss of travel or drive performance frequently follows fluid contamination or missed service, when hydraulic filters clog and restrict flow. The regular checks section gives the hydraulic filter replacement intervals that prevent it.
Manual Section: Regular Checks and Maintenance Work p. 88Bucket controls feel delayed
Loader or bucket controls that feel unresponsive, delayed, or inconsistent usually come from incorrect lever positions or auxiliary hydraulic flow settings. This section explains correct operation of the lift arms, bucket, and auxiliary hydraulic control.
Manual Section: Operation of the Machine p. 50Hard starting in cold weather
The loader can be difficult to start in the cold when the glow plug preheat is not used correctly or the battery is weak. This section covers the correct starting sequence, including starting under cold conditions.
Manual Section: Operation of the Engine p. 47Track wear from loose track tension
Running the rubber tracks too loose or too tight leads to premature wear and drive problems. The maintenance section gives the track tension clearance and how to check and adjust it.
Manual Section: Other Adjustments and Replacements p. 103Hard starting from neglected fuel filter
A fuel filter left past its service life can starve the high-pressure pump and cause hard starting or power loss. The maintenance schedule sets the fuel filter cartridge replacement interval.
Manual Section: Maintenance p. 74Frequently Asked Questions
What machine and engine does this manual cover?
It is the operator's manual for the Kubota SVL75 compact track loader with the Kubota V3307DI-TE3 diesel engine, covering the 12312 and 12313 serial ranges. The PDF is 113 pages of operation and owner maintenance.
How do I adjust the track tension?
The manual gives a track tension clearance of 20 to 30 mm and covers the adjustment procedure in the maintenance chapters. Correct track tension protects the rubber tracks and drive from wear. p. 89
What are the battery specifications?
The SVL75 uses a 12 V battery with 900 cold cranking amps, an 85.3 A.H. capacity at the 5-hour rate, and a 160-minute reserve. Battery service is covered in the maintenance section. p. 87
How often are the hydraulic filters replaced?
The maintenance schedule calls for the hydraulic return and oil filters every 500 hours and the hydraulic suction filter every 1000 hours. Following these intervals helps prevent loss of drive and weak hydraulics. p. 75
What do I get after purchasing this Kubota SVL75 manual?
This is a 113-page searchable PDF ready for immediate download. Works on any device, pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this Kubota SVL75 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
