This is the factory operator's manual for the Kubota RTV500 utility vehicle, a 96-page PDF built around the GZ460F-E3-UV gasoline engine and hydrostatic transmission. It is the book Kubota ships with the machine, aimed at owners and operators who handle their own upkeep.Inside are safe operating procedures, full specifications, engine starting and driving instructions, cargo bed and towing limits, and a complete maintenance schedule. The manual details routine service such as engine, transmission, and HST filter changes, air cleaner cleaning, brake checks, tire pressures, and battery care, and lists the capacities and torque figures each task requires. A troubleshooting section helps you trace common engine, battery, and drivability faults.Delivered as a downloadable PDF with bookmarks and a searchable text layer, it prints cleanly, so you can keep a reference in the shop or carry it in the field.
What's Inside This Kubota RTV500 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 9-18 | Before Operating the Vehicle, Operating the Vehicle, Hauling Loads in the Cargo Bed, Parking the Vehicle, Transporting, Servicing the Vehicle |
| Servicing of Vehicle | 19 | Vehicle Serial Number, Vehicle Identification Number, ROPS Serial Number, Engine Serial Number, Transmission Assy Serial Number |
| Specifications | 20-21 | Specification Table, Travelling Speeds |
| Vehicle Limitations | 22 | Max. Cargo Loading Weight, Rear Trailer Hitch, Max. Rolling Weight, Max. Tongue Weight, Front Trailer Hitch, Rolling Weight |

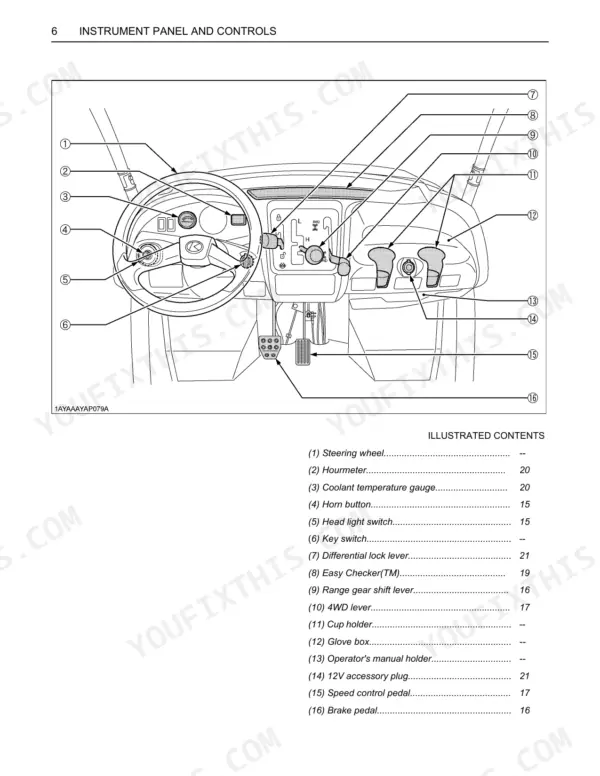

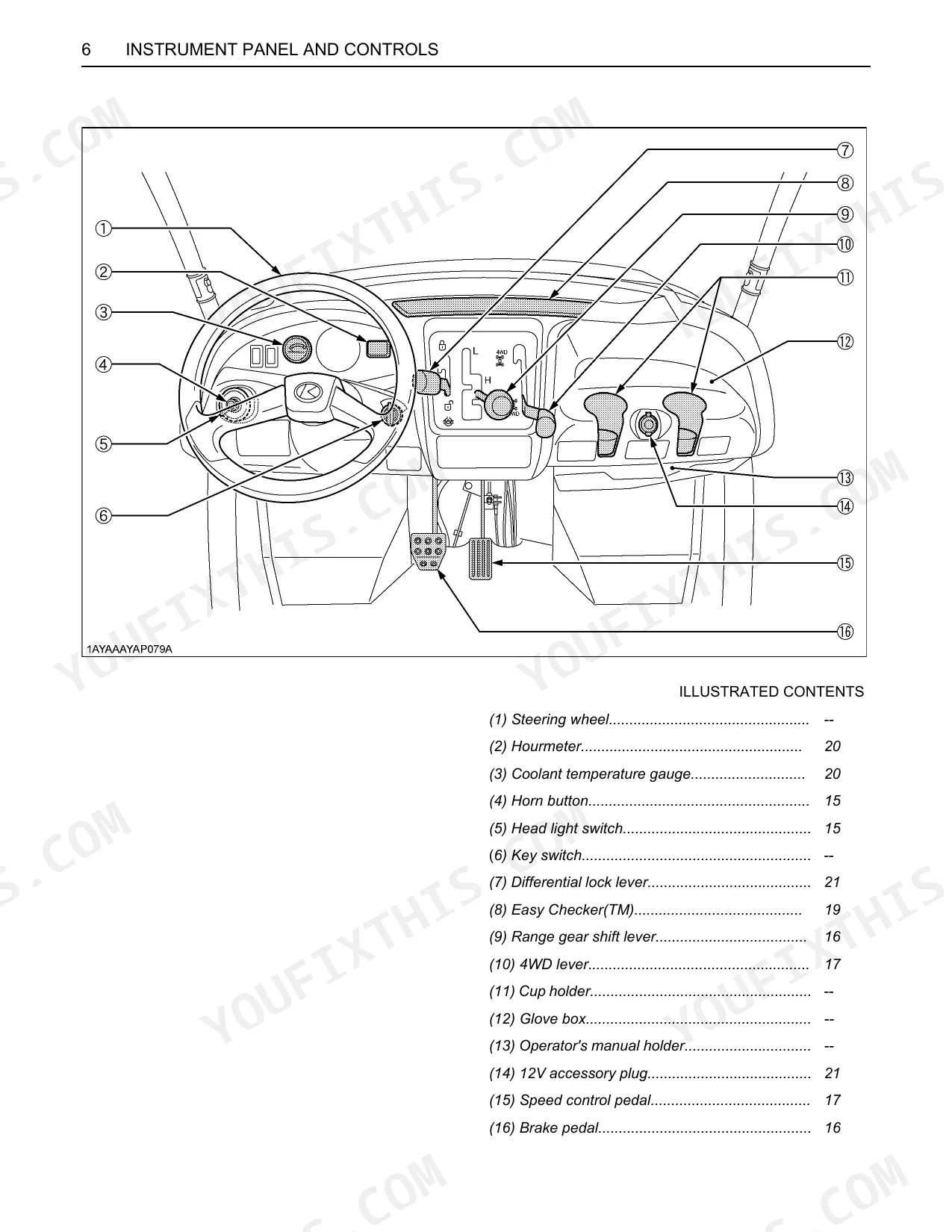

| Instrument Panel and Controls | 23-26 | Location of Parts |

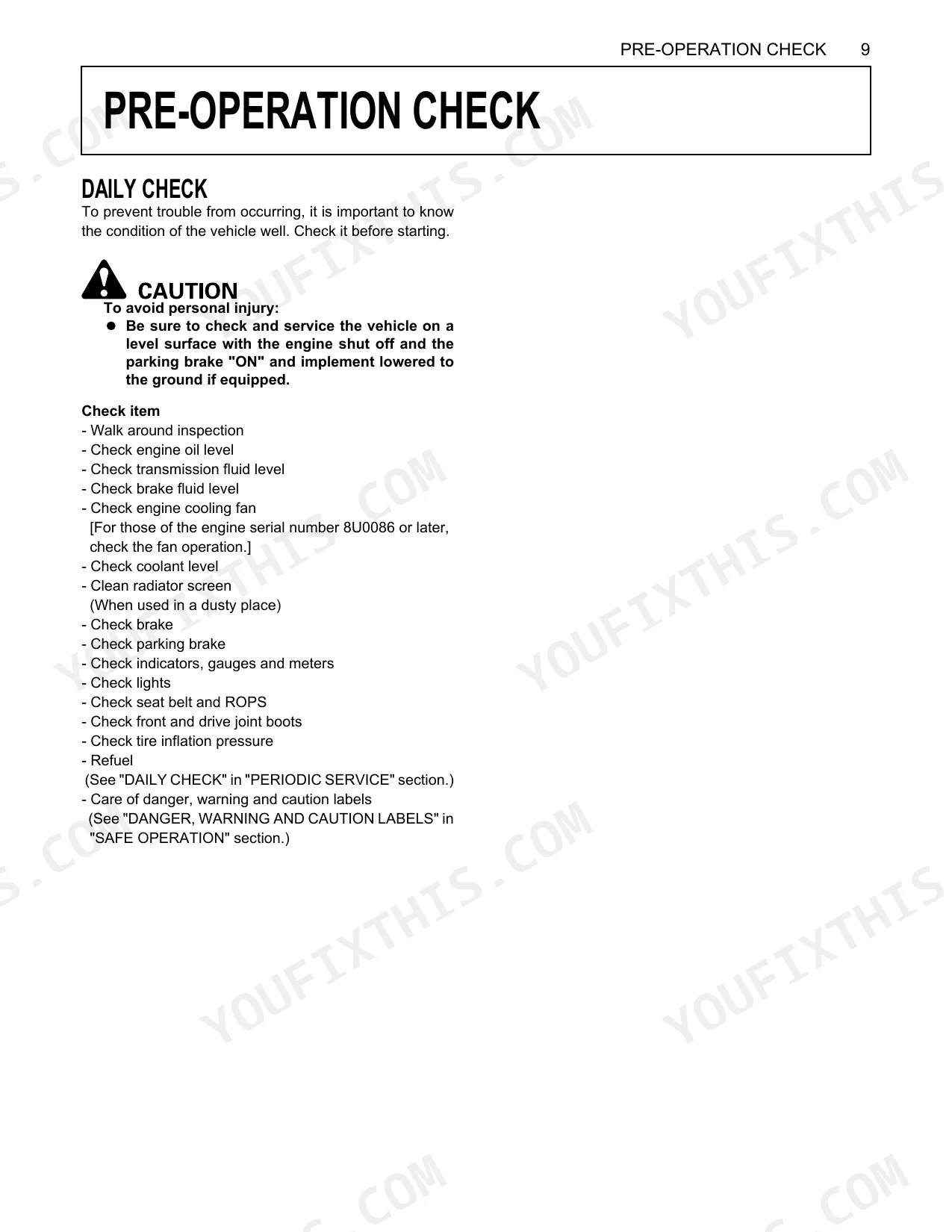

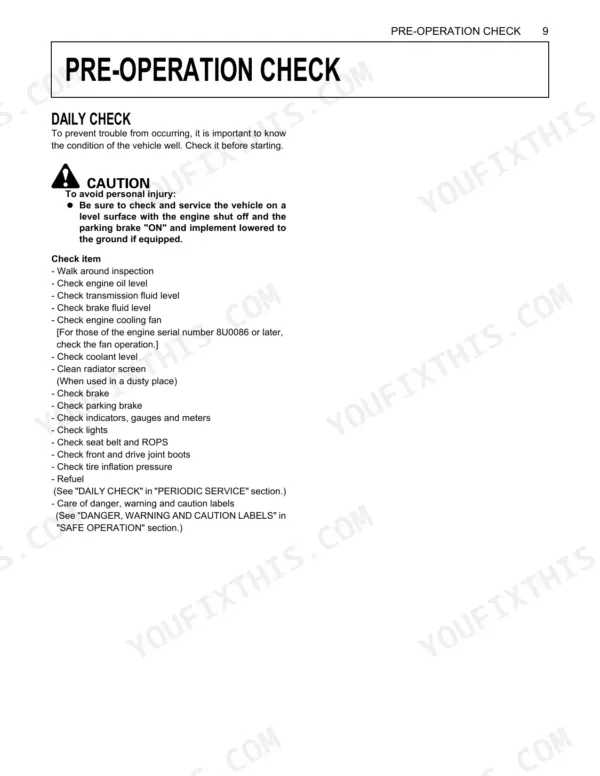

| Pre-Operation Check | 27 | Daily Check |

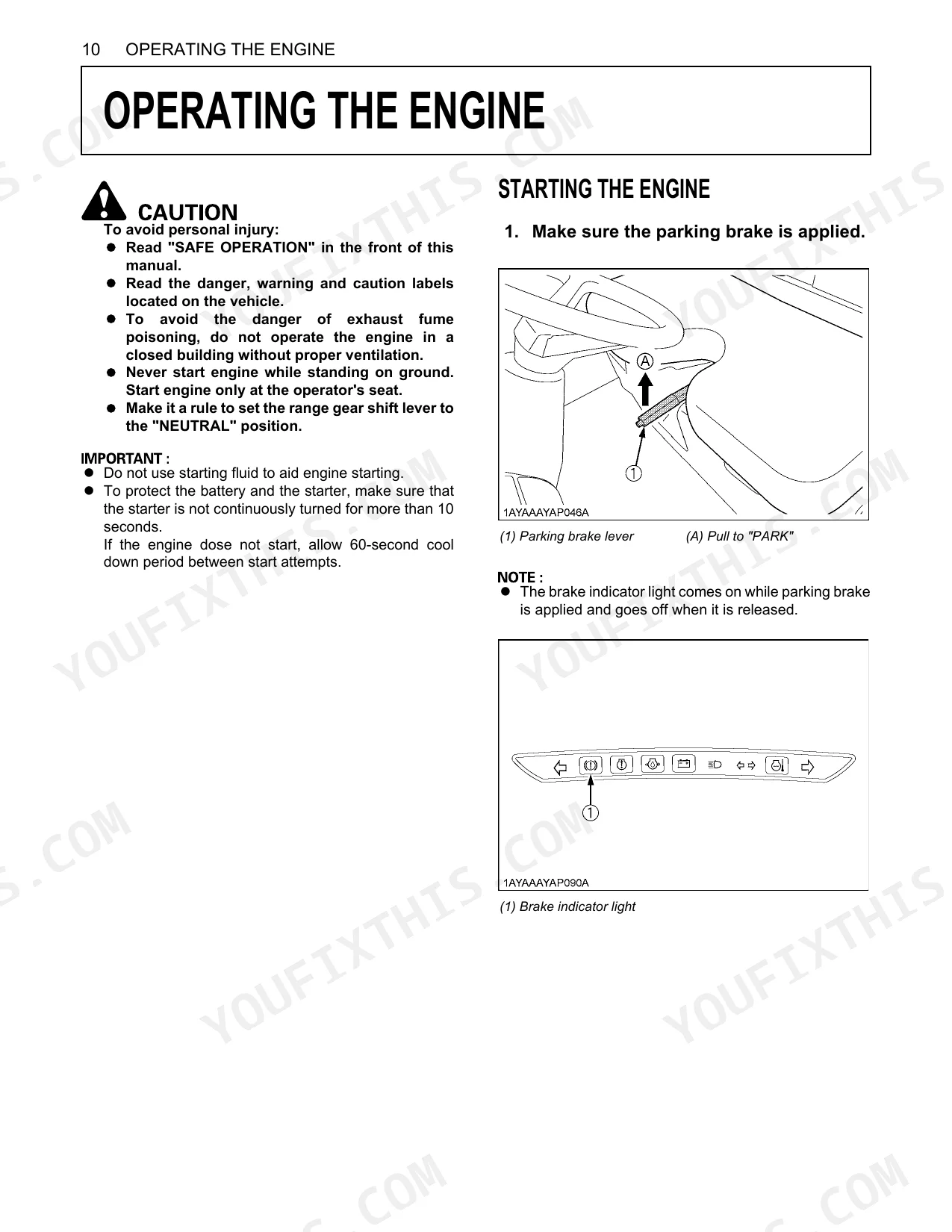

| Operating the Engine | 28-31 | Starting the Engine, Stopping the Engine, Warming Up, Jump Starting |
| Operating the Vehicle | 32-43 | Operating New Vehicle, Starting, Stopping, Check During Driving, Parking, Accessory, Operating Techniques |
| Cargo Bed | 44-46 | General Caution, Max. Cargo Load, Cargo Bed Tailgate, Raising and Lowering the Cargo Bed |
| Tires and Wheels | 47-48 | Tires, Wheels, Shock Absorbers |
| Towing and Transporting | 49-50 | Rear Trailer Hitch, Front Trailer Hitch, Winch Mount Bracket, Transporting Vehicle |
| Maintenance | 51-55 | Service Intervals, Lubricants, Fuel and Coolant |

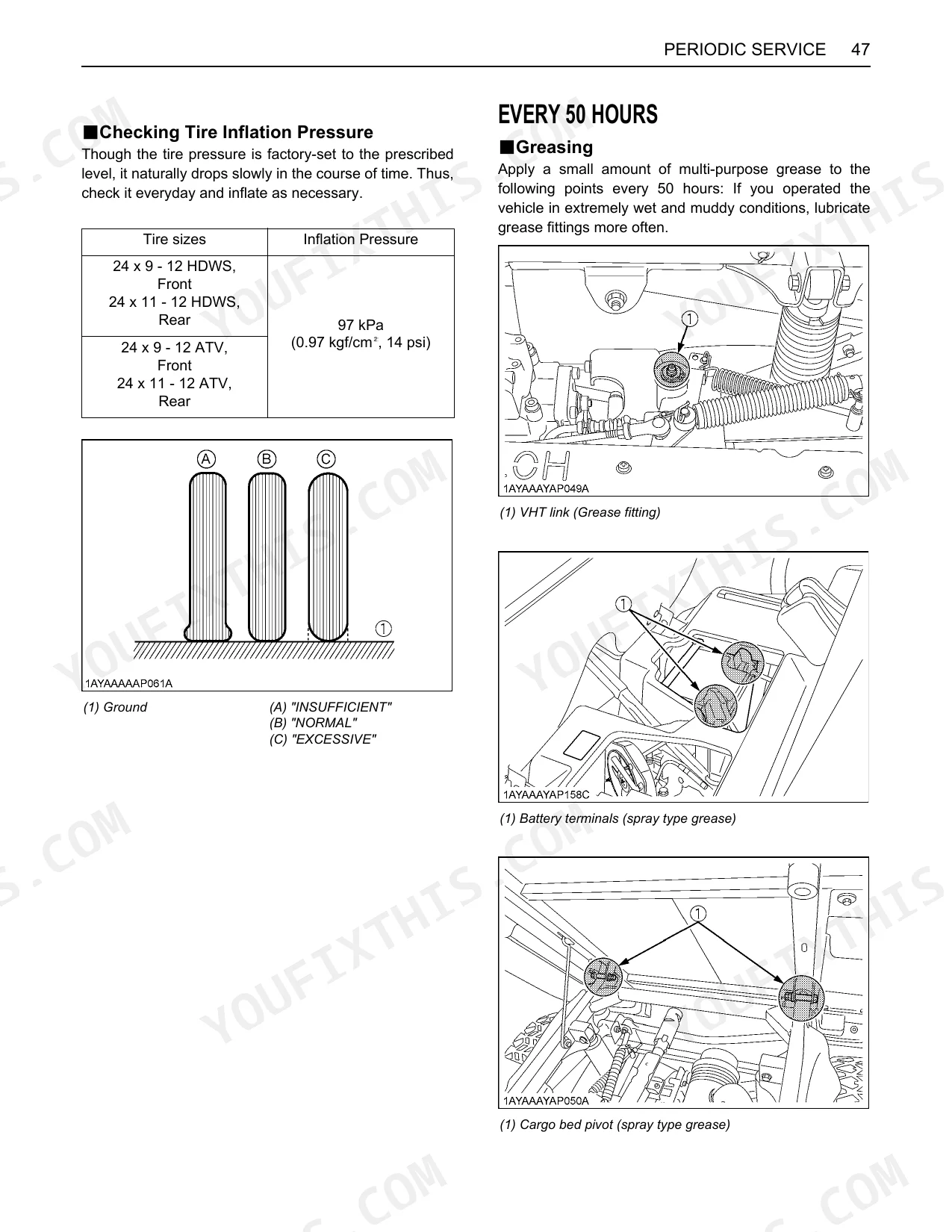

| Periodic Service | 56-89 | How to Open the Hood and Tilt the Seat, How to Raise the Cargo Bed, Jack-Up Point, Daily Check, Every 50 Hours, Every 100 Hours, Every 200 Hours, Every 300 Hours |
| Storage | 90 | Vehicle Storage, Removing the Vehicle From Storage |

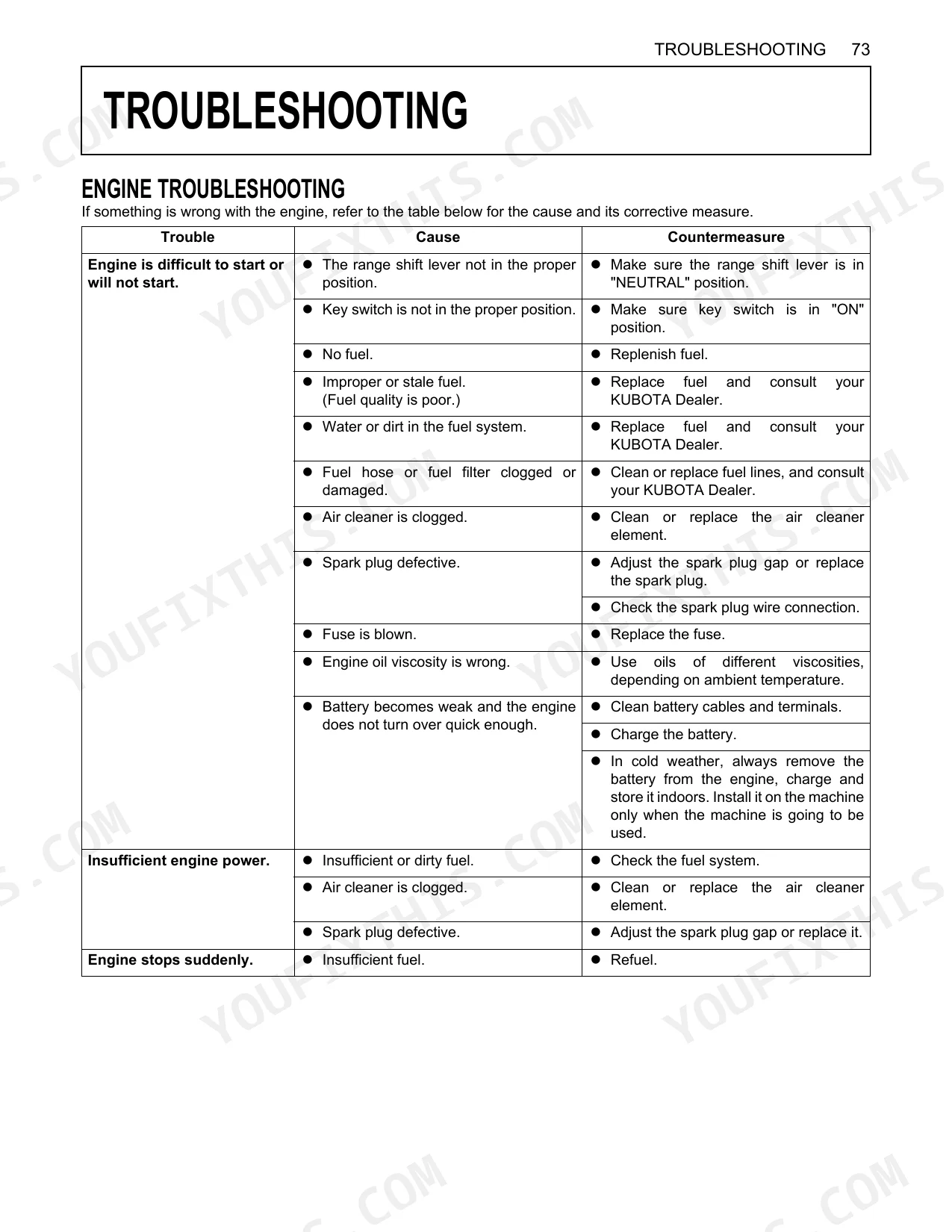

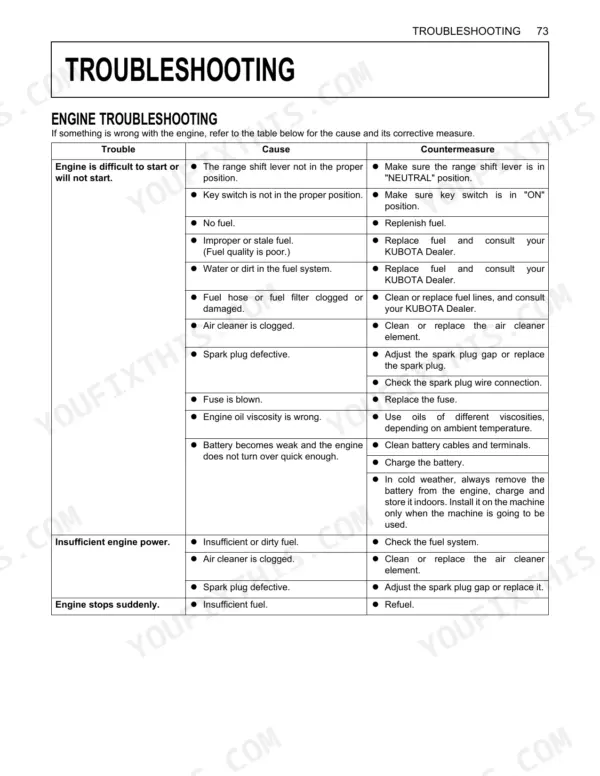

| Troubleshooting | 91-94 | Engine Troubleshooting, Battery Troubleshooting, Machine Troubleshooting |
| Options | 95 | Backup Beeper, Bed Liner, Cab Heater, Front Accessory Box, Front Trailer Hitch & Pin, Snow Blade |
| Engine Emission Related Information | 96 | Exhaust Emission Control System, Throttle Body Injection, Electronic Control Module, Three Way Catalyst |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel bolt torque | 108.4 to 121.9 N-m (11 to 12.4 kgf-m) (80 to 90 ft-lbs.) | p. 67 |
| Spark plug tightening torque (initial) | 12 to 15 N-m (8.9 to 11 lbf-ft) | p. 79 |
| Insufficient engine power (causes/fixes) | Spark plug defective. -> Adjust the spark plug gap or replace it.; Air cleaner is clogged. -> Clean or replace the air cleaner element.; Insufficient or dirty fuel. -> Check the fuel system. | p. 91 |
| Replacement interval | every 200 hrs | p. 52 |
| Type | KUBOTA genuine filter | p. 75 |
| Cleaning interval | every 100 hrs | p. 51 |
| Compressed air pressure for cleaning | under 205 kPa (2.1 kgf/cm², 30 psi) | p. 68 |
| Check interval | every 100 hrs | p. 52 |
| Fluid level (refillable type) | between the UPPER and LOWER levels | p. 72 |
| Brake pedal free travel | 7 to 14 mm (0.3 to 0.6 in.) on the pedal | p. 80 |
| Brake pedal stroke | Less than 65 mm (2.56 in.) on the pedal | p. 80 |
Kubota RTV500 Common Problems This Manual Covers
Runs but will not move
Owners report the RTV500 running normally but coasting to a stop or refusing to move in high, low, or reverse. The troubleshooting section covers no-move conditions tied to the transmission and HST drive, including checking fluid level and mechanical wear.
Manual Section: Troubleshooting p. 91Overheating from clogged radiator screen
In dusty work the radiator screen and cooling airflow clog easily, and low coolant or a failed fan can push the engine to overheat. The periodic service section covers coolant checks, radiator screen cleaning, and fan operation.
Manual Section: Periodic Service p. 56Hard starting from a weak battery
A dead or weak battery, poor terminal connections, or an improper jump start can leave the vehicle starting unreliably. The engine operation section covers the 12 V system and the correct jump starting procedure.
Manual Section: Operating The Engine p. 28Weak or inconsistent braking
Brakes that feel weak or fail inspection usually trace to low fluid, worn components, or adjustment drift. The maintenance schedule sets the brake fluid checks and change interval to keep braking reliable.
Manual Section: Maintenance p. 51Hard turning with differential lock engaged
Trying to turn on firm ground with the differential lock engaged makes the vehicle difficult and dangerous to steer. The operating techniques section warns that the vehicle cannot turn with the differential locked and explains correct use.
Manual Section: Operating the Vehicle p. 32Frequently Asked Questions
Which vehicle and engine does this manual cover?
It is the operator's manual for the Kubota RTV500 utility vehicle with the GZ460F-E3-UV gasoline engine and hydrostatic transmission. The PDF runs 96 pages and covers operation, specifications, and owner maintenance.
What is the wheel bolt torque?
The manual specifies wheel bolt torque of 108.4 to 121.9 N-m (80 to 90 ft-lbs.). It is listed with the periodic service information for the tires and wheels. p. 67
What are the oil capacities?
Engine oil capacity with the filter exchanged is 1.35 L (1.43 U.S. qts.) and the transmission case holds 8.5 L (2.2 U.S. gals.). Both are given in the maintenance section along with the change intervals. p. 54
What battery does the RTV500 use?
The manual lists a 426 MF battery rated at 12 V, 32 A.H. at 20 hours, with a 55-minute reserve and 450 cold cranking amps. Battery checks are covered in the periodic service pages. p. 73
How quickly can I access this Kubota RTV500 manual after buying?
A 96-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, no shipping wait.
Is this Kubota RTV500 Operator Manual printable?
Yes, print as many copies as you want, there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
