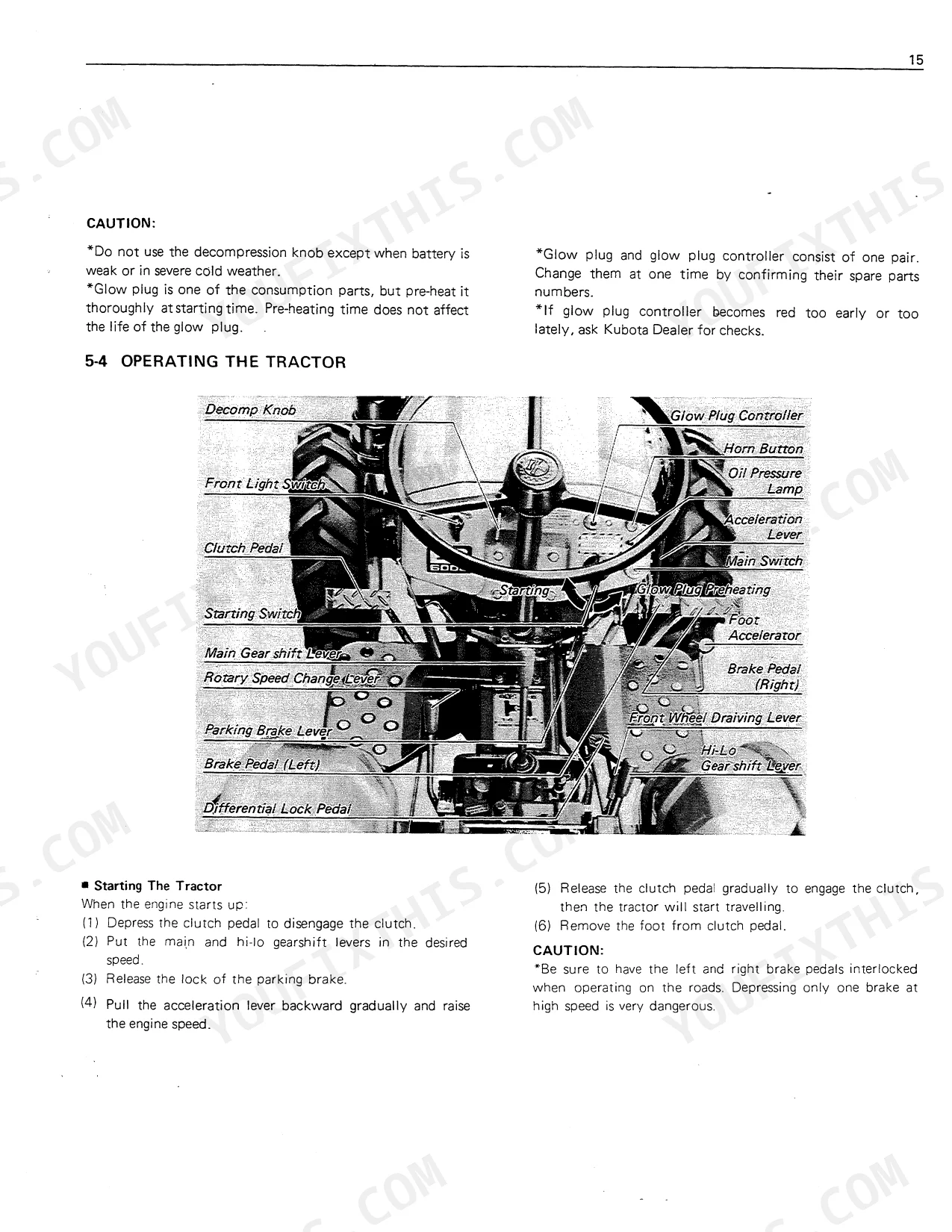

This is the factory operating guide for the Kubota B6000 compact tractor, OEM #F-7685, covering the B6000, B6000E, and B6000E-T across 48 pages. It walks through controls, safety, daily checks, and storage straight from Kubota. It maps the instrument panel and controls — the glow plug controller, hydraulic control lever, differential lock pedal, and gear shift positions — then covers starting and field operation. A full B6000 wiring diagram lays out the switch circuit diagrams for the main, starting, and light switches plus a cord-color legend for every wire, alongside a troubleshooting section for battery and engine faults. On maintenance: check air cleaner oil daily, and clean the engine oil, air cleaner, and fuel filters every 100 hours; engine oil is changed every 75 hours after the initial 35-hour change. Bookmarked by section and keyword-searchable, so it opens on any device and points you straight to the answer.
What's Inside This Kubota B6000, B6000E, B6000E-T Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Caution | - | Keep All Shields in Place, Before Leaving Operator's Position, Wait for All Movement to Stop Before Servicing Machine, Keep People and Pets a Safe Distance Away From Machine |
| Important | - | Safe Operation Practices, Know the Controls and How to Stop Quickly Read the Operator's Manual |
| Outside Views | - | Acceleration Lever, Steering Handle, Bonnet, Muffler, Front Tire, Rear Tire, Radiator, Starting Motor |
| Features | - | Compact and Powerful 2-Cylinder Diesel Engine ! (Unique Spherical Combustion Chamber !), Starts Up at Once by Battery-Starter !, Endurance Even at Low Engine Speed ! |
| Specifications | - | Model, Engine, Dimensions, PTO Speeds, Travelling Speeds, Kubota Tractor B6000 Has the Following Various Shipping Specifications |

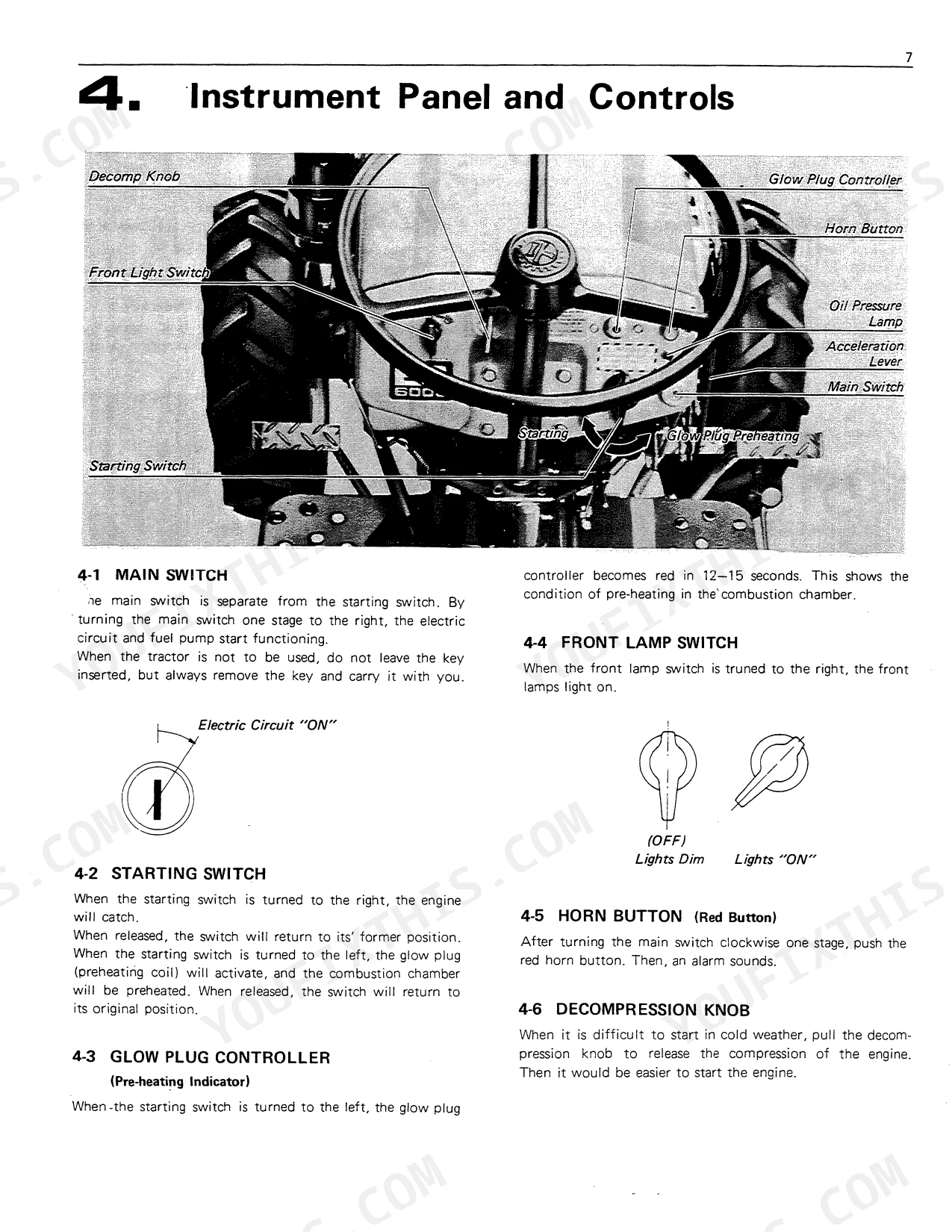

| Instrument Panel and Controls | - | Main Switch, Starting Switch, Glow Plug Controller, Front Lamp Switch, Horn Button, Decompression Knob, Oil Pressure Lamp, Fuse Case |
| Starting, Operation and Storage | - | Prestarting Inspection (Fuel, Cooling Water, Engine Lubricating Oil, Air Cleaner Oil) |
| For Safe Operation | - | For Travelling on Roads, Be Sure to Have Both the Brakes Interlocked, Reduce Speed When Turning or Applying Individual Brakes, Keep All Shields and Guards in Place |
| Exchange of Oil and Cleaning | - | Exchange of Engine Lubricating Oil, Air Cleaner Oil, Fuel Filter Cleaning, Fuel Pipe, Cartridge Filter Replacement, Air Venting in the Fuel System, Transmission Case Oil Exchange |
| Maintenance of Radiator and Battery | - | Radiator, Battery, Instructions for New Battery |
| Adjustment | - | Valve Clearance of Engine, Tension of Fan Belt, Engine RPM and Output Restriction, Clutch Pedal, Brake, Steering Handle, Lowering Speed of Implement |
| Maintenance and Check-List | - | Troubles and Countermeasures for Battery, Troubles and Countermeasures for Engine |
| Wiring Diagram | - | Wiring Diagram for B6000, Circuit Diagram of Each Switch, Cord Color |
| Three-Point Hitch | - | Attaching of 3-Point Hitch, Adjustment of 3-Point Hitch |
| For Servicing | - | Engine Serial No, Tractor Serial No, Always Use Genuine Kubota Spare Parts |
| Kubota Tractor Corporation | - | Corporate Office, Western Division, Central Division, Northern Division, Southeast Division, Printed in U.S.A, April 2002, Code No 66601-61214 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Torque specifications | Not specified in the manual. General instructions are to keep nuts, bolts, and screws tight. | p. 5 |
| Engine oil filter cleaning interval | Every 100 hours | p. 38 |
| Air cleaner oil check/replenish interval | Daily | p. 38 |
| Air cleaner filter cleaning interval | Every 100 hours | p. 38 |
| Fuel filter element cleaning interval | Every 100 hours | p. 38 |
| Cartridge filter replacement interval | Every 3 years | p. 38 |
| Hydraulic oil filter cleaning interval | Every 100 hours | p. 38 |
| Electrolyte specific gravity for filling (Temperate) | 1.260 | p. 32 |
| Electrolyte specific gravity for filling (Tropical) | 1.240 | p. 32 |
| Radiator net cleaning instruction | Clean the radiator net | p. 29 |
| Fan belt tension (pressed down with finger 22 lbs.) | 0.39 in (10mm) | p. 33 |
| Fan belt check interval | Daily | p. 38 |
Kubota B6000, B6000E, B6000E-T Common Problems This Manual Covers
Kubota B6000 engine overheating and losing coolant rapidly during field operation under heavy load p. 29
Inspect the radiator net for debris and clean the radiator area thoroughly. Verify the cooling system holds the specified 3 liters capacity shown on page 9. Check the fan belt tension and adjust to exactly 10 mm (0.39 in) deflection when pressed down with 10 kg (22 lbs) force.
Manual Section: Maintenance of Radiator and BatteryBrake pedals feel uneven with excessive play and do not stop the tractor reliably p. 34
Measure the brake pedal proper free travel and adjust the linkage to exactly 2 mm (0.08 in) as specified on page 34. Test the pedals to ensure both brakes interlock evenly. Verify smooth travel and inspect the brake components daily per the maintenance schedule on page 38.
Manual Section: AdjustmentStarter cranks very slowly or clicks but the engine refuses to start in cold weather p. 32
Test the battery specific gravity and ensure it reads between 1.260 and 1.275 for temperate climates as listed on page 32. Inspect battery terminals for corrosion and clean if necessary. Review the troubleshooting procedures on page 39 if the starter still does not function.
Manual Section: Maintenance of Radiator and BatteryLoss of hydraulic function and weak lift response when operating the three-point hitch p. 27
Check the transmission case oil level and fill to the required 9 liters capacity specified on page 27. Clean the hydraulic oil filter element every 100 hours. Inspect all hydraulic lines for visible leaks and replace deteriorated hoses immediately to restore proper system pressure.
Manual Section: Exchange of Oil and CleaningFrequently Asked Questions
How will I receive this Kubota B6000, B6000E, B6000E-T Operator Manual?
You get an immediate download of the complete 48-page searchable Operator Manual. Open it on any device, whether that's the laptop at your desk or your phone out in the field.
Is this Kubota B6000, B6000E, B6000E-T Operator Manual printable?
Yes — the PDF is DRM-free, so you can print whatever sections you want to take out to the shop. Standard letter or A4 paper works.

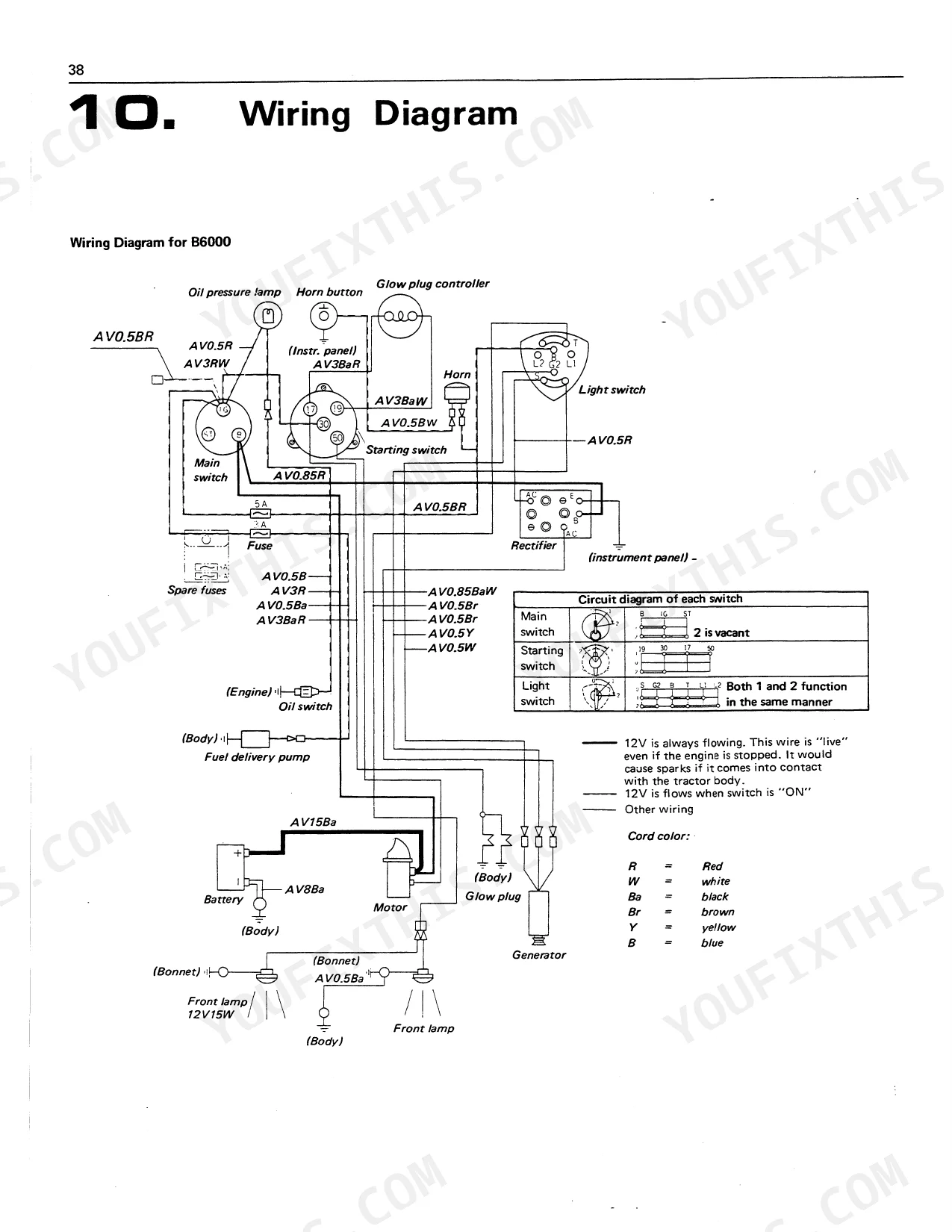

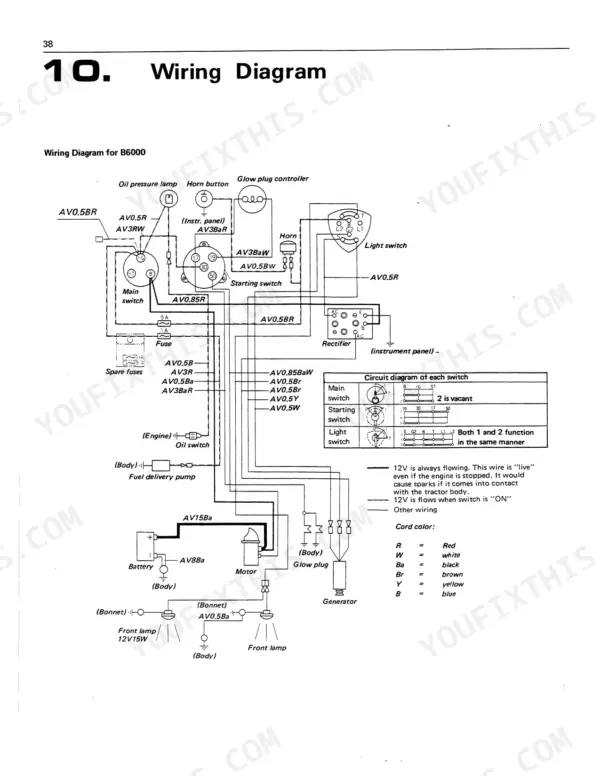

Does this Kubota B6000 manual include a wiring diagram?
Yes. Page 38 carries the full B6000 wiring diagram — the switch circuit diagrams for the main, starting, and light switches, plus a cord-color legend for every wire (red, white, black, brown, yellow, blue). It's the operator-level electrical layout, not a multi-page workshop electrical section.
Will it help me troubleshoot a no-start or a dead battery?
Yes. A dedicated troubleshooting section works through battery faults (slow cranking, weak charge) and engine faults (hard starting, overheating, low power), giving the likely cause and the fix for each.
What maintenance intervals and adjustments does it spell out?
The full service schedule: a daily air-cleaner oil check, an engine oil change every 75 hours (35 hours for the very first change), and oil, air, and fuel filter cleaning every 100 hours — plus brake pedal free-travel and fan-belt tension adjustments.
Which Kubota models and machine areas does this manual cover?
It covers the B6000, B6000E, and B6000E-T compact tractors, with sections on the controls and instrument panel, safe-operation practices, outside views, starting and field operation, the three-point hitch, and routine maintenance.
