This is the factory parts catalog for the Kubota B6000 compact diesel tractor, supplied as a downloadable PDF. It works through the machine group by group, from the crankcase, camshaft, crankshaft, and injection pump to the transmission, differential, clutch, brakes, steering, oil pressure hydraulics, and the front axle groups for the four wheel drive B6000.
Each group shows an exploded diagram beside a parts table with reference numbers, Kubota part numbers, quantities, serial number ranges, and interchangeability notes, so you can identify the exact component your tractor needs and confirm it fits your serial number before ordering.
Use it to source the right filters, seals, clutch, brake, or electrical parts with genuine Kubota numbers, and to restore or repair an aging B6000 without guessing which part fits your machine.
Complete the set for your B6000
- Operator Manual: Kubota B6000 Tractor Operator Manual (incl. Wiring)
- Repair Manual: Kubota B6000 Tractor Service Manual (incl. Wiring)
What's Inside This Kubota B6000 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

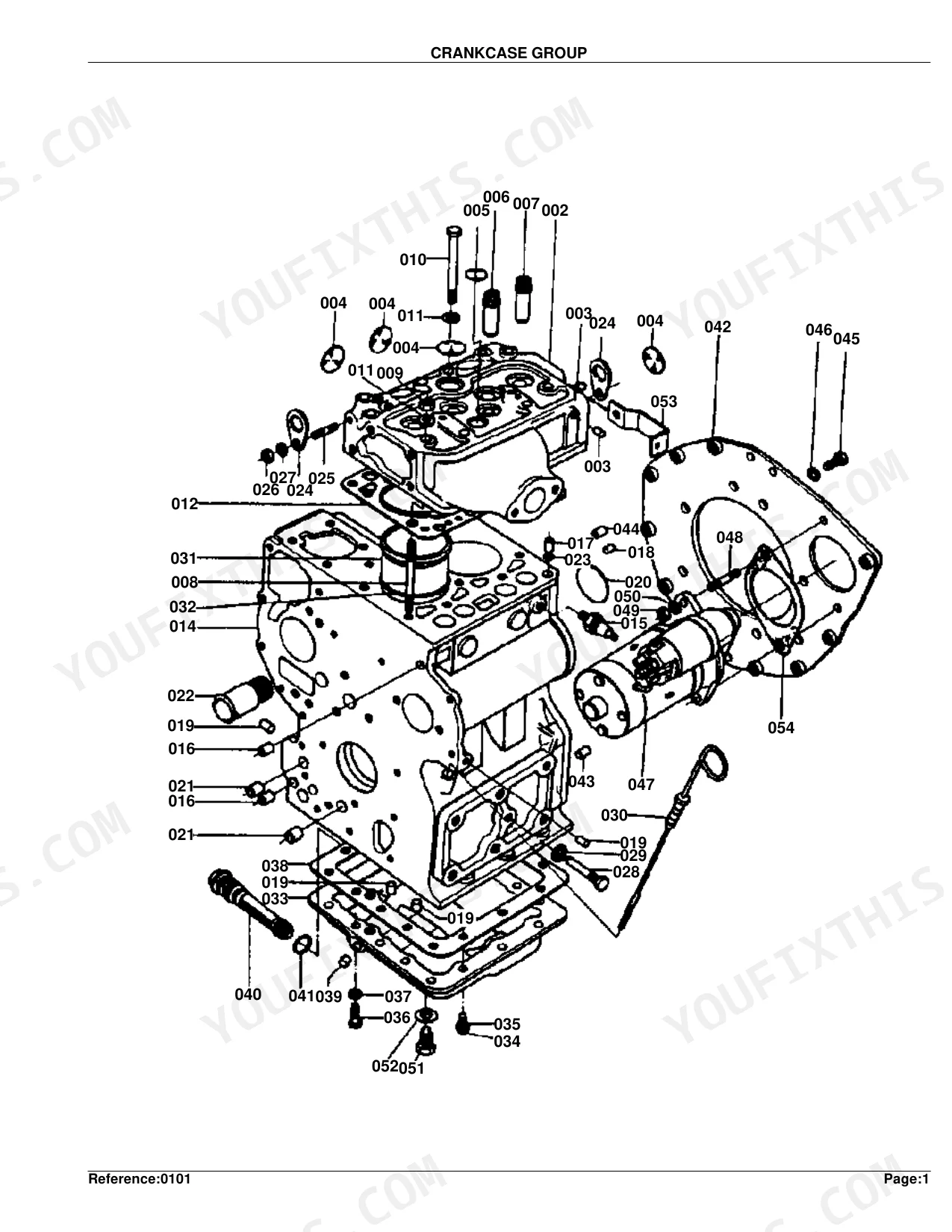

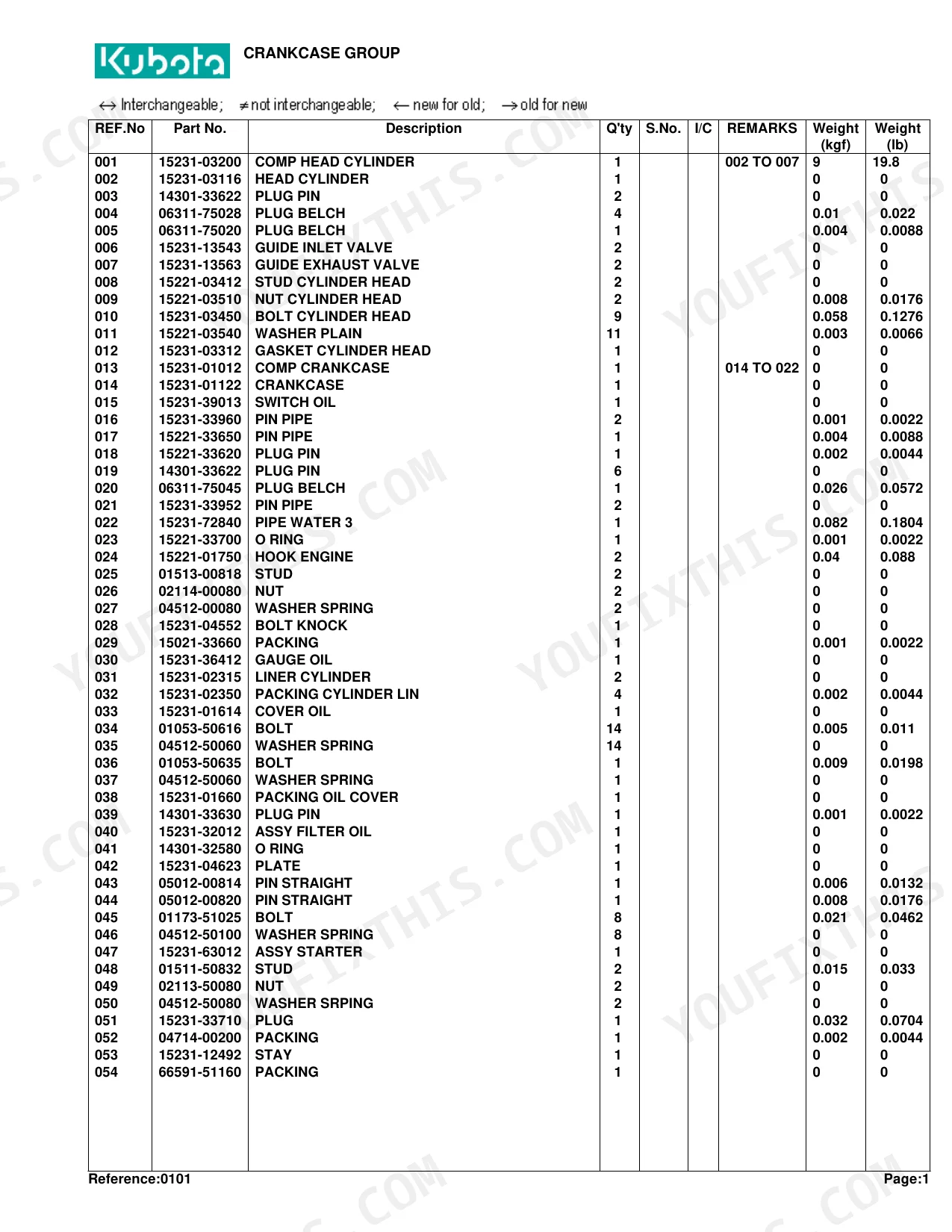

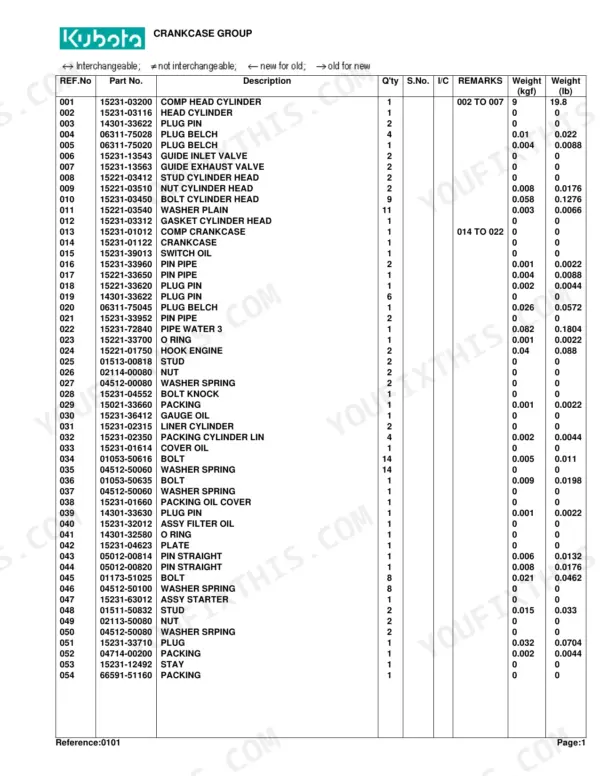

| Crankcase Group | Comp Head Cylinder, Comp Crankcase, Assy Filter Oil | |
| Gear Case Group | Case Gear, Packing Gear Case, Apparatus Fuel Limit | |
| Head Cover Group | Cover Head, Assy Shaft Decompress, Tappet | |
| Cam Shaft Group | Comp Camshaft, Comp Gear Idle, Assy Pump Oil | |
| Fuel Camshaft Group | Comp Camshaft Fuel, Comp Lever Fork, Comp Lever Governor | |
| Crankshaft Group | Comp Crankshaft, Comp Flywheel, Comp Connecting Rod | |
| Breather and Injection Pump Group | Assy Pump Injection, Comp Holder Nozzle, Breather | |
| Cooling Fan and Radiator Group | Pulley Tension, Assy Dynamo, Assy Radiator | |
| Air Cleaner and Muffler Group | Muffler, Assy Cleaner Air, Lebel Instruction | |

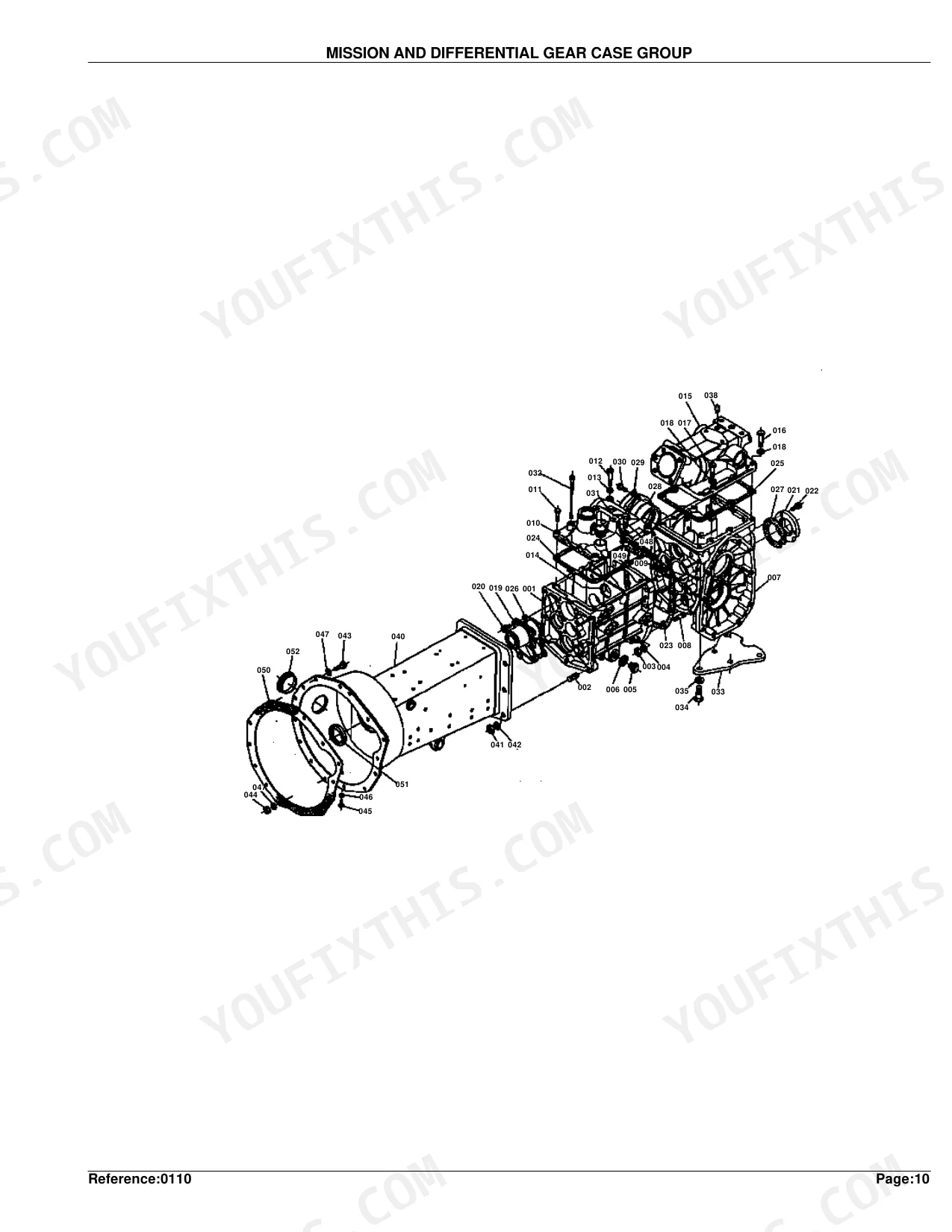

| Mission and Differential Gear Case Group | Case Transmission, Cover Case Front, Holder Diff Bearing | |
| Mission Gear Group | Shaft 1st, Gear 30, Seal Oil, Bearing Ball | |
| Diffrential Group | Assy Differential, Plate Lock, Clutch Diff Lock | |
| Speed Change Group | Shaft Fork, Rod Check, Label 5 | |

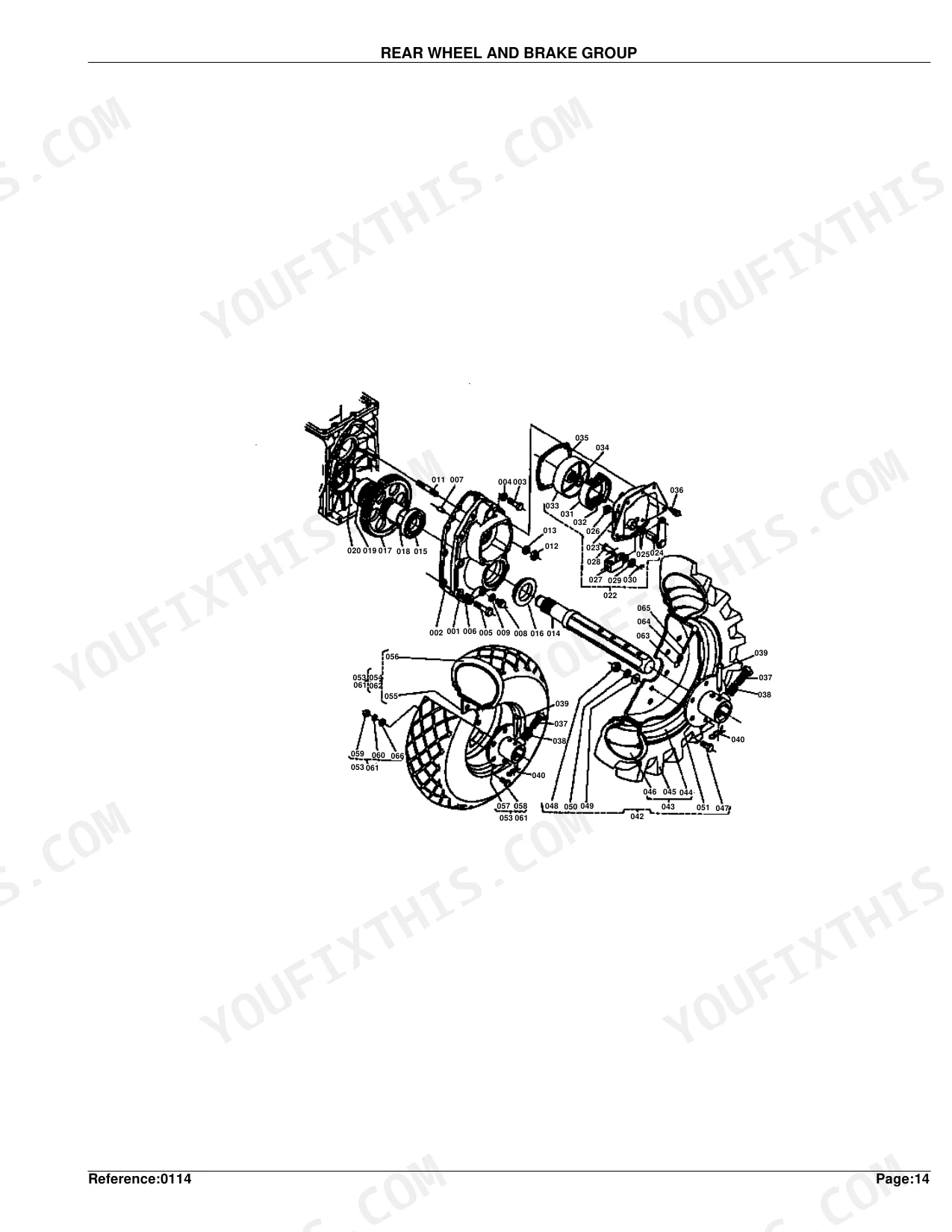

| Rear Wheel and Brake Group | Case Axle LH, Axle Rear, Assy Brake, Assy Rear Wheel | |
| Clutch and Pedal Group | Assy Disk Clutch, Holder Release Beari, Shaft Drake Pedal, Rod Dill Lock | |

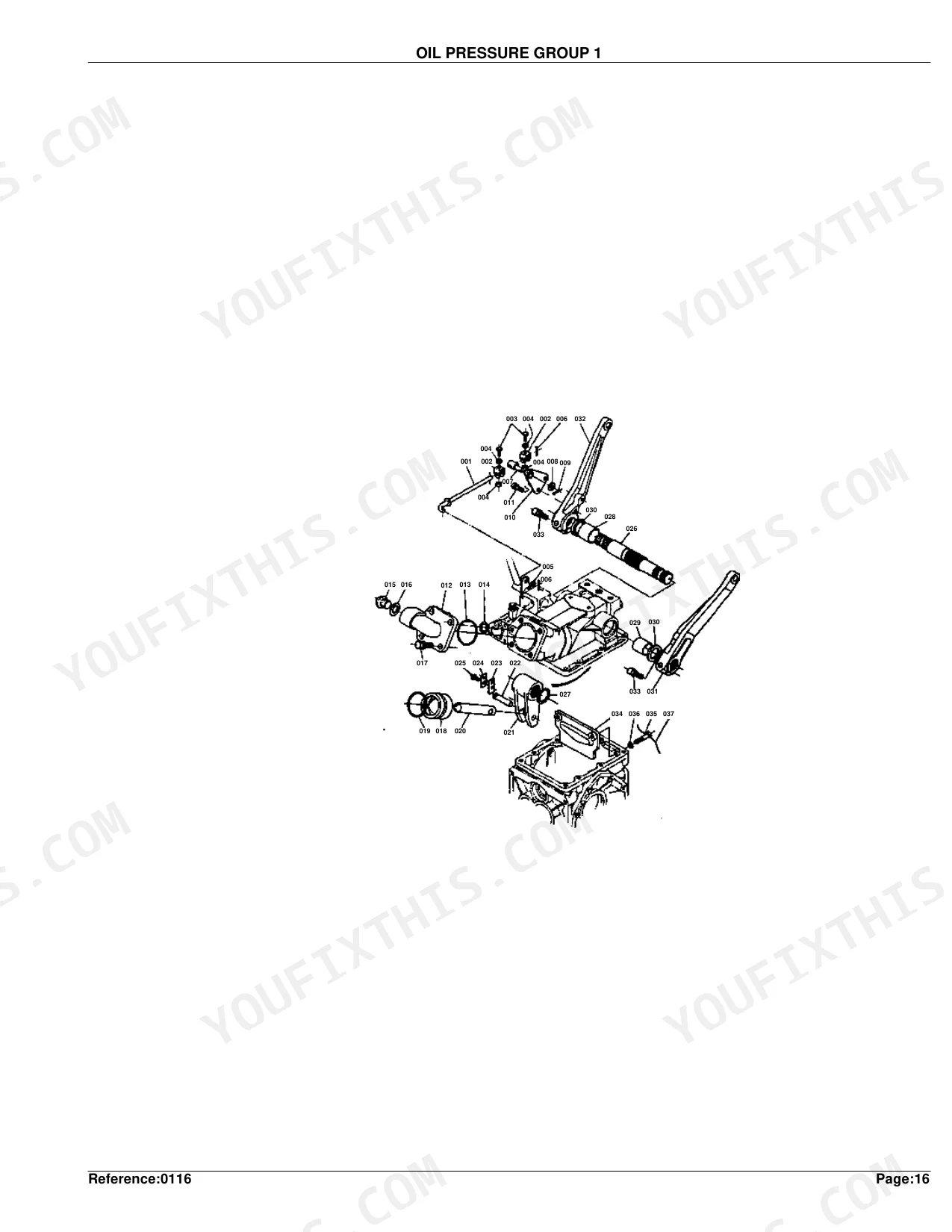

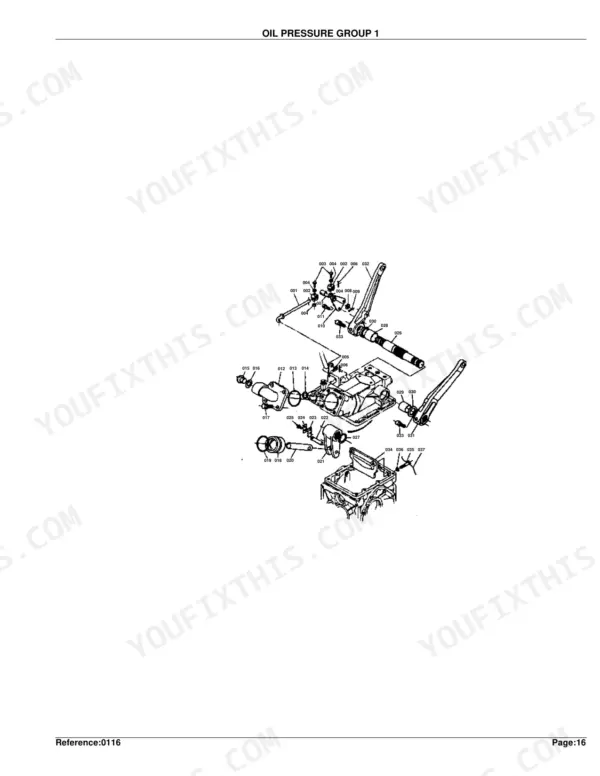

| Oil Pressure Group 1 | Rod, Piston Oil Pressure, Shaft Oil Pressure a | |
| Oil Pressure Group 2 | Assy Pump Oil Pressu, Filter Oil, Assy Valve Control | |
| Contol Valve Group | Body Valve, Collar, Cover Valve | |
| Steering Group | Assy Steering, Cover Side, Post Steering | |
| Seat and Fender Group | Assy Seat, Support Seat Rear, Fender LH | |
| Bonnet and Radiator Support Group | Assy Bonnet, Comp Fulcrum Bonnet, Support Front Wheel, Bolt | |

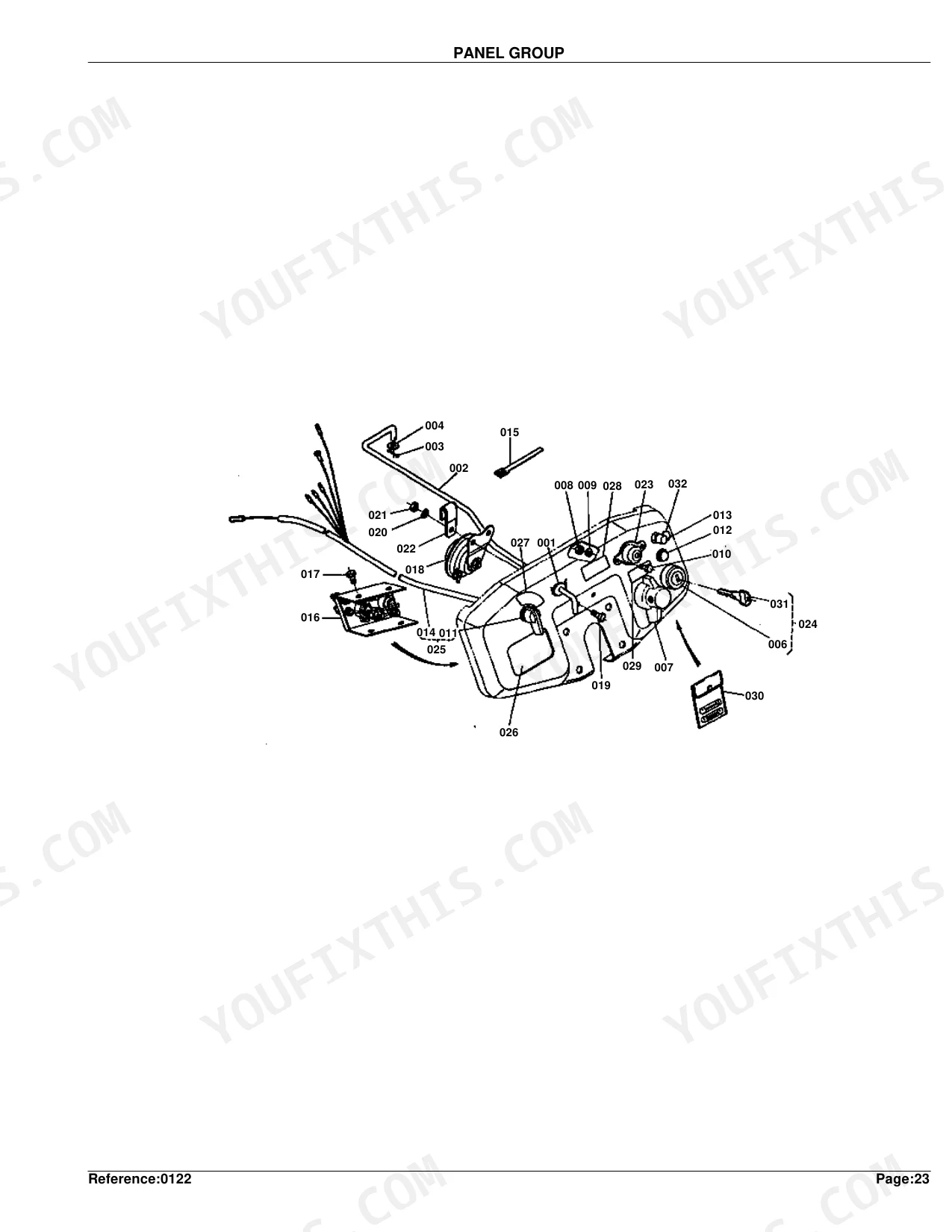

| Panel Group | Rubber Release Rod, Assy Panel, Assy Horn | |
| Fuel Tank and Battery Group | Assy Tank Fuel, Assy Cap Fuel Tank, Lever Release | |
| Fuel Filter Group | Assy Filter Fuel, Assy Filter Fuel 2, Assy Pump Fuel | |

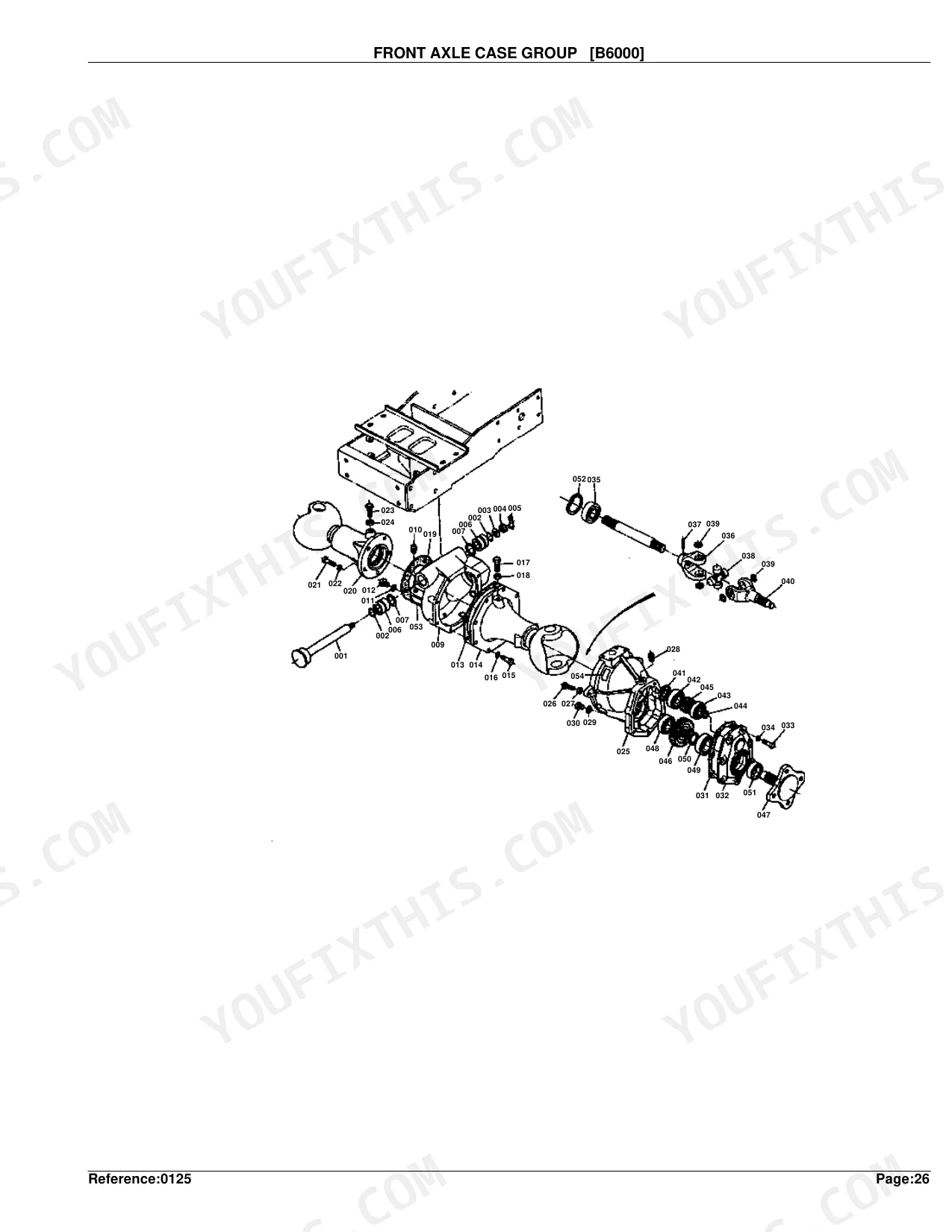

| Front Axle Case Group [B6000] | Pin Center, Case Front Axle 1, Case Front Wheel Gea | |
| Front Axle Drive Group [B6000] | Packing 1, Joint Universal, Shaft Front Axle Dri | |
| Front Wheel and Steering Group [B6000] | Stud, Assy Front Wheel 6-1, Kingpin 1 | |
| Accelerator Pedal Group | Rod Accelerator Peda, Fulcrum Accelerator, Pedal Accelerator | |
| Balustrade Group | Balustrade LH, Plate Sub LH, Stay | |
| Point Linkage Hitch Group [P] | Bracket Upper Link, Link Upper, Link Lower |
Kubota B6000 Common Problems This Manual Covers
Engine shuts off with a click
Owners report the B6000 dying and clicking, usually traced to the key switch, relays, or wiring. The Panel Group section shows the panel, switches, and wiring parts to check and replace.
Manual Section: Panel Group p. 53Hard starting and fuel starvation
A clogged filter or air in the lines causes hard starts on this diesel. The Fuel Filter Group section identifies the fuel filters and pump parts to renew.
Manual Section: Fuel Filter Group p. 57Weak charging after short runs
A tired dynamo or worn drive parts leave the battery flat. The Cooling Fan and Radiator Group section lists the dynamo and drive pulley parts for the charging setup.
Manual Section: Cooling Fan and Radiator Group p. 18Weak three point hydraulics
Worn pump or valve parts leave the hitch slow or unable to hold a load. The Oil Pressure Group 2 section covers the hydraulic pump and control valve parts.
Manual Section: Oil Pressure Group 2 p. 40Clutch slip or drag
A worn clutch disc or release parts make drive unreliable. The Clutch and Pedal Group section shows the disc, release bearing, and pedal parts.
Manual Section: Clutch and Pedal Group p. 35Weak or uneven braking
Brake wear reduces stopping power with age. The Rear Wheel and Brake Group section identifies the brake and rear axle parts to service.
Manual Section: Rear Wheel and Brake Group p. 32Frequently Asked Questions
Which Kubota model does this parts catalog cover?
It covers the Kubota B6000 compact diesel tractor, including the front axle case, drive, and front wheel groups for the four wheel drive B6000 alongside the shared engine and driveline groups.
How do I know a part fits my B6000?
Every listing shows a serial number range and interchangeability note. Match your tractor's serial number to the range to order the right version of a part, since some parts changed during production.
Which section covers the charging and dynamo parts?
The Cooling Fan and Radiator Group section lists the dynamo, tension pulley, and radiator parts, so it is where you look for charging components and cooling repairs. p. 18
Where are the hydraulic parts listed?
The Oil Pressure Group 1 and Oil Pressure Group 2 sections cover the three point hydraulic system, including the pump and control valve parts. p. 38
Is this Kubota B6000 Parts Manual a digital download?
Download the complete 70-page searchable Parts Manual right away. It opens on any device, whether that's a laptop at your desk or your phone in the field.
Is this Kubota B6000 Parts Manual printable?
Yes. Print a chapter or just the pages for the job at hand, for use in your own shop. Any home or office printer works.
Can I find hydraulic circuit diagrams in this Kubota B6000 manual?
This is a parts catalog, so it shows exploded parts diagrams rather than circuit schematics. It includes detailed exploded views of the hydraulic components, pump, control valve, cylinder, and oil lines, with OEM part numbers, not wiring-style circuit diagrams.
