The Kubota RTV400Ci Workshop Manual is the factory service book for the RTV400Ci utility vehicle, covering all 302 pages of mechanism and servicing detail.It walks through the Subaru GH4120 gasoline engine and its electric fuel injection, the continuously variable transmission and range gearshift, front and rear brakes, front axle, manual steering, and the complete electrical system. For each area you get structure and function, troubleshooting, servicing specifications, and tightening torques, plus the fluid capacities, valve clearance, spark plug gap, and CVT belt limits needed to service the machine correctly.It downloads as a searchable, bookmarked PDF, so you can jump straight to the Engine, Transaxle, Brakes, or Electrical section on a phone, tablet, or shop computer and print only the pages you need.
What's Inside This Kubota RTV400Ci Manual

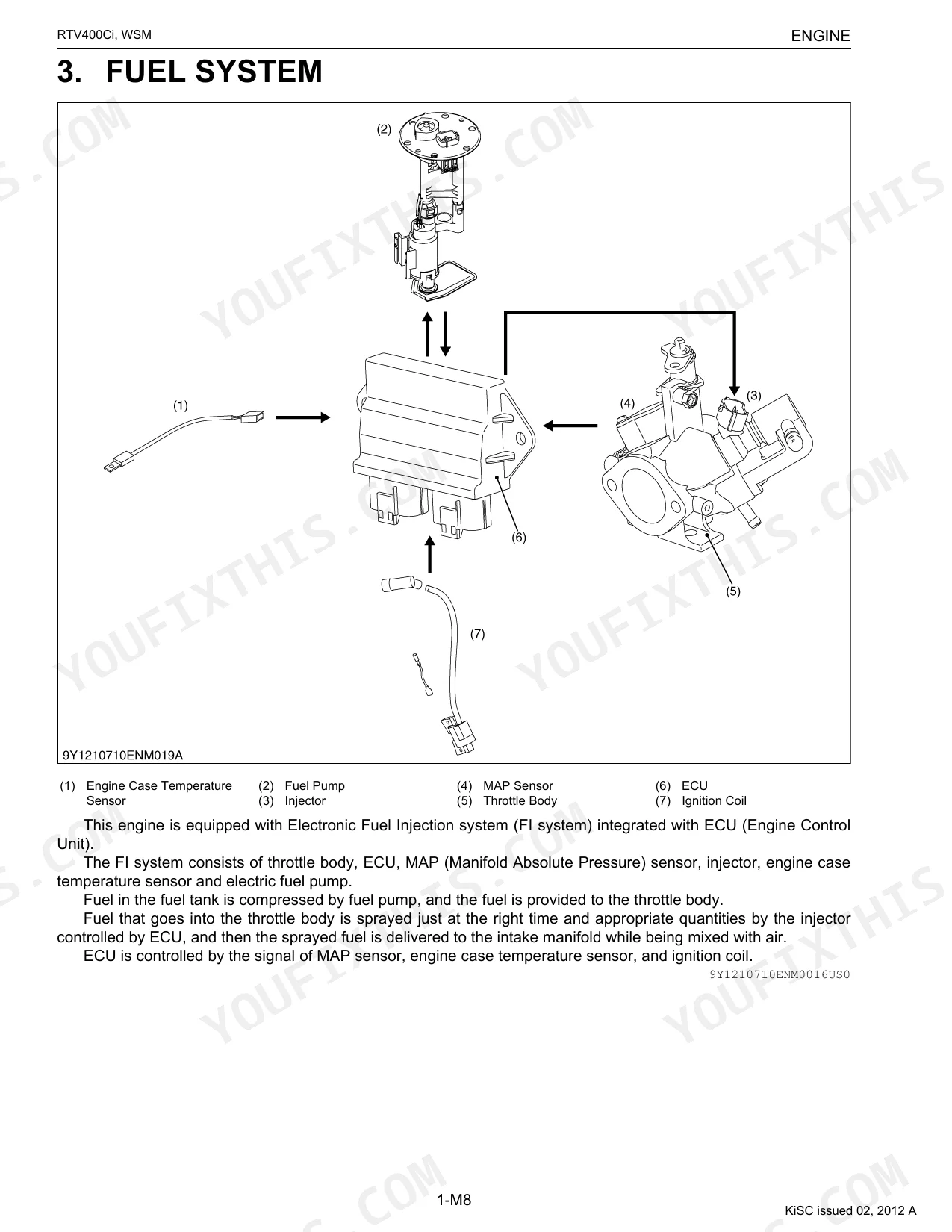

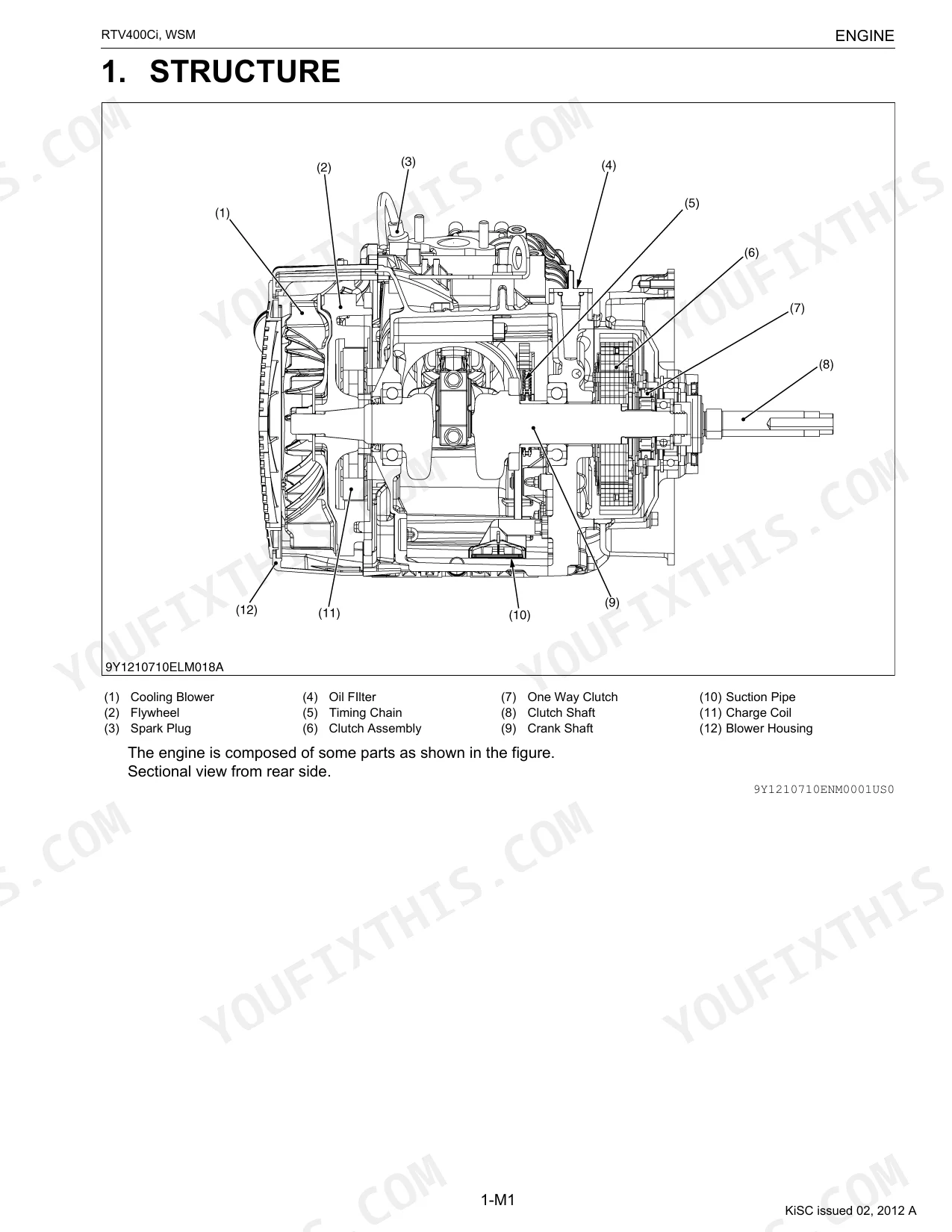

| System | Pages | Key Topics |
|---|---|---|
| I Information | 3-15 | - |
| G General | 16-73 | Product Identification, General Precautions, Handling Precautions for Electrical, Lubricants, Fuel and Coolant, Tightening Torques, Maintenance Check List |
| Engine | 74-136 | Structure, Engine Body, Fuel System, Intake System and Exhaust |
| Clutch | 137-148 | Clutch System, Clutch Operation, One Way Clutch Operation (Engine Brake) |
| Transaxle | 149-188 | Structure, Power Train, Cvt (Continuously Variable Transmission) Section, Range Gear Shift Section, Front Wheel Drive Section, Rear Axle Section |
| Brakes | 189-224 | General Outline, Front Brake, Rear Brake, Master Cylinder, Brake Oil, Parking Brake |
| Front Axle | 225-248 | Structure, Front Suspension |
| Steering | 249-258 | Structure, Steering Linkage, Manual Steering |
| Electrical System | 259-302 | Wiring Diagram, Starting System, Charging System, Lighting System, Gauges, Electric Fuel Injection System |

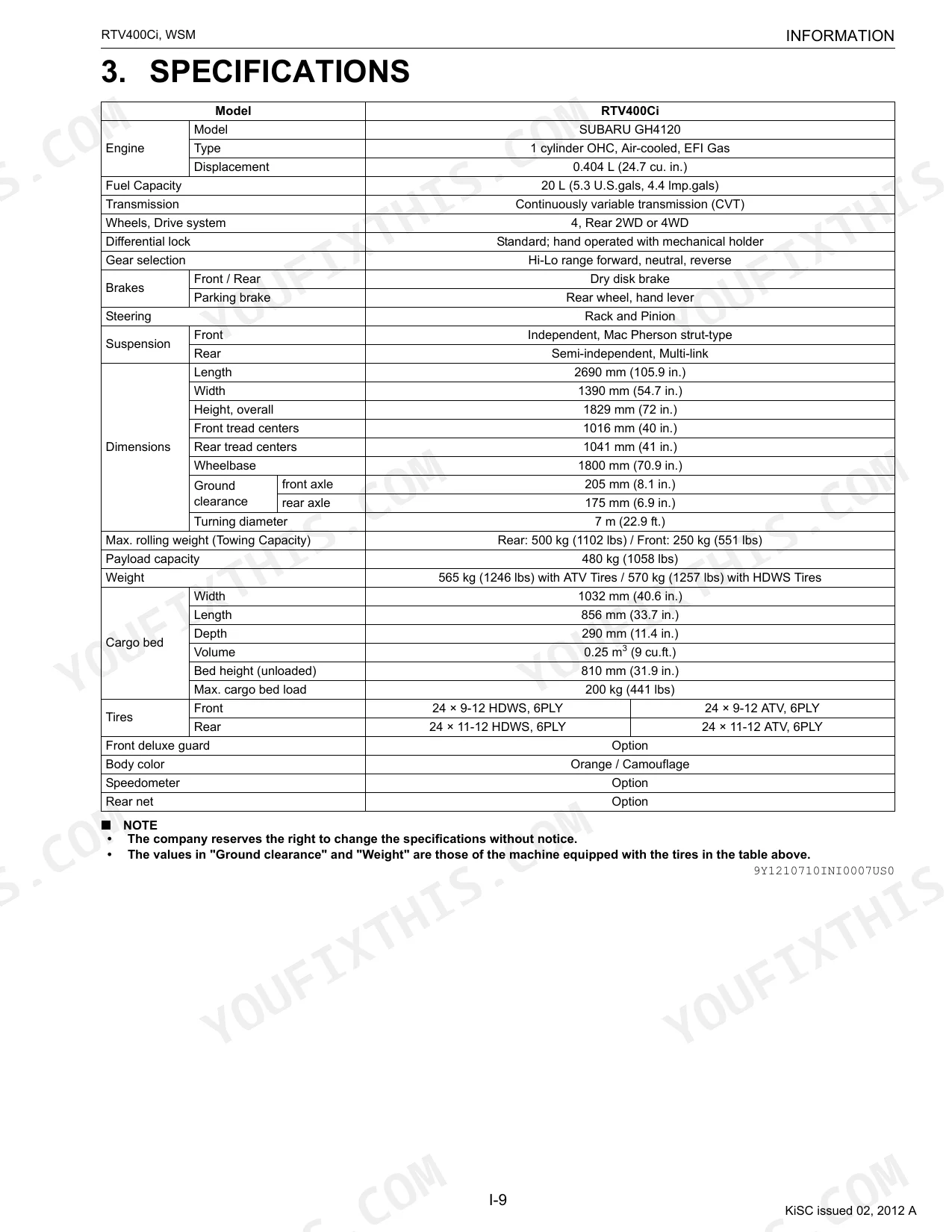

Quick Reference Specifications

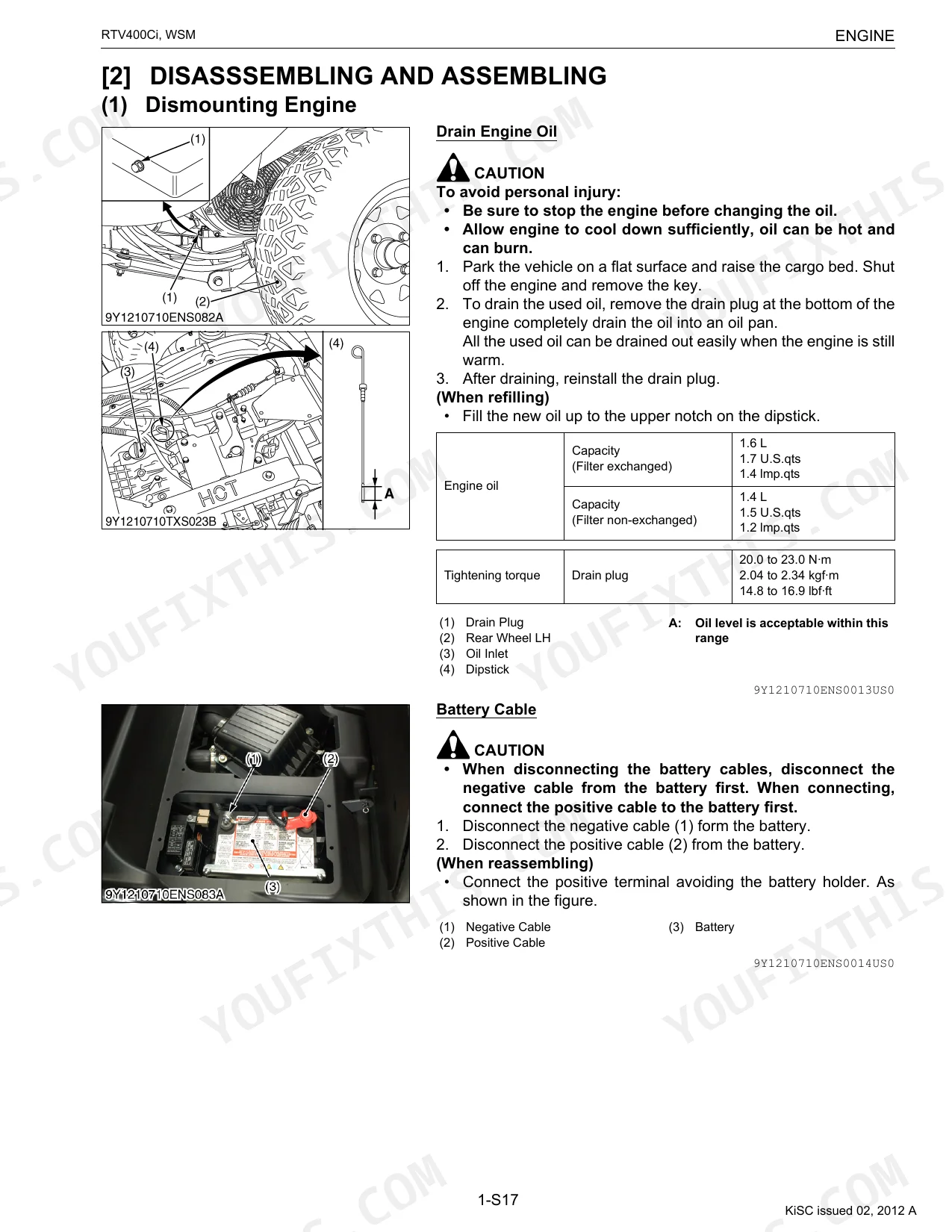

| Specification | Value | Page |
|---|---|---|
| Fuel Capacity | 20 L (5.3 U.S.gals, 4.4 Imp.gals) | p. 25 |
| Engine crankcase oil (Filter exchanged) | 1.6 L (1.7 U.S.qts, 1.4 Imp.qts) | p. 25 |
| Engine Oil Capacity (Filter exchanged) | 1.6 L | p. 25 |
| Transmission Case Capacity | 5.4 L | p. 25 |
| Tire Inflation Pressure (Front/Rear) | 97 kPa | p. 36 |
| Engine Compression Pressure (Factory Spec) | 1.15 MPa | p. 93 |
| Engine Valve Clearance (Intake/Exhaust) | 0.11 to 0.16 mm | p. 93 |
| Engine Idling Speed | 1300 to 1500 min⁻¹ (rpm) | p. 93 |
| Spark Plug Gap | 0.60 to 0.70 mm | p. 50 |

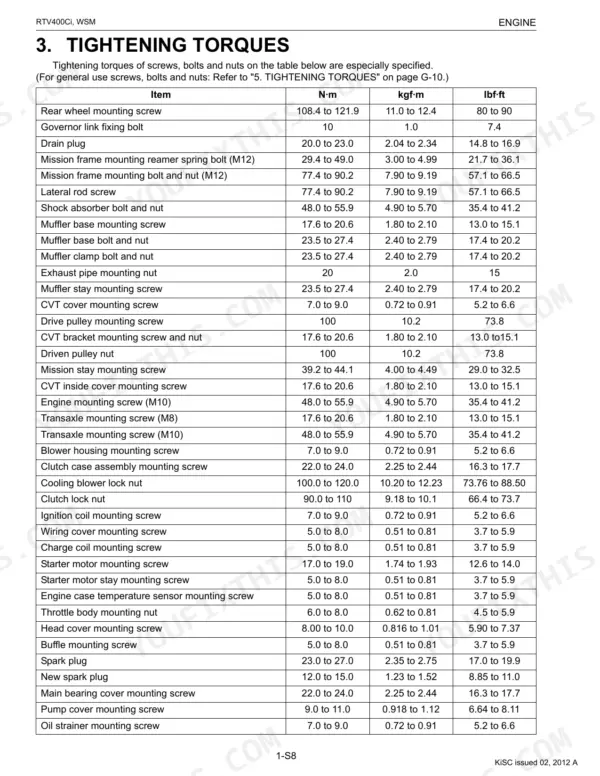

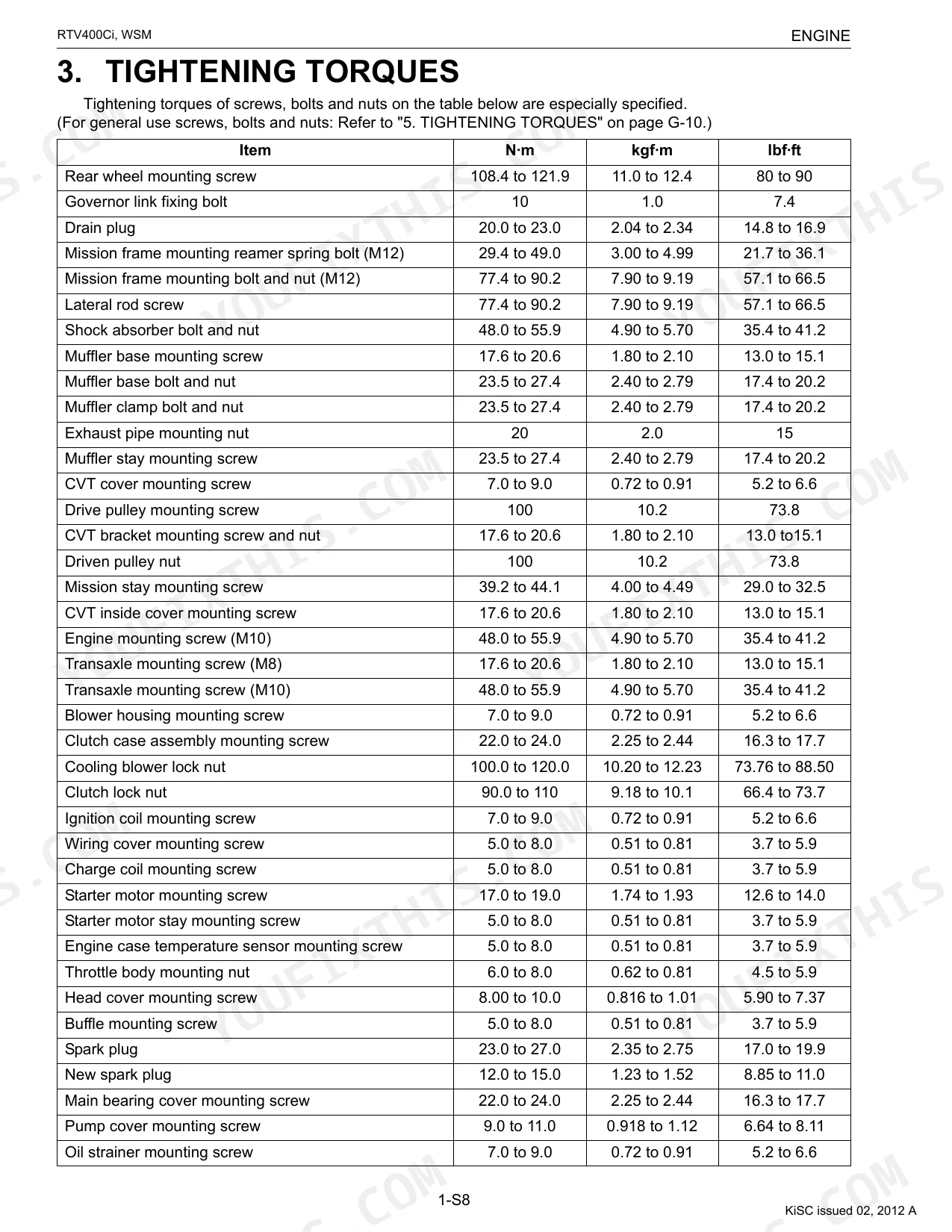

| Rear Wheel Mounting Screw Torque | 108.4 to 121.9 N·m | p. 96 |
| CVT Belt Width (Allowable Limit) | 32.8 mm | p. 39 |
| Brake Pad Thickness (Allowable Limit) | 1 mm | p. 200 |
Kubota RTV400Ci Common Problems This Manual Covers
CVT belt wear and slipping
As service hours build, the CVT drive belt narrows toward its allowable limit and begins to slip, giving weak acceleration and extra heat. The Transaxle section covers the CVT, range gearshift, and drive components.
Manual Section: 3 Transaxle p. 149Weak or fading brakes
Brake pads wearing to their limit reduce stopping power, and air or low fluid softens the pedal. This section covers the front and rear brakes, master cylinder, brake oil, and parking brake.
Manual Section: 4 Brakes p. 189Hard starting or rough idle

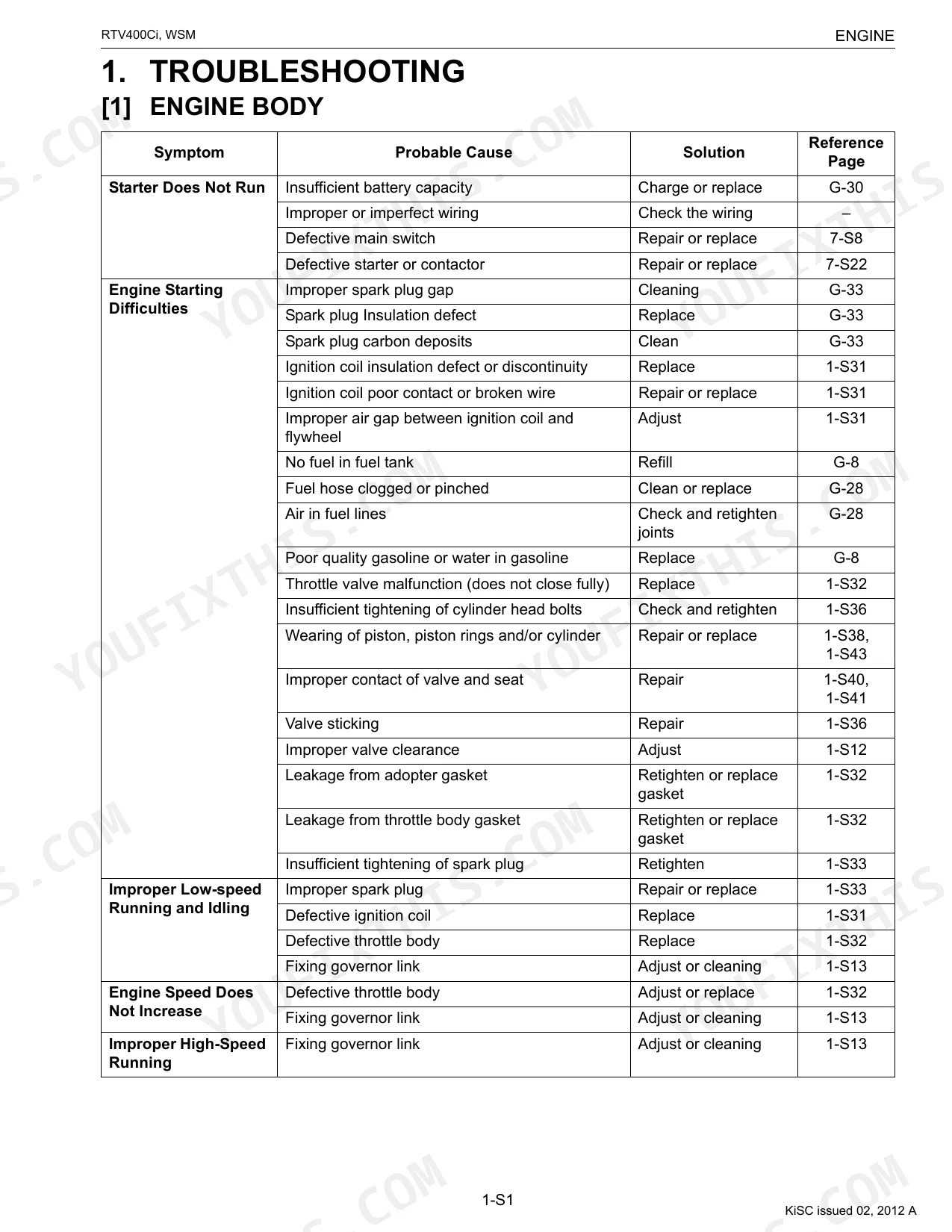

Low compression, tight valve clearance, or a fouled spark plug shows up as hard starting and an unstable idle. The Engine section covers the engine body, fuel system, and intake and exhaust.
Manual Section: 1 Engine p. 74No-start or charging faults
The electric fuel injection, starting, and charging circuits can leave the vehicle dead or hard to run. Wiring diagrams and system tests are in the Electrical System section.
Manual Section: 7 Electrical System p. 259Loose or wandering steering
Wear in the steering linkage produces play at the wheel and a tendency to wander. The Steering section covers the linkage and manual steering setup.
Manual Section: 6 Steering p. 249Clutch or engine brake complaints
Slipping or grabbing in the clutch and one-way clutch (engine brake) affects drive and downhill control. The Clutch section covers clutch operation and the one-way clutch.
Manual Section: 2 Clutch p. 137Frequently Asked Questions
Which vehicle and engine does this manual cover?

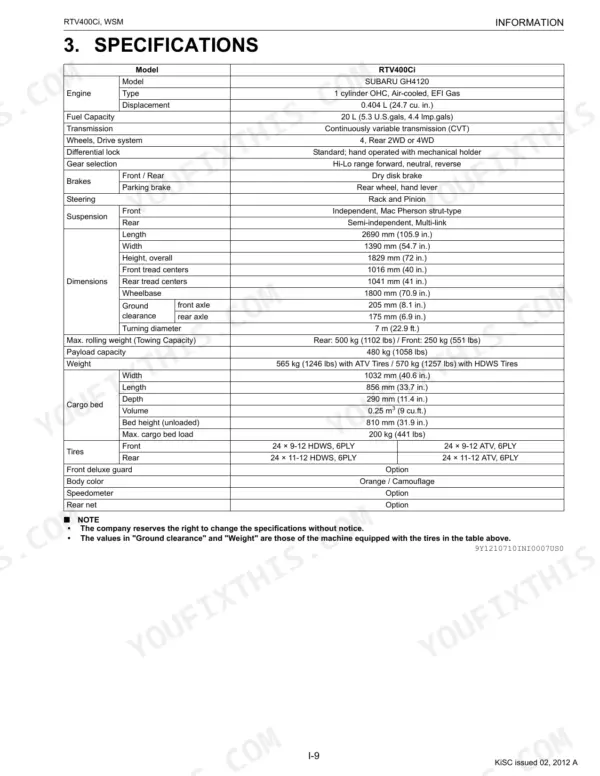

It covers the Kubota RTV400Ci utility vehicle, built around the Subaru GH4120 gasoline engine with electric fuel injection. The manual runs 302 pages across the engine, clutch, transaxle, brakes, front axle, steering, and electrical systems.
Does it include wiring diagrams?

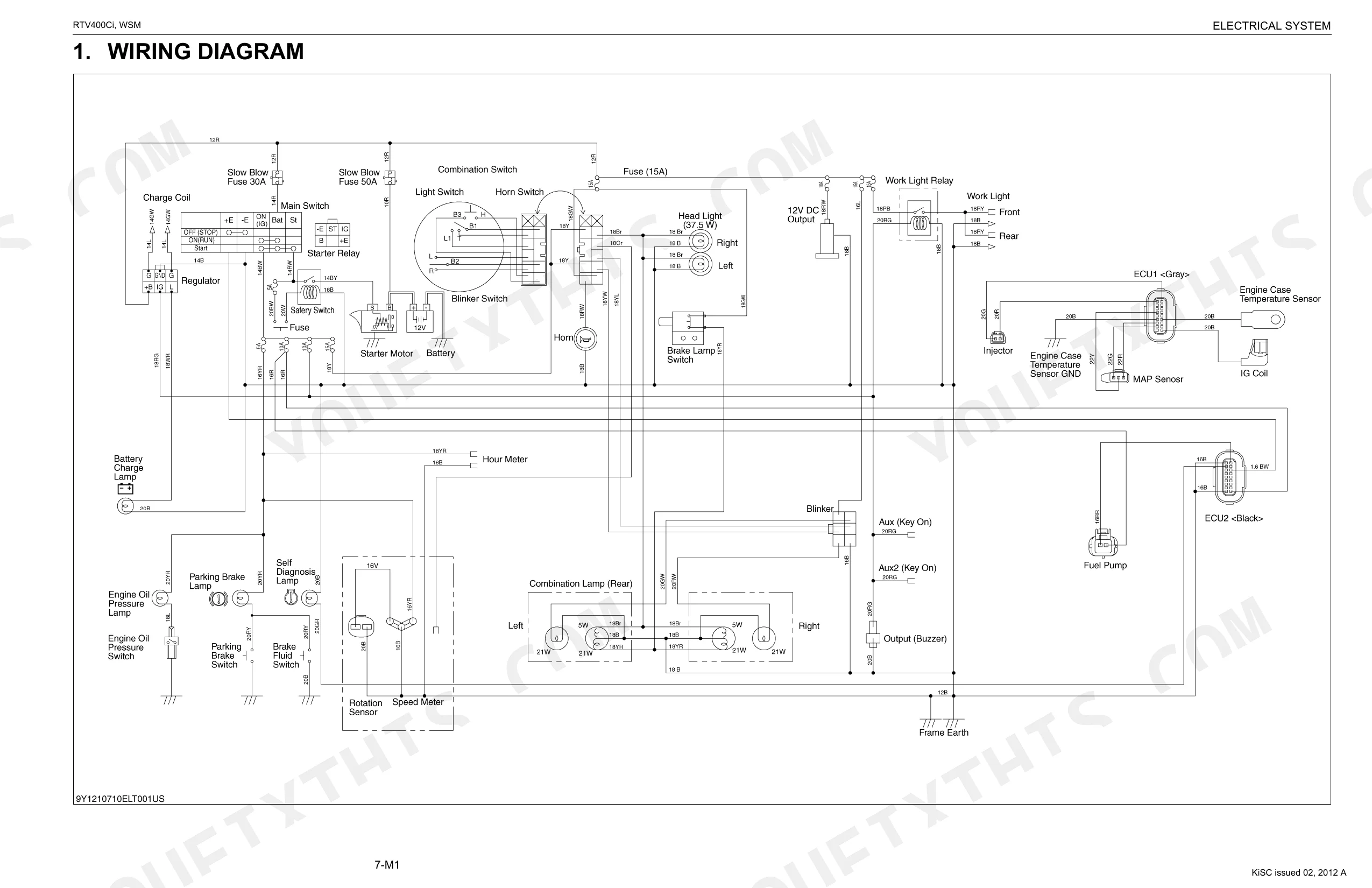

Yes. The Electrical System section contains the wiring diagram along with the starting, charging, and lighting systems, gauges, and the electric fuel injection system. p. 259
What transmission does it cover and where?
The Transaxle section covers the continuously variable transmission (CVT), range gearshift, front wheel drive, and rear axle, including the CVT belt service limit. p. 149
Where are the fluid capacities and service specs?
The General section covers product identification, lubricants, fuel and coolant, tightening torques, and the maintenance check list, with fuel, engine oil, and transmission capacities listed there. p. 16
What do I get after purchasing this Kubota RTV400Ci manual?
A 302-page Service Manual in searchable PDF format, available the moment you complete checkout. View it on a computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this Kubota RTV400Ci Service Manual?
None at all. The PDF is DRM-free, so print whatever sections you want to take out to the shop. Standard letter or A4 paper works.
Are there wiring harness diagrams in this Kubota RTV400Ci manual?
Yes, this Kubota RTV400Ci Service Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
