This Kubota ZG332 Workshop Manual (OEM #9Y111-05891) runs 312 pages of factory repair depth for the ZG332P and ZG332LP zero turn mowers, working from the engine cylinder block out to the mower deck blades and pulley drive. Its 159 service procedures cover engine teardown, hydrostatic transaxle disassembly, hydraulic lift circuit service, and full deck repair, backed by exploded views, system diagrams, and troubleshooting charts for every major failure across all eight systems. Fill the crankcase to 3.5 L with the filter seated, and torque M8 fasteners to 18 to 20 N·m before buttoning anything up. No more chasing symptoms without a factory number in front of you. Once downloaded, the bookmarks drop you straight into whatever system you're working on, so you can stop reading and start wrenching.
What's Inside This Kubota ZG332 Manual

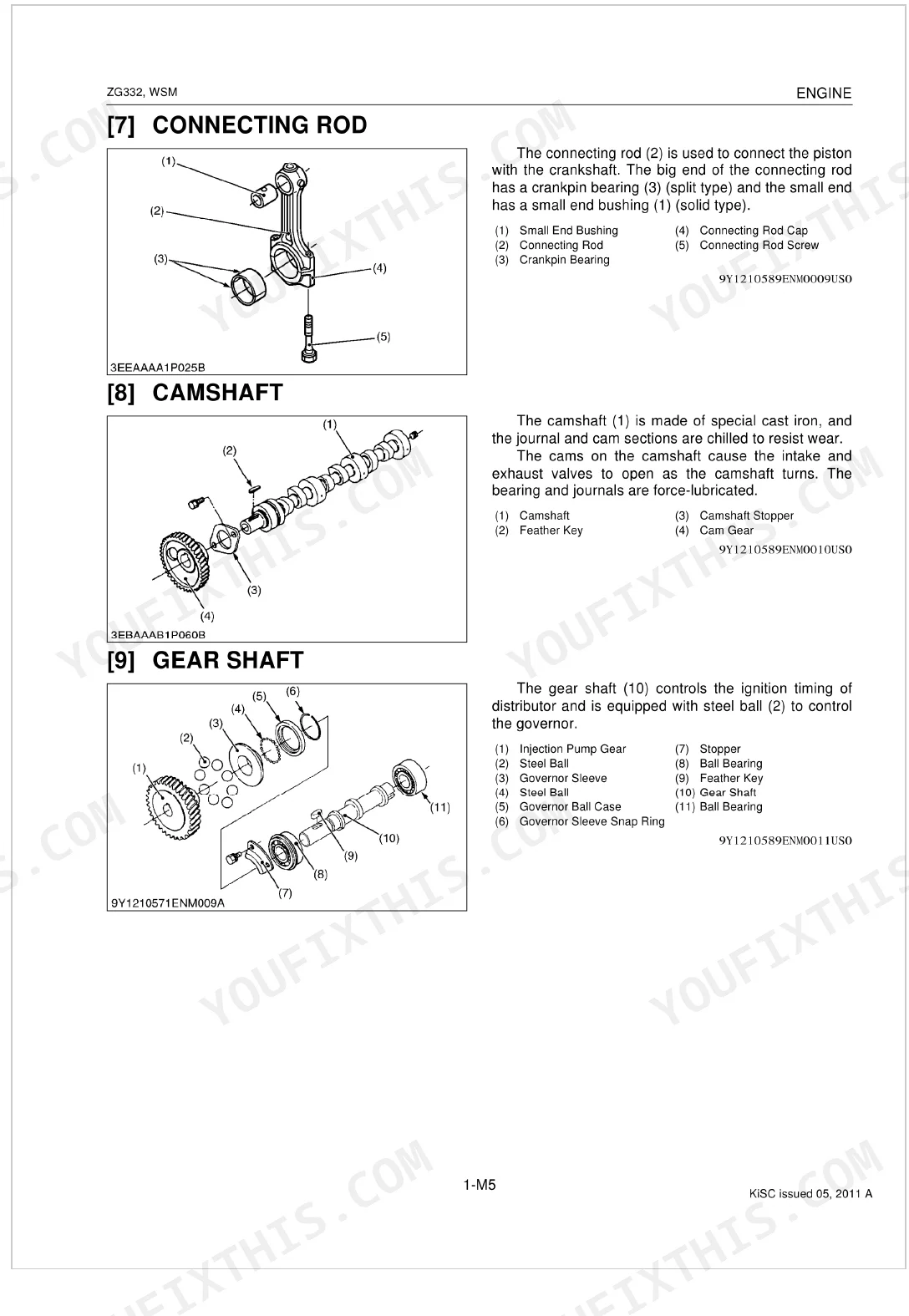

| System | Pages | Key Topics |
|---|---|---|
| Information | 3-14 | Contents, Safety First, Safety Decals, Specifications, Dimension |
| General | 15-74 | Contents, Identification, General Precautions, Handling Precautions for Electrical Parts and Wiring, Lubricants, Fuel and Coolant, Tightening Torques, Maintenance Check List |
| Engine | 75-161 | Engine Body (Cylinder Block, Half-Floating Head Cover, Cylinder Head, Crankshaft, Piston And Piston Ring, Oil Pan, Connecting Rod, Camshaft, Gear Shaft, Rocker Arm Assembly, Inlet And Exhaust Valves, Flywheel, Closed Breather) |
| Transaxle | 162-222 | Structure |
| Front Axle | 223-230 | Mechanism Contents, Structure, Servicing Contents, Troubleshooting, Tightening Torques, Disassembling and Assembling |
| Hydraulic System | 231-258 | Mechanism Contents, Hydraulic Circuit, Hydraulic Pump, Hydraulic Control Valve, Lift Cylinder, Mower Linkage, Servicing Contents, Troubleshooting |
| Electrical System | 259-295 | Wiring Diagram, Starting System (Safety Switch, Starter, Relay, Fuel Pump, Gasoline Solenoid Valve), Charging System (Dynamo, Regulator), Gauges |
| Mower | 296-311 | Power Transmission (Blade Drive Mechanism, Pulley Drive Mechanism), Troubleshooting, Servicing Specifications, Tightening Torques, Checking |
| Editor | 312 | Kubota Farm & Industrial Machinery Service, Ltd, Contact Information, Publication Information |
Quick Reference Specifications

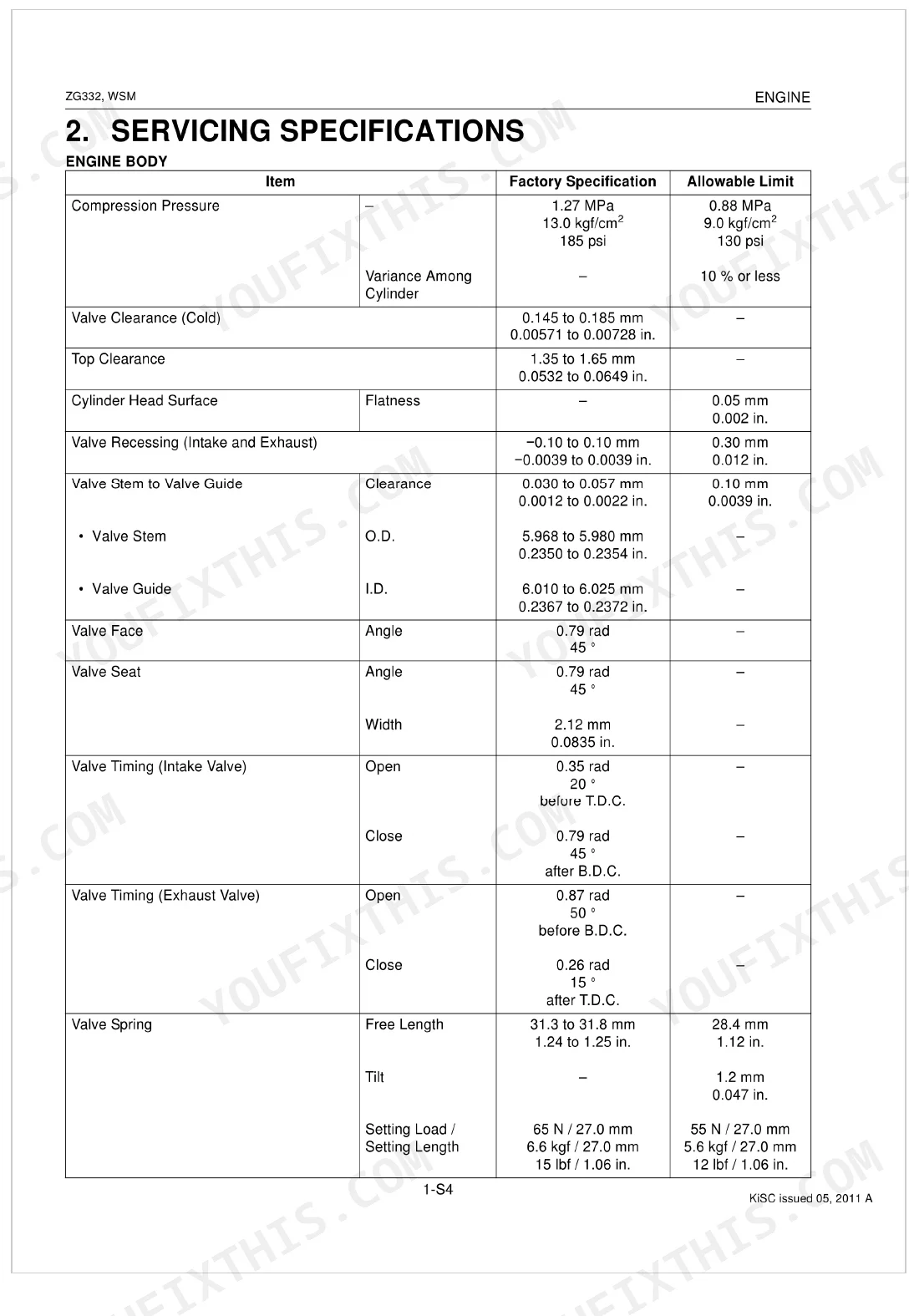

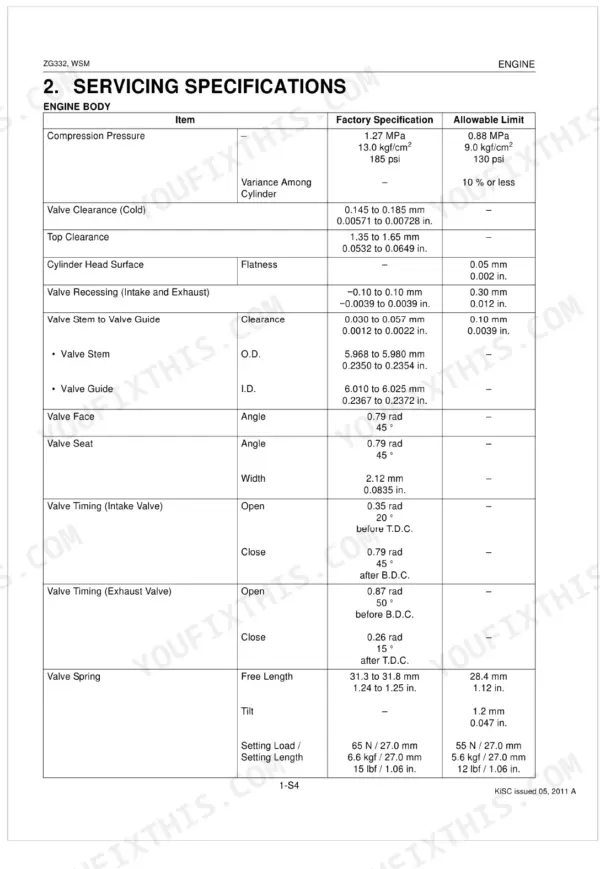

| Specification | Value | Page |
|---|---|---|
| M6 (No-grade or 4T, Ordinariness) Tightening Torque | 7.9 to 9.3 N·m | p. 28 |
| M8 (No-grade or 4T, Ordinariness) Tightening Torque | 18 to 20 N·m | p. 28 |
| Engine Crankcase Oil Capacity (with filter) | 3.5 L | p. 12 |
| Fuel Tank Capacity | 49 L | p. 12 |
| Engine Coolant Capacity | 2.7 L | p. 12 |
| Spark Plug Tightening Torque | 20 to 24 N-m | p. 113 |
| Valve Clearance (Cold) | 0.145 to 0.185 mm | p. 107 |
| Engine Oil Change Interval | every 100 Hr | p. 31 |
| HST Charge Pressure | 0.75 to 0.95 MPa | p. 178 |
| Hydraulic Pump Delivery (Maximum) | 30.2 L/min | p. 242 |
| Battery Voltage | More than 12 V | p. 275 |
| Mower Blade Screw Tightening Torque | 103 to 118 N-m | p. 303 |
Kubota ZG332 Common Problems This Manual Covers
Kubota ZG332 engine cranks but won't start, no spark or weak spark in cold conditions
Start by reading battery voltage: it must show more than 12 V (page 275). Remove the spark plugs, clean and gap them, then torque to 20 to 24 N·m on reinstall (page 113). Check that the safety switch circuit isn't open, since the seat and blade-engage switches are common culprits. Work the full no-start diagnostic tree from there.
Manual Section: Engine TroubleshootingZero-turn drives forward but pulls hard to one side, straight tracking impossible
Measure HST charge pressure on both transaxle circuits; spec is 0.75 to 0.95 MPa (page 178). Confirm transmission fluid level: total case capacity including rear axle gear cases is 12.1 L. If pressure sits within spec, inspect the neutral adjustment on the lagging side per the transaxle structure diagrams starting on page 162. Fluid change interval is every 400 Hr.
Manual Section: Transaxle TroubleshootingMower deck blades spin slowly or stop under load, belt slipping or PTO clutch slipping p. 301
Inspect blade belt tension and pulley alignment per the mower section starting on page 296. Low PTO clutch operating pressure shows up in the transaxle troubleshooting table, so check it there. Torque blade screws to 103 to 118 N·m (page 303) and confirm the blades aren't bent or loose, which loads the clutch unevenly. Change mower gearbox oil every 150 Hr; check the level every 50 Hr.
Manual Section: Mower TroubleshootingDeck won't lift or holds position then slowly drifts down under its own weight p. 241
Confirm hydraulic pump delivery against its 30.2 L/min maximum rating (page 242). If the mower drifts down under its own weight, suspect a leaking lift cylinder check valve or worn control valve seals; the full hydraulic troubleshooting chart is on page 241. Swap the hydraulic oil filter every 400 Hr, and inspect the cylinder rod seals for bypass before condemning the pump.
Manual Section: Hydraulic System TroubleshootingBattery dead after sitting overnight, electrical accessories stop working intermittently p. 273
Read battery open-circuit voltage; it must exceed 12 V (page 275). Look for a blown fuse or one that blows repeatedly: the electrical troubleshooting index on page 273 covers both rapid fuse failure and fast battery discharge. Test the charging system dynamo output and regulator, since a weak regulator won't recover a cycling battery. Then clean any corroded ground connections at the frame.
Manual Section: Electrical System TroubleshootingEngine overheats or coolant temperature gauge pegs high during normal mowing
Verify coolant level: system capacity is 2.7 L, so top up to the full mark and check hoses and the radiator cap for leaks. Clean grass clippings and debris from the radiator fins. Replace radiator hoses every 2 years regardless of how they look (page 31). If coolant is correct and flow is clear, work the engine overheating flowchart to isolate a failed thermostat or water pump.
Manual Section: Engine TroubleshootingFrequently Asked Questions
What are the recommended service intervals?
Service intervals are laid out in the maintenance check list. Engine oil gets changed every 100 hours and its filter every 200 hours, while the mower gear box oil is checked every 50 hours and changed every 150 hours. The carbon canister air filter and engine breather hose both need replacement every 2 years.
What fluids and capacities does this machine require?

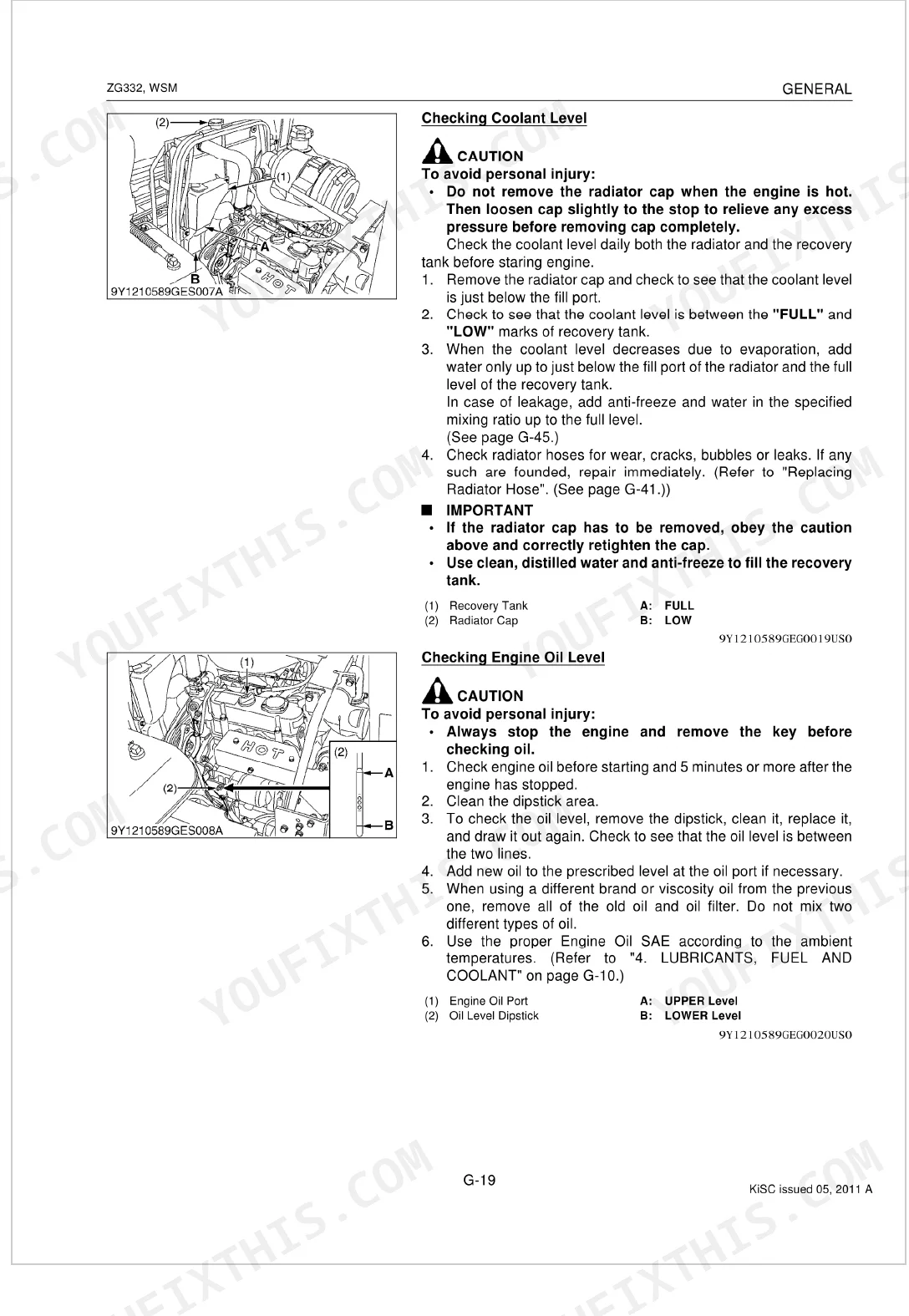

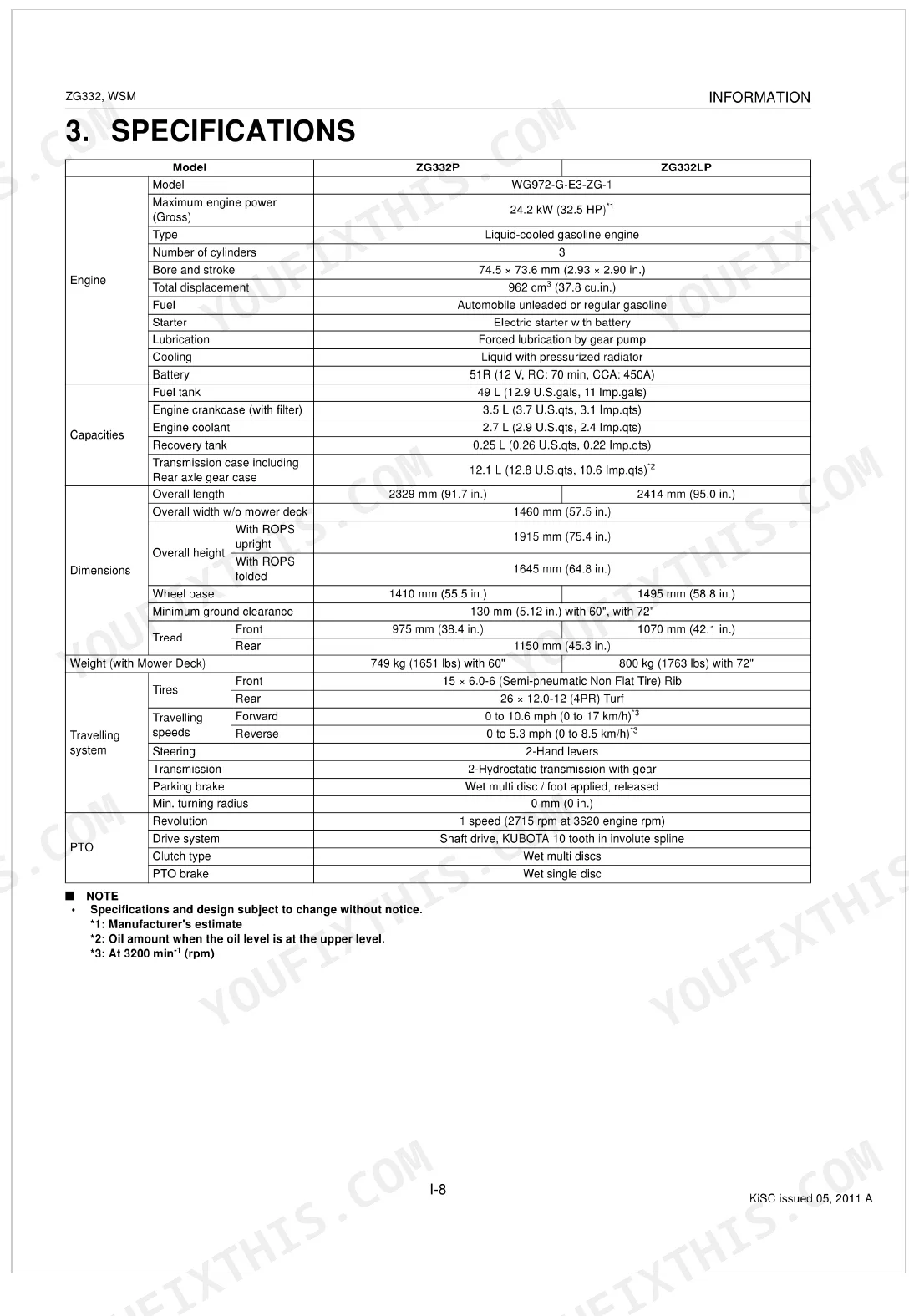

Fuel is automobile unleaded or regular gasoline, with a 49 L (12.9 U.S.gals, 11 Imp.gals) tank. The cooling system holds 2.7 L (2.8 U.S.qts, 2.3 Imp.qts) of fresh clean water with anti-freeze. The engine crankcase with filter takes 3.5 L (3.7 U.S.qts, 3.1 Imp.qts) of API SH or higher oil, and the transmission case needs 12.1 L (12.8 U.S.qts, 10.6 Imp.qts) of KUBOTA UDT or SUPER UDT fluid.

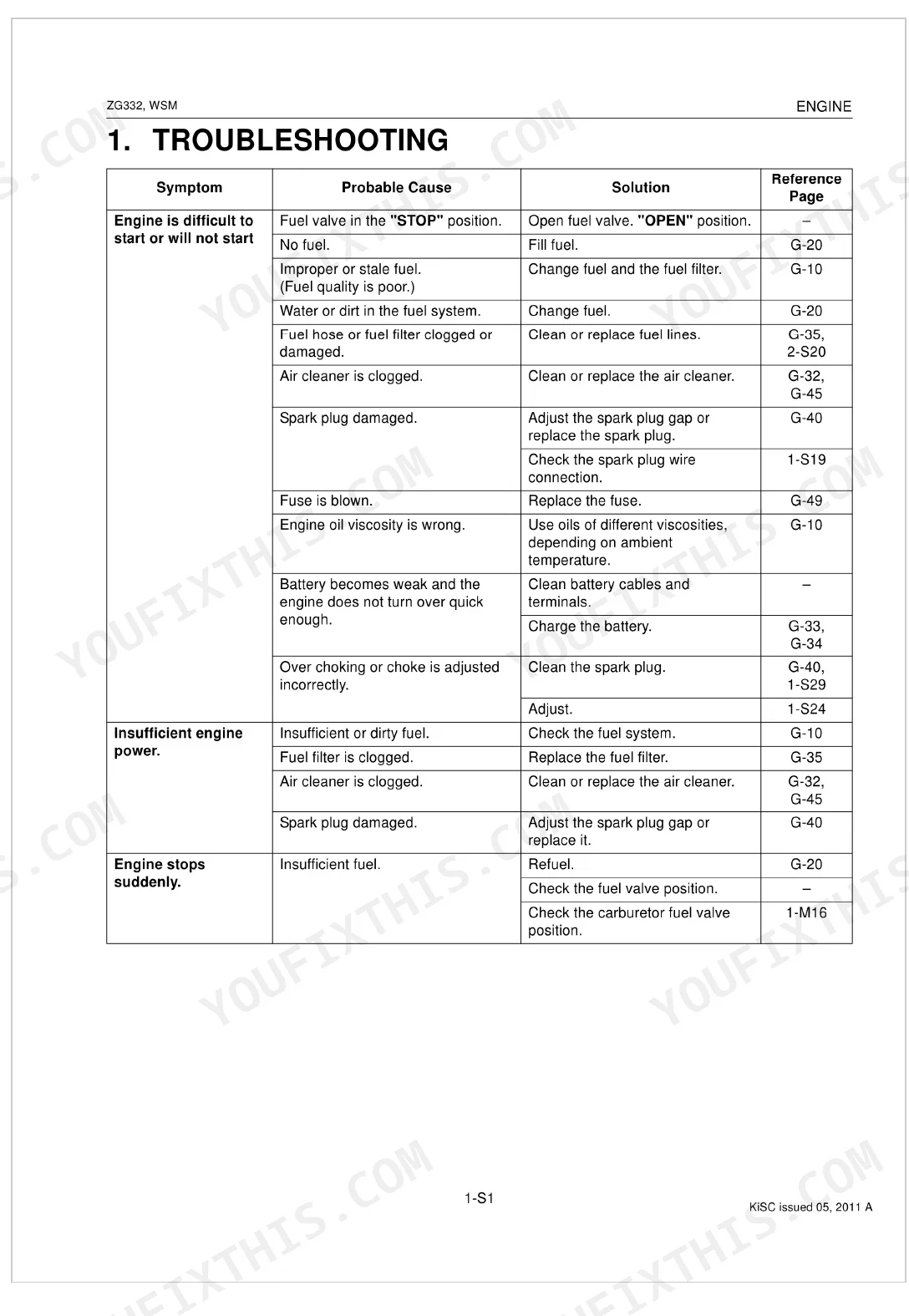

How to troubleshoot engine won't start?
Hard starting or a no-start usually traces back to a few things. The fuel valve may be in the "STOP" position (open it, page G-20) or the tank may be empty (fill it, page G-20). Also check for a clogged air cleaner (clean or replace, page G-32, G-45), a damaged spark plug (adjust the gap or replace, page G-40), or a weak battery that won't crank fast enough (charge it, page G-33, G-34).
What are the hydraulic system specifications?
The relief valve (control valve) is set to 5.5 to 7.0 MPa (56 to 71 kgf/cm², 800 to 1000 psi) at an engine speed of 1920 min⁻¹ (rpm). At no pressure and maximum engine speed, hydraulic pump delivery tops out at 30.2 L/min (7.98 U.S.gals/min, 6.64 Imp.gals/min).
What torque specifications are listed?
Torque figures run throughout the manual by component. General screws, bolts, and nuts range from 7.9 to 9.3 N·m (0.80 to 0.95 kgf·m) at M6 up to 334 to 392 N·m (34.0 to 40.0 kgf·m) at M20. The starter B terminal nut calls for 5.9 to 11.7 N·m (0.6 to 1.2 kgf·m), and the rear axle gear case mounting screw (M12) needs 85 to 90 N·m (8.7 to 9.2 kgf·m).
What format is this Kubota ZG332 manual in?
It's a 312-page searchable PDF ready to download right away. It opens on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this Kubota ZG332 manual?
Yes, print as many copies as you like; there are no restrictions. Plenty of mechanics print just the section they need and take it out to the shop floor.
Document Quality
This document is a clean scanned PDF with an accurate OCR layer, allowing you to search and copy the full text. All text throughout the manual is crisp and consistently easy to read. Diagrams and illustrations, including detailed machine views and safety decals, are clear with readable labels, though some appear to be raster images. Page 14 features sharp, vector-like dimension diagrams that maintain clarity at any zoom level. The pages are free from scan artifacts, stains, or skewed content.
