Kubota built this Workshop Manual (OEM #9Y111-06260) around the 2011 M7040SUHD and M7040DT-SU, and all 98 pages stay on those two tractors, from clutch adjustment to hydraulic pump service. The total hydraulic circuit schematic is here, along with 50 pages of step-by-step procedures across the shuttle shift, Hi-Lo, and four-wheel-drive sections, plus 10 pages of exploded-view assemblies for the full transmission. Three pages of torque tables run from general fasteners and hydraulic hose fittings to stud bolts, in both metric and UNC/UNF thread classes. Set your M10 bolt to 40-45 N-m, torque the clutch rod turnbuckle lock nut to 29.4-34.3 N-m, and confirm the V3307-DI-TE2 engine is spinning its rated 2600 rpm before you button up. Every section is bookmarked and the text is searchable, so pull up a number on your tablet and get wrenching.
What's Inside This Kubota M7040SUHD Manual
| System | Pages | Key Topics |
|---|---|---|
| Information | 3-13 | Safety First, Safety Decals, Specifications, Traveling Speeds |
| General | 14-32 | Tractor Identification (Model Name And Serial Numbers), Handling Precautions For Electrical Parts And Wiring (Battery, Fuse, Connector, Handling Of Circuit Tester, Color Of Wiring) |
| Clutch | 33-37 | Servicing Specificatons, Tightening Torque, Checking And Adjusting (Traveling Clutch) |
| Transmission | 38-89 | Structure, Traveling System (Shuttle Shift Section, Hydraulic Shuttle Valve, Main Gear Shift Section, Hi-Lo Shift Section, Shift Fork Rod And Fork, Four Wheel Drive Section) |
| Hydraulic System | 90-98 | Structure, Hydraulic Circuit (Total Hydraulic Circuit), Servicing Specifications, Checking And Adjusting (Hydraulic Pump) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

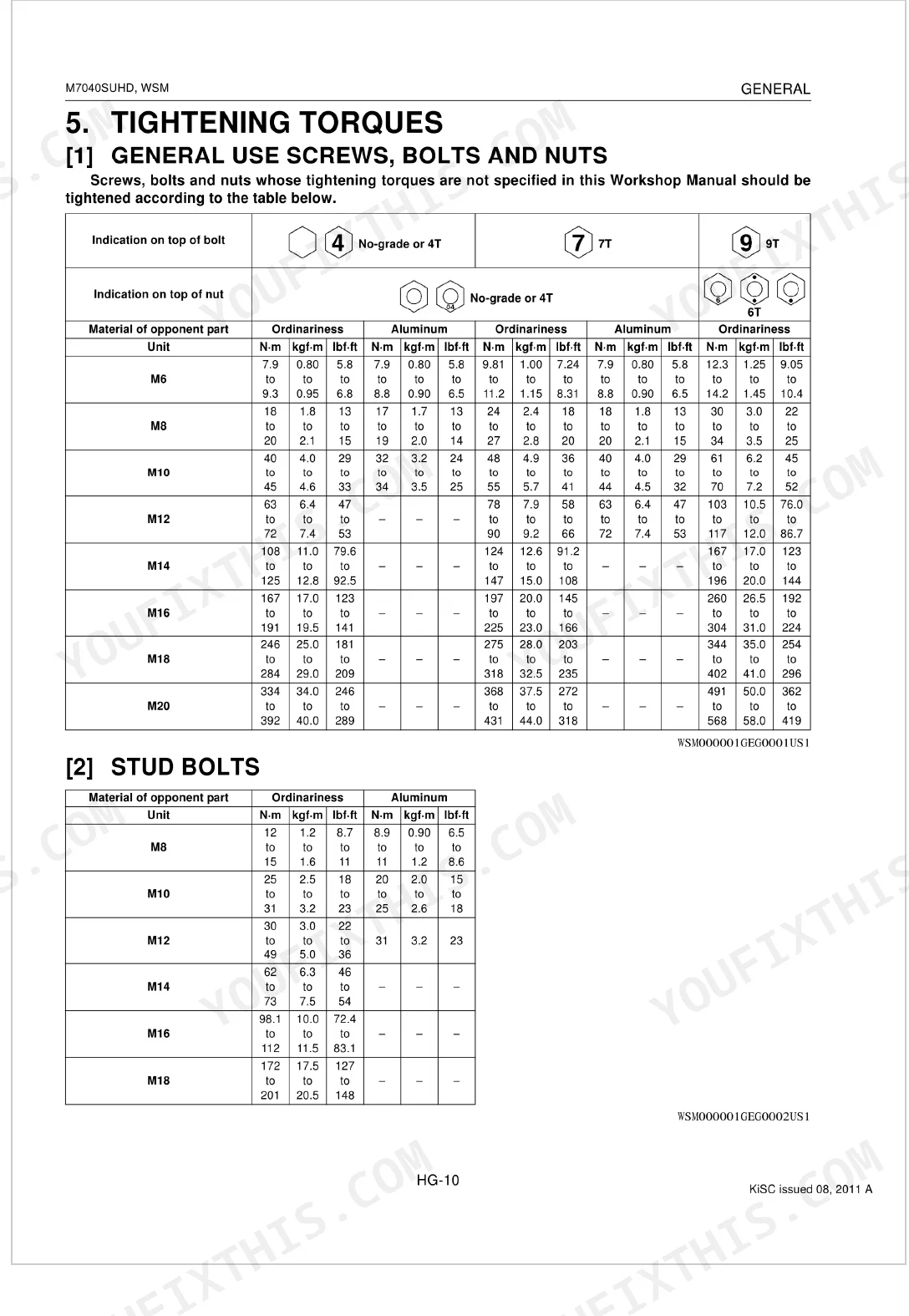

| General Use Screws, Bolts and Nuts (M6, Ordinariness) | 7.9 to 9.3 N-m | p. 25 |
| General Use Screws, Bolts and Nuts (M10, Ordinariness) | 40 to 45 N-m | p. 25 |

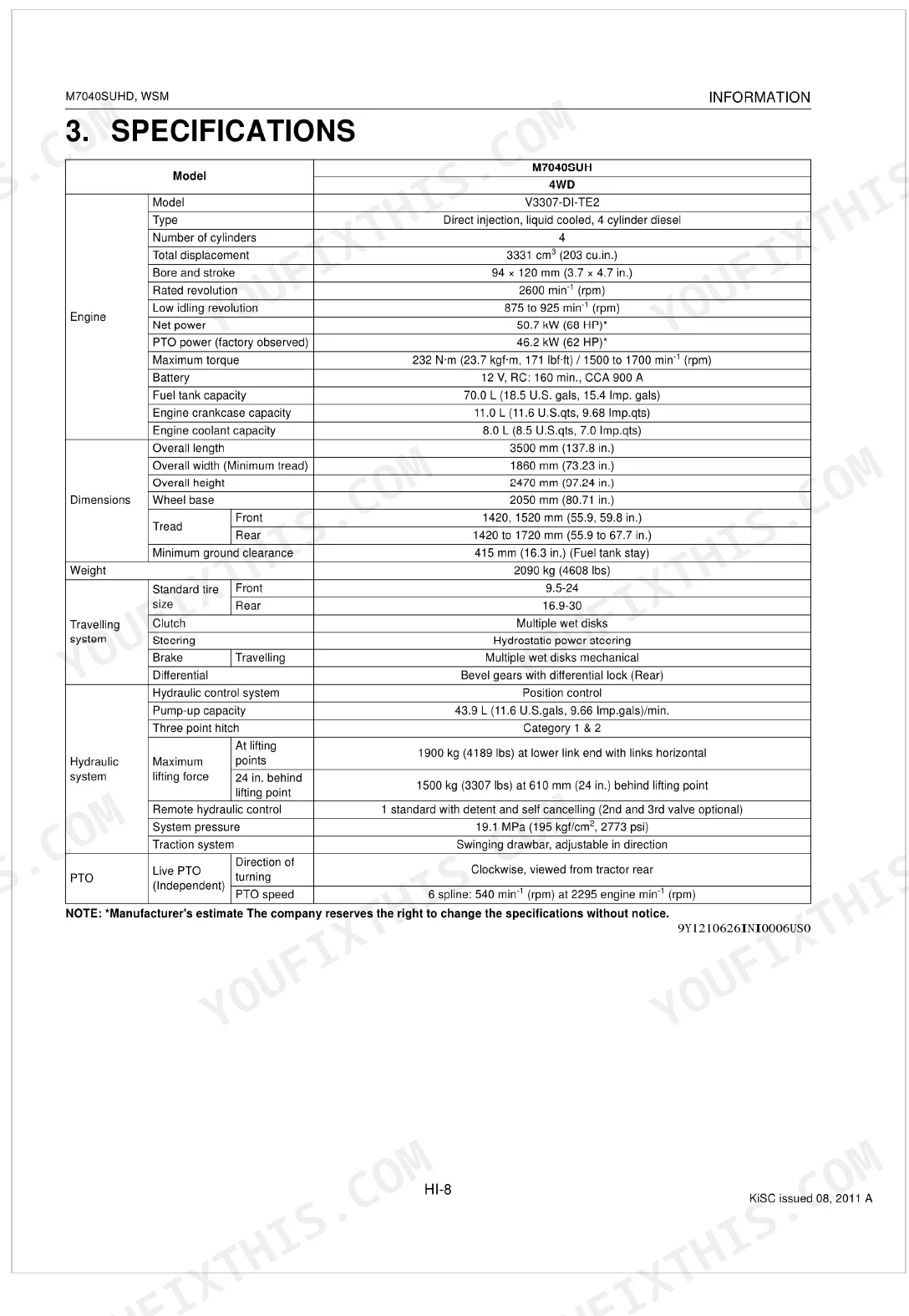

| Engine Model | V3307-DI-TE2 | p. 12 |
| Engine Total Displacement | 3331 cm³ | p. 12 |
| Engine Rated Revolution | 2600 min⁻¹ (rpm) | p. 12 |
| Engine Net Power | 50.7 kW (68 HP) | p. 12 |
| Fuel Tank Capacity | 70.0 L | p. 12 |
| Engine Crankcase Capacity (with filter) | 11.0 L | p. 12 |
| Transmission Case Oil Capacity | 48.0 L | p. 23 |
| Rear Wheel Mounting Nut Torque | 260 to 304 N·m | p. 58 |
| Clutch Pedal Free Travel | 15 to 25 mm | p. 35 |

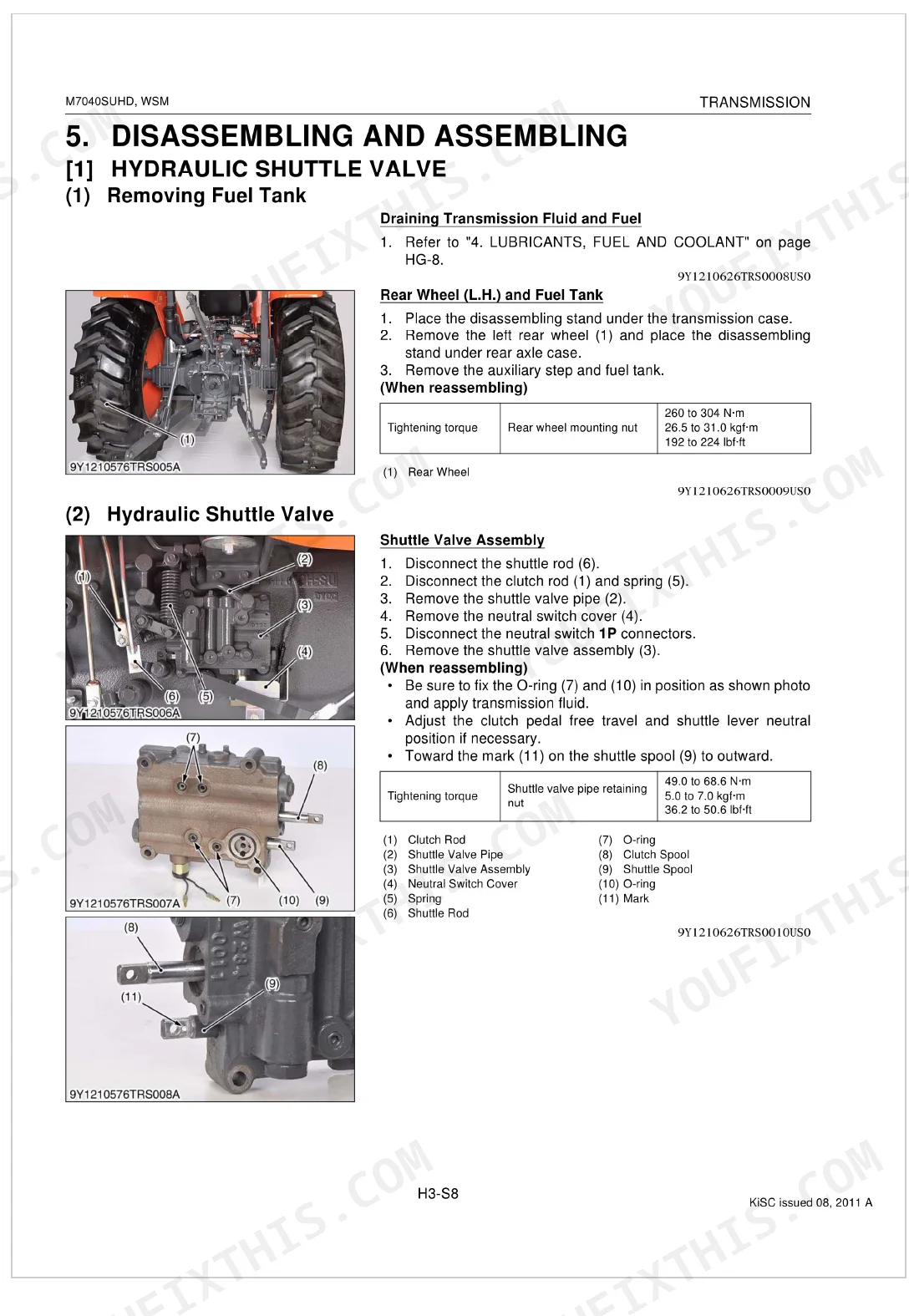

| Shuttle Valve Pipe Retaining Nut Torque | 49.0 to 68.6 N·m | p. 58 |
Kubota M7040SUHD Common Problems This Manual Covers

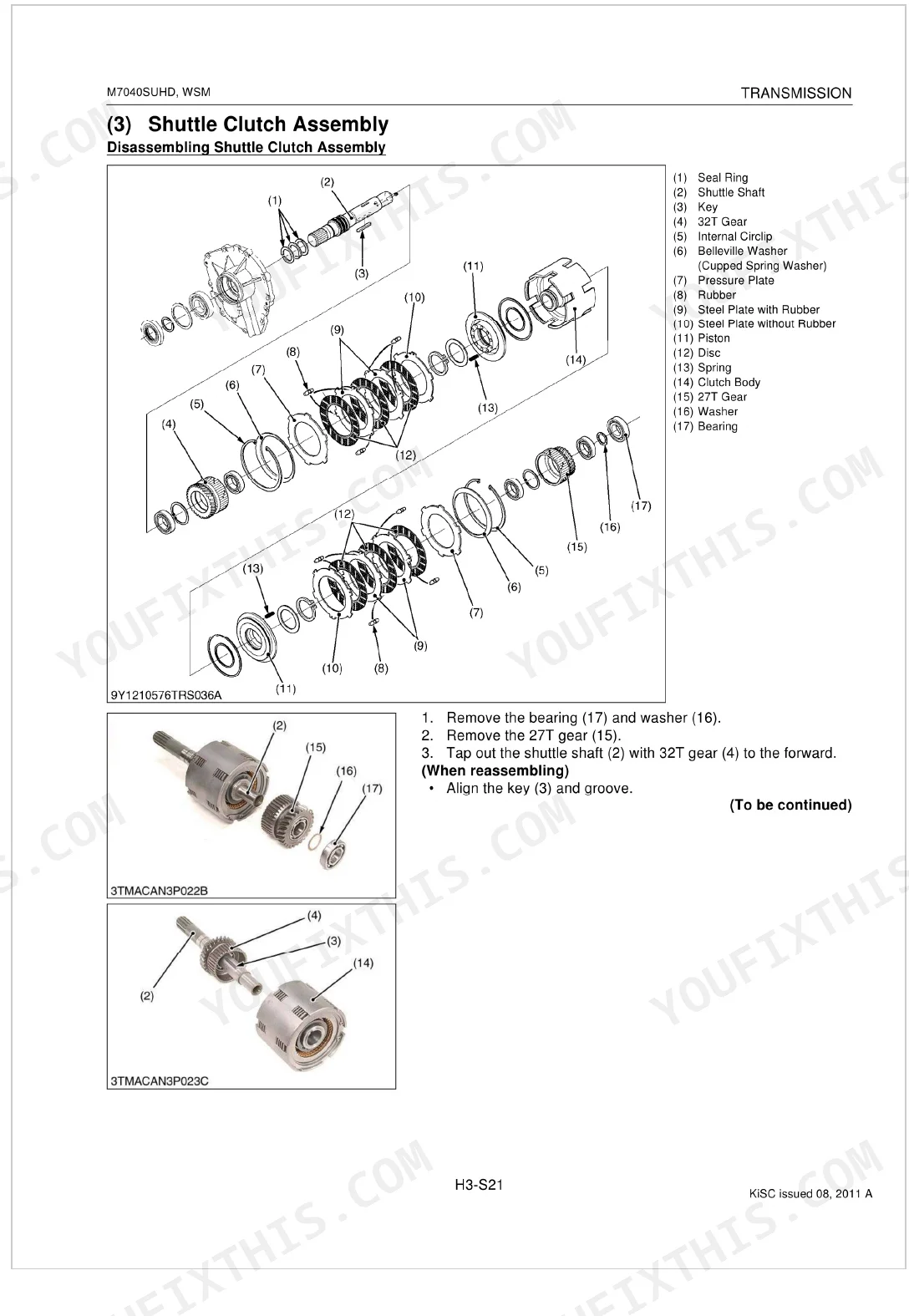

Kubota M7040SUHD hydraulic shuttle clutch slips under load, tractor won't move forward or reverse
Check transmission oil level first; top up to the full 48.0 L capacity if low (page 23). Inspect the shuttle valve relief valve for wear or debris plugging the seat. If oil is correct, measure shuttle clutch operating pressure at the test port. Worn friction discs or a deformed piston require transmission teardown.
Manual Section: Transmission Shuttle Clutch IssuesShuttle clutch drags in neutral, tractor creeps forward or backward with lever centered
Inspect the modulating valve for sticking or debris, and test return springs for tension loss. A weak or broken return spring prevents full piston retraction, keeping the clutch partially engaged. Drain and refill the transmission with fresh fluid (48.0 L capacity, per page 23) before reassembling the valve body.
Manual Section: Transmission Shuttle Clutch IssuesClutch pedal free play out of spec, pedal spongy or biting point near floor p. 35
Measure clutch pedal free travel; correct spec is 15 to 25 mm (page 35). Adjust the clutch rod turnbuckle until free travel falls within range, then torque the locknut to 29.4 to 34.3 N·m (page 36). If adjustment maxes out and slip persists, inspect friction disc thickness at the clutch housing.
Manual Section: ClutchThree-point hitch lifts slowly or stalls short of full height under working load p. 95
Verify hydraulic pump delivery at rated pressure; minimum spec is 40.2 L/min for the 3-point linkage circuit (page 95). Check oil level and inspect the pump inlet screen for restrictions. If flow stays below spec with clean oil and new filter, remove the pump and inspect internal clearances per page 90.
Manual Section: Hydraulic SystemTransmission shifts hard between gears, grinding or popping out of gear under load p. 38
Drain and refill the transmission case if fluid is past the 600-hour change interval (page 28); capacity is 48.0 L (page 23). Inspect shift fork rods and forks for wear or bending while the case is open. Check that Hi-Lo and main gear detents click firmly into position with no slack in the linkage.
Manual Section: TransmissionFrequently Asked Questions
What are the recommended service intervals?

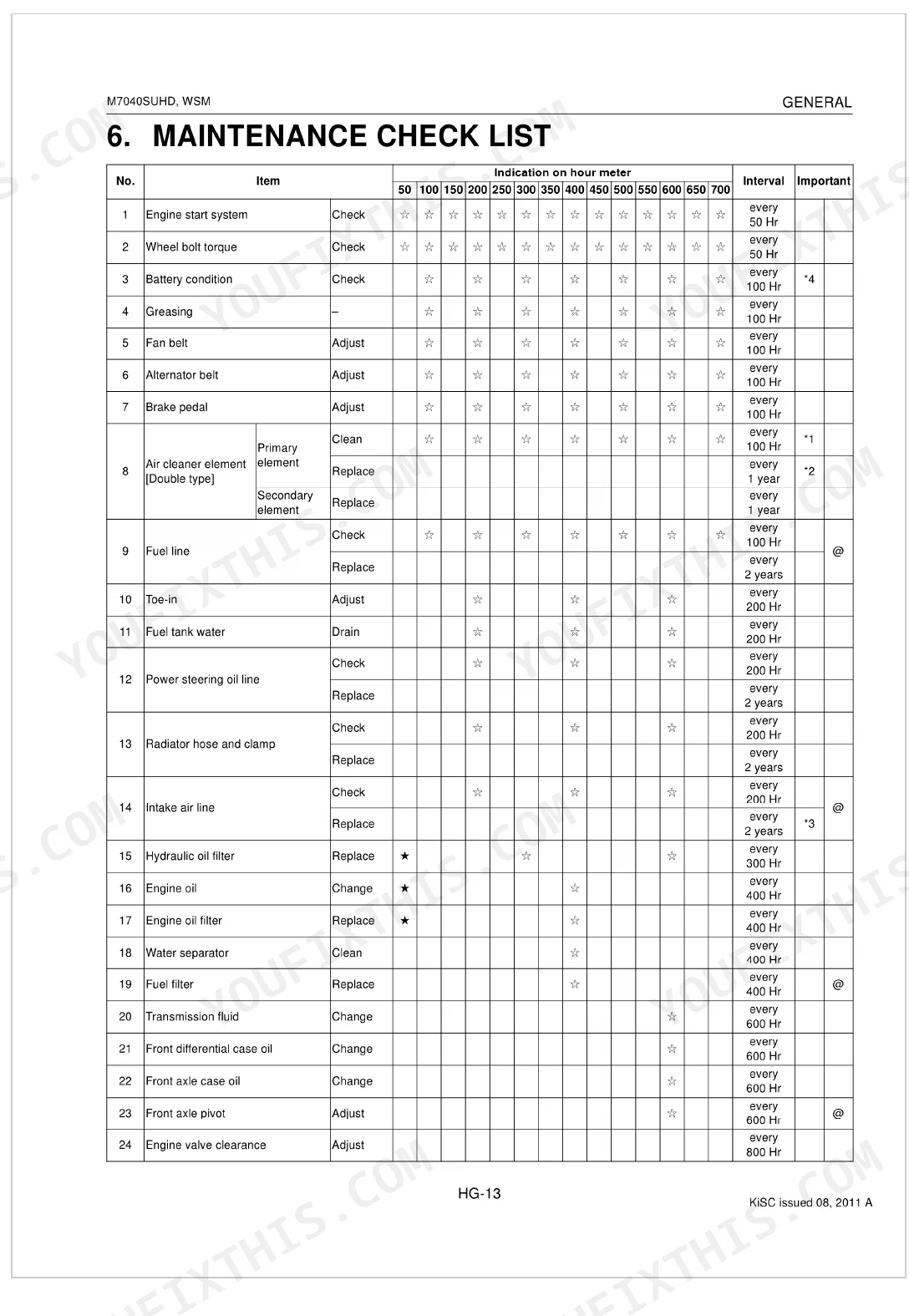

Intervals run on a tiered schedule. Check the engine start system and wheel bolt torque every 50 hours. Battery condition, greasing, fan belt, alternator belt, and brake pedal adjustment all fall at 100 hours. Engine oil changes at 400 hours, transmission fluid at 600 hours. Fuel injection nozzle pressure gets checked every 1500 hours, and the injection pump every 3000 hours.
What fluids and capacities does this machine require?
The 70.0 L tank takes No. 2-D diesel. Fill the engine crankcase (with filter) to 11.0 L using API CF or CI-4 oil, and the transmission case to 48.0 L of Kubota Super UDT fluid. The front differential case needs 6.6 L of Kubota UDT or Super UDT, and each side of the front axle gear case holds 3.0 L of the same. Greasing points use NLG1-2 or NLG1-1 multipurpose grease.
How to troubleshoot engine won't start?
Before testing, put all control levers in NEUTRAL, set the parking brake, and stop the engine with the key out. Test 1 covers the shuttle shift lever: from the operator's seat, move the lever to forward or reverse, press the clutch pedal fully, disengage the PTO clutch control lever, and turn the key to START. The engine must not crank; if it does, inspect the safety switch. Test 2 repeats the check for the PTO clutch control lever, again confirming no crank when the PTO lever is engaged and the clutch pedal is down.
What are the hydraulic system specifications?

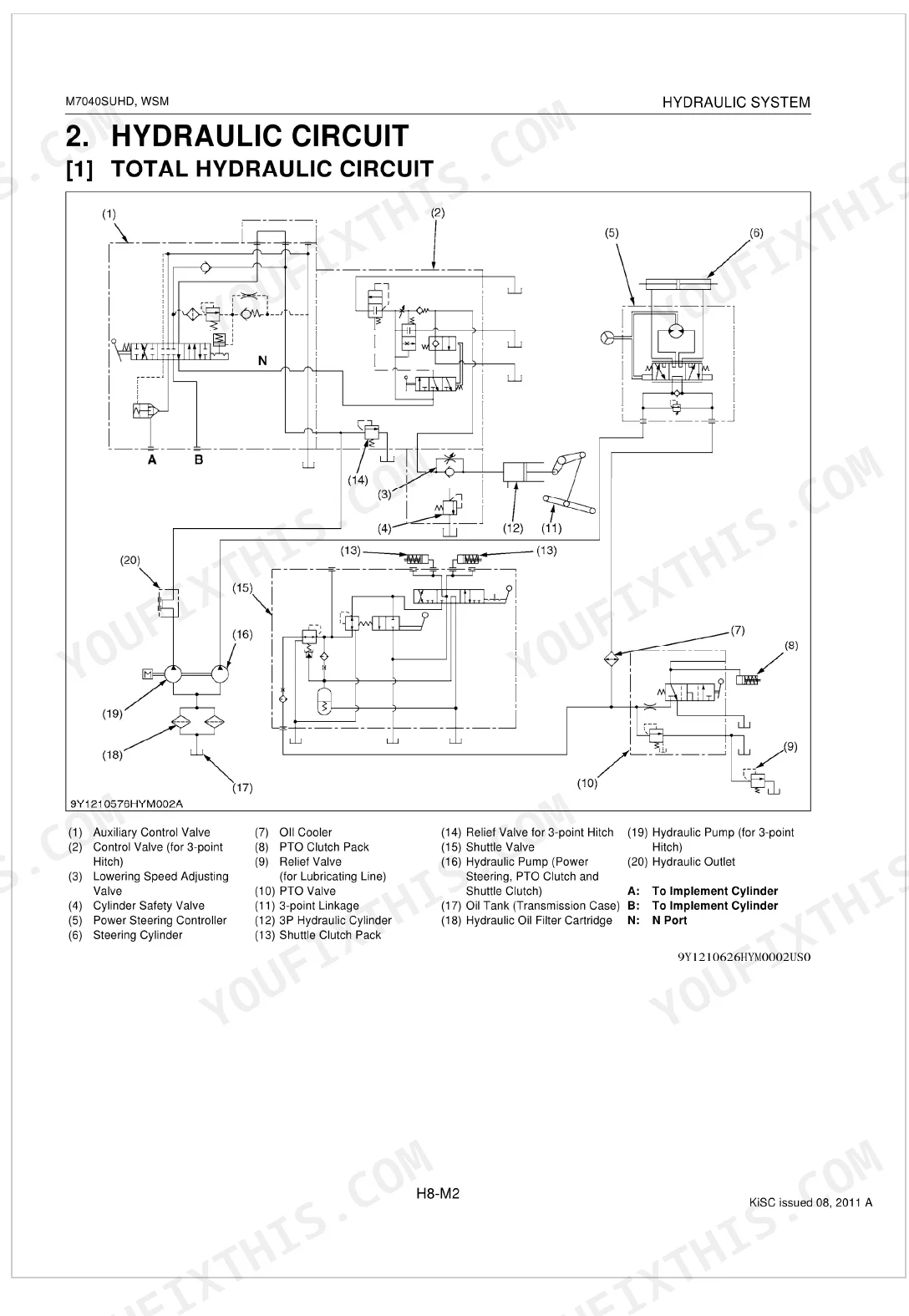

Two pumps, two specs. The power steering pump should deliver above 22.5 L/min at 2800 min⁻¹ and a rated 16.8 MPa (170 kgf/cm², 2418 psi), with 18.3 L/min as the allowable limit. The 3-point linkage pump should deliver above 40.2 L/min at 2800 min⁻¹ and a rated 18.6 MPa (190 kgf/cm², 2700 psi), with an allowable limit of 32.81 L/min.
Is this Kubota M7040SUHD Workshop Manual a digital download?
It's a 98-page searchable PDF, and the download unlocks the moment checkout clears. Open it on a laptop, tablet, or phone and take it straight to the shop floor.
Can I print specific sections of this Kubota M7040SUHD Workshop Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are hydraulic system diagrams in this Kubota M7040SUHD Workshop Manual?
Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the Kubota M7040SUHD.
