This Kubota ZG20 and ZG23 Service Manual is the factory workshop manual for the 2003-2004 ZG zero-turn mowers, built around the GH630H and GH680H engines. It is a 394 page PDF you can download, search, and print, with bookmarks to jump between systems.The manual is organized by system: specifications and dimensions, a large general section on maintenance and torque values, full engine body and engine service, the hydrostatic transaxle, front axle, hydraulic lift, electrical, and the mower deck itself. Each chapter gives the checks, clearances, and tightening torques Kubota specifies.Owners and independent shops use it to service the HST drive, troubleshoot no-start and charging faults, rebuild the engine, adjust the deck for an even cut, and trace the wiring. Every repair procedure comes straight from Kubota, so you work to factory tolerances instead of guessing.
What's Inside This Kubota ZG20, ZG23 Manual
| System | Pages | Key Topics |
|---|---|---|

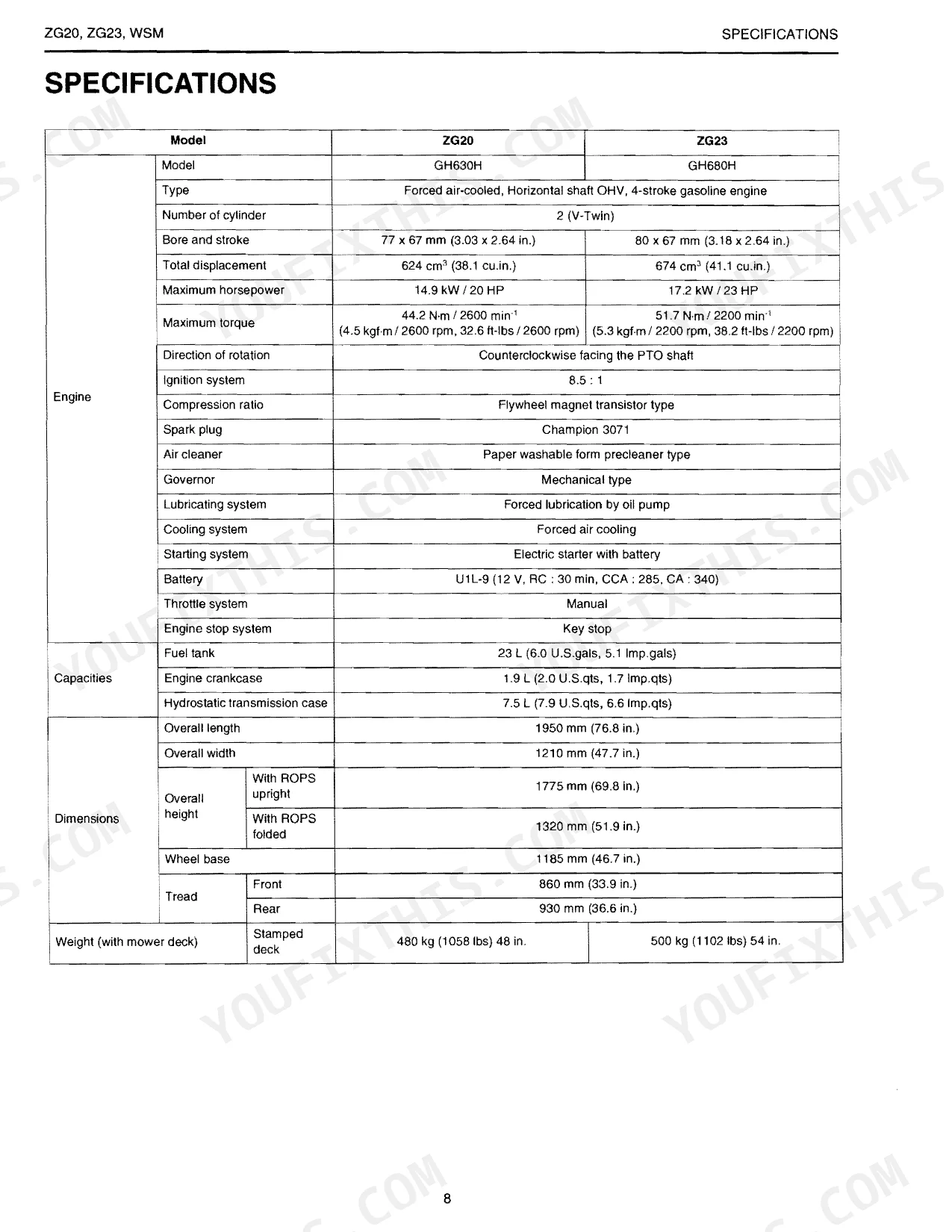

| Specifications | 8-9 | Model, Type, Number of Cylinder, Bore and Stroke, Total Displacement, Maximum Horsepower |
| Dimensions | 10 | Overall Length, Overall Width, Overall Height, Wheel Base, Tread |

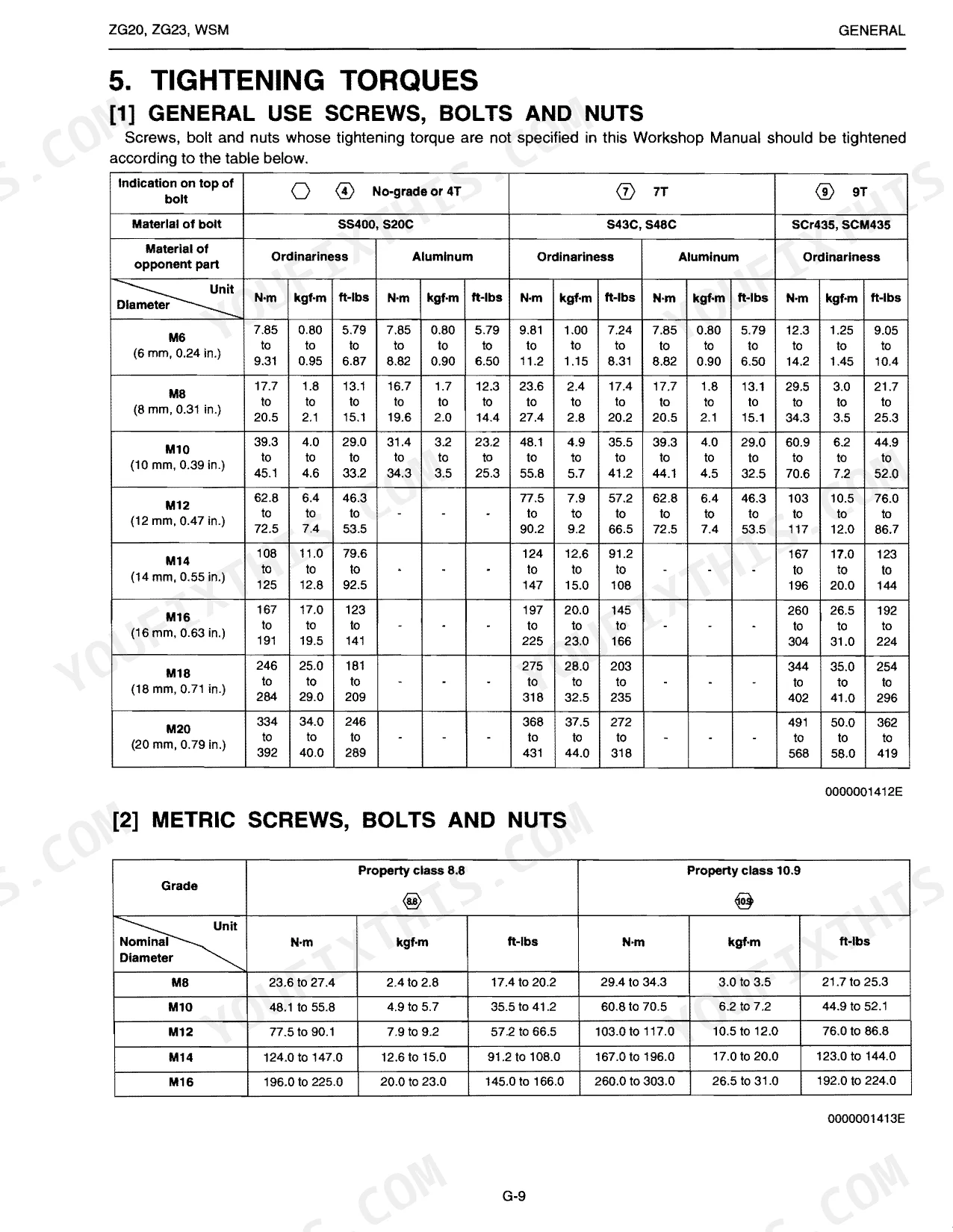

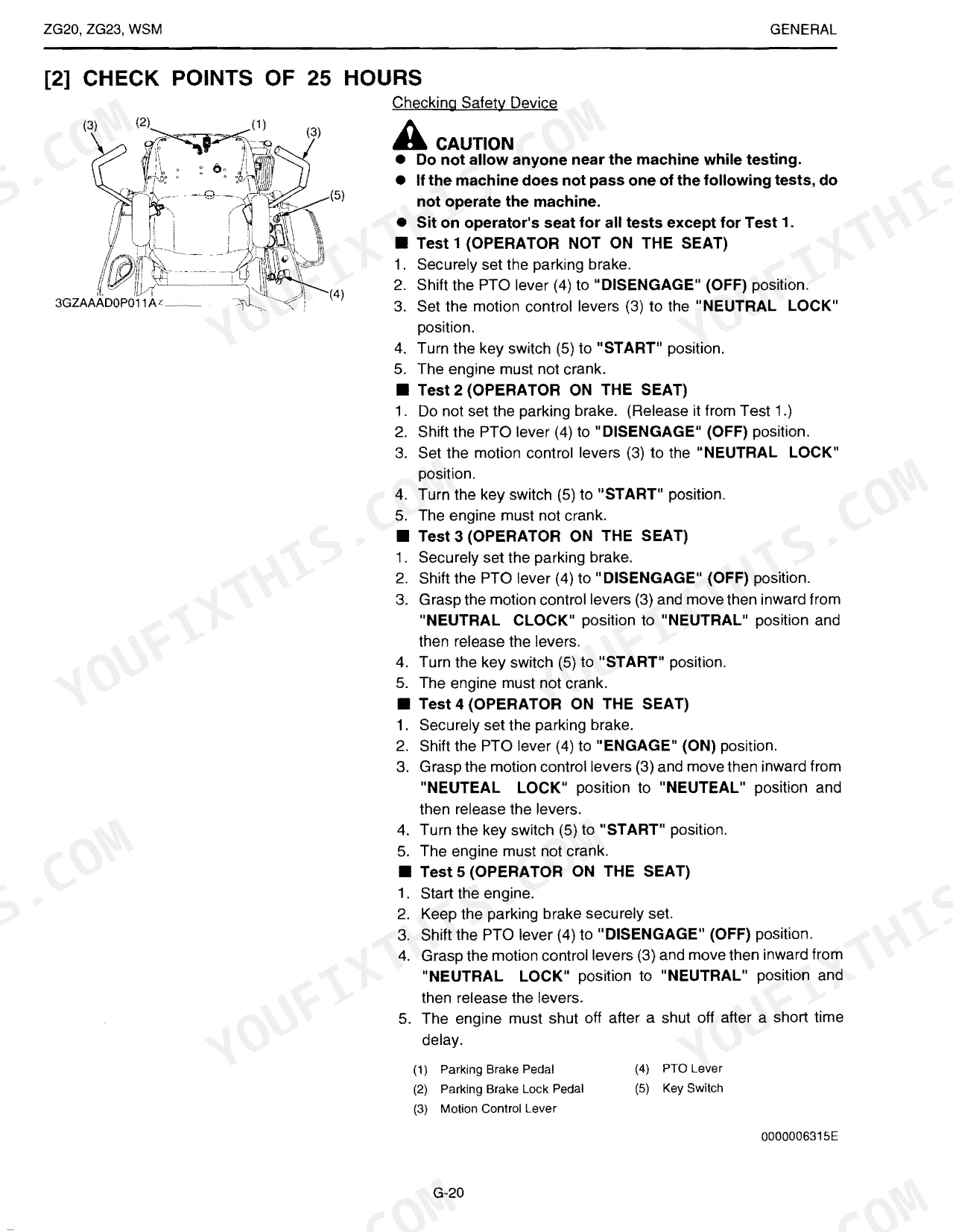

| General | 11-56 | Indentification, General Precautions, Handling Precautions for Electrical Parts and Wiring, Lubricants, Fuel and Coolant, Tightening Torques, Maintenance Check List |
| Engine Body | 57-260 | Cylinder Head, Valves, Piston and Piston Ring, Crankshaft, Cam Shaft, Oil Pump |

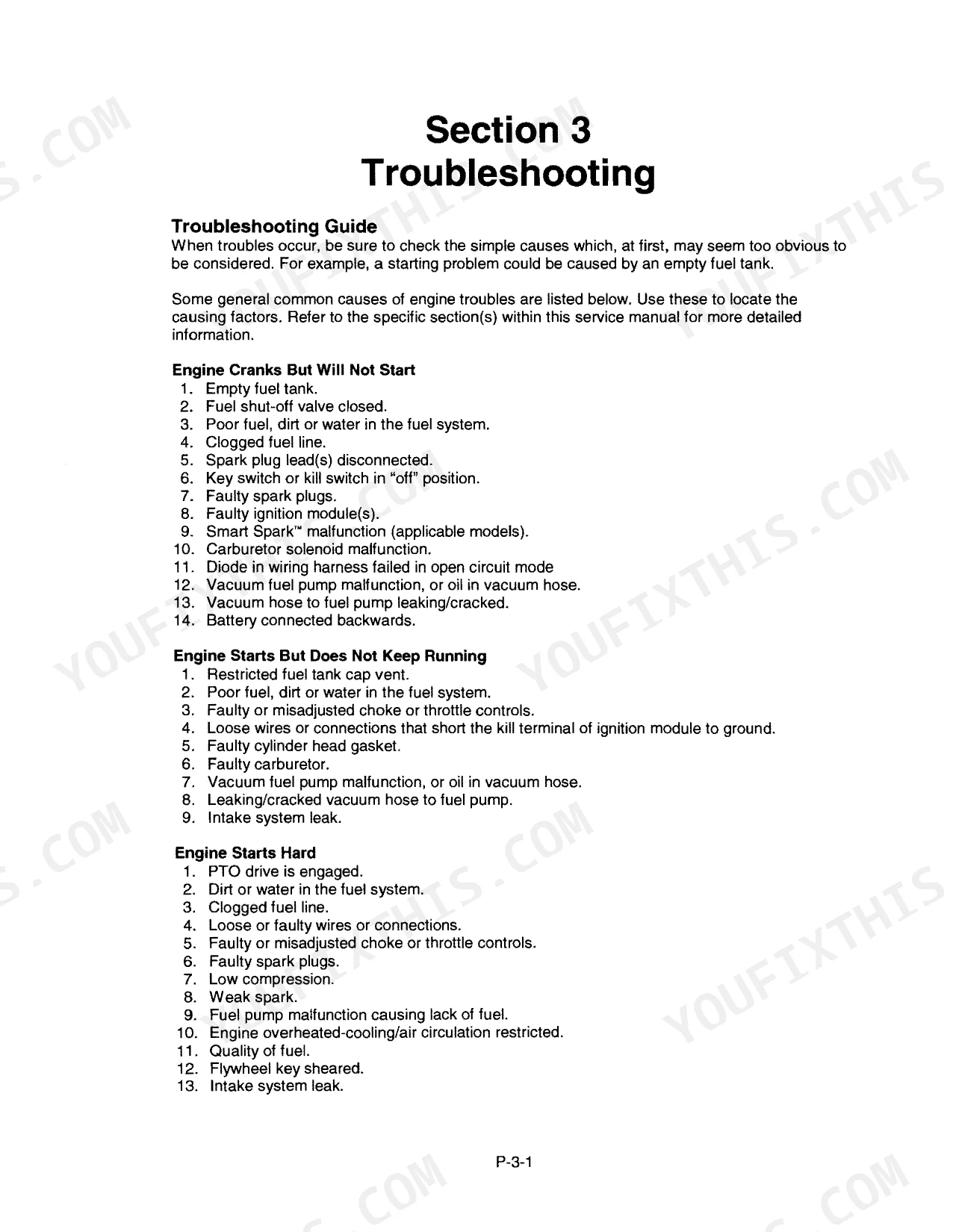

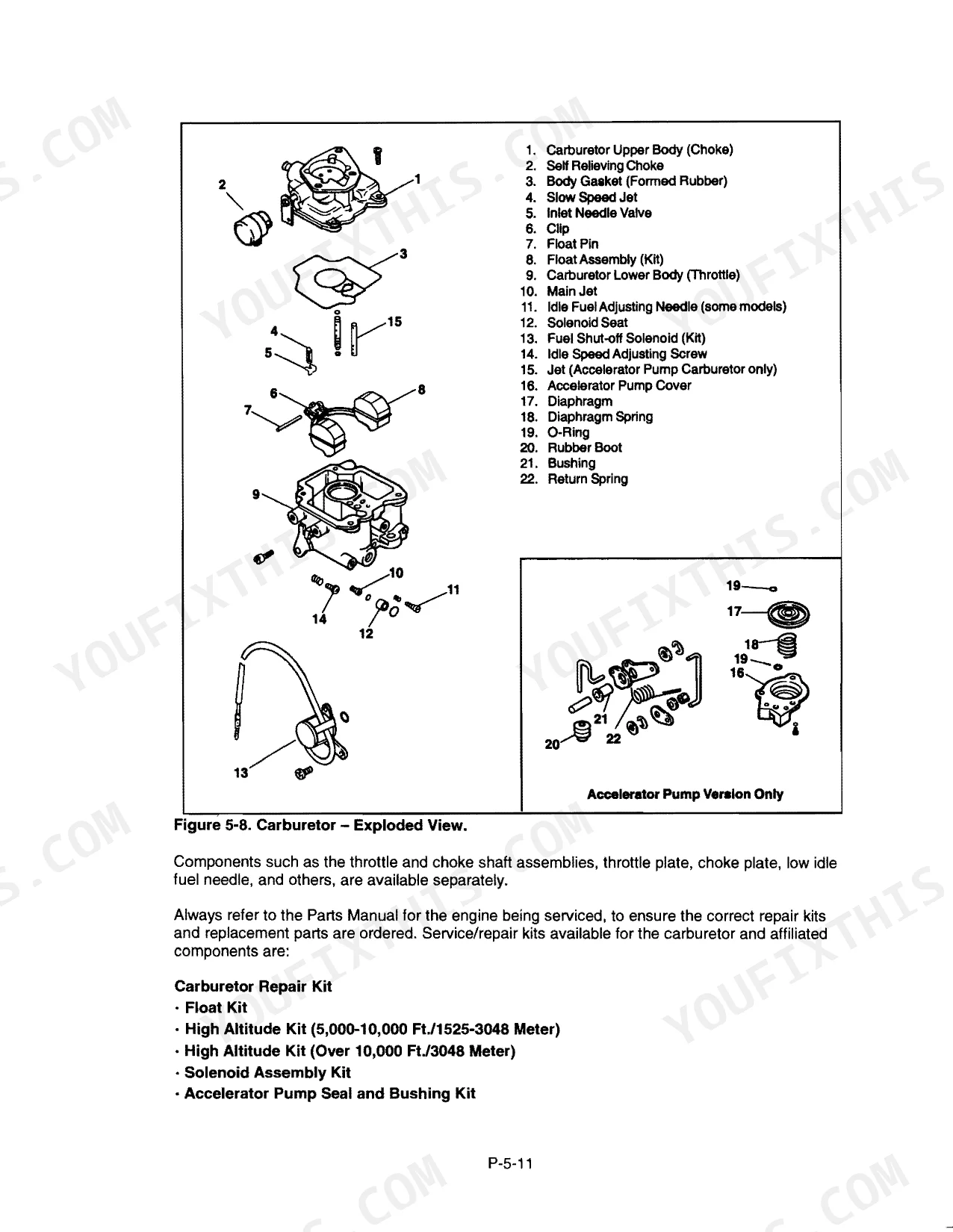

| Engine | 261-276 | Safety and General Information, Troubleshooting, Air Cleaner and Air Intake System, Fuel System and Governor, Lubrication System, Electrical System and Components |
| Transaxle | 277-322 | Hydrostatic Transmission, Pump and Motor, Check Valve and High Pressure Relief Valve, Power Trains Operation, Control Linkage, Final Reduction Gear Section, PTO System, Parking Brake |
| Front Axle | 323-332 | Front Tire, Wheel Bracket, Grease Fitting, Machine Frame, Wheel Cap, Lift Up Adjuster, Lock Nut |

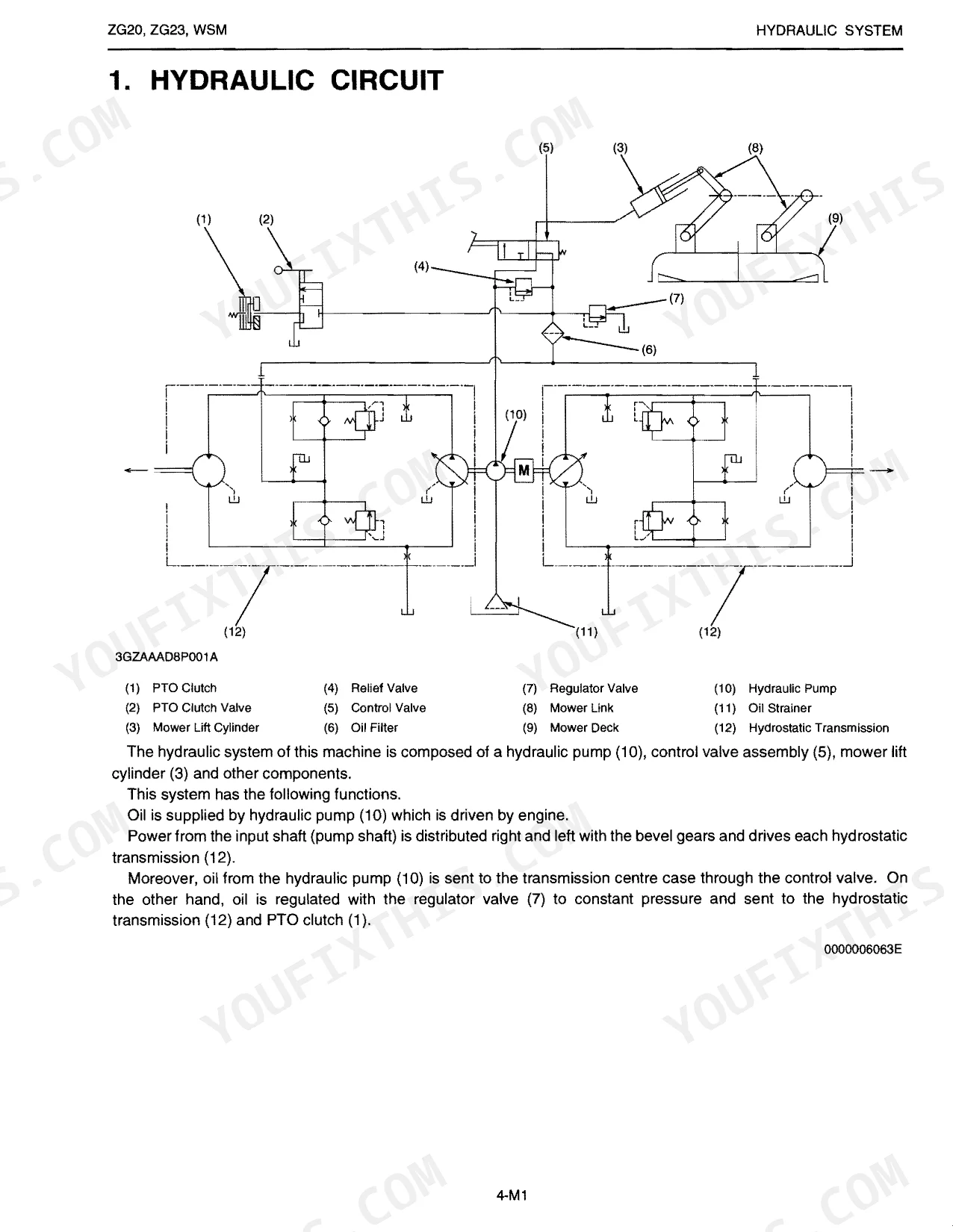

| Hydraulic | 333-350 | Hydraulic Circuit, Hydraulic Pump, Hydraulic Control Valve and Valve Adaptor, Lift Cylinder, Mower Linkage, Troubleshooting |

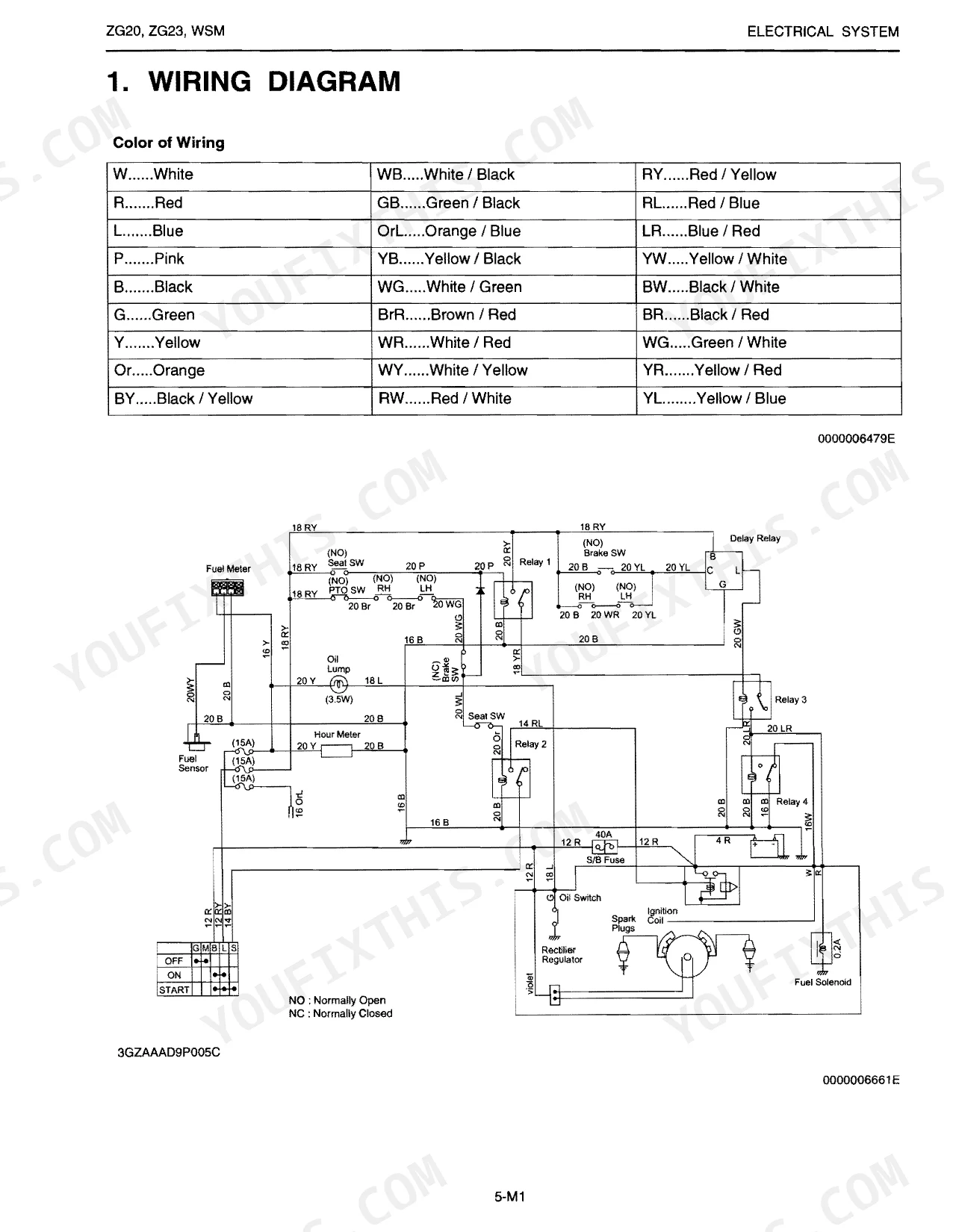

| Electrical | 351-376 | Wiring Diagram, Starting System, Safety Switch, Relay, Engine Stop System, Stop System, Fuel Solenoid, Ignition Coil Short Circuit |
| Mower | 377-394 | Power Transmission, Lifting Mechanism, Anti-Scalp Rollers, Mower Blades, Gear Box, Pinion Shaft |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel tank capacity | 23 L (6.0 U.S.gals, 5.1 Imp.gals) | p. 19 |
| Engine crankcase capacity | 1.9 L (2.0 U.S.qts, 1.7 Imp.qts) | p. 19 |
| Front tire pressure | 270 kPa | p. 30 |
| Rear tire pressure | 140 kPa | p. 30 |
| Engine oil drain plug tightening torque | 13.6 N·m | p. 37 |
| Spark plug gap | 0.7 mm | p. 48 |
| Mower blade screw tightening torque | 103 to 118 N·m | p. 52 |
| Cylinder Head Surface Flatness Allowable Limit | 0.076 mm | p. 267 |
| Regulator Valve Setting pressure | 0.50 to 0.7 MPa | p. 295 |
| Relief Valve (Control Valve) Setting Pressure | 3.0 to 3.5 MPa | p. 346 |
| ZG20 | ||
| ZG20 Total displacement | 624 cm³ | p. 8 |
| ZG23 | ||
| ZG23 Total displacement | 674 cm³ | p. 8 |
Kubota ZG20, ZG23 Common Problems This Manual Covers
Weak or jerky hydrostatic drive
Aerated or worn HST components make the ZG mower creep, lose top speed, or lurch. The transaxle section covers the travelling system, relief pressures, and disassembly.
Manual Section: Transaxle p. 277Mower deck will not raise
A failing hydraulic pump, control valve, or lift cylinder leaves the deck slow or stuck. The hydraulic section maps the circuit and gives the valve setting pressures.
Manual Section: Hydraulic p. 333No-start and charging faults
A bad safety switch, connector, or charging component keeps the engine from starting or running. The electrical section covers the wiring and component checks.
Manual Section: Electrical p. 351Uneven or ragged cut
Worn blades, a bent spindle, or loose blade hardware spoil the cut quality. The mower section covers blade service, the gear box, and the 103 to 118 N·m blade screw torque.
Manual Section: Mower p. 377Engine oil burning or low compression
High hours wear the rings, valves, and cylinder bores, causing smoke and hard starting. The engine body section gives the clearances and service limits for a rebuild.
Manual Section: Engine Body p. 57Front caster play and wear
The front caster wheels and bearings wear and develop play that affects tracking. The front axle section covers checking, disassembly, and reassembly.
Manual Section: Front Axle p. 323Frequently Asked Questions
Which models and engines does this manual cover?
It covers the Kubota ZG20 and ZG23 zero-turn mowers from 2003-2004, built around the GH630H and GH680H engines.
Does it cover the hydrostatic transaxle?
Yes. The transaxle section details the travelling system, servicing specifications, and tightening torques, with troubleshooting for the HST drive. p. 277
Are wiring diagrams included?
Yes. The electrical section covers the machine's wiring and component checks for tracing no-start and charging faults. p. 351
Can I use it to service the mower deck and blades?
Yes. The mower section covers the deck drive, blades, gear box, and the blade screw torque of 103 to 118 N·m for correct reassembly. p. 377
How will I receive this Kubota ZG20 Service Manual?
Delivery is a 394-page searchable PDF, downloadable the moment checkout clears. Open it on a laptop, tablet, or phone and carry it straight to the shop floor.
Am I free to print this Kubota ZG20 Service Manual?
None at all. The PDF ships DRM-free, so print whatever sections you want to take to the shop. Standard letter or A4 paper works fine.
Does this Kubota ZG20 Service Manual include the hydraulic layout?
Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the Kubota ZG20, ZG23.
