Both compact tractors share one factory service standard, and this 377-page Workshop Manual (OEM #9Y011-10632) lays it out for the B6100HST and B7100HST. The hydraulics section runs 50 pages, mapping the hydrostatic transmission circuit, charge relief valve, high-pressure relief valves, and the 3-point lift system; 7 wiring diagrams trace the cranking and charging systems end to end. Engine work gets 100 exploded views across the cylinder head, crankshaft, pistons, fuel injection pump, and gear case assemblies, backed by 7 troubleshooting charts that shorten diagnosis on transmission, electrical, and cooling faults. Torque the M9x1.25 head bolts to 64.7-69.6 N-m and the front wheel hub nut to 82-86 N-m before final assembly. Every section is bookmarked and the text is keyword-searchable, so the spec you need loads fast on any device.
What's Inside This Kubota B6100HST, B7100HST Manual

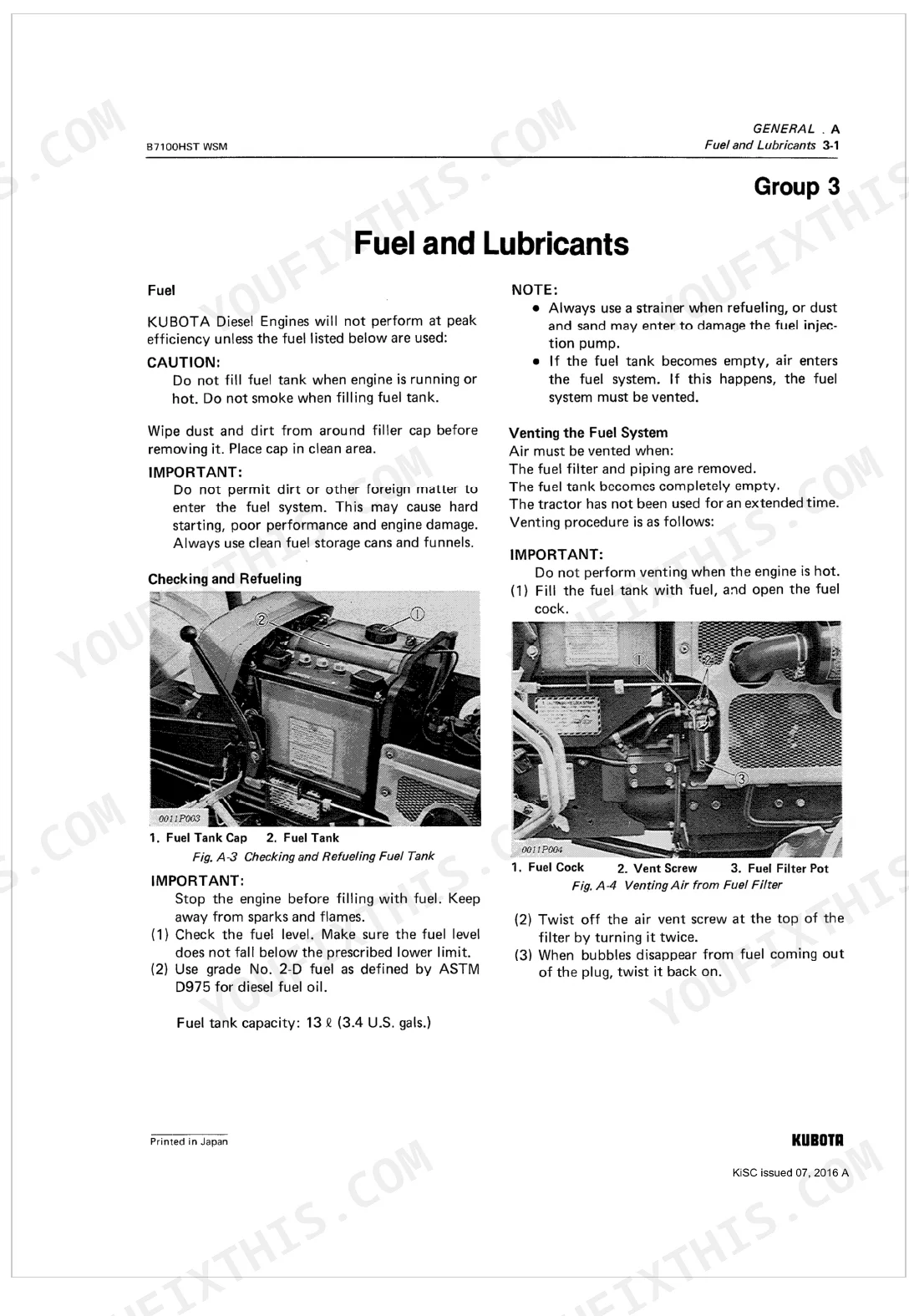

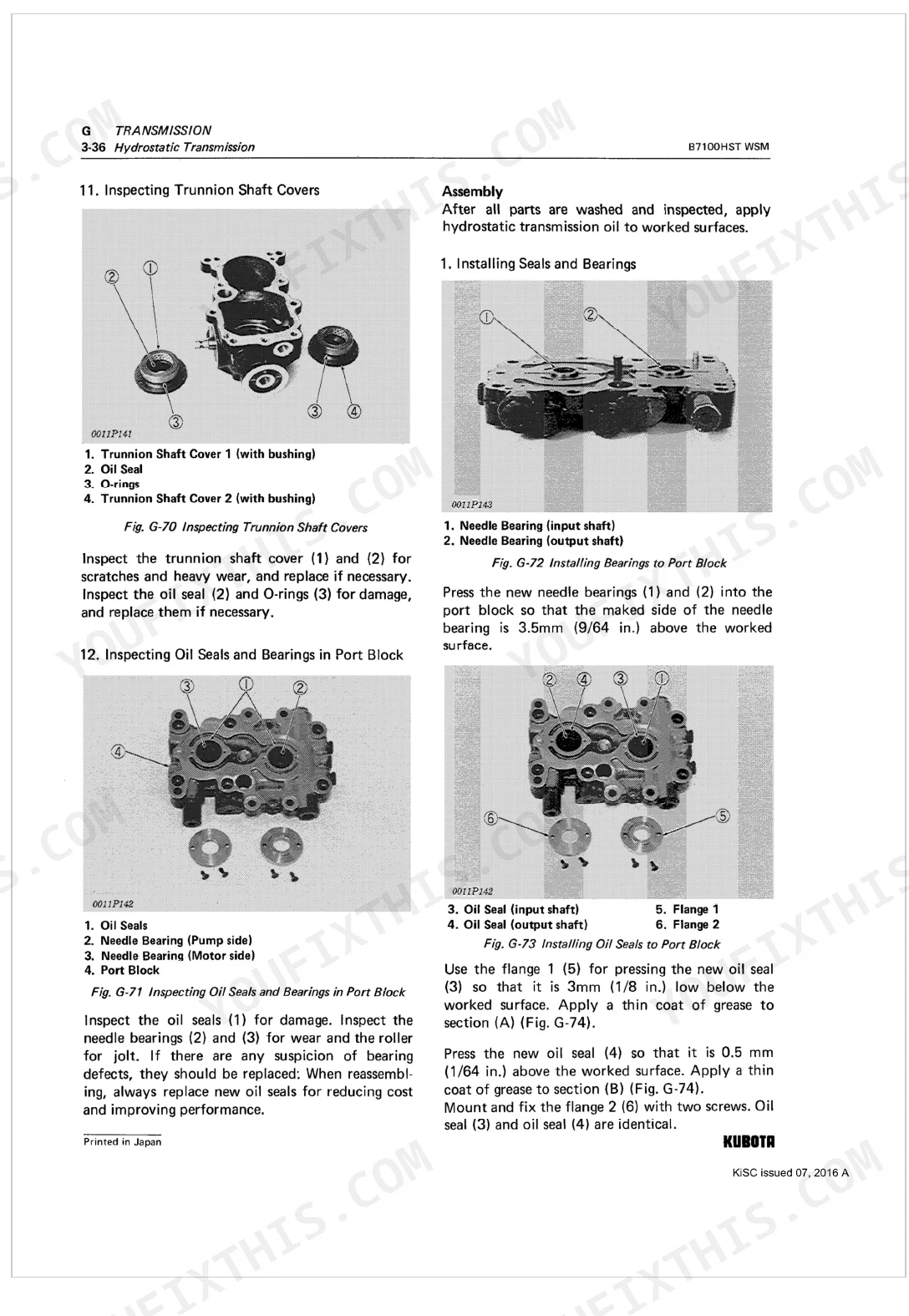

| System | Pages | Key Topics |
|---|---|---|
| General | 5-34 | Tractor Identification (Serial Number, Tractor Serial Number and Transmission Serial Number, Engine Serial Number) |
| Engine Body | 35-80 | Assembly (Assembling: Cylinder Head, Injection Pump and Fuel Pump, Gear Case, Camshaft and Oil Pump, Piston and Crankshaft) |
| Lubrication System | 81-91 | Servicing (Checking Oil Pressure, Oil Filter, Oil Filter Cartridge, Relief Valve, Oil Pump) |
| Cooling System | 92-98 | Servicing (Checking: Radiator Water Tightness, Opening Pressure of Radiator Cap) |
| Fuel System | 99-117 | Fuel Filter (Removal and Installation, Replacing Filter Element), Fuel Pump |
| Clutch | 118-126 | Servicing (Checking: Height of Release Lever, Clutch Disk, Wear, Scratches and Cracks on Pressure Plate, Clutch Pedal Free Travel) |
| Transmission | 127-192 | Gear Transmission (Drive System, Front Wheel Drive Mechanism, PTO Transmission) |
| Transmission (New HST) | 193-222 | Mechanism (Traveling System, Hydrostatic Transmission) |
| Rear Axle Differential | 223-234 | Disassembly (Rear Axle, Differential Gear) |
| Front Axle | 235-252 | Disassembly |
| Tires, Front Alignment | 253-263 | Wheel Weights, Front Wheel Alignment (Kingpin Inclination, Camber, Caster, Toe-in), Checking Toe-in, Checking Tire Pressure, Checking Rolling Angle |
| Steering | 264-273 | Disassembly, Servicing (Free Movement of Steering Wheel, Checking End Play of Steering Shaft) |
| Brakes | 274-281 | Disassembly, Servicing (Checking: Brake Pedals Free Travel, Wear of Brake Lining, Wear of Brake Drum) |
| Hydraulic System | 282-308 | Hydraulic Pump (Disassembly, Servicing), Control Valve and Cylinder (Disassembly, Hydraulic Block, Oil Filter, Oil Cooler |
| Electrical System | 309-377 | Battery (Structure and Function, Servicing), Key Switch, Starter (Disassembling Starter, Glow Plug and Safety Switch, AC Dynamo and Regulator, Hourmeter |

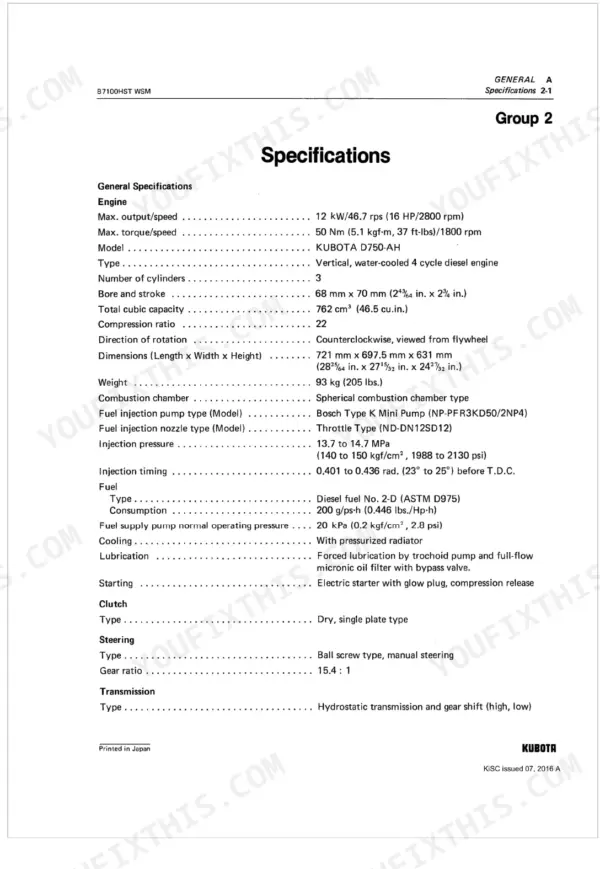

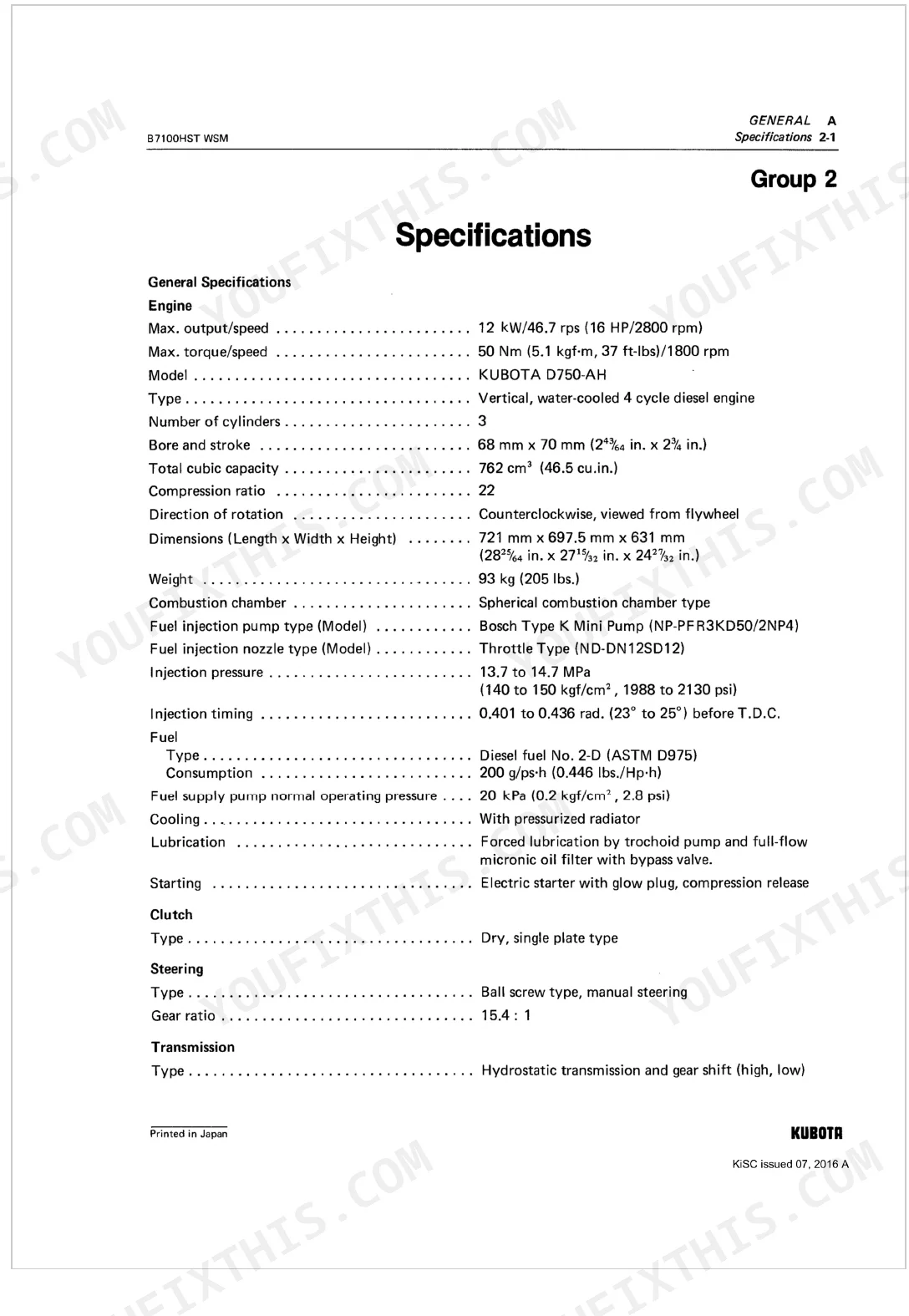

Every system also includes specifications.

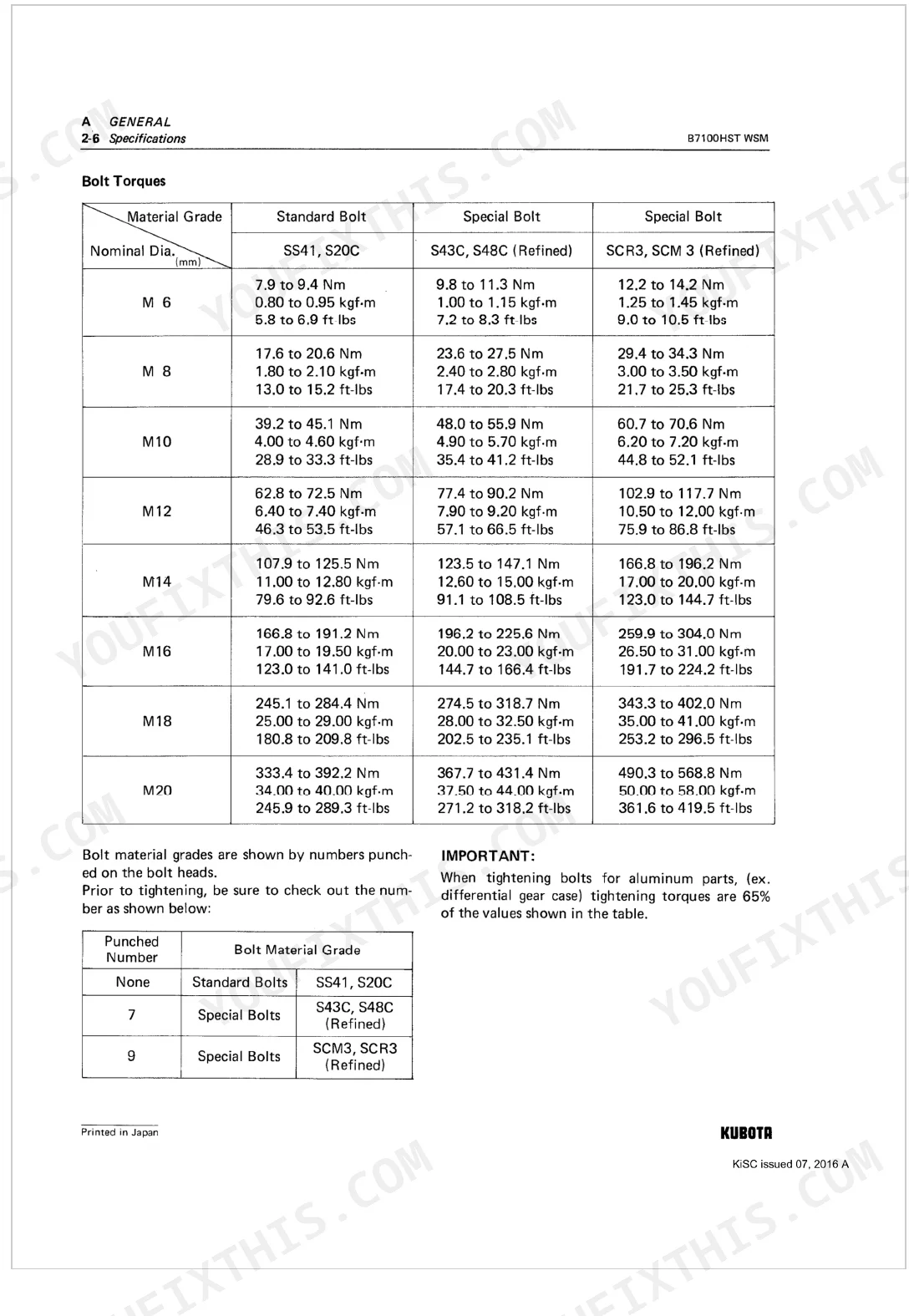

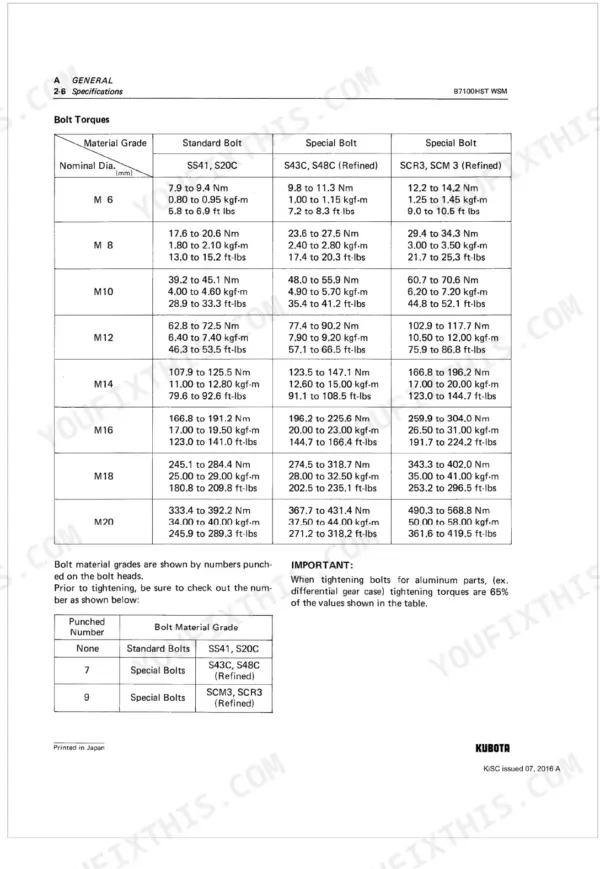

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Neutral adjuster to case tightening torque | 19 to 32 N-m (1.9 to 3.3 kgf·m, 13 to 24 ft-lbs) | p. 207 |
| Head bolts and nuts tightening torque (M8×1.25) | 39.2 to 44.1 N·m (4.0 to 4.5 kgf·m, 28.9 to 32.5 ft-lbs) | p. 75 |
| Head bolts and nuts tightening torque (M9×1.25) | 64.7 to 69.6 N·m (6.6 to 7.1 kgf·m, 47.7 to 51.4 ft-lbs) | p. 75 |
| Front wheel hub nut tightening torque | 82 to 86 Nm (8.4 to 8.8 kgf-m, 61 to 64 ft-lbs) | p. 251 |
| Starter pinion gap (Reference value) | 0.1 to 0.4mm (0.0039 to 0.0157 in.) | p. 351 |
| Starter commutator O.D. (R.V.) | 28.0 mm (1.1024 in.) | p. 351 |
| Starter no-load test voltage | at 11V | p. 351 |
| Starter no-load test current | 50A or less | p. 351 |
| Key switch rated current (No. "17" and No. "19") | 30A | p. 322 |
| Key switch rated current (No. "50") | 12A | p. 322 |
| Safety switch allowable current | 15A, 12V | p. 351 |
| Safety switch stroke | 10 mm | p. 351 |
Kubota B6100HST, B7100HST Common Problems This Manual Covers

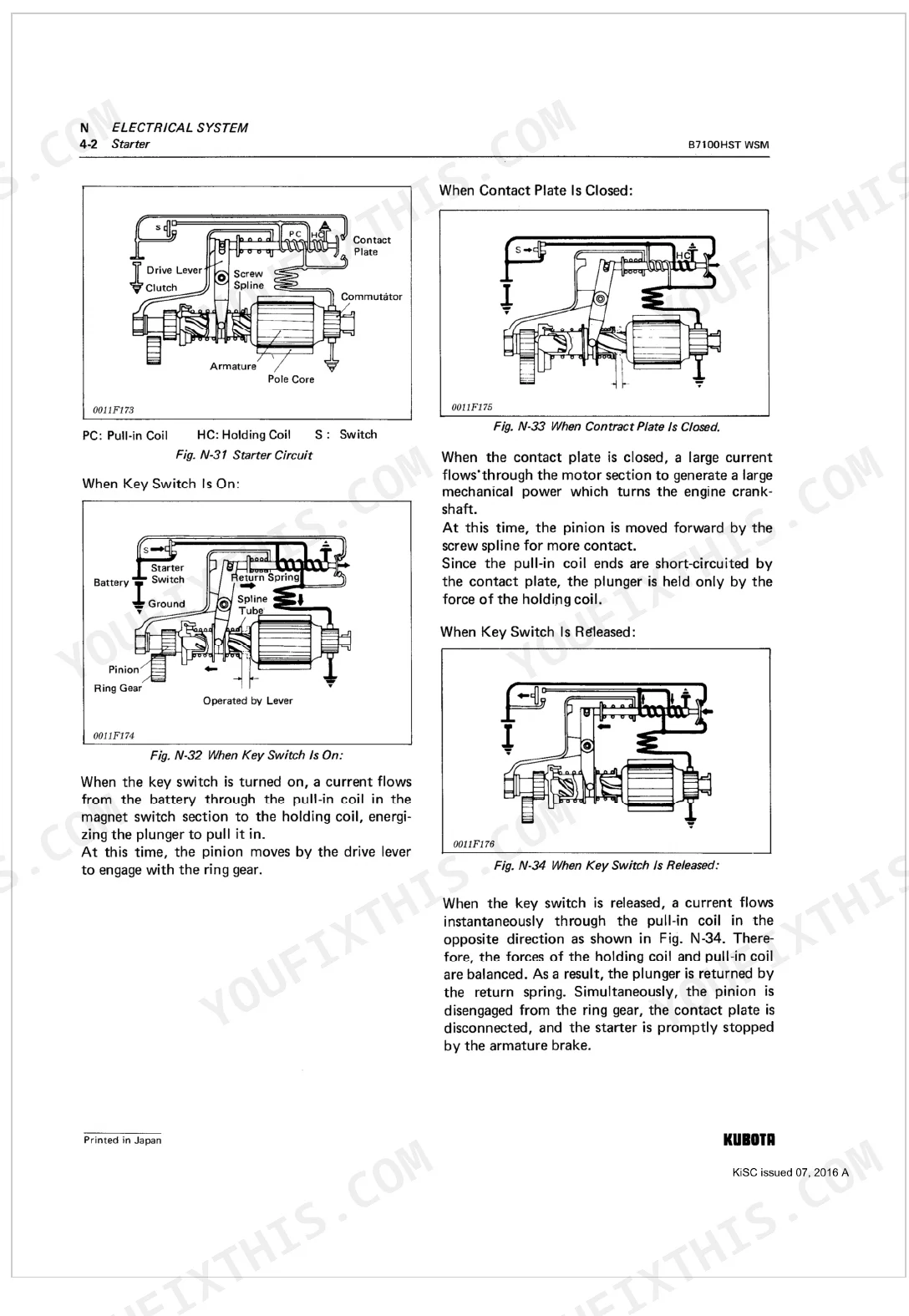

Kubota B7100HST electrical system clicks at the dash but the starter will not turn over.
Test the starter circuit using the wiring diagram. Inspect the safety switch and verify resistance is 0Ω as shown on page 327. If the starter spins but does not engage, verify the starter pinion gap is 0.1 to 0.4mm (0.0039 to 0.0157 in.).
Manual Section: Electrical System TroubleshootingHydrostatic transmission produces a loud whine and tractor loses push power under heavy loads.

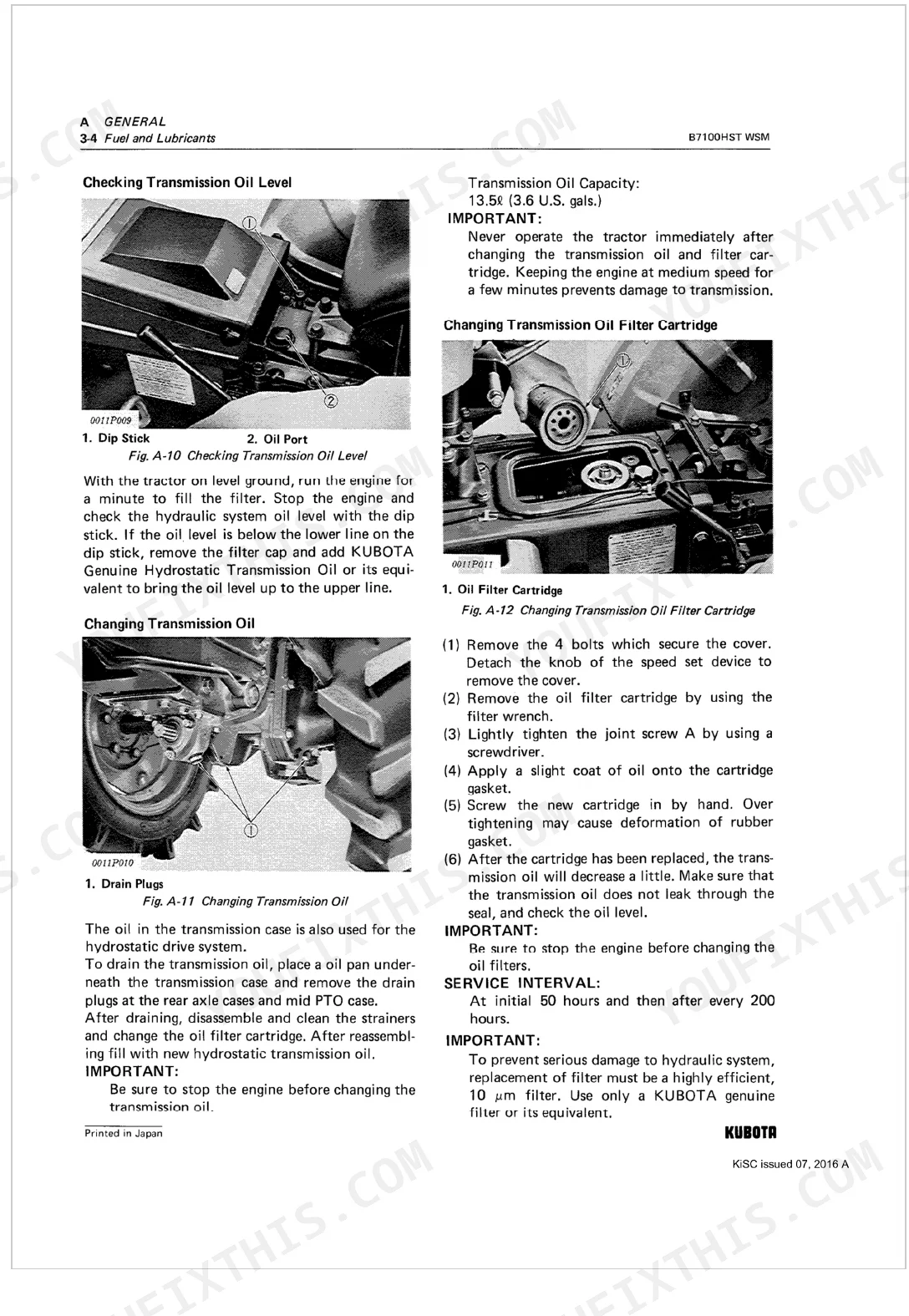

Drain the hydraulic fluid and replace the transmission oil filter cartridge after the initial 50 hours, then every 200 hours. Refill the system with 13.5 ℓ (3.6 U.S. gals.) of fresh fluid. Check page 207 to ensure the neutral adjuster tightening torque is 18.6 to 32.3 N-m (1.9 to 3.3 kgf·m, 13.7 to 23.9 ft-lbs).
Manual Section: Hydrostatic Transmission TroubleshootingEngine temperature gauge runs hot and cooling system boils over during continuous field operation.
Inspect the radiator for clogs and verify the coolant level. Test the radiator cap opening pressure to ensure it holds 88 kPa (0.9 kgf/cm², 13 psi) as specified on page 43. If pressure drops prematurely, replace the cap and check the system for leaks.
Manual Section: Cooling System TroubleshootingEngine locks up completely and will not turn over by hand after extended winter storage. p. 22
Remove the cylinder head to inspect for internal seizure. Torque the M8x1.25 head bolts and nuts to 39.2 to 44.1 N·m (28.9 to 32.5 ft-lbs) during reassembly as shown on page 75. Drain the crankcase and refill with exactly 3.9 ℓ (4.1 U.S. qts.) of fresh oil.
Manual Section: Engine Body TroubleshootingFrequently Asked Questions
How do I identify whether my Kubota B7100 HST is the old or new version?
To identify whether your Kubota B7100 HST is the old or new version, refer to the tractor's serial number. For B7100HST (2WD) models, new HSTs are those with serial numbers above 20001. For B7100HST (4WD) models, new HSTs are those with serial numbers above 60001.
How do I check the serial number range on a Kubota B6100HST or B7100HST?
You can check the serial number range to identify the hydrostatic transmission type. For example, B7100HST-D (4WD) with TYPE I HST has serial numbers 10001 to 13559 or 50001 to 51741, while TYPE II HST starts from serial number 51742 and beyond. Similar ranges are provided for B7100HST-E (2WD), B6100HST-D (4WD), and B6100HST-E (2WD) models.
What causes a whining sound in a Kubota B7100 HST hydrostatic transmission?
A whining sound in the hydrostatic transmission falls under 'Vibration and noise' in the troubleshooting guide. Likely causes include a low oil level, a defective speed control pedal linkage, a clogged oil filter cartridge, a defective charge relief valve, or pipe connections producing vibrating pressure. Each condition calls for its own check and repair.
Why are the headlights or hazard lights not working on a Kubota B7100?
When the headlights or hazard lamps stay dark on a Kubota B7100, suspect broken bulbs, a blown fuse, a disconnected wire harness between the light switch and the lights, or a broken light switch or hazard lamp switch. Depending on the part, the fix is either replacement or reconnecting the wiring.
What format is this Kubota B6100HST, B7100HST manual in?
Instant PDF download. The full 377-page searchable Workshop Manual is available the moment payment clears. Open it on a laptop, tablet, or phone right in the shop.
Am I able to print pages from this Kubota B6100HST, B7100HST manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this Kubota B6100HST, B7100HST manual include wiring diagrams?
Yes, this Kubota B6100HST, B7100HST Workshop Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text throughout is crisp and easy to read. Diagrams and illustrations are primarily black and white raster photos, which are generally clear enough for labels to be readable. Pages are clean with no significant scan artifacts or skewed content. There is one notable filler page (page 18) that is mostly blank.
