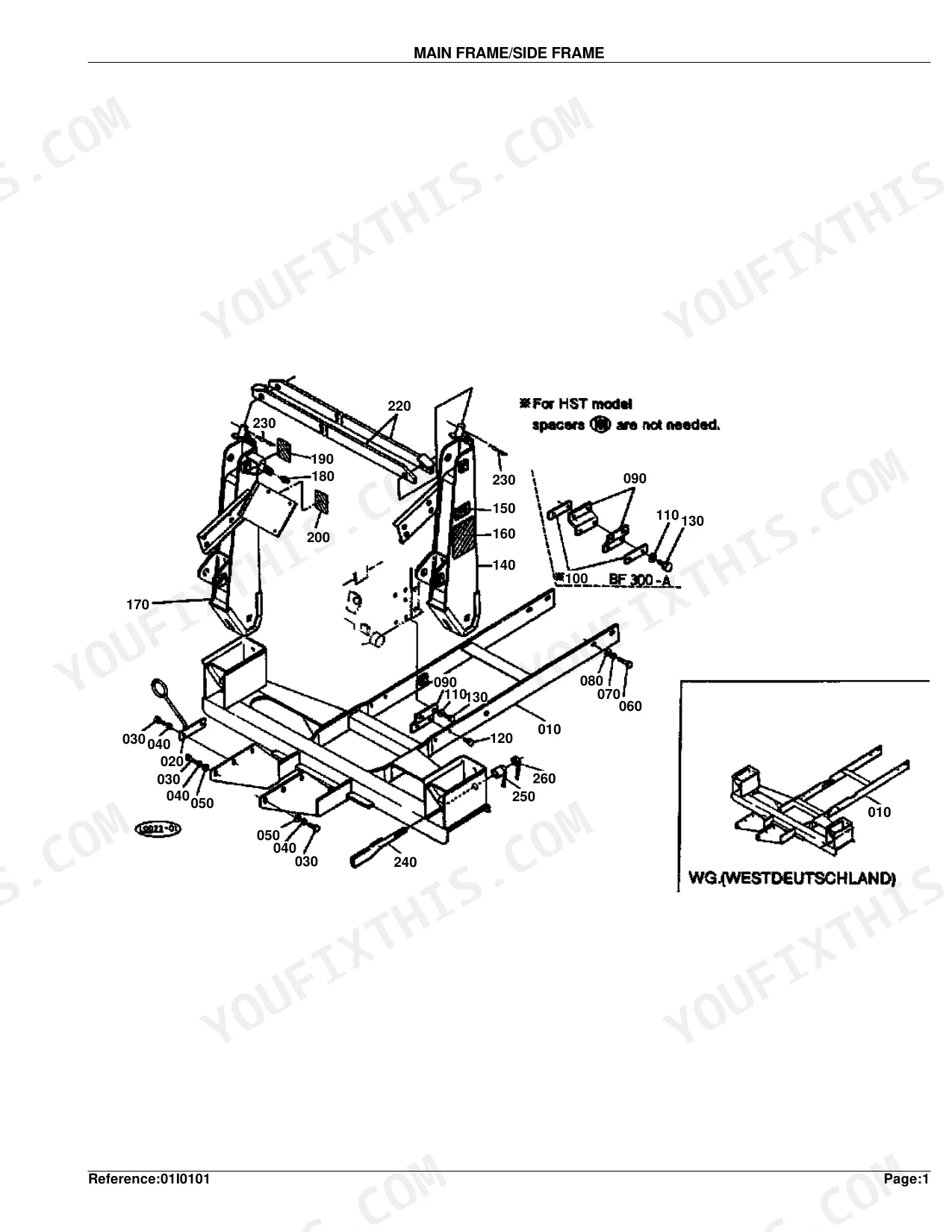

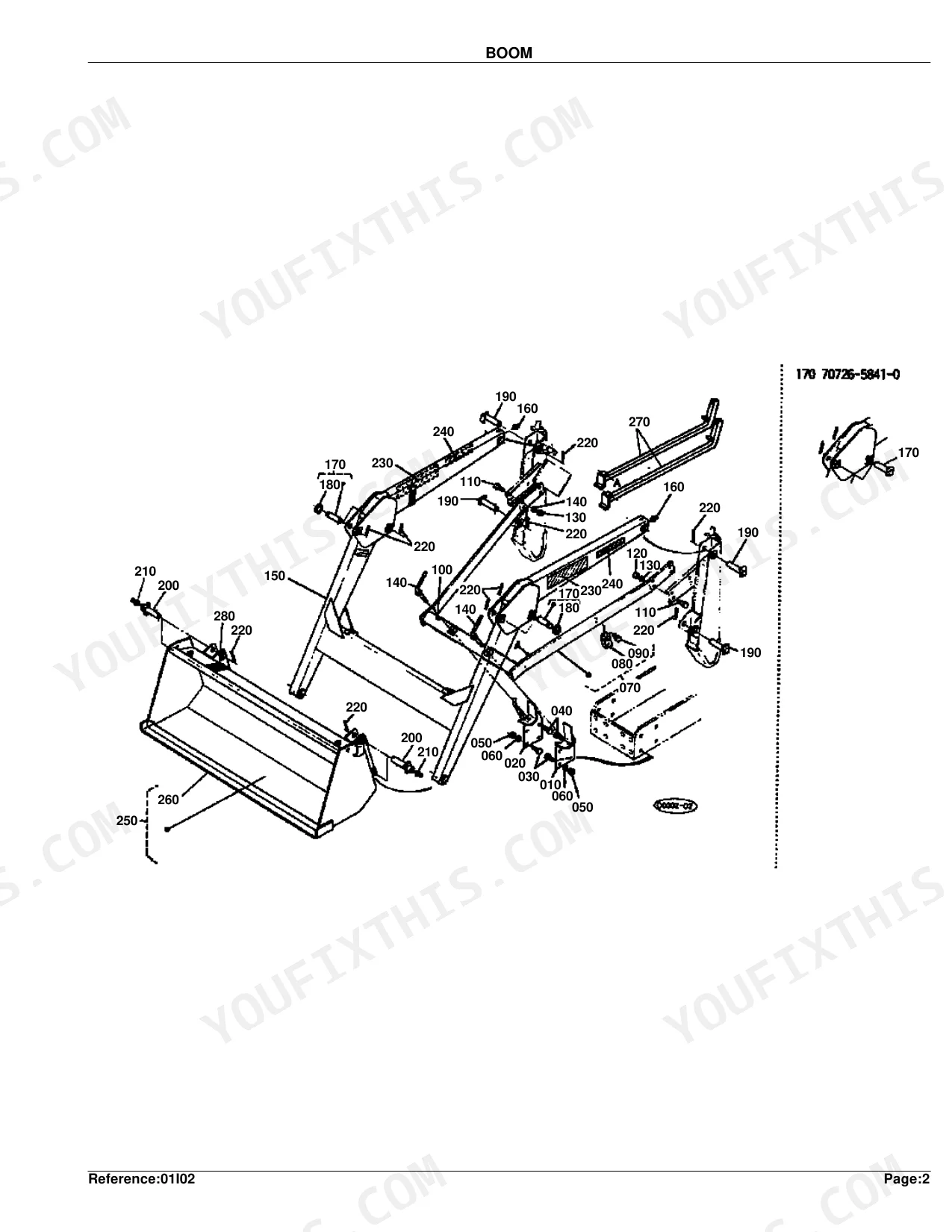

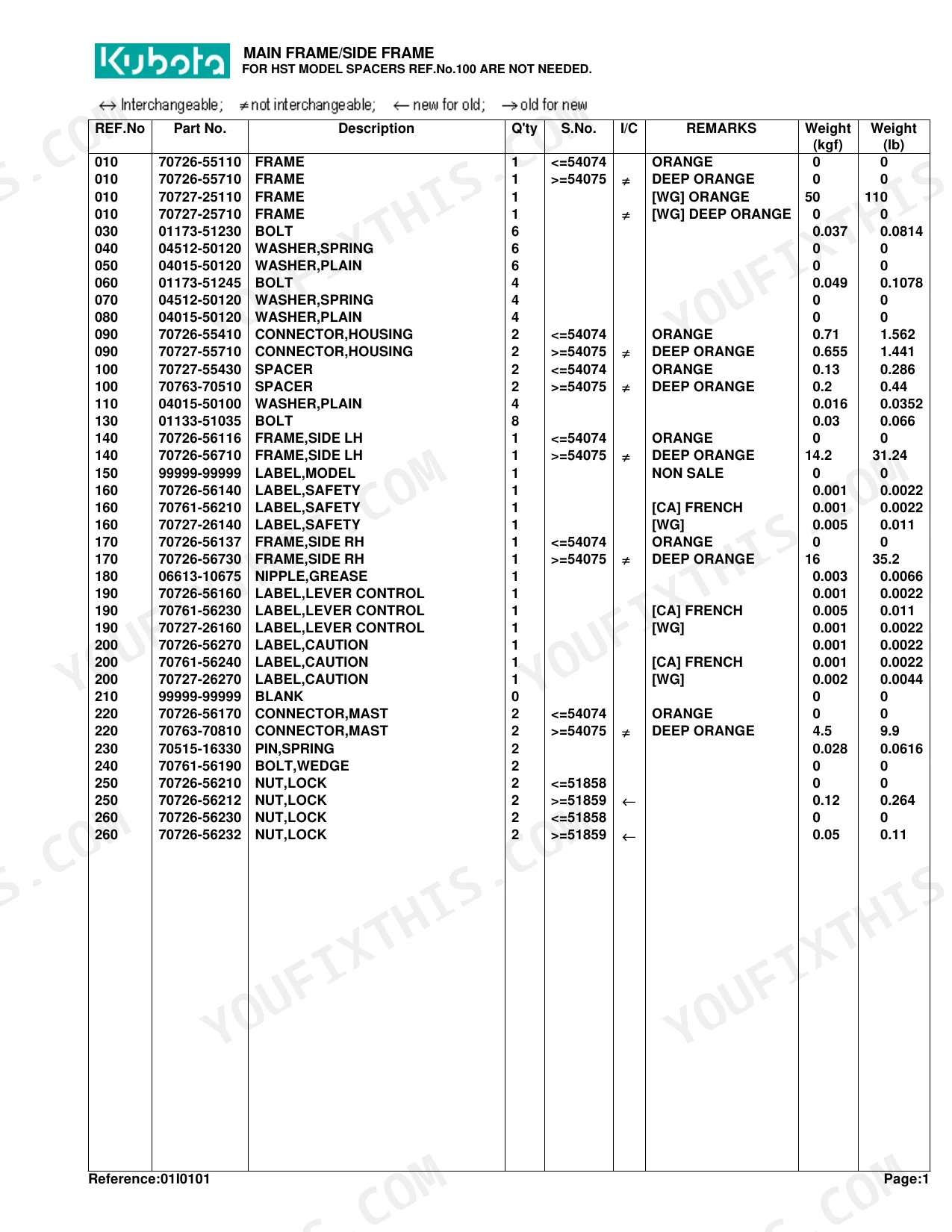

This is the factory parts catalog for the Kubota BF300-A front loader, a 23-page illustrated PDF you can download and print. It presents each assembly as an exploded diagram paired with a parts list giving reference numbers, Kubota part numbers, quantities, and serial-number ranges.Coverage includes the main frame and side frames, the boom, the hydraulic pipe and control valve, the control valve component parts, the boom and bucket cylinders and their component parts, the hydraulic pipe group, and the accessories and service parts. It also documents the conversion kit from BF300-A to BF300 and the conversion kit for the B8200E tractor, both listed as options.Use it to identify the exact loader part from the drawing, order the right cylinder or valve seal kit, and confirm serial-range interchangeability before buying. The BF300-A carries several serial breaks, so checking the range matters. It is a parts reference, not a repair manual.
What's Inside This Kubota BF300-A Parts Manual
| System | Pages |
|---|---|
| Main Frame/Side Frame | - |
| Boom | - |
| Hydraulic Pipe/Control Valve | - |
| Control Valve [Component Parts] | - |
| Boom Cylinder [Component Parts] | - |
| Bucket Cylinder [Component Parts] | - |
| Hydraulic Pipe | - |
| Conversion Kit From Bf300-A to Bf300 (Option) | - |
| Conversion Kit for B8200E (Option) | - |
| Accessories and Service Parts | - |
Kubota BF300-A Common Problems This Manual Covers
Loader raises slowly
A sudden loss of lift speed on these loaders often traces to worn hydraulic couplers, hoses, or lines. The hydraulic pipe section diagrams the plumbing so you can trace and replace the affected line.
Manual Section: Hydraulic Pipe p. 16Loader will not lift or curl

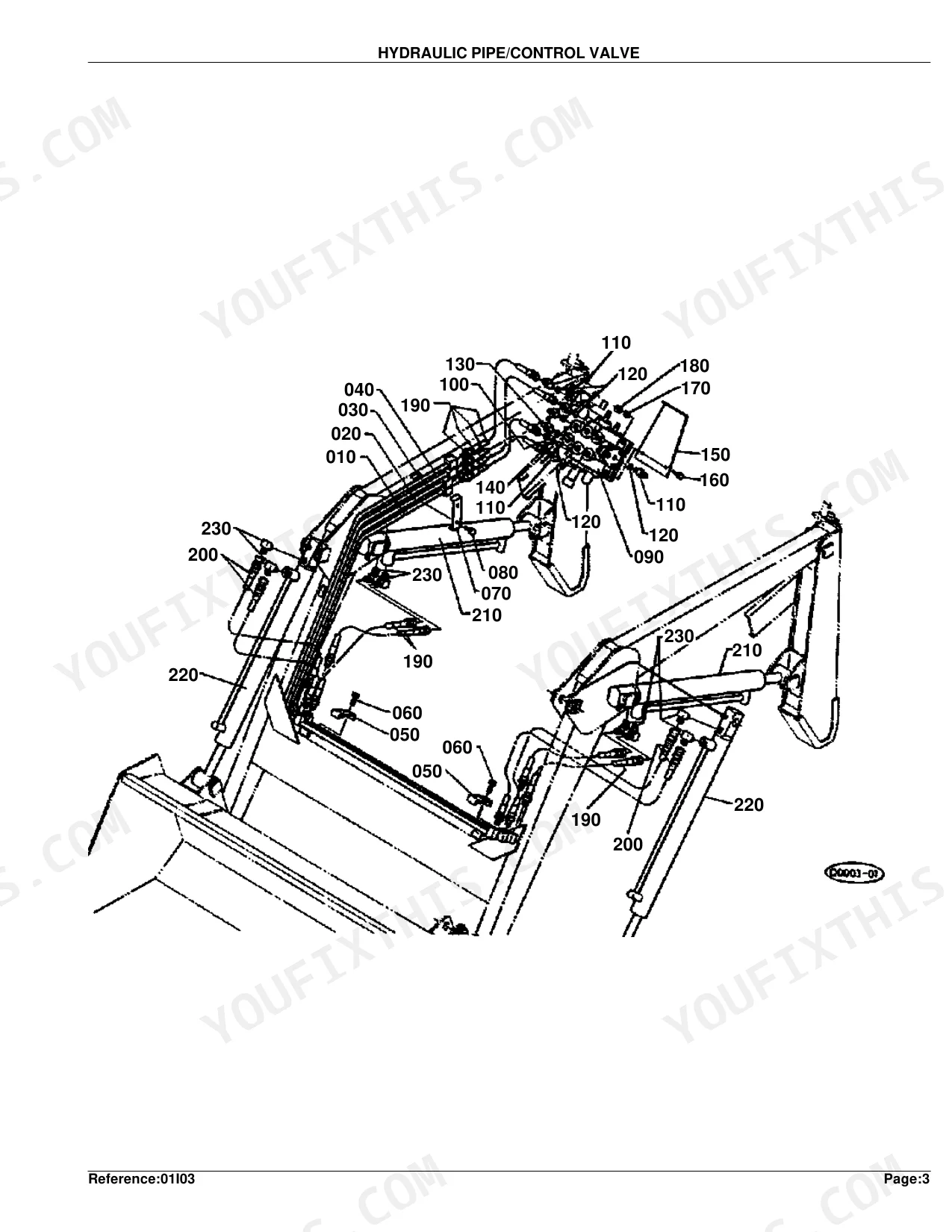

When the loader stops lifting or curling as expected, a worn or stuck control valve is a frequent cause. The hydraulic pipe and control valve section identifies the valve and its plumbing for inspection.
Manual Section: Hydraulic Pipe/Control Valve p. 8Boom cylinder leakage
Worn seals let the boom cylinder bypass and leak, weakening lift. The boom cylinder component parts section lists the cylinder seal kit and internal parts for a rebuild.
Manual Section: Boom Cylinder [Component Parts] p. 12Bucket cylinder seal wear
The bucket cylinder can lose curl force and drip oil as its seals wear. The bucket cylinder component parts breakdown identifies the seal kit and rebuild components.
Manual Section: Bucket Cylinder [Component Parts] p. 14Control valve wear or sticking spool
A worn valve or sticking spool makes loader functions weak or intermittent. The control valve component parts section lays out the spool, seals, and internal parts for identification.
Manual Section: Control Valve [Component Parts] p. 10Worn boom pivot pins and bushings
Play at the boom pivots from worn pins and bushings makes the loader sloppy under load. The boom section diagrams the pivot hardware with reference numbers and part numbers.
Manual Section: Boom p. 6Frequently Asked Questions
What does this catalog cover?
It covers the Kubota BF300-A front loader, including the main frame and side frames, boom, hydraulic pipe and control valve, the boom and bucket cylinders, and the optional conversion kits, one to the BF300 and one for the B8200E tractor.
Does it list the boom cylinder seal kit?
Yes. The boom cylinder component parts section identifies the cylinder seal kit and its weight, which is where you confirm the right rebuild part number. p. 12
Are the conversion kits documented?
Yes. The catalog includes the conversion kit from BF300-A to BF300 and, separately, the conversion kit for the B8200E tractor, each with its own diagram and parts list. p. 18
Where do I find the control valve parts?
The control valve component parts section breaks the valve down into its spool, seals, and internal parts so you can identify the exact replacement. p. 10
What do I get after purchasing this Kubota BF300-A manual?
This is a 23-page searchable PDF ready for immediate download. Works on any device -- pull it up on your phone while you are under the hood. No shipping, no waiting.
Can I print specific sections of this Kubota BF300-A Parts Catalog?
Yes. The PDF has no DRM restrictions -- print any page or section you need for your shop. Works with any standard printer.
Does this Kubota BF300-A catalog include electrical or hydraulic circuit diagrams?
This is a parts catalog, not a service manual. It contains exploded parts diagrams and part number listings for each assembly. Circuit and wiring diagrams are not included.
