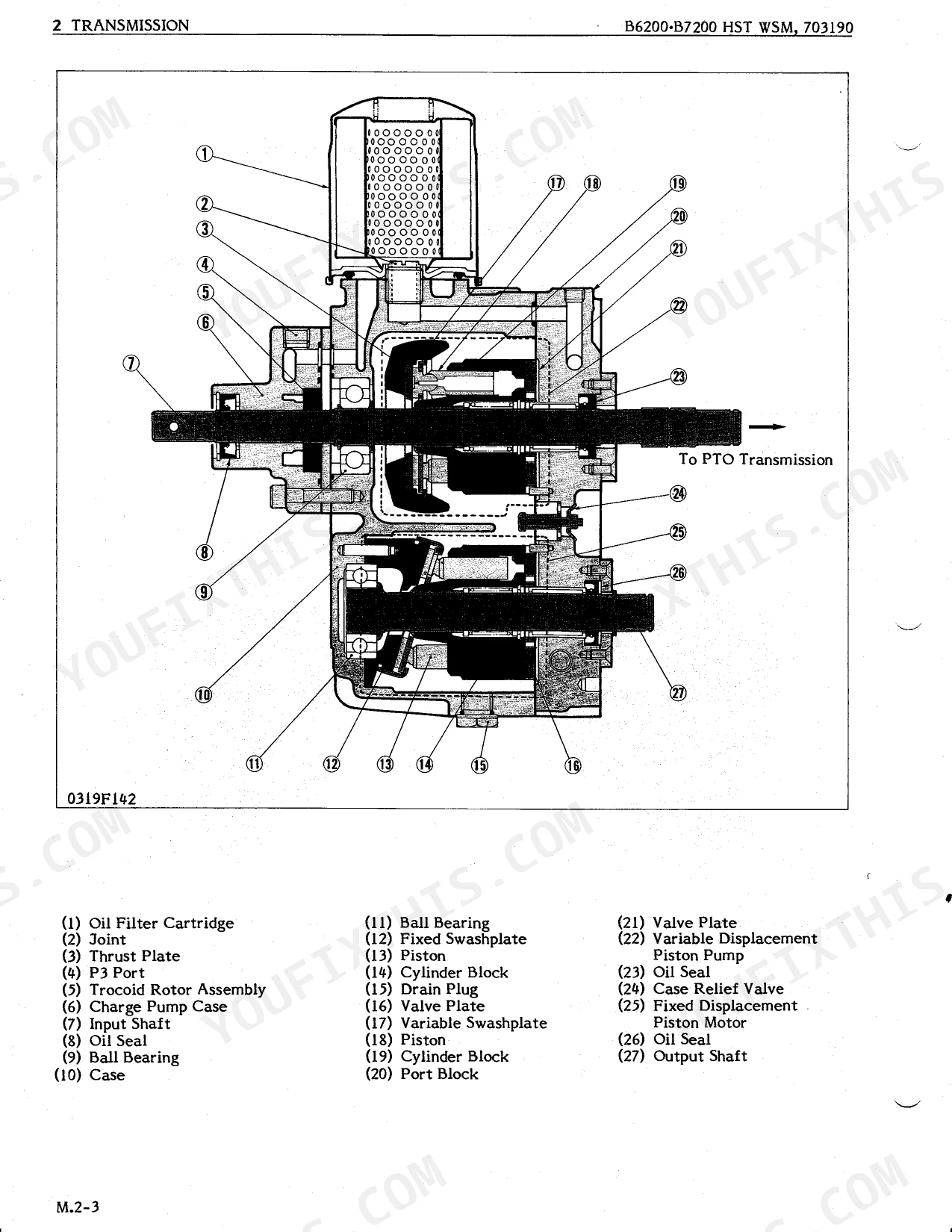

Built around one job: stripping these compact tractors down and rebuilding them to factory spec. Its 137 pages (OEM #97897-10713) carry wiring diagrams with full electrical circuit routing, hydraulic schematics for the hydrostatic transmission and oil cooler circuit, and 100 exploded views across every major assembly. Troubleshooting tables, 13 timed maintenance intervals that run from the initial 35-hour check through every 2-year service, and a dedicated 31-page New Hydrostatic Transmission section fill out the rest. Refilling? The HST case takes exactly 12.8 liters of Kubota UDT fluid, and the charge pump torques to 23.5 to 27.5 N-m. Bookmarked and searchable, the file opens on a phone or tablet, so you can pull the right number while standing next to the machine.
What's Inside This Kubota B6200HST, B7200HST Manual
| System | Pages | Key Topics |
|---|---|---|

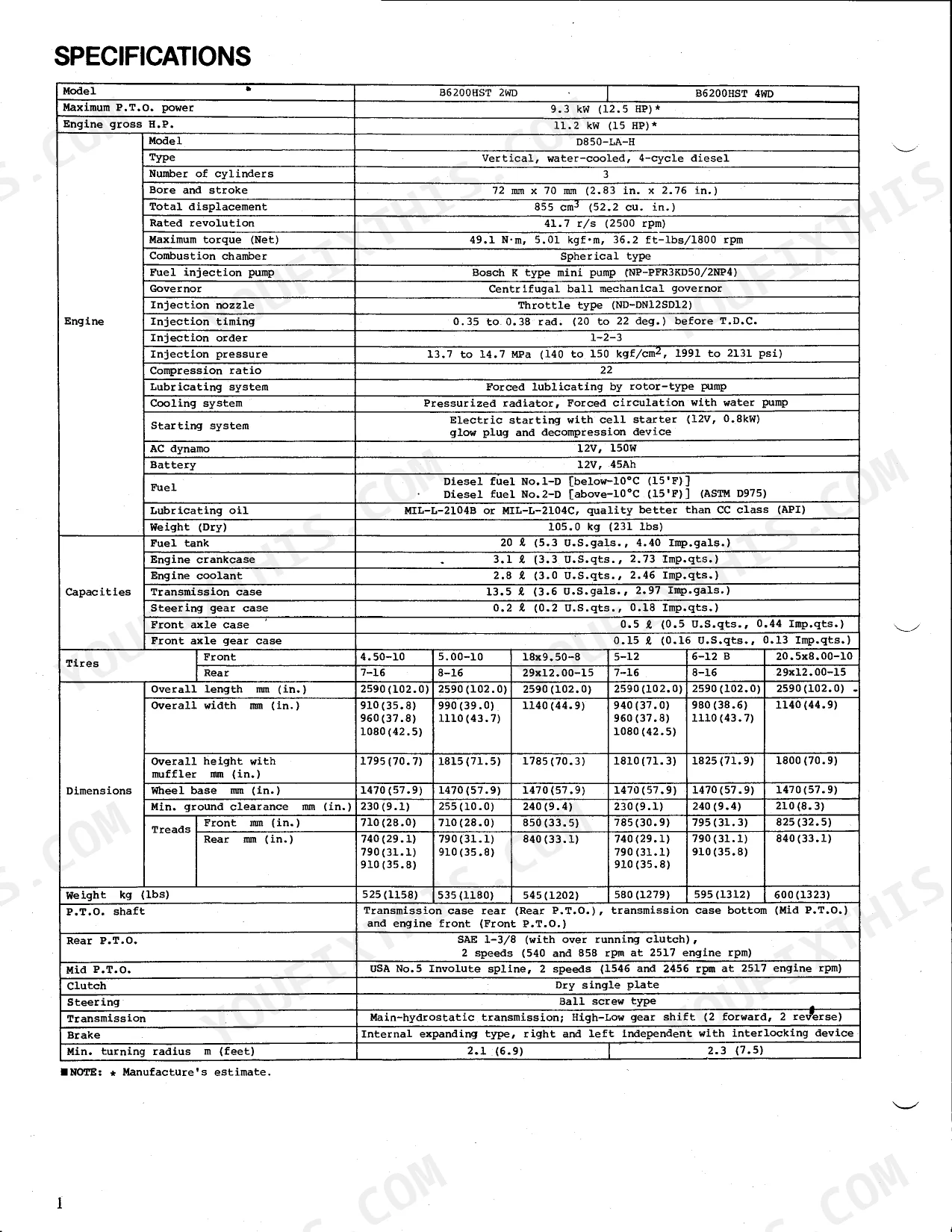

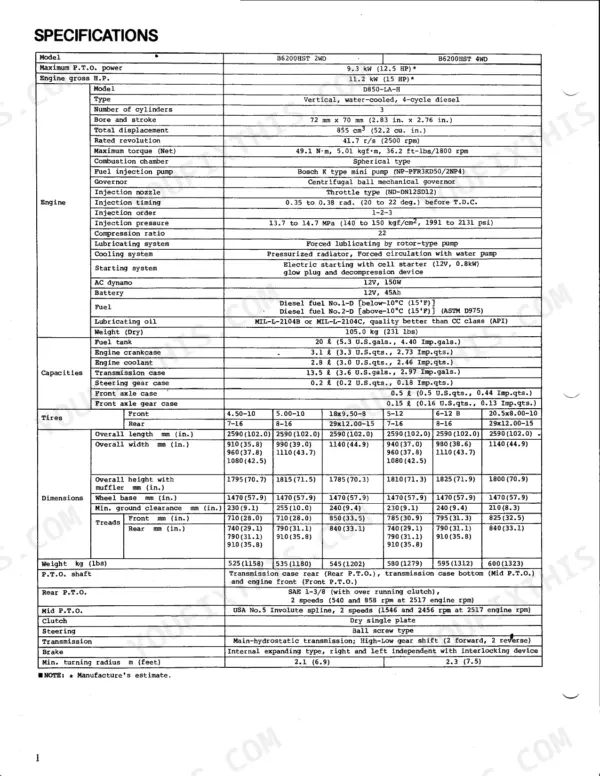

| Specifications | 3-4 | Model |

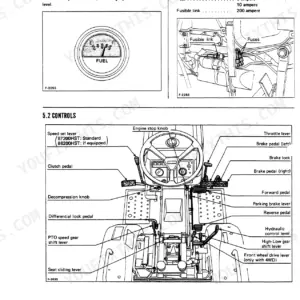

| Mechanism | 5-29 | Features, Transmission, Hydraulic System, Electrical System |

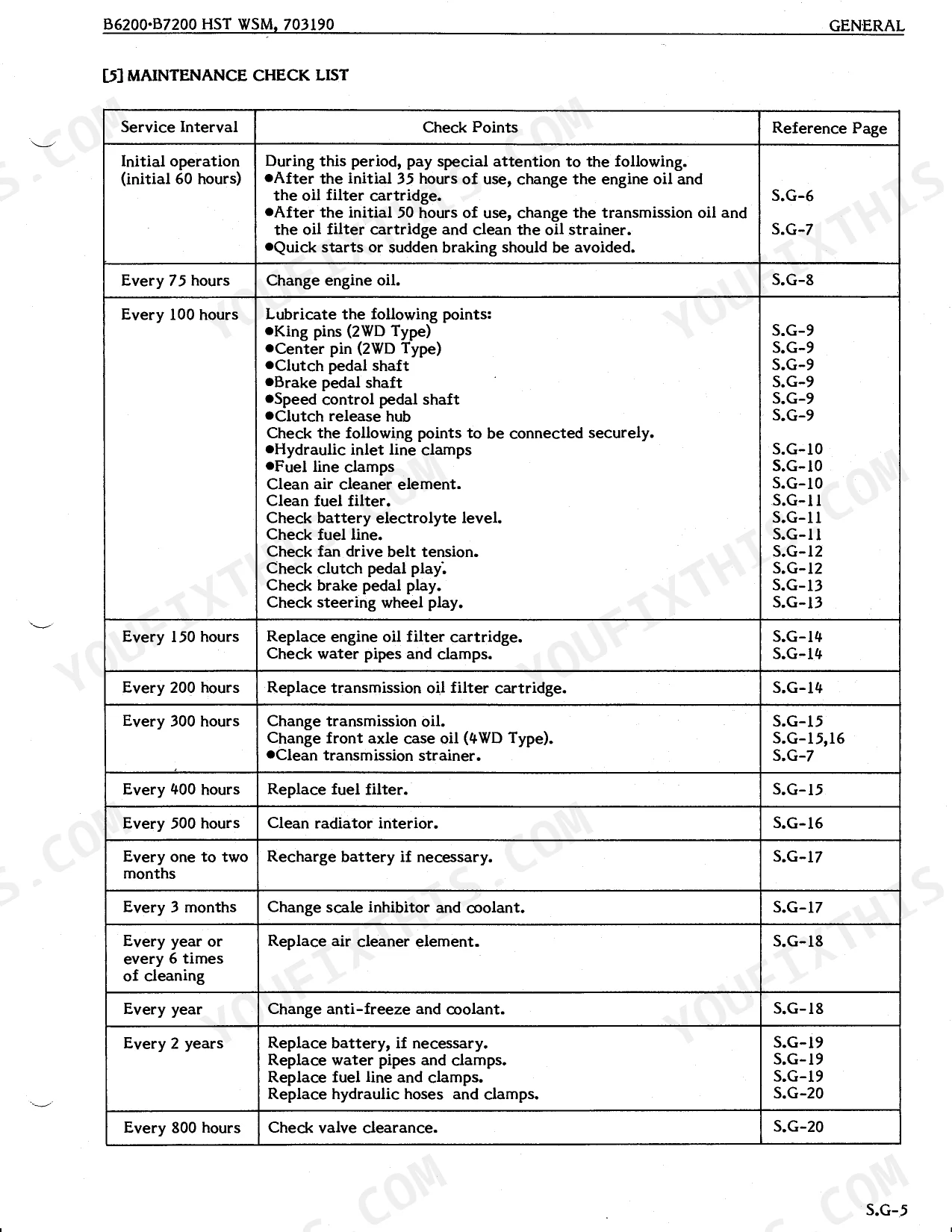

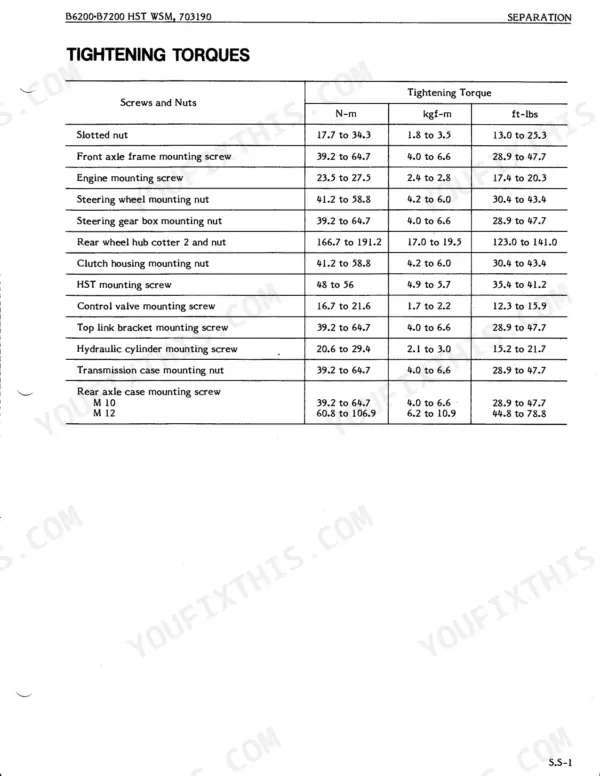

| General | 30-55 | Tractor Identification, Lubricants, Tightening Torques, Maintenance Check List |
| Separation | 56-69 | Tightening Torques, Disassembly And Assembly, Draining Cooling Water And Oil, Separating Front Axle Assembly, Separating Engine, Separating Clutch Housing |
| Transmission (S.2) | 70-106 | Troubleshooting, Servicing Specifications, Tightening Torques |
| New Hydrostatic Transmission | 107-137 | Mechanism (Transmission, Hydrostatic Transmission) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

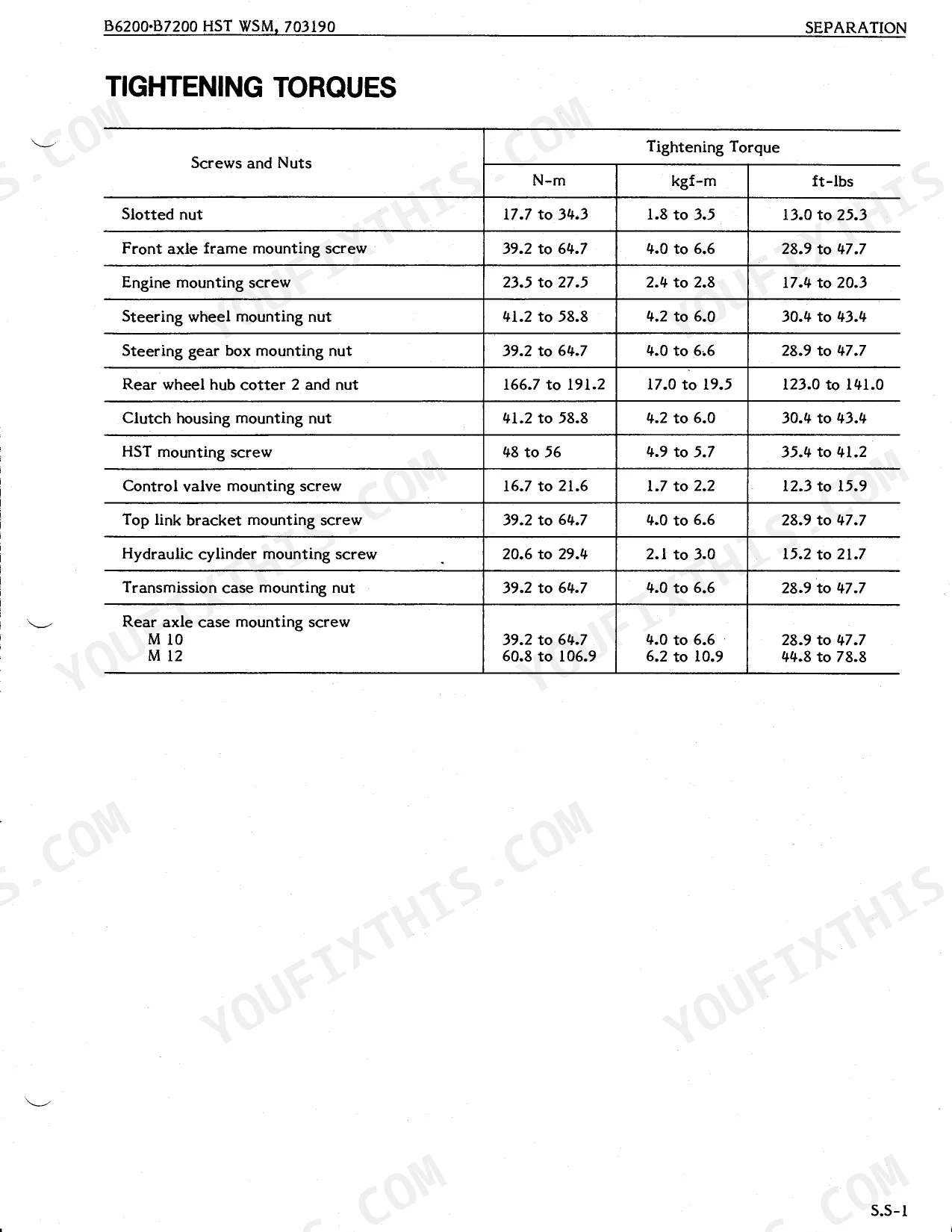

| General Bolt Torque (M6, No-grade) | 7.84 to 9.31 N-m (0.80 to 0.95 kgf-m, 5.79 to 6.87 ft-lbs) | p. 34 |
| Neutral Adjuster Torque | 18.6 to 32.3 N-m (1.9 to 3.3 kgf-m, 13.7 to 23.9 ft-lbs) | p. 122 |
| Charge Pump Torque | 23.5 to 27.5 N-m (2.4 to 2.8 kgf-m, 17.4 to 20.3 ft-lbs) | p. 122 |
| Hydrostatic Transmission Fluid Capacity (Draining) | 12.8 L (13 U.S.qts., 10.6 Imp.qts.) | p. 58 |
| Hydrostatic Transmission Fluid Type | KUBOTA UDT Hydraulic Transmission Fluid | p. 33 |
| Hydraulic Filter Replacement Interval (Transmission Oil Filter) | Every 200 hours | p. 35 |
| Hydraulic Filter Type (Transmission Oil Filter) | 10 µm filter, KUBOTA genuine filter | p. 38 |
| Battery Replacement Interval | Every 2 years | p. 35 |
| Battery Electrolyte Specific Gravity (for filling/fully charged) | 1.260 to 1.275 | p. 49 |
| Clutch Pedal Play | 20 to 30 mm (0.79 to 1.18 in.) | p. 42 |
| Charge Pump Torque (screws) | 23.5 to 27.5 N-m (2.4 to 2.8 kgf-m, 17.4 to 20.3 ft-lbs) | p. 122 |
| Port-block Torque | 48.1 to 55.9 N-m (4.9 to 5.7 kgf-m, 35.4 to 41.2 ft-lbs) | p. 122 |
Kubota B6200HST, B7200HST Common Problems This Manual Covers
Kubota B6200HST/B7200HST hydrostatic drive won't move or loses power when transmission gets hot p. 107
Start with the transmission fluid level; drain and refill with KUBOTA UDT Hydraulic Transmission Fluid to the 13 U.S.qt. mark (page 58). Replace the 10 µm filter if you're past 200 hours (page 38). Run the flowchart on page 71 to isolate whether the cause is low charge pressure, a stuck relief valve, or internal pump wear. Charge pressure at 25°C should read 61 to 81 psi above case pressure; anything lower points to the charge pump or a bypassing relief valve.
Manual Section: New Hydrostatic TransmissionTractor won't start or cranks slowly, especially after sitting overnight p. 47
Test the battery electrolyte specific gravity with a hydrometer: a fully charged cell reads 1.260 to 1.275 (page 49). Charge at 4.5 A normal rate if it's low. Inspect all safety switches (seat, PTO, neutral) for continuity; an open switch kills the start circuit completely. With a good battery and working switches, trace the starter circuit through the electrical diagram in the Mechanism section starting page 5.
Manual Section: GeneralHydraulic functions slow or weak, implement lift sluggish under load p. 74
Verify transmission oil sits at the correct level; low fluid starves the hydraulic pump immediately. Pull the hydraulic filter at page 35 and inspect it, then replace on any contamination or at 200-hour intervals. Check the high relief valve setting: pressure should be 22.6 to 24.5 MPa (3281 to 3555 psi) at 25°C (page 74). If pressure is low, study the hydraulic schematic on page 22 for leakdown points before condemning the pump.
Manual Section: Transmission (S.2)HST transmission vibrates, makes noise, or jerks during operation p. 71

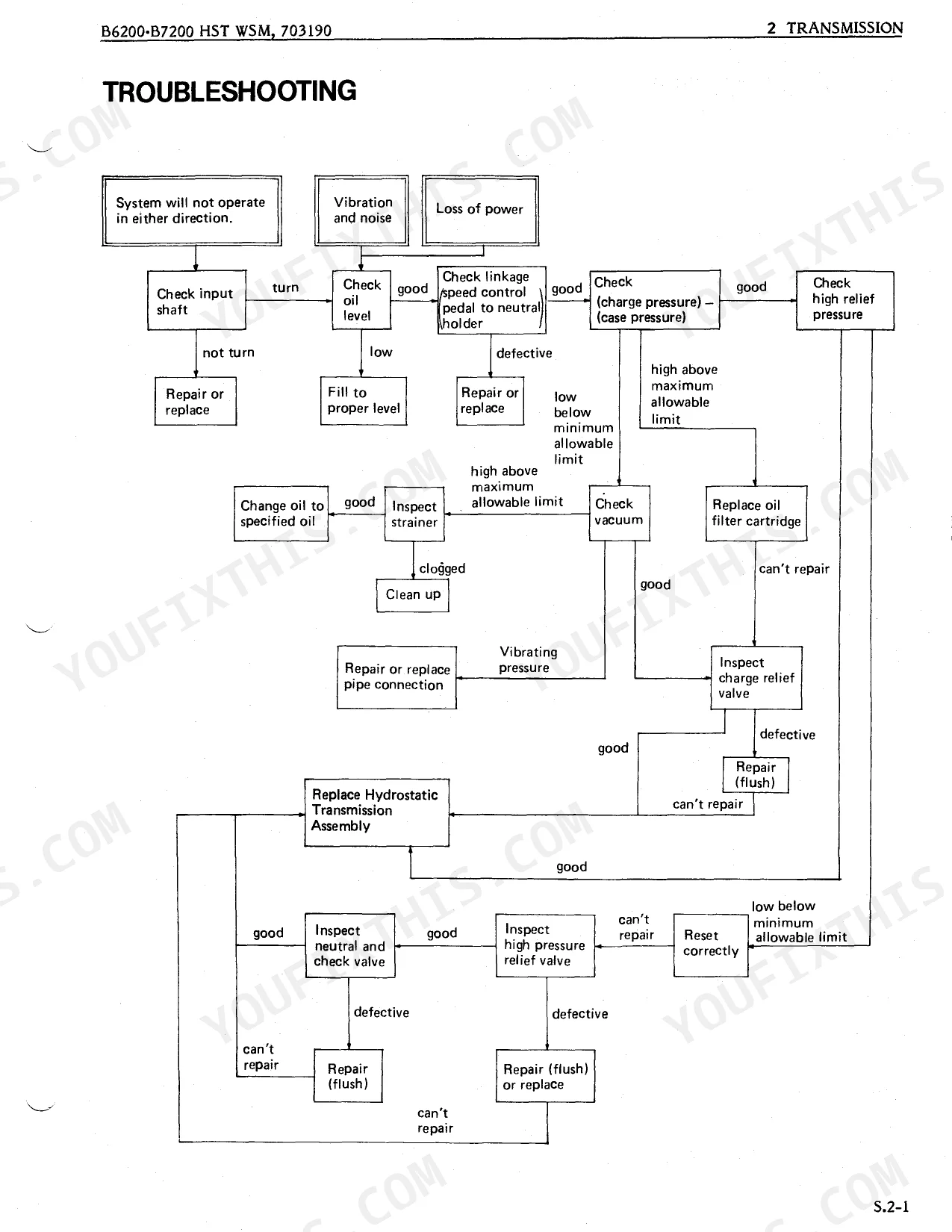

Work through the transmission troubleshooting flowchart on pages 71 to 73 to separate noise from power-loss from directional faults. Look for air in the system: a foamy or milky fluid sample means an ingestion problem at a suction fitting or low fluid level. Confirm the HST mounting screws are torqued to 48 to 56 N-m (35.4 to 41.2 ft-lbs) at page 78; loose mounting lets the unit shift and cavitate under load.
Manual Section: Transmission (S.2)Clutch pedal feels wrong: too soft, dragging, or no engagement at all p. 56
Measure clutch pedal free play at the pedal pad: the correct range is 20 to 30 mm (0.79 to 1.18 in.) per page 42. Adjust the linkage rod until free play falls in spec. If play is correct but the clutch still slips or drags under load, the disc or throw-out bearing is likely worn. Separate the clutch housing following the disassembly sequence in the Separation section starting page 56 and inspect both before reassembling.
Manual Section: SeparationTransmission oil leaks at HST housing or after charge pump service p. 122
Inspect the charge pump oil seal installation depth: the seal must sit 4 mm (0.157 in.) below the machined surface (page 127). Confirm all gaskets were replaced during the last reassembly; gaskets must be renewed, never reused (page 32). Torque charge pump screws to 23.5 to 27.5 N-m (17.4 to 20.3 ft-lbs) and port-block bolts to 48.1 to 55.9 N-m (35.4 to 41.2 ft-lbs) at page 122. A seal set too shallow or proud will weep under operating pressure immediately.
Manual Section: New Hydrostatic TransmissionFrequently Asked Questions
How do I reset the hydrostatic transmission on a Kubota B6200HST?
To adjust the neutral position of the hydrostatic transmission, rotate the neutral adjuster counterclockwise until the rear wheels turn forward, then clockwise until they stop. Mark the clutch housing aligning the groove on the neutral adjuster. Repeat the process for reverse, then hold the adjuster's groove in the middle of the two marks and tighten the screw to 19 to 32 N-m (13 to 24 ft-lbs).
How do I reset the hydrostatic transmission on a Kubota B7200HST?
Turning the neutral adjuster counterclockwise should drive the rear wheels forward; back it clockwise until they stop, then mark the clutch housing at the adjuster's groove. Run the same steps for reverse and add a second mark. Set the groove halfway between the two marks and tighten the screw to 19 to 32 N-m (13 to 24 ft-lbs).
What are the torque specs for the Kubota B6200HST/B7200HST wheel lug nuts?
The closest spec is the 'Rear wheel hub cotter 2 and nut' value: 166.7 to 191.2 N-m (17.0 to 19.5 kgf-m, 123.0 to 141.0 ft-lbs). The manual doesn't label it as wheel lug nuts, but it's the related torque for the wheel assembly hardware.
How to reset Kubota B6200HST
Rotate the neutral adjuster counterclockwise until the rear wheels move forward, then clockwise until they stop. Mark the clutch housing, then repeat the sequence for reverse movement. Finally, position the adjuster's groove in the middle of the two marks and tighten the screw to 19 to 32 N-m (13 to 24 ft-lbs).
How quickly can I access this Kubota B6200HST, B7200HST manual after buying?
Download starts immediately after checkout: a 137-page searchable PDF. It works on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Kubota B6200HST, B7200HST Workshop Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are hydraulic system diagrams in this Kubota B6200HST, B7200HST Workshop Manual?

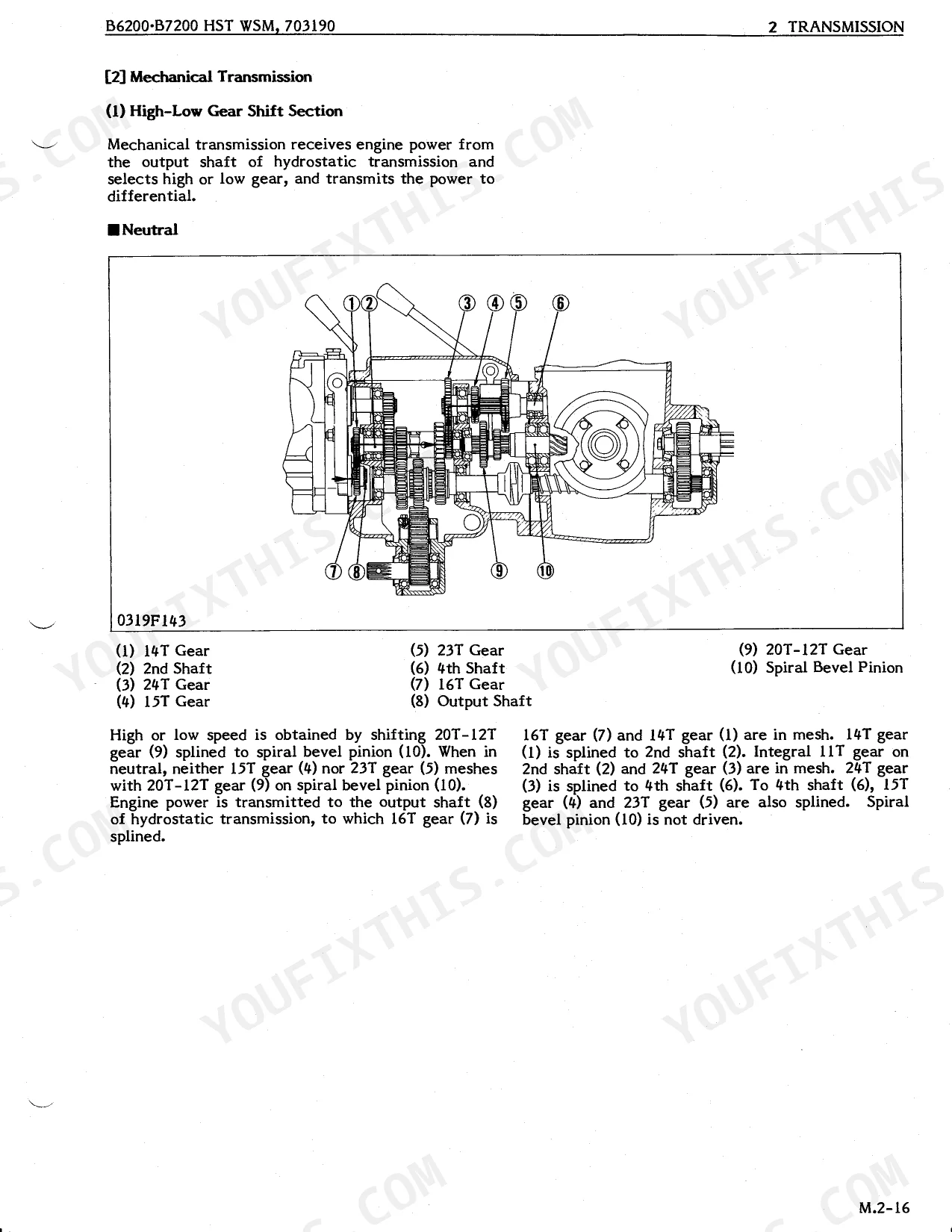

Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the Kubota B6200HST, B7200HST.
Document Quality
This document is a scanned PDF, meaning the text is not natively selectable or searchable, but an OCR layer has been applied, allowing you to search the full text. The text quality is generally crisp and easy to read, though some smaller font sizes in tables or diagrams may require zooming. Diagrams and illustrations are primarily raster images or photos, which appear clear and legible at normal viewing sizes, with labels remaining readable. Page condition is clean throughout, with minimal scan artifacts, though some pages include white circular marks from hole punches. There are no notable blank or filler pages beyond standard section breaks.
