This Kubota Operator Manual covers the B6200HST and B7200HST tractors and their D850 and D950 diesel engines. In 56 pages it walks an owner through safe operation, the instrument panel and controls, the three-point hitch, wheels and ballast, and the day-to-day running of the machine.The heart of the manual for most owners is the maintenance and troubleshooting content: daily checks, lubricant specifications, and service intervals for fuel, engine oil, and transmission fluid, plus adjustment procedures for the clutch, brake, and fan drive belt. When the tractor will not start or the drive feels weak, the troubleshooting section helps you find the cause. A wiring diagram is included for tracing electrical faults.
What's Inside This Kubota B6200HST, B7200HST Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Abbreviations List | - | Abbreviations Table, Common Abbreviations, Technical Definitions |
| Safe Operation | - | Before Operating the Tractor, Operating the Tractor, Driving the Tractor on the Road, Stopping the Tractor, Operating the PTO, Using 3-Point Hitch, Servicing the Tractor |
| Servicing of Tractor | - | Tractor Serial Number Location, Engine Serial Number Location, Recording Serial Numbers |
| Specifications | - | Engine Specifications, Capacities, Tires, Dimensions, Weight, PTO Shaft, Clutch, Steering |
| Specifications of Implement Limitations | - | Implement Limitations Table, Lower Link End Max. Loading Weight, Implement Weight, Trailer Loading Weight, Rotary Mower Specifications, Rotary Tiller Specifications |
| Handling New Tractor | - | Operation During the Breaking-In Period, Changing Lubricating Oil for New Tractors, Read 'Safe Operation', Loading and Unloading |

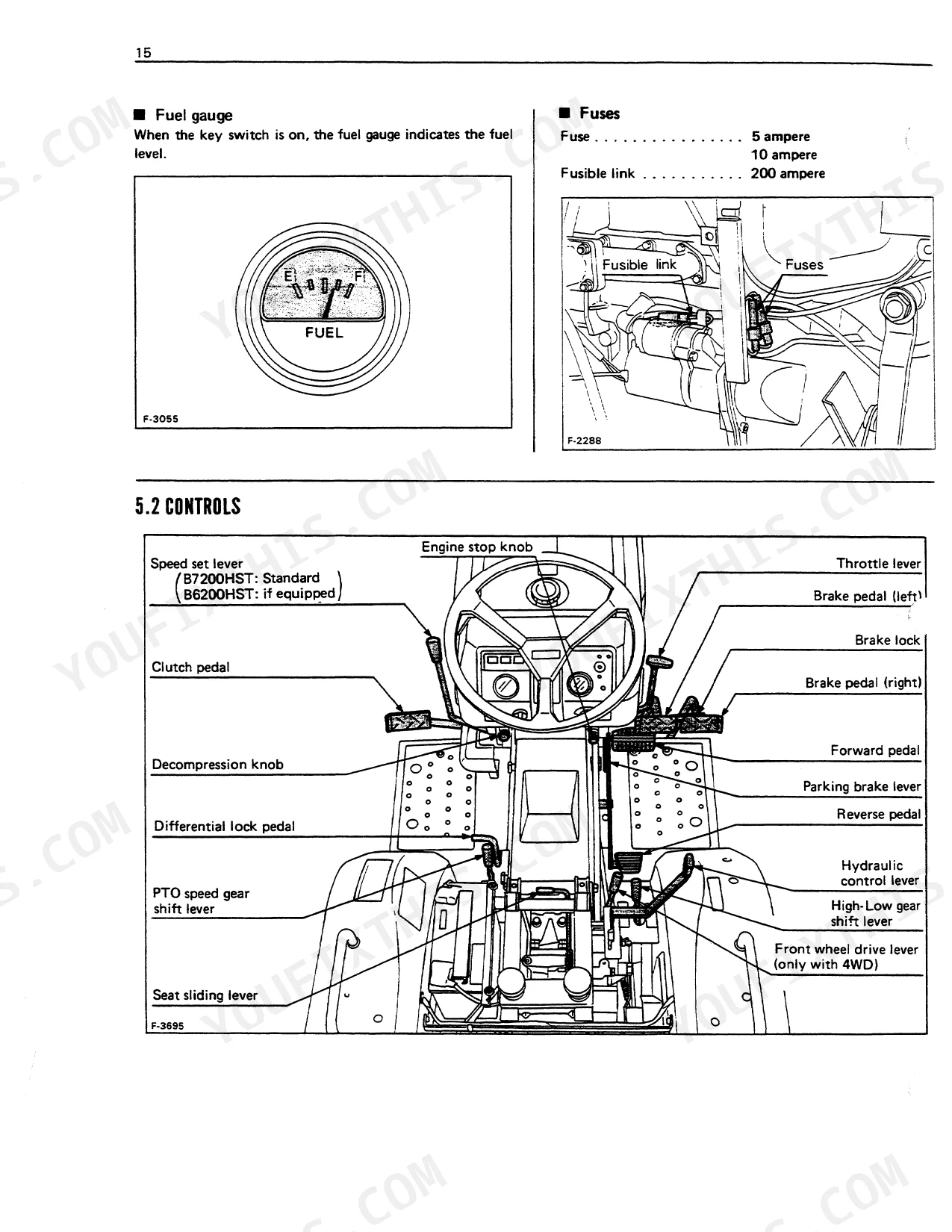

| Instrument Panel and Controls | - | Switches, Controls, Auxiliary Hydraulics |

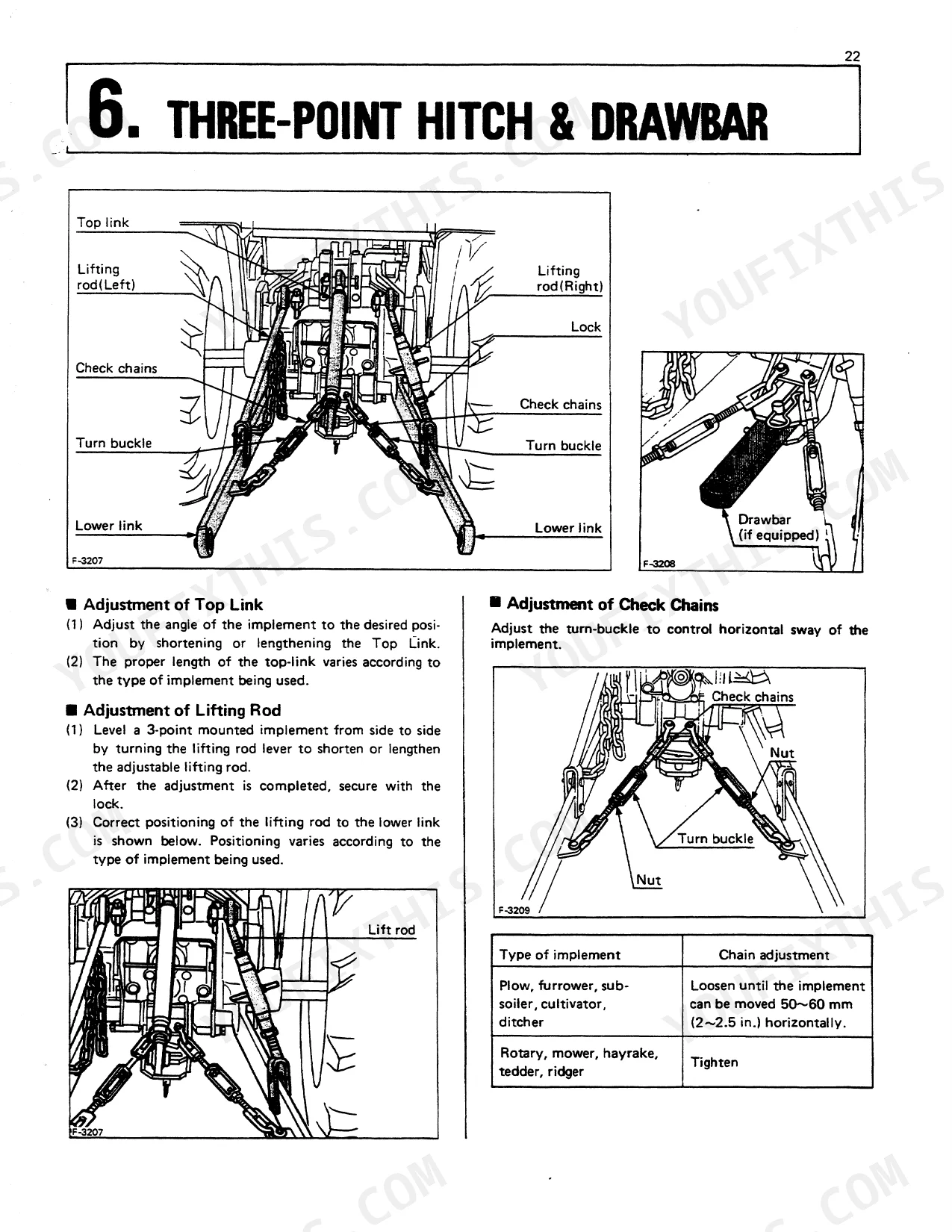

| Three-Point Hitch & Drawbar | - | Top Link, Lifting Rod, Check Chains |

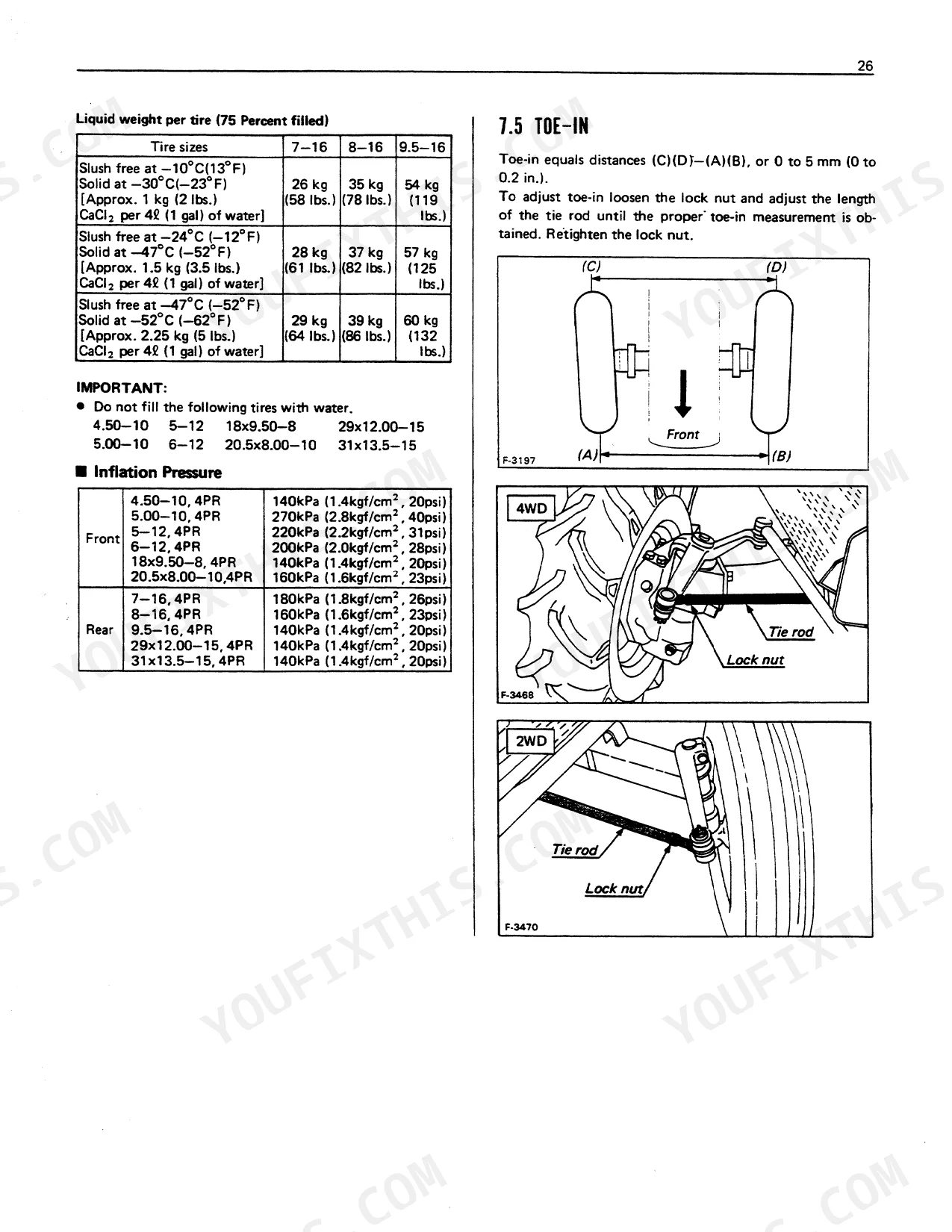

| Wheels, Tires and Ballast | - | Treads, Wheel Hub, Tires, Ballast, Toe-In |
| Operating Instructions | - | Operating the Engine, Operating the Tractor, Pulling, Check During Driving, Directions for Operating |
| Maintenance | - | Daily Check, Lubricants, Maintenance Check List |
| Check and Maintenance | - | Fuel, Engine Oil, Transmission Fluid, Changing Front Axle Differential Case Oil, Changing Front Axle Gear Case Oil, Oiling and Greasing Points Before Starting, Radiator |
| Adjustments | - | Fan Drive Belt, Clutch, Brake, Steering Wheel |

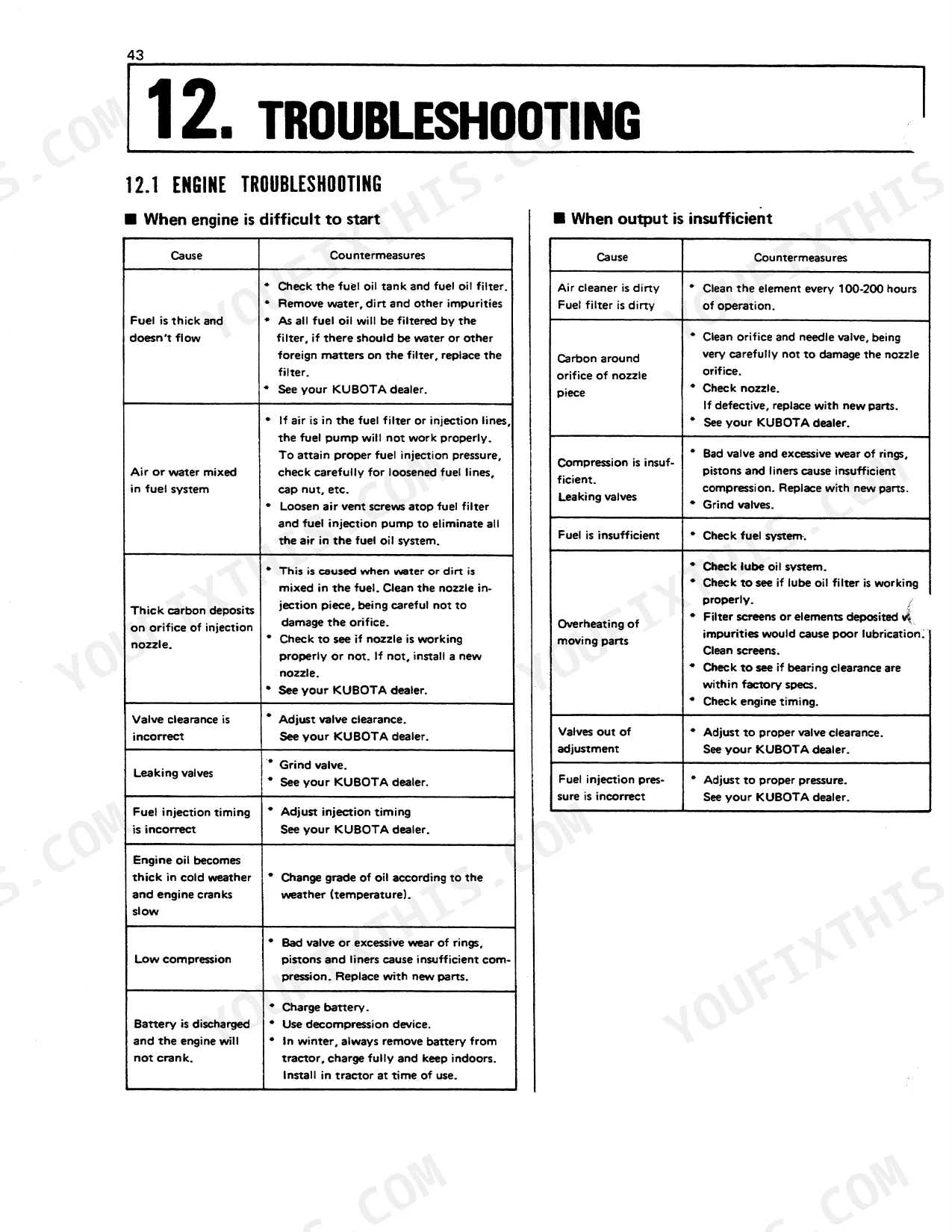

| Troubleshooting | - | Engine Troubleshooting, Tractor Troubleshooting, Battery Troubleshooting |
| Long-Term Storage | - | Long-Term Storage Procedures, Clutch Pedal Storage, Battery Storage, Tractor Covering, Muffler Protection, Smv Emblem, Drawbar |
| Lubricant Specifications | - | Engine Oil, Transmission Oil, Other Lubricants, Kubota Lubricants |
| Wiring Diagram | - | Wiring Diagram Overview, Color of Wire Harness, Wire Harness 1, Wire Harness 2, Wire Harness 3 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydrostatic lever linkage adjustment | Ask your dealer for hydrostatic lever linkage adjustment or pressure adjustment. | p. 49 |
| Wheel hub bolts torque | 10-17 kgf·m (72-123 ft·lbs.) | p. 28 |
| Fuel filter cleaning interval | Every 100 hours | p. 33 |
| Fuel filter replacement interval | Every 400 hours | p. 36 |
| Air cleaner dust cup cleaning interval | Once a week (or everyday if dusty) | p. 45 |
| Air cleaner element replacement interval | Once yearly or after every sixth washing | p. 45 |
| Engine oil filter initial change interval | Initial 35 hours of use | p. 36 |
| Engine oil filter replacement interval | Every 150 service hours | p. 34 |
| Transmission case fluid capacity | 13.5ℓ (14.3 U.S. qts.) | p. 12 |
| Transmission fluid type | KUBOTA UDT fluid (Transmission-hydraulic fluid) | p. 47 |
| Grease type for king pins, center pin, brake pedal shaft, clutch release hub, seat adjuster, speed control pedal shaft | SAE multi-purpose type grease | p. 35 |
| Greasing interval for king pins, brake pedal shaft, center pin, speed control pedal shaft | Every 75 hours | p. 36 |
Kubota B6200HST, B7200HST Common Problems This Manual Covers
Engine sputters and stalls after brief running
A common complaint is the engine losing power or stalling after a short run, usually from a restricted fuel supply, a dirty fuel filter, or contamination in the fuel system. The check and maintenance section covers fuel service and filter intervals.
Manual Section: Check and Maintenance p. 37Hydrostatic drive weak or jerky
The hydrostatic drive can feel weak, jerky, or fail to move properly, often from low or aged transmission fluid or internal wear. The troubleshooting section helps isolate the cause before deeper repair.
Manual Section: Troubleshooting p. 48Overheating under load
Overheating usually traces to a blocked radiator screen, low coolant, or dirty air intake components on these air-fed compact tractors. The check and maintenance section covers radiator cleaning and coolant service.
Manual Section: Check and Maintenance p. 37Clutch or brake pedal free travel out of spec
Clutch and brake pedals that drift out of their free-travel range cause slipping or poor stopping. The adjustments section gives the free-travel figures and how to reset the clutch, brake, and steering.
Manual Section: Adjustments p. 47No-start or weak battery
Intermittent no-start conditions often point to a weak battery, corroded terminals, or loose wiring. The troubleshooting section includes battery troubleshooting alongside engine and tractor checks.
Manual Section: Troubleshooting p. 48Frequently Asked Questions
Which models does this operator manual cover?
It covers the Kubota B6200HST and B7200HST tractors, powered by the D850 and D950 diesel engines. Operation, specifications, and maintenance guidance apply to both models.
What maintenance and fluid information is included?
The check and maintenance section covers fuel, engine oil, transmission fluid, front axle oils, and greasing points, with service intervals for each. The lubricant specifications section lists the correct oils and Kubota fluids. p. 37
Does it help me troubleshoot starting or drive problems?
Yes. The troubleshooting section covers engine, tractor, and battery symptoms, helping you trace a no-start, a weak hydrostatic drive, or overheating back to a likely cause. p. 48
Does it include the wiring diagram?
Yes. The wiring diagram section shows the harness layout and wire colors for these tractors, which is useful when chasing an electrical fault or a no-start condition. p. 53
How quickly can I access this manual after buying?
A 56-page searchable PDF, ready to download the moment you buy. It opens on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Kubota B6200HST Operator Manual printable?
Yes. There's no DRM or copy protection, so print the whole manual or only the pages you need on any home or office printer.
