Part of the Kubota Repair Manuals.
This Kubota Workshop Manual covers the BX1830 and BX2230 sub compact tractors, built between 2004 and 2006. It is a 304 page factory service document (publication 97897-13090) for units powered by the D722-E-BX and D902-E-BX diesel engines.The manual takes you through the whole tractor: engine body, lubrication, cooling and fuel systems, the transaxle with its hydrostatic transmission, front axle, steering, the hydraulic system, and the electrical system with wiring diagrams. Each section carries troubleshooting charts, servicing specifications, tightening torques, and checking and adjusting procedures.With this PDF an owner or independent mechanic can diagnose a no start, restore lost hydraulic lift, set a torque correctly, or trace an electrical fault without a dealer visit. Download it once and keep it handy on a phone, tablet or shop computer, and print the pages you need for the bench.
What's Inside This Kubota BX1830, BX2230 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Instructions | - | Safety First (Danger, Warning, Caution, Important, Note), Before Servicing and Repairing, Safety Starting, Safety Working, Avoid Fires, Ventilate Work Area, Prevent Acid Burns |
| General | - | Tractor Identification, Handling Precautions for Electrical Parts and Wiring (Battery, Fuse, Connector, Handling of Circuit Tester), Lubricants, Fuel and Coolant |

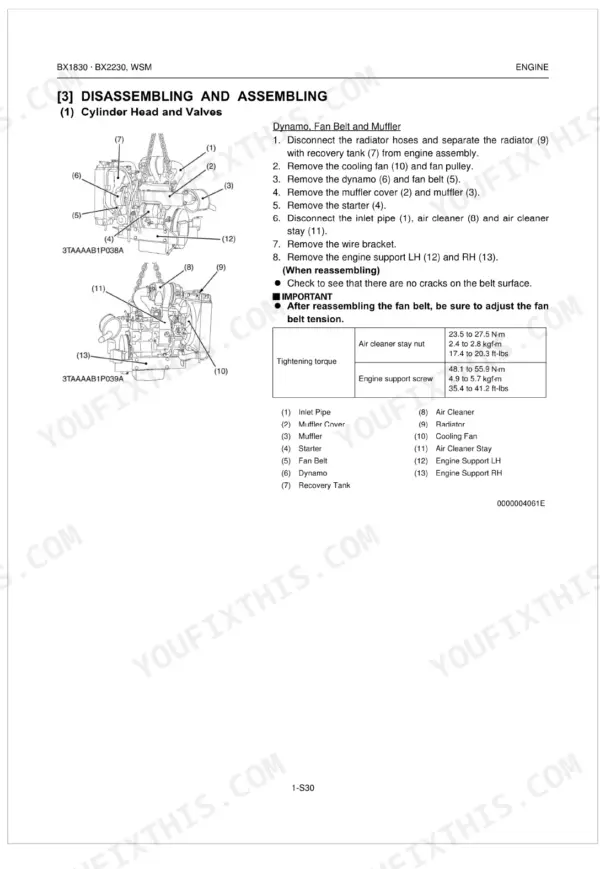

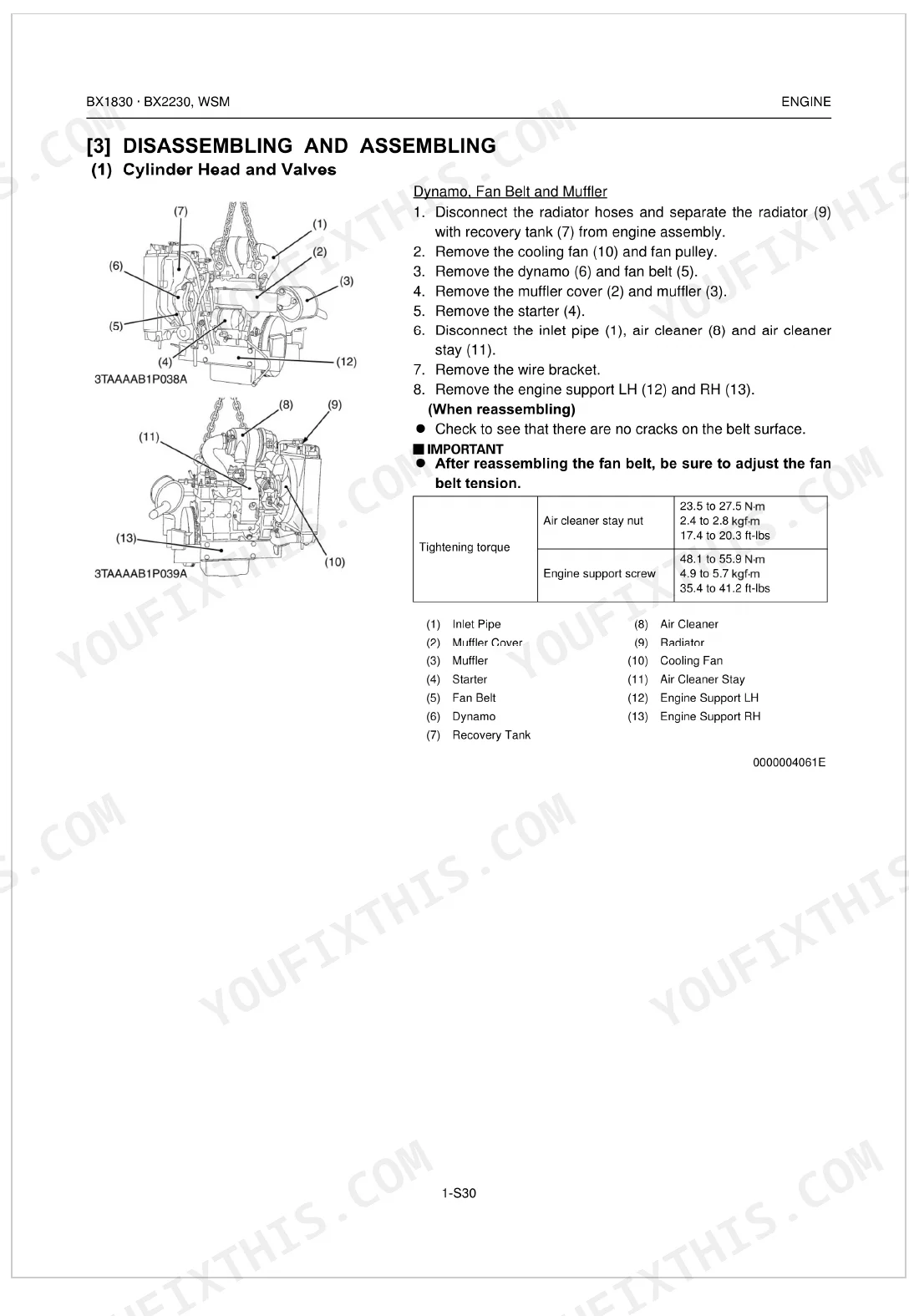

| Engine | - | Engine Body, Lubricating System, Cooling System, Fuel System, Troubleshooting, Servicing Specifications, Tightening Torques, Checking |
| Transaxle | - | Structure, Travelling System (Hydrostatic Transmission, Range Gear Shift Section, Front Wheel Drive Section, Differential Gear Section, Brake Section) |
| Front Axle | - | Structure, Four Wheel Alignment (Camber, Kingpin Angle, Caster, Toe-In), Troubleshooting, Servicing Specifications, Tightening Torques, Checking |

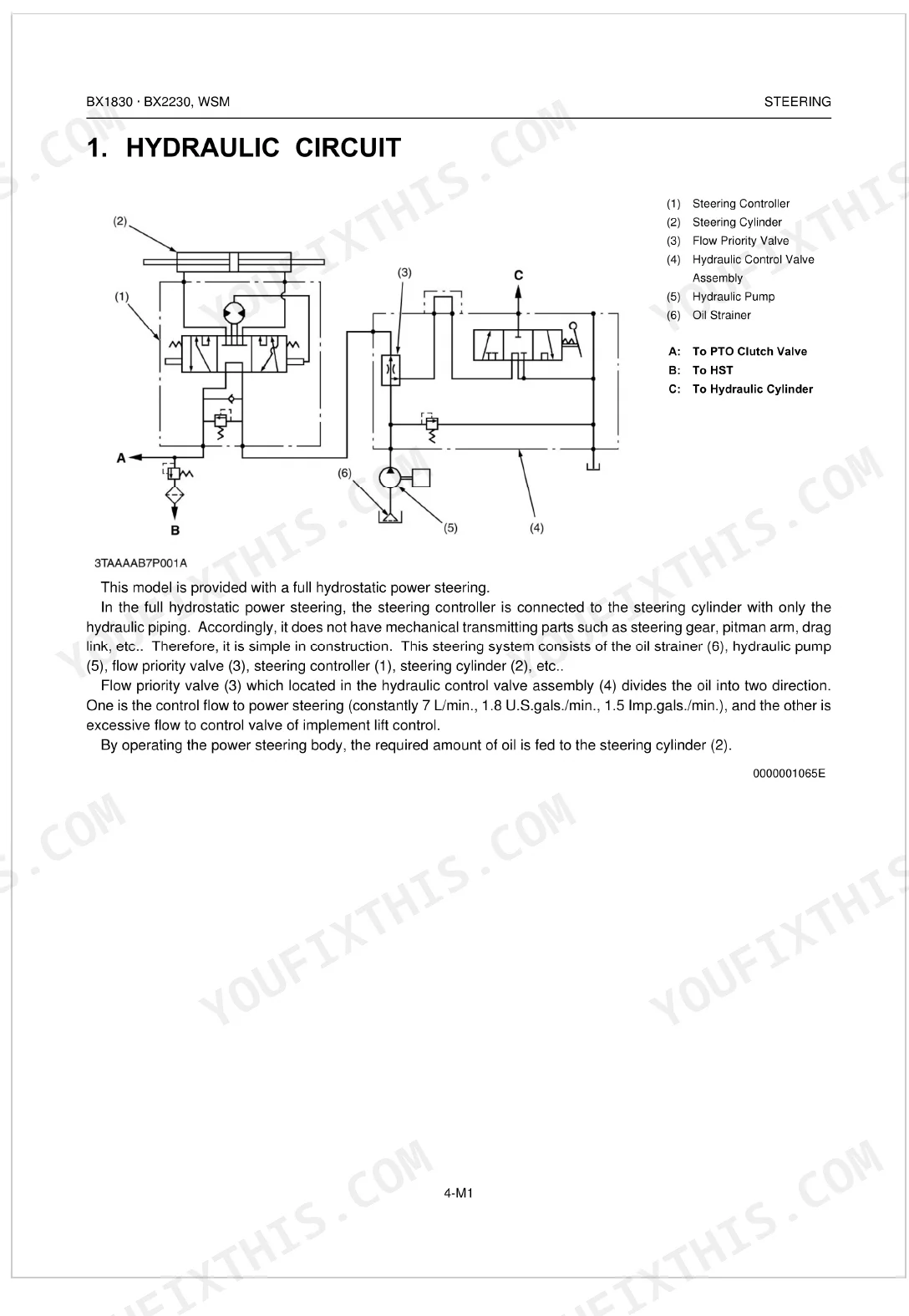

| Steering | - | Hydraulic Circuit, Steering Controller, Steering Cylinder, Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing |
| Hydraulic System | - | Hydraulic Circuit, Hydraulic Pump, Hydraulic Control Valve, Flow Priority Valve, Relief Valve, Hydraulic Cylinder, Hydraulic Block Type Outlet, Mower Linkage |
| Electrical System | - | Wiring Diagram, Starting System, Charging System, Lighting System, Gauges, Troubleshooting, Servicing Specifications, Tightening Torques |

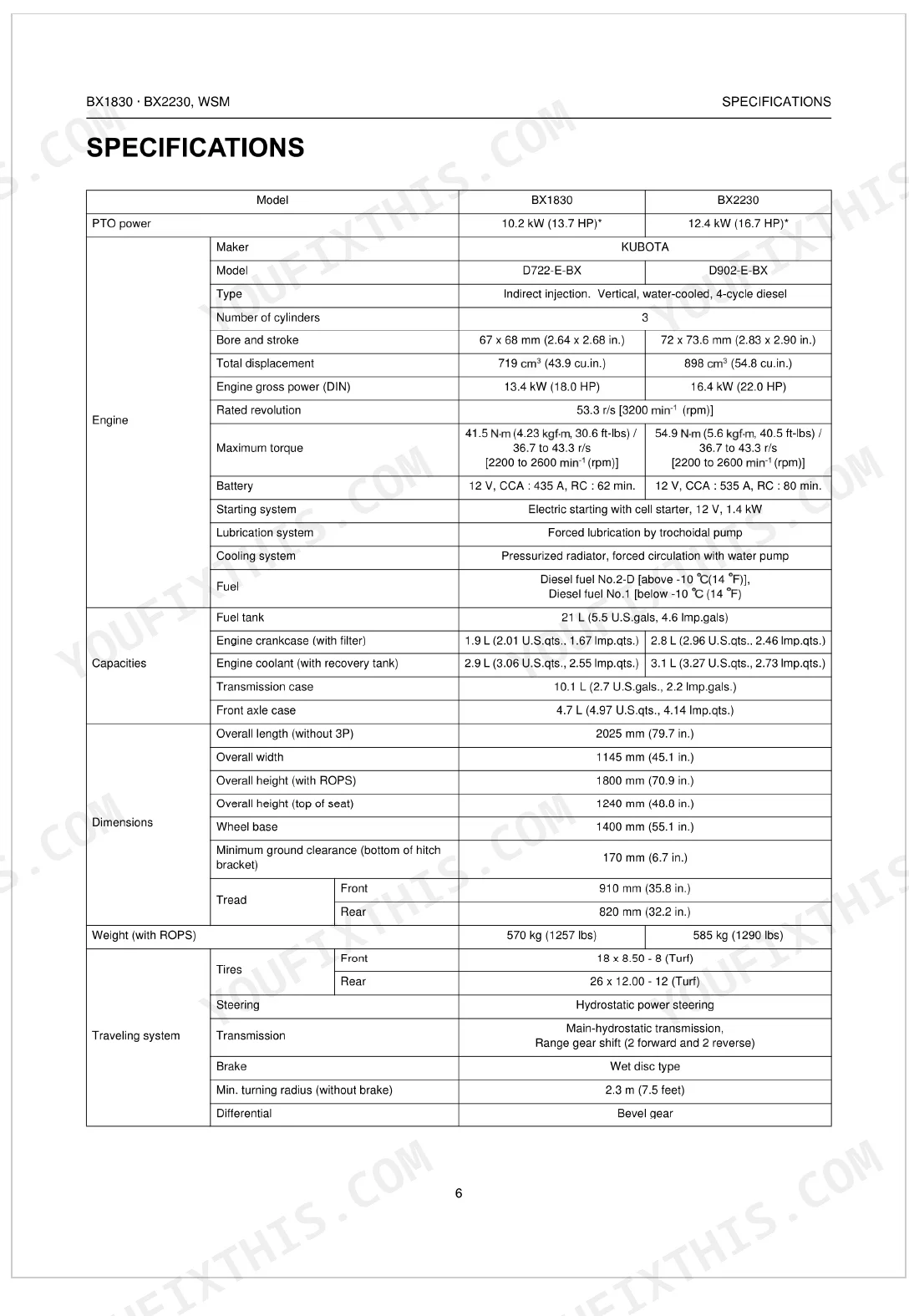

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic relief valve setting pressure | 12.3 to 12.7 MPa (125 to 130 kgf/cm², 1778 to 1849 psi) | p. 255 |
| Stopper plate mounting bolt and nut torque | 77.5 to 90.2 N-m (7.9 to 9.2 kgf-m, 57.1 to 66.5 ft-lbs) | p. 172 |
| Relief valve plug torque (Hydraulic System) | 39.2 to 58.8 N-m (4.0 to 6.0 kgf-m, 28.9 to 43.4 ft-lbs) | p. 254 |

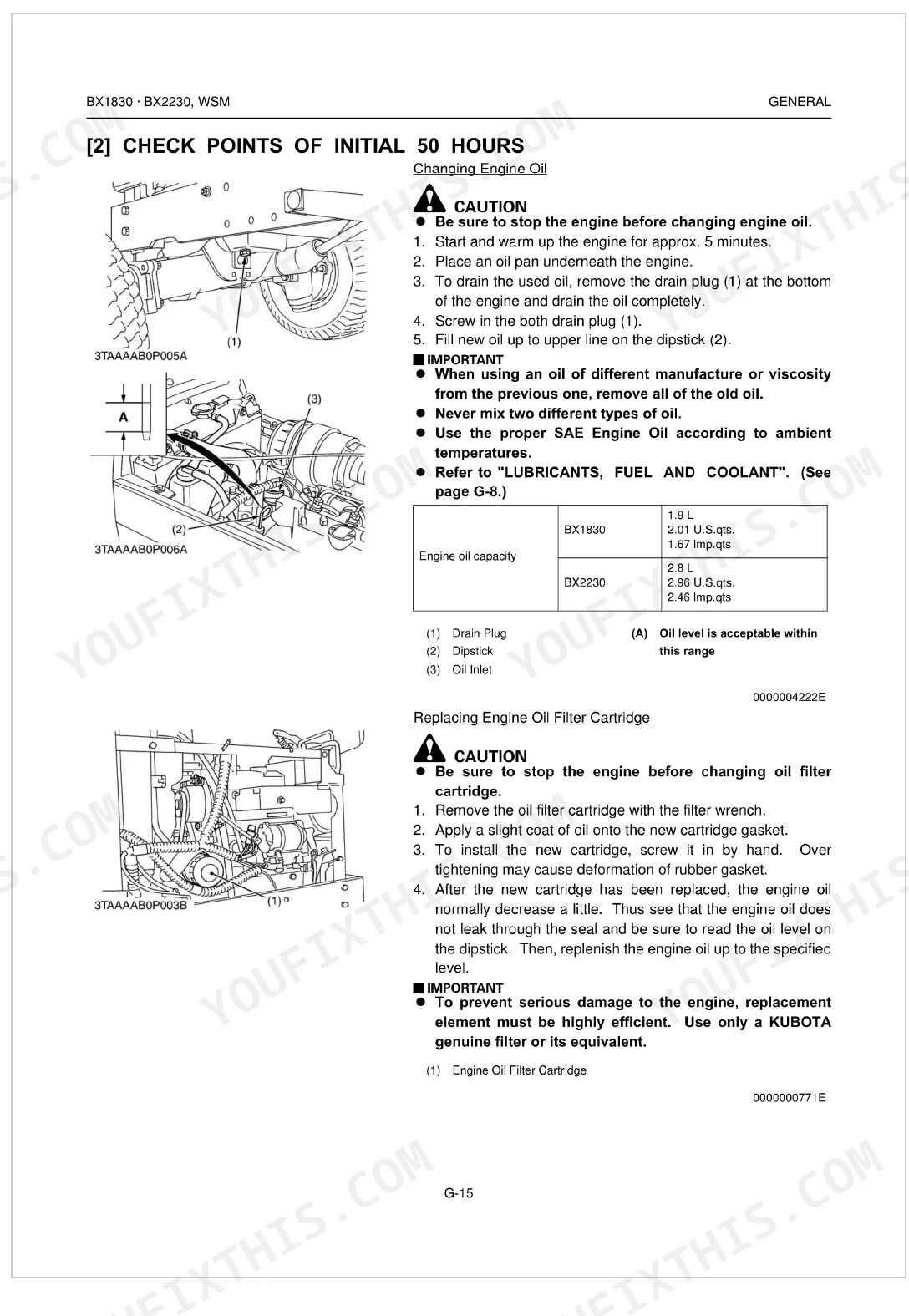

| Air cleaner element cleaning interval | Every 50 hours | p. 24 |
| Air cleaner element replacement interval | Every 1 year or every 6 times of cleaning | p. 24 |
| Transmission oil filter replacement interval | Every 50 hours | p. 24 |
| Engine oil filter replacement interval | Every 50 hours | p. 24 |
| Fan belt tension (deflection) | 7 to 9 mm (0.28 to 0.35 in.) at 98 N (10 kgf, 22 lbs) | p. 76 |
| Battery voltage | More than 12 V | p. 282 |
| Battery potential difference | Less than 0.1 V | p. 282 |
| Starter (B terminal nut) torque | 5.9 to 11.8 N-m (0.6 to 1.2 kgf-m, 4.3 to 8.7 ft-lbs) | p. 283 |
Kubota BX1830, BX2230 Common Problems This Manual Covers
Weak or lost hydrostatic drive
Forward and reverse movement goes weak or the tractor loses traction under load. Common causes are low or contaminated hydraulic oil, a clogged suction filter, air ingress or wear in the hydrostatic transmission, all covered in the Transaxle section.
Manual Section: Transaxle p. 142Engine cranks but will not start

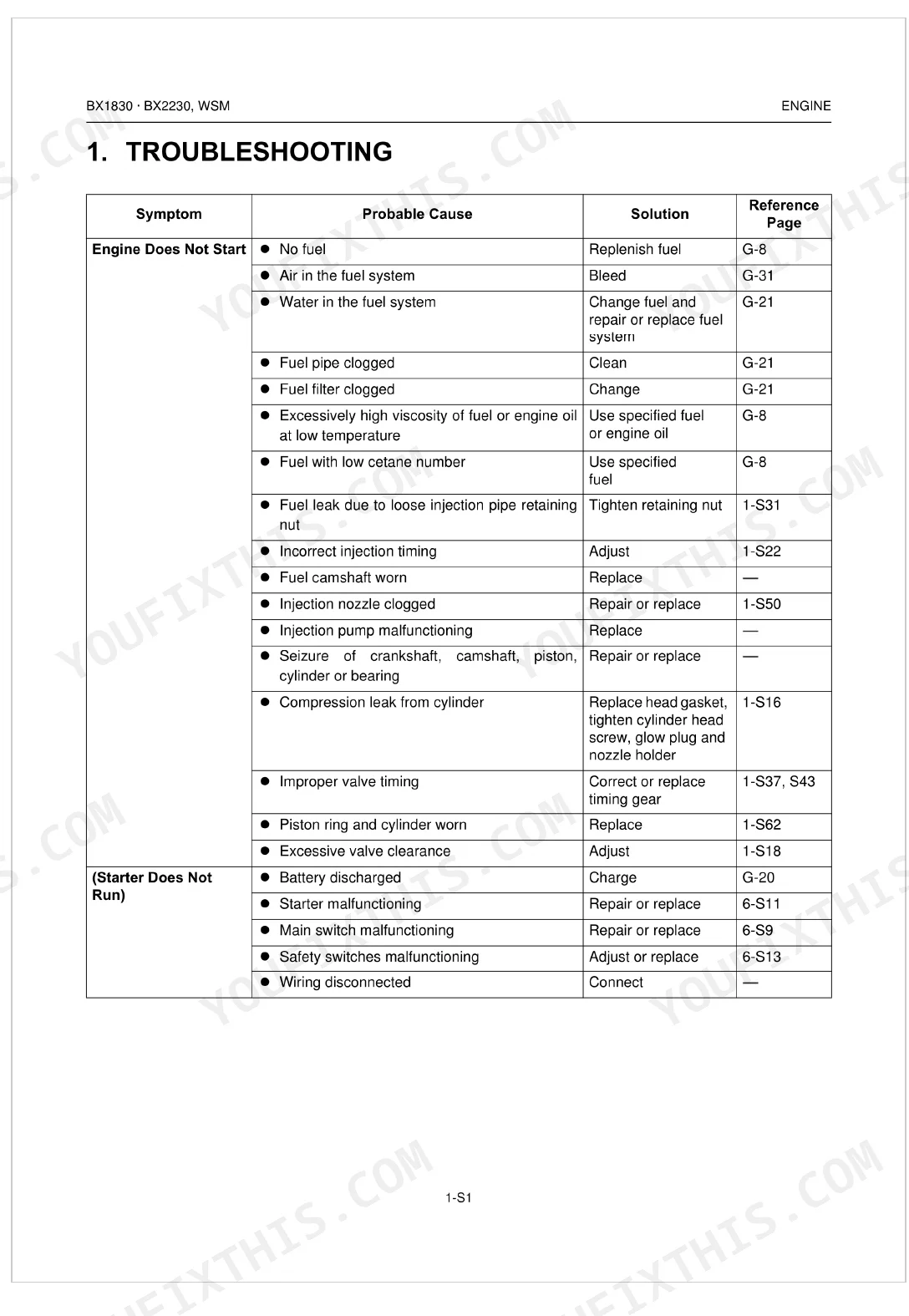

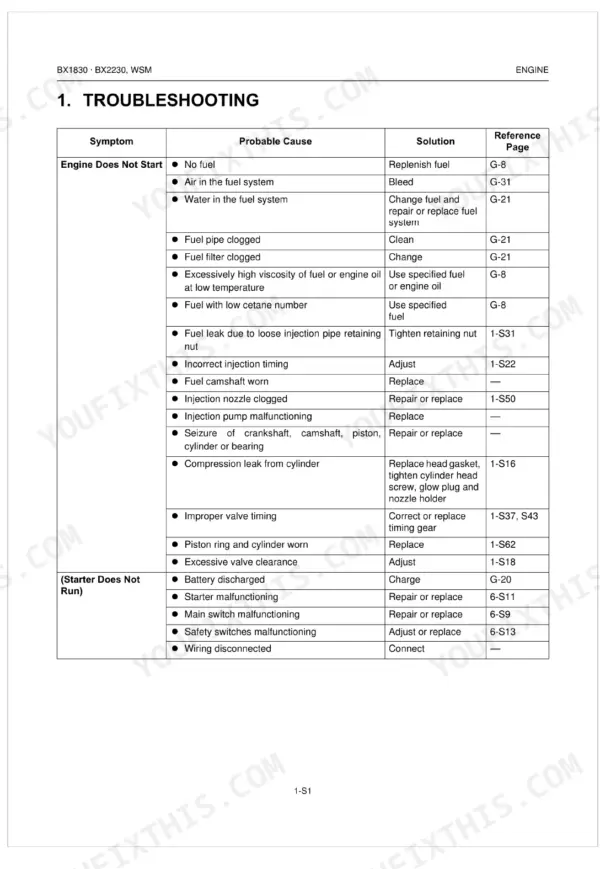

The engine turns over but will not fire, especially after sitting. The Engine section covers the fuel system, air bleeding and related checks used to find a fuel delivery or preheat fault.
Manual Section: Engine p. 61Loader or hitch will not lift
The loader or 3-point hitch is slow, jerky or fails to lift, often from low or dirty fluid, a failing pump, valve restriction or internal leakage. The Hydraulic System section covers the pump, control valve, relief valve and cylinders.
Manual Section: Hydraulic System p. 241Engine overheating
Overheating or a repeated temperature warning usually comes from low coolant, a plugged radiator, a failed fan belt or restricted airflow. The Engine section documents the cooling system and fan belt deflection.
Manual Section: Engine p. 61Heavy or intermittent power steering
Steering becomes heavy or cuts in and out, pointing to a hydraulic supply problem, low fluid, air in the system, or steering valve wear. The Steering section covers the hydraulic circuit, controller and cylinder.
Manual Section: Steering p. 226Electrical no-start or blown fuses
Intermittent shutdowns, no crank or repeatedly blown fuses usually trace to a battery or charging fault, corroded connectors, a starter relay issue or an interlock problem. The Electrical System section covers the starting and charging systems with wiring diagrams.
Manual Section: Electrical System p. 268Frequently Asked Questions
Which tractors does this manual cover?
It covers the Kubota BX1830 and BX2230 sub compact tractors under publication number 97897-13090, across 304 pages.
Which engines are covered?
The BX1830 uses the D722-E-BX and the BX2230 uses the D902-E-BX diesel engine. The Engine section covers the body, fuel, cooling and lubrication systems for both. p. 61
Does it give the hydraulic relief valve pressure?
Yes. The Hydraulic System section lists the relief valve setting pressure as 12.3 to 12.7 MPa, along with the pump, control valve and cylinder service details. p. 241

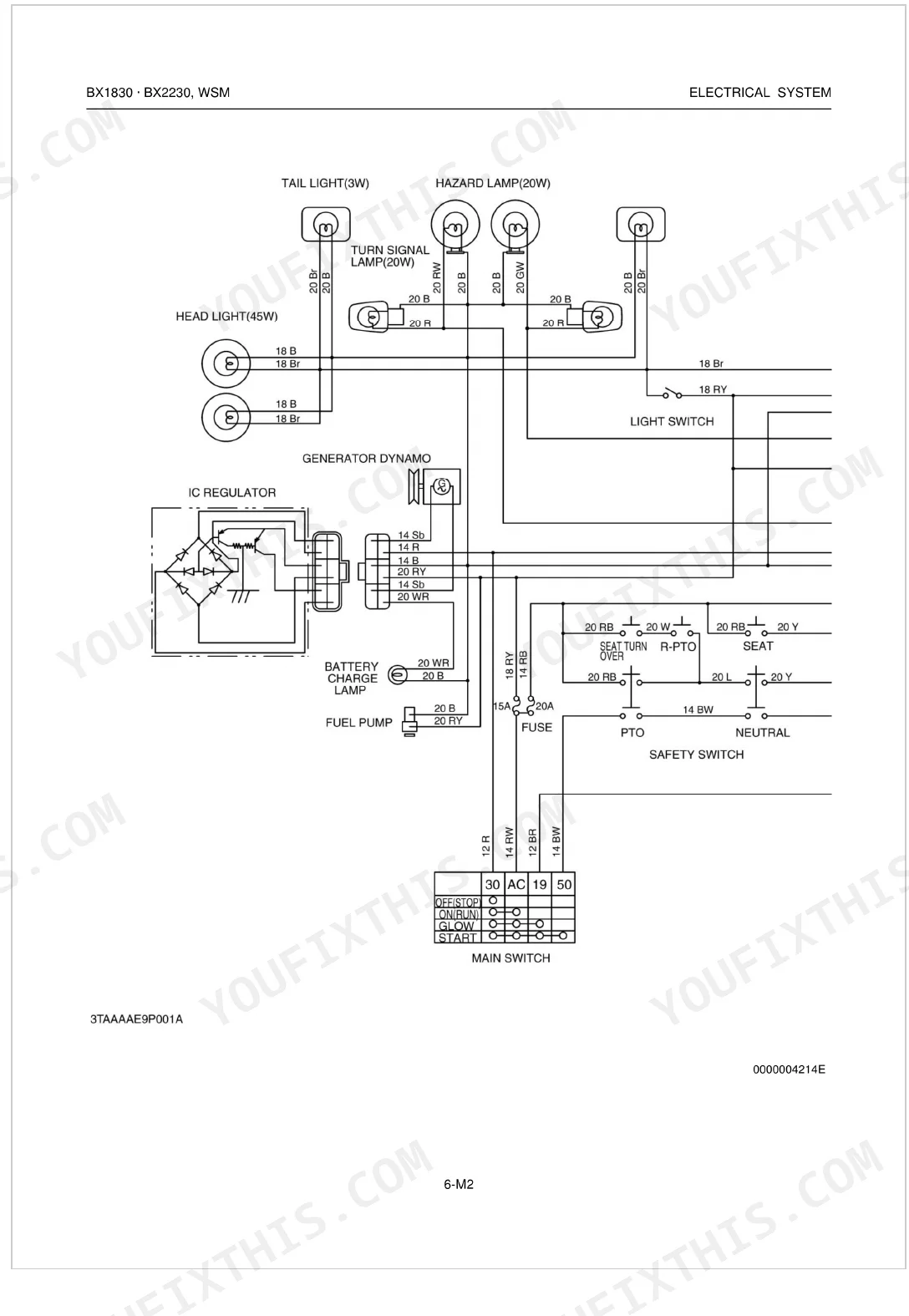

Are wiring diagrams included?

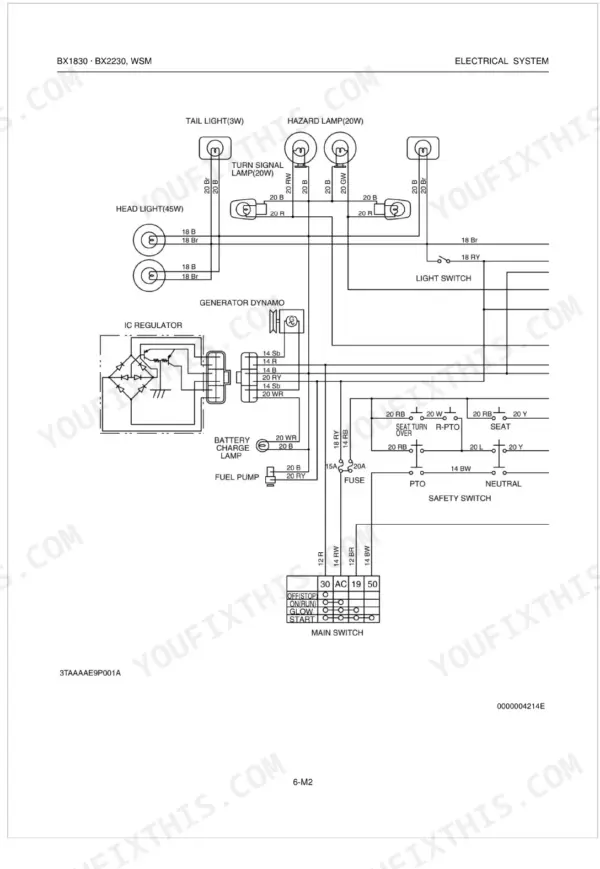

Yes. The Electrical System section includes the wiring diagram plus the starting, charging, lighting and gauge systems with troubleshooting and torque specs. p. 268
What exactly do I receive with this Kubota BX1830 Workshop Manual?
A 304-page Workshop Manual in searchable PDF, ready the moment checkout completes. Open it on a computer, tablet, or phone, with no shipping wait.
Can I print a copy of this Kubota BX1830 Workshop Manual for the shop?
Yes. The PDF carries no DRM, so print any page or section you need for the shop. It works with any standard printer.
Is there a wiring diagram in this Kubota BX1830 Workshop Manual?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Kubota BX1830, BX2230.
