Part of the Kubota Repair Manuals.
This Kubota Workshop Manual covers the GZ410 and GZ460 gasoline engines. It is the factory service manual, publication number 9Y011-02190, running 71 pages, and it documents both the engine mechanism and the servicing procedures a technician needs.The manual opens with safety instructions, then full specifications, performance curves, and dimensions for each engine. The mechanism section explains the engine body, lubricating, cooling, fuel, ignition, and electric systems, while the servicing section covers engine identification, tightening torques, troubleshooting, servicing specifications, and a maintenance schedule from daily checks to every 1000 hours.Use it to set valve clearance and torque values, diagnose a no-start or overheating fault, follow the maintenance intervals, or rebuild the engine body with the correct factory specifications for the GZ410 and GZ460.
What's Inside This Kubota GZ410, GZ460 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Instructions | - | - |
| Specifications | - | Engine Type and Dimensions, Performance Ratings, Engine Components, System Details |
| Performance Curves | - | GZ410 Performance Curve, GZ460 Performance Curve, Performance Curve Legend |
| Dimensions | - | Engine Dimensions - Top View, Engine Dimensions - Side View, Engine Dimensions - Front View |

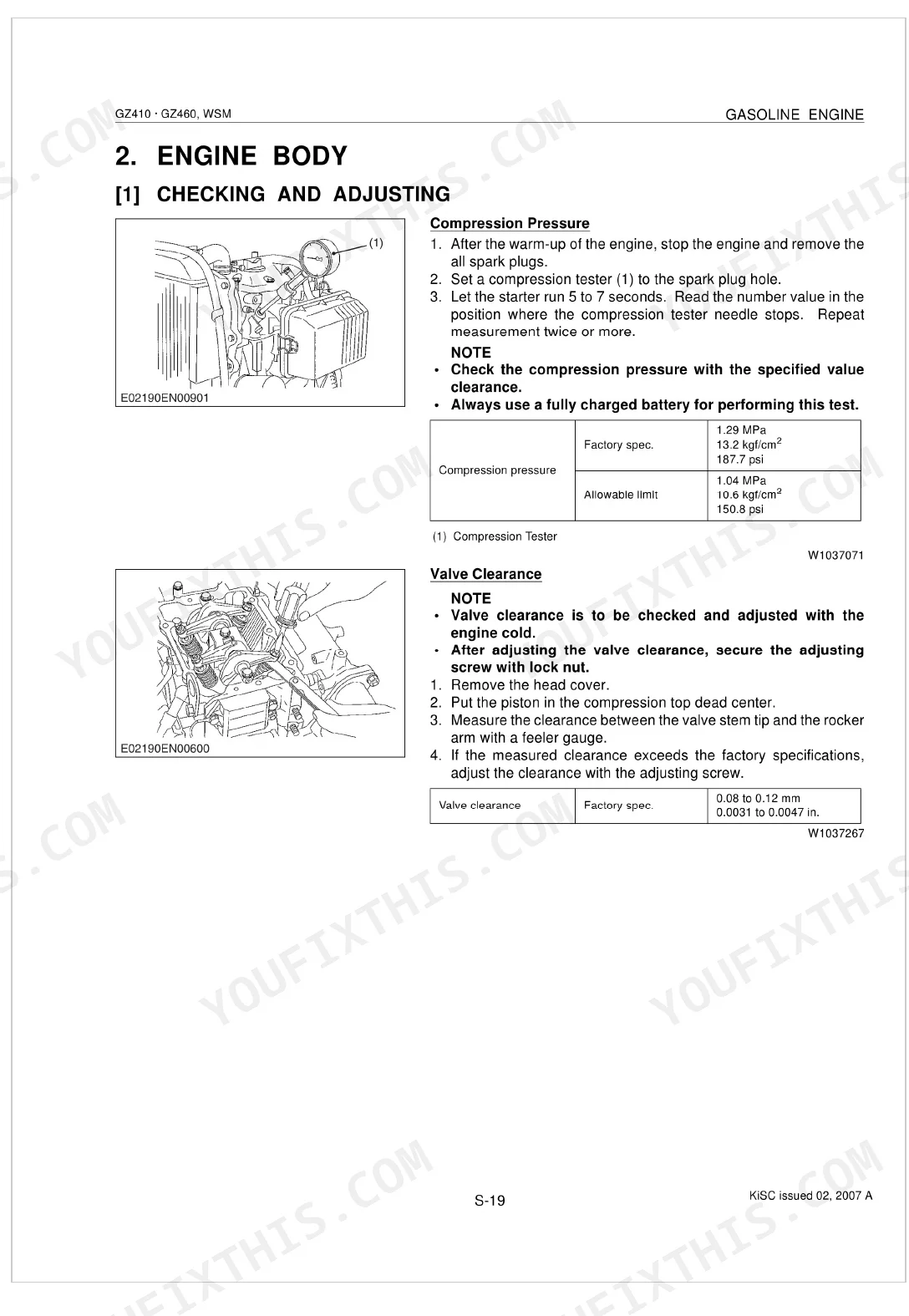

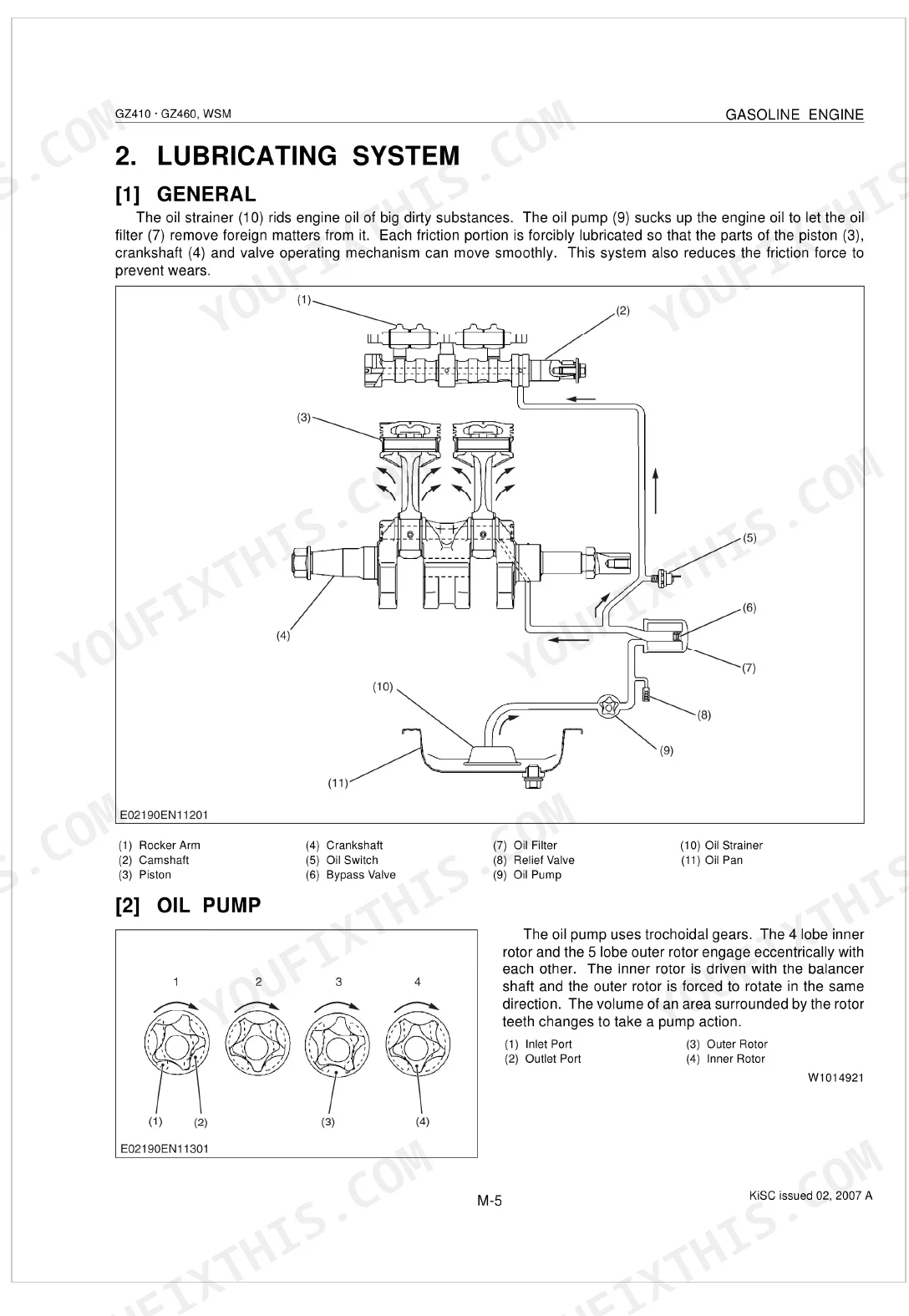

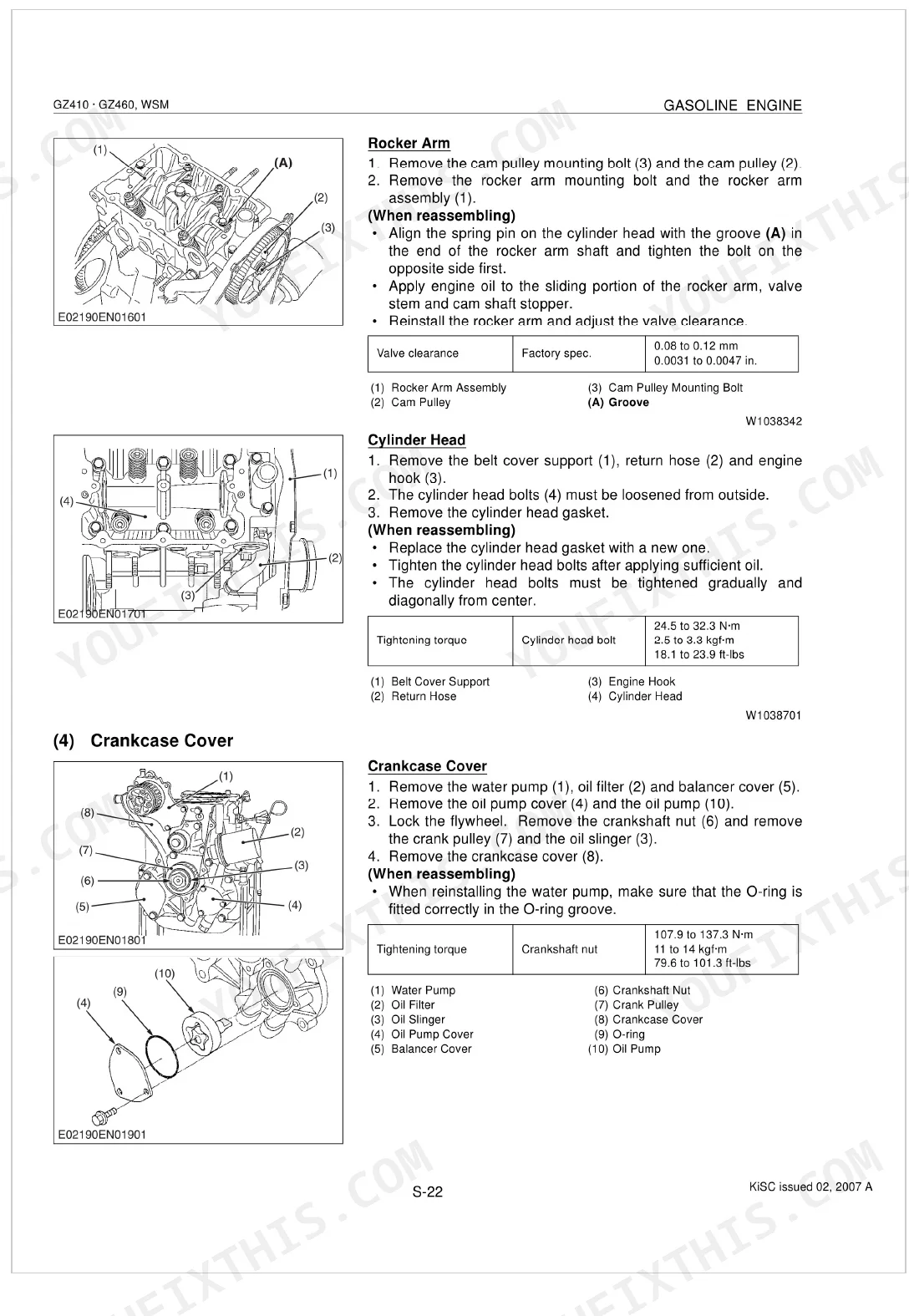

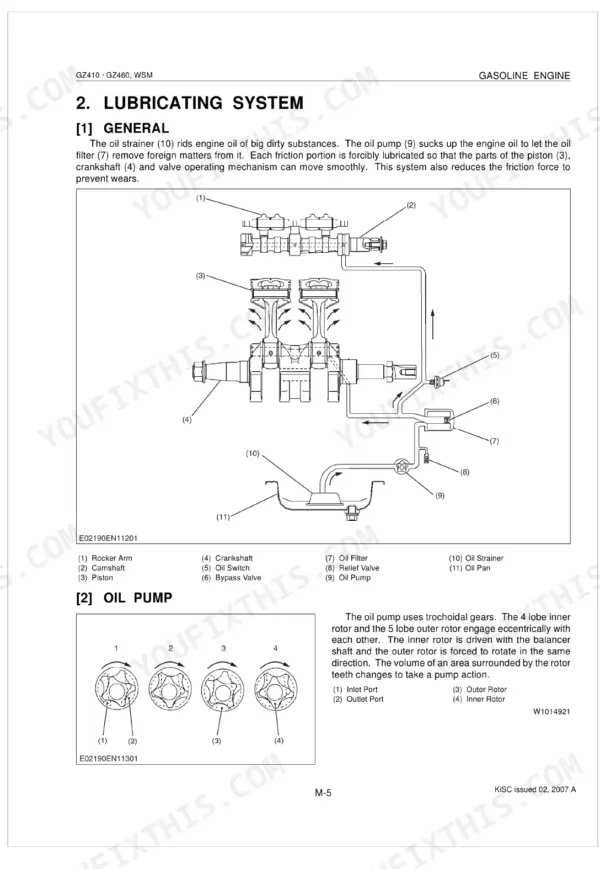

| Mechanism | - | Engine Body (Cylinder Head, Combustion Chamber, Camshaft, Crankcase, Piston and Piston Rings, Connecting Rod, Crankshaft, Balancer, Flywheel) |
| Servicing | - | General (Engine Identification, Tightening Torques, Tightening Torques for Special Use Screws, Bolts and Nuts, Tightening Torques for General Use Screws, Troubleshooting, Servicing Specifications, Engine Body, Lubricating System, Cooling System, Ignition System, Starting System, Maintenance Check List, Long Term Storage, Check and Maintenance, Daily Check, Check Point of Initial 20 Hours, Check Point of Every 50 Hours, Check Points of Every 200 Hours, Check Points of Every 500 Hours, Check Point of Every 1000 Hours, Check Points of Every 2 Years, Special Tools) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Rocker arm lock nut torque | 7.8 to 12.7 N-m | p. 28 |
| Cylinder head bolt torque | 24.5 to 32.4 N-m | p. 28 |
| Oil filter cartridge torque | 14.7 to 20.6 N-m | p. 28 |
| Oil filter cartridge replacement interval | Every 200 hours | p. 37 |
| Battery type | 12 V, 24AH or equivalent | p. 6 |
| Thermostat valve Opening Temperature | 69.5 to 72.5 °C | p. 35 |
| Temperature at which Thermostat completely Opens | 85 °C | p. 35 |
| Radiator Cap Air Leakage (pressure fall time) | 10 seconds or more (for pressure fall from 88 to 74 kPa) | p. 35 |
| Radiator Water Tightness (test pressure) | 177 kPa | p. 35 |
| Compression Ratio | 9.2:1 | p. 6 |
| GZ410 | ||
| Total Displacement | 404 cm³ (24.65 cu.in.) | p. 6 |
| GZ460 | ||
| Total Displacement | 456 cm³ (27.83 cu.in.) | p. 6 |
Kubota GZ410, GZ460 Common Problems This Manual Covers

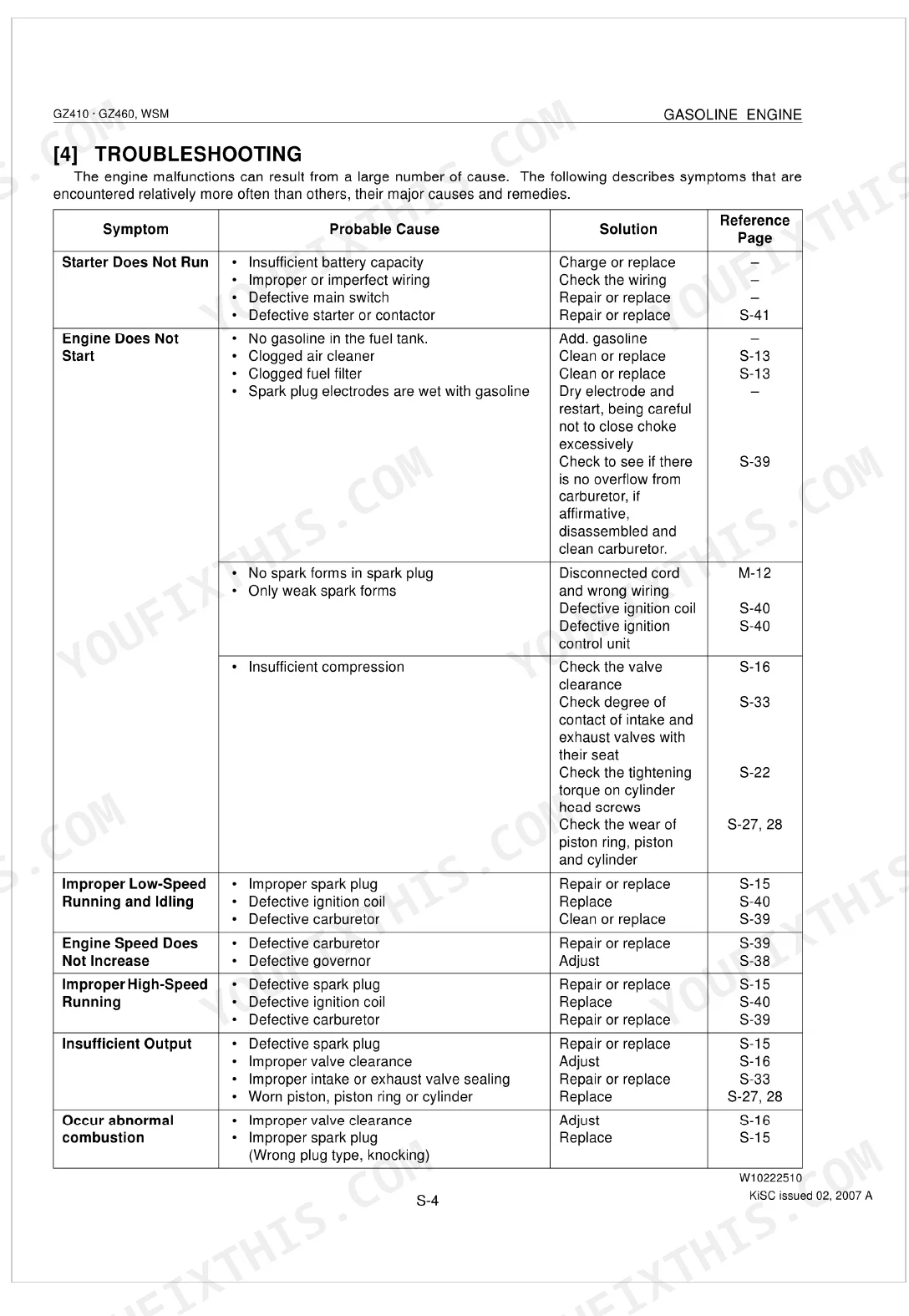

Engine cranks but will not start
A no-start on these engines often traces to a weak battery, corroded cables, a safety switch, or fuel starvation rather than an internal failure. The servicing section covers troubleshooting and the starting and fuel systems.
Manual Section: Servicing p. 24Loses power or runs rough
Restricted fuel flow, a clogged filter, or air in the lines commonly causes rough running and power loss. The servicing section covers fuel-system troubleshooting and the filter replacement interval.
Manual Section: Servicing p. 24Engine overheats under load
Overheating usually comes from dirty cooling fins, low coolant, or a thermostat fault. The servicing section covers the cooling system, thermostat, and radiator checks.
Manual Section: Servicing p. 24Hard starting after running out of fuel
Once the tank runs dry, air enters the fuel system and the lines must be bled before the engine will run normally. The servicing section covers the fuel system procedure.
Manual Section: Servicing p. 24Black or white exhaust smoke
Contaminated fuel, an incorrect mix, or incomplete combustion from fuel restriction shows up as smoke. The servicing section covers fuel-system diagnosis and servicing specifications.
Manual Section: Servicing p. 24Frequently Asked Questions
Which engines does this manual cover?
The Kubota GZ410 and GZ460 gasoline engines. The GZ410 displaces 404 cm3 and the GZ460 displaces 456 cm3, and both are covered in this 71-page factory workshop manual.
Is this a service manual with real procedures?
Yes. It is the factory workshop manual, publication 9Y011-02190, covering engine mechanism, servicing procedures, tightening torques, troubleshooting, and a full maintenance schedule.
Does it list torque specs?
Yes. The servicing section gives tightening torques, including the cylinder head bolts at 24.5 to 32.4 N-m and the spark plug and flywheel nut values. p. 24
Where are the engine specifications?

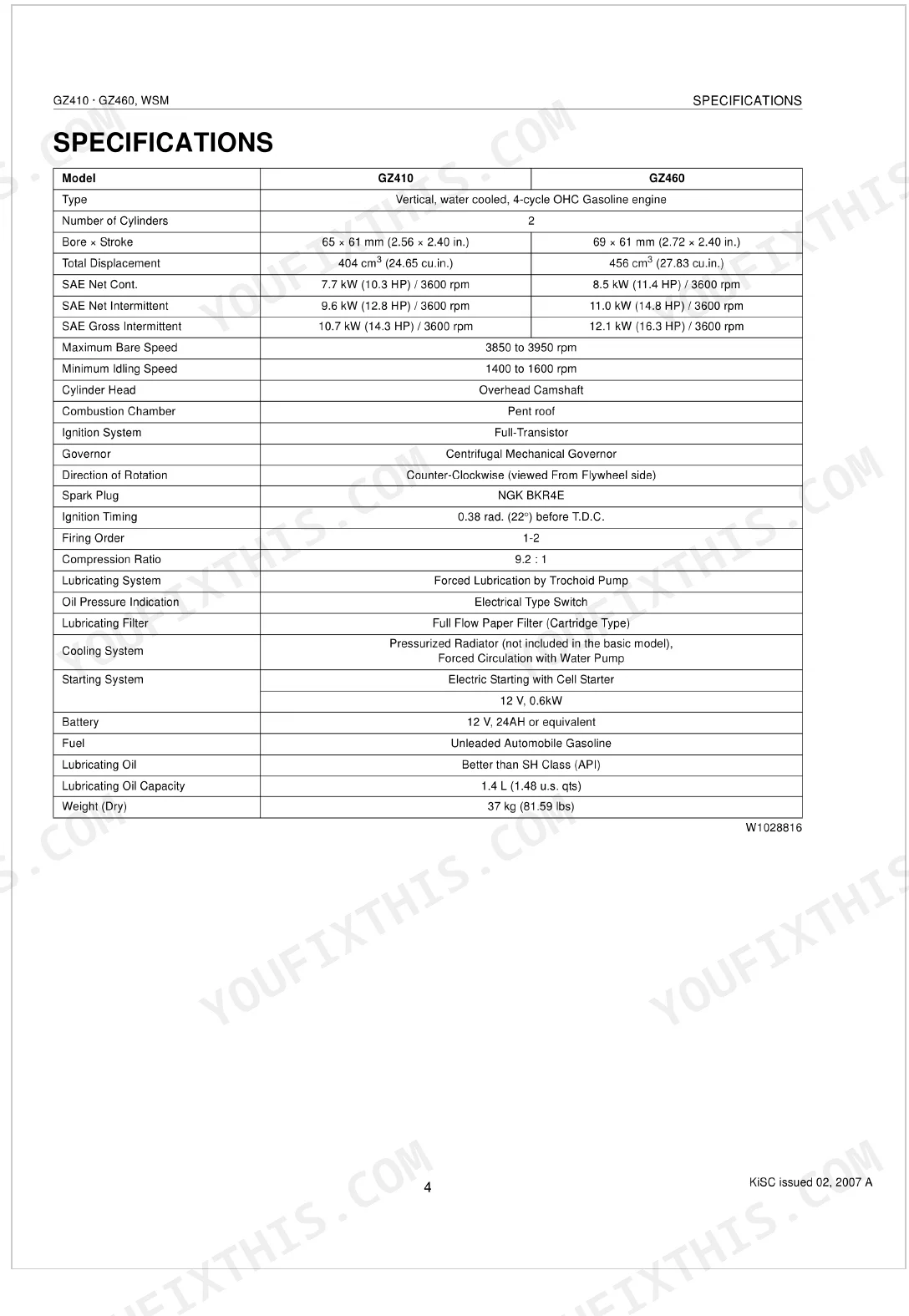

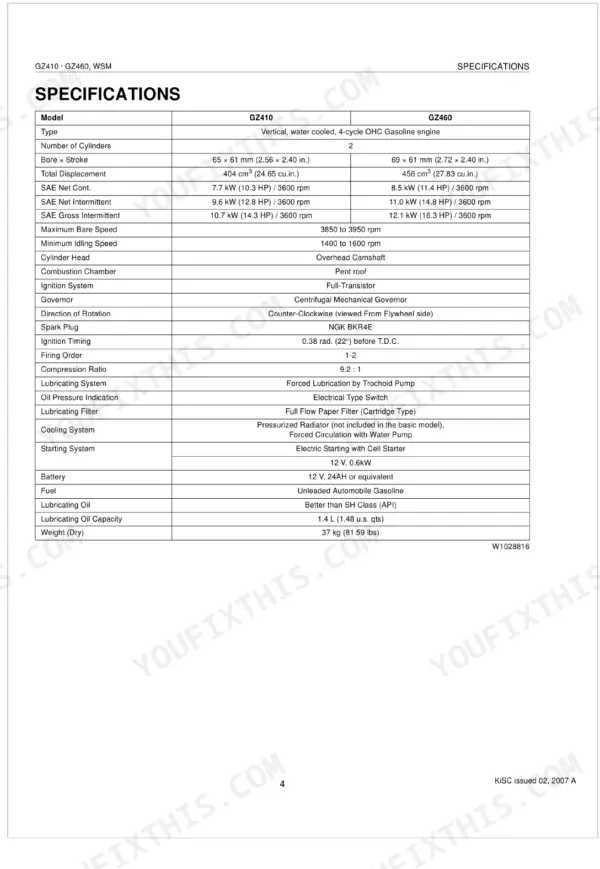

The specifications section lists the engine data, including displacement, the 9.2:1 compression ratio, lubricating oil capacity, and dry weight for both the GZ410 and GZ460. p. 6
What do I get after purchasing this Kubota GZ410 manual?
You download a 71-page searchable PDF the moment you pay. It works on any device, so you can pull it up on your phone right at the engine. Nothing ships and nothing makes you wait.
Can I print this Kubota GZ410 manual?
Yes. The PDF carries no DRM, so you can print any page or section you need for the shop. Any standard printer handles it.
