This Kubota BH92 Workshop Manual (OEM #9Y111-04231) runs 77 pages on a single machine: your tractor-mounted backhoe, from identification and lubricants through a full control valve teardown and rebuild. Sixteen pages of hydraulic schematics trace every fluid path through the control valve assembly, with operation sequences for neutral, bucket roll-back, bucket dump, dipperstick crowd and extend, and stabilizer extend. Another 18 pages walk through dismounting, disassembly, and servicing of the control valve, boom, dipperstick, bucket, swing, and stabilizer cylinders, backed by a troubleshooting section and torque tables for hydraulic fittings, plugs, UNC/UNF fasteners, and stud bolts. Set pivot pin-to-bushing clearance at 0.13 to 0.21 mm on the swing, bucket, and dipperstick cylinders, then torque the pedal support M10 bolt to 48 to 55 N·m. Stop chasing hydraulic faults with forum guesses. Bookmarks jump to any section, and keyword search surfaces a spec in seconds.
What's Inside This Kubota BH92 Manual
| System | Pages | Key Topics |
|---|---|---|
| Information | 3-13 | Safety First, Safety Decals, Terminology, Specifications |
| General | 14-26 | Backhoe Identification, Lubricants, Tightening Torques (Stud Bolts, American Standard Screws, Bolts And Nuts With Unc Or Unf Threads, Plugs, Hydraulic Fittings) |

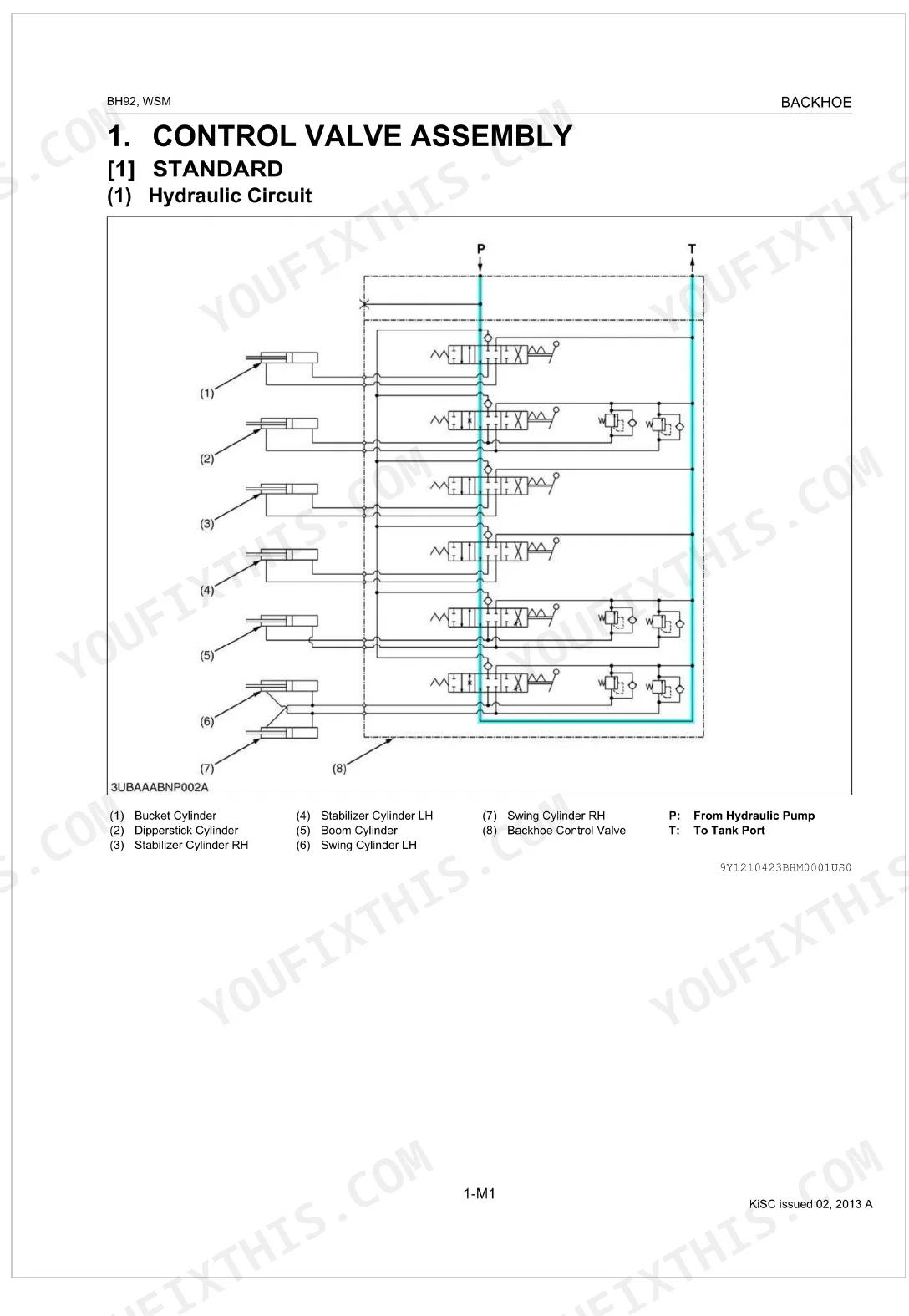

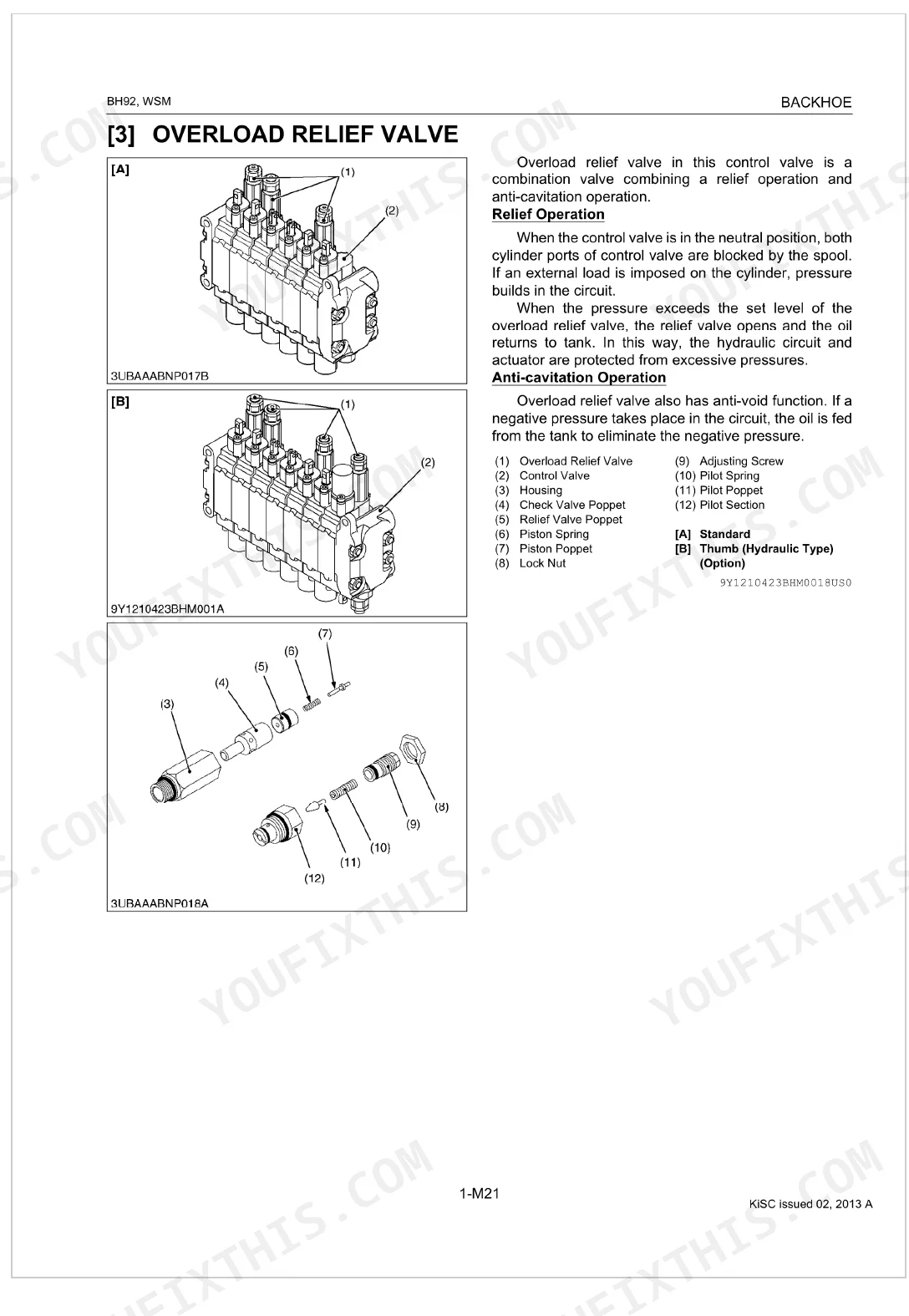

| Mechanism | 27-50 | Control Valve Assembly (Standard, Hydraulic Circuit, Structure, Inlet / Outlet Section, Control Valve Section, Operation, Neutral, Bucket Roll-back, Bucket Dump, Dipperstick Crowd, Dipperstick Extend, Stabilizer RH Extend) |
| Servicing | 51-77 | Troubleshooting, Servicing Specifications, Tightening Torques |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Control valve mounting nut torque | 16.7 to 17.6 N·m | p. 55 |
| Hydraulic hose or fitting loose solution | Retighten | p. 52 |
| Grease nipples application | Until grease overflows | p. 18 |
| Pin to Swing, Bucket, or Dipperstick Cylinder Bushing Clearance | 0.13 to 0.21 mm | p. 53 |
| Pedal support mounting bolt and nut (M10, 7T) torque | 48 to 55 N·m | p. 55 |
| Thrust Washer thickness (Factory specification) | 2.36 to 2.96 mm | p. 54 |
| Dipperstick Fulcrum Pin to Bushing Clearance | 0.13 to 0.21 mm | p. 54 |

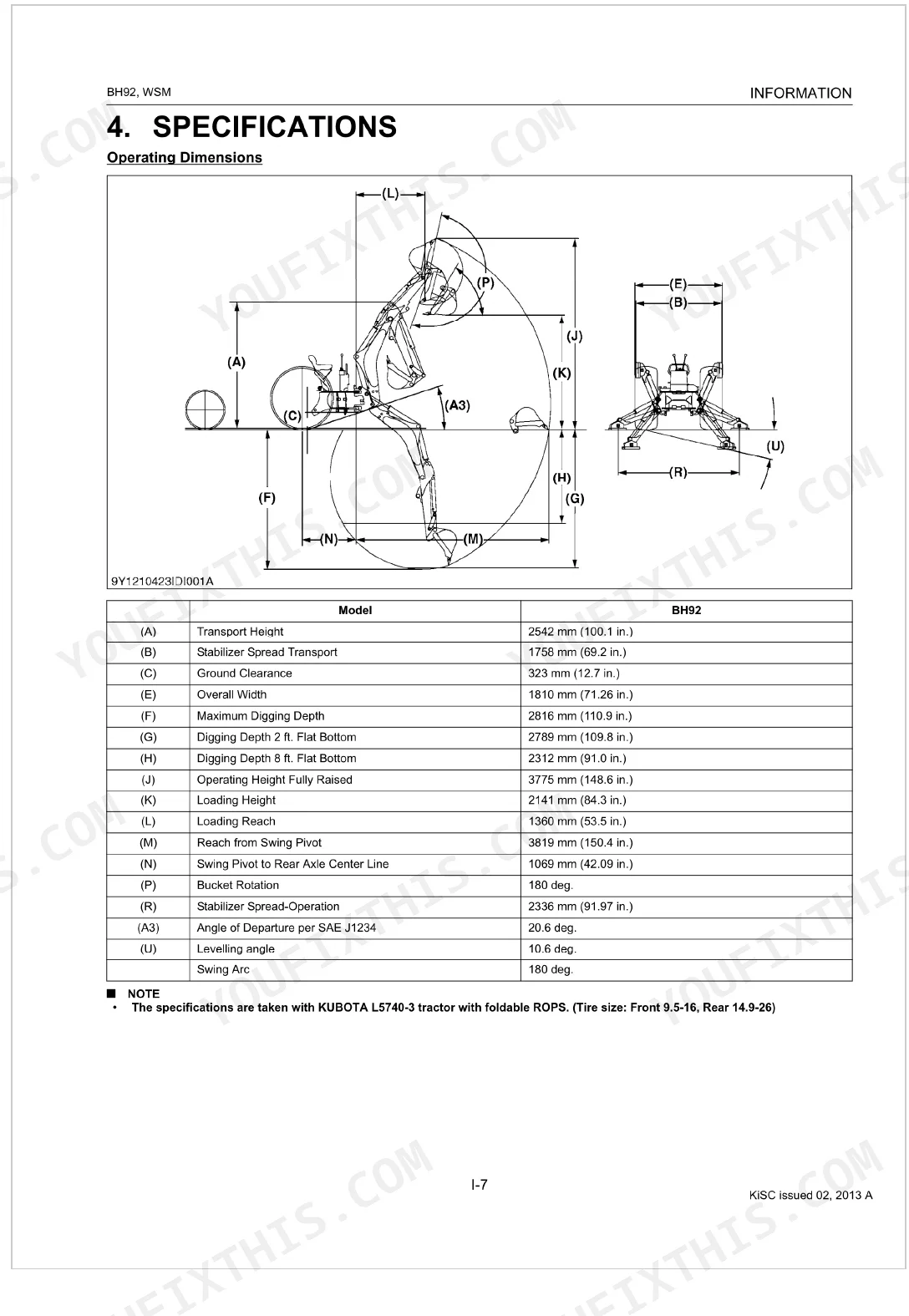

| Transport Height | 2542 mm | p. 11 |
| Maximum Digging Depth | 2816 mm | p. 11 |
| Digging Force (With bucket cylinder) | 20230 N | p. 12 |
| Boom cylinder extend cycle time | 3.9 seconds | p. 12 |
Kubota BH92 Common Problems This Manual Covers
Dipperstick pivot connection shows accelerated wear and abnormal play during operation p. 54
Inspect the pivot assembly for missing components. Measure thrust washer thickness against the factory spec of 2.36 to 2.96 mm on page 54. Replace any worn washer right away and pack the joint with fresh grease before the wear spreads to the structure.
Manual Section: ServicingOne bucket or boom cylinder runs weak while the rest of the hydraulics behave normally p. 49
Check relief valve setting pressure for the dipperstick and boom. Hook up a gauge and confirm 23.6 to 24.0 MPa as shown on page 49. Bring a low reading back up at the relief valve. If pressure is fine, inspect the piston seal ring for damage.
Manual Section: Individual Cylinder Circuit Weak or Inoperative (Others OK)Sloppy swing action and excess cylinder movement when repositioning the arm p. 53
Measure the swing cylinder trunnion boss to support bushing clearance. Swap the bushing once the gap passes the 0.5 mm limit on page 53. Retighten loose hydraulic fittings and look over the piston seal ring for heavy wear.

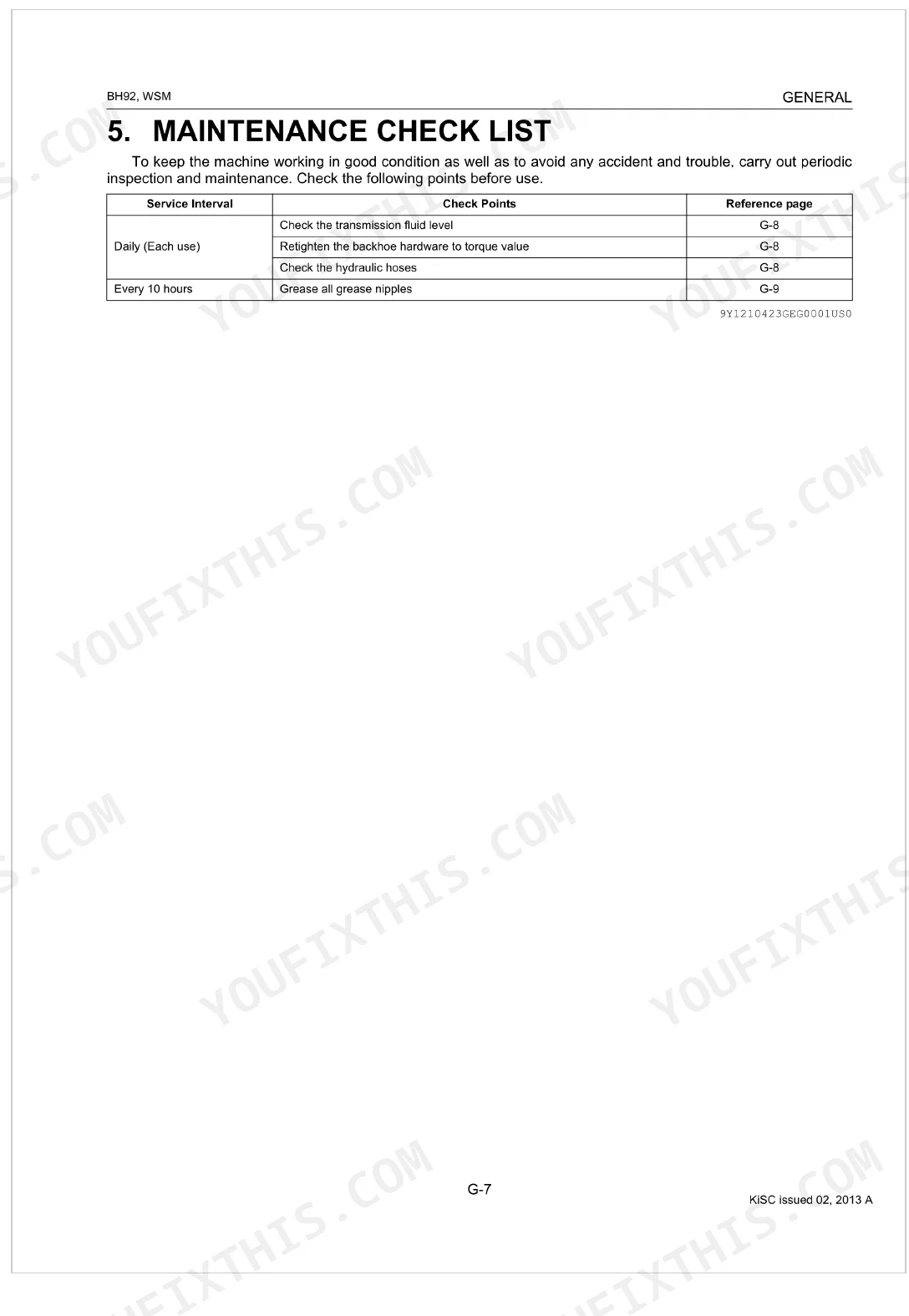

Manual Section: Excessive Cylinder MovementPivot pins bind and squeal during operation because hidden grease points get missed p. 22
Pump every grease nipple until grease pushes out of the joint. Stick to the page 22 schedule and hit them every 10 hours. Hunt down the hidden fittings on the frame and dipperstick so the pins don't seize and snap under load.
Manual Section: GeneralFrequently Asked Questions
What are the torque specifications for a Kubota BH92 backhoe?
Torque values are listed per component. The pedal support mounting bolt and nut (M10, 7T) take 48 to 55 N·m (36 to 41 lbf·ft), while the swing cylinder support mounting screw needs 197 to 225 N·m (145 to 166 lbf·ft). The cylinder head calls for 250 to 280 N·m (185 to 206 lbf·ft), and the piston nut for 450 to 500 N·m (332 to 368 lbf·ft).
How do I adjust or repair hydraulic leaks on a Kubota BH92?
For a leaking joint, repair or replace it. A damaged hydraulic hose has to be replaced; a loose hose or fitting just needs retightening. Torque nipples to spec, since too much torque damages the hydraulic units or nipples and too little leaves them leaking. After tightening, clean the joint and cycle maximum working pressure 2 to 3 times to check for leaks. An adjustable elbow or O-ring port adapter (UNF) 9/16 takes 37 to 44 N·m (28 to 32 lbf·ft).
How do I remove or install a Kubota BH92 backhoe?

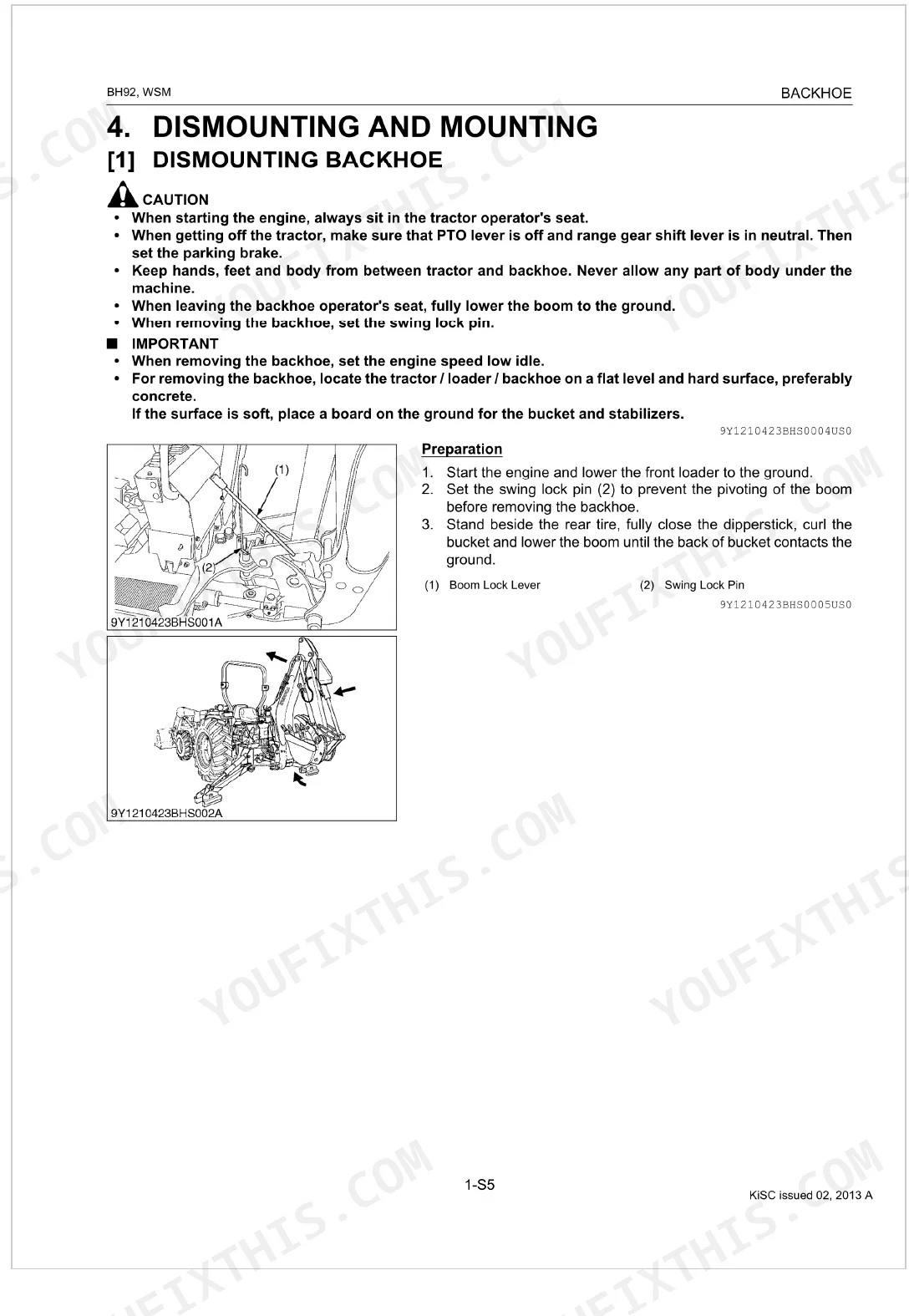

To dismount, lower the front loader, set the swing lock pin (2), and bring the boom down until the bucket rests on the ground. Raise the rear wheels slightly, pull the mounting pins (1), then raise the boom slowly to free the backhoe and pull the tractor forward about 200 mm (8 in.). For mounting, install the swing lock pin (3), back the tractor to within 254 to 304 mm (10.0 to 12.0 in.) of the backhoe, and connect the hydraulic hoses. Raise the backhoe on its stabilizers until the mount bar (2) sits just above the support hooks (1), reverse until the hooks (1) are under the mount bar (2), and lower the bar onto them. Finish by reinstalling the mounting pins (4) and the slide bar (5).

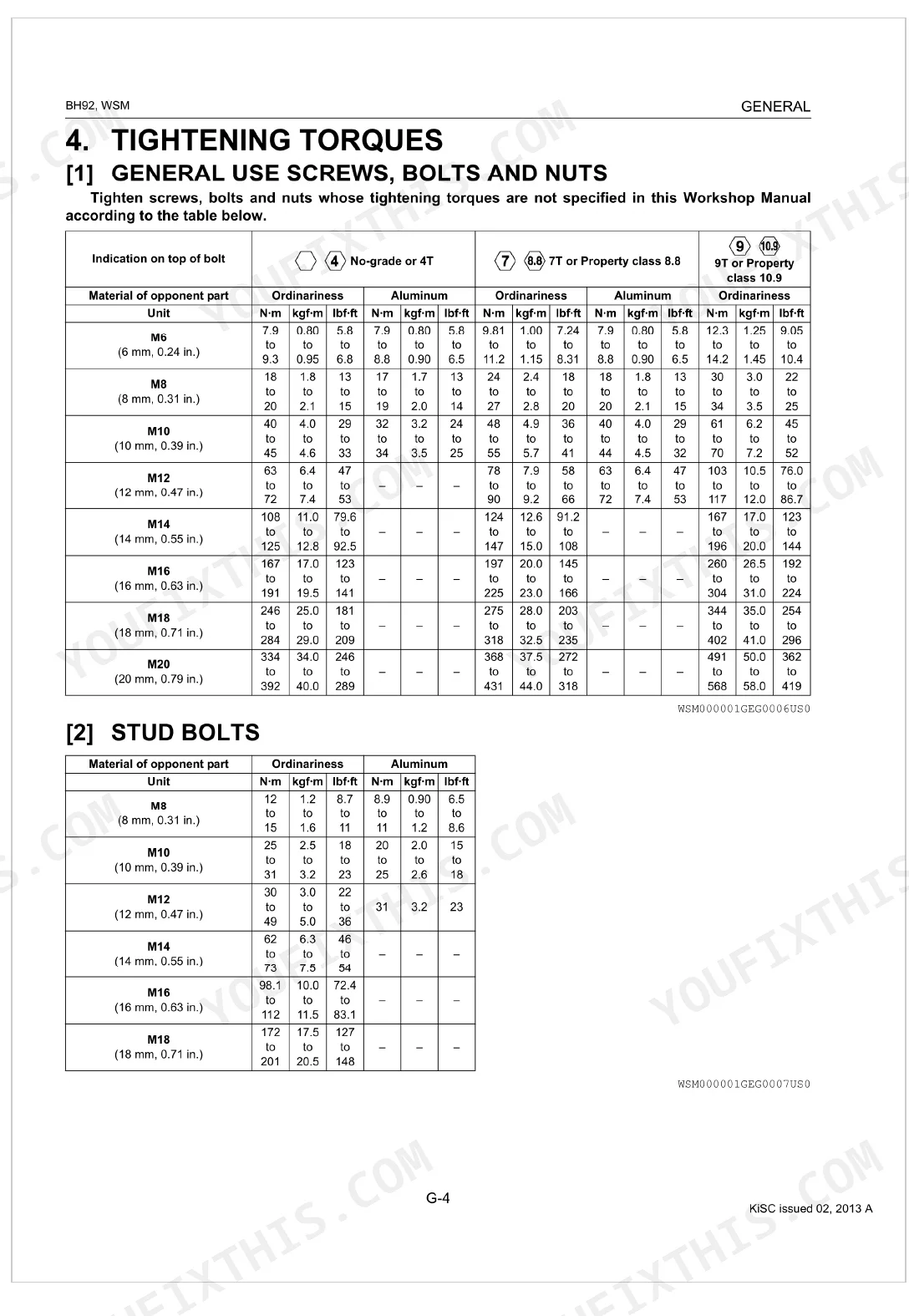

How to find Kubota BH92 torque specifications
Look in the manual's "Tightening Torques" section. General use screws, bolts, and nuts are rated by grade and material, while named parts get their own figures: the swing cylinder support mounting screw needs 197 to 225 N·m (145 to 166 lbf·ft), and the piston nut 450 to 500 N·m (332 to 368 lbf·ft).
What format is this Kubota BH92 manual in?
Instant PDF download. The full 77-page searchable Workshop Manual lands in your hands right after payment, ready to open on a laptop, tablet, or phone at the workbench.
Are there any print restrictions on this Kubota BH92 manual?
Yes. Print as many copies as you want, with no restrictions. Plenty of mechanics print just the section they need and carry it onto the shop floor.
Does this Kubota BH92 Workshop Manual cover the hydraulic system?
Yes. Complete hydraulic schematics are included, with flow diagrams, valve configurations, and pressure specifications.
Document Quality
This document is a high-quality scanned PDF with an accurate OCR layer, allowing you to search and copy all text effortlessly. The text throughout is crisp and consistently easy to read, with no blurriness or fading. All diagrams, illustrations, and photographs are clear raster images, and their labels are sharp and perfectly legible. The pages are clean, free from scan artifacts, stains, marks, or skewed content, presenting a professional appearance.
