Kubota built this factory Workshop Manual (OEM #9Y011-13601) around nine systems: engine, clutch, transmission, rear axle, brakes, front axle, steering, hydraulics, and electrical. Across 321 pages, the hydraulic schematics trace the full pump, relief valve, and cylinder circuit, while the wiring diagrams run from the starter relay through to the alternator. Troubleshooting fills 15 pages spanning every system. The engine chapter carries torque figures and exploded views of the cylinder head, valves, connecting rod, piston, and crankshaft, backed by 67 pages of step-by-step rebuild work. Before you turn the key, fill the transmission case to 27.5 L and the crankcase to 5.7 L with filter. Forum guesses won't get your L3200 running again. Everything is bookmarked by system and keyword-searchable, opening on phone, tablet, or laptop the moment you need the number.
What's Inside This Kubota L3200 Manual
| System | Pages | Key Topics |
|---|---|---|
| G General | 15-64 | General |

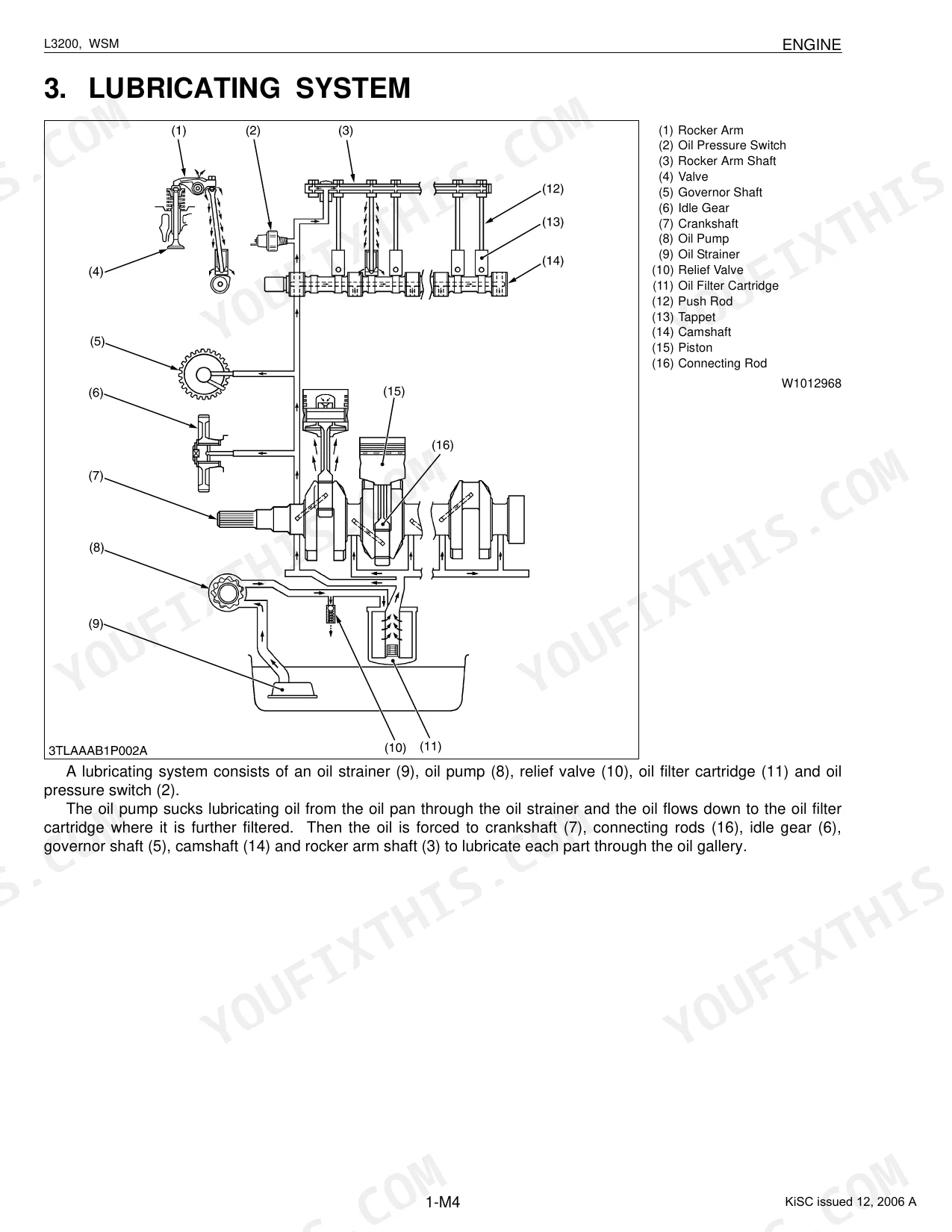

| 1 Engine | 65-131 | Compression Pressure, Valve Clearance, Cylinder Head and Valves, Connecting Rod and Piston, Crankshaft, Oil Pump |
| 2 Clutch | 132-148 | Clutch Pedal Free Travel, Clutch Assembly, Backlash between Clutch Disc Boss and Shaft, Pressure Plate Flatness, Belleville Spring Free Height, Clutch Disc Wear |
| 3 Transmission | 149-184 | Gear Backlash, Shift Fork to Shift Gear Groove, Spiral Bevel Pinion and Differential Assembly, Differential Case Bore, Differential Pinion Shaft |
| 4 Rear Axle | 185-195 | Rear Axle Case, Rear Axle, Checking Bearing, Lock nut, ROPS mounting screw, Rear axle case mounting stud bolt |
| 5 Brakes | 196-210 | Brake Pedal Free Travel, Parking Brake Cable, Brake Case, Cam Plate Flatness, Brake Disc Wear, Clearance between Parking Brake Shaft and Bushing |
| 6 Front Axle | 211-232 | Toe-in, Front Axle Rocking Force, Bevel Gear Case and Front Gear Case, Spiral Bevel Pinion Shaft and Differential Gear Assembly |
| 7 Steering | 233-248 | Steering Wheel Play, Pitman Arm, Valve Assembly, Relief Valve, Backlash between Sector Gear and Ball Nut, Axial Play of Ball Nut Assembly |

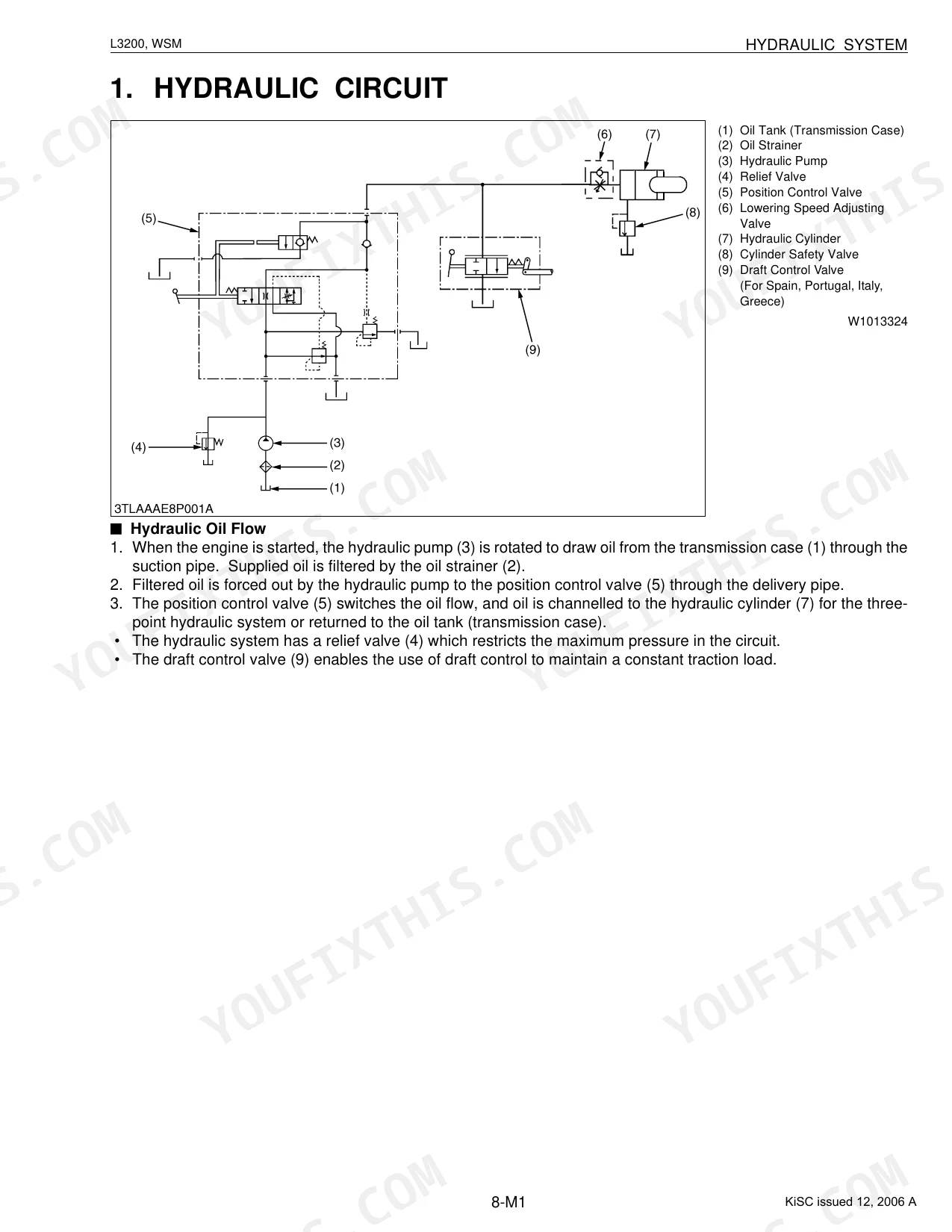

| 8 Hydraulic System | 249-287 | Hydraulic Pump Test Using Flow-meter, Relief Valve, Hydraulic Pump, Hydraulic Cylinder, Position Control Valve, Draft Control Valve |
| 9 Electrical System | 288-321 | Battery, Main Switch, Safety Switch, Starter and Starter Relay, Charging System, Alternator |

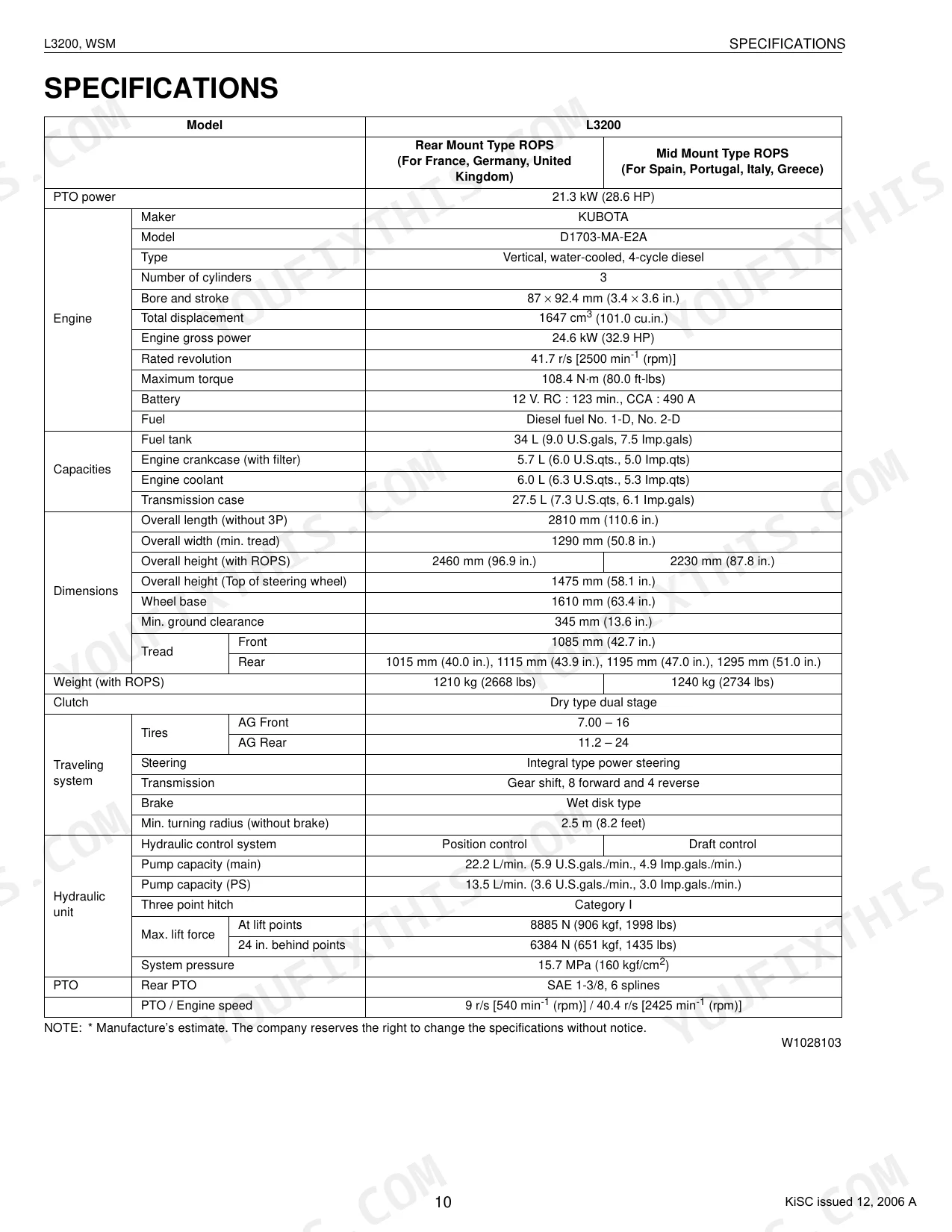

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel tank capacity | 34 L (9.0 U.S.gals, 7.5 Imp.gals) | p. 12 |
| Engine crankcase (with filter) capacity | 5.7 L (6.0 U.S.qts., 5.0 Imp.qts) | p. 12 |
| Engine Oil Capacity (with filter) | 5.7 L | p. 22 |
| Transmission Case Capacity | 27.5 L | p. 22 |
| Front Axle Case Capacity | 4.5 L | p. 22 |
| Clutch Pedal Free Travel | 20 to 30 mm | p. 31 |
| Brake Pedal Free Travel | 15 to 20 mm | p. 36 |
| Fan Belt Tension (Deflection) | 7.0 to 9.0 mm | p. 85 |
| Rear Wheel Mounting Screw and Nut Torque | 197 to 226 N·m | p. 156 |

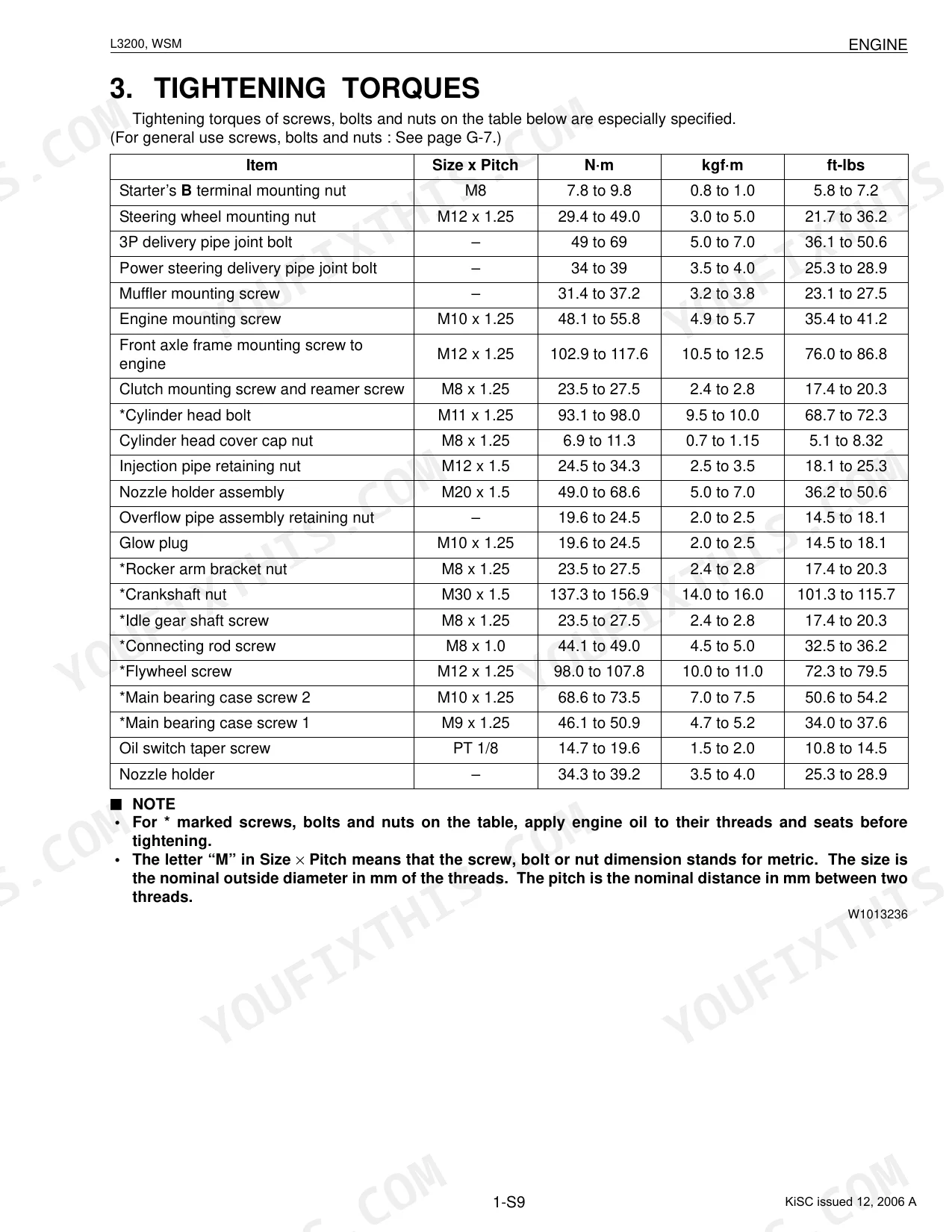

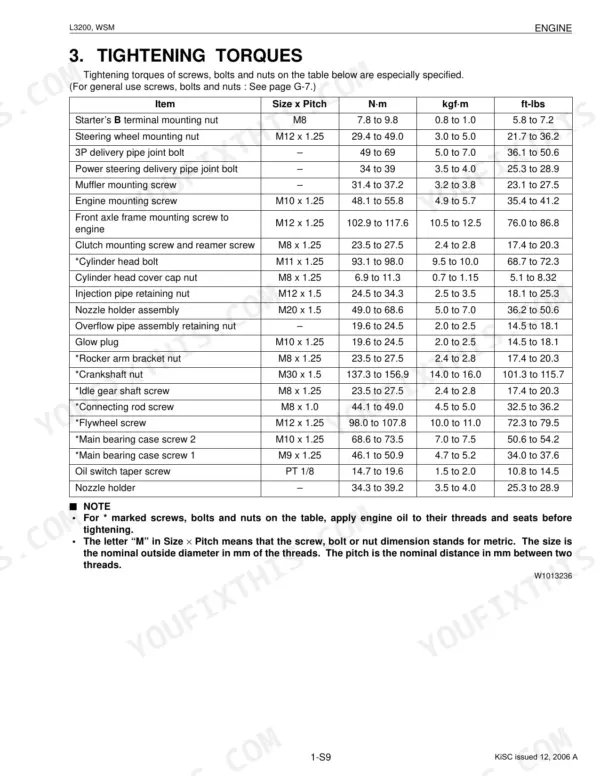

| Cylinder Head Bolt Torque | 93.1 to 98.0 N·m | p. 81 |
| Front Tire Pressure (11.2 - 24, 4PR) | 120 kPa | p. 59 |
| Steering Wheel Play | 20 to 50 mm | p. 241 |
Kubota L3200 Common Problems This Manual Covers

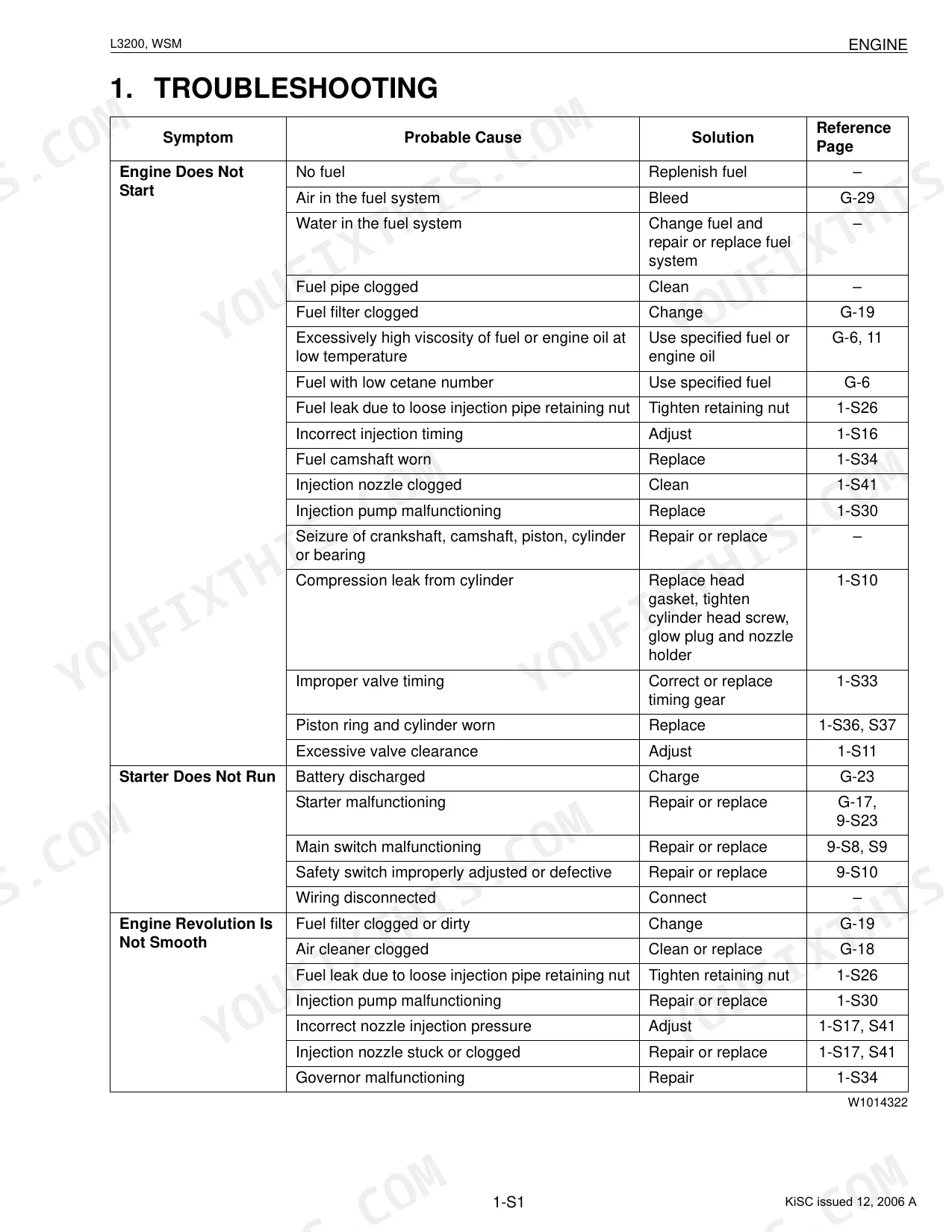

Kubota L3200 diesel engine cranks but won't start, turns over slowly in cold weather
Confirm the fuel shutoff valve is open and the tank holds fuel, then bleed air from the system at the injection pump bleed screw. Pull the fuel filter and clean or replace it; the service interval runs every 100Hr (page 24). Still cranking without firing? Verify injection timing (page 1-S16) and check for seized parts (page 1-S1).
Manual Section: 1 EngineEngine overheats repeatedly during heavy fieldwork, temperature gauge climbs into the red zone
Top off the coolant if it reads low, then check fan belt deflection against the 7.0 to 9.0 mm spec on page 85; a slack or snapped belt spikes temperature fast. Blow debris from the radiator core with compressed air and pressure-test the radiator cap. Swap hoses on the 2-year interval in the maintenance schedule on page 24.
Manual Section: 1 EngineThree-point hitch won't lift implement under load, arm drops slowly under weight p. 249
Verify the hydraulic fluid level in the transmission case first; at 27.5 L capacity, low fluid is the usual cause of weak lift. Inspect the position control linkage for binding or a loose connection. With fluid confirmed good, test the relief valve and check the hydraulic cylinder O-rings in the Hydraulic System chapter on page 249.
Manual Section: 8 Hydraulic SystemClutch slips and chatters under load, tractor jerks and shudders on engagement p. 132
Adjust clutch pedal free travel to 20 to 30 mm (page 31) before any disassembly. If it keeps slipping, pull the cover and inspect the disc for oil contamination; a soaked disc gets replaced, not adjusted. Examine the disc boss spline and pressure plate flatness in the Clutch chapter on page 132.
Manual Section: 2 ClutchSteering wheel stiff and heavy, front wheels don't return to center after turns p. 233
Measure steering wheel play first: spec is 20 to 50 mm (page 241); if it stays tight or sticky through the full sweep, suspect a binding column or gear assembly. Verify the hydraulic fluid level and look for external leaks at the cylinder seals. Test the relief valve and pump output in the Steering chapter on page 233.
Manual Section: 7 SteeringBrakes pull hard to one side, left or right brake drags when pedal released p. 196
Compare brake pedal free travel on both sides: spec is 20 to 30 mm (page 204); any gap between left and right is the first sign of imbalance. Inspect each brake disc for wear and each cam plate for warping. Confirm the pedal return springs are intact in the Brakes chapter on page 196.
Manual Section: 5 BrakesFrequently Asked Questions
What are the recommended service intervals?

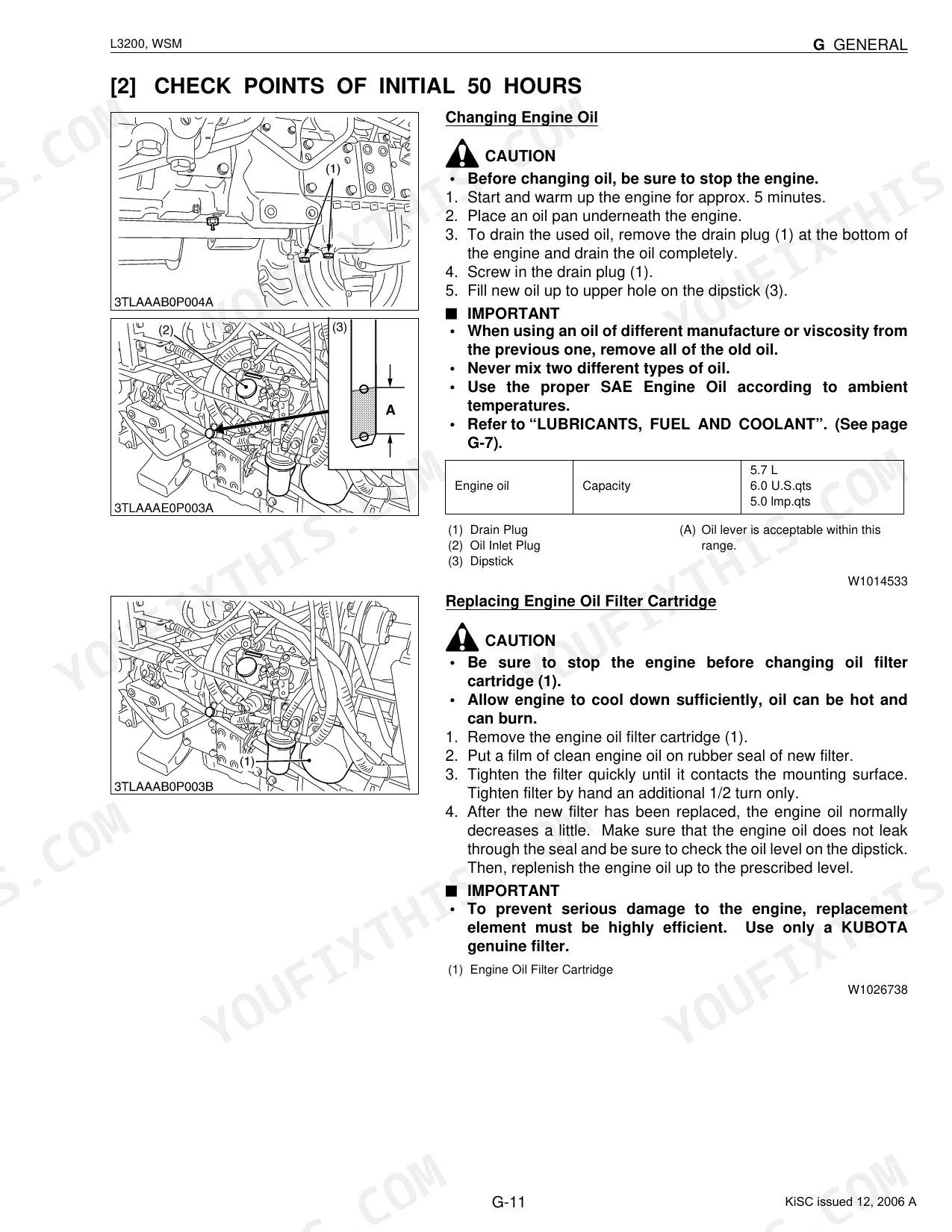

The maintenance schedule lays out every interval. Engine oil should be changed every 100 hours and the oil filter replaced every 200 hours. Greasing comes due every 50 hours, and the transmission fluid gets changed every 400 hours.
What fluids and capacities does this machine require?
Fuel is No. 2-D diesel (34 L / 9.0 U.S.gals). The engine takes oil rated API CD, CE or CF (5.7 L / 6.0 U.S.qts with filter), the transmission case uses KUBOTA UDT or SUPER UDT fluid (27.5 L / 7.3 U.S.gals), and the greasing points take multipurpose grease (NLGI-2 or NLGI-1).
How to troubleshoot engine won't start?
When the engine won't start, the usual causes are no fuel, air in the fuel system (bleed, page G-29), or a clogged fuel filter (change, page G-19). Less often it's incorrect injection timing (adjust, page 1-S16) or a discharged battery (charge, page G-23).
What are the hydraulic system specifications?
For power steering, pump delivery runs above 14.5 L/min at no pressure and above 13.5 L/min at rated pressure (11.1 to 12.1 MPa), which is also the relief valve setting. The three-point system delivers above 23.9 L/min at no pressure and above 22.2 L/min at rated pressure (15.7 to 16.7 MPa).
What format is this Kubota L3200 manual in?
A 321-page Service Manual in searchable PDF, ready to download the moment checkout completes. View it on computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this Kubota L3200 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are there wiring harness diagrams in this Kubota L3200 manual?
Included. The Kubota L3200 Service Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
Document Quality
This is a high-quality scanned document with an accurate OCR layer, so you can search and copy the full text content. The text is consistently crisp, dark, and very easy to read on every page. Diagrams and illustrations are clear, with labels remaining readable even when zoomed. The pages are clean, free from scan artifacts, stains, or skewed content. You will find intentional blank pages used as section dividers throughout the manual.
