This is the factory operator's manual for the Kubota L3200 and L3800 compact tractors, a 79 page PDF covering both models and their D1503-M-E3 and D1803-M-E3 diesel engines. It is the book that came with these 2011 to 2015 tractors, written for the person actually running and maintaining the machine.Inside you get full specifications and capacities, implement limitations, and clear guidance on the instrument panel, starting and stopping the engine, and operating the tractor, PTO, three-point hitch, and hydraulics. The maintenance and periodic service sections lay out the service intervals from daily checks through every 800 hours, and a troubleshooting section walks through common running faults.Owners, independent mechanics, and restorers use it to run the tractor safely, set tire pressures and ballast, keep to the service schedule, and torque wheel and hitch hardware to spec. Delivered as an instant PDF download you can read on any device or print for the shop.
What's Inside This Kubota L3200, L3800 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 9-16 | Before Operating the Tractor, CAB/ROPS, Operating on Slopes, Driving the Tractor on the Road, Parking the Tractor, Danger, Warning and Caution Labels |
| Servicing of Tractor | 17 | Tractor Identification Plate, Engine Serial Number, ROPS Identification Plate |

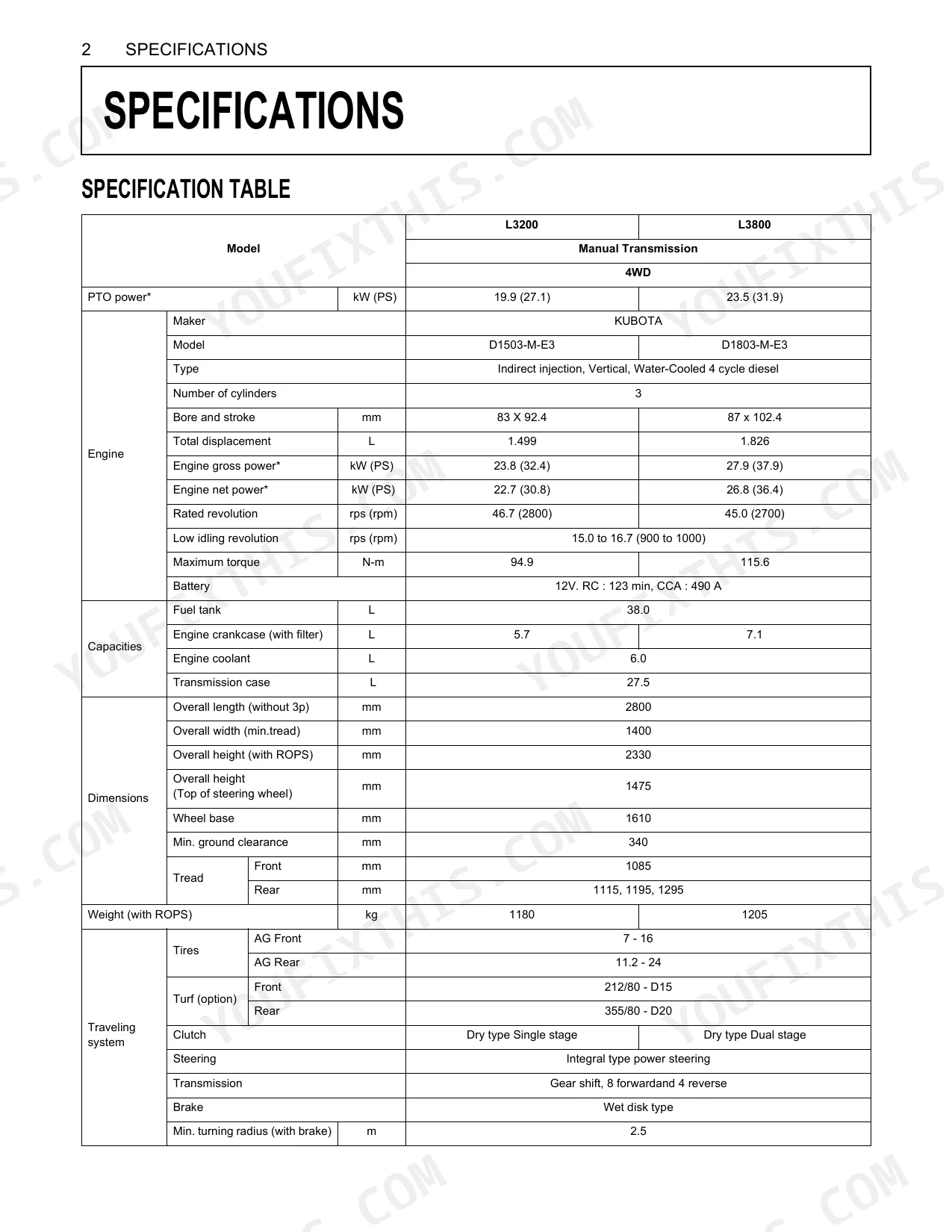

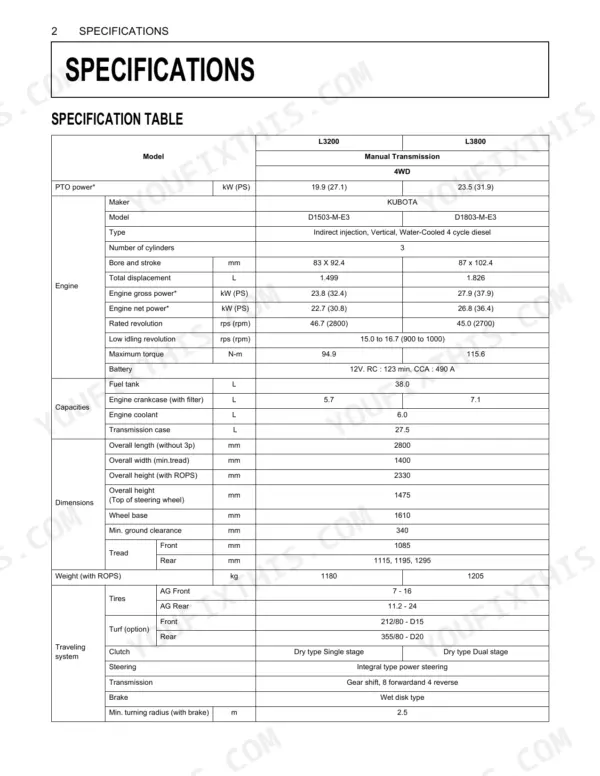

| Specifications | 18-19 | PTO Power, Engine Specifications, Capacities, Dimensions, Traveling System, Hydraulic Control System, Traveling Speeds |
| Implement Limitations | 20-21 | Tread (Max. Width), Lower Link End Max. Lifting Capacity, Implement Weight, Max. Drawbar Load, Trailer Loading Weight, Specific Implement Specs |

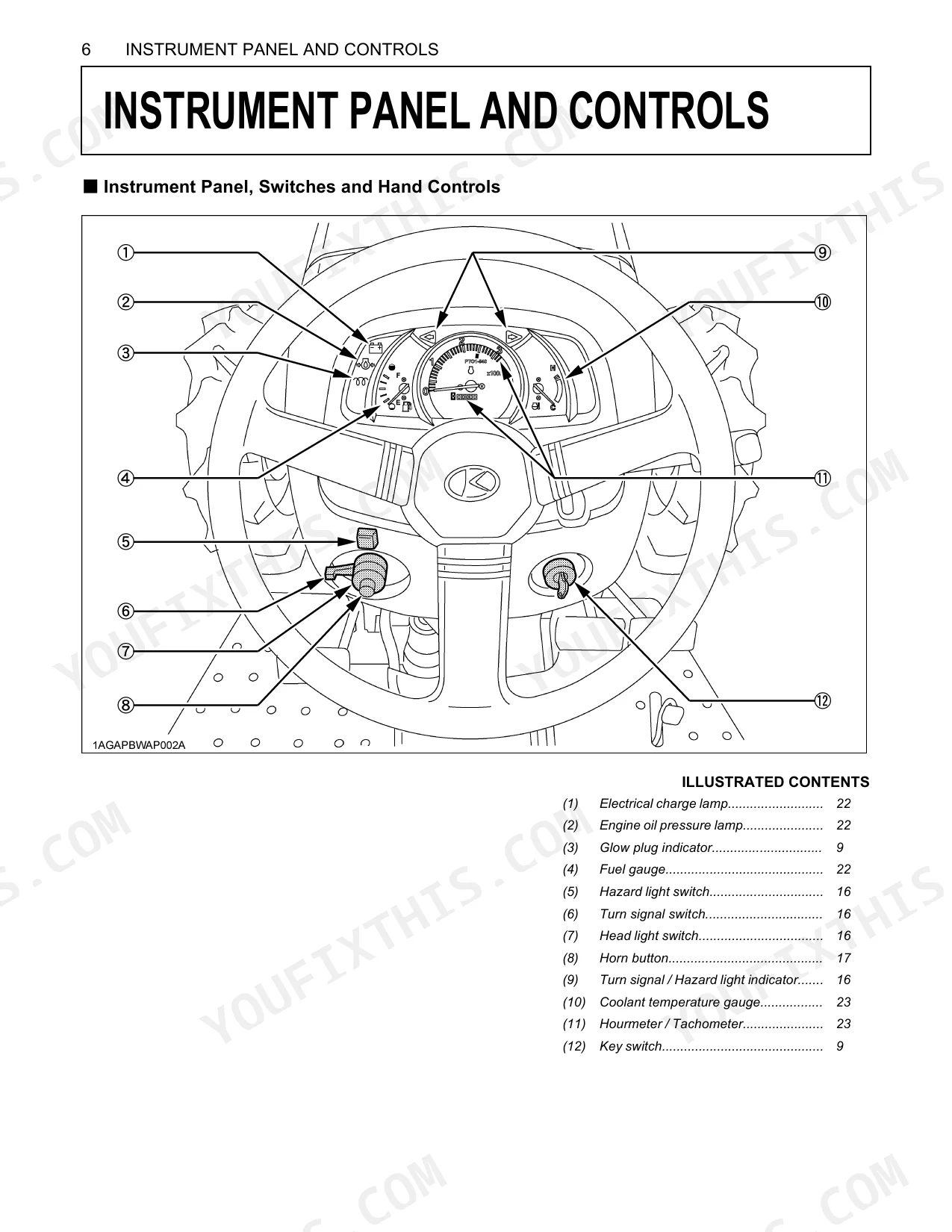

| Instrument Panel and Controls | 22-23 | Instrument Panel, Switches and Hand Controls, Electrical Charge Lamp, Engine Oil Pressure Lamp, Fuel Gauge, Hourmeter/Tachometer |
| Pre-Operation Check | 24 | Daily Check, Walk Around Inspection, Checking and Refueling, Checking Engine Oil Level, Checking Transmission Oil Level, Checking Coolant Level |

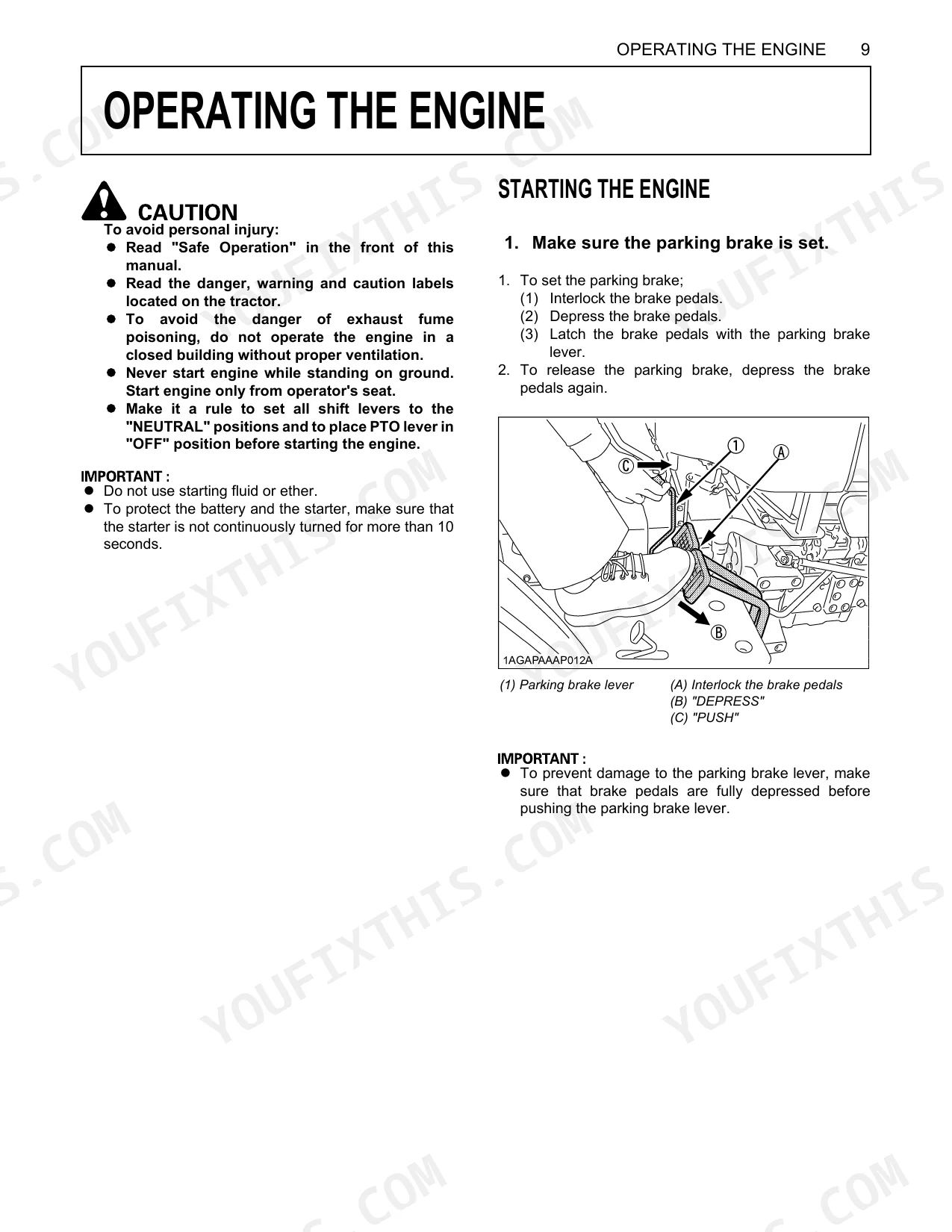

| Operating the Engine | 25-29 | Starting the Engine, Stopping the Engine, Warming Up, Warm-Up Transmission Oil in the Low Temperature Range, Jump Starting |

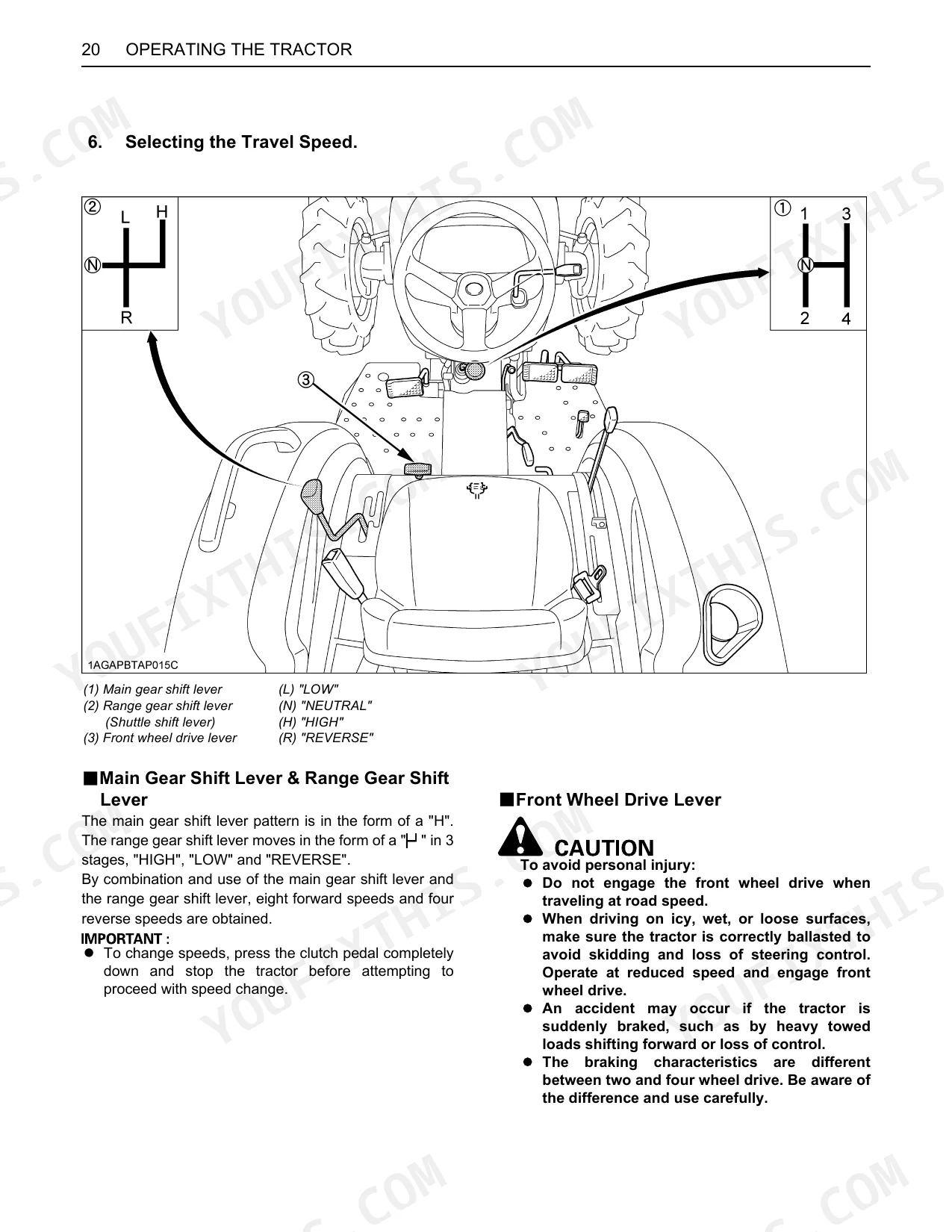

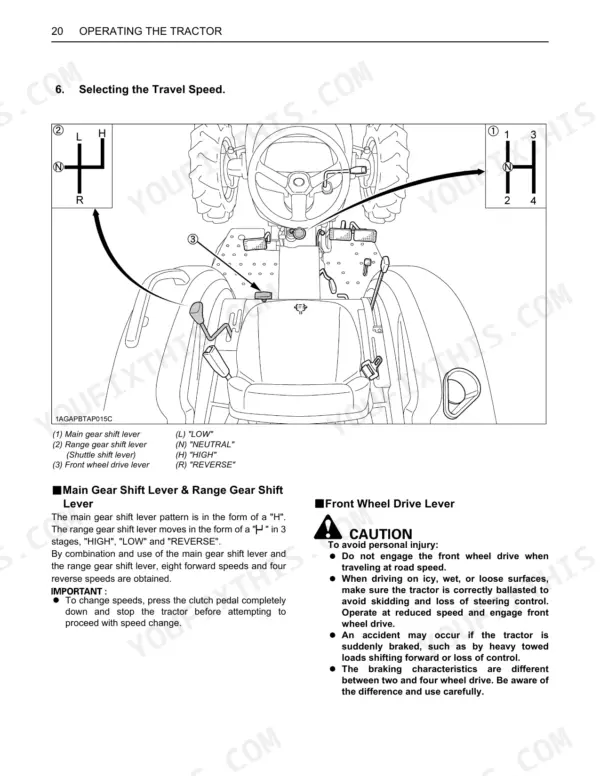

| Operating the Tractor | 30-37 | Operating New Tractor, Adjusting the Operator's Position, Head Light Switch, Turn Signal / Hazard Light Switch, Brake Pedals, Clutch Pedal |
| PTO | 42 | PTO Operation, PTO Gear Shift Lever, Live PTO Operation, PTO Shaft Cover and Shaft Cap |
| Three-Point Hitch & Drawbar | 43-45 | 3-Point Hitch, Selecting the Holes of Lower Links, Selecting the Top Link Mounting Holes, Lifting Rod (Right), Top Link, Adjusting Drawbar Length |
| Hydraulic Unit | 46-48 | 3-Point Hitch Control System, Position Control, Float Control, 3-Point Hitch Lowering Speed, Auxiliary Hydraulics, Hydraulic Block Type Outlet |
| Tires, Wheels and Ballast | 49-51 | Tires, Inflation Pressure, Wheel Adjustment, Front Wheels, Rear Wheels, Ballast, Front Ballast, Rear Ballast |
| Maintenance | 52-55 | Service Intervals, Lubricants, Fuel and Coolant, Engine Oil, Transmission Oil |
| Periodic Service | 56-60 | How to Open the Hood, Daily Check, Every 50 Hours, Every 100 Hours, Every 200 Hours, Every 400 Hours, Every 600 Hours, Every 800 Hours |
| Storage | 61 | Tractor Storage, Removing the Tractor From Storage |
| Troubleshooting | 62 | Engine Troubleshooting, No Fuel Flow, Difficult to Start, Insufficient Engine Power, Engine Stops Suddenly, Exhaust Fumes Colored, Engine Overheats |
| Options | 63 | Engine Block Heater, Front End Weights, Rear Wheel Weights, Sunshade, Front Grill Guard, Work Light |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel bolt torque (smaller bolts) | 137 N-m (14 kgf-m) | p. 46 |
| Wheel bolt torque (larger bolts) | 215 N-m (22 kgf-m) | p. 46 |
| Fuel tank capacity | 38.0 L | p. 18 |
| Engine coolant capacity | 6.0 L | p. 18 |
| Transmission case capacity | 27.5 L | p. 18 |
| Front axle case capacity | 4.5 L | p. 18 |
| Max. lift force at lift points | 906 kg | p. 19 |
| Hydraulic system pressure | 15.7 MPa (160 kgf/cm²) | p. 19 |
| L3200 | ||
| Main hydraulic pump capacity | 24.7 L/min | p. 19 |
| Engine crankcase capacity (with filter) | 5.7 L | p. 18 |
| L3800 | ||
| Main hydraulic pump capacity | 23.9 L/min | p. 19 |
| Engine crankcase capacity (with filter) | 7.1 L | p. 18 |
Kubota L3200, L3800 Common Problems This Manual Covers
Difficult starting or no start
A tractor that cranks but will not fire, or fires and dies, is a common complaint on these models. The Troubleshooting section walks through no fuel flow, difficult starting, and engine stops suddenly with likely causes.
Manual Section: Troubleshooting p. 62Jerky three-point hitch operation
Rough or inconsistent hitch behavior is repeatedly reported on the L3800. The Hydraulic Unit section explains the three-point hitch control, position control, float control, and lowering speed adjustment.
Manual Section: Hydraulic Unit p. 46Poor cold-weather starting
Hard starts and sluggish response in the cold are common on diesel compacts. The Operating the Engine section covers starting, warming up, and warming the transmission oil in the low temperature range.
Manual Section: Operating the Engine p. 25Rear wheel bolts working loose
Wheel bolts can loosen with use and must be retorqued to spec. The Tires, Wheels and Ballast section gives the rear wheel bolt torque and covers wheel adjustment and ballast setup.
Manual Section: Tires, Wheels and Ballast p. 49Skipped daily checks cause damage
Running with low oil, coolant, or transmission fluid leads to avoidable wear. The Pre-Operation Check section lists the daily walk-around and the oil, transmission, and coolant level checks.
Manual Section: Pre-Operation Check p. 24Overdue service intervals
Wear items left past their interval cause downtime and bigger repairs. The Periodic Service section schedules the every 50, 100, 200, 400, 600, and 800 hour tasks.
Manual Section: Periodic Service p. 56Frequently Asked Questions
Which tractors does this manual cover?
It covers the Kubota L3200 and L3800 compact tractors, built with the D1503-M-E3 and D1803-M-E3 diesel engines. Both models are handled together throughout the book.
Does it list capacities and specifications?
Yes. The Specifications section gives PTO power, engine data, and capacities such as the 38.0 L fuel tank, along with dimensions, traveling speeds, and the hydraulic control system figures. p. 18
What is the rear wheel bolt torque?
The Tires, Wheels and Ballast section gives the rear wheel bolt torque as 215 N-m (22 kgf-m), and covers wheel adjustment and front and rear ballast. p. 49
Does it help with troubleshooting?
Yes. The Troubleshooting section covers engine faults including no fuel flow, difficult starting, insufficient power, sudden stopping, colored exhaust, and overheating. p. 62
How will I receive this Kubota L3200 Operator Manual?
Download the complete 79-page searchable Operator Manual right after checkout. It opens on any device, whether that's a laptop at your desk or a phone out in the field.
Can I print this Kubota L3200 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
