This is the Kubota L3200 and L3800 workshop manual, a 470-page PDF covering both compact tractors and their D1503-M-E3 and D1803-M-E3 diesel engines. It matches the factory service documentation and is organized by system for direct access to each repair.Coverage runs through the engine, clutch, both the manual transmission and HST drivetrains, the rear and front axles, brakes, steering, the three point hitch hydraulic system, and full wiring diagrams. The General section carries tractor identification, lubricants, and tightening torques, with verified figures such as a 38.0 L fuel tank, 5.7 L engine oil capacity on the L3200, and a 27.5 L manual transmission case.Owners, restorers, and independent mechanics get the specifications, torque values, and step by step procedures needed to service or rebuild the L3200 and L3800 to Kubota standards.
What's Inside This Kubota L3200, L3800 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 16-81 | Tractor Identification (Model Name and Serial Numbers, Cylinder Number) |

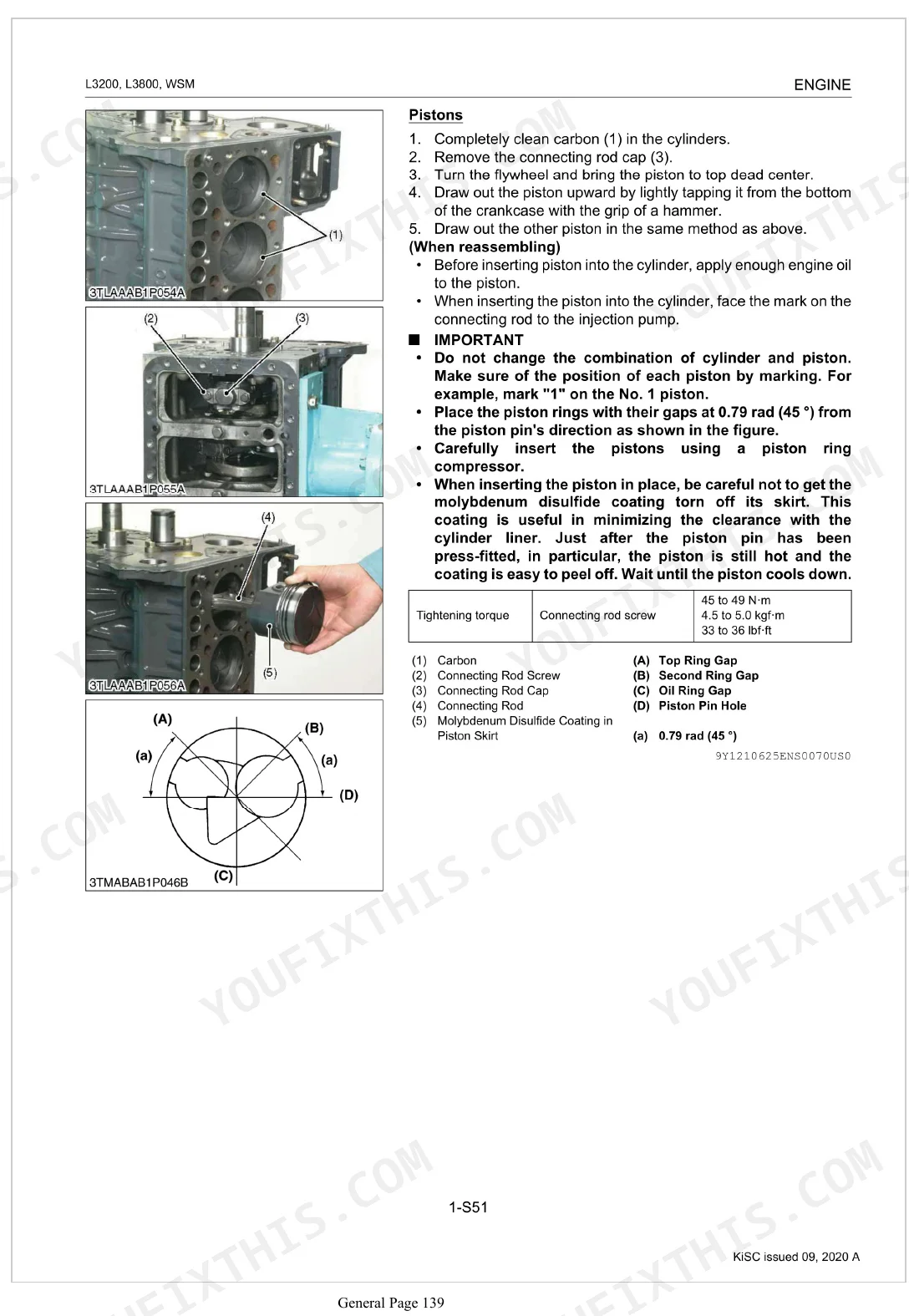

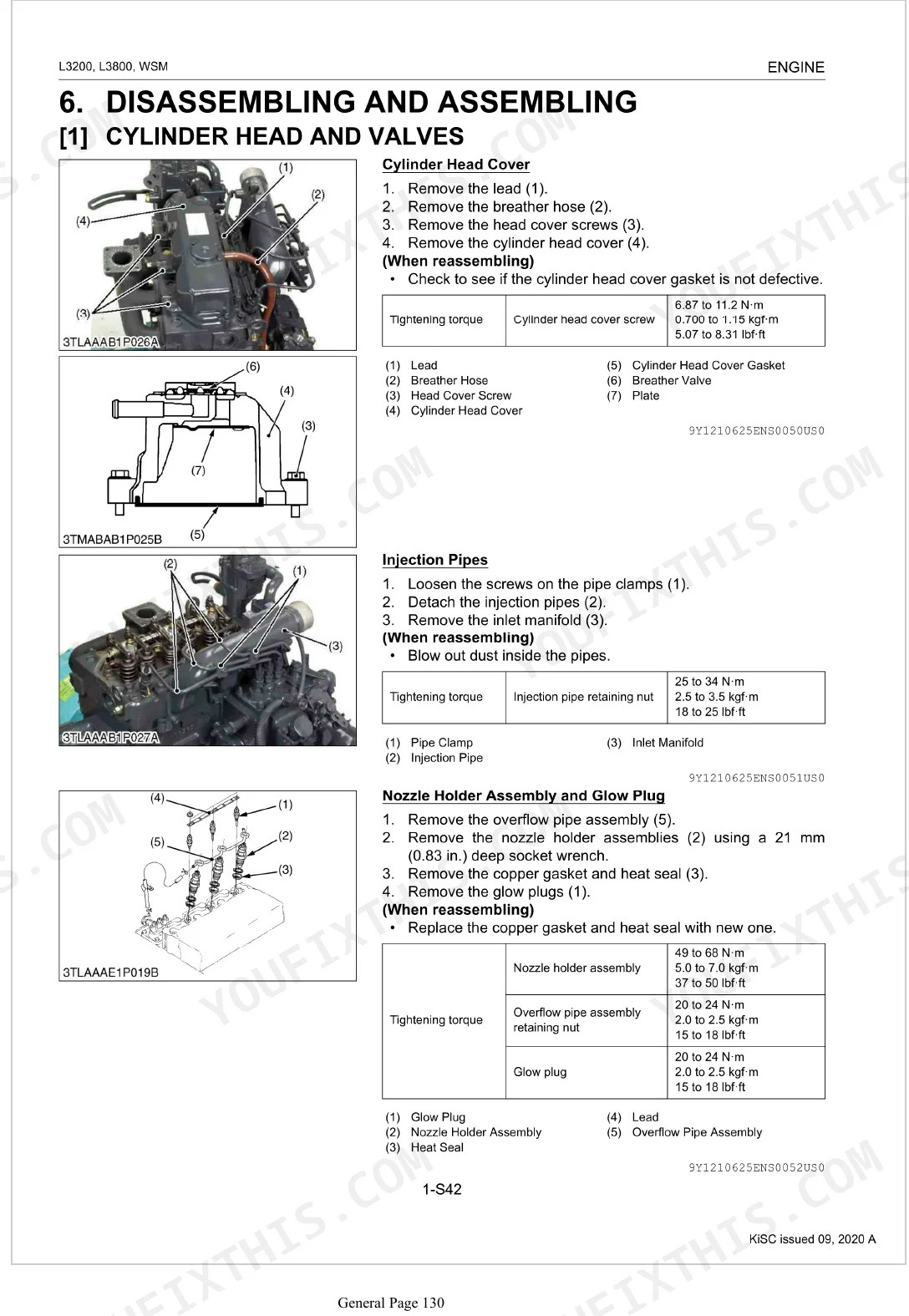

| Engine | 82-162 | Fuel System, Lubricating System, Cooling System, Features, Preparation (Manual Transmission Type, HST Type) |
| Clutch | 163-192 | Preparation (Separating Clutch Housing Case From Engine), Structure |
| Transmission | 193-289 | Manual Transmission Type (Power Train, Shift Linkage Mechanism, PTO System), HST Type (Power Train, HST Pedal Control Linkage, Cruise Control |
| Rear Axle | 290-302 | Separating Rear Axle Case, Disassembling Rear Axle |
| Brakes | 303-318 | Operation, Features |
| Front Axle | 319-338 | Separating Front Axle Case, Disassembling Front Axle |
| Steering | 339-356 | Steering Gear Box (Structure, Operation), Hydraulic Circuit, Structure |

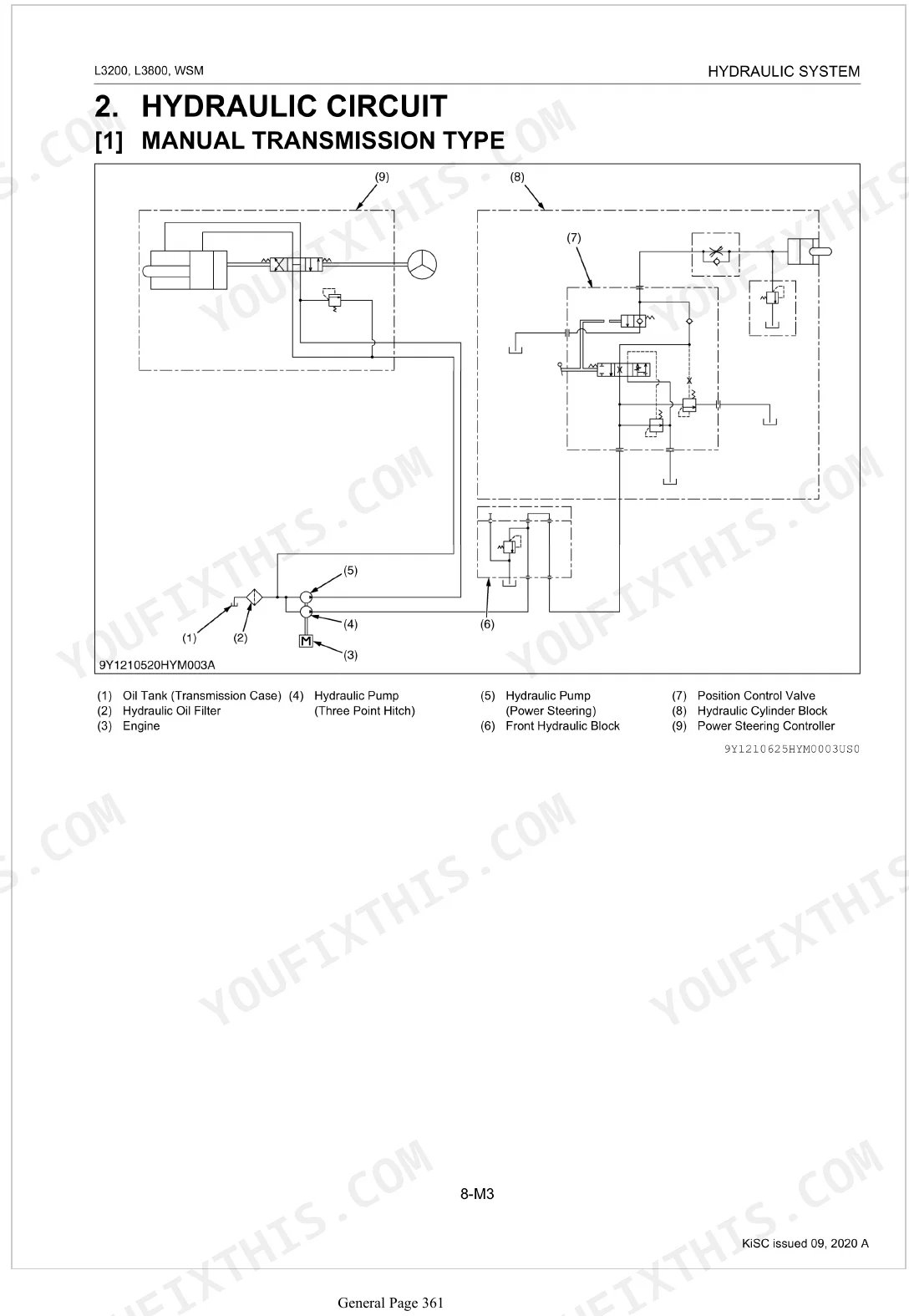

| Hydraulic System | 357-400 | Hydraulic Pump, Three Point Hitch Hydraulic System (Hydraulic Cylinder, Linkage Mechanism, Operation, Front Hydraulic Block), Hydraulic Circuit (Manual Transmission Type, HST Type) |
| Electrical System | 401-470 | Wiring Diagram (Manual Transmission Type, HST Type), Electrical Circuit (Manual Transmission Type, Instrument Panel (Indication Items of Meter Panel, Easy Checker™™) |
Every system also includes tightening torques, disassembling and assembling, servicing, troubleshooting, checking and adjusting, and servicing specifications.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel tank capacity | 38.0 L (10.0 U.S.gals, 8.4 Imp.gals) | p. 26 |
| Engine Coolant Capacity | 6.0 L (6.3 U.S.qts, 5.3 Imp.qts) | p. 12 |
| Transmission Case Capacity (Manual Transmission) | 27.5 L (7.3 U.S.gals, 6.1 Imp.gals) | p. 12 |
| Transmission Case Capacity (HST) | 23.5 L (6.2 U.S.gals, 5.2 Imp.gals) | p. 12 |
| Front Axle Case Capacity | 4.5 L (4.8 U.S.qts, 4.0 Imp.qts) | p. 12 |

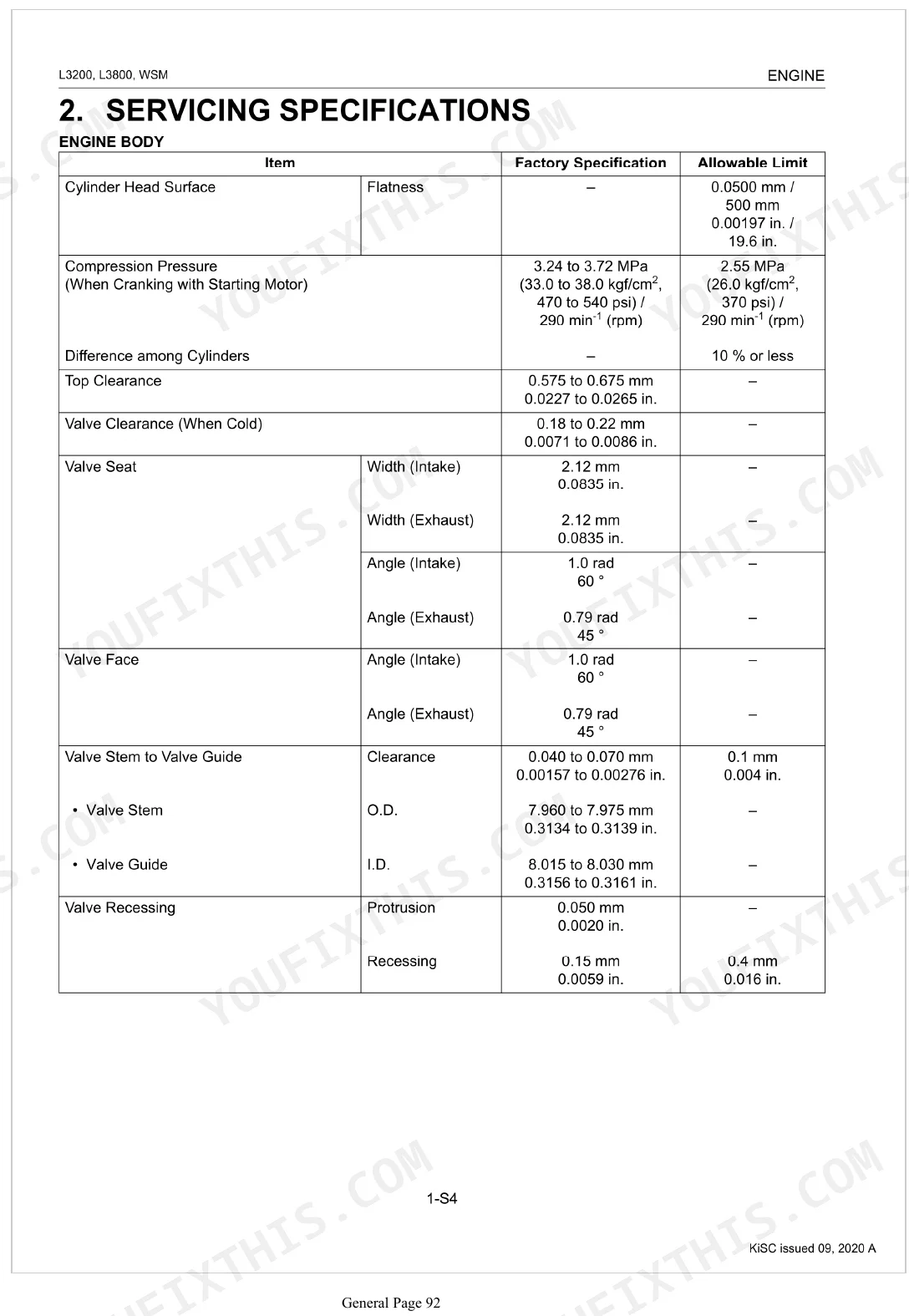

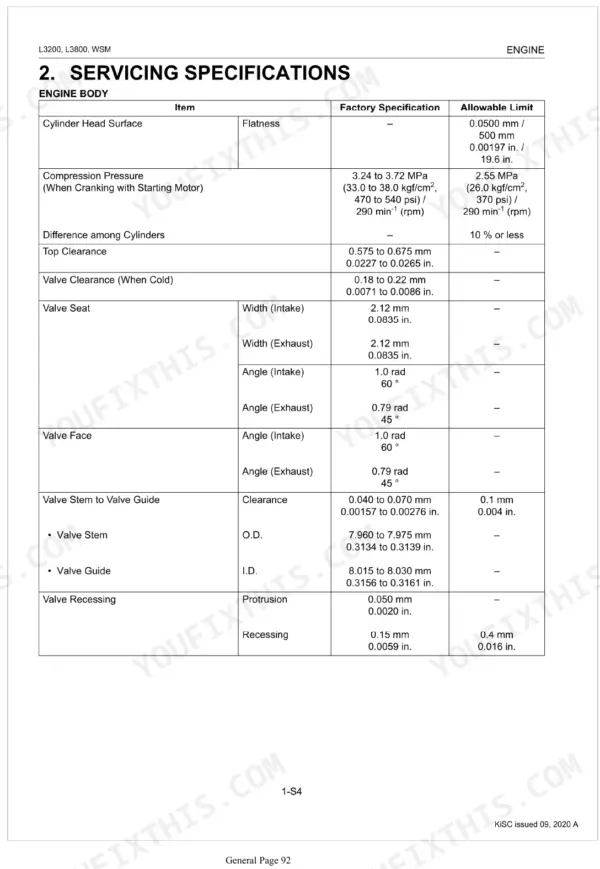

| Cylinder Head Surface Flatness Allowable Limit | 0.0500 mm | p. 92 |
| Valve Clearance (When Cold) | 0.18 to 0.22 mm | p. 92 |
| Fan Belt Tension (Deflection) | 7.0 to 9.0 mm | p. 97 |
| Nozzle Holder Assembly Tightening Torque | 49 to 68 N·m | p. 98 |
| L3200 | ||
| Engine crankcase (with filter) capacity | 5.7 L (6.0 U.S.qts, 5.0 Imp.qts) | p. 26 |
| Engine Oil Capacity (with filter) | 5.7 L (6.0 U.S.qts, 5.0 Imp.qts) | p. 12 |
| L3800 | ||
| Engine Oil Capacity (with filter) | 7.1 L (7.5 U.S.qts, 6.2 Imp.qts) | p. 12 |
Kubota L3200, L3800 Common Problems This Manual Covers

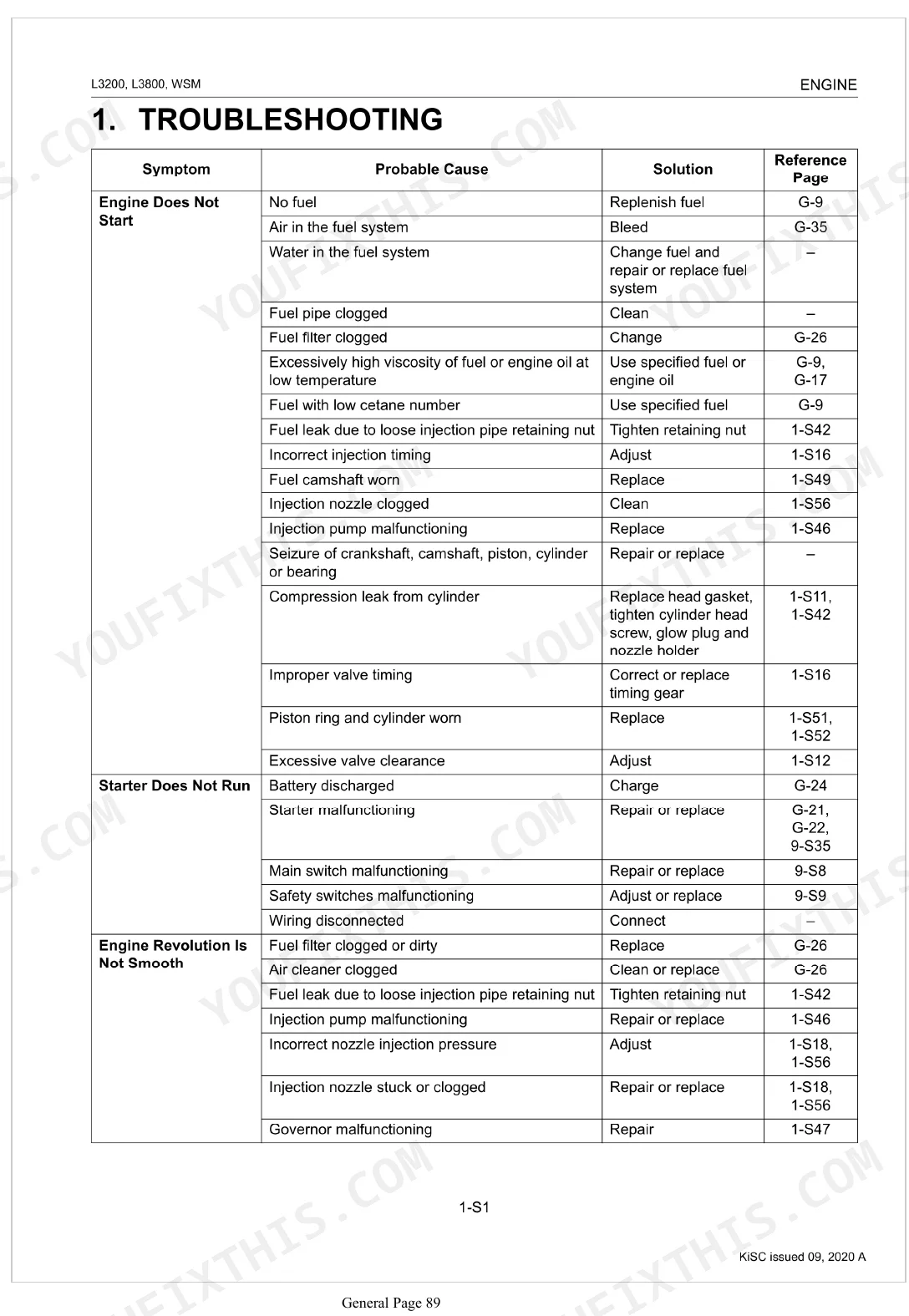

Hard starting or low power
Diesel L3200 and L3800 tractors can start hard or lose power when the fuel system, injectors, or valve clearance drift. The Engine section covers the fuel system, servicing specifications, and adjustments.
Manual Section: Engine p. 82Clutch slip or drag
A slipping or dragging clutch makes shifting difficult and wastes power. The Clutch section covers structure, adjustment, and separating the clutch housing from the engine.
Manual Section: Clutch p. 163Weak HST or shifting trouble
Sluggish HST travel or shifting problems trace to the drivetrain. The Transmission section covers both manual and HST types, including the power train, PTO system, and shift linkage.
Manual Section: Transmission p. 193Slow or weak three point hitch

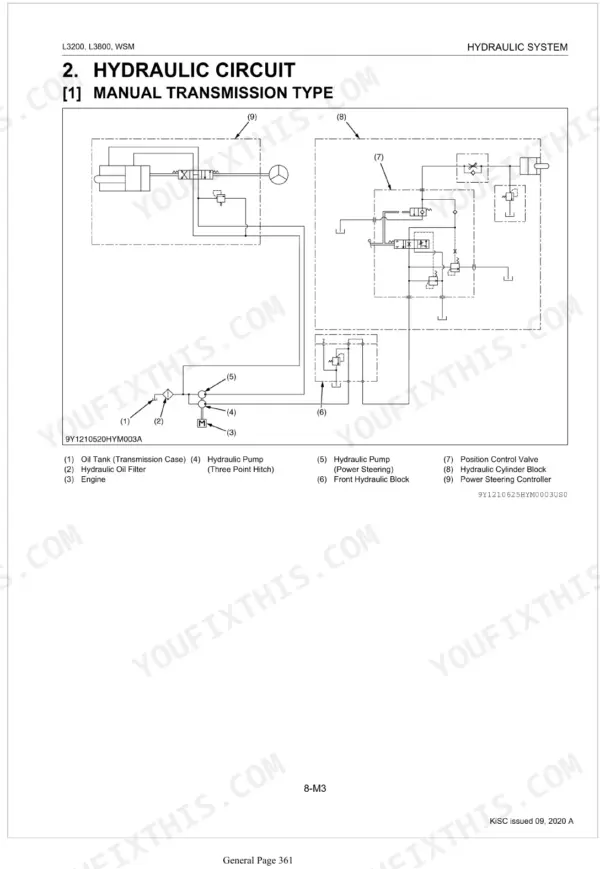

A slow, weak, or drifting hitch usually points to the hydraulic pump or cylinder. The Hydraulic System section covers the pump, three point hitch system, and hydraulic circuits.
Manual Section: Hydraulic System p. 357Poor or uneven braking
Weak or uneven braking can come from worn friction surfaces or misadjusted linkage. The Brakes section covers operation, features, and servicing with the correct free travel.
Manual Section: Brakes p. 303Steering play or hard steering
Excess play or heavy steering can come from the steering gear box or hydraulic circuit. The Steering section covers its structure, operation, and hydraulic circuit.
Manual Section: Steering p. 339Charging or instrument faults
Charging faults, dead lights, or a blank meter panel are traced through the wiring. The Electrical System section provides wiring diagrams and covers the instrument panel and Easy Checker.
Manual Section: Electrical System p. 401Frequently Asked Questions
Which tractors does this manual cover?
It covers the Kubota L3200 and L3800 compact tractors, including both manual transmission and HST versions, with the D1503-M-E3 and D1803-M-E3 diesel engines. It runs 470 pages.
What is the engine oil capacity?
With the filter, the L3200 holds 5.7 L and the L3800 holds 7.1 L of engine oil. Full capacities are listed in the General section. p. 16
Are wiring diagrams included?
Yes. The Electrical System section provides wiring diagrams and electrical circuits for both the manual transmission and HST versions. p. 401
Does it list tightening torques?

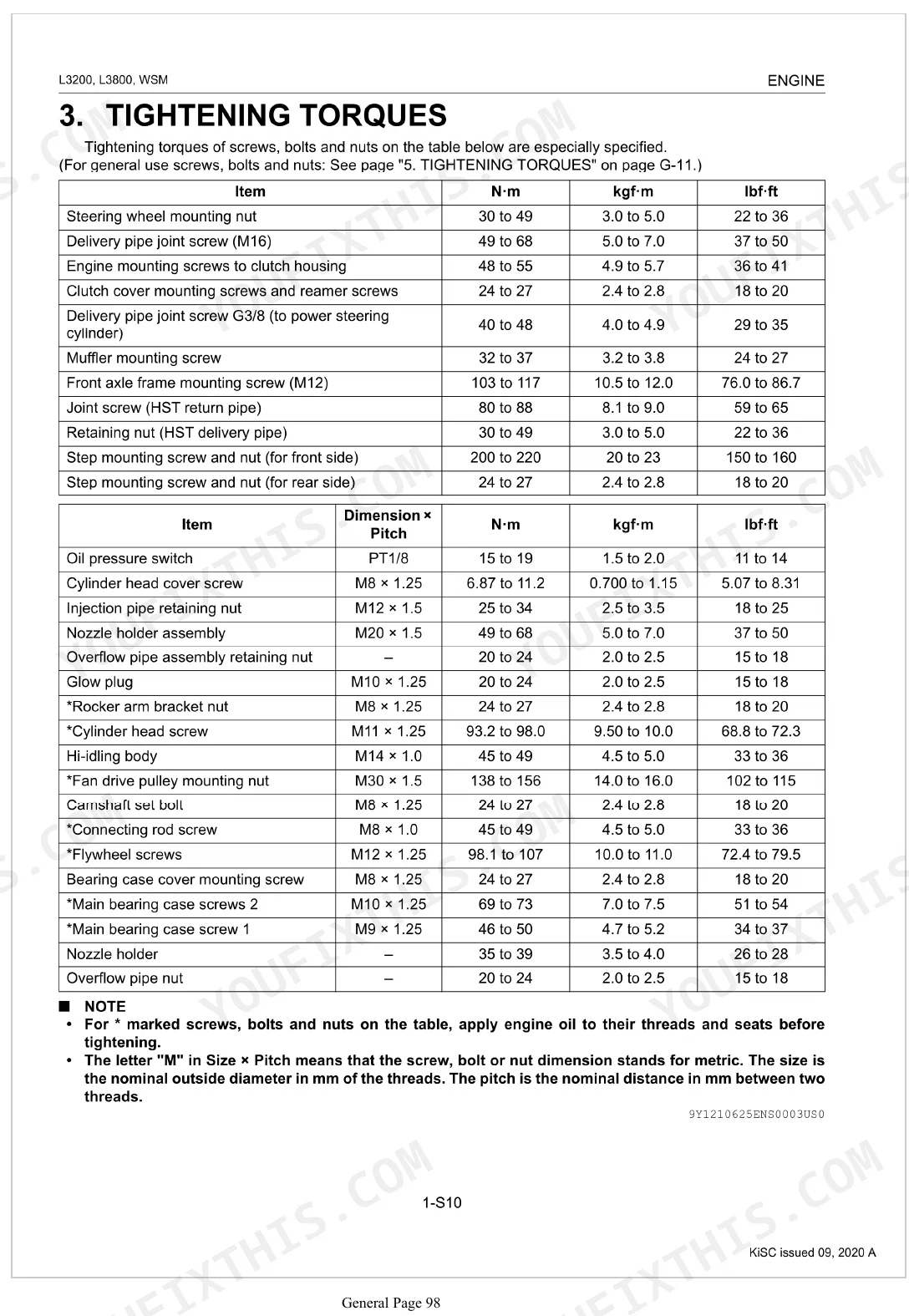

Yes. The General section lists general-use and metric fastener torques, for example 40 to 45 N·m for an M10 no-grade bolt. p. 16
Is this Kubota L3200 manual a PDF I download?
Immediate download of the complete 470-page searchable Workshop Manual. Open it on any device, whether that's the laptop at your desk or your phone in the field.
Can I print a copy of this Kubota L3200 Workshop Manual for the shop?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Can I find wiring schematics in this Kubota L3200 manual?

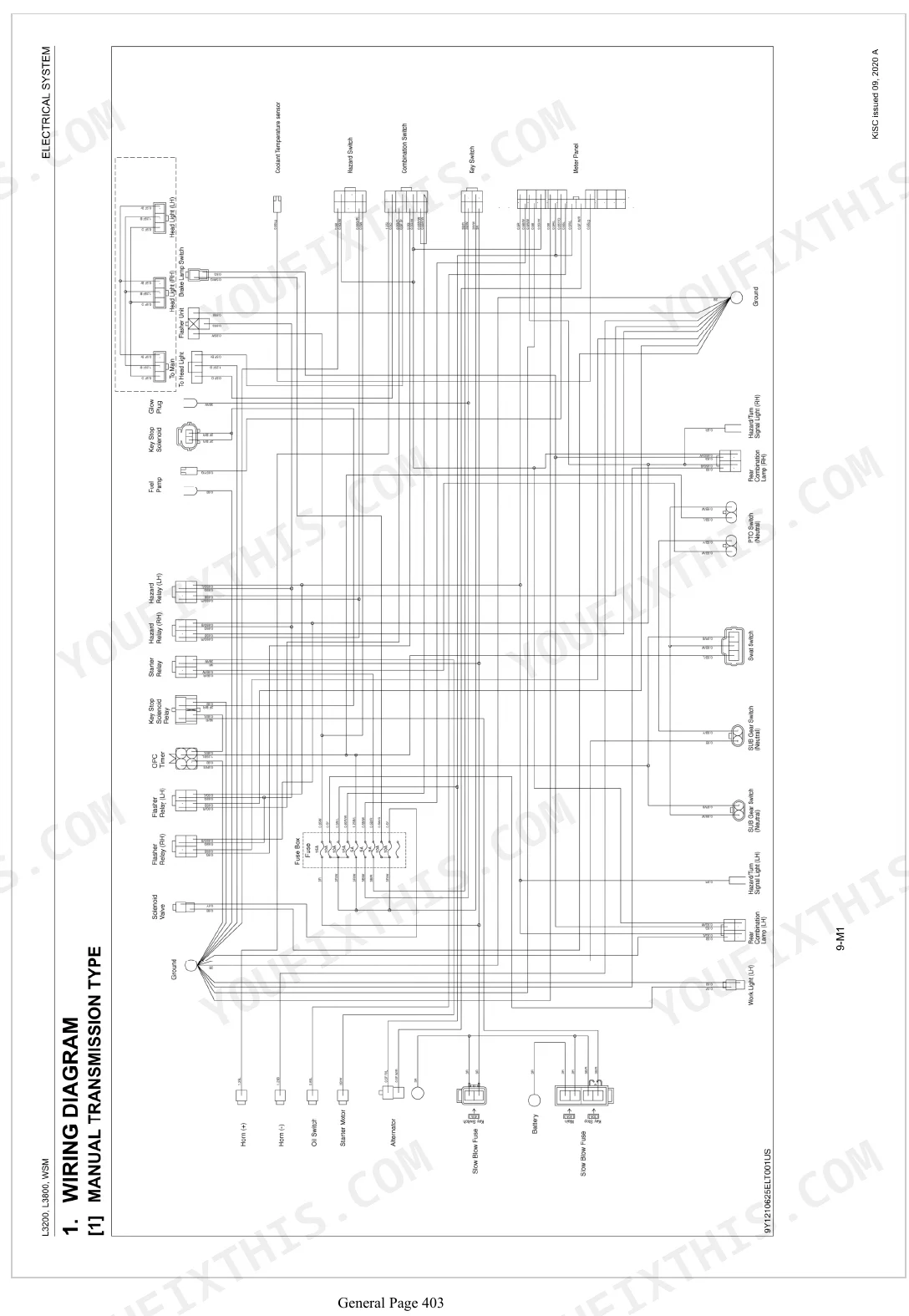

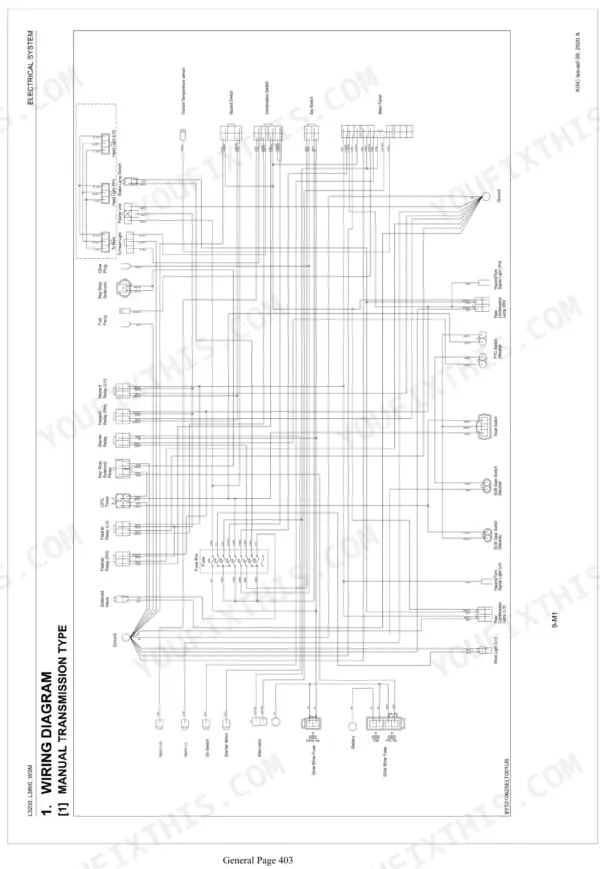

Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Kubota L3200, L3800.
