This Operator Manual (OEM #1G932-8916-5) was written for one job: keeping your Kubota D1503-M-E and its M-series siblings running instead of parked in the shop. Safety comes first, covering PPE requirements, fuel handling, exhaust gas risks, and what to do if the engine turns in reverse rotation. From there it walks through the maintenance schedule, cold weather starting steps, and periodic service for engine oil, the fuel system, radiator, air cleaner, and fan belt. The practical numbers are here too: fan belt deflection of 7 to 9 mm, the first oil change at 50 hours, then every 200 hours after that. The full 38 pages are bookmarked and searchable, so when the engine quits you can jump straight to the section you need by keyword.
What's Inside This Kubota 03-Series Diesel Engines Operator Manual

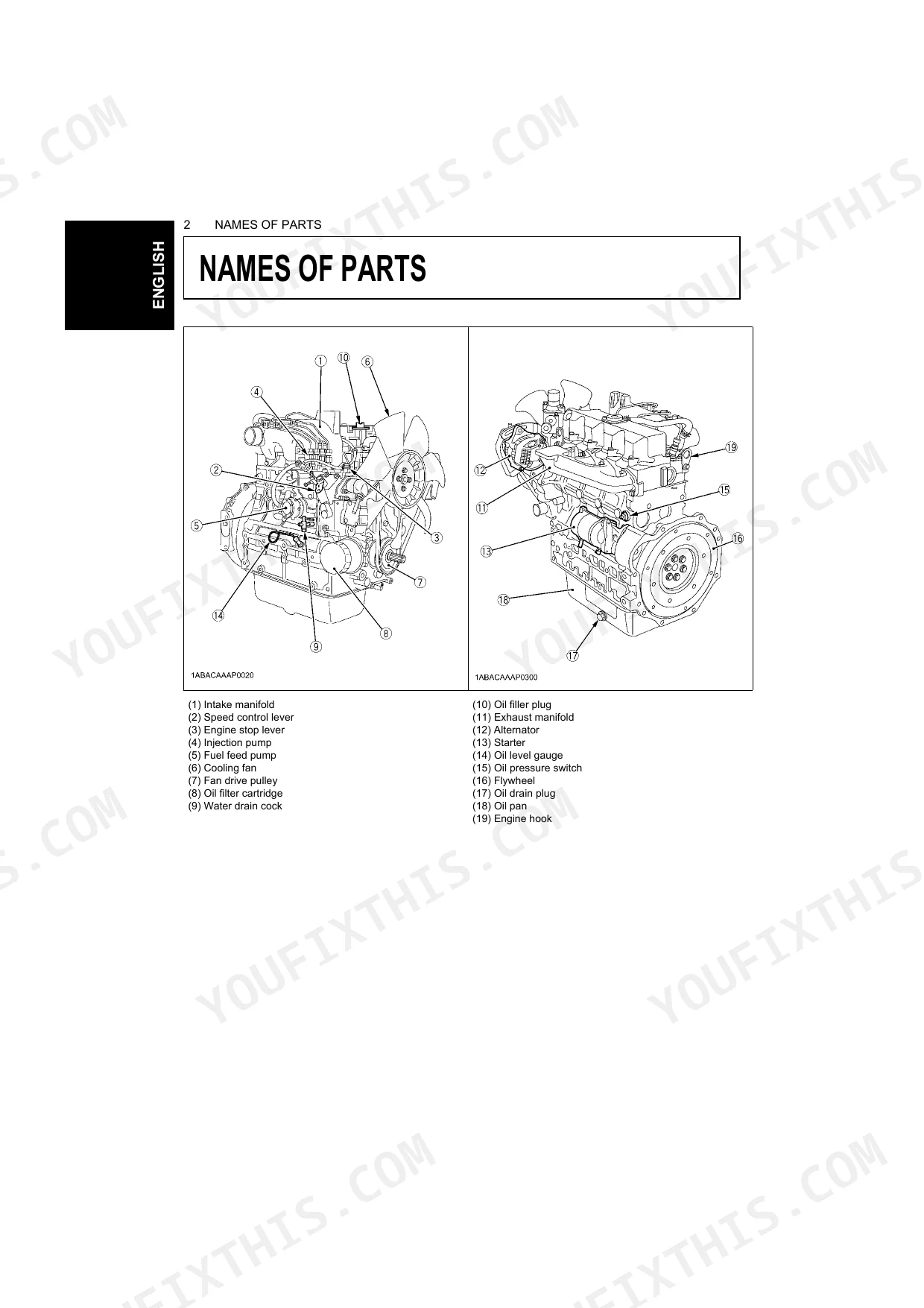

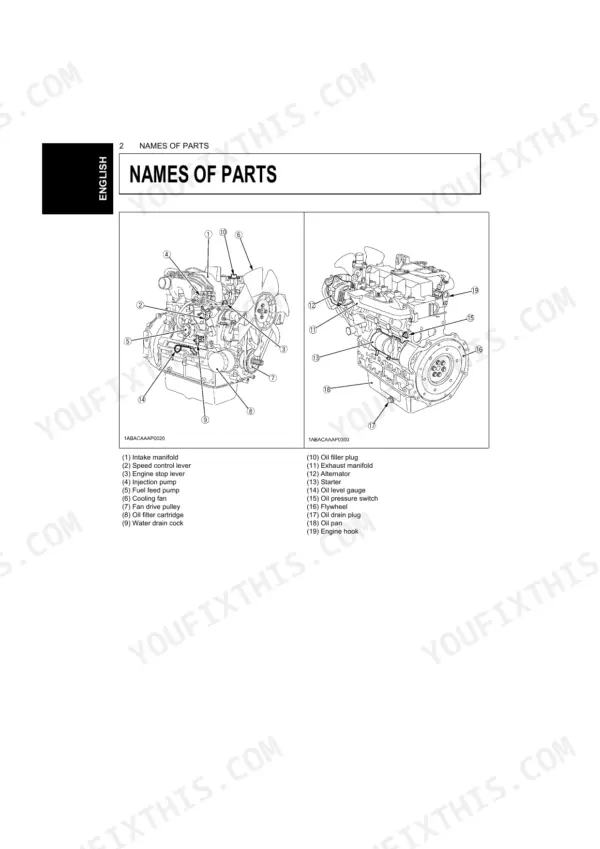

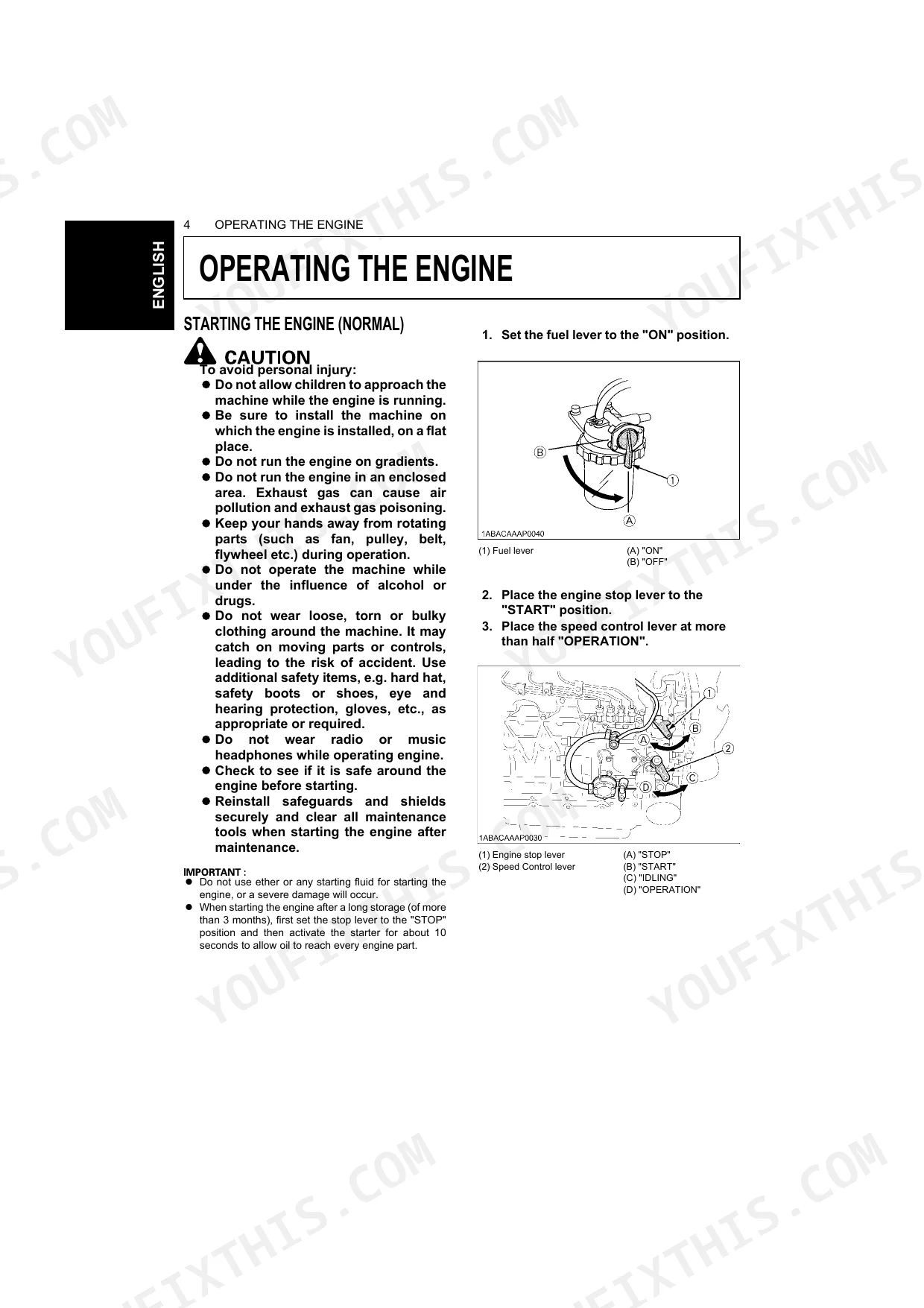

| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | - | Check Before Starting & Operating the Engine, Safe Handling of Fuel and Lubricants -Keep Away From Fire, Exhaust Gases & Fire Prevention, Escaping Fluid |
| Servicing of the Engine | - | - |
| Names of Parts | - | Intake Manifold, Speed Control Lever, Injection Pump, Cooling Fan, Oil Filter Cartridge, Alternator |
| Pre-Operation Check | - | Break-In, Daily Check, Oil or Water Leaks, Engine Oil Level and Contamination, Amount of Fuel, Amount of Coolant |
| Operating the Engine | - | Starting the Engine, Cold Weather Starting, Stopping the Engine, Checks During Operation, Reversed Engine Revolution and Remedies |

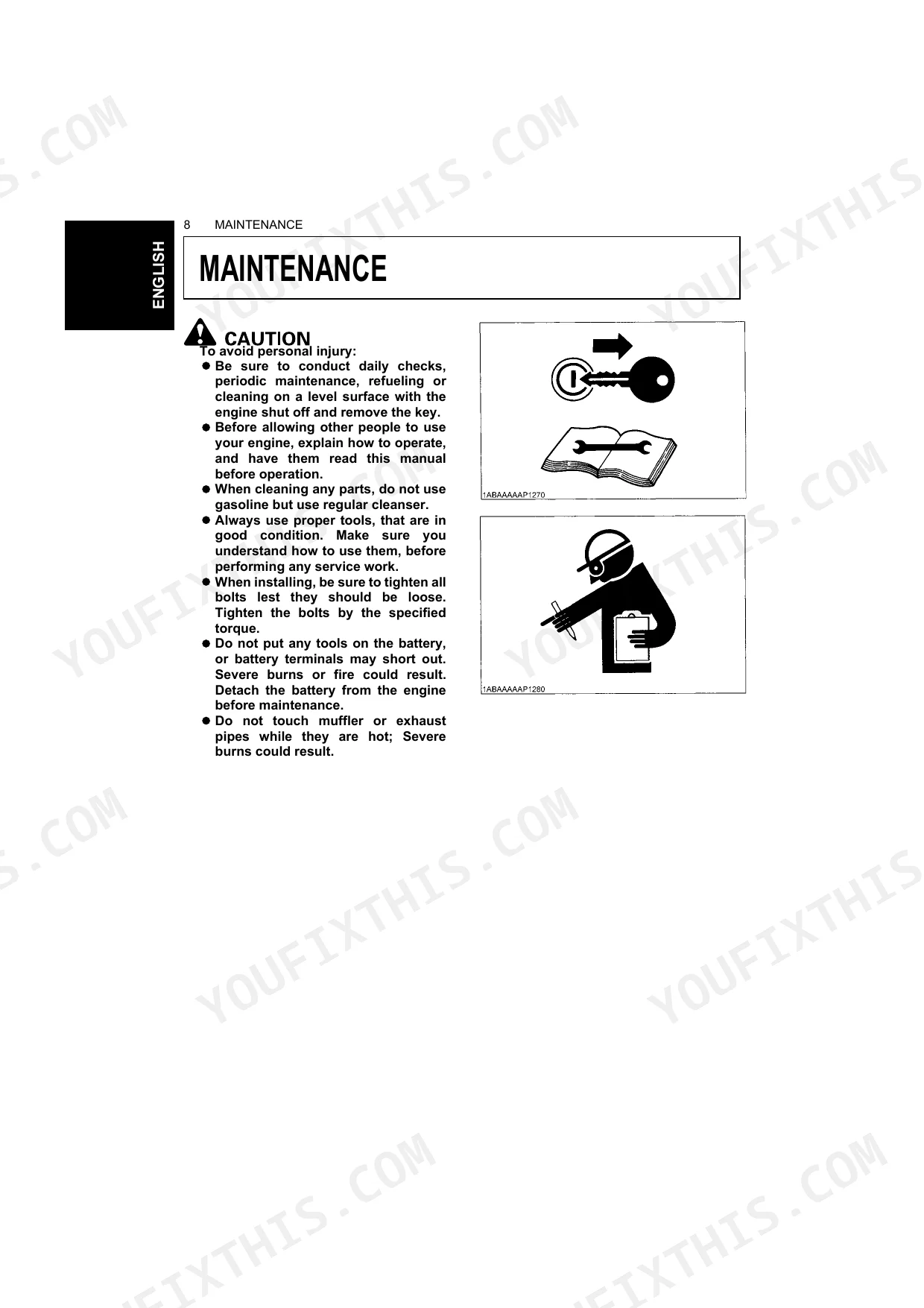

| Maintenance | - | Service Intervals |
| Periodic Service | - | Fuel, Engine Oil, Radiator, Air Cleaner, Electric Wiring, Fan Belt |
| Carriage and Storage | - | Carriage, Storage |

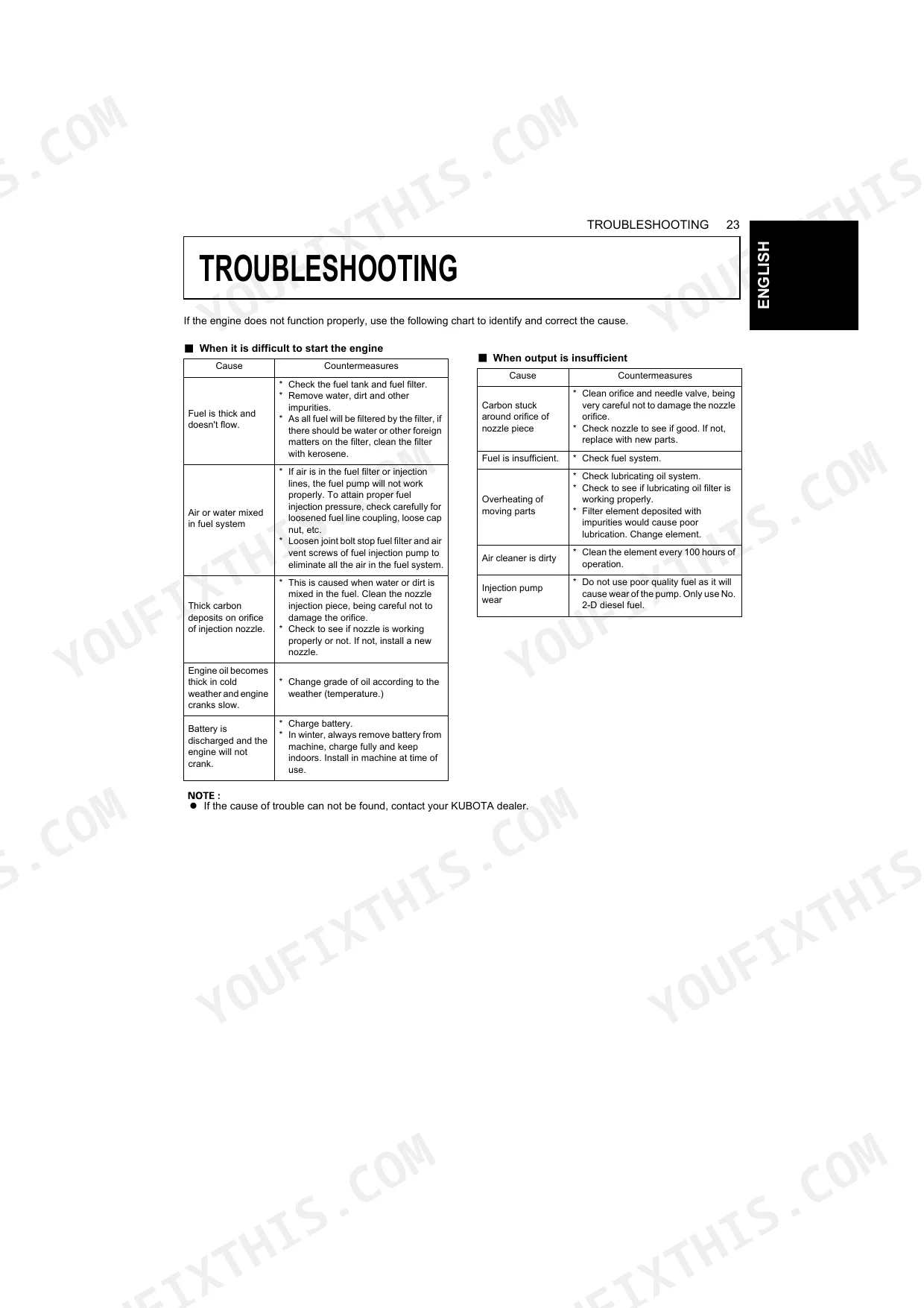

| Troubleshooting | - | When It Is Difficult to Start the Engine, When Output Is Insufficient, When Engine Suddenly Stops, When Color of Exhaust Is Especially Bad, When Engine Overheats |

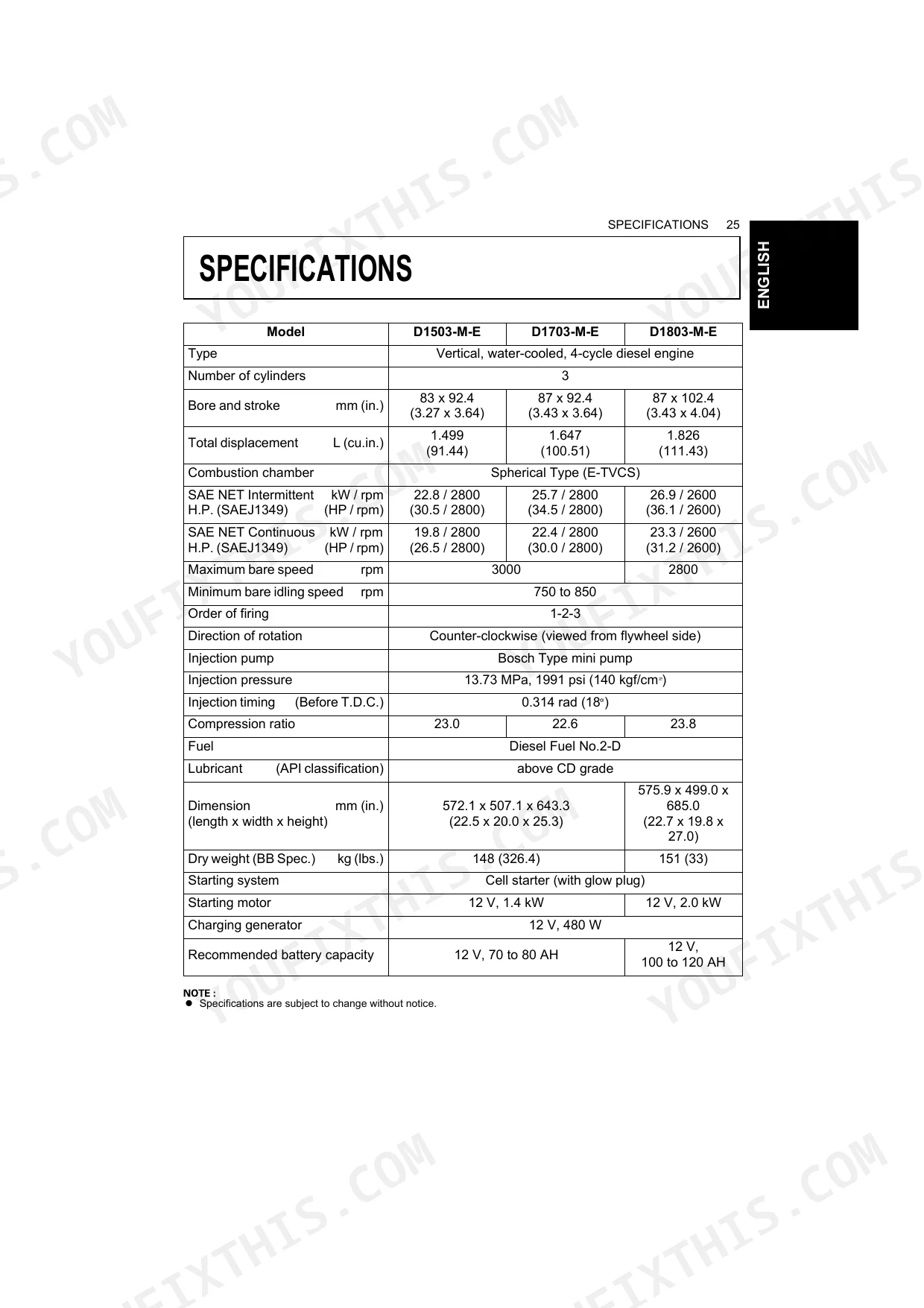

| Specifications | - | Type, Number of Cylinders, Total Displacement, Combustion Chamber, Injection Pump, Recommended Battery Capacity |
| Wiring Diagrams | - | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Injection pressure | 13.73 MPa, 1991 psi (140 kgf/cm²) | p. 35 |
| Engine oil change interval (initial) | 50 Hrs | p. 20 |
| Fuel Cetane Number (Min) | 40 | p. 21 |
| Fan belt tension (deflection) | 7 to 9 mm (0.28 to 0.35 in.) | p. 31 |
| Anti-freeze (50% Vol) Freezing Point | -37 °C (-34 °F) | p. 29 |
| all models (with 124 mm oil pan depth) | ||
| Engine oil change interval (standard, 124 mm oil pan depth) | 200 Hrs | p. 20 |
| D1503-M-E, D1703-M-E, D1803-M-E | ||
| Number of cylinders | 3 | p. 35 |
| V2003-M-E, V2203-M-E, V2003-M-T-E, V2403-M-E | ||
| Number of cylinders | 4 | p. 36 |
| D1503-M-E | ||
| Total displacement | 1.499 L (91.44 cu.in.) | p. 35 |
| D1503-M-E, D1703-M-E, V2003-M-E, V2203-M-E, V2003-M-T-E | ||
| Maximum bare speed | 3000 rpm | p. 35 |
| D1503-M-E, D1703-M-E | ||
| Recommended battery capacity | 12 V, 70 to 80 AH | p. 35 |
| Coolant volume | 5.5 L (1.45 U.S.gals.) | p. 28 |
Kubota 03-Series Diesel Engines Common Problems This Manual Covers
Kubota D1503-M-E engine overheats, coolant loss, or steam coming from the radiator overflow
Inspect the radiator and cooling passages for blockages, then clear any debris packed into the fins. Confirm fan belt deflection sits between 7 to 9 mm (0.28 to 0.35 in.) using page 31. Check that the radiator holds its required 5.5 L (1.45 U.S.gals.) of coolant for this model.
Manual Section: Troubleshooting p. 34Extended cranking, rough running, stalling, or complete no-start condition in cold weather
Bleed air from the fuel lines and drain any water from the filter housing. Confirm you are running diesel with a minimum Cetane number of 40, per page 21. Work through page 33 to trace fuel flow restrictions or carbon buildup.
Manual Section: Troubleshooting p. 33Oil warning lamp on a D1803-M-E suddenly lights up and the engine cuts out mid-operation
Stop the engine at once and read the oil level on the dipstick. Confirm the initial oil change was done at the 50 Hrs mark called out on page 20. Look over the block for visible leaks, then top up to the marked level before restarting.
Manual Section: Troubleshooting p. 34Sudden dark exhaust smoke, rough idle, or uneven power output under load
Pull the air cleaner element and replace it if the dirt load is heavy. Cross-check exhaust color against the guide on page 34. Test that injection pressure reaches 13.73 MPa (1991 psi) from page 35, then drain out any poor-quality diesel.
Manual Section: Troubleshooting p. 34Frequently Asked Questions
How do you reset the Kubota D1503-M-E / D1703-M-E / D1803-M-E / V2003-M-E / V2203-M-E / V2003-M-T-E / V2403-M-E engine service light or alarm?
When the red signal shows on the air cleaner's dust indicator, clean the element right away. Once it is clean, press the "RESET" button to clear the signal. This applies to all models covered: D1503-M-E, D1703-M-E, D1803-M-E, V2003-M-E, V2203-M-E, V2003-M-T-E, and V2403-M-E. p. 31
How do you bleed fuel on a Kubota V2403-M-E after changing the filter?
Fill the tank completely and open the fuel filter lever first. Next, open the air vent cock on top of the injection pump, crank the engine for about 10 seconds (or work the fuel feed pump lever by hand), then close the air vent cock. p. 22
What is the correct fan belt tension on the Kubota D1503-M-E / V2403-M-E engine?
Check fan belt tension by pressing the belt midway between the pulleys. Correct deflection is 7 to 9 mm (0.28 to 0.35 in.) as specified on page 31. Adjust or replace the belt if it falls outside that range. p. 31
How often should I change the engine oil on a Kubota D1503-M-E or V2403-M-E?
The initial engine oil change is due at 50 hours. After that, change oil every 200 hours for engines with a 124 mm oil pan depth. Both intervals are on page 20 of this manual. p. 20
Is this Kubota D1503-M-E & variants Operator Manual a digital download?
Yes. It is a 38-page searchable PDF that downloads the moment checkout finishes. Open it on a laptop, tablet, or phone and take it straight to the shop floor.
Can I print this manual?
Print whatever you need: single pages, full chapters, or the whole manual. The PDF ships completely unlocked, with no restrictions.
