This is the Kubota operator manual for the D1403-EBG, D1703-EBG, V1903-EBG, and V2203-EBG diesel engines, a 38 page PDF you download and keep. These are the vertical, water cooled Kubota diesels used in generators, compressors, and light industrial equipment, and this is the factory reference for running and servicing them.

It walks through safe operation, pre operation checks, starting in normal and cold weather, and stopping the engine correctly. The maintenance and periodic service sections lay out the scheduled tasks: oil and filter changes, fuel filter replacement, air cleaner cleaning, coolant changes, and fan belt adjustment, with intervals and capacities for each engine in the family.

A troubleshooting section helps you work through hard starting, overheating, low oil pressure, and abnormal exhaust, while the specifications and wiring diagram pages give you the numbers and electrical layout. Owners and independent mechanics can use it for routine service without guessing.

What's Inside This Operator Manual

SystemPagesKey Topics
Safe Operation6-11
Servicing of the Engine12Engine
Names of Parts13Intake Manifold, Injection Pump, Cooling Fan, Exhaust Manifold, Alternator, Starter, Flywheel, Oil Pan
Pre-Operation Check14Break-In, Daily Check, To Prevent Trouble From Occurring, It Is Important to Know the Conditions of the
Operating the Engine15-18Starting the Engine(normal), Cold Weather Starting, Stopping the Engine, Checks During Operation, Reversed Engine Revolution and Remedies
Maintenance19-21Service Intervals
Periodic Service22-31Fuel, Engine Oil, Radiator, Air Cleaner, Electric Wiring, Fan Belt
Carriage and Storage32Engine, Radiator, Battery, Valve Guide, Valve Stem Seal, Muffler

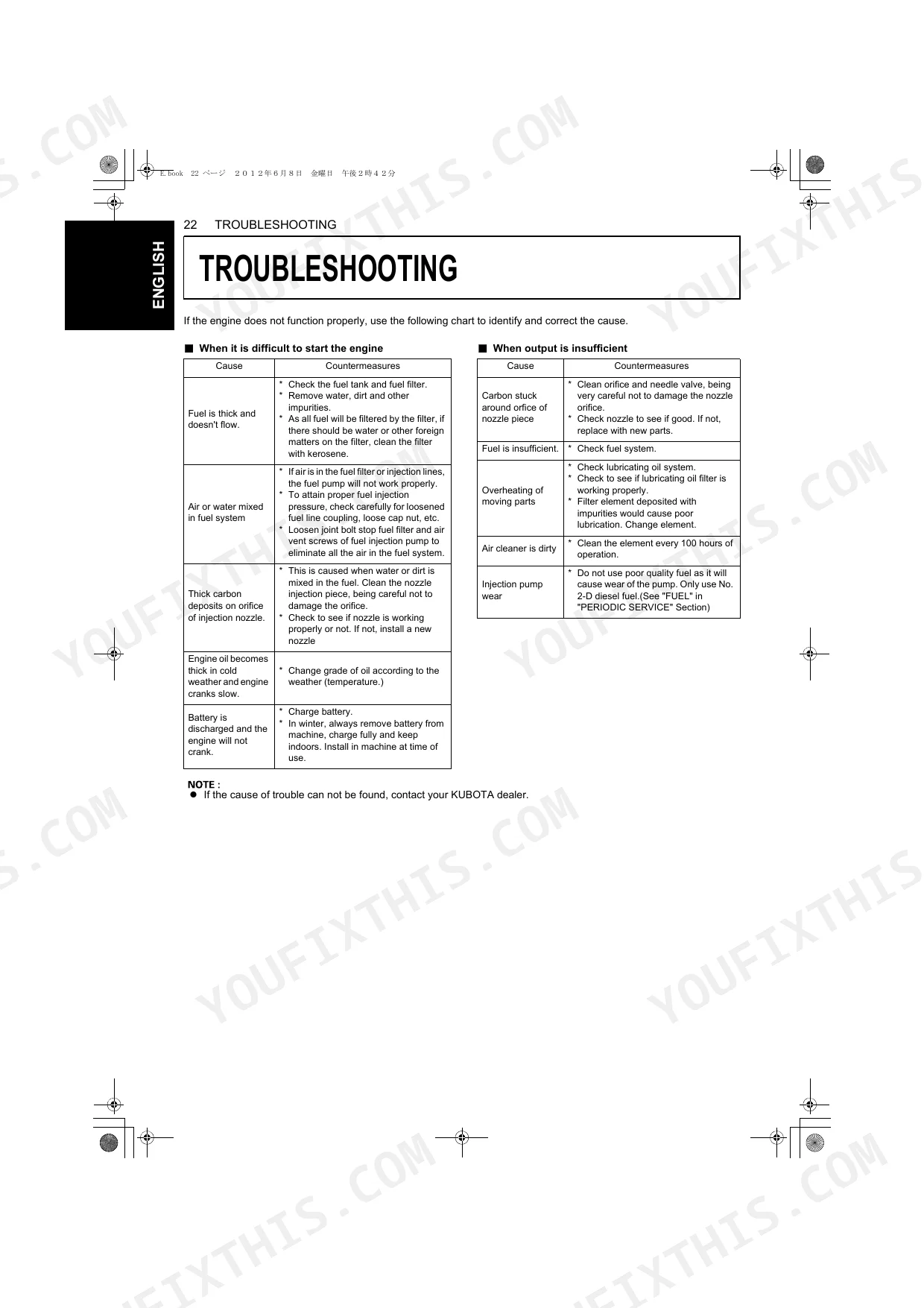

Troubleshooting33-34If the Engine Does Not Function Properly, Use the Following Chart to Identify an

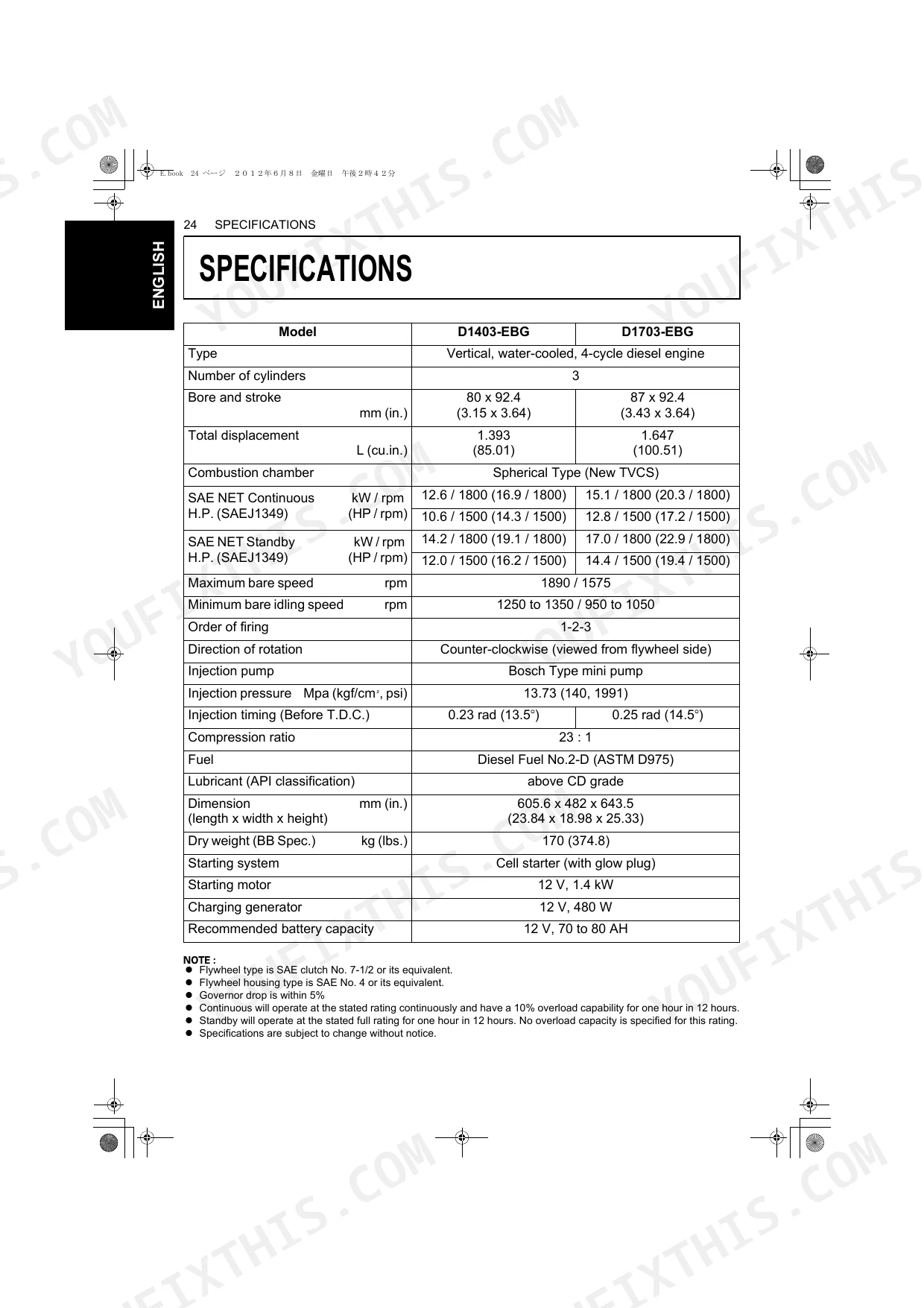

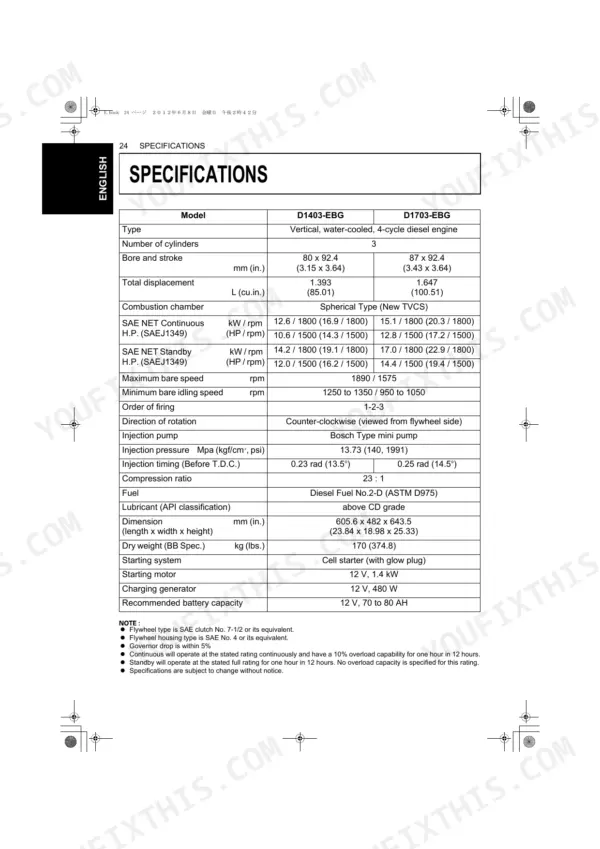

Specifications35-37Injection Pump, Starting Motor, Charging Generator, Flywheel, Flywheel Housing, Glow Plug
Wiring Diagrams38Alternator, Charge Lamp, Oil Switch, Oil Lamp, Glow Plug, Glow Lamp, Battery, Starter

Quick Reference Specifications

SpecificationValuePage
Oil filter cartridge replacement intervalinitial 50 hours, then every 400 hoursp. 25
Oil filter cartridge tighteningScrew in by hand until gasket contacts seal surface, then tighten enough by handp. 25
Engine oil change intervalinitial 50 hours, then every 200 hoursp. 25
Engine oil quantity (D1403-EBG, 124 mm oil pan)7.0 L (1.85 U.S.gals.)p. 24
Fuel filter cartridge replacement intervalEvery 400 operating hoursp. 23
Coolant change intervalEvery yearp. 20
Coolant volume (D1403-EBG)4.2 L (1.11 U.S.gals.)p. 27
Air cleaner element cleaning intervalEvery 100 hoursp. 20
Air cleaner element replacement intervalEvery 3000 hours or every year or every 6 cleaningsp. 20
Fan belt tightness check intervalEvery 100 hoursp. 20
Fan belt replacement intervalEvery 500 hoursp. 20
Fan Belt Tension (deflection)7 to 9 mmp. 31
BrandKubota
ModelD1403-EBG, V1903-EBG, D1703-EBG, V2203-EBG
Machine TypeDiesel Engine
Manual TypeOperator Manual
LanguageEnglish
FormatSearchable PDF (Digital Download)
Pages38
File Size1.7 MB
Manual No.17298-8917-1
Wiring DiagramsYes
Hydraulic SchematicsNo
Torque SpecificationsNo
Bookmarked / IndexedYes
