Part of the Kubota Operator Manuals.
Running and maintaining your BH70 backhoe requires exact factory data. This 39-page Kubota Operator Manual (OEM #7K506-7991-1) delivers the specific dimensions and procedures you need, straight from the manufacturer. You will find detailed safe operation guidelines covering pre-operating checks, road transport rules, and precise control layouts for the boom, swing, dipperstick, and stabilizers. The specifications section provides a maximum digging depth of 2197 mm (86.5 in.), 180-degree bucket rotation limits, and a bucket cylinder digging force of 2900 lbs (12900 N). Maintenance schedules outline daily checks, 50-hour sub frame bolt inspections requiring 176-203 N-m (130-150 ft-lbs) of torque, and proper lubrication points. Because this PDF is fully searchable and bookmarked, finding the correct removal and reinstallation sequence takes seconds.
What's Inside This Kubota BH70 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | - | Before Operating Backhoe, Operating the Backhoe, Safety for Children, Driving the Tractor on the Road, Servicing the Backhoe, Danger, Warning and Caution Labels, Care of Danger |
| Servicing of Backhoe | - | - |
| Specifications | - | Digging Force, Cycle Time, Hydraulic Cylinders, Bucket Alternatives |
| Backhoe Terminology | - | Backhoe Bucket, Bucket Teeth, Link, Bucket, Cylinder, Dipperstick |
| Pre-Operating Instructions | - | Pre-Operation Checks, Operator's Seat, Ballast, Operation, Reversing the Seat |

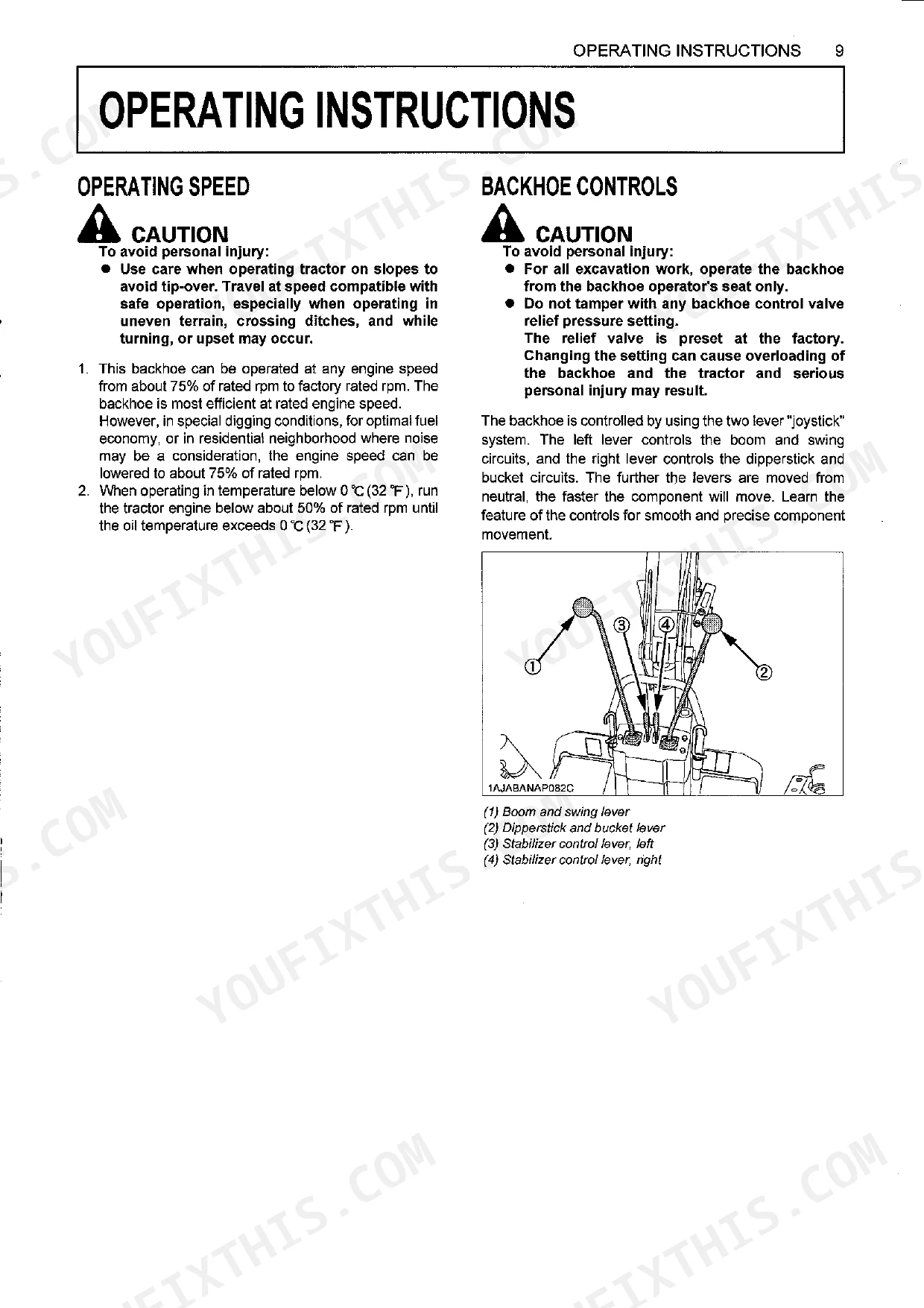

| Operating Instructions | - | Operating Speed, Backhoe Controls (Boom & Swing Lever, Dipperstick & Bucket Lever, Stabilizer Control Levers) |
| Maintenance | - | Daily Checks, Every 50 Hours (Checking Sub Frame Bolt Torque), Lubrication, Tire Inflation, Bucket Service (Changing: Backhoe Bucket, Bucket Teeth) |
| Removing the Backhoe | - | - |
| Reinstalling the Backhoe | - | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| M16 bolt and nut Tightening torque (Sub Frame) | 176-203 N-m (18.0-20.7 kgf-m, 130-150 ft-lbs) | p. 27 |
| Hose fitting, Flare nut (UNF) Tightening torque (9/16 thread size) | 22 to 25 N-m (2.3 to 2.6 kgf-m, 16 to 19 ft-lbs) | p. 30 |
| Tractor stopping distance from backhoe for reinstallation | 254 to 304 mm (10.0 to 12.0 in.) | p. 35 |

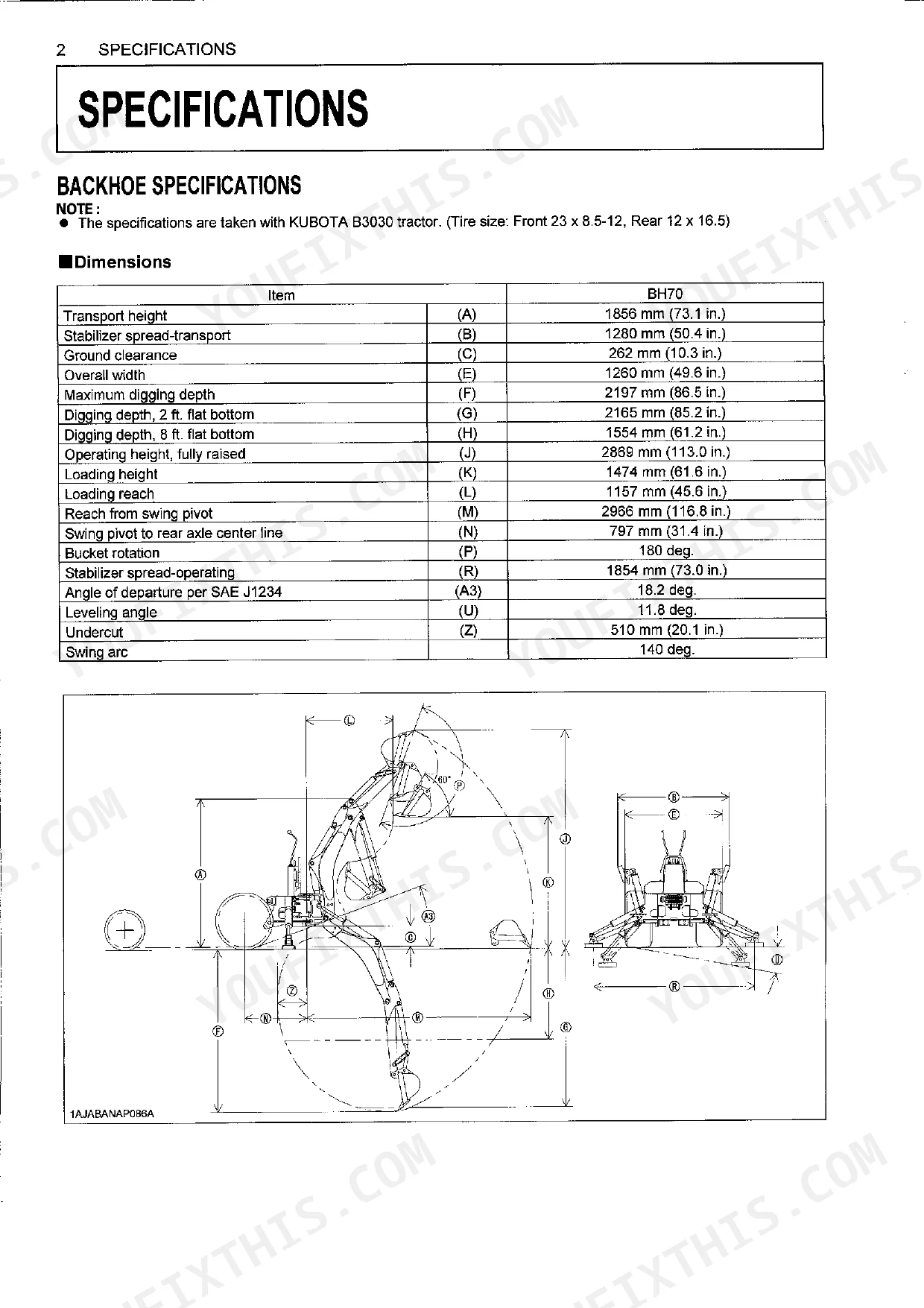

| Maximum Digging Depth | 2197 mm (86.5 in.) | p. 12 |
| Bucket Rotation | 180 deg. | p. 12 |
| Digging Force (Bucket Cylinder) | 2900 lbs (12900 N) | p. 13 |
| Boom Cylinder Extend Time | 3.4 seconds | p. 13 |
| Hydraulic Cylinder Rod Diameter (Boom, Dipperstick, Bucket, Swing) | 3.0 cm (1.18 in.) | p. 13 |
| Trenching 10" Bucket Weight | 29 kg (64 lbs) | p. 13 |
| Sub Frame M16 Bolt Torque | 176-203 N-m | p. 27 |

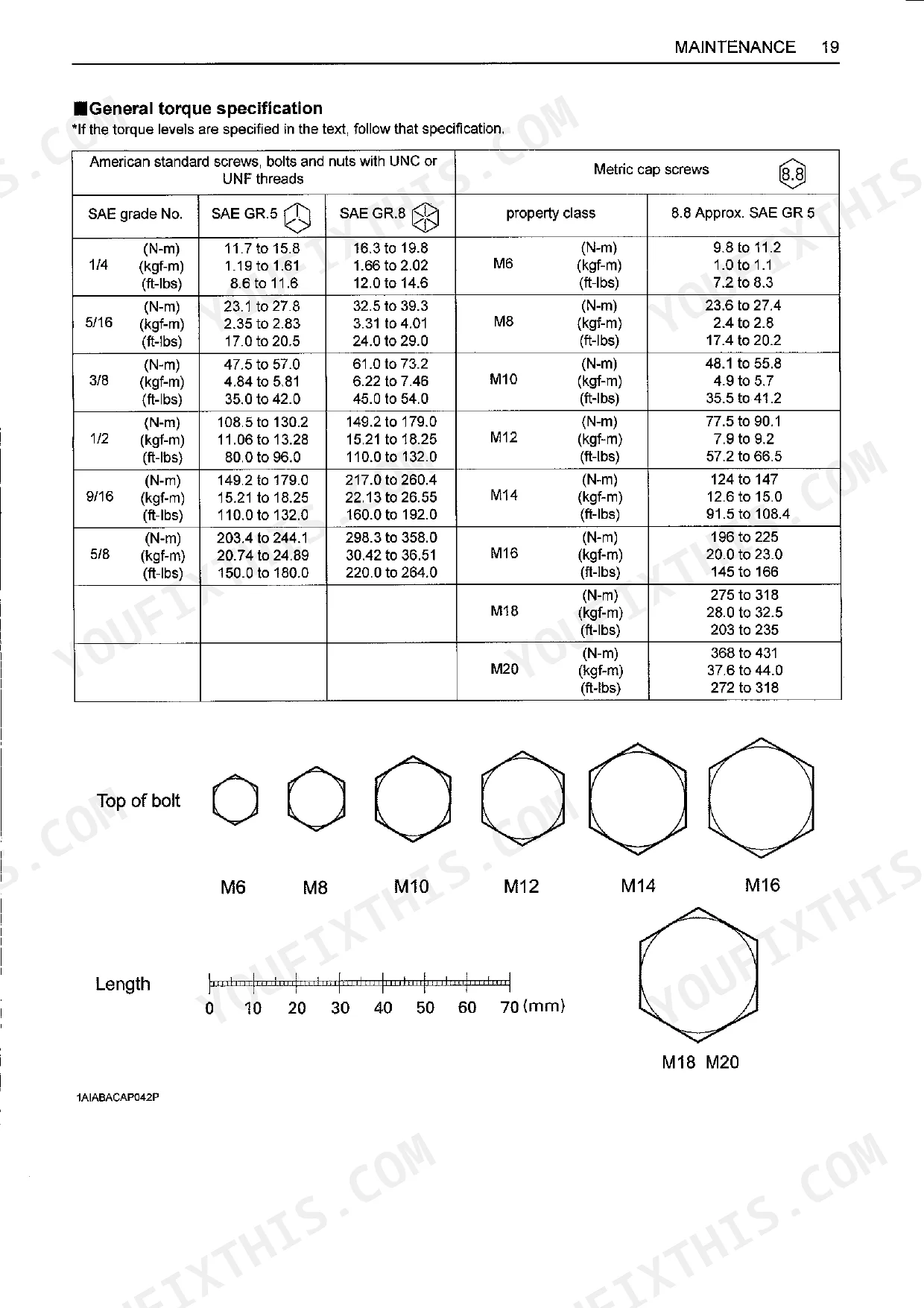

| SAE GR.5 1/4" Bolt Torque | 11.7 to 15.8 N-m | p. 29 |
| Metric 8.8 M6 Cap Screw Torque | 9.8 to 11.2 N-m | p. 29 |
Kubota BH70 Common Problems This Manual Covers
Hydraulic hoses refuse to connect or seat properly after removing the backhoe from the tractor
Review the reinstallation sequence on page 35: position the tractor 254 to 304 mm (10 to 12 in.) from the backhoe frame before backing in. Label each hose before removal so ports match on reconnect. Wipe all coupler faces clean, then torque 9/16 UNF flare nut fittings to 22 to 25 N-m (16 to 19 ft-lbs) per page 30.
Manual Section: Reinstalling the Backhoe p. 35Bucket curl lever has excessive play or fails to respond when operating
Check the bucket linkage pins and retaining clips for visible looseness or missing hardware before each use. Move the curl lever slowly through its full range and watch each pivot point for play. Lubricate all bucket pivot points every 10 hours to maintain smooth control response. If play persists, park the machine and consult page 11 before resuming work.
Manual Section: Operating Instructions p. 19Hydraulic oil dripping from hose fittings after reinstalling backhoe, connections won't seal

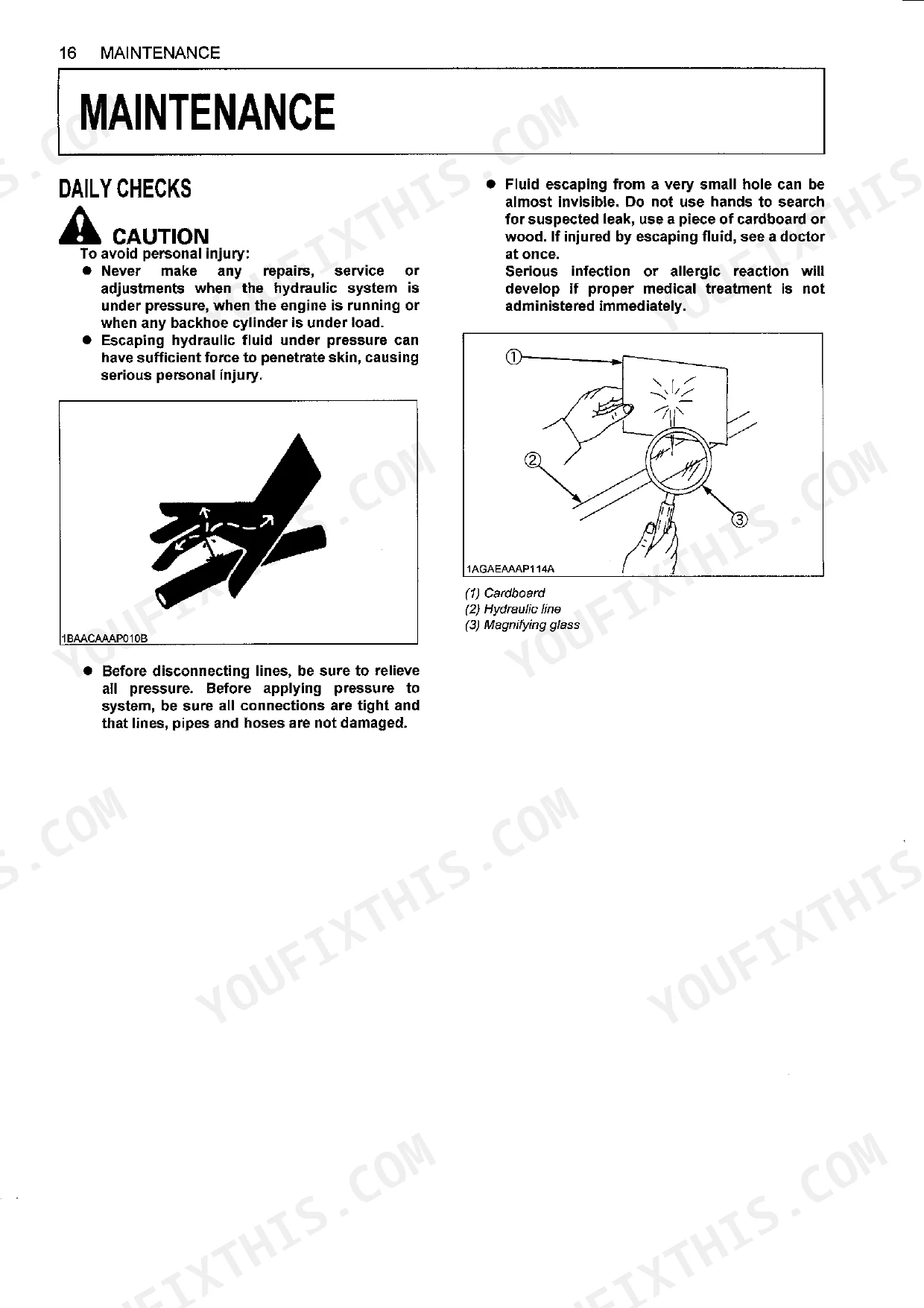

Examine all hose connections for visible seeping before cycling any functions. Torque loose 9/16 UNF flare nut fittings to 22 to 25 N-m (16 to 19 ft-lbs) per page 30. Never probe for leaks with bare hands under pressure; use a piece of cardboard instead. Review the hydraulic leak safety instructions on page 26 before resuming operation.
Manual Section: Maintenance p. 26Backhoe feels unstable or shifts sideways during digging, stabilizer pads won't hold
Plant both stabilizer pads fully on firm, level ground before starting any digging. Verify each stabilizer control lever, shown on page 19, is locked in the hold position and not just resting against its stop. Stay within the rated digging force of 2900 lbs (12900 N) and avoid sudden full-stroke swings that can rock the machine off its pads.
Manual Section: Operating Instructions p. 19Grease fittings block or won't accept grease during the scheduled 10-hour service
Wipe each fitting clean with a rag before attaching the grease gun to prevent dirt from entering pivot bores. Service all grease points every 10 hours; a fitting that won't take grease likely has a seized ball check inside. Replace blocked fittings before the next use to protect pins and cylinder end bores from accelerated wear.
Manual Section: Maintenance p. 26Frequently Asked Questions
What are the torque specs for Kubota BH70 mounting bolts?
For the M16 bolt and nut on the sub frame, the tightening torque is 176-203 N-m (130-150 ft-lbs). For the M12 stud and nut at the rear axle case, the stud tightening torque is 26.5-44.1 N-m (19.5-32.5 ft-lbs) and the nut tightening torque is 90 N-m (66.4 ft-lbs). These checks should be performed every 50 hours. p. 27
How do I bleed air from a Kubota BH70 backhoe?
After reinstalling the backhoe, move the tractor/loader/backhoe to an open area and cycle all backhoe functions. This process will check their operation and flow oil back through the system, filtering it and refilling each circuit, which helps to remove air. Remember to check the hydraulic oil level before full operation. p. 36
How do I remove and reinstall a Kubota BH70 backhoe?

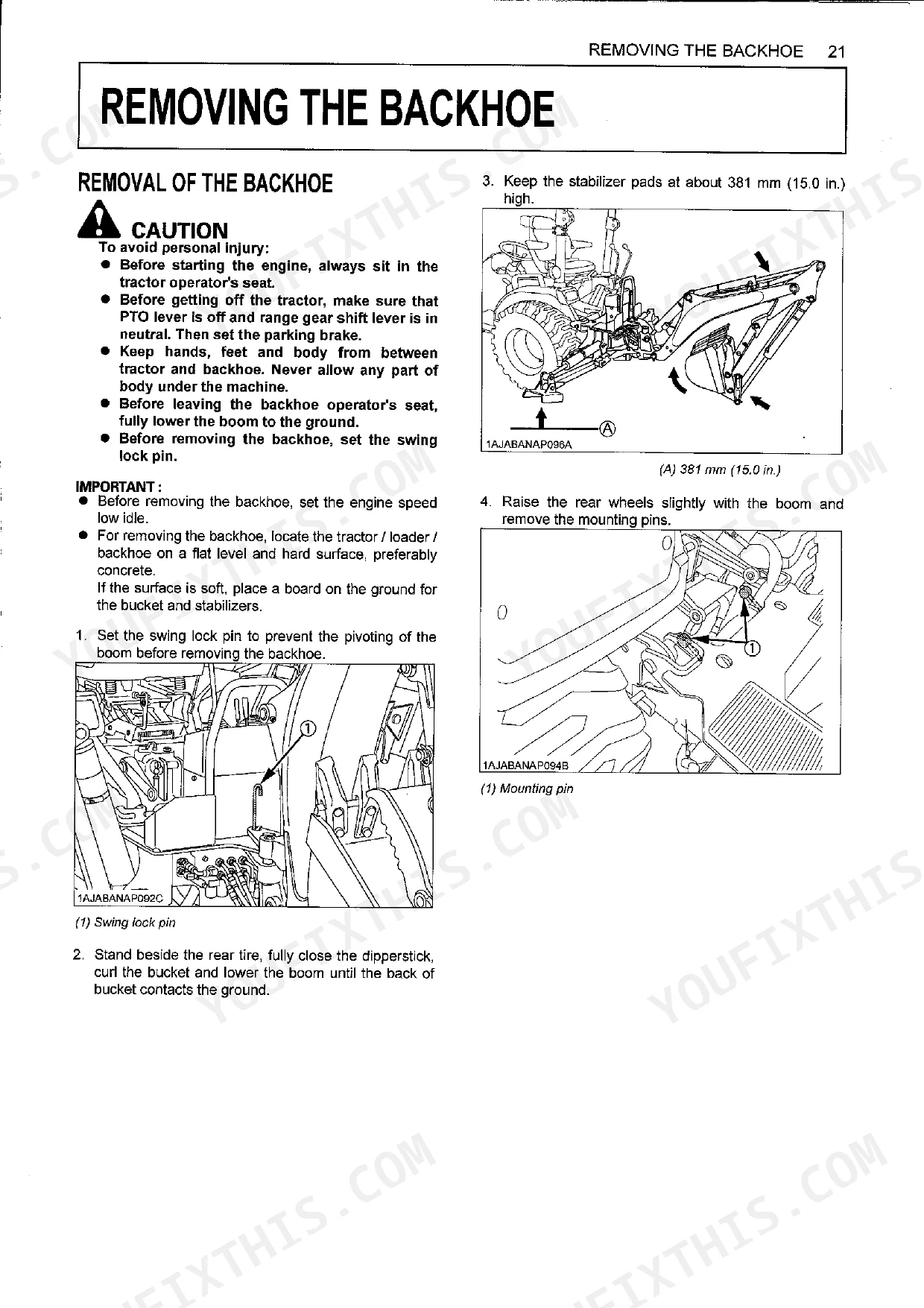

Detailed procedures for removing the backhoe can be found starting on page 31, and for reinstalling the backhoe starting on page 35. Key steps include setting the swing lock pin, lowering the boom to the ground, raising the rear wheels slightly to remove mounting pins, and carefully moving the tractor away. Reinstallation involves backing the tractor, connecting hydraulic hoses, and securing mounting pins. p. 31
What is the correct tractor stopping distance when reinstalling the Kubota BH70 backhoe?
Position the tractor 254 to 304 mm (10.0 to 12.0 in.) from the backhoe frame before backing in for reinstallation, per page 35. After connecting all hydraulic hoses, move to an open area and cycle all backhoe functions to purge air and check hydraulic oil level. p. 35
Is this Kubota BH70 Operator Manual a digital download?
You get a 39-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, bring it right to the shop floor.
Can I print this manual?
Yes. The PDF has no DRM restrictions, print any page or section you need for your shop. Works with any standard printer.
